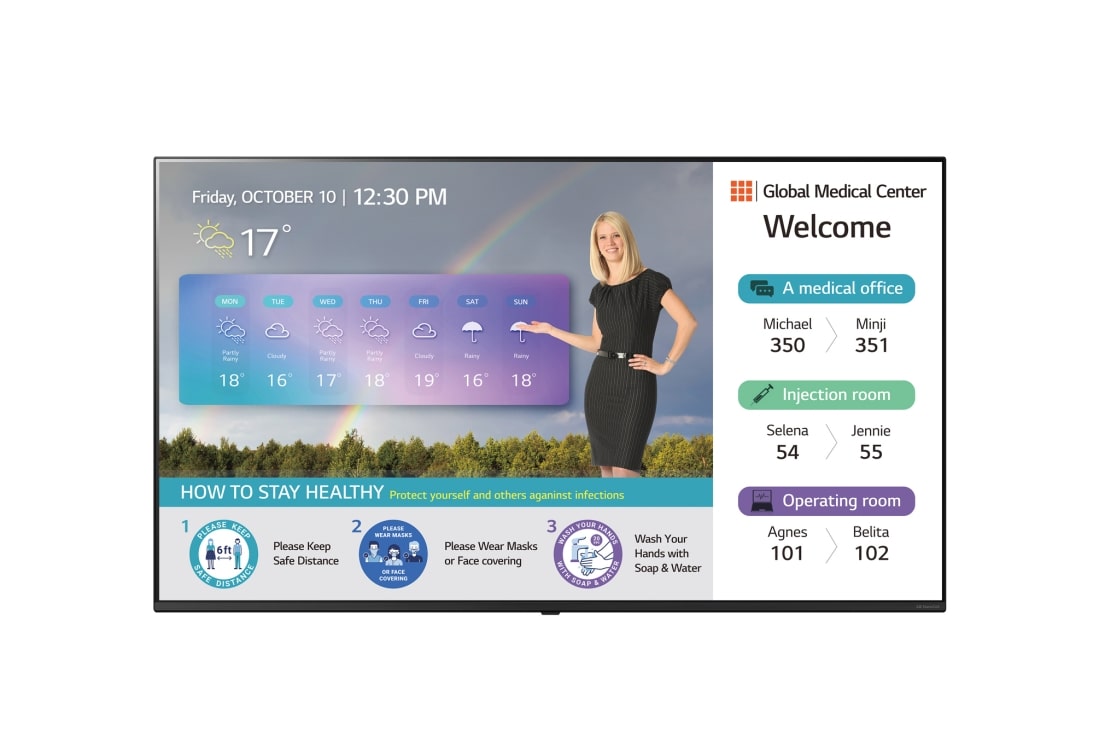

LG US772M Series, Front view with infill image, 55US772M (NA only), thumbnail 1

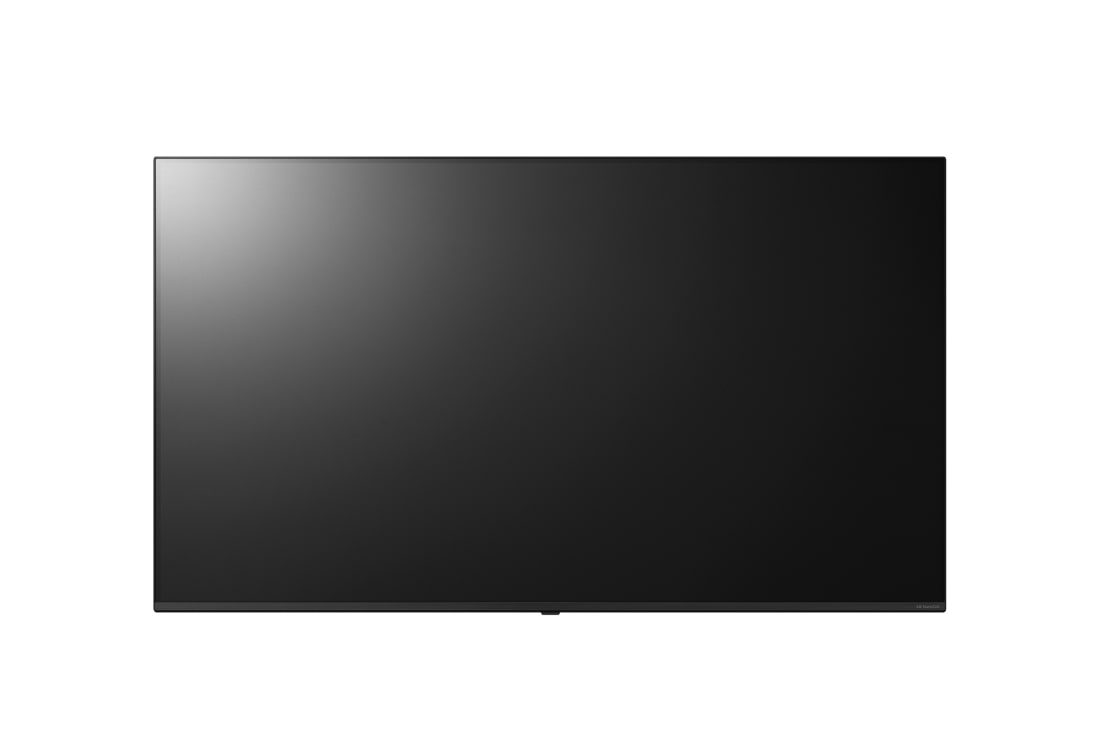

LG US772M Series, Front view, 55US772M (NA only), thumbnail 2

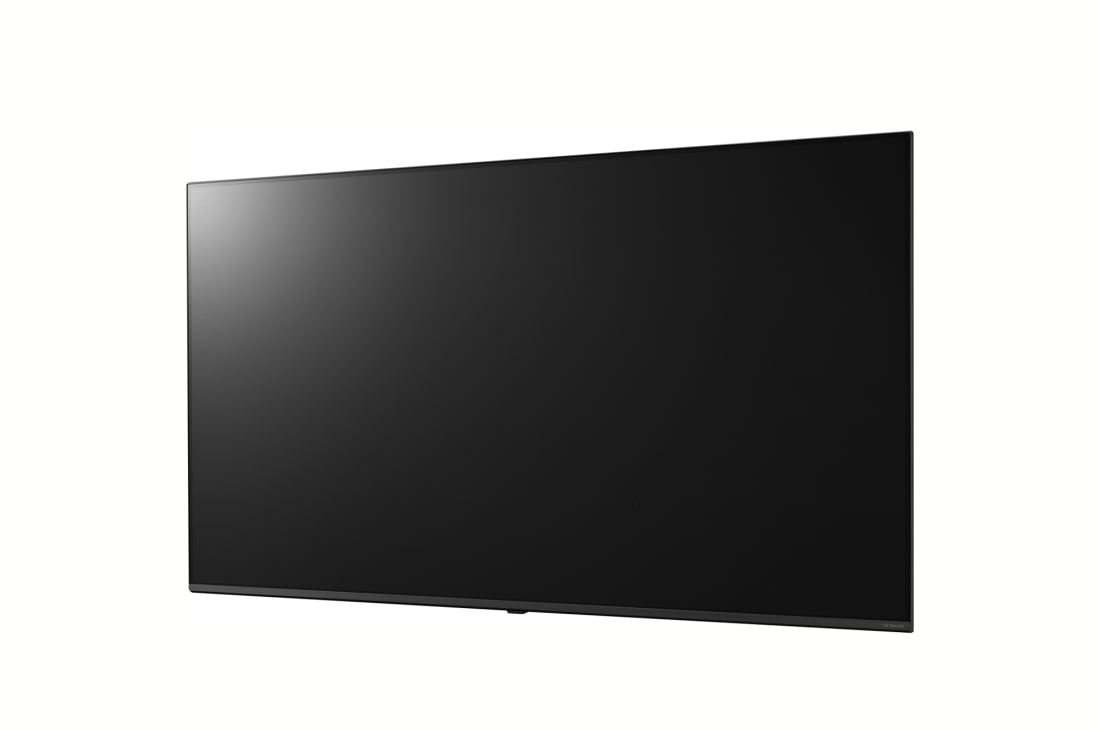

LG US772M Series, -15 degree side view, 55US772M (NA only), thumbnail 3

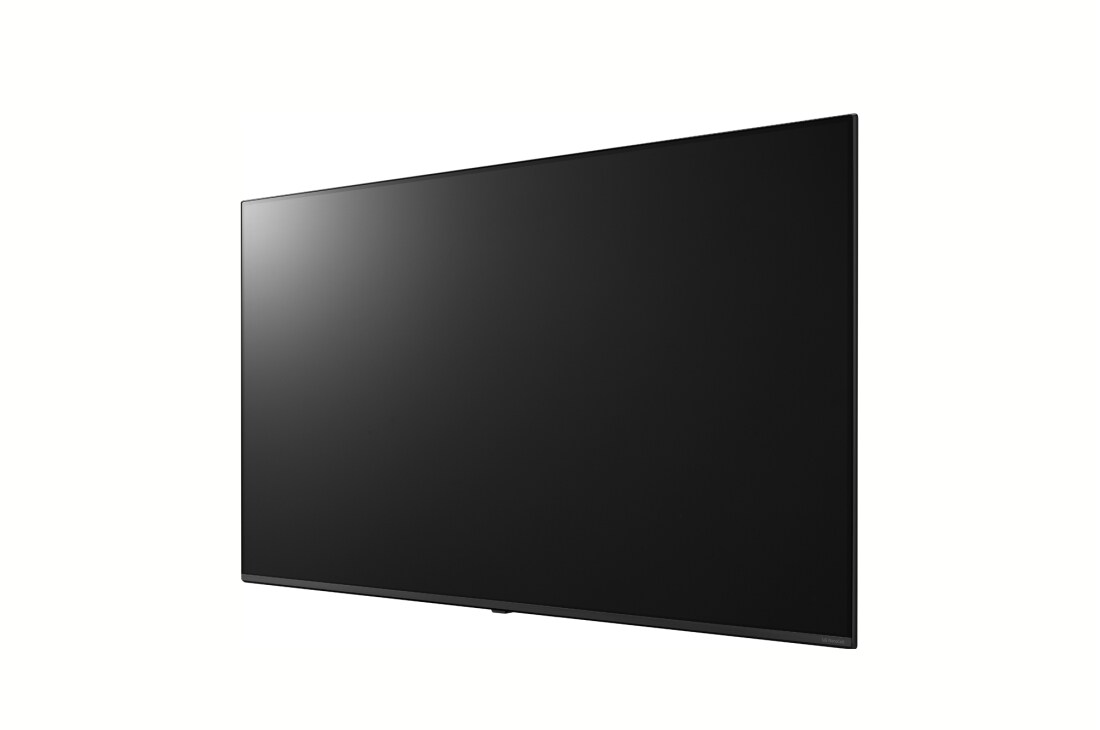

LG US772M Series, -45 degree side view, 55US772M (NA only), thumbnail 4

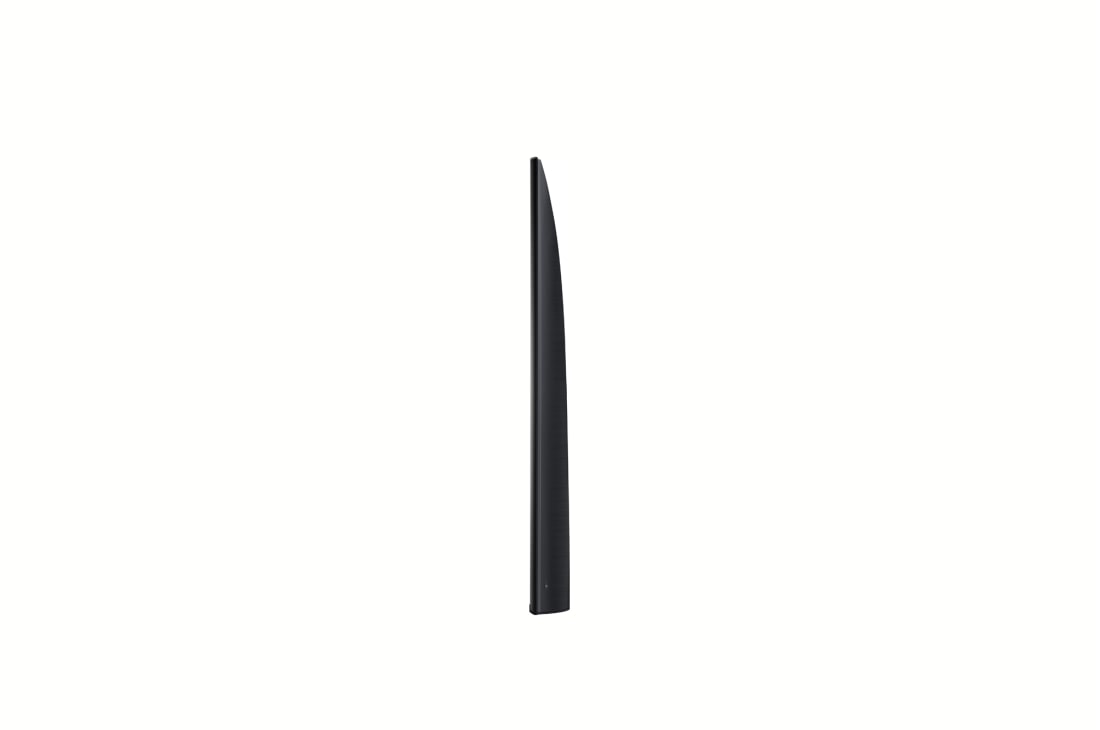

LG US772M Series, -90 degree side view, 55US772M (NA only), thumbnail 5

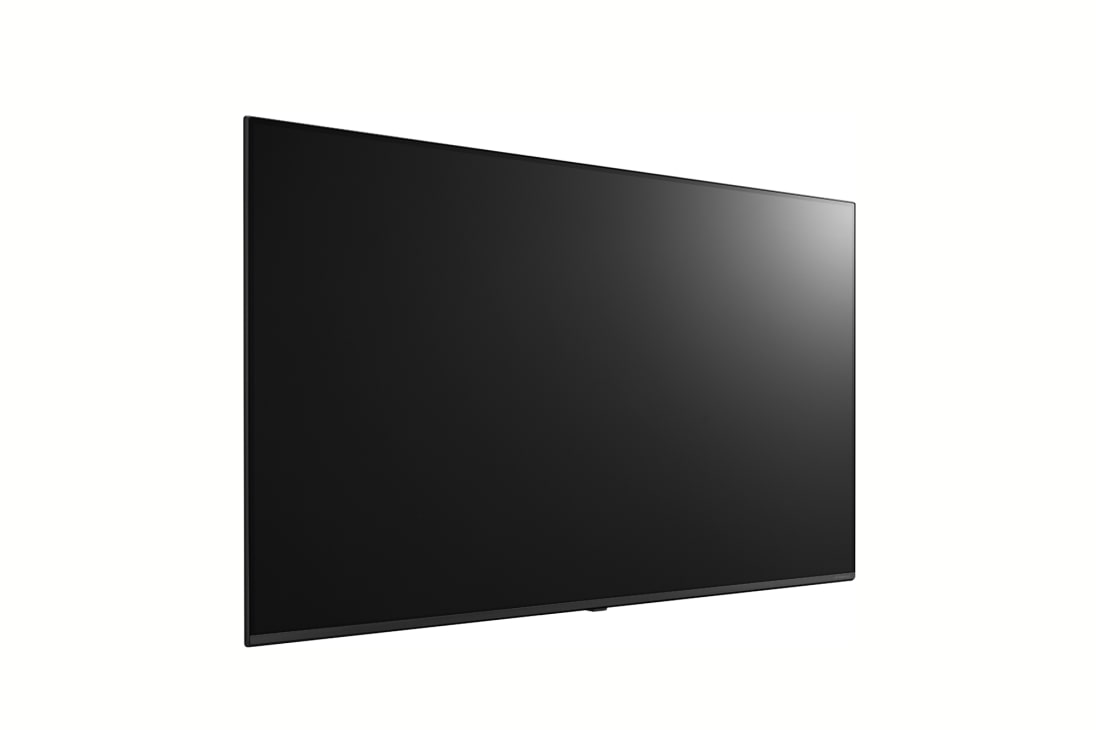

LG US772M Series, +45 degree side view, 55US772M (NA only), thumbnail 6

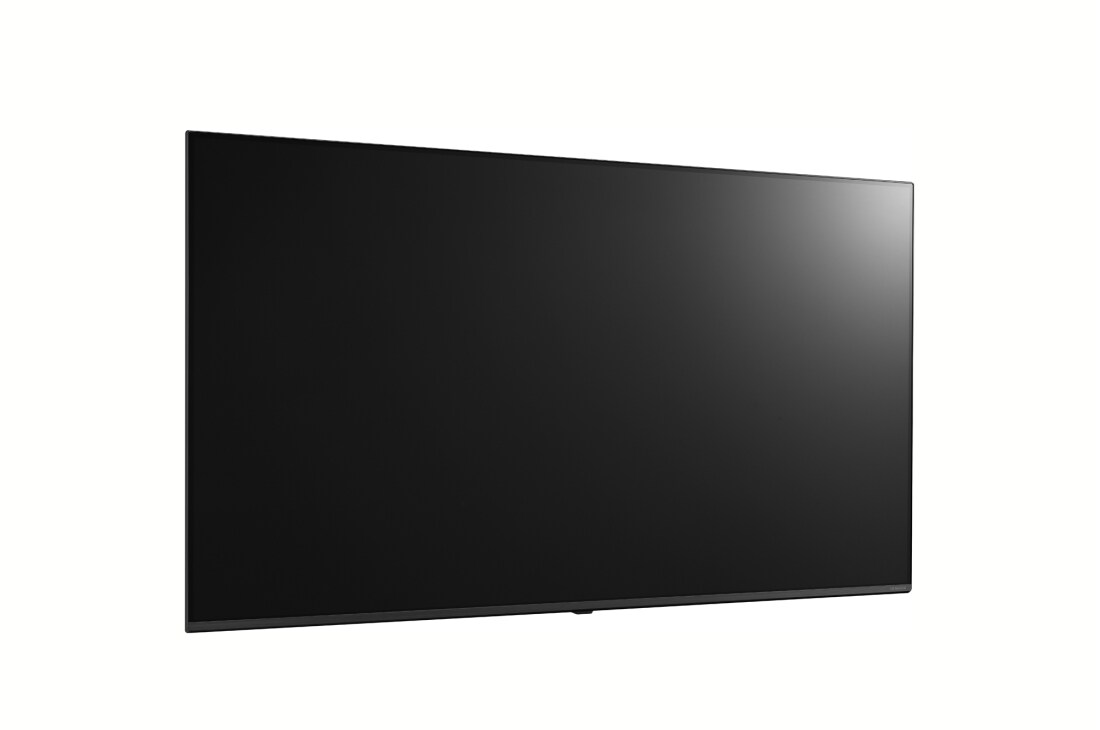

LG US772M Series, +15 degree side view, 55US772M (NA only), thumbnail 7

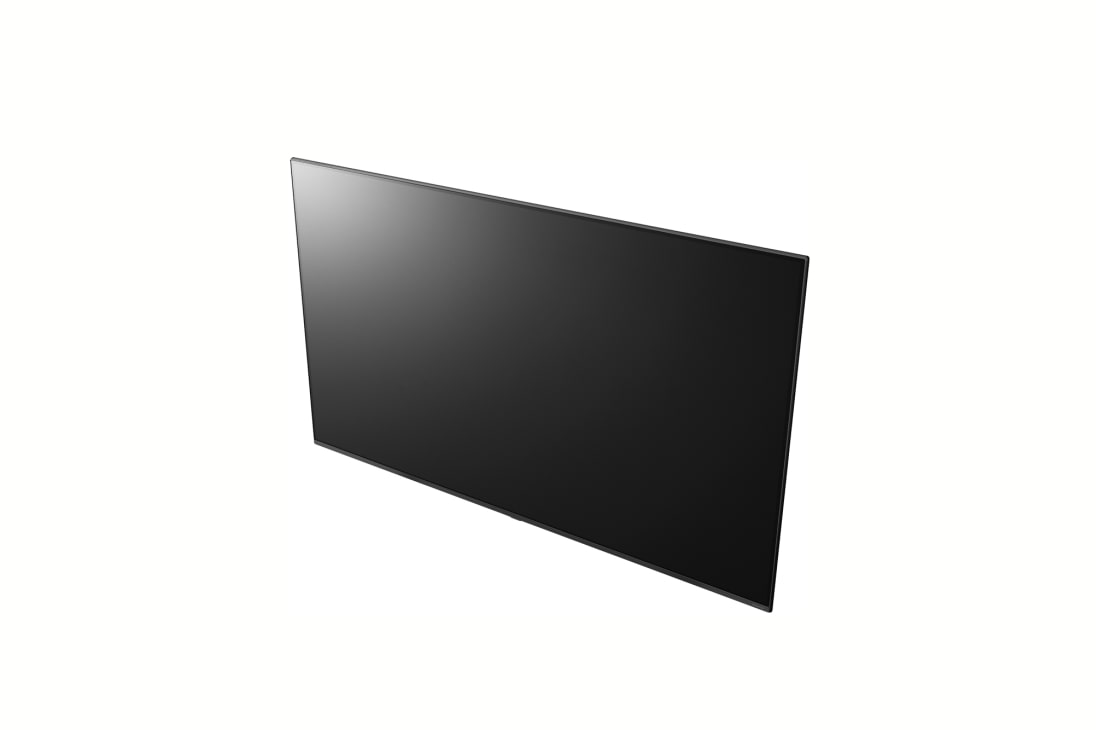

LG US772M Series, Image taken from the top right, 55US772M (NA only), thumbnail 8

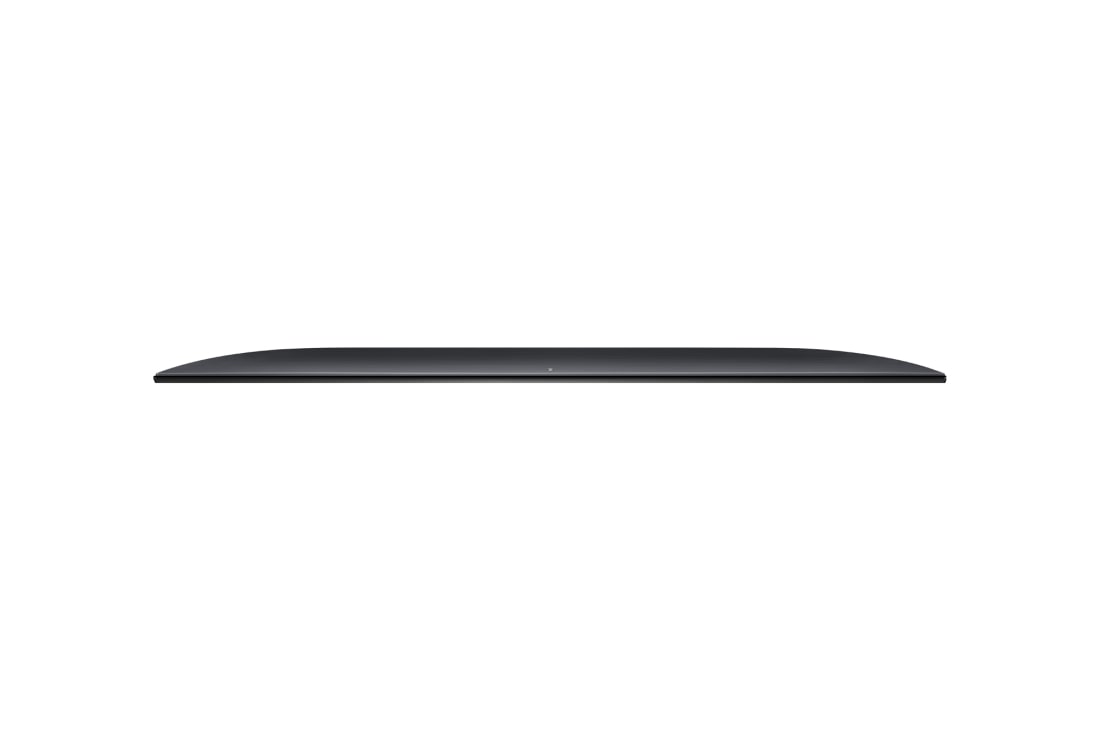

LG US772M Series, Top view, 55US772M (NA only), thumbnail 9

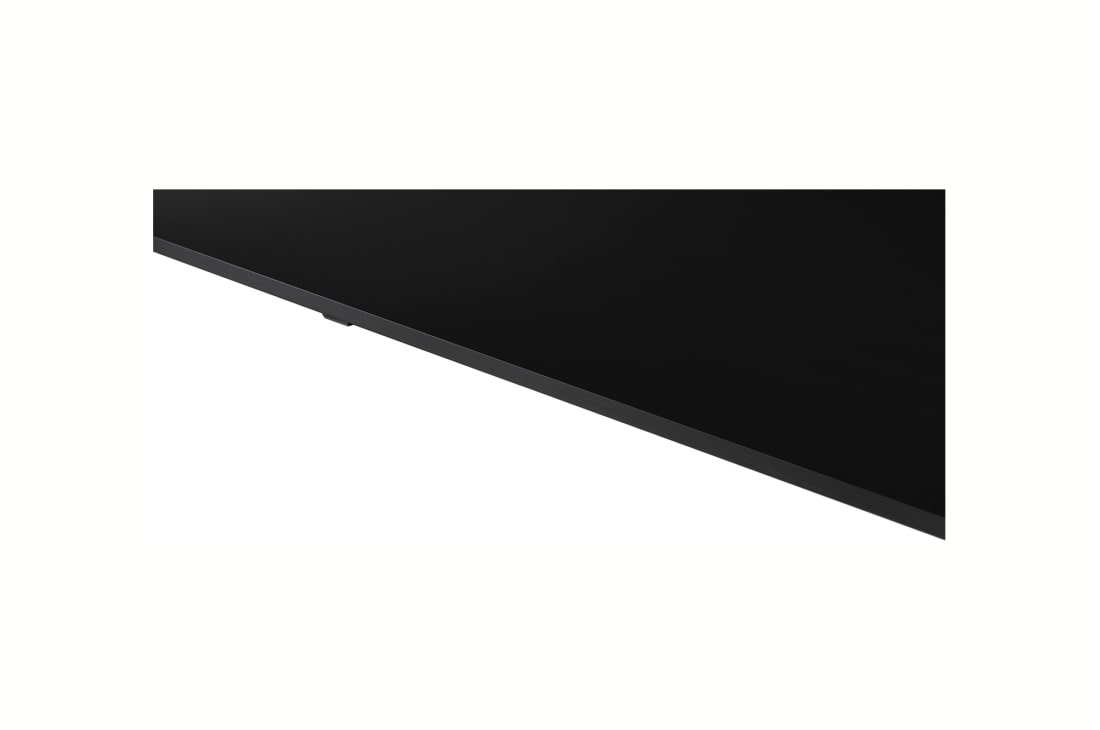

LG US772M Series, Close-up image of bottom, 55US772M (NA only), thumbnail 10

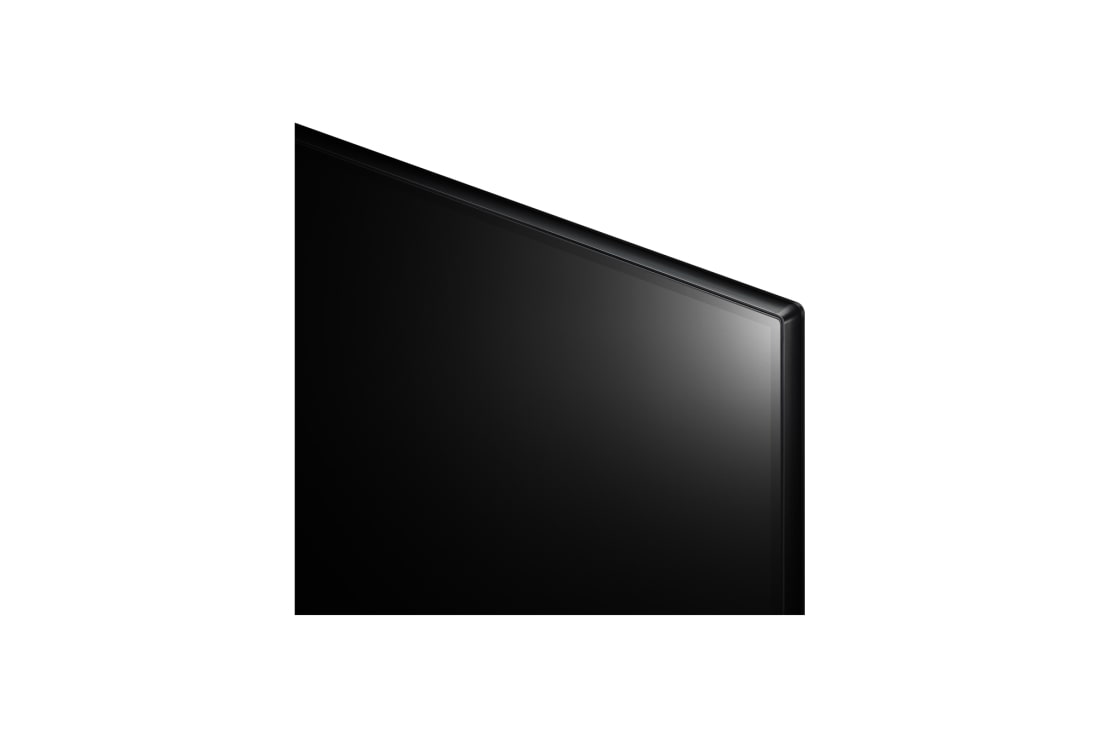

LG US772M Series, Close-up image of top right corner, 55US772M (NA only), thumbnail 11

Discontinued

55US772M (NA only) component-copyModelName

US772M Series

Key Features

NanoCell Display
UL Hospital Grade Listed
Pillow Speaker & Nurse Call Ready
Web-based Group Telemedicine Ready
Pro:Centric Hospital Management Solution

Choose your Size

Inquiry to Buy

Add to Compare

component-OBScountrySelectDesc

Key Features

NanoCell Display
UL Hospital Grade Listed
Pillow Speaker & Nurse Call Ready
Web-based Group Telemedicine Ready
Pro:Centric Hospital Management Solution

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

US772M Series

UL-Listed Hospital TVs with NanoCell Technology

The US772M series, LG NanoCell Hospital TV, can play an important role as a medium between hospital and patient, or doctor and patient, as well as its existing role in relieving patients' boredom by being installed in bedrooms or waiting areas.

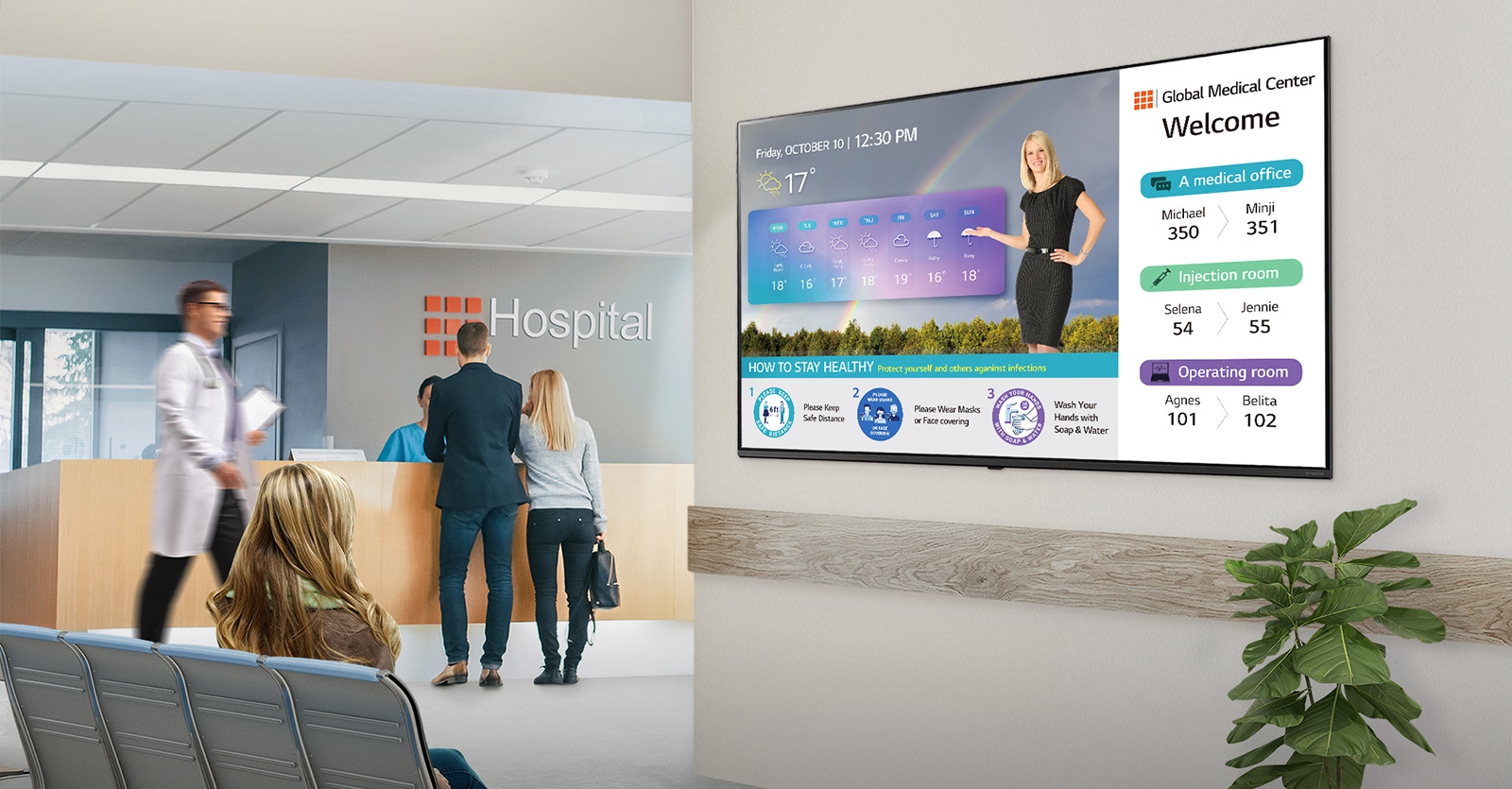

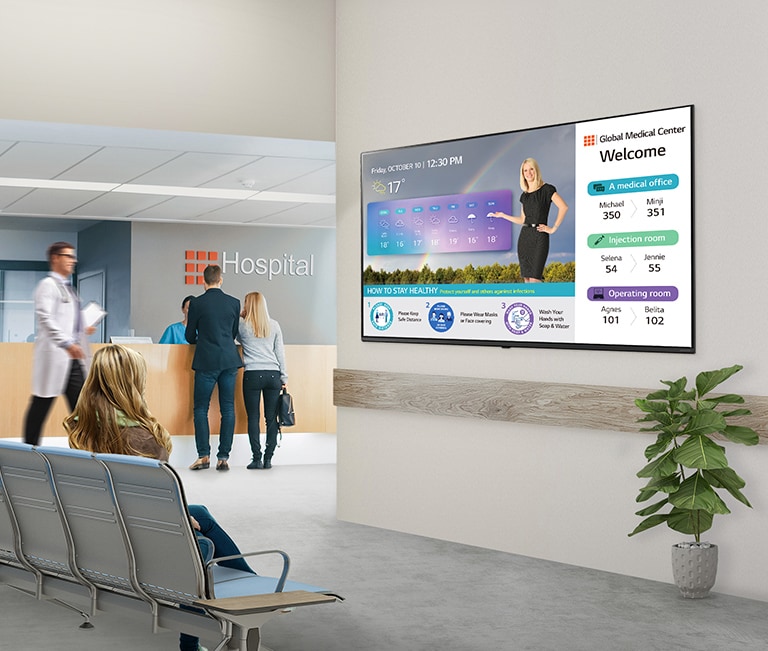

There is a TV set on the wall of the hospital lobby for waiting people.

* 65 inch
* All images are for illustrative purposes only.

Real 4K Made by Pure Colors

The NanoCell hospital TV delivers a broad spectrum of color and lifelike accuracy with advanced NanoCell technology. Providing more brilliant and clear 4K, its visual experience will make viewers captivated.

A TV is screening more realistic and vivid color compared to the background.

* Conventional refers to LG’s UHD TVs without NanoCell technology.
** Image simulated

Nano Bezel Adds Sophisticated Ambiance

Bigger yet keeping a sleek look. With its minimal Nano Bezel, the US772M series is designed to blend into any interior while creating a great immersion with a large screen size.

A TV's bezel is so thin that it reduces the difference between the screen and the real thing, so the zebras on the screen look lively.

Hospital-Focused Functions

A patient lying in the bed is controlling the TV through a pillow speaker connected to the US772M.

Pillow Speaker Ready

The NanoCell hospital TV is equipped with the interface compatible with a pillow speaker* which controls sound and videos on TV directly from a patient’s bedside.

* Pillow speaker is not provided by LG. (sold separately)
Nurse Call System Ready

Through nurse call system provided by a pillow speaker connected to LG hospital TV, staff can be called immediately for emergency.
UL Hospital Grade Listed

The US772M series is designed for the healthcare and hospital environment, meeting safety requirements by UL.

Group Telemedicine Ready

LG NanoCell Hospital TV is ready for web-based telemedicine. Without an additional video conferencing equipment, SI can develop and deploy their web applications for 1:1 or 2:1 remote meeting. If necessary, controlling of camera* angle and zoom during a meeting is also possible.

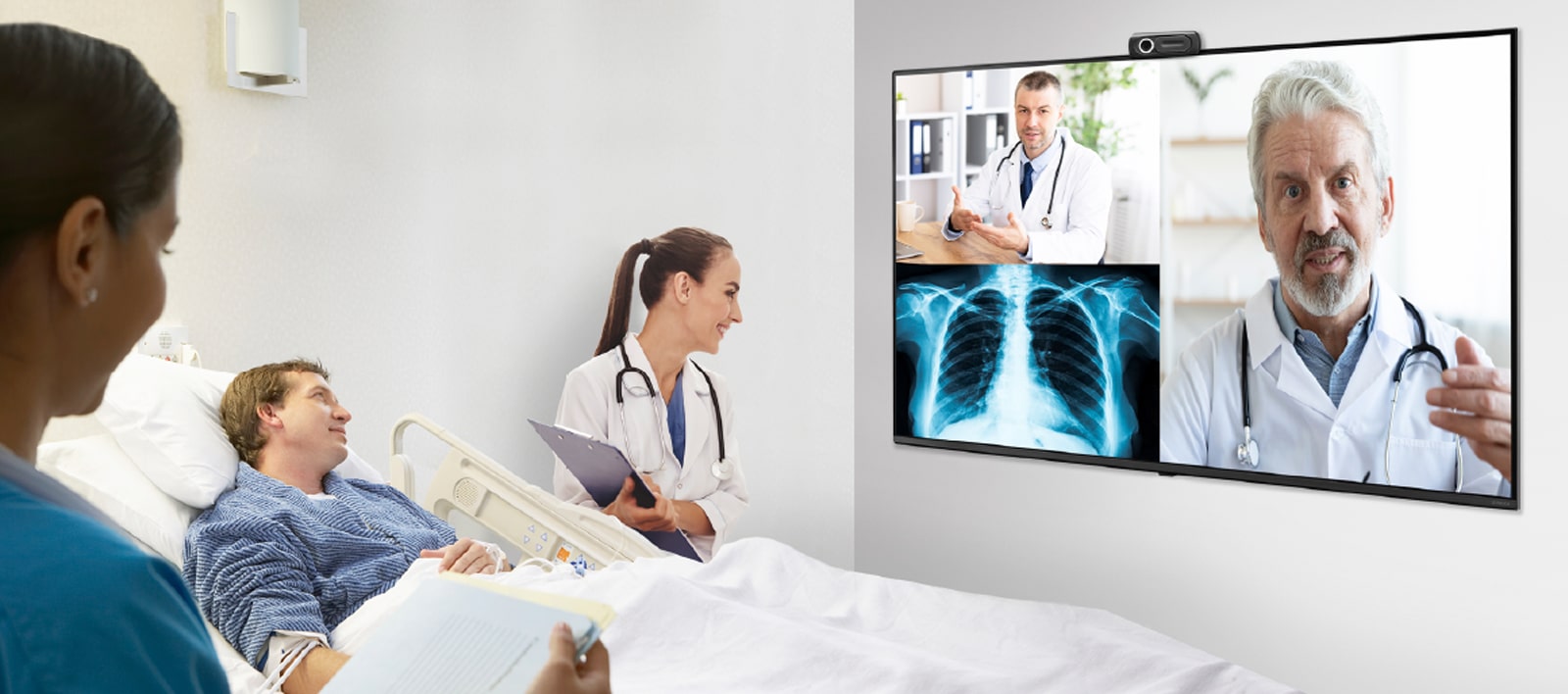

A doctor is giving web-based telemedicine to patient in the hospital room via TV.

* Supporting camera : Logitech C310, MS lifecam HD-3000
** The feature above requires a separate web application.

Pro:Centric Hospital Management Solution

The hospital content management solution Pro:Centric Direct offers easy and simple editing tools, making it easy to perform service and IP network-based remote management. The Pro:Centric Direct solution enables users to edit their interface easily by providing customized interface and efficiently manages all TVs in the hospital.

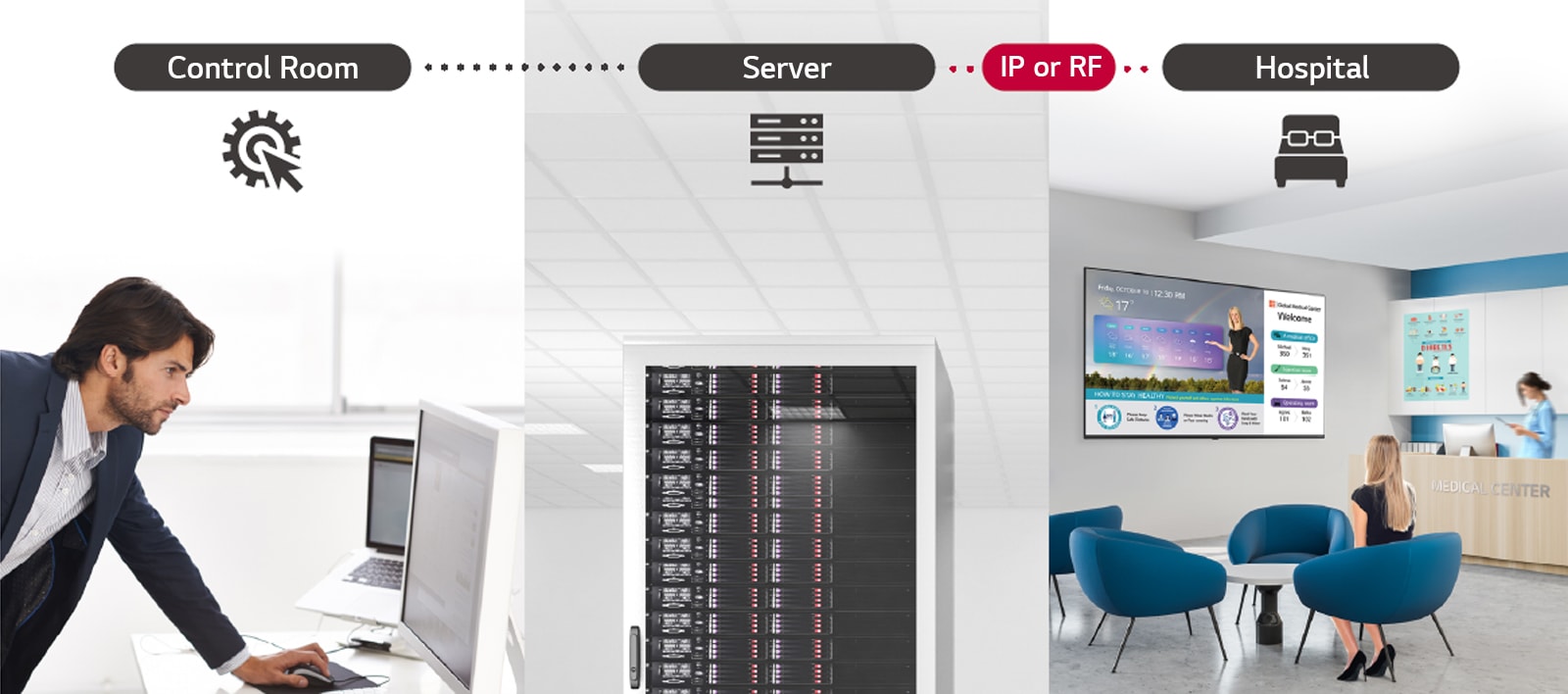

A man is managing some contents and settings of TV in the hospital using Pro:Centric Direct solution through server.

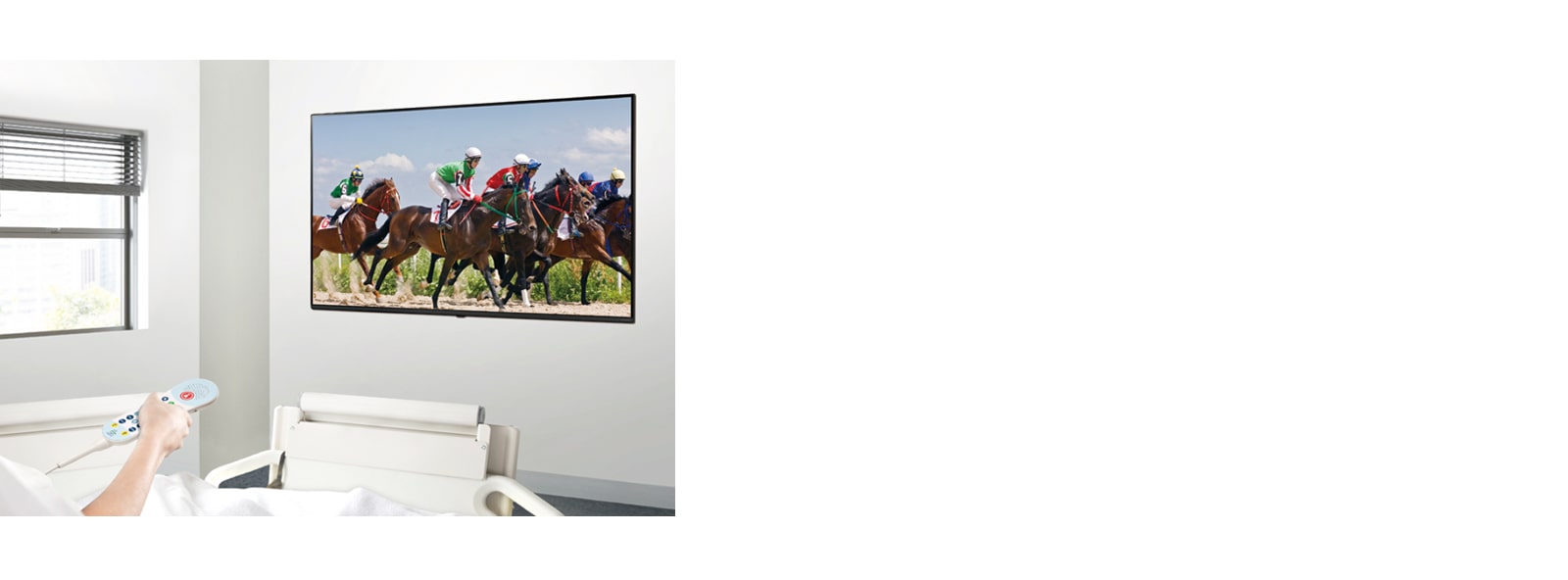

A patient in the hospital room is watching VOD on a TV hanging on the wall without a set-top box.

Embedded b-LAN

LG NanoCell Hospital TV supports embedded broadband local area network (b-LAN), enabling PPV (Page Per View) and VOD service without the need for a set-top box.

Pro:Idiom

The US772M provides embedded Pro:Idiom decryption, unlocking access to high-value digital content with Pro:Idiom DRM (Digital Right Management) which prevents illegal copying of the content.

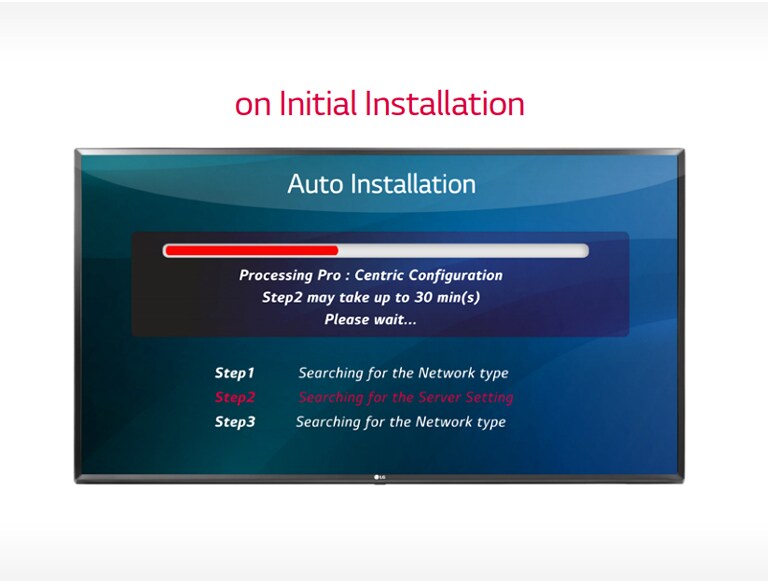

Easy Set-up

LG’s First Use Wizard provides easy and intuitive GUI* showing detailed initial settings required for hospital use. Without having to enter a complicated code for setting, what managers to do is just selecting the options provided.

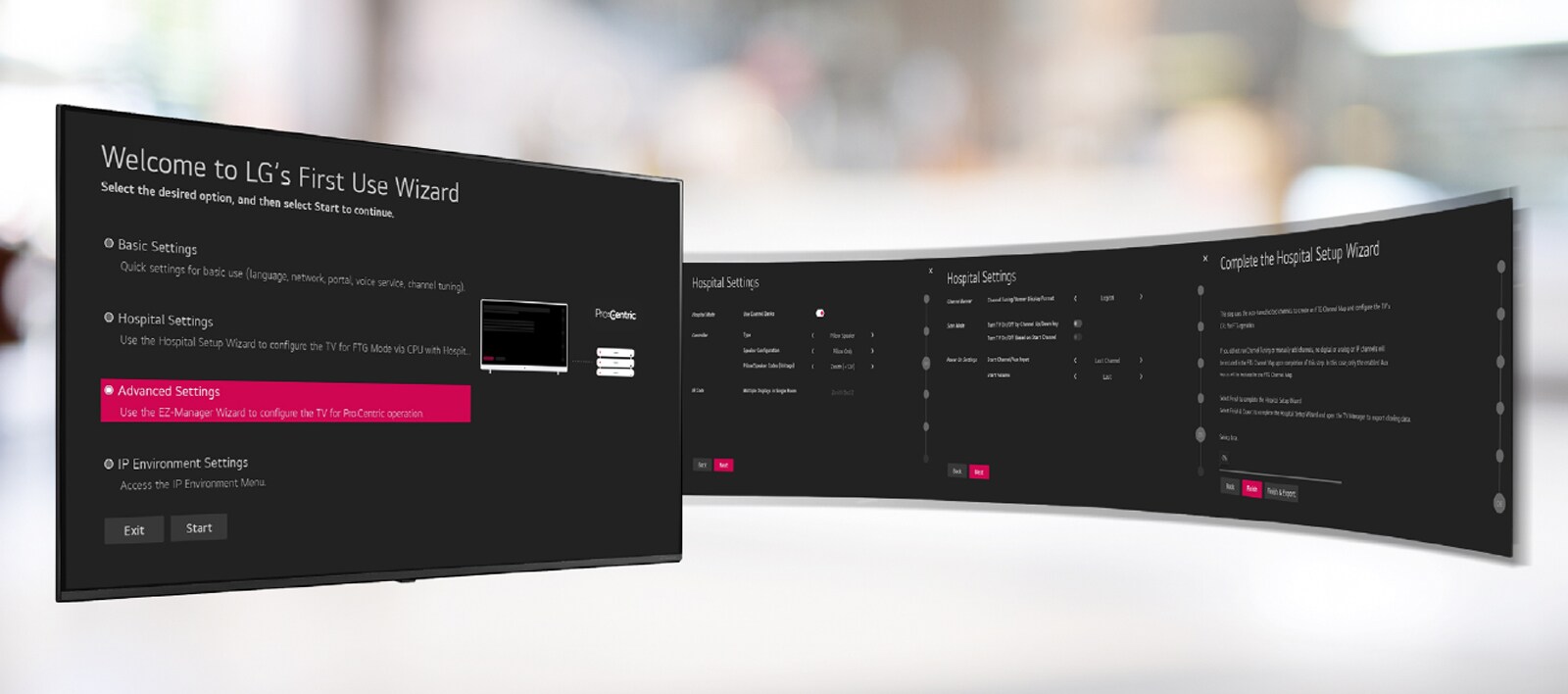

LG's First Use Wizard provides an optimized GUI for initial setup needed for hospital use.

* The actual screen may be slightly different.

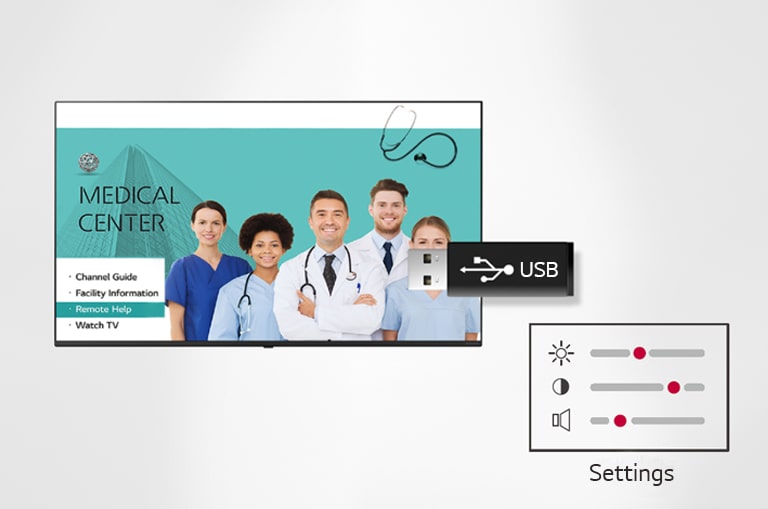

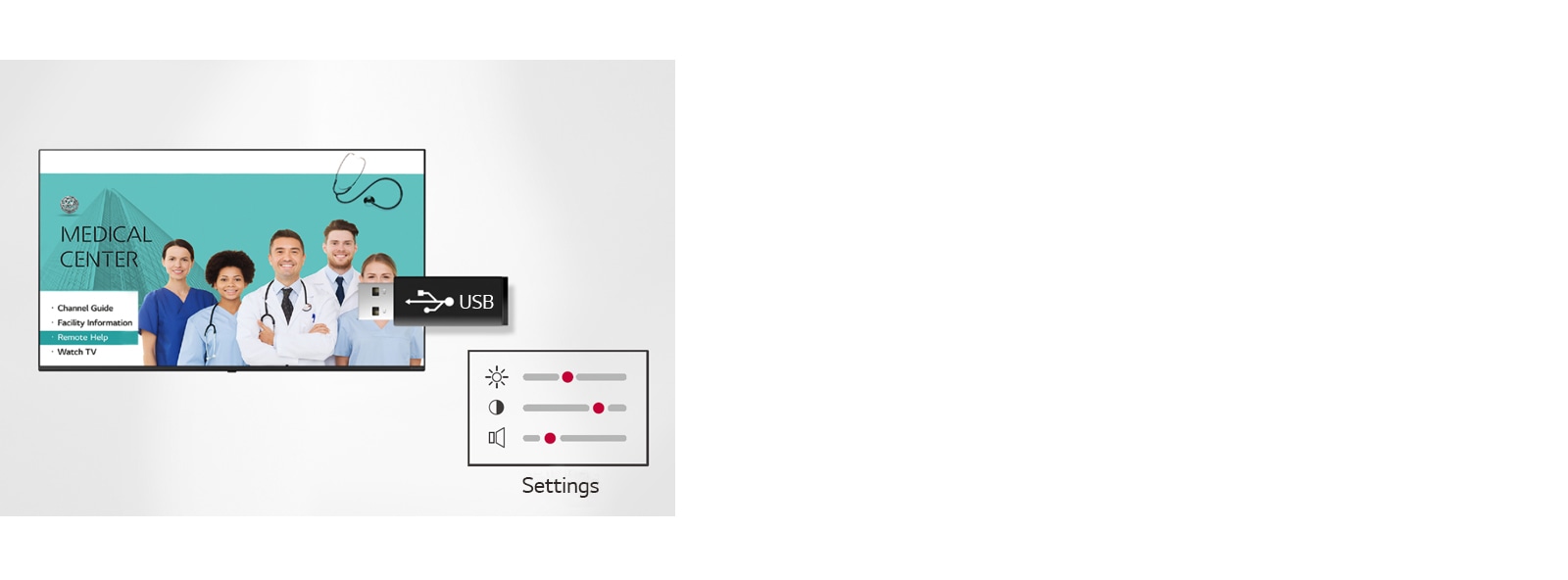

Setting data of the display can be stored on USB and transmitted to other displays.

USB Cloning

USB data cloning makes managing multiple displays more efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display, and be sent to the other displays through a USB plug-in.

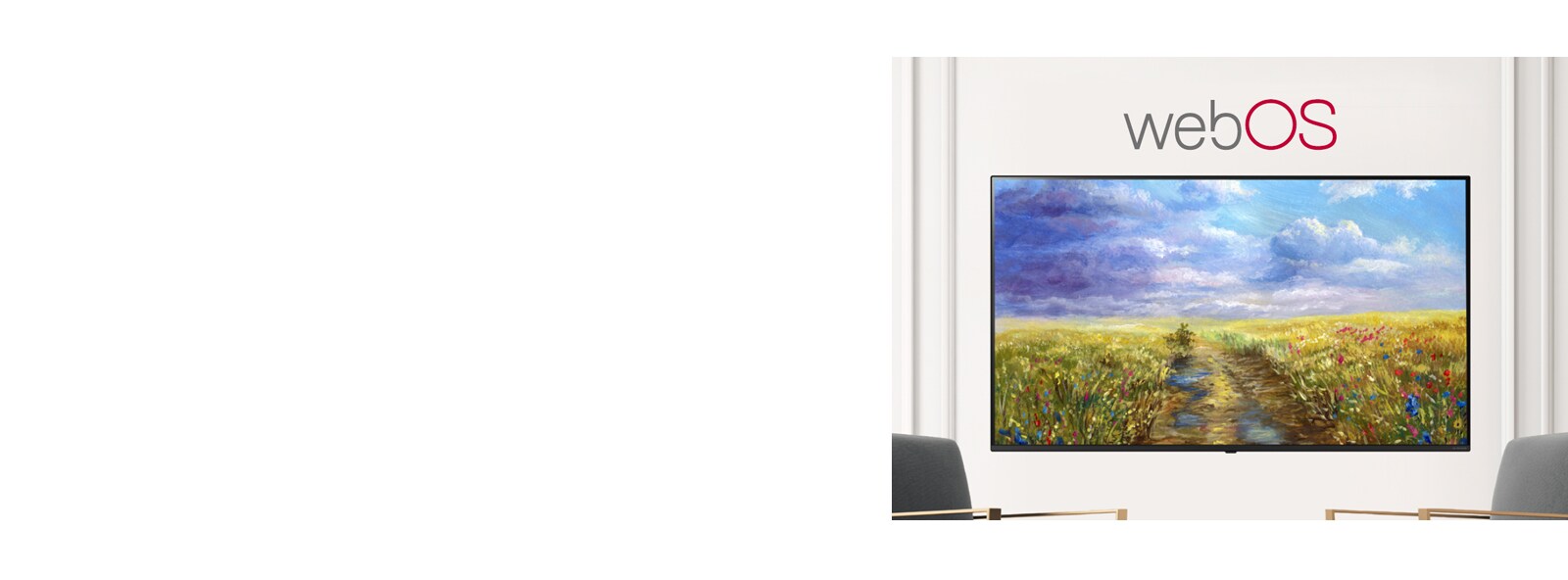

Gallery Mode

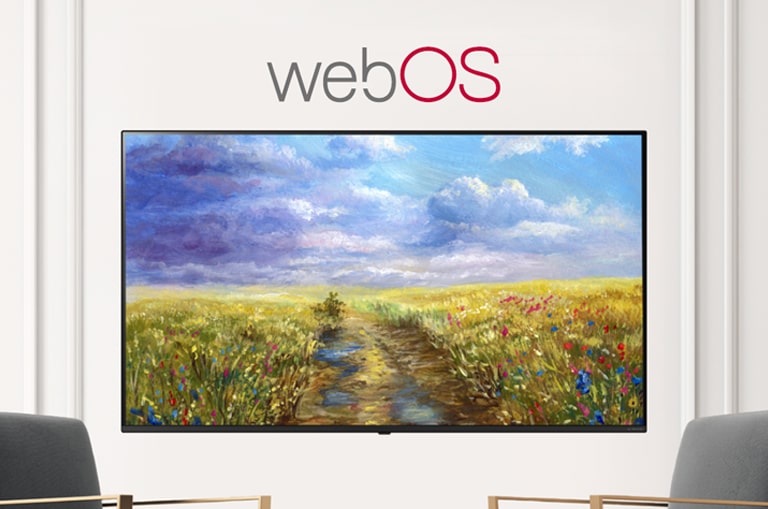

Equipped with LG’s webOS 5.0 platform, the US772M series has the latest LG Smart TV features. Newly added Gallery Mode and Mood Display functions support the TV to be an artwork or a customized clock which harmonizes with the space where it is.

Soft AP

Software-enabled Access Point (Soft AP) is a "virtual" Wi-Fi feature that uses TV as a wireless hotspot, enabling patients to connect their own devices to the Soft AP. It supports Bridge Mode, allowing administrators to manage in-room Soft AP information such as signal level, Soft AP passwords, etc.

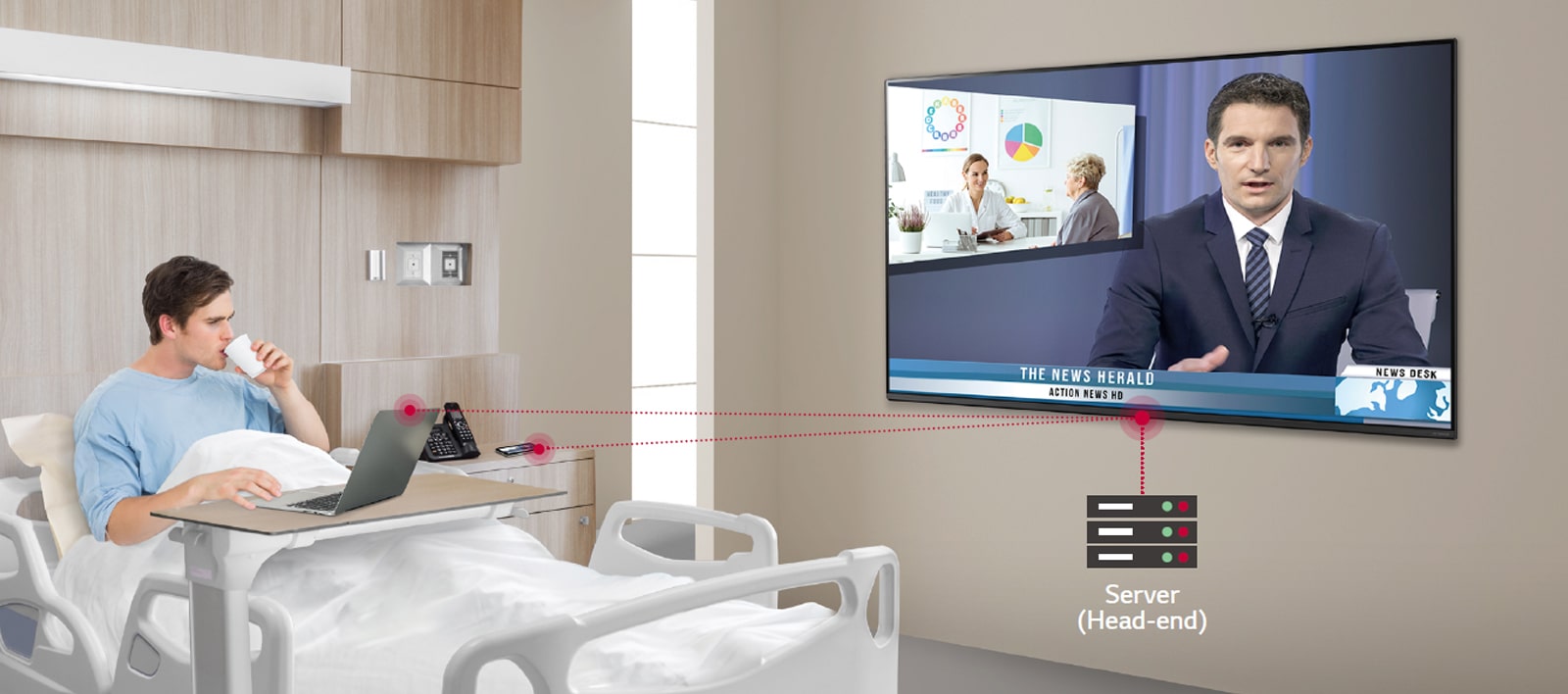

The patient lying on the bed connect his monitor wirelessly to the TV through the "virtual" Wi-Fi feature.

* Soft AP should be set in the installation menu after the TV is turned on.
** Smart Mirroring may not be operated at the same time.

Voice Recognition

Thanks to the embedded Natural Language Processing on webOS 5.0, Voice recognition* allows users to easily control LG hospital TV simply using their voices.

* Magic Motion Remote is required. (sold separately)

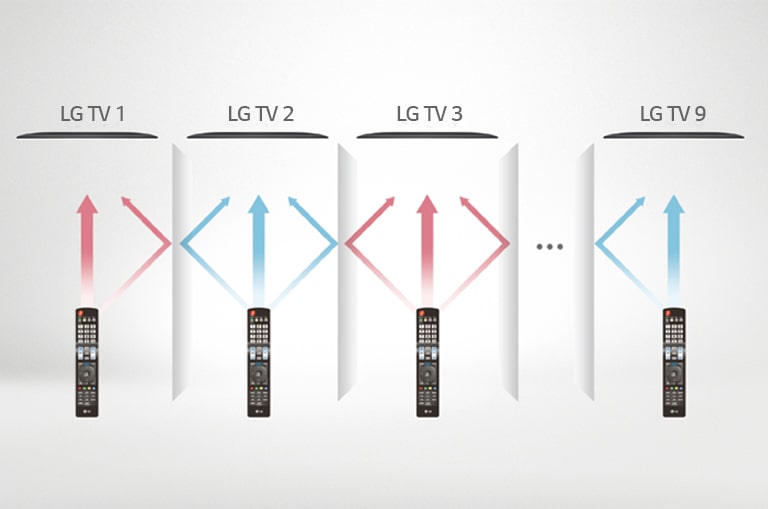

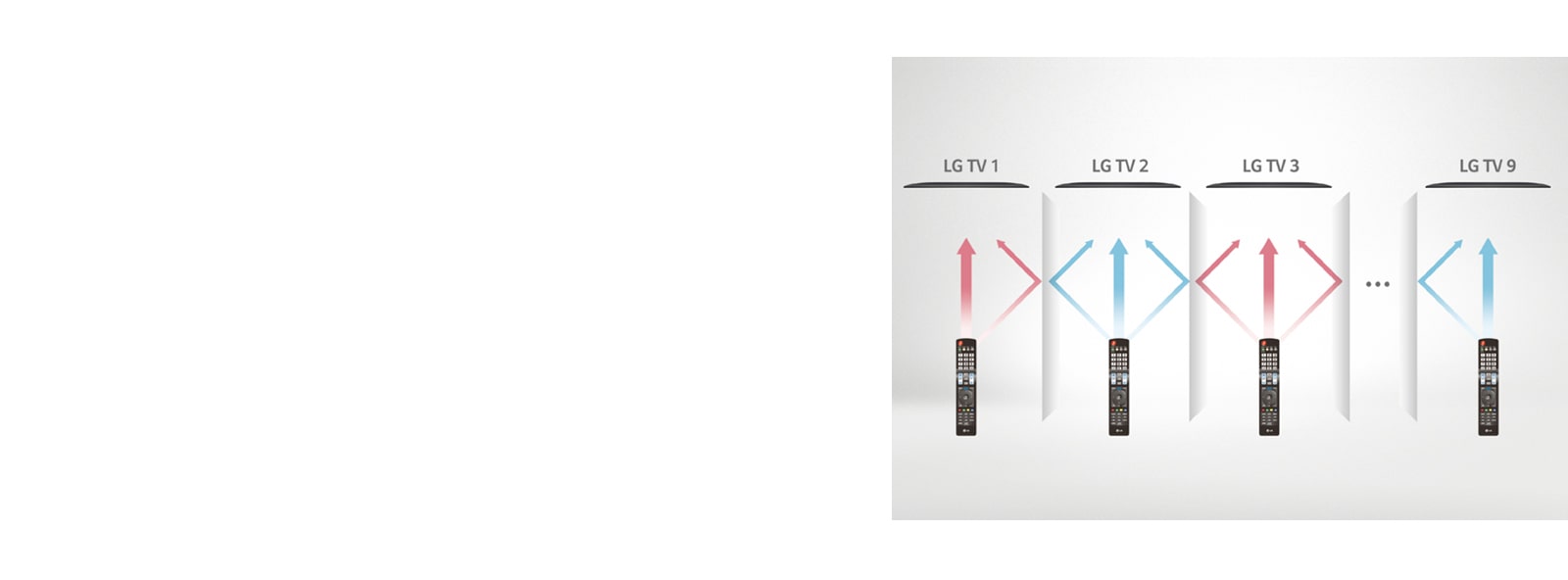

Each remote control only controls a designated TV without tangling each other.

Multi IR

Multi IR* function eliminates the signal interference of remote controls that occurs between multiple TVs in one place. LG NanoCell hospital TV supports this, so users can freely control their own TVs without disturbing the others.

* Separately purchased multi-IR remote control

Design

Stand Type

Without stand

Front color

Ceramic BK

Display

Inch

55"

Resolution

3840 X 2160 (UHD)
Nano

Yes

Video

HDR_Dolby Vision

No

HDR_HDR 10 Pro

Yes
HDR_HLG

Yes

Audio

Speaker (sound output)

10W + 10W

Speaker System

2.0 ch
DOLBY ATMOS

No

LG Sound Sync

Yes (Required Bluetooth)

Broadcasting System

Digital (Terrestrial,Cable,Satellite)

ATSC (Clear QAM)

Analog (NTSC / SECAM / PAL)

NTSC

Hospitality Solution

Pro:Centric Smart

Yes (Smart)

Quick Menu (Version)

Yes (4.0)
Server

PCS400R

DRM

Pro:Idiom (S/W Type), Pro:Idiom Media

Feature

Smart

webOS5.0, Gallery Mode, Web Browser, CP App, Magic Remote Compatibility (Ready, MR18HA), Soft AP, Wi-Fi (802.11ac), Screen Share (Miracast), Smart Share, Bluetooth Audio Playback, LG Sound Sync / Bluetooth, Voice Recognition (Standalone / Solution), IoT, USB Cloning, SI Compatible (MPI, RS232C), IR Out (MPI, RS232C), Anti-theft System (Kensington Lock)

Hospitality

Installer Menu, One Channel Map (LCM), IP Channel Manager, Instant ON, V-Lan Tag, b-LAN Embedded
Vertical

Required Approval (UL), Pillow Speaker, Video Tag 2

Jack Interface

Set Side

HDMI In 1 (2.0), USB 2 (2.0)

Set Rear

HDMI In (HDCP, 2.0), RF In (Dual b-Lan), Digital Audio Out (Optical), RS-232C (Phone Jack), RJ45 (Ethernet), TV Link Configuration (Phone Jack Type, b-LAN Service), MPI Port (RJ12 Jack), CPU/PTC for LG SVC only (Phone Jack), Pillow Speaker Interface (6 Pin)

Mechanic

VESA Compatible

300 x 300

Kensington Lock

Yes
Weight without Stand

17.2

Weight with Stand

No
Weight in Shipping

22.7

Size without Stand

1232 x 716 x 63.6
Size with Stand

No

Power

Power Supply (Voltage, Hz)

AC 120 V~, 50 / 60 Hz

Power Consumption(Max)

155W
Power Consumption(Typ)

130W

Standby Power Consumption

Under 0.5W

Required Listing(Certification)

Safety

UL

EMC

FCC

General

Region

North America

Dimension
- 55US772M (SM85)_commercial_no_stand_200625.dwg
- 55US772M (SM85)_commercial_no_stand_200625.pdf
Datasheet
- US772M(NA)_Datasheet(web)_LG Hospital TV_201124.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
