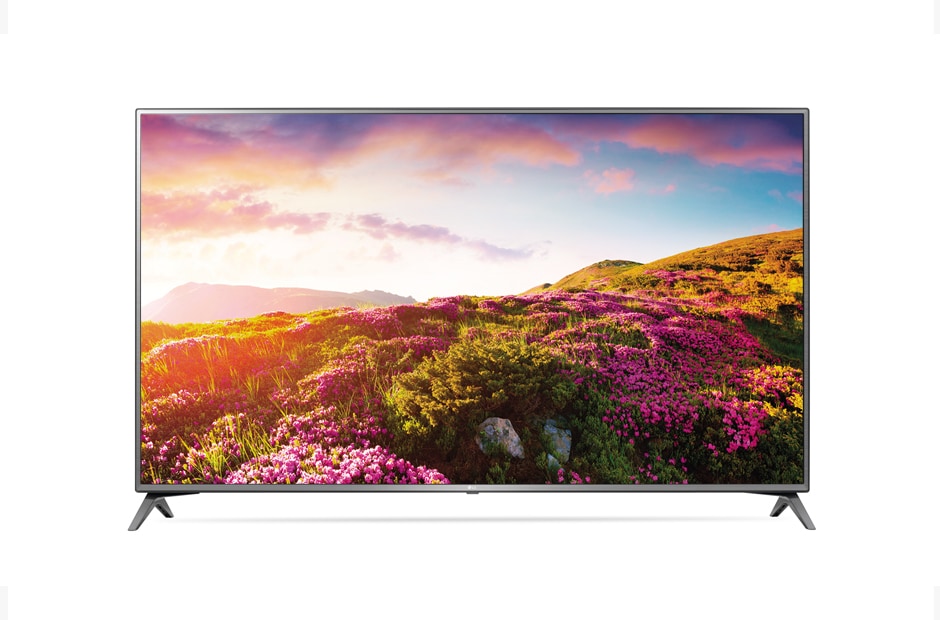

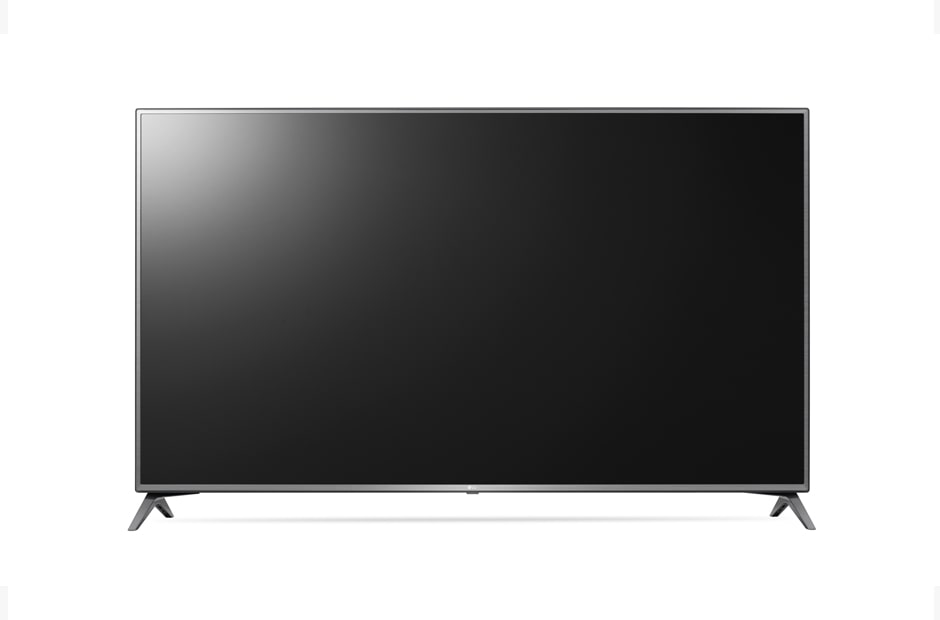

75UV340C (NA) component-copyModelName
UV340C Series

Key Features

Choose your Size

component-OBScountrySelectDesc

UV340C Series
Display
  • Type
    Edge LED
    Resolution
    3,840 x 2,160 (4K UHD)
  • Brightness (cd/m²)
    400
Broadcasting System
  • Analog
    NTSC
    Digital
    ATSC / VSB / Clear QAM
Video
  • XD Engine
    Real Cinema 24p (3:3 Pull down)
  • Aspect Ratio
    6 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom, Just Scan)
Audio
  • Audio Output / Speaker System
    10W + 10W / 2.0 ch
    Sound Mode
    6 modes (Standard, Cinema, Clear Voice III, Sports, Music, Game)
Features
  • Installation
    USB Cloning
    Management
    WOL, SNMP, Self Diagnostics via USB, Multi IR Code, HTNG/HDMI-CEC*
    *HDMI-CEC : Compatibility can differ by equipment.
  • Hospitality
    PDM (Public Display Mode), Lock Mode, Welcome Screen (Splash Image) / Video, Insert Image, External Speaker Out, RJP Compatibility, Crestron Connected® Certification, DPM (Display Power Management) mode, Time Scheduler
Interface
  • Side
    HDMI In (2), USB 2.0
    Rear

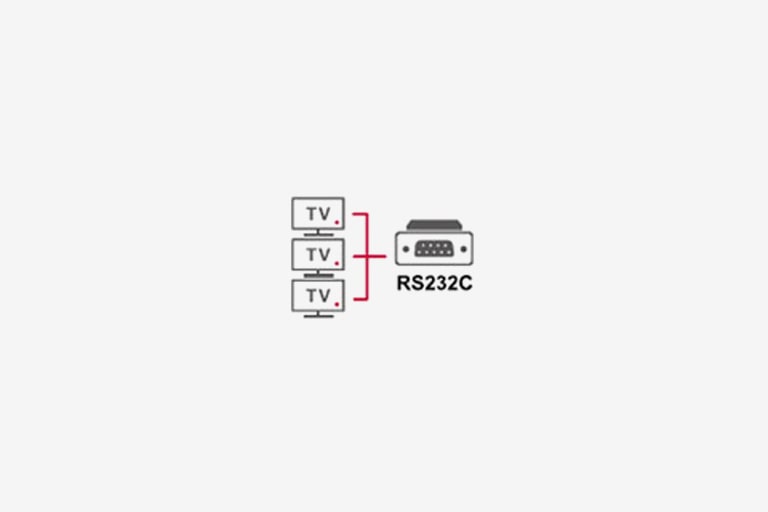

    RF In, AV In (Sharing with Component In), Component In + Video, Optical Digital Audio Out, HDMI In, RS-232C In, RJ45 (SNMP), External Speaker Out
Dimension
  • Bezel Width (L/R, U, B) : on bezel based
    14.7, 14.7, 14.7 (mm)
    Bezel Width (L/R, U, B) : off bezel based
    12.7, 12.7, 12.7 (mm)
  • Vesa
    600 x 400 (mm)
    WxHxD / weight (without stand)
    66.8" x 38.6" x 1.5" / 91.1lb
  • WxHxD / weight (with stand)
    66.8" x 41.4" x 11.7" / 92.6lb
    WxHxD / weight (Carton)
    72.4" x 46.0" x 9.1" / 116.8lb
General
  • Region
    North America
  • Datasheet
    • UV340C_NA_low_0626.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
