Discontinued

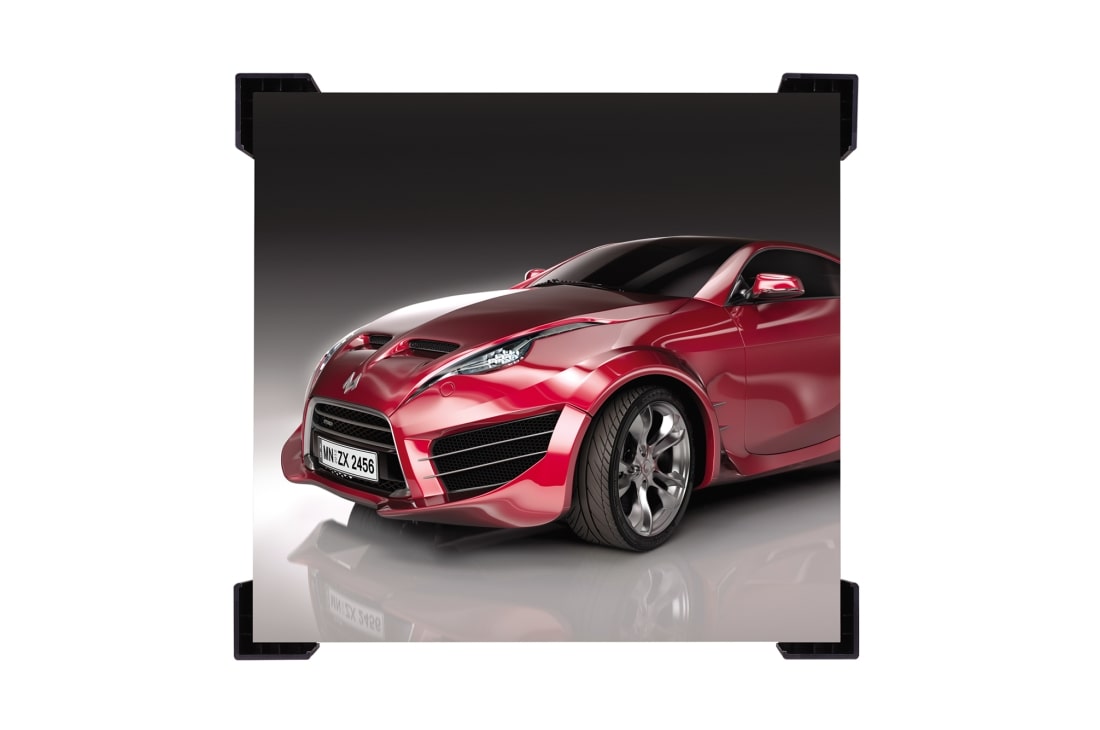

LAP010
LAP Series
  • Pixel Pitch: 1.0mm
  • Brightness: 1,000 cd/m²
  • Refresh Rate: 1,920 Hz
  • Web Based Control S/W

component-OBScountrySelectDesc

LAP Series

Physical Parameter

  • Pitch Name
    P1.0
    Pixel Pitch (mm)
    1.0
  • LED Type
    SMD 3-in-1
    Resolution(W x H, per Unit Case)
    384 x 360
  • Dimensions(W x H x D, per Module)
    192 x 180 x 16 mm
    Dimensions(W x H x D, per Unit Case)
    384 x 360 x 77 mm
  • Weight(per Unit Case)
    5 kg
    Weight(per SQM)
    36 kg1)
    1) LED Unit Case (Except LED Controller)
  • IP Rating
    N/A
    Unit Frame Material
    Die Casting Allumium
  • Unit Frame Color
    Black
    Curvature
    N/A
  • Access
    Rear

Optical Parameter

  • Brightness(After Calibration)
    1,000nit
    Contrast Ratio
    6,000:1
  • Viewing Angle(H x V)
    160 x 140
    Bit Depth
    16bit
  • Brightness Uniformity
    ≥ 97%
    Color Uniformity
    ±0.015Cx, Cy
  • Color Gamut
    NTSC 100%, BT2020 94%
    Color temperature - Default
    6,500K
  • Color temperature - Adjustable
    3,200 ~ 9,300K
    Video Frame Rate
    50/60Hz

Electrical Parameter

  • Input Power Range
    100-240V~, 50/60Hz
    Power consumption - Max/Typ(per Unit Case)
    170/85W
  • Power consumption - Max/Typ(per SQM)
    1,230/615W
    Refresh rate
    1,920Hz
  • Redundancy
    N/A

Connectivity(System Controller)

  • Video Inputs
    HDMI In, DP In/Out, DVI, USB
    Control
    RJ45 In/Out, RS232C In/Out
  • Special Features
    Temperature Sensor, Ambient Light Sensor, Current Sensor

Operation Conditions

  • Working Temperature/Humidity
    0 °C to 40 °C at 10 % to 80 %
    Storage Temperature/Humidity
    -20°C to 60 at 5 to 90%
  • LED Lifetime
    100,000hrs

Certification

  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class "A" / CE / KC
  • Environment
    RoHS

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
