49VL5B component-copyModelName
VL5B Series

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

VL5B Series
Inquiry to Buy
Close
Panel
  • Screen Size
    49" (48.50" measured diagonally)
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Module, Typ., cd/m²)
    450
Connectivity
  • Input
    HDMI, DVI-D, RGB
    Output
    DVI-D
  • External Control
    RS232C (In/Out), RJ45, IR Receiver, USB
Physical Specification

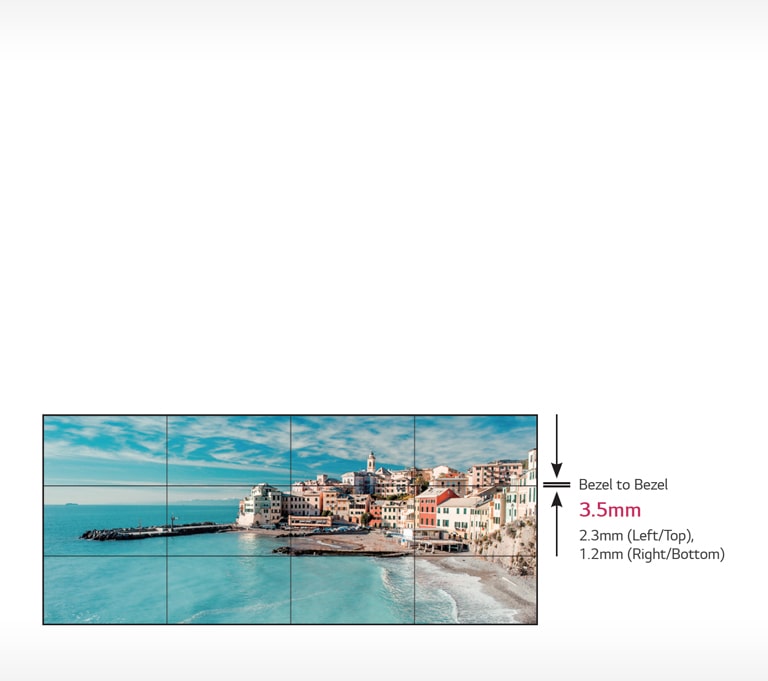

  • Bezel Width
    2.3mm (Left / Top), 1.2mm (Right / Bottom)
    Monitor Dimension (W x H x D)
    1,077.7 x 607.8 x 89.7mm
  • Weight (Head)
    17.8kg
    VESA™ Standard Mount Interface
    600 x 400mm
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    90W
    Smart Energy Saving
    45W
Standard(Certification)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    Yes (EU Only) / Yes (Energy Star 7.0)
Media Player Compatibility
  • Slot PC compatible (optional)
    No
    External Media player Attatchable
    Yes
Software Compatibility

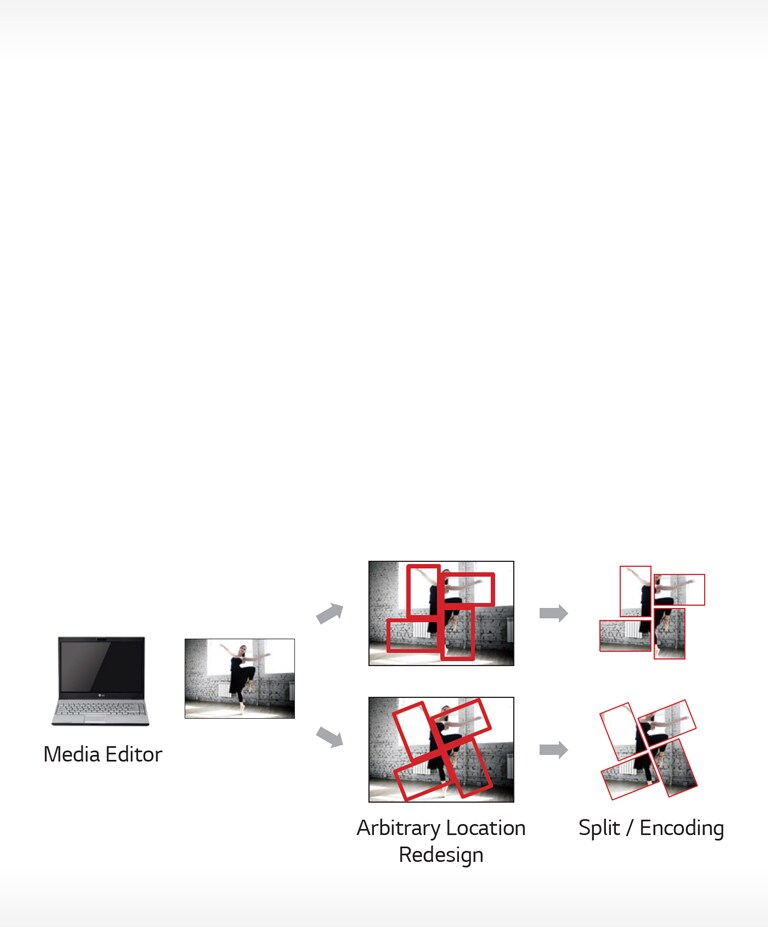

  • Content Management Software
    SuperSign W
    Control and Monitoring Software
    SuperSign C
Accessory
  • Basic
    Remote Control, Power Cable, DVI Cable, Manual, IR Receiver, RS-232C Cable, Guide Bracket, Screw
    Optional
    Wall Mount (LSW630)
  • Dimension
    • [drawing] 49VL5B.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
