Stadium Series (Perimeter)
Inquiry to Buy
Qualified for UEFA Criteria Qualified for UEFA Criteria

Qualified for UEFA Criteria

The LBB series meets the LED technical specifications of UEFA (Union of European Football Associations) that a perimeter LED signage should follow when installed in UEFA’s stadiums.

* Full approval from UEFA can only be given once a system is checked on site.

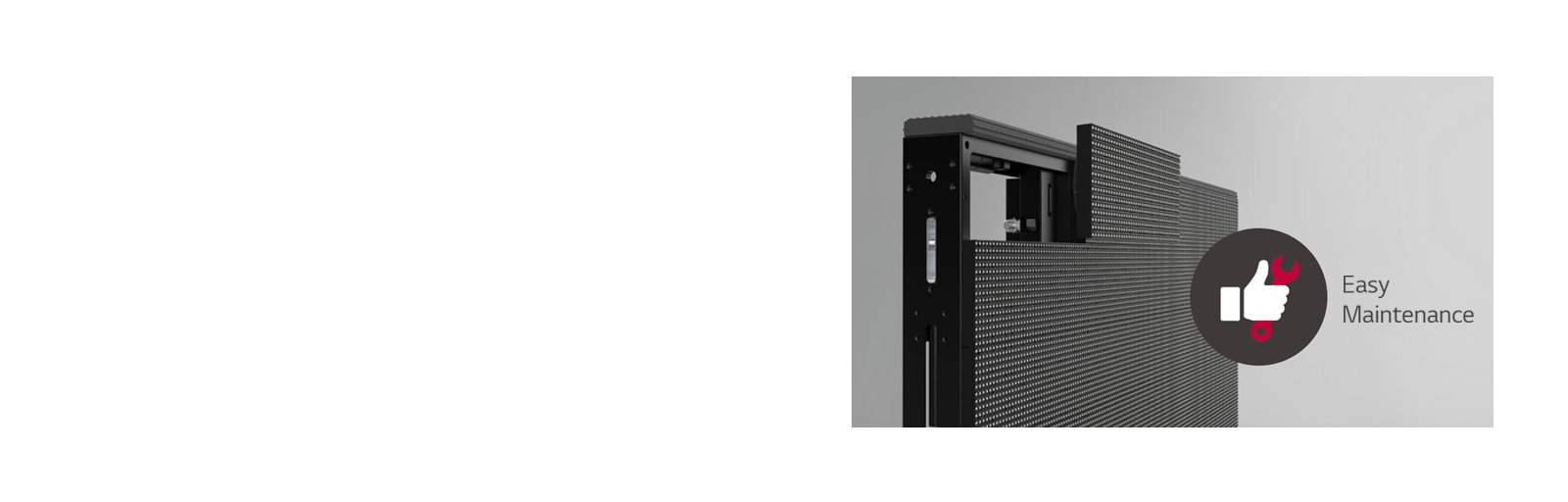

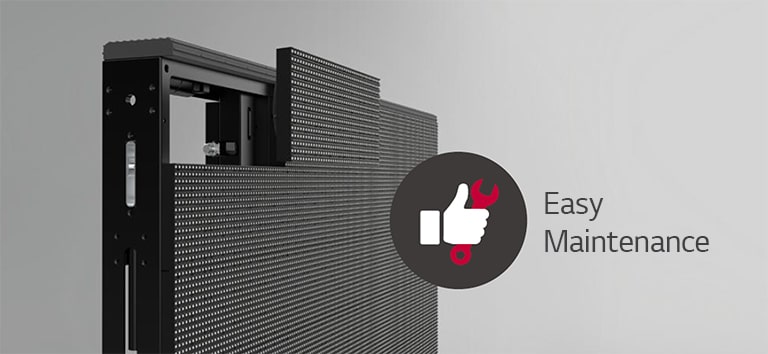

Quick and Simple Maintenance Quick and Simple Maintenance

Quick and Simple Maintenance

The LED module can be replaced only in one minute from both front and rear sides, minimizing maintenance time and spatial constraints. Also, every electric component is easily serviced.

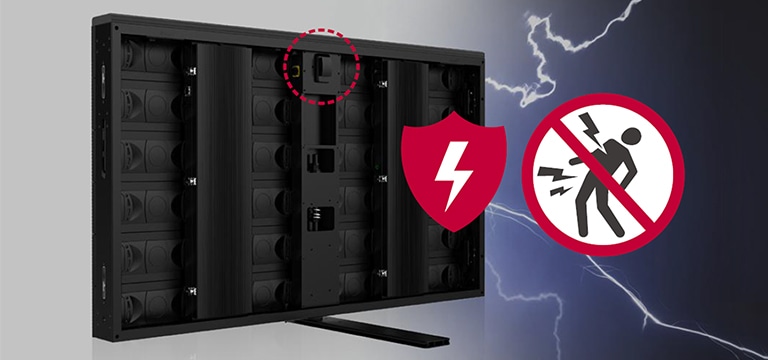

Electrical Safety Electrical Safety

Electrical Safety

A circuit breaker is included in each cabinet not only to protect people from electric shock by current leakage causes, but also to provide security from an overcurrent.

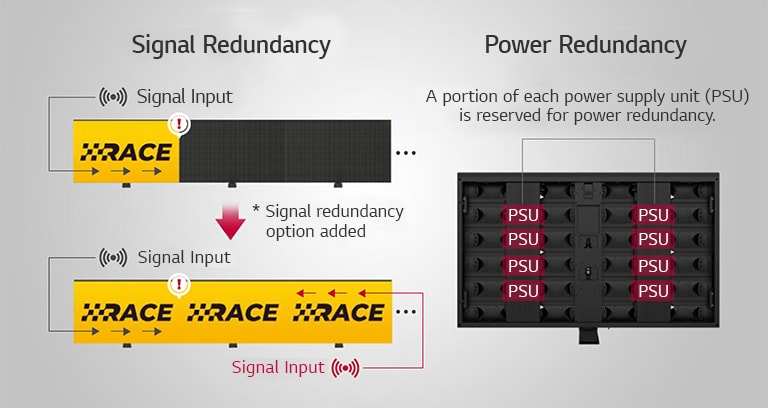

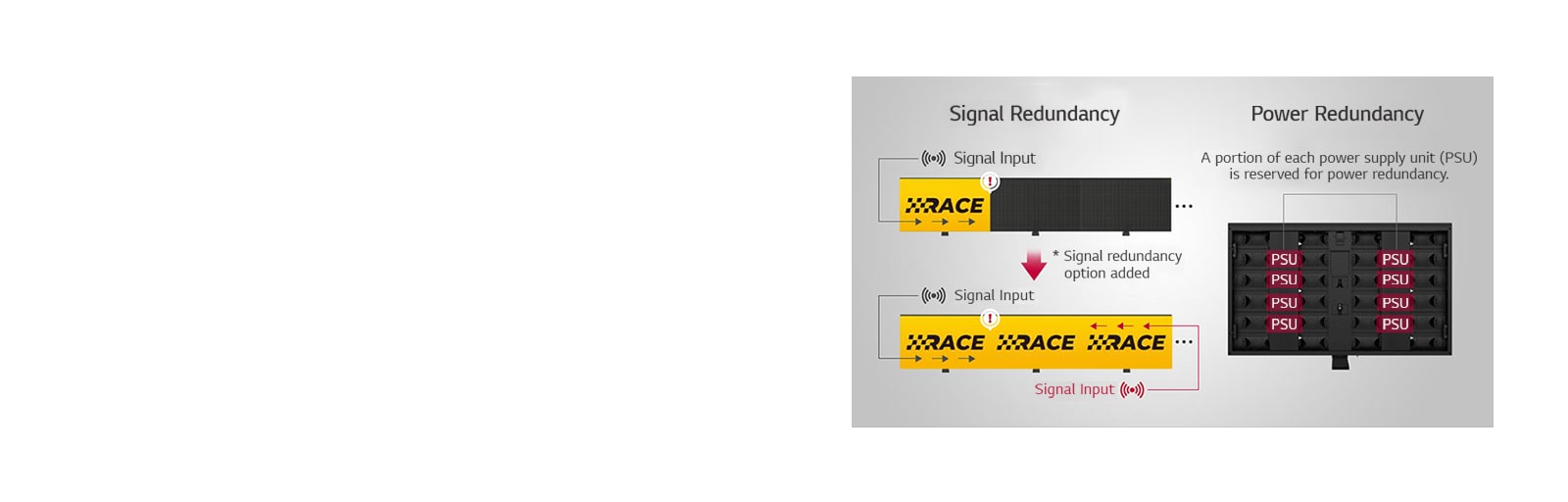

Redundancy Support Redundancy Support

Redundancy Support

The LBB series supports both power and signal redundancy to reassure the operator and ensure the continuous operation even if there is power failure or no signal.
Design for Injury Prevention Design for Injury Prevention

Design for Injury Prevention

In consideration of the safety of players and staffs, the front and top parts of a cabinet are designed with a rubber pad and a rubber louver to prevent serious injury caused by hitting it during a game.
Foldable Design Foldable Design

Foldable Design

In case of an emergency, people in the stadium can escape quickly and easily by folding down the cabinets.
Close
Physical Parameters
  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch (mm)
    10.00
  • Module Resolution (W x H)
    40 × 15
    Module Dimensions (W x H, mm)
    400 × 150
  • Weight per Module (kg)
    1.00
    No. of Modules per Cabinet (W × H)
    4 × 6
  • Cabinet Resolution (W × H)
    160 × 90
    Cabinet Dimensions (W × H × D)
    1,600 × 900 × 124
  • Cabinet Surface Area (m²)
    1.440
    Weight per Cabinet (kg/cabinet)
    65.0
  • Weight per Square Meter (kg/m²)
    45.1
    Physical Pixel Density (pixels/m²)
    10,000
  • Flatness of Cabinet
    ±0.5 mm
    Cabinet Material
    Aluminum Profile
  • Service Access
    Module : Front and Rear
    PDU : Rear
Optical Parameter
  • Min. Brightness (After Calibration)
    6,000
    Color Temperature
    3,500 ~ 9,000
  • Visual Viewing Angle (Horizontal/Vertical)
    160 × 120
    Brightness Uniformity
    97%
  • Color Uniformity
    ± 0.003 Cx,Cy
    Contrast Ratio
    12,000
  • Processing Depth (bit)
    14
Electrical Parameter
  • Power Consumption (W/Cabinet, Max.)
    750
    Power Consumption (W/Cabinet, Avg.)
    250
  • Power Consumption (W/m², Max.)
    520
    Heat Dissipation (BTU/h/Cabinet, Max.)
    2,559
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    853
    Heat Dissipation (BTU/h/m², Max.)
    1,774
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840
Operation Conditions
  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    -20℃ to +45℃
  • Operating Humidity
    10-99%RH
    IP Rating Front
    IP65
  • IP Rating Rear
    IP65
Certification
  • Certification
    CE,FCC,ETL
Environment
  • Environment
    RoHS
Controller
  • Controller
    LCIN006
Series
  • Series
    LBB
