27CQ650W | LG Global Business

27" Full HD All-in-One Thin Client

27CQ650W

Key Features

27" Full HD (1920x1080) IPS Display
Built-in Full HD Webcam & Speakers
Quad-core Processor
Windows 10 IoT Enterprise
LG Cloud Device Manager
Citrix Ready Endpoint

lg thin client offering better performance and lower costs than a conventional PC device.

Why Cloud Device

Productivity and Efficiency

LG offers various thin client form factors. LG’s excellence in display products can add value to your work environment with better performance and lower costs than a conventional PC device.

Powerful Security
Access Anytime, Anywhere
Making Operations Efficiently
Convenient Collaboration
Business Continuity
Cost Savings

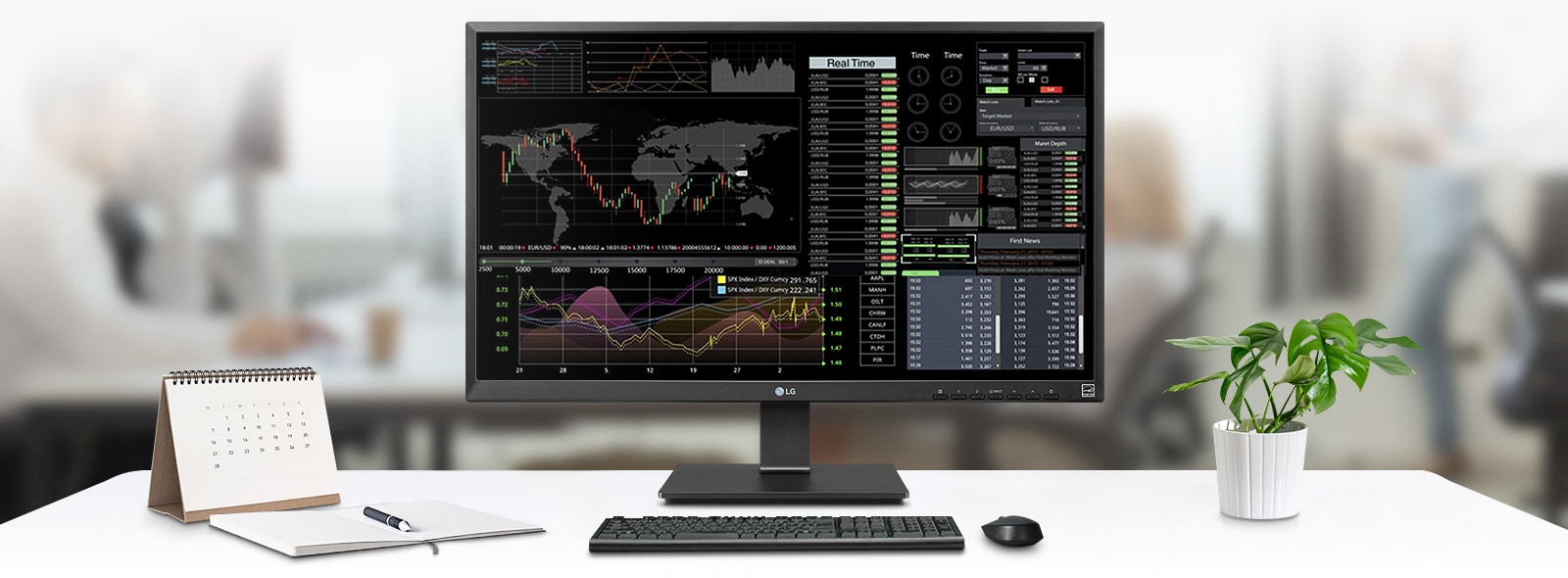

Quad-core Processor

Powerful Performance

With Quad-core Processor and a powerful system memory option, 27CQ650W helps you complete your work faster and easier than ever.

Processor

Intel® Celeron N5105

27CQ650W offering 8GB DDR4 and SSD 256GB for storage.

RAM & Storage

8GB DDR4 / SSD 256GB

OS

Windows 10 IoT Enterprise

*RAM and storage specifications as detailed above may differ by model.

27" Full HD IPS Display

Accurate Color at Wide Angles

LG Full HD display with IPS technology delivers a clear and accurate color. It provides visual comfort for viewing charts and reports with others, presenting clear images at wide angles of up to 178 degrees.

full HD IPS display providing with wide viewing angle.

Up to 2 Display Support

Make Your Own Productive Workstation

LG 27CQ650W supports up to 4K UHD resolution dual displays. With flexibility for multi-monitor set-up options, you can get more done in less time.

27CQ650W enabling to connect up to two uhd 4k resolution displays.

*Supporting connected displays via USB Type-C™ and DisplayPort out.

HDMI in

A Thin Client, Also Available As Monitor

Thanks to HDMI in port, LG 27CQ650W is available as a monitor by connecting to a desktop or laptop with an HDMI cable.

*HDMI cable is not included in the package.

USB Type-C™

With a single USB Type-C™ connection, delivers up to 4K hi-resolution image and transmits data with faster transfer speeds at once.

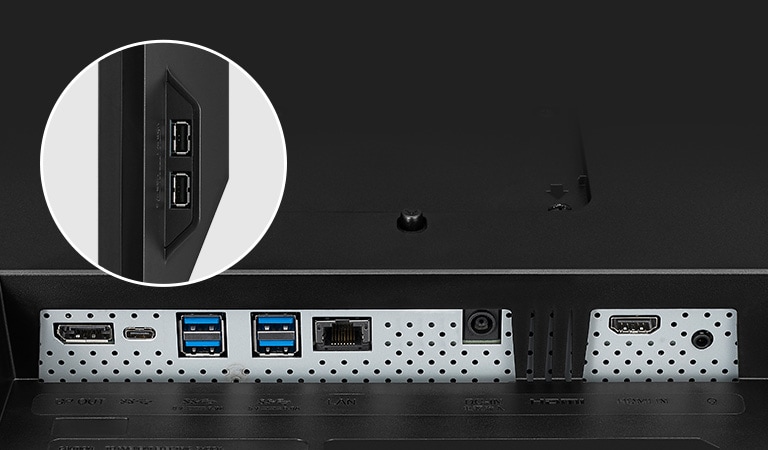

Various Interface

1) USB 2.0 2) DisplayPort 3) USB Type-C™ 4) USB 3.2 gen1 5) Gigabit Ethernet 6) HDMI 7) Headphone & Mic Combo

*Types of Inputs specified in the right side are numbered from left to right, top to bottom of the image on the right.
*USB Type-C™, DisplayPort, and HDMI cables are not included in the package.

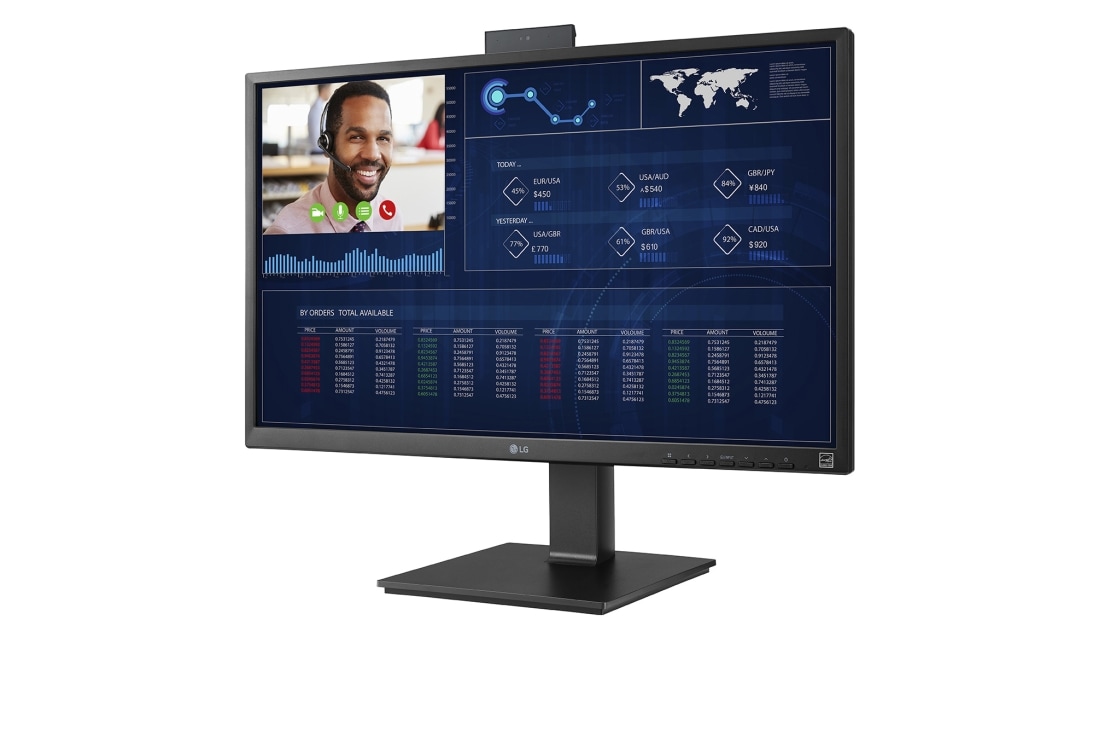

Push-pull Type Full HD Webcam

Boost Usability & Security

Featuring the push-pull type built-in Full HD webcam with powerful security and the integrated speaker, to host various meetings and video conferences.

Fanless Design

Silent and Cost-efficient

The fanless design increases LG 27CQ650W’s lifespan and also reduces replacement costs. The low noise and heat provide a pleasant office environment, and its lower power consumption reduces management costs.

LG Cloud Device Manager

Advanced Management for Cloud Device

It’s the optimized management software for LG thin clients. By installing on LG thin clients using Windows 10 IoT OS, the devices are managed and controlled centrally for high security, work efficiency and TCO reduction effect.

*TCO: Total Cost of Ownership

Ergonomic Design

Smart Workspace

You can create the comfort workspace with versatile screen tilt, height, pivot and swivel adjustments. By featuring the one click stand, allows you to save time and reduce a loss of work for multiple thin clients setup.

One Click Stand

Swivel

Pivot

The monitor offering height and tilt adjustable stand.

Tilt & Height

the monitor in the ergonomic design supporting tilt, swivel, pivot and height adjustment options and offering one click stand.

All Spec

FEATURE

Webcam
Yes (FHD, Integrated with MIcrophone, Push-pull type, no webcam app provided)
Color Weakness
YES
Crosshair
NO
HDR 10
NO
RFID
NO
Dynamic Action Sync
YES
Picture Mode
Custom, Reader,Photo, Cinema, Color Weakness, Game
Flicker Safe
YES
Reader Mode
YES
Smart Energy Saving
YES
Super Resolution+
YES
1ms Motion Blur Reduction
NO
Active HDR with Dolby Vision™
NO
Auto Brightness
NO
Black Stabilizer
YES
Color Calibrated
NO
1ms MBR(Supported Frequency)
NO
AMD FreeSync™
NO
Eye Comfort Mode
NO
FreeSync (Low Frame Conpensation)
NO
Gaming Mode
NO
HW Calibration
NO
Nano IPS™ Technology
NO
NVIDIA G-Sync™
NO
PBP
NO
PIP
NO
SD Card Slot
NO
VESA DisplayHDR™
NO
Wide Color Gamut
NO

DIMENSIONS/WEIGHT

Dimension in Shiping (W x H x D)
707x516x233
Dimension with Stand (W x H x D)
622.3x531.7x240
Dimension without Stand (W x H x D)
622.3x371.5x61.0
Weight without Stand
5.6
Weight in Shipping
10.5
Weight with Stand
7.8
Pallet Stuffing (20ft/40ft/40ft HC)
320/576/640

PC PART

Processor
Intel® Celeron N5105 (Quad Core 2.0GHz, up to 2.9GHz burst), Fanless
Graphics
Integrated Graphics
Operation System
Windows 10 IoT Enterprise LTSC
System Memory
8GB (4GBx2) DDR4, 2933MHz, 2 SODIMM slots
Storage
256GB SSD(NVMe, M.2)
Display Support
Up to 2 displays : 3840x2160@60Hz (via DisplayPort 1.4 out), 3840x2160@60Hz (via USB Type-C)
Expansion Slot
M.2 Slots x 2 (Slot 1 : 256GB SSD, Slot 2 : WiFi + Bluetooth card) SO-DIMM x 2 (Slot 1 : 4GB DDR4, Slot 2 : 4GB DDR4)
TPM (Trust Platform Module)
Hardware TPM 2.0
VDI Support
Citrix, VMware, Microsoft RDP, PCoIP S/W, MS AVD, Amazon WSP

STANDARD

EPEAT (USA)
BRONZE
KC (for Rep. of Korea)
YES
Energy Star
YES
TCO
NO
TUV-TYPE
YES
EPEAT (Germany)
BRONZE
TUV-Ergo
YES
TUV-GS
YES
UL (cUL)
YES
CE
YES
BIS (for India)
NO
BSMI (for Taiwan)
NO
CB
YES
CCC (for china)
NO
EPA
YES (8.0)
ErP
YES
FCC-B
YES
HDMI
YES
IEC60601
NO
PVC-Free
NO
ROHS, REACH
YES
Thunderbolt
NO
USB-C (USB-IF)
NO
USB-C (VESA)
NO
VCCI (for Japan)
NO
VESA wall mount standard
YES

DISPLAY

Size [Inch]
27
Pixel Pitch
0.3114 x 0.3114 mm
Size [cm]
68.6 cm
Resolution
1920 x 1080
Brightness (Min.)
250 cd/m²
Panel Type
IPS
Aspect Ratio
16:9
Brightness (Typ.)
300 cd/m²
Color Bit
8bit (6bit+FRC)
Surface Treatment
Anti Glare, 3H
Color Gamut (Min.)
N/A
Color Gamut (Typ.)
NTSC 72% (CIE1931)
Color Depth (Number of Colors)
16.7M
Contrast Ratio (Min.)
700:1
Contrast Ratio (Typ.)
1000:1
Response Time
5ms (GtG at Faster)
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
Curvature
N/A
Backlight Array
H1B
Backlight Dimming Technology
Global Dimming
Backlight Technology
LED
Backlight Type
Edge
Contrast Ratio with DFC
Mega
Curved
NO
Local Dimming Zone
N/A
Panel Multi
BOE Module
Peak Brightness (Min.) [cd/m²]
N/A
Peak Brightness (Typ.) [cd/m²]
N/A

NETWORK

Bluetooth
BT5.1
LAN (RJ-45)
1 x RJ45 : 10/100/1000 Base-T Gigabit Ethernet (Wake on LAN)
Wi-Fi
Intel Wireless-AX201 (Dual Band Wi-Fi 6 2x2, BT 5.1 Combo, Internal Antenna)

ENVIRONMENTAL

Temperature Range
Operating : 10°C ~ 40°C, Storage : -20°C ~ 60°C
Humidity Range
Operating : 20%~80%, Storage : 10%~90%

SW APPLICATION

True Color Pro
NO
Dual Controller
NO
OnScreen Control (LG Screen Manager)
YES
Management Console
LG Cloud Device Manager

CONNECTIVITY

HDMI Version
2
HDMI (Max. Resolution at Hz)
1920X1080 75Hz
Fiber Ready
NO
RS-232
NO
USB-C (DP Version)
1.4
USB-C (DP Alternate Mode)
YES
D-Sub
NO
DVI-D
NO
HDMI
YES(1ea)
DisplayPort
YES(out 1ea)
DP Version
1.4
Thunderbolt
NO
Thunderbolt (Data Transsmission)
NO
Thunderbolt (Power Delivery)
N/A
USB-C
YES(out 1ea)
USB-C (Max. Resolution at Hz)
4096×2160@60Hz
USB-C (Data Transsmission)
YES
USB-C (Power Delivery)
N/A
Daisy Chain
NO
Audio In
NO
Mic In
NO
Headphone out
NO
DVI-I
NO
USB
2 x USB 2.0 Type-A, 4 x USB 3.2 Gen1 Type-A, 1 x USB 3.2 Gen2 Type-C with DP out
MIC & Headphone out combo
YES (1 x 3.5mm audio-mic combo jack (CTIA Type))
DP (FreeSync Supported Frequency)
NO
DP (HDCP Version)
N/A
DP (Max. Resolution at Hz)
3840x2160 @ 60Hz
HDMI (FreeSync Supported Frequency)
N/A
HDMI (HDCP Version)
1.4
HDMI (H-Frequency)
30~85KHz
HDMI (V Frequency)
56~75Hz
Location
Vertical
mDP (HDCP Version)
N/A
mDP Version
N/A
Mini DisplayPort
NO
Thunderbolt (HDCP Version)
N/A
Thunderbolt(USB-C Compatiblity)
N/A
Thunderbolt Version
N/A
USB-C (HDCP Version)
N/A

SOUND

Speaker
YES
Maxx Audio
YES
Speaker_Channel
2ch
Speaker_Output (unit)
3W
Speaker_Direction
Down Firing

POWER

DC Output
19V 5.79A
Type
External Power(Adapter)
AC Input
100-240Vac, 50/60Hz
Power Consumption (Energy Star)
77.6kWh/yr
Power Consumption (Sleep Mode)
1.2W
Power Consumption (DC Off)
0.7W
Long Idle (Display Off)
5.0W
Short Idle (Display On)
22.0W

MECHANICAL

Borderless Design
Normal
Machanical Power Switch
NO
OneClick Stand
YES
Height Range
130mm (Max.531.7 ~ Min. 401.7)
tilt
-5º ~ 35º
Down Height
30.1mm
Swivel
0°~355° (±5°)
Pivot
Bi-Direction
Wall Mountable
100 x 100 mm
Display Position Adjustments
Tilt/Height/Swivel/Pivot
Assembly Step
Three-Step
Base Detachable
YES
Color (Back Cover)
Matt Black
Color (Front Cabinet)
Matt Black
Color (Middle Cabinet)
Matt Black
Color (Stand Base)
Matt Black
Color (Stand Body)
Matt Black

ACCESSORY

Adapter
YES
Calibration Report (Paper)
NO
DVI-D (Color/Length)
NO
External Antenna
NO (Internal Antenna)
HDMI (Color/Length)
NO
USB Type C
NO
Power Cord
YES
PC Audio
NO
DVI-D
NO
HDMI
NO
Thunderbolt
NO
Display Port
NO
VESA Bracket
NO
Adapter (Color)
Black
Display Port (Color/Length)
NO
PC Audio (Color/Length)
NO
Power Cord (Color/Length)
Black / 1.55m
Thunderbolt (Color/Length)
NO
USB-C (Color/Length)
NO

BOX COSMETIC

Box Printing Type
Flexo
Handle
Hand Hole
Packing Material
EPS
Stacking Type
Face Down
Stand Packing Type
Detached

CONTROL KEY

Key Location
Front
Key Number (Power Key Included)
7
Key Type
Tact
LED Color(On mode)
White(AIO PC )
LED Color(Power save mode)
Blinking (AIO PC )
LED Color(Standby)
OFF(AIO PC)

OSD

Country
English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese(brazil), Hindi, Tranditional Chinese
Number of Language
18

RESOLUTION

HDMI (PC)
1920x1080@75Hz
HDMI (Video)
1920x1080@60Hz

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
