Touch Open Frame

Touch Open Frame

Touch Open Frame

27TNF3K

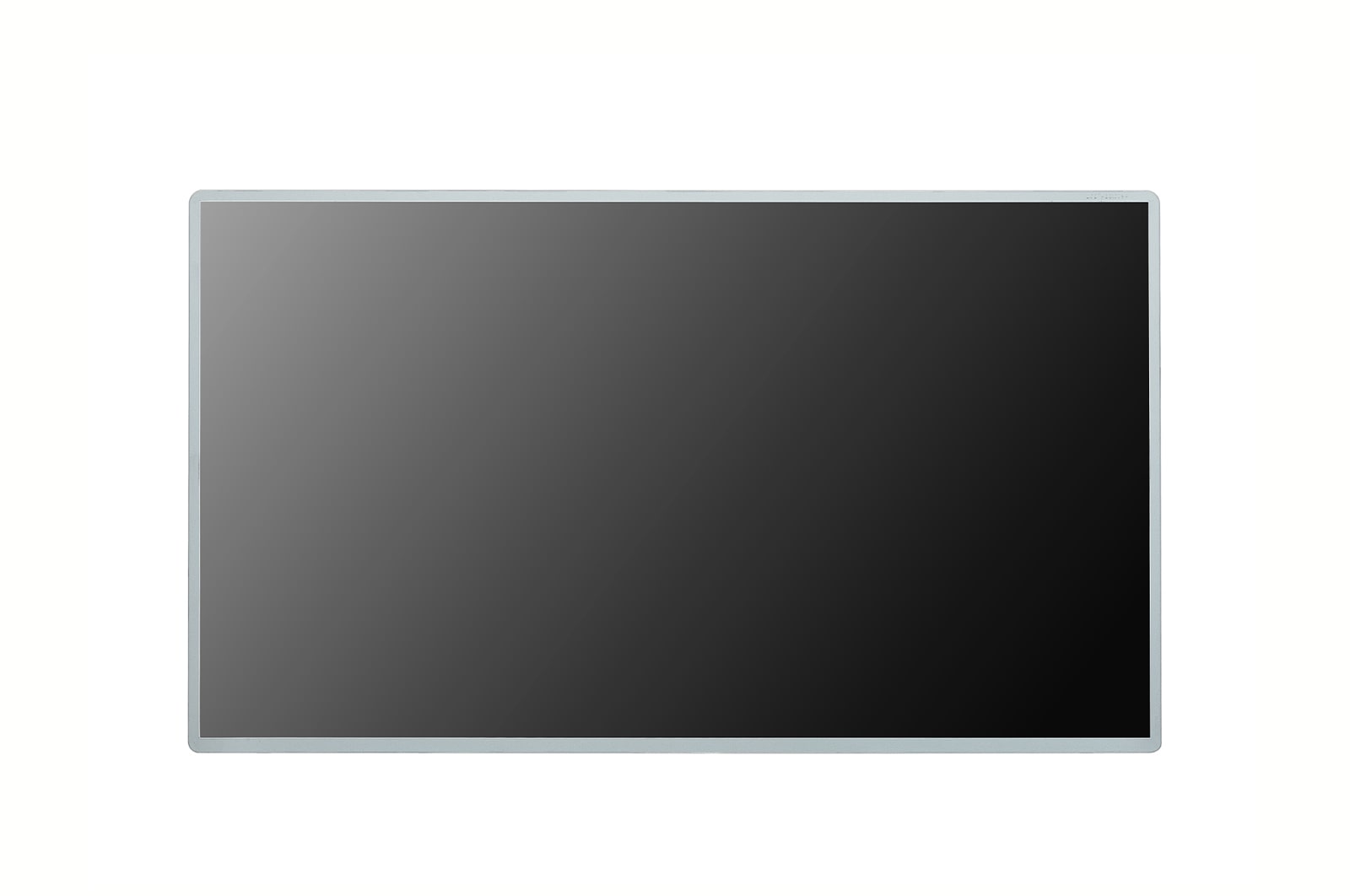

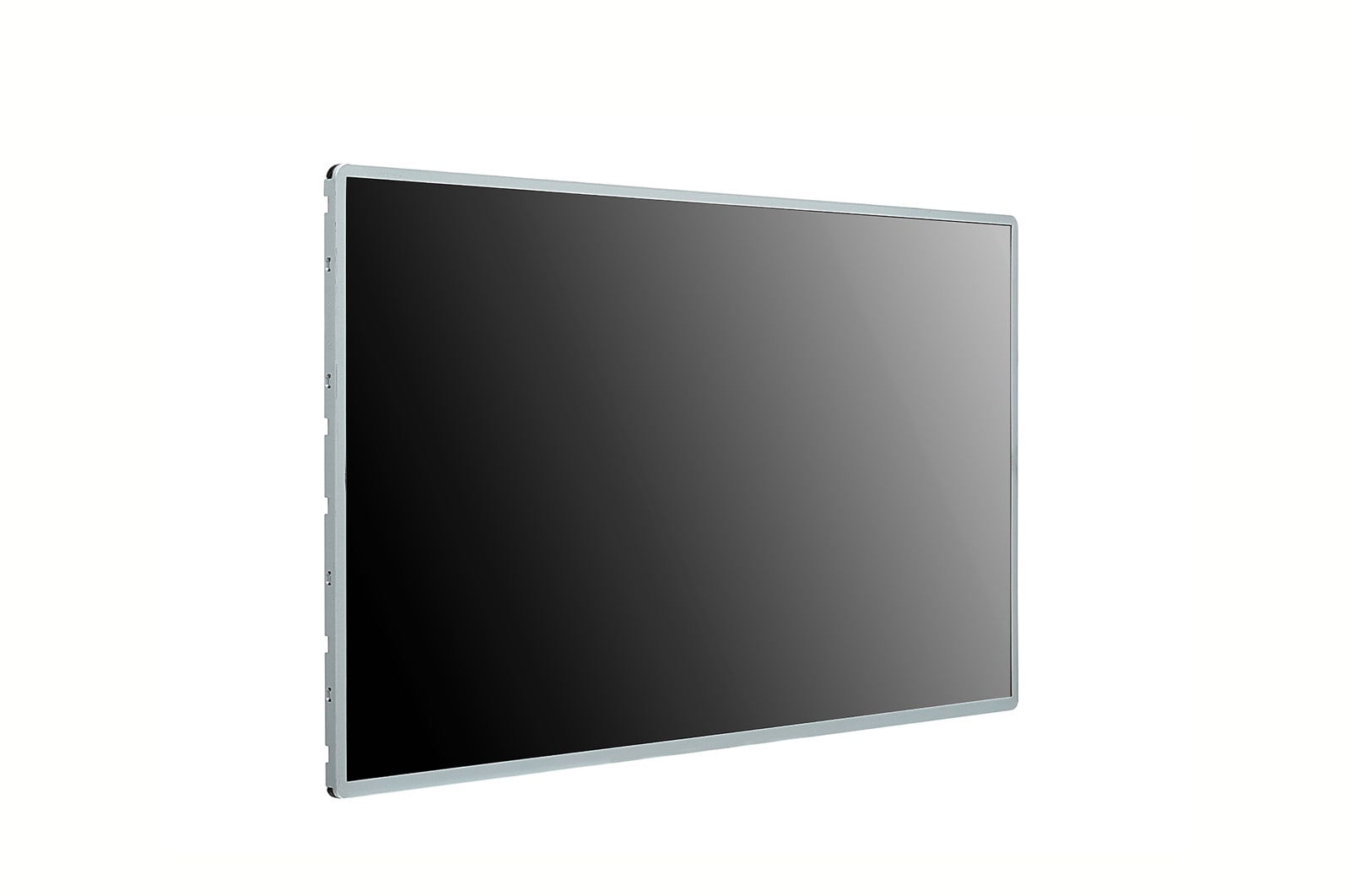

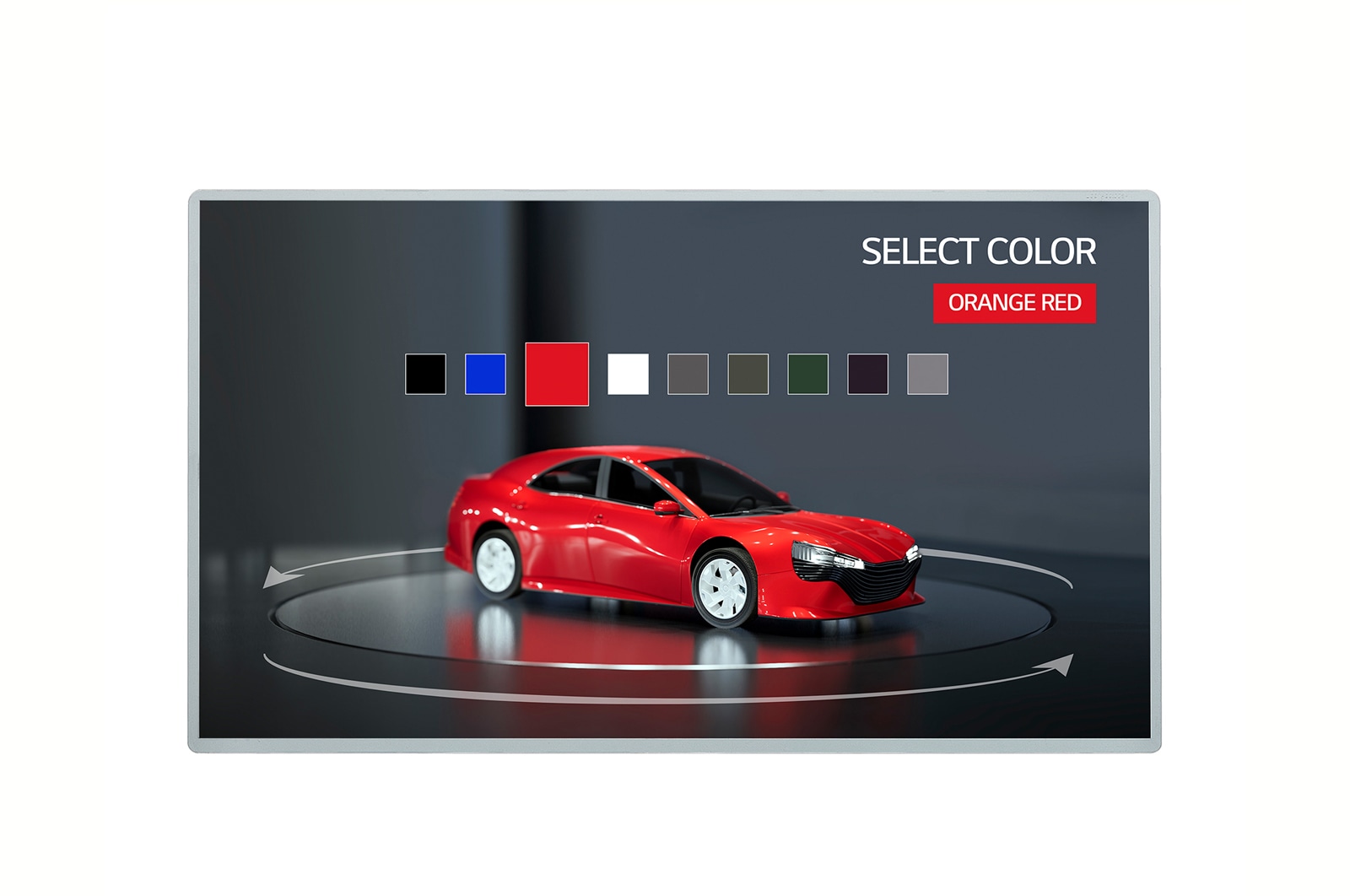

LG Touch Open Frame, 27TNF3K
LG Touch Open Frame, 27TNF3K
LG Touch Open Frame, 27TNF3K
LG Touch Open Frame, 27TNF3K
LG Touch Open Frame, 27TNF3K
LG Touch Open Frame, 27TNF3K
LG Touch Open Frame, 27TNF3K
LG Touch Open Frame, 27TNF3K
LG Touch Open Frame, 27TNF3K
LG Touch Open Frame, 27TNF3K
LG Touch Open Frame, 27TNF3K
LG Touch Open Frame, 27TNF3K
LG Touch Open Frame, 27TNF3K
LG Touch Open Frame, 27TNF3K
LG Touch Open Frame, 27TNF3K
LG Touch Open Frame, 27TNF3K

Key Features

  • 27" Full HD Touch Display
  • Brightness : 300 nit
  • Multi-Touch Point : Max. 10 Points
  • Interface : HDMI (2) / RS-232C / RJ45 / IR / USB 2.0 Type A / Audio / Touch USB (USB 2.0 Type B)
More
Print

All Spec

PANEL

  • Screen Size (Inch)

    27"

  • Panel Technology

    IPS

  • Back Light Type

    Edge

  • Aspect Ratio

    16:9

  • Native Resolution

    1920x1080 (FHD)

  • Refresh Rate

    60Hz

  • Brightness

    300nit

  • Contrast Ratio

    1,000:1

  • Color Gamut

    NTSC 72%

  • Viewing Angle (H x V)

    178 X 178

  • Color Depth (Number of Colors)

    8bit, 16.7 Million colors

  • Response Time

    9ms (G to G)

  • Surface Treatment (Haze)

    Anti glare, 3H(Haze 25%)

  • Life time

    31,000 Hrs (min)

  • Operation Hours (Hours/Day)

    16/7

  • Portait / Landscape

    Yes/Yes

CONNECTIVITY

  • HDMI In

    Yes (2), HDCP1.4

  • RS232C In

    Yes (1)

  • RJ45(LAN) In

    Yes (1)

  • IR In

    Yes (1)

  • USB In

    USB2.0 Type A(1)

  • Audio Out

    Yes (1)

  • Touch USB

    USB2.0 Type B(1)

MECHANICAL SPECIFICATION

  • Bezel Color

    Silver

  • Bezel Width

    7.7/7.7/7.7/9.7mm

  • Weight (Head)

    4.2Kg

  • Packed Weight

    6.2Kg

  • Monitor Dimensions (W x H x D)

    614.9 x 355.3 x 15.1mm

  • Carton Dimensions (W x H x D)

    707 x 171 x 451mm

  • VESA Standard Mount Interface

    200x100

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • DPM

    0.5W↓

  • Power off

    0.5W↓

CERTIFICATION

  • Safety

    CB/NTRL

  • EMC

    FCC Class "A"/ CE / KC

  • ERP / Energy Star

    Yes/No

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign Control+

    Yes

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic, Turkish, Polski

ACCESSORY

  • Basic

    Power Cord 1.55 M*1, USB Cable (Type A-Type B) 1.8 M*1, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver

DEDICATED FEATURE - TOUCH

  • Available Object Size for Touch

    Ø6 mm ↑

  • Response Time ('Paint' app on Windows 10 PC)

    90ms ↓

  • Accuracy (Typ.)

    3.5mm±0.5mm

  • Interface

    USB2.0

  • Operating System Support

    Win 10

  • Multi Touch Point

    Max 10 Points

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
