Flexible Curved Open Frame OLED Signage

Flexible Curved Open Frame OLED Signage

Flexible Curved Open Frame OLED Signage

55EF5K-P
LG Flexible Curved Open Frame OLED Signage, 55EF5K-P
LG Flexible Curved Open Frame OLED Signage, 55EF5K-P
LG Flexible Curved Open Frame OLED Signage, 55EF5K-P
LG Flexible Curved Open Frame OLED Signage, 55EF5K-P
LG Flexible Curved Open Frame OLED Signage, 55EF5K-P
LG Flexible Curved Open Frame OLED Signage, 55EF5K-P
LG Flexible Curved Open Frame OLED Signage, 55EF5K-P
LG Flexible Curved Open Frame OLED Signage, 55EF5K-P
LG Flexible Curved Open Frame OLED Signage, 55EF5K-P
LG Flexible Curved Open Frame OLED Signage, 55EF5K-P
LG Flexible Curved Open Frame OLED Signage, 55EF5K-P
LG Flexible Curved Open Frame OLED Signage, 55EF5K-P
LG Flexible Curved Open Frame OLED Signage, 55EF5K-P
LG Flexible Curved Open Frame OLED Signage, 55EF5K-P
LG Flexible Curved Open Frame OLED Signage, 55EF5K-P
LG Flexible Curved Open Frame OLED Signage, 55EF5K-P

Key Features

  • Brightness: 150/400nit (APL 100%/25%)
  • Depth: 12.4 mm (Head Only)

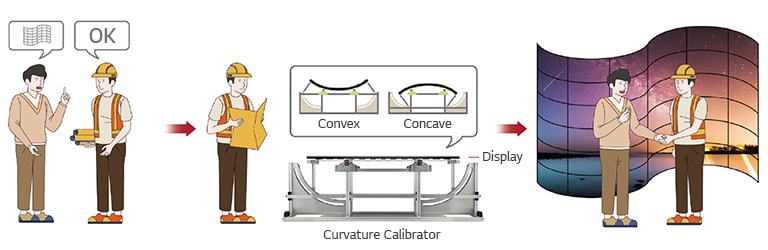

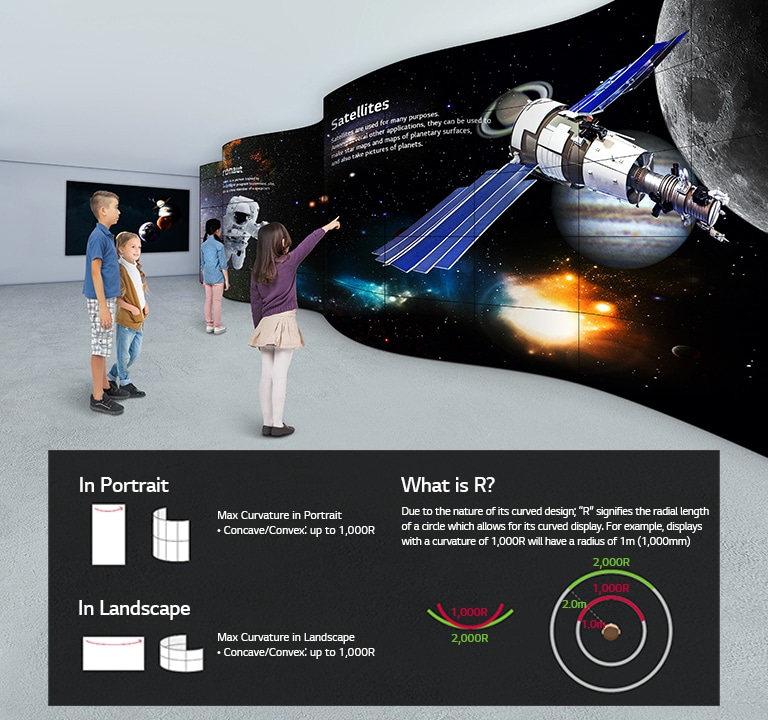

  • Curvature: ~1,000R(Concave/Convex)
  • Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR
More
Print

All Spec

PANEL

  • Screen Size (Inch)

    55

  • Panel Technology

    OLED

  • Back Light Type

    OLED

  • Aspect Ratio

    16:9

  • Native Resolution

    1920 x 1080 (FHD)

  • Refresh Rate

    120Hz

  • Brightness

    150/400nit (APL 100%/25%)

  • Contrast Ratio

    150,000:1

  • Dynamic CR

    NO

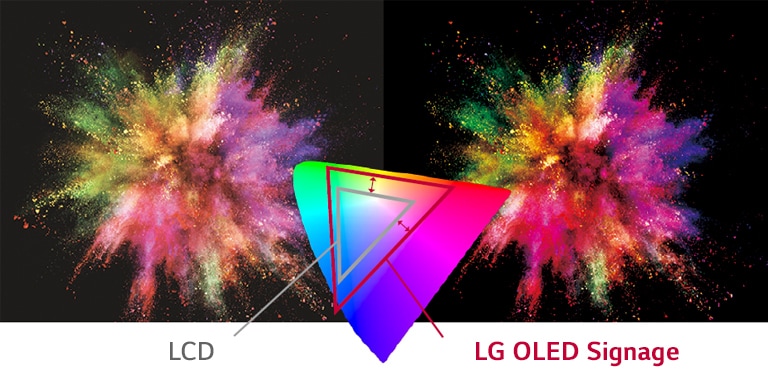

  • Color Gamut

    BT709 120%

  • Viewing Angle (H x V)

    178º x 178º

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Response Time

    1ms (G to G), 8ms (MPRT)

  • Surface Treatment (Haze)

    Haze 0%

  • Life time

    30,000Hrs (Typ.)

  • Operation Hours (Hours/Day)

    18/7 (Moving Content Only)

  • Portait / Landscape

    YES / NO

  • Transparency

    N/A

  • QWP (Quarter Wave Plate)

    N/A

CONNECTIVITY

  • HDMI In

    YES (1ea)

  • HDMI In (HDCP Ver.)

    1.4

  • DP In

    YES (HDCP 1.3)

  • DVI-D In

    NO

  • RGB In

    NO

  • Audio In

    NO

  • RS232C In

    YES

  • RJ45(LAN) In

    YES (1ea)

  • IR In

    YES

  • USB In

    USB2.0 Type A (2ea)

  • HDMI Out

    NO

  • DP Out

    YES

  • Audio Out

    YES

  • Touch USB

    NO

  • External Speaker Out

    NO

  • RS232C Out

    YES

  • RJ45(LAN) Out

    YES

  • IR Out

    YES (Sharing RS232C Out)

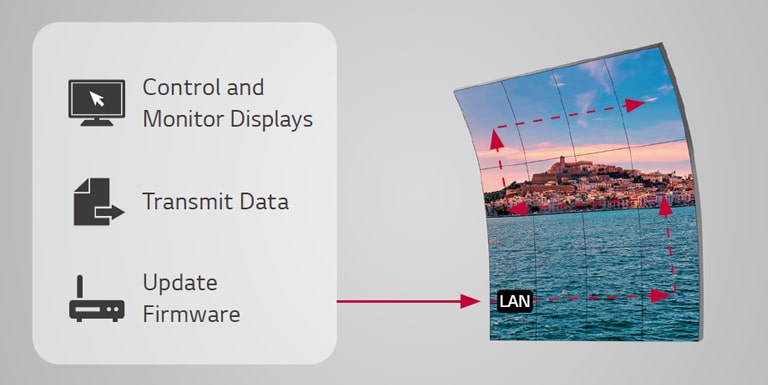

  • Daisy Chain

    Input : HDMI, DP / Output : DP

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    T/R/L/B : 0.6/6.7/6.7/0.6mm (Portrait, Off Bezel) T/R/L/B : 5.0/13.2/7.8/5.0mm (Portrait, On Bezel)

  • Weight (Head)

    7.0Kg (Portrait, Head) 3.5Kg (Signage Box)

  • Weight (Head+Stand)

    N/A

  • Packed Weight

    17.6Kg (Portrait)

  • Monitor Dimensions (W x H x D)

    701.4 x 1219.7 x 38.0mm (Portrait, Head, with Pemnut) 701.4 x 1219.7 x 12.4mm (Portrait, Head, without Pemnut) 413 x 353 x 57.3mm (Signage Box)

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Carton Dimensions (W x H x D)

    1360 x 842 x 252mm

  • Handle

    NO

  • VESA Standard Mount Interface

    N/A

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    16GB

  • Wi-Fi/BT (Built-in)

    NO

  • Temperature Sensor

    YES

  • Auto Brightness Sensor

    NO

  • Pixel Sensor

    NO

  • Proximity Sensor

    NO

  • Current Sensor

    NO

  • BLU Sensor

    NO

  • Humidity Sensor

    NO

  • Acceleration(Gyro) Sensor

    NO

  • Power Indicator

    NO

  • Local Key Operation

    NO

  • FAN (Built-in)

    YES

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    webOS 4.0

  • Local Contents Scheduling

    YES

  • Group Manager

    YES

  • USB Plug & Play

    YES

  • Fail over

    YES

  • Booting Logo Image

    NO

  • No Signal Image

    NO

  • RS232C Sync

    YES

  • Local Network Sync

    YES

  • Backlight Sync

    NO

  • PIP

    NO

  • PBP

    NO

  • Screen Share

    NO

  • Video Tag

    YES (4 Video Tag)

  • Play via URL

    NO

  • Screen Rotation

    YES

  • External Input Rotation

    YES

  • Gapless Playback

    YES

  • Tile Mode Setting

    YES

  • Setting Data Cloning

    YES

  • SNMP

    YES

  • ISM Method

    YES

  • Auto Set ID

    YES

  • Status Mailing

    YES

  • Control Manager

    YES

  • Cisco Certification

    NO

  • Crestron Connected

    YES

  • Smart Energy Saving

    NO

  • PM mode

    YES

  • Wake on LAN

    YES

  • Network Ready

    NO

  • Beacon

    NO

  • HDMI-CEC

    YES

  • SI Server Setting

    YES

  • webRTC

    NO

  • Pro:Idiom

    YES

  • Brightness Compensation

    NO

  • W/B Setting by Grey scale

    NO

  • Scan Inversion

    YES

  • The security update is supported for

    5 years from the product launch date stated at https://lgsecurity.lge.com/bulletins/idproducts

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Typ.

    309W

  • Max.

    318W

  • BTU (British Thermal Unit)

    1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max.)

  • Smart Enegy Saving(~70%)

    N/A

  • DPM

    0.5W

  • Power off

    0.5W

SOUND

  • Speaker (Built-in)

    NO

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ERP / Energy Star

    YES / NO

  • ePEAT(US only)

    NO

OPS COMPATIBILITY

  • OPS Type compatible

    N/A

  • OPS Power Built-in

    N/A

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

  • SuperSign Cloud

    NO

  • Promota

    NO

  • Mobile CMS

    YES

  • Connected Care

    YES

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, FFC Cables(220mmx4ea for connection between panel and Signage box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Tape(4ea for Cabling), Screw(M3xL4.5,30ea / M3xL5.5,50ea / M3x3.5,10ea), Shield Cover Assy', Tiling Set Fixer 6ea, Flex Bar 2ea

  • Optional

    NO

SPECIAL FEATURE

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face up)

    Max. 90 degree

  • Tilt (Face down)

    Max. 90 degree

  • IP Rating

    N/A

  • Conformal Coating (Power Board)

    N/A

  • Power Protection

    N/A

  • Direct Sunlight

    N/A

Dimension

extension : dwg
55EF5K-P_2D.dwg
Download
extension : pdf
55EF5K-P_2D.pdf
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
