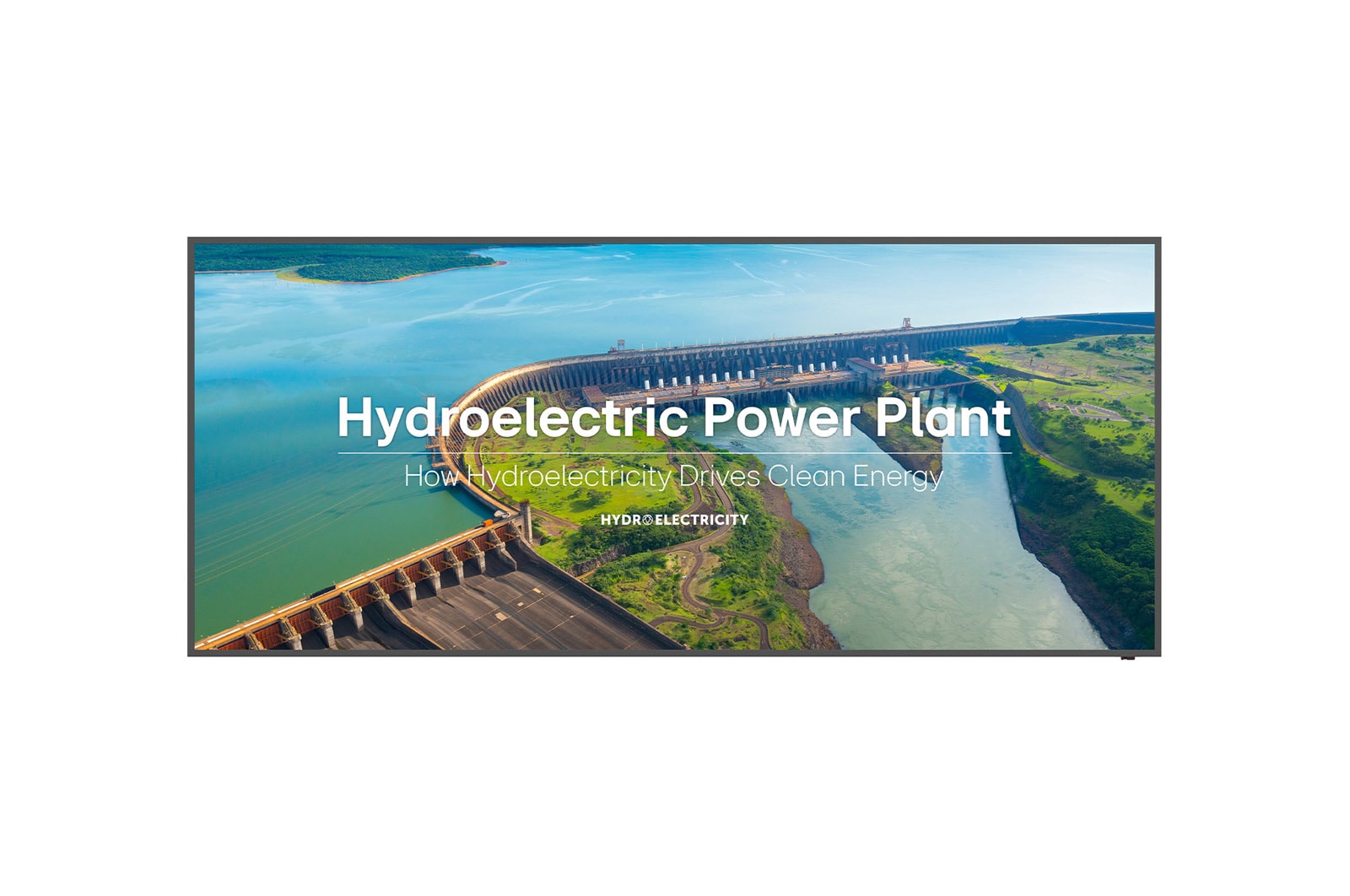

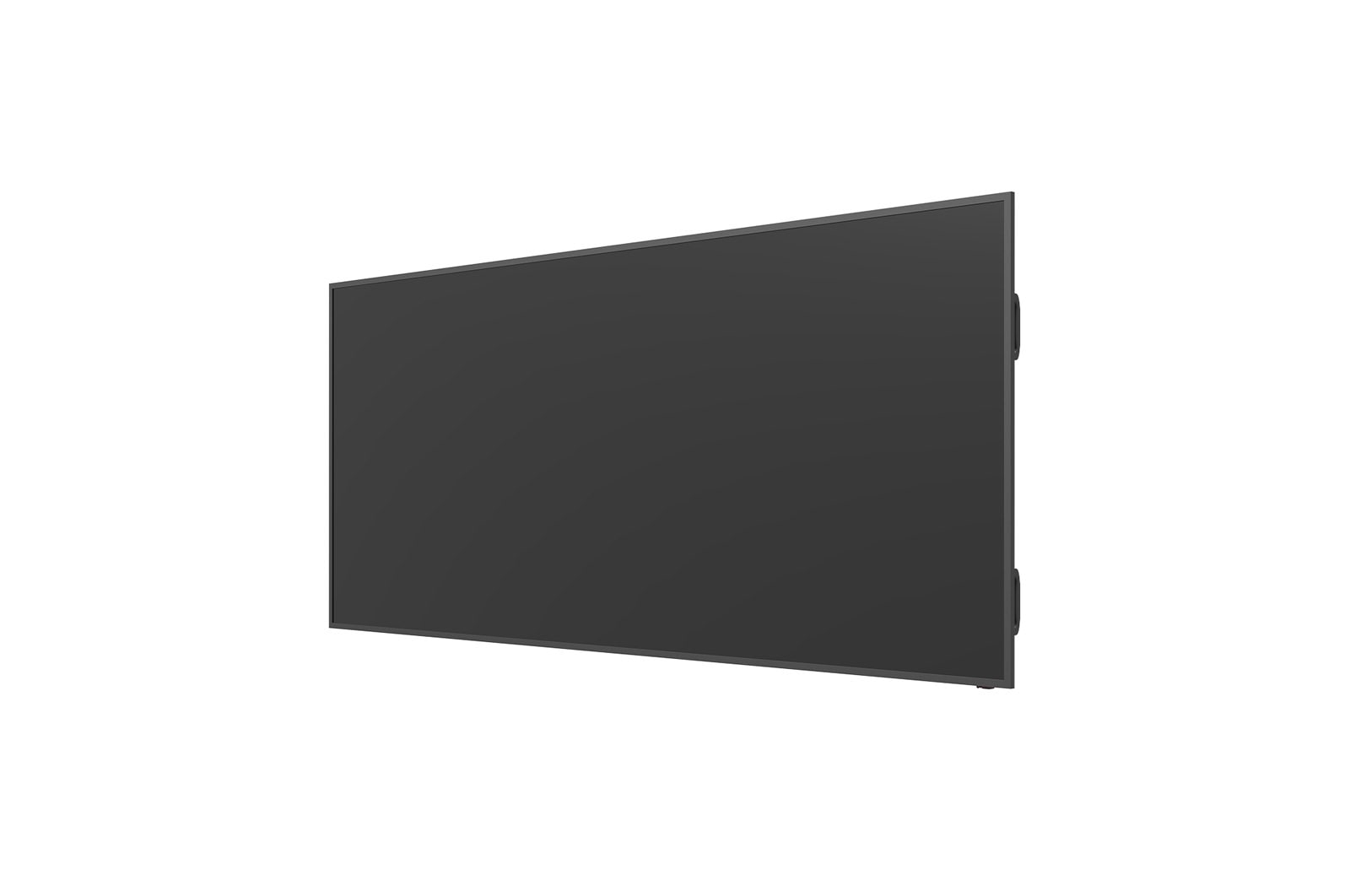

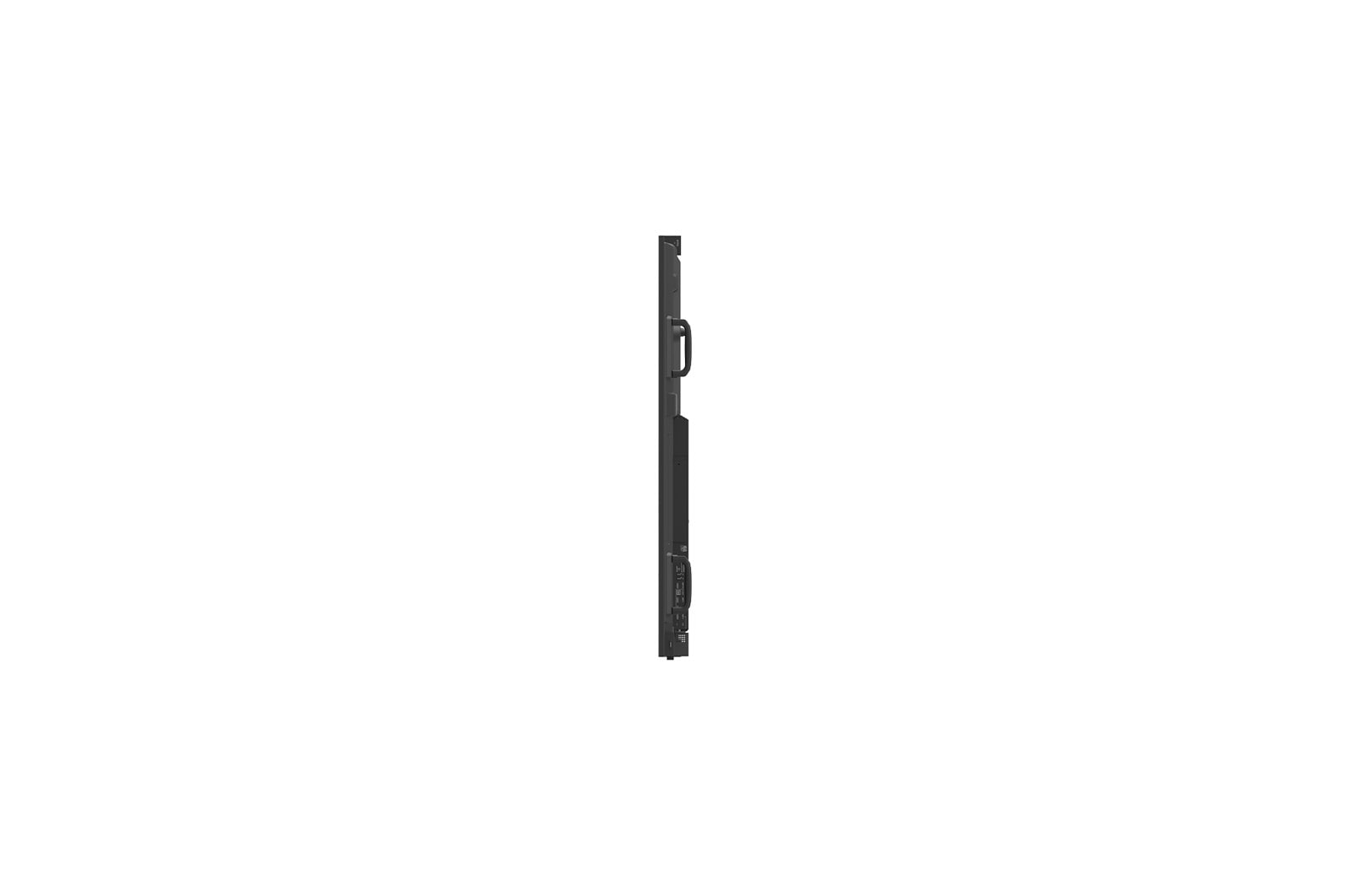

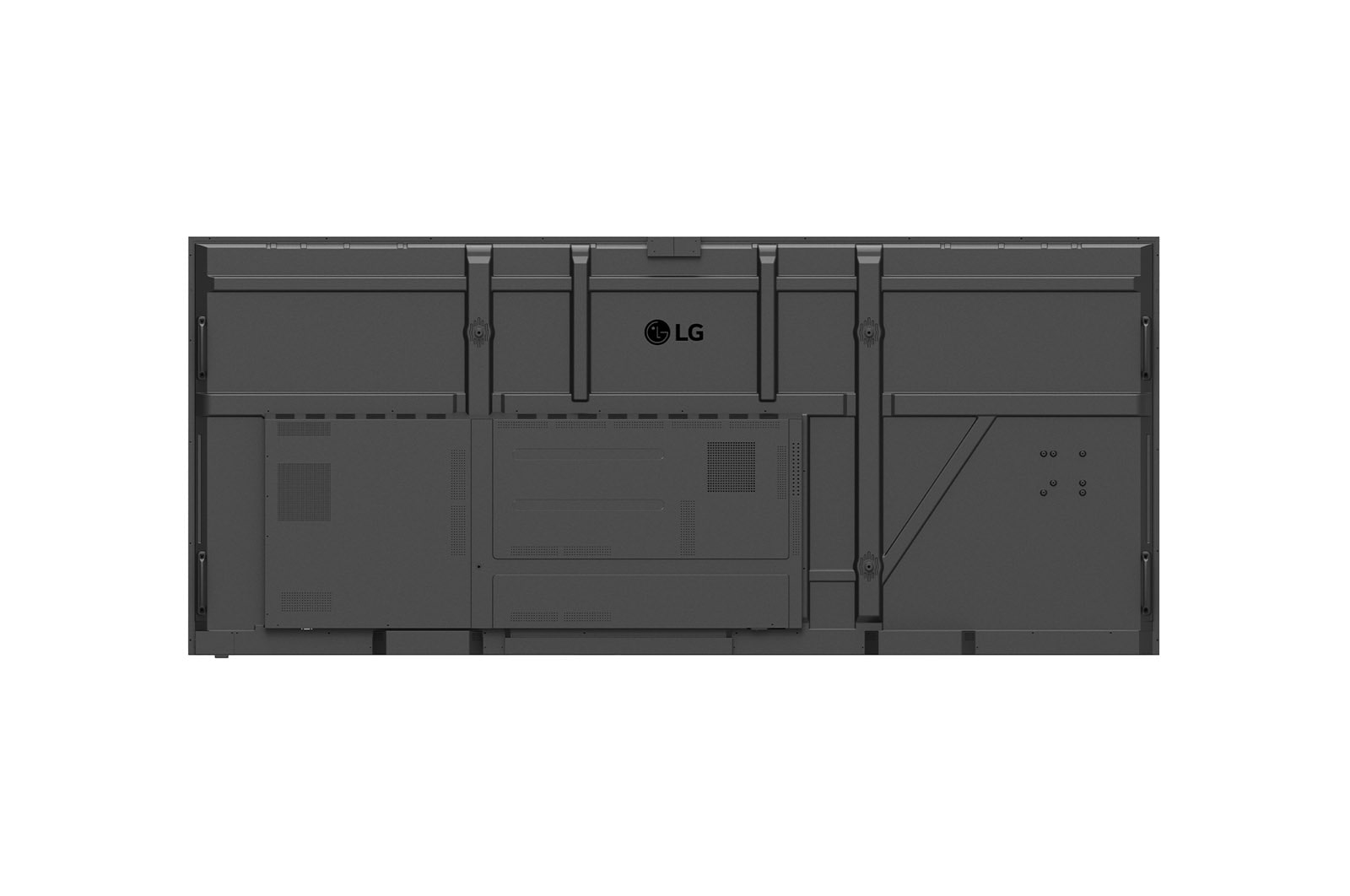

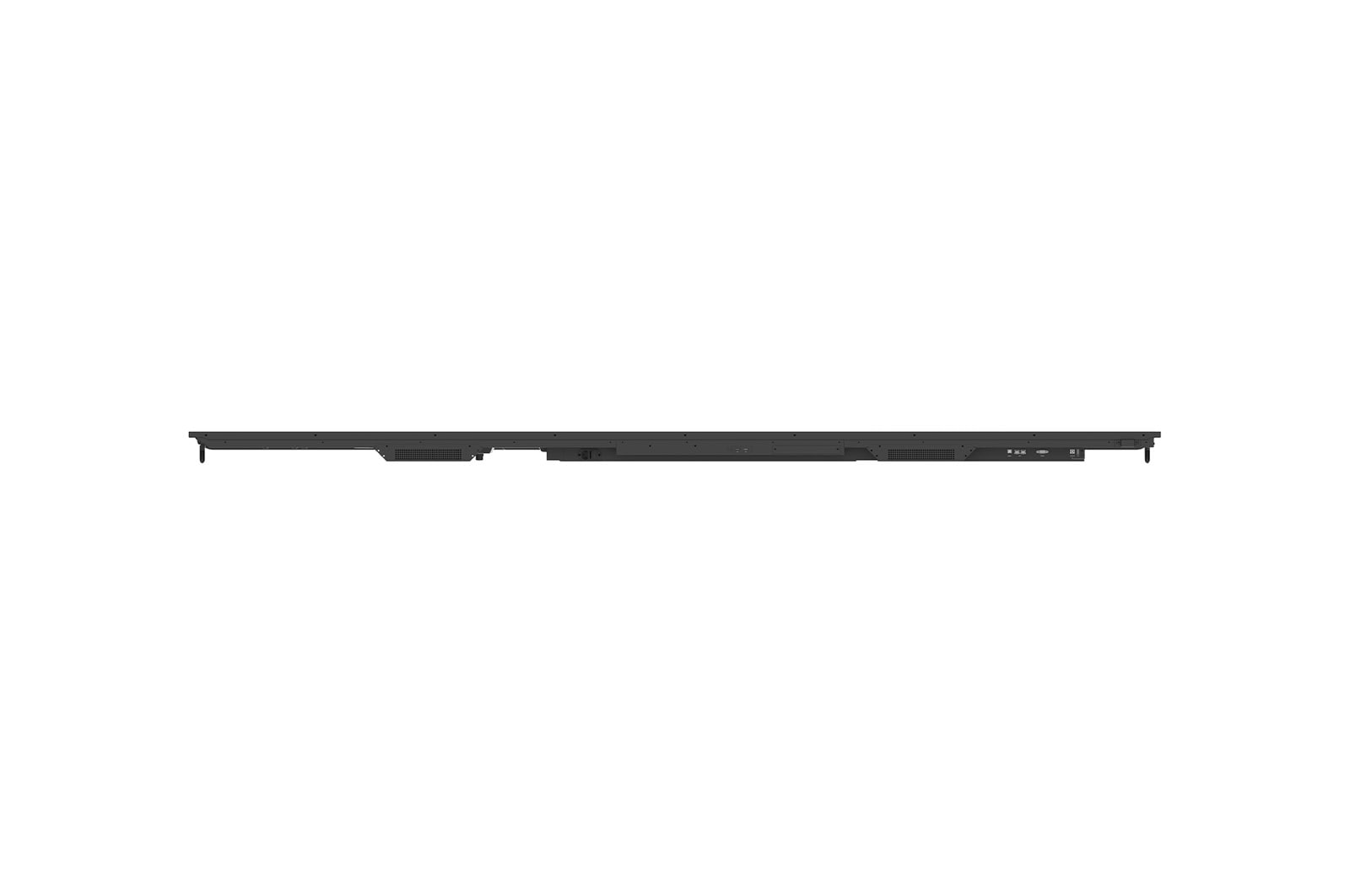

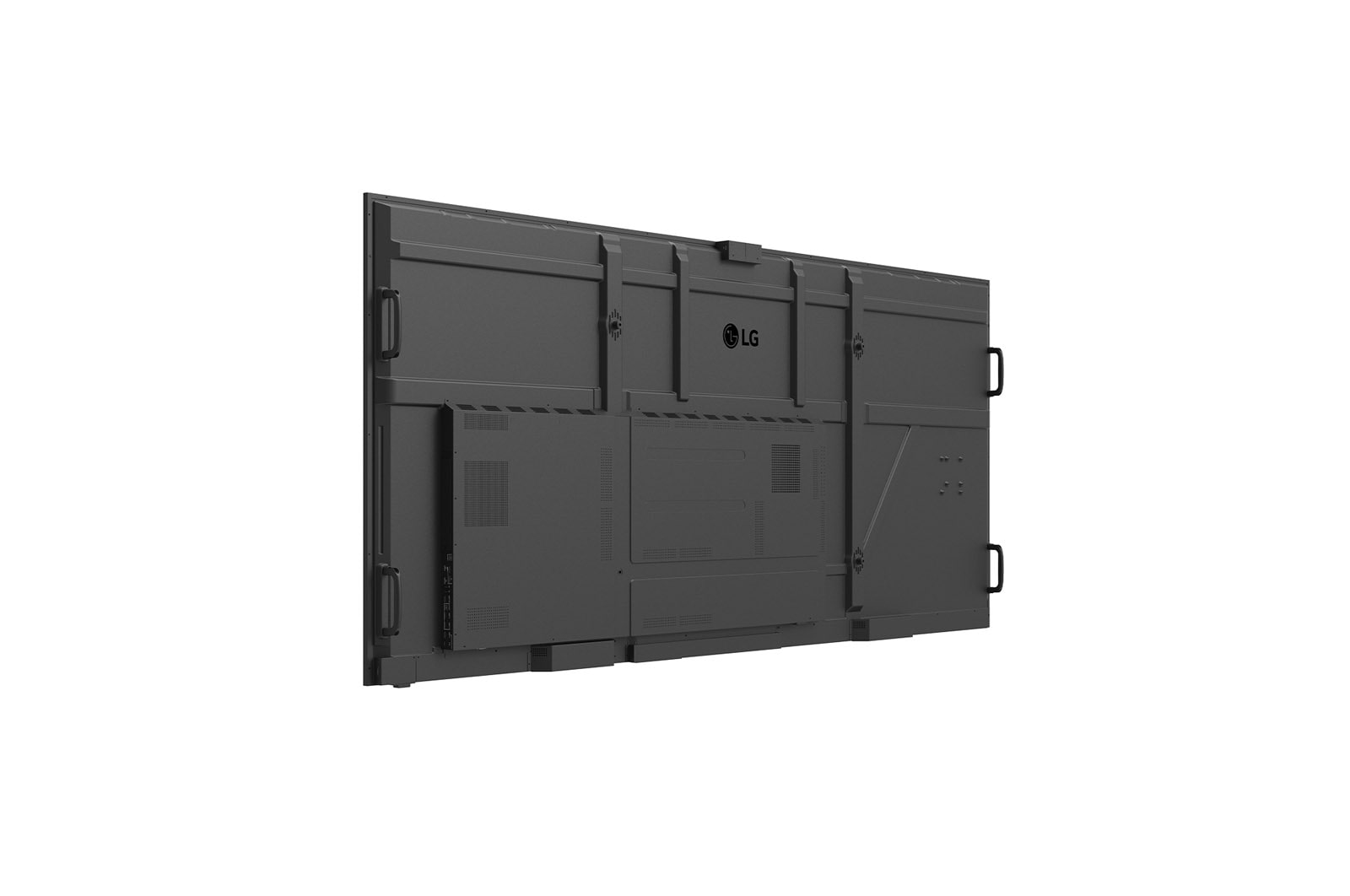

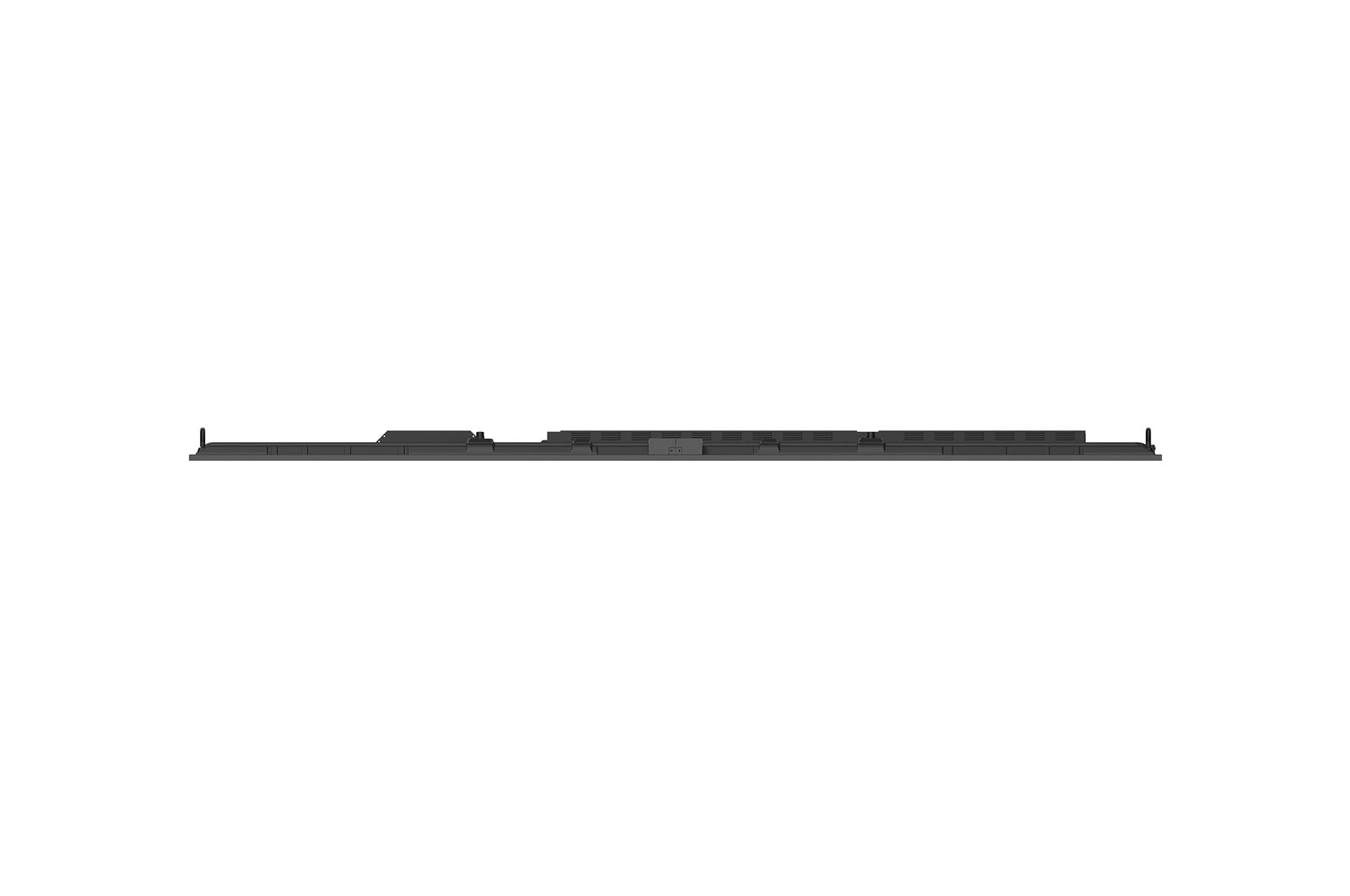

LG Stretch Signage, 105BM5P

LG Stretch Signage, 105BM5P

LG Stretch Signage, 105BM5P

LG Stretch Signage, 105BM5P

LG Stretch Signage, 105BM5P

LG Stretch Signage, 105BM5P

LG Stretch Signage, 105BM5P

LG Stretch Signage, 105BM5P

LG Stretch Signage, 105BM5P

LG Stretch Signage, 105BM5P

LG Stretch Signage, 105BM5P

LG Stretch Signage, 105BM5P

LG Stretch Signage, 105BM5P

LG Stretch Signage, 105BM5P

LG Stretch Signage, 105BM5P

LG Stretch Signage, 105BM5P

LG Stretch Signage, 105BM5P

LG Stretch Signage, 105BM5P

LG Stretch Signage, 105BM5P

LG Stretch Signage, 105BM5P

Key Features

Screen Size : 105"

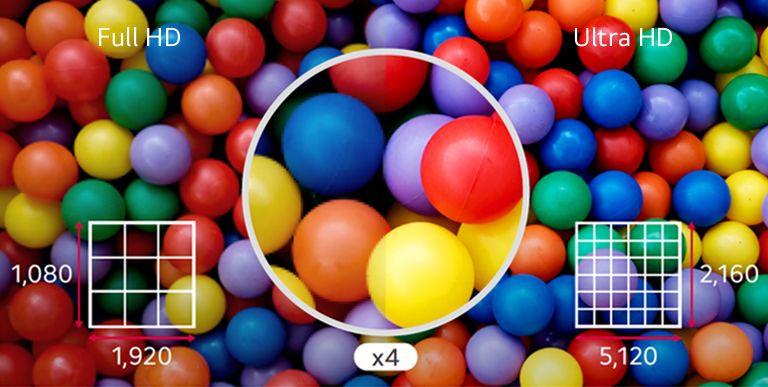

Resolution : 5,120 × 2,160 (5K)
Brightness : 440 nit (Typ.), 385 nit (Min.)

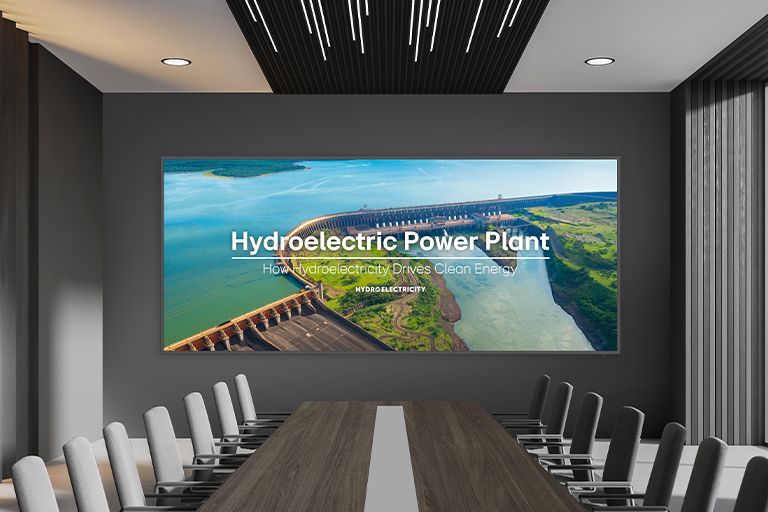

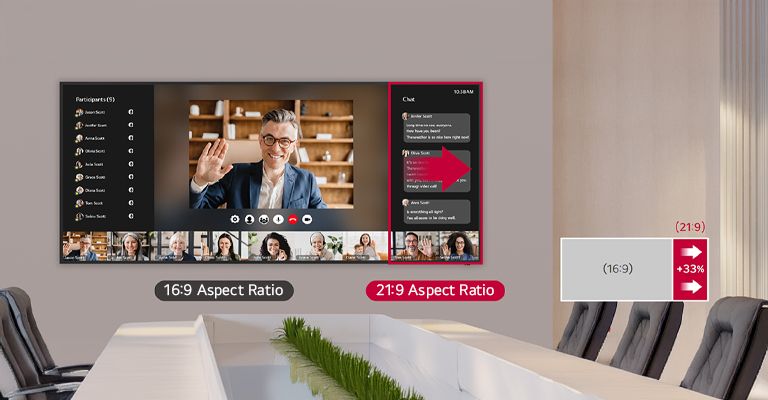

21:9 Wide Screen

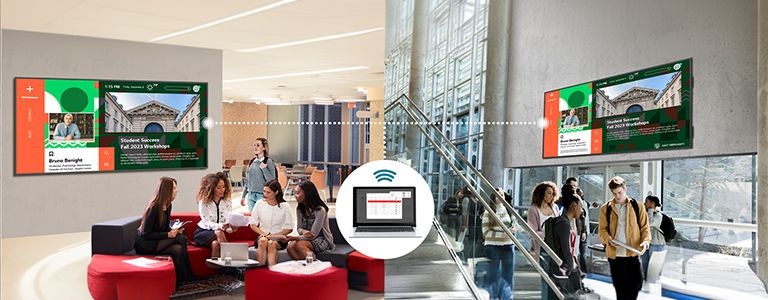

Remote Device Management

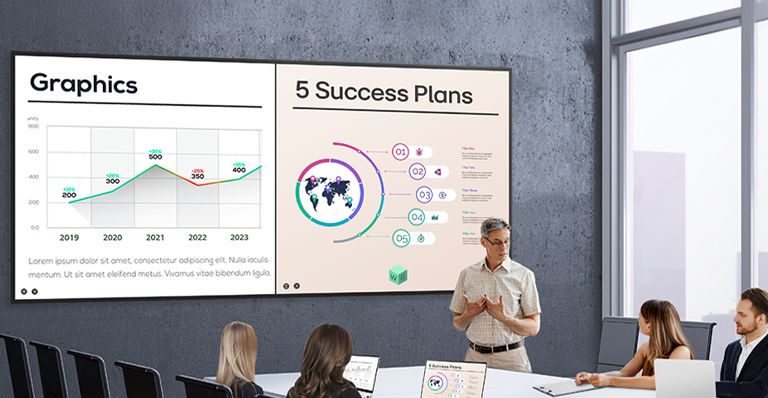

Wireless ScreenShare

All Spec

CONNECTIVITY

HDMI In
O (4) HDCP 2.3 ※ O(1, HDMI2.1), O(3, HDMI2.0)
Audio In
O (1)
Audio Out
O (1, Optical 1(SPDIF))
DP In
O (1) HDCP 2.3
DP Out
X, HDMI Out (1)
DVI-D In
X
IR In
X
RGB In
X
RJ45(LAN) In
O (1)
RJ45(LAN) Out
O (1)
RS232C In
X
RS232C Out
X
Touch USB
X
USB In

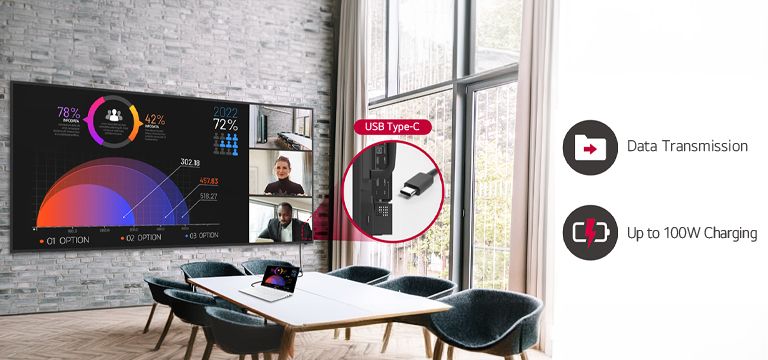

USB Type C(1)(100W PD, DP-Alt)
USB3.0 Type A(4)
USB2.0 Type A(3)
USB2.0 Type B out (3)

ACCESSORY

Optional
OPSJ-5LDJA(4K)
Basic
Power cord, HDMI Cable, Remote Controller Remote battery, SI07B, Wall Mount

CERTIFICATION

ePEAT(US only)
X
EMC
FCC Class "A" / CE
ERP / Energy Star
O / O
Safety
CB / NRTL (cULus)

ENVIRONMENT CONDITIONS

Operation Humidity
10 % to 90 %
Operation Temperature
0 °C to 40 °C

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil) Russian, Portugues(Europe), Dutch, Czech, Greek, Türkiye, Swedish, Finnish, Norwegian, Danish

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
T/R/L/B : 18/18/18/18mm
Carton Dimensions (W x H x D)
2668×280×1233mm
Handle
O
Monitor Dimension with Stand (W x H x D)
X
Monitor Dimensions (W x H x D)

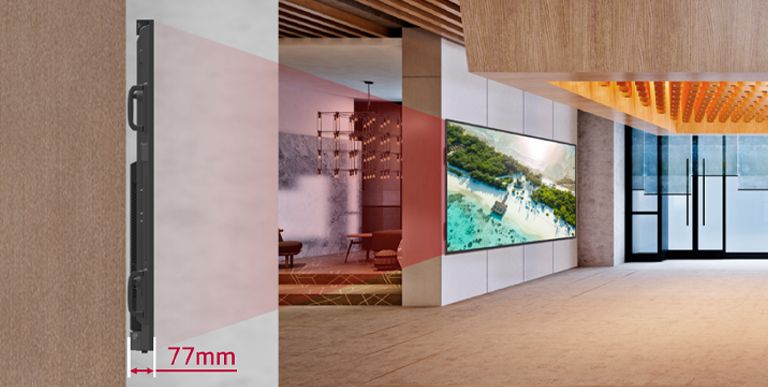

2490 X 1074 X 77mm
Packed Weight
75.9Kg
Weight (Head)
54.1Kg
Weight (Head+Stand)
X

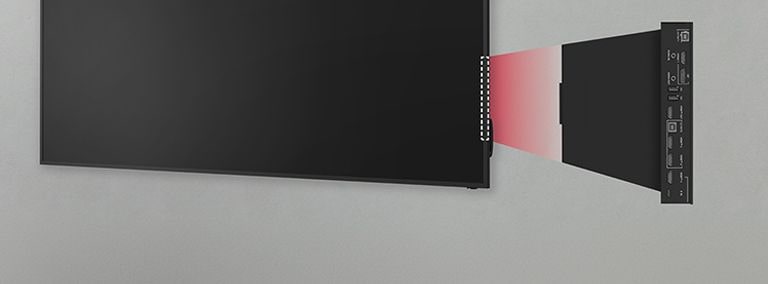

OPS COMPATIBILITY

OPS Power Built-in
O
OPS Type compatible
O (Slot)

PANEL

Aspect Ratio
21:9
Brightness
440nit (typ.),385nit (Min.)
Color Depth (Number of Colors)
10bit(8bit + FRC)
Color Gamut
NTSC 72%
Contrast Ratio
1200:1
Dynamic CR
5000:1
Life time
50,000 Hours (Min)
Native Resolution
5120 X 2160 (5K)
Operation Hours (Hours/Day)
16/7
Panel Technology
IPS (ADS)
Refresh Rate
60Hz
Response Time
8ms
Screen Size (Inch)
105"
Surface Treatment (Haze)
25%
Viewing Angle (H x V)
178 X 178

POWER

Power Type
Built-In Power
Power Supply
AC 100-240V~, 50/60Hz

POWER CONSUMPTION

Power off
≤0.5W
BTU (British Thermal Unit)
1406 BTU/Hr(Typ.), 2156 BTU/Hr(Max)
DPM
≤0.5W
Max.
632W
Smart Energy Saving (70%)
X
Typ.
412W

SOFTWARE COMPATIBILITY

SuperSign CMS
X
SuperSign WB
X

SOUND

Speaker (Built-in)
O (16W x 2 + 15W)

Datasheet

105BM5P_Datasheet(low)_LG Stretch Signage_250915.pdf
