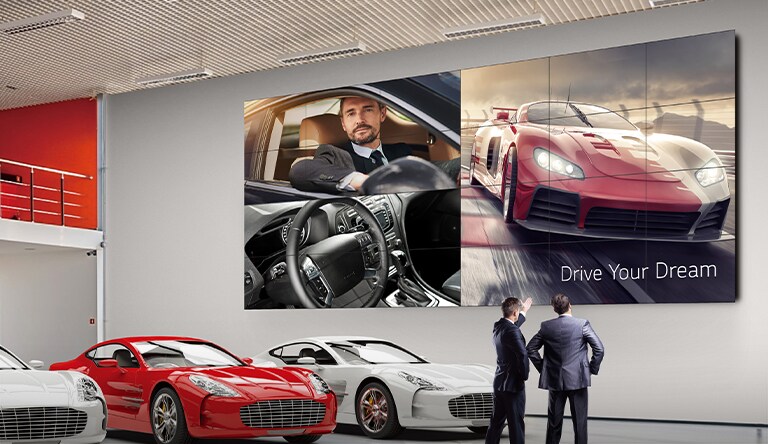

A big video wall is installed on the wall of the car showroom and the car advertisement is on the screen.
* All images in this web page are for illustrative purposes only.
The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.
A video wall is installed in the lobby, and it provides immersive images with ultra slim bezel.
* The 1.74mm BtoB (Panel Bezel to Panel Bezel) have been verified by Nemko, a global institution that tests and certifies electrical equipment.
The VM5J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

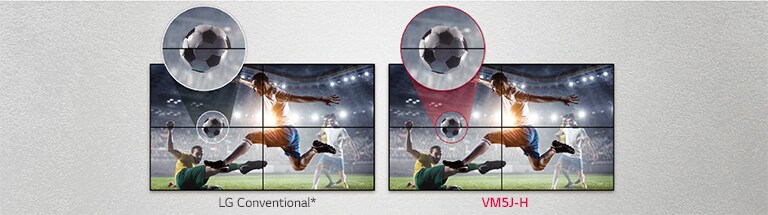

VM5J-H consists of less image gaps between the tiled screens compared to the LG Conventional. This improves the viewing experience of the displayed content as it minimizes the visual disturbance by the gaps.
* The "LG Conventional" refers to displays which do not include an image improvement algorithm.
** The image shown above are for illustration purposes only.
* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.
* SDK can be downloaded with the link below. (https://webossignage.developer.lge.com)
* Supported protocols : RTSP, RTP, HLS, UDP Multicast
Video wall in various places can't avoid exposure to environments with dust, and humidity, which may lead to hampered performance over time. Conformal coating on the major circuit board (power board) significantly reduces these risks from such environments by protecting video wall from salt, dust, iron powder, humidity, etc.
The VM5J-H has Conformal Coating on the major circuit board (power board) to protect video wall even in a salty or humid environment.
* Actual images (Signage display) available may differ from the example images shown.
The VM5J-H is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments. Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.
The VM5J-H, certified with EMC class B, is installed on the control room wall.
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
The LG employee is remotely monitoring the VH7J-H installed in a different place by using cloud-based LG monitoring solution.
* LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.
A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST.
Multiple displays are being managed simultaneously through the LAN daisy chain. The UHD daisy chain utilizing HDMI and DisplayPort allows easy access to adjusting UHD settings.
The IP5x Dust-Proof Certification ensures that the product is protected from dust, eliminating the risk of performance degradation.
The VH7J-H, with IP5x Dust-Proof Certification, protects the product from dust.
Screen Size (Inch)
55
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
60Hz
Brightness
500nit (Typ.)
Contrast Ratio
1,000:1
Dynamic CR
500,000:1
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colours
Response Time
8ms (G to G)
Surface Treatment (Haze)
Haze 28%
Life time
60,000Hrs (Typ.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
YES / YES
Transparency
N/A
QWP (Quarter Wave Plate)
N/A
HDMI In
YES (2ea)
HDMI In (HDCP Ver.)
2.2
DP In
YES (HDCP 2.2)
DVI-D In
YES (HDCP 1.4)
RGB In
NO
Audio In
YES
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
YES
USB In
USB2.0 Type A (1ea)
HDMI Out
NO
DP Out
YES
Audio Out
YES
Touch USB
NO
External Speaker Out
NO
RS232C Out
YES
RJ45(LAN) Out
YES
IR Out
NO
Daisy Chain
Input : HDMI, DP, DVI-D / Output : DP
Bezel Color
Black
Bezel Width
B2B : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(T/L), 0.44mm(B/R) A2A : 2.49mm (Active area to Active area), 1.75mm(T/L), 0.74mm(B/R)
Weight (Head)
18.8Kg
Weight (Head+Stand)
N/A
Packed Weight
28.0Kg
Monitor Dimensions (W x H x D)
1212.2 x 683.0 x 86.9mm
Monitor Dimension with Stand (W x H x D)
N/A
Carton Dimensions (W x H x D)
1393 x 955 x 303mm
Handle
YES
VESA Standard Mount Interface
600 x 400 mm
Internal Memory (eMMC)
8GB
Wi-Fi/BT (Built-in)
NO
Temperature Sensor
YES
Auto Brightness Sensor
NO
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
YES
Humidity Sensor
NO
Acceleration(Gyro) Sensor
YES
Power Indicator
NO
Local Key Operation
YES
FAN (Built-in)
NO
OS Ver. (webOS)
webOS 4.1
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
NO
No Signal Image
YES
RS232C Sync
YES
Local Network Sync
YES
Backlight Sync
NO
PIP
NO
PBP
NO
Screen Share
NO
Video Tag
YES (4 Video Tag)
Play via URL
YES
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
YES
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Cisco Certification
NO
Crestron Connected
YES
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
YES
Beacon
NO
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
YES
Scan Inversion
YES
The security update is supported for
5 years from the product launch date stated at https://lgsecurity.lge.com/bulletins/idproducts
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
Typ.
160W
Max.
190W
BTU (British Thermal Unit)
546 BTU/Hr(Typ.), 648 BTU/Hr(Max.)
Smart Enegy Saving(~70%)
90W
DPM
0.5W
Power off
0.5W
Speaker (Built-in)
NO
Safety
CB / NRTL
EMC
FCC Class "B" / CE / KC
ERP / Energy Star
YES / Energy Star 8.0
ePEAT(US only)
NO
OPS Type compatible
YES (Piggyback)
OPS Power Built-in
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES
SuperSign Cloud
NO
Promota
NO
Mobile CMS
NO
Connected Care
YES
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
Basic
Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual
Optional
OPS Kit(KT-OPSF)
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face up)
N/A
Tilt (Face down)
N/A
IP Rating
IP5X tested
Conformal Coating (Power Board)
YES
Power Protection
N/A
Direct Sunlight
N/A
To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
