Smart Signage Platform
Content Mirroring among devices is more convenient on a Wi-Fi network.
With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.
22SM3G operates as a virtual router which can be a wireless access point for mobile devices.
Screen Size (Inch)
21.5
Panel Technology
IPS
Back Light Type
Edge
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
60Hz
Brightness
250nit (Typ.)
Contrast Ratio
1,000:1
Dynamic CR
400,000:1
Color Gamut
BT709 95%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
16.7 Million colors
Response Time
14ms (G to G)
Surface Treatment (Haze)
Haze 25%
Life time
30,000Hrs (Min.)
Operation Hours (Hours/Day)
16/7
Portait / Landscape
YES / YES
Transparency
N/A
QWP (Quarter Wave Plate)
N/A

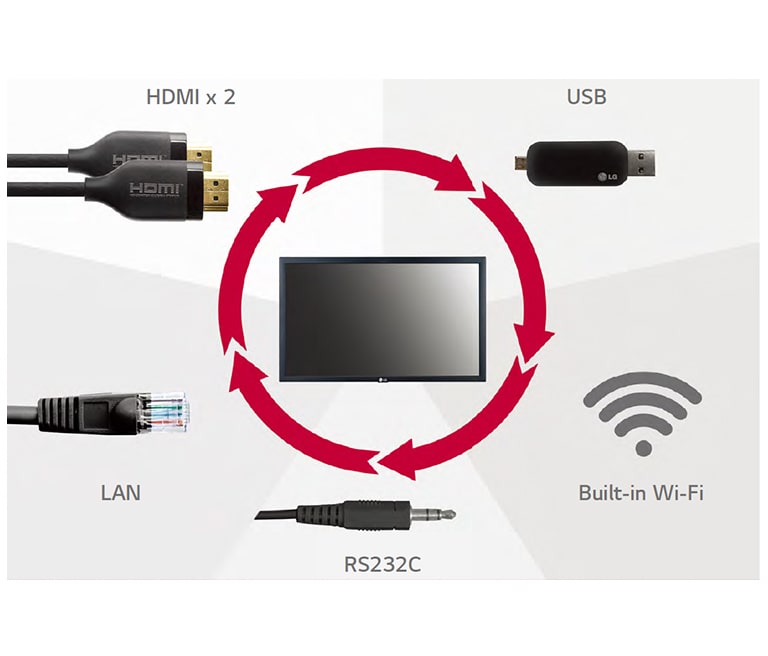

HDMI In
YES (2ea)
HDMI In (HDCP Ver.)
2.2
DP In
NO
DVI-D In
NO
RGB In
NO
Audio In
YES
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
YES
USB In
USB2.0 Type A (1ea)
HDMI Out
NO
DP Out
NO
Audio Out
NO
Touch USB
NO
External Speaker Out
NO
RS232C Out
NO
RJ45(LAN) Out
NO
IR Out
NO
Daisy Chain
NO
Bezel Color
Black
Bezel Width
Even bezel : 16.3mm
Weight (Head)
3.34Kg
Weight (Head+Stand)
N/A
Packed Weight
4.74Kg
Monitor Dimensions (W x H x D)
510.3 x 302.1 x 53.8mm
Monitor Dimension with Stand (W x H x D)
N/A
Carton Dimensions (W x H x D)
565.0 x 357.0 x 103.0mm
Handle
NO
VESA Standard Mount Interface
100 x 100 mm
Internal Memory (eMMC)
8GB
Wi-Fi/BT (Built-in)
YES
Temperature Sensor
YES
Auto Brightness Sensor
NO
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
NO
Power Indicator
NO
Local Key Operation
YES
FAN (Built-in)
NO
OS Ver. (webOS)
webOS 4.1
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
YES
No Signal Image
YES
RS232C Sync
NO
Local Network Sync
NO
Backlight Sync
NO
PIP
YES
PBP
YES (2PBP)
Screen Share
YES
Video Tag
YES (2 Video Tag)
Play via URL
YES
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
NO
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
NO
Status Mailing
YES
Control Manager
YES
Cisco Certification
NO
Crestron Connected
YES
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
YES
Beacon
YES
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Brightness Compensation
NO
W/B Setting by Grey scale
NO
Scan Inversion
NO
The security update is supported for
5 years from the product launch date stated at https://lgsecurity.lge.com/bulletins/idproducts
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
Typ.
30W
Max.
33W
BTU (British Thermal Unit)
103 BTU/Hr(Typ.), 113 BTU/Hr(Max.)
Smart Enegy Saving(~70%)
15W±5%
DPM
0.5W(WOL Off), 3.2W(WOL On)
Power off
0.5W
Speaker (Built-in)
YES (1W x 2)
Safety
CB / NRTL
EMC
FCC Class "A" / CE
ERP / Energy Star
NO / NO
ePEAT(US only)
NO
OPS Type compatible
NO
OPS Power Built-in
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES
SuperSign Cloud
NO
Promota
NO
Mobile CMS
NO
Connected Care
YES
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Phone to RS232C Gender, External IR, IR Sheet
Optional
NO
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face up)
N/A
Tilt (Face down)
N/A
IP Rating
N/A
Conformal Coating (Power Board)
N/A
Power Protection
N/A
Direct Sunlight
N/A
To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
