LG Kiosk
Contact Us

LG Self-Service KIOSK Modular

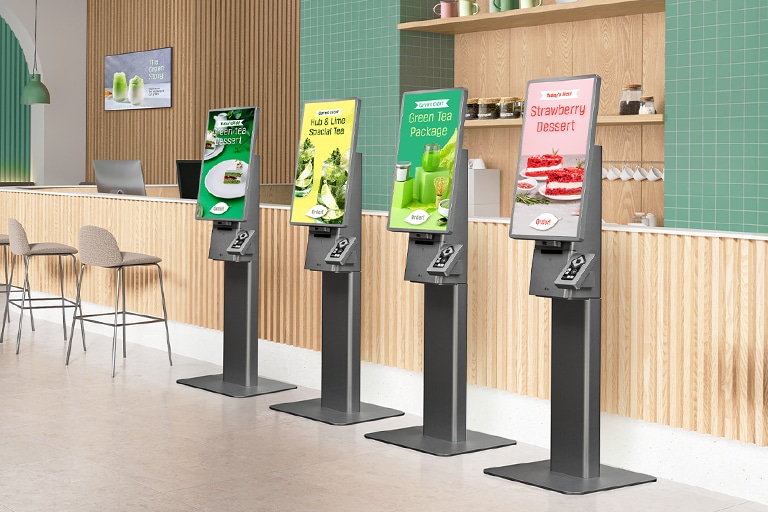

There are four LG Kiosks placed side by side in a cafe, each displaying different menu advertisements on their standby screens. There are four LG Kiosks placed side by side in a cafe, each displaying different menu advertisements on their standby screens.
* All images are for illustrative purposes only.

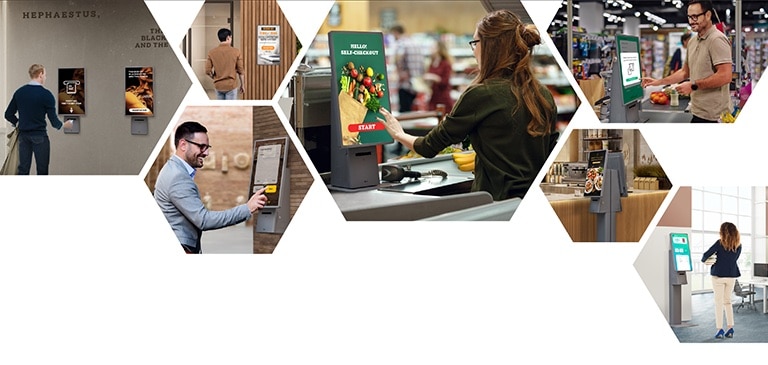

This demonstrates the versatility of LG Kiosks, showing their use in locations such as museums, entrances, supermarkets, restaurants, and libraries, where they adapt to various environments. This demonstrates the versatility of LG Kiosks, showing their use in locations such as museums, entrances, supermarkets, restaurants, and libraries, where they adapt to various environments.
The LG Kiosk modular features customizable peripherals for enhanced user experience and functionality. Its adjustable display supports both landscape and portrait modes, with simplified USB-C connections on all bezel sides. Available in three stand options including Back-to-Back Stand that adapts seamlessly to various retail environments.

Modular Design

The Kiosk offers flexible customization with various peripherals to meet specific needs. Its modular design allows easy integration of devices like barcode scanners and EMV terminals. USB-C ports simplify connections, enabling independent operation for diverse business requirement.

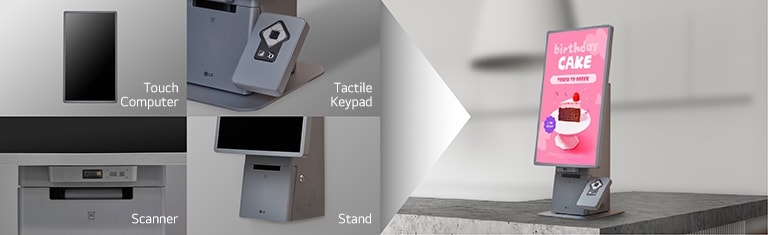

The LG Kiosk can be customized with various components, including a touch computer, tactile keypad, scanner, and stand. The LG Kiosk can be customized with various components, including a touch computer, tactile keypad, scanner, and stand.

Versatile Kiosk

LG Kiosk is modular designed to meet a variety of installation needs with three stand options: general Counter-Top, Floor Stand and Back-to-Back Stand that minimize floor space by allowing two kiosks to be accessed from both sides. This flexibility allows it to adapt seamlessly to different retail environments and requirements. The Touch Computer for Kiosk can be directly mounted on the wall without a stand by utilizing its standard VESA mounting compatibility.

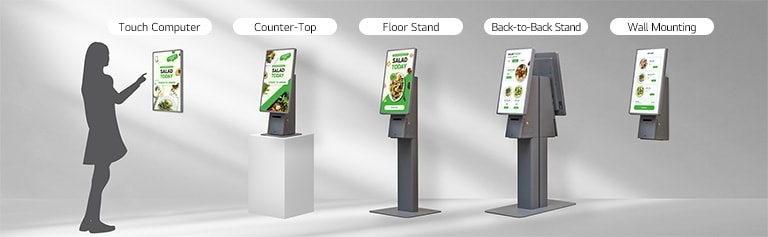

The LG Kiosk can be installed in multiple formats, such as a touch computer on its own, a counter-top model, a floor-standing version, a back-to-back stand, or a wall-mounted design. The LG Kiosk can be installed in multiple formats, such as a touch computer on its own, a counter-top model, a floor-standing version, a back-to-back stand, or a wall-mounted design.
* A wall mount kit is not included.

Display Orientation

The kiosk can be easily pre-configured to be used in either landscape or portrait mode, depending on the location. This ensures that the content is optimally displayed, tailored to the specific service requirements and visual imagery.

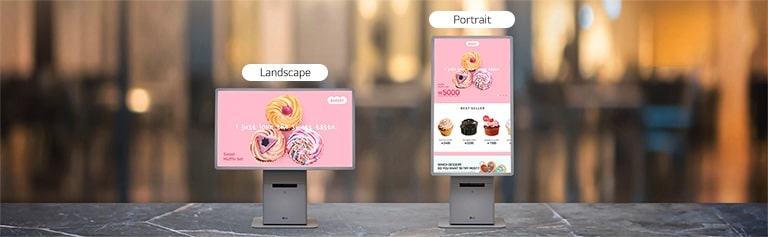

The touch computer on an LG Kiosk can be pre-configured to operate in either landscape or portrait mode, depending on the intended use. The touch computer on an LG Kiosk can be pre-configured to operate in either landscape or portrait mode, depending on the intended use.

Optimized Serviceability

The LG Kiosk features accessible core hardware components, simplifying maintenance. It features two separate hinged doors: an upper door to access inner space and a lower door for a printer. The back cover of the touch computer is designed to facilitate convenient repair work for essential components such as the SSD or mainboard battery. This structure allows for easy access whenever needed, making the repair process much smoother and more efficient.
  • The LG Kiosk features two vertically positioned hinged doors.

  • The back cover of the touch computer is designed to provide easy access to internal components, simplifying repairs and maintenance.

Enhanced Accessibility :
Tactile Keypad Accessory

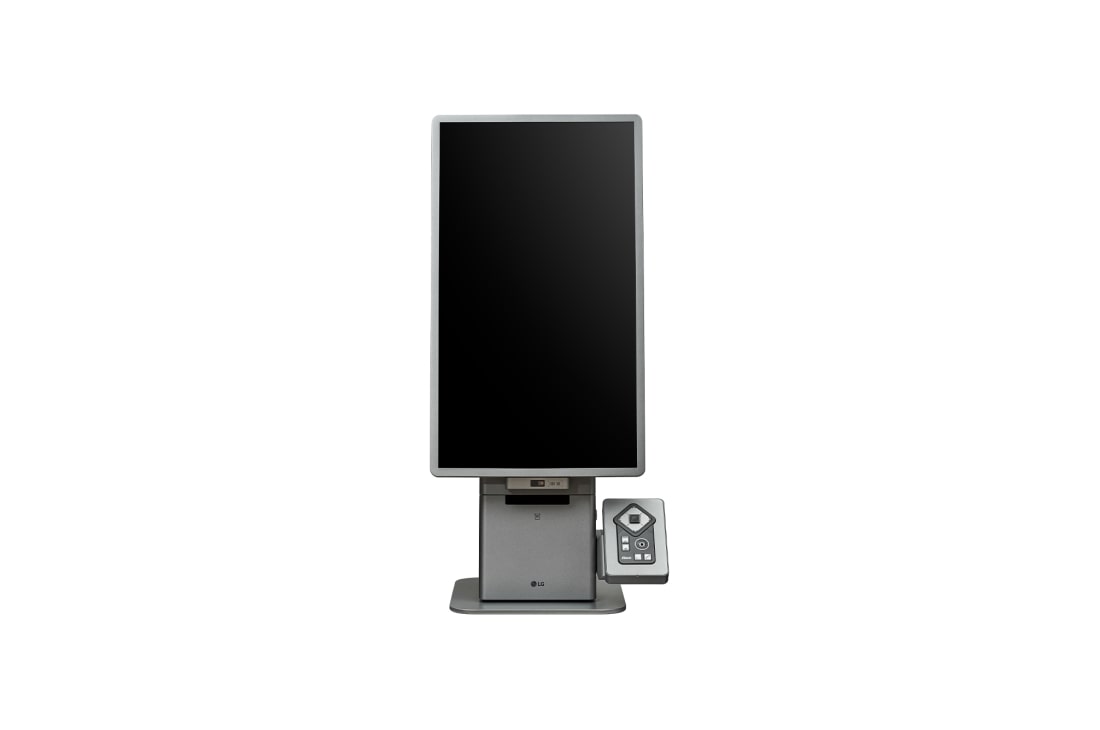

The LG modular kiosk is meticulously designed to meet essential global accessibility standards including the Americans with Disabilities Act (ADA) in the U.S. It can be equipped with a tactile keypad accessory for individuals with visual impairments that is designed to assist users by providing audio guidance interface and facilitating menu selection, featuring an ergonomic tactile keypad cradle for comfortable use.

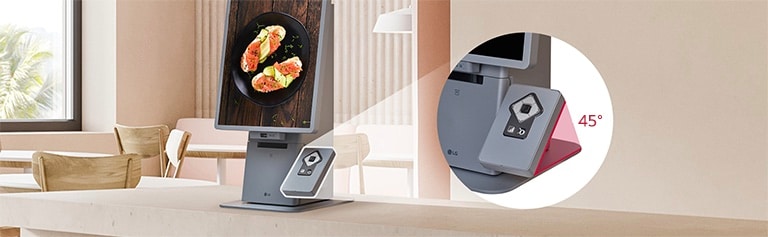

The tactile keypad on the LG Kiosk is ergonomically designed and positioned at a 45-degree angle. The tactile keypad on the LG Kiosk is ergonomically designed and positioned at a 45-degree angle.

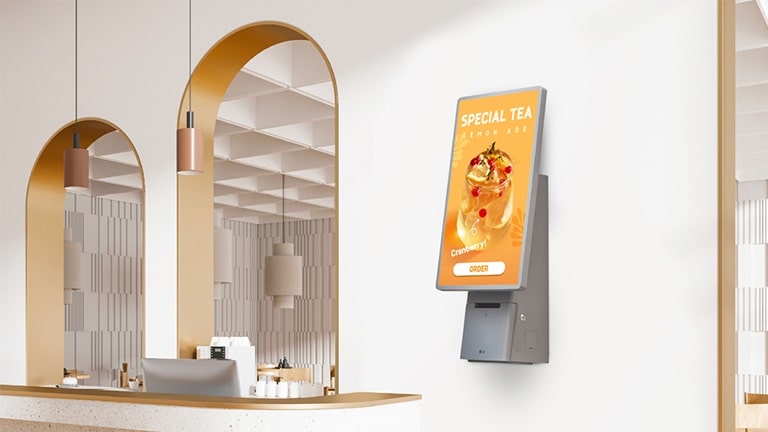

The LG Kiosk screen minimizes glare, keeping content clear and visible even in bright indoor settings. The LG Kiosk screen minimizes glare, keeping content clear and visible even in bright indoor settings.

Content Visibility

The 27-inch kiosk screen features Advanced In-cell Touch (AIT) technology, improving content visibility by removing layers in the touchscreen that reduces reflections in bright indoor settings and offers a brightness level of 300 nits.

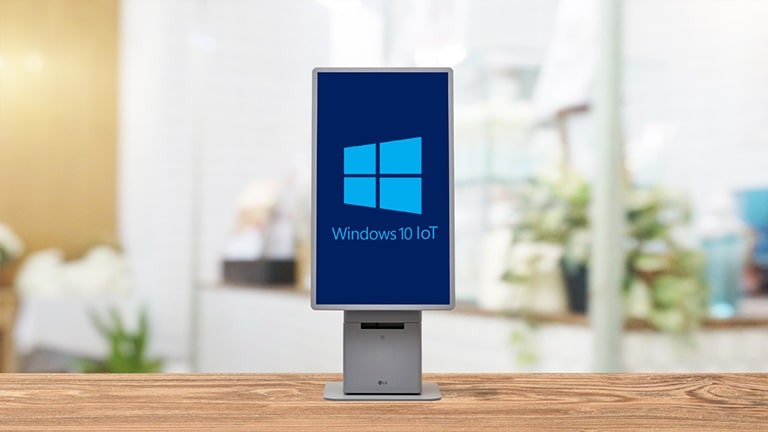

The LG Kiosk operates on Windows OS. The LG Kiosk operates on Windows OS.

Windows OS

Windows OS provides extensive compatibility with peripherals like POS systems and ordering apps, ensuring seamless integration for retail kiosks, while the latest Windows 10 IoT Enterprise LTSC enhances stability and support, solidifying its position as the leading kiosk operating system.

Specifications

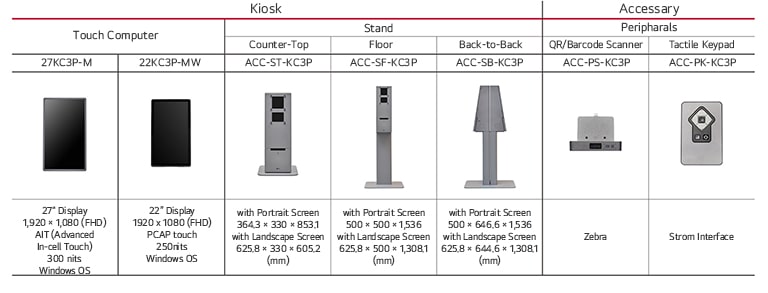

Touch Computer, 27KC3P-M, 27" Display / 1,920 × 1,080 (FHD) / AIT (Advanced In-cell Touch) / 300 nits / Windows OS Kiosk, Stand Counter-Top, ACC-ST-KC3P, with Portrait Screen 364.3 × 330 × 853.1 / with Landscape Screen 625.8 × 330 × 605.2 (mm) Floor, ACC-SF-KC3P, with Portrait Screen 500 × 500 × 1,536 / with Landscape Screen 625.8 × 500 × 1,308.1 (mm) Back-to-Back, ACC-SB-KC3P, with Portrait Screen 500 × 646.6 × 1,536 / with Landscape Screen 625.8 × 644.6 × 1,308.1 (mm) Accessary, Peripharals QR/Barcode Scanner, ACC-PS-KC3P, Zebra Tactile Keypad, ACC-PK-KC3P, Strom Interface Touch Computer, 27KC3P-M, 27" Display / 1,920 × 1,080 (FHD) / AIT (Advanced In-cell Touch) / 300 nits / Windows OS Kiosk, Stand Counter-Top, ACC-ST-KC3P, with Portrait Screen 364.3 × 330 × 853.1 / with Landscape Screen 625.8 × 330 × 605.2 (mm) Floor, ACC-SF-KC3P, with Portrait Screen 500 × 500 × 1,536 / with Landscape Screen 625.8 × 500 × 1,308.1 (mm) Back-to-Back, ACC-SB-KC3P, with Portrait Screen 500 × 646.6 × 1,536 / with Landscape Screen 625.8 × 644.6 × 1,308.1 (mm) Accessary, Peripharals QR/Barcode Scanner, ACC-PS-KC3P, Zebra Tactile Keypad, ACC-PK-KC3P, Strom Interface
* Touch Computer and Counter-Top are not included with stand.
Close
Info
  • Product
    Kiosk
Panel
  • Screen Size (Inch)
    27"
    Panel Technology
    IPS (In-cell touch)
  • Back Light Type
    Edge
    Aspect Ratio
    16:9
  • Native Resolution
    1920x1080 (FHD)
    Refresh Rate
    60Hz
  • Brightness
    300nit
    Contrast Ratio
    1,000:1
  • Color gamut
    BT709 95%
    Viewing Angle (H x V)
    178 x 178
  • Color Depth (Number of Colors)
    8bit(D), 16.7 Million colors
    Response Time
    9ms (G to G)
  • Surface Treatment (Haze)
    Haze 25%
    Life time
    31,000 Hrs (min)
  • Operation Hours (Hours/Day)
    16/7
    Portait / Landscape
    Yes / Yes
Connectivity(Jack Interface)
  • RS232C IN
    Yes(1)
    RJ45(LAN) IN
    Yes(1)
  • USB IN
    USB3.0 Type A(2), USB2.0 Type A(2), USB2.0 Type C(4)
    Power In (DC, From External Power)
    Yes(1)
Mechanical
  • Bezel Color
    Titan Silver
    Bezel Width
    14mm
  • Weight (Head)
    5.7kg
    Packed Weight
    8.5kg
  • Monitor Dimensions (W x H x D)
    625.82 x 364.3 x 47.2mm
    Carton Dimensions (W x H x D)
    702 x 441 x 150mm
  • VESATM Standard Mount Interface
    100 x 100
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    42W
    Max.
    87W
  • Power off
    1W
Sound
  • Speaker (Built-in)
    Yes (Stereo Max 2W x 2 (built-in))
Certification
  • Safety
    cTUVus
    EMC
    FCC
  • ErP / Energy Star
    CEC
Accessory
  • Basic
    Power Cable(1.8m), Cradle for Payment Terminal
    Optional
    Tabletop / Wall Mount Stand (ACC-ST-KC3P)
    Floor Stand (ACC-SF-KC3P)
    Back-to-back Stand (ACC-SB-KC3P)
    Barcode / QR Scanner (ACC-PS-KC3P)
    Tactile Keypad (ACC-PK-KC3P)
H/W
  • CPU
    Intel Celeron J6412 2.00GHz
    Memory(RAM)
    8GB
  • Storage
    SSD 256GB
    OS ver.
    Windows® 10 IoT Enterprise (Compatible with Windows® 11)
  • Receipt printer_Type
    N/A (Compatible with Epson TM-TM88Vll, TM-m30lll, TM-L100)
    Receipt printer_Printing Speed
    N/A (Compatible with Epson TM-TM88Vll, TM-m30lll, TM-L100)
  • Receipt printer_Cutting
    N/A (Compatible with Epson TM-TM88Vll, TM-m30lll, TM-L100)
    Receipt printer_Paper Size
    N/A (Compatible with Epson TM-TM88Vll, TM-m30lll, TM-L100)
  • QR / Barcode scanner
    1D / 2D (Optional)
    Card reader (Built-in)
    N/A (Compatible with Verifone P400, Ingenico LANE/3600, Ingenico Axium RX5000, SCSpro SPD-800, SCSpro SPD-440, Duali DE-633R, Duali DE-633RD)
  • NFC / RFID
    N/A (Compatible with Verifone P400, Ingenico LANE/3600, Ingenico Axium RX5000, SCSpro SPD-800, SCSpro SPD-440, Duali DE-633R, Duali DE-633RD)
    Audio Navigation Keypad
    Yes (Optional)
  • Cradle for external card reader
    Yes (Compatible with Verifone P400, Ingenico LANE/3600, Ingenico Axium RX5000, SCSpro SPD-800, SCSpro SPD-440, Duali DE-633R, Duali DE-633RD)
    Audio assistive technology
    Storm Interface AudioNav Keypad, EN 301 549 / ADA Compliant, Mini USB B & 3.5mm Audio Jack Socket (Optional)
  • Cable Management
    Yes
