43HT3WJ
One:Quick Flex
  • Resolution : 4K Ultra HD (3,840 × 2,160)
  • Brightness : 350 nit

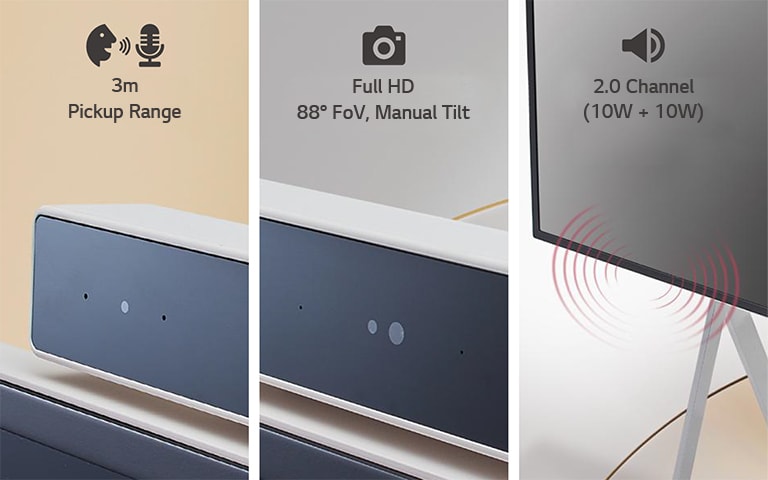

  • Camera : 2K Full HD (1,920 × 1,080), 88º FoV
  • Sound : 2.0 Channel (10W + 10W)
  • Microphone : 3m Pickup Range
  • Windows 10 IoT Enterprise (Basic)

component-OBScountrySelectDesc

One:Quick Flex

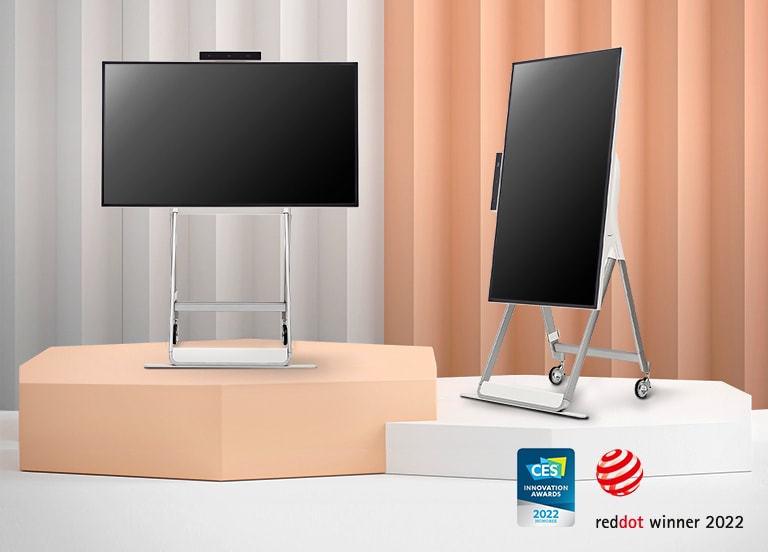

CES 2022 Innovation Awards Honoree

All-in-One Display
for Effective Collaboration

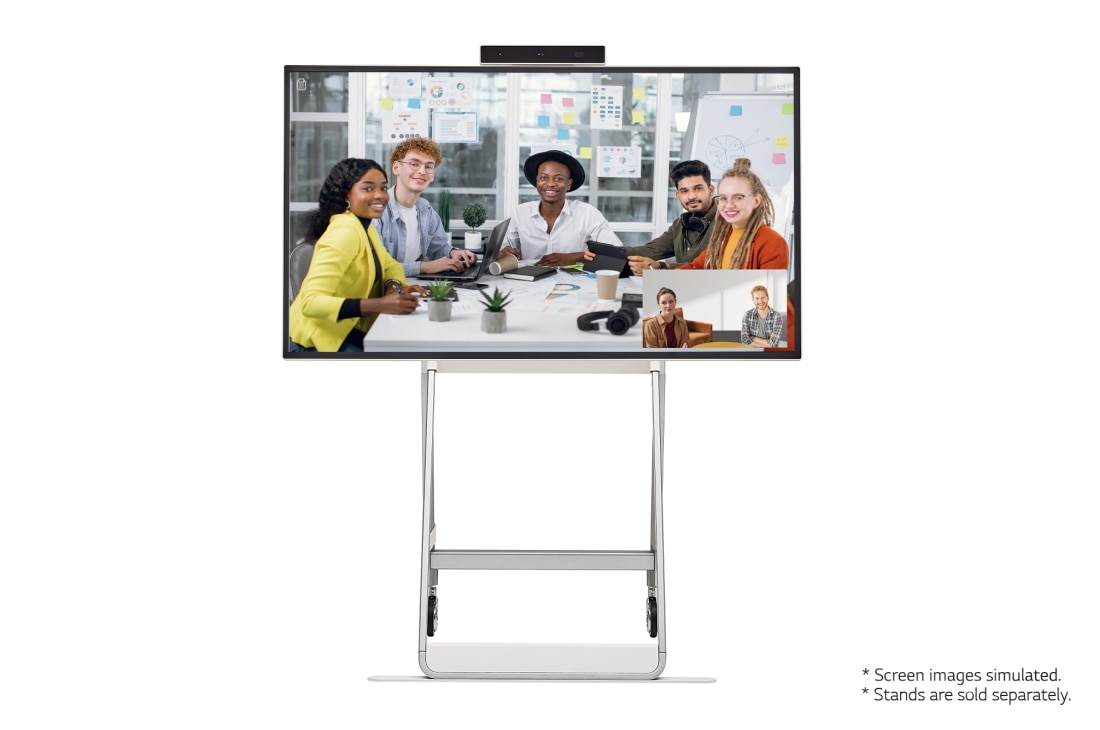

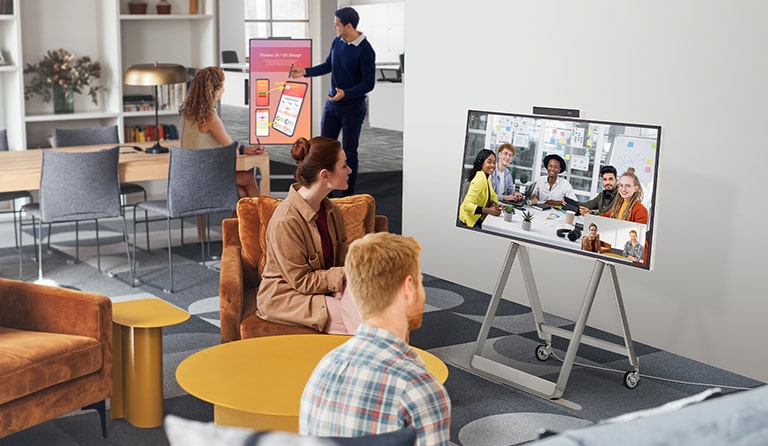

Two people are having a video conference using One:Quick Flex in a space with an informal atmosphere. The other two people at another table behind them are having a conference while flipping One:Quick Flex vertically and marking or writing on it with a dedicated touch pen on the screen. Two people are having a video conference using One:Quick Flex in a space with an informal atmosphere. The other two people at another table behind them are having a conference while flipping One:Quick Flex vertically and marking or writing on it with a dedicated touch pen on the screen.
* Camera mirror mode is only available for certain apps.
* All images in this page are for illustrative purposes only.

Effective Collaboration with Touch and Drawing

Equipped with In-Cell touch technology, the One:Quick Flex turns ideas into reality. With a dedicated touch pen, taking notes and drawing are done easily. Also, their works can be saved as files, and easily shared via mobile phone.

Several people are discussing and sharing their ideas using the LG One:Quick Flex. A person is taking notes on the data displayed on the One:Quick Flex screen with a dedicated touch pen. The image sent from the LG One:Quick Flex is shown on a woman's cell phone.
* One touch pen provided.
* Dedicated apps required for annotation and drawing (MS Whiteboard ready)

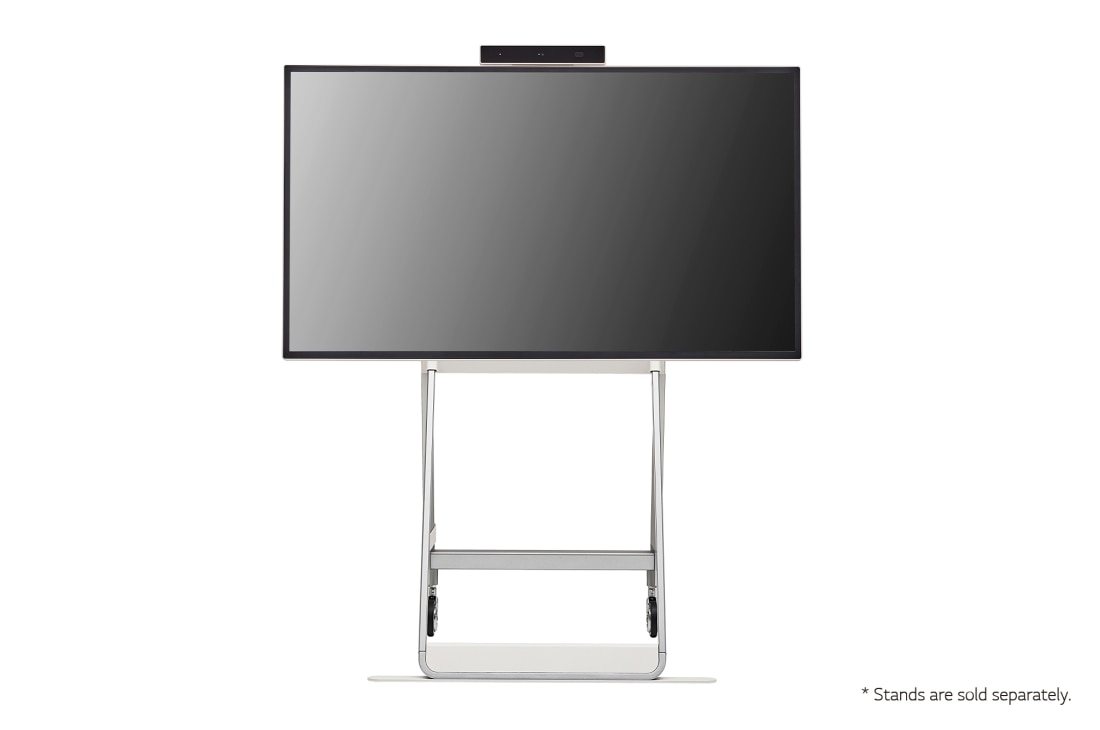

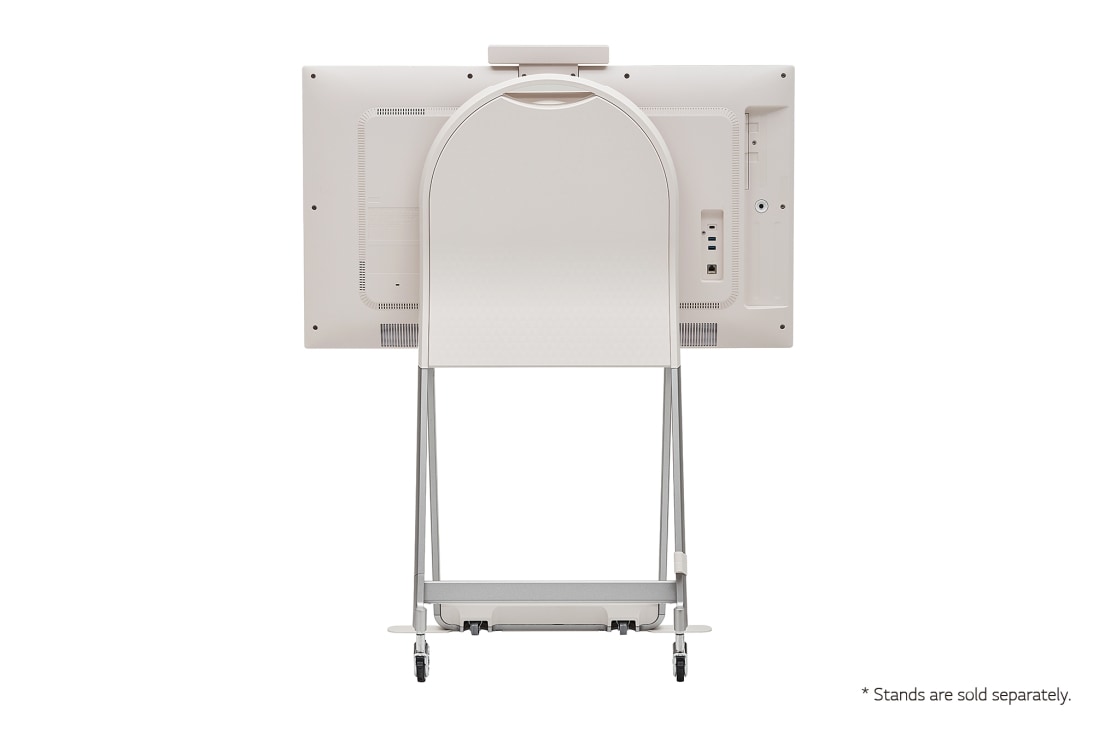

* Stands are sold separately.
* The product needs to be plugged into the appropriate power source to operate.

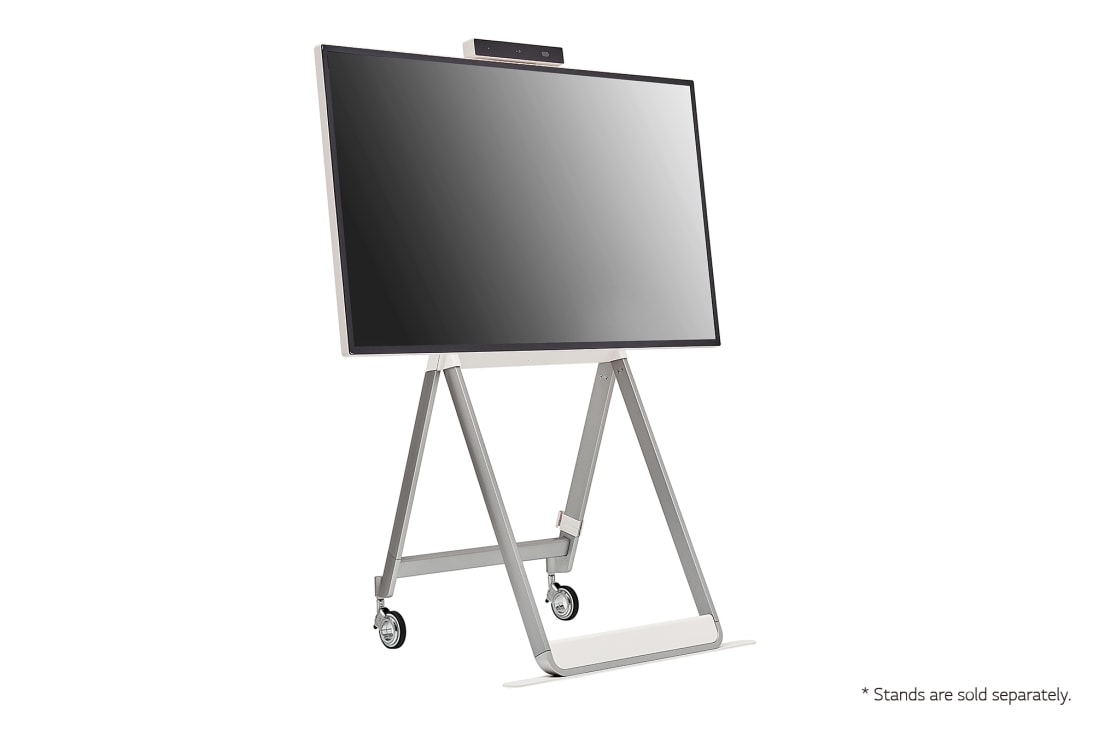

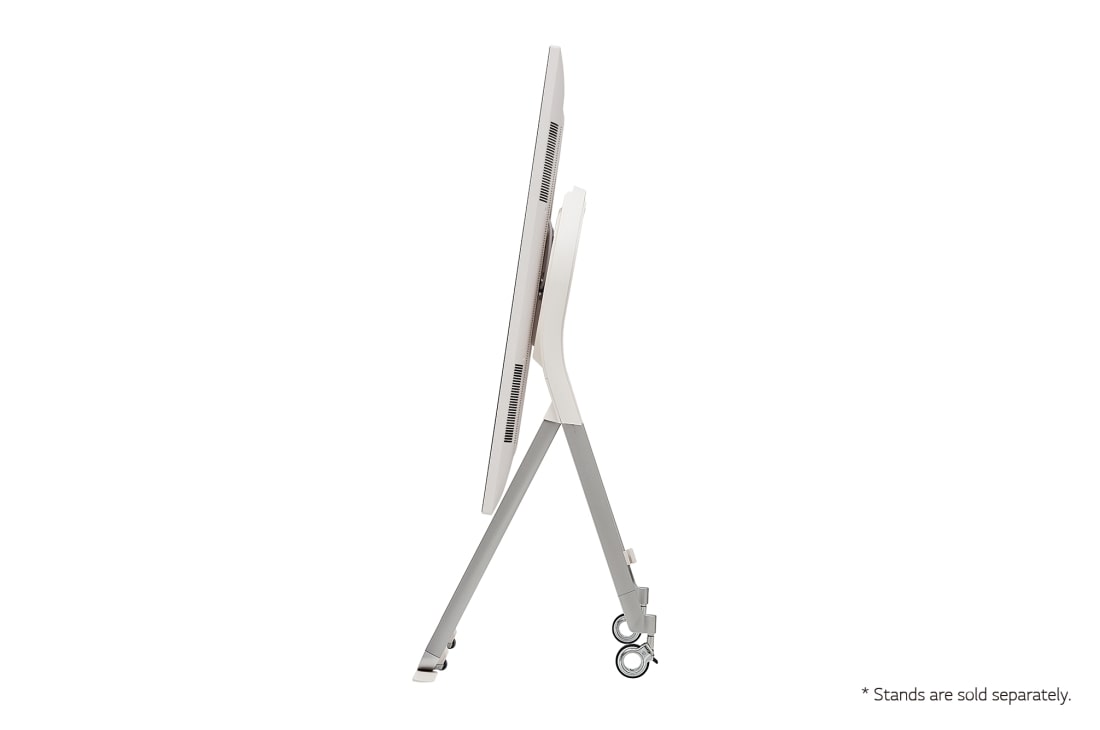

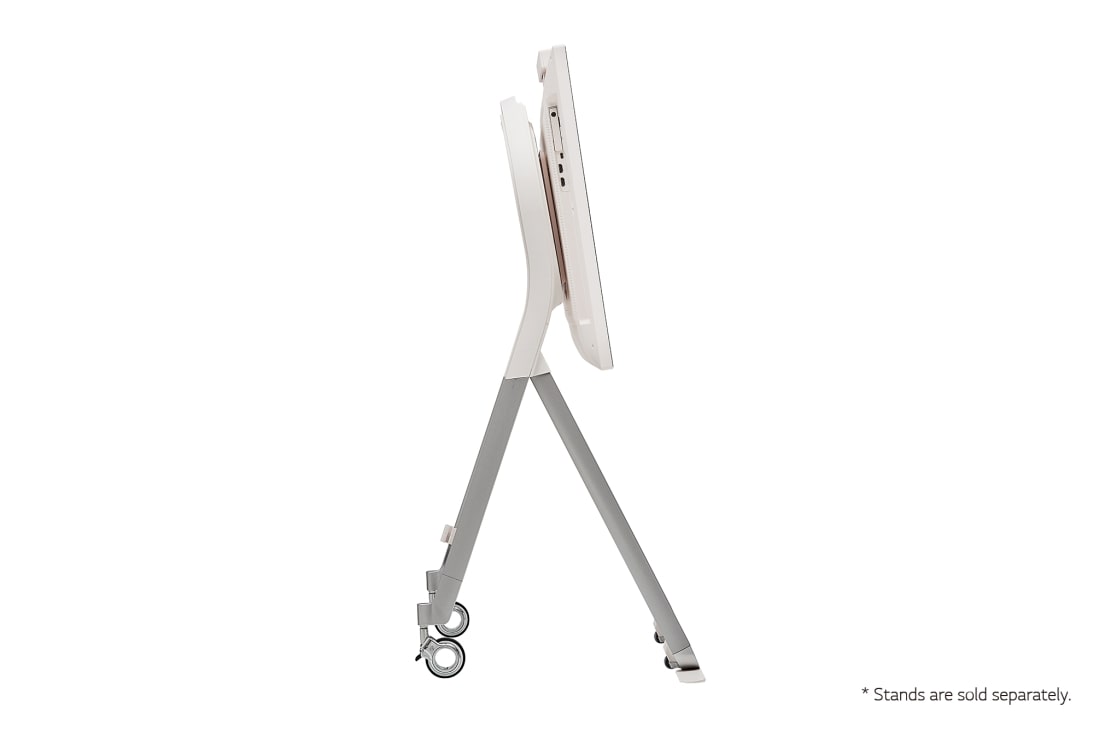

* Stands are sold separately. Screen is rotated manually.

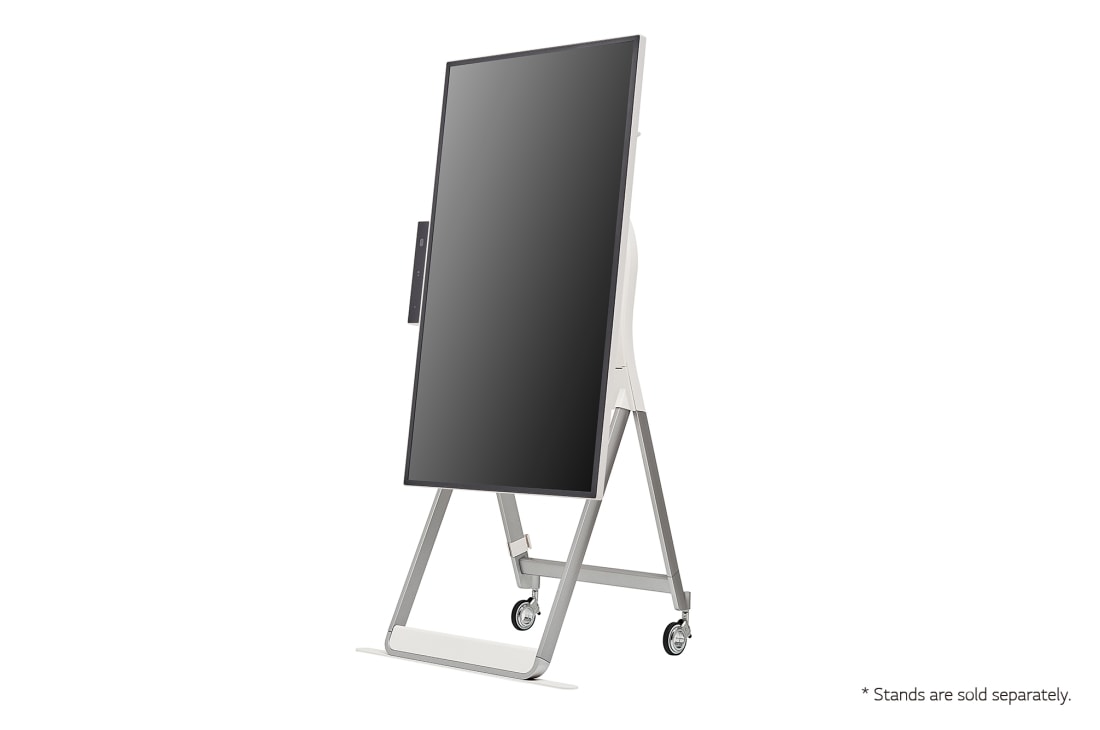

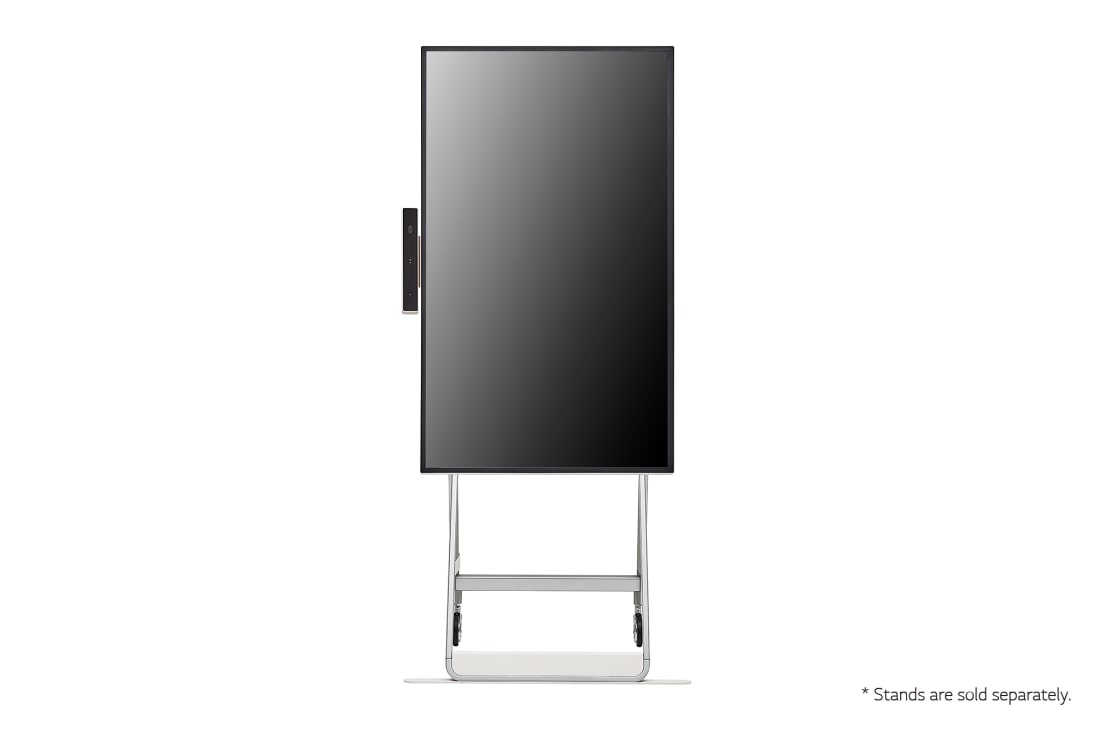

* To use it vertically, users can rotate counter clockwise, and vice versa to switch back to landscape mode.
* Some apps may not support vertical view mode.

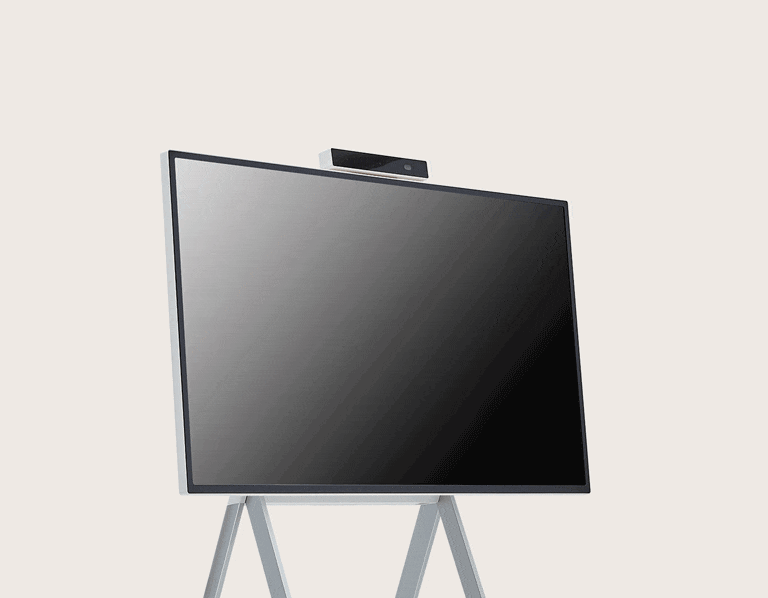

*The height is adjusted manually.
* Screen images simulated.

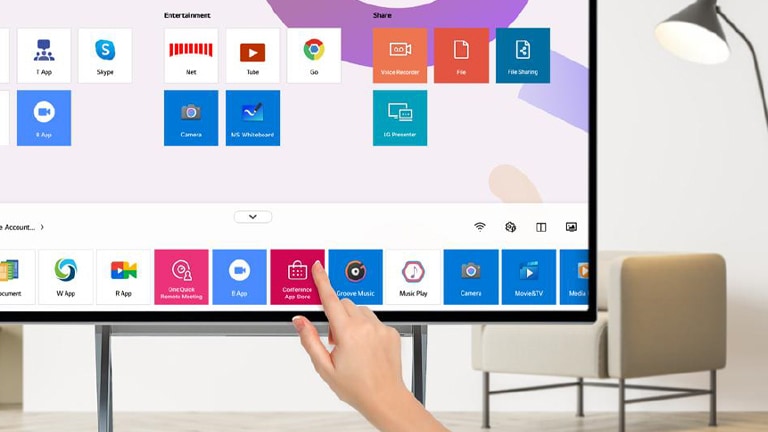

* The home dashboard (mid-screen app folder) and the function to add and delete apps on the launcher will be available in the 1Q of 2022.

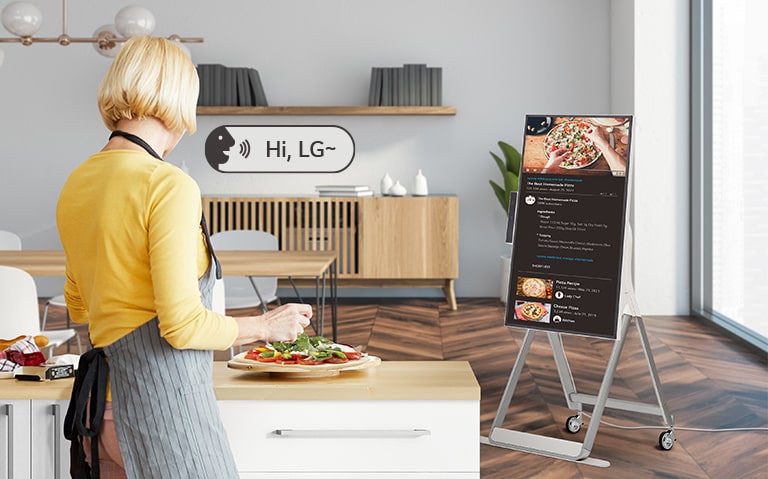

* Voice ordering supports English and Korean, and is limited to some specific functions (Power, volume, built-in apps).

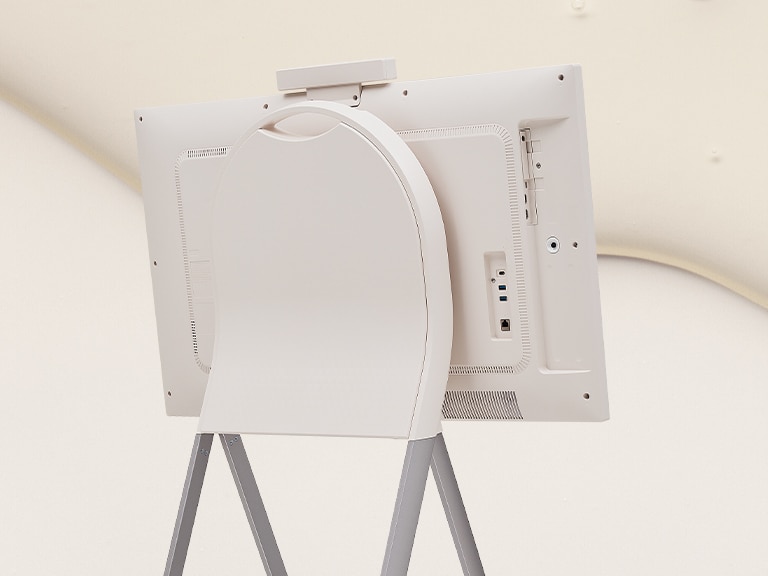

A Sleek Design that Blends
with the Space

Moving beyond the conventional black color, it is available in stylish beige with a smooth finish and blends effortlessly with the surrounding interior.

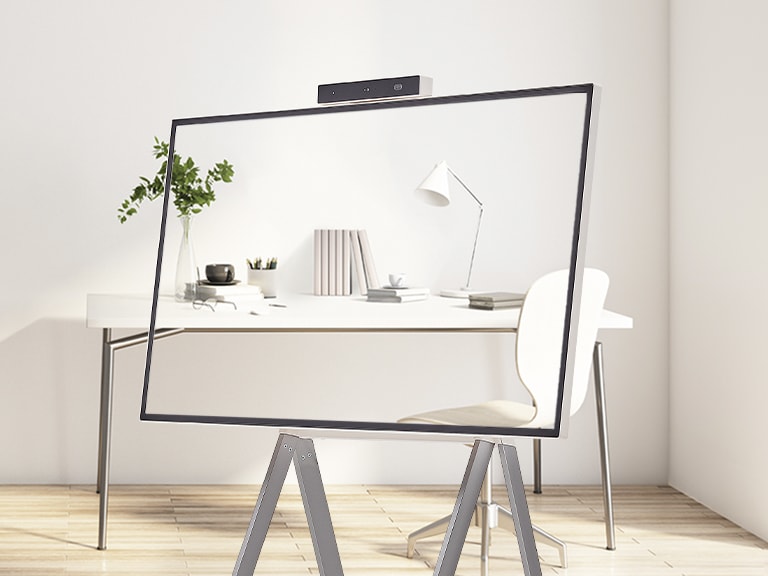

One:Quick Flex is placed in harmony with the beige background and the beige-toned interior.

A Sleek Design that Blends<br>with the Space/global/images/43HT3WJ-07-A-Sleek-Design-that-Blends-with-the-Space-Digital-Signage-ID-D-2.jpg

One:Quick Flex is placed in harmony with the beige background and the beige-toned interior.

A Sleek Design that Blends<br>with the Space/global/images/43HT3WJ-07-A-Sleek-Design-that-Blends-with-the-Space-Digital-Signage-ID-M-2.jpg

RECOMMEND TO USE IN/FOR:

LG One Quick Flex
LG One Quick Flex
A 43-inch 4K UHD touchscreen designed with a movable stand to accommodate diverse usage scenarios.
Doctor's Office
Doctor's Office
Perform simple consultations or medical examinations remotely without meeting with the patient.
Telemedicine
Telemedicine
Conveniently consult with your doctor at home regardless of time and space constraints.
Collaborative Workspace
Collaborative Workspace
Employees can freely describe their creative ideas with drawing and writing.
Design Office
Design Office
Have meetings and demonstrations with clients and contract in one place.
Wards in a Hospital & Nursing Home
Wards in a Hospital & Nursing Home
Re-connect with your family and relatives as if you were there.
Video Call
Video Call
Easy and vivid video calling with family members and friends you miss.
Working from Home
Working from Home
Efficiently and easily handle office work and video conferences at home.
Kindergarten
Kindergarten
An interactive educational tool for the child,
with which their drawings and writings from during class can be saved as image files.
Distance Learning
Distance Learning
Participate in online education in real-time and take notes on lesson material.
* The example is provided for information purposes only; LG does not offer separate solutions or services.
* Screen configuration and function support may vary depending on the app used.

Related Product

Explore more showroom at Digital Connect

Panel

  • Screen Size
    43"
    Panel Technology
    U-IPS
  • Native Resolution
    3,840 × 2,160 (UHD)
    Brightness (nit)
    350
  • Contrast Ratio
    1,000:1
    Color gamut
    NTSC 72%
  • Viewing Angle (H × V)
    178 × 178
    Color Depth
    10 bit (D), 1.07 Billion Colors
  • Response Time
    9 ms
    Portrait / Landscape
    Yes / Yes

Connectivity

  • Input
    HDMI(2), DP(USB Type C)(1), RJ45(LAN) (1), USB 3.1 Type A(2), USB Type C(1)
    Output
    DP Out(USB Type C, DP ALT MODE)(1)

Mechanical Specification

  • Bezel Color
    Black
    Bezel Width
    13.9 / 13.9 / 13.9 / 16.5 mm
  • Weight (Head)
    12.7 kg
    Weight (Head+Floor Stand)
    29.3 kg
  • Monitor Dimensions (W × H × D)
    973.2 x 605.8 x 49.4 mm
    Monitor Dimensions with Stand (W × H × D)
    Floor Stand (Landscape) : 973.2 x 1,198.1 x 610.0 mm
    Floor stand (Portrait) : 662.0 x 1,360.9 x 610.0 mm
    Desktop Stand : 973.2 x 641.2 x 242.3 mm
  • VESATM Standard Mount Interface
    200 x 200

Key Feature - HW

  • CPU
    AMD Ryzen R1505G
    Graphics
    Radeon Vega GPU
  • Internal Memory - eMMC
    128 GB
    Internal Memory - RAM
    4 GB
  • Wi-Fi
    802.11ac 2 × 2
    Bluetooth
    Bluetooth 5.0
  • Temperature Sensor
    Yes
    Auto Brightness Sensor
    Yes
  • Acceleration(Gyro) Sensor
    Yes
    Local Key Operation
    Yes (Jog Key)

Key Feature - SW

  • OS
    Windows 10 IOT Enterprise (Basic)
    Launcher Bar
    Yes
  • Home Dashboard
    Yes (Available in '22. 1Q)
    Split View - Full / Half
    Yes
  • Screen Capture
    Yes
    Meeting(Voice) Record
    Yes
  • File Sharing
    Yes
    One:Quick Remote Meeting
    Yes
  • Reader Mode (Bluelight)
    Yes
    Built-in Apps
    Preloaded (Chrome, Skype) / Download Link (Netflix, MS Whiteboard)

Environment Conditions

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%

Power

  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power

Power Consumption

  • Typ.
    75 W
    Max
    190 W
  • BTU (British Thermal Unit)
    56

Sound

  • Speaker
    Yes (10W x 2)

Certification

  • Safety
    CB / NRTL
    EMC
    FCC Class "B" / CE
  • ErP
    Yes

Accessory

  • Basic
    HDMI Cable, Remote Controller, Touch Pen, Pen Tip, Manual, Regulation Book, Warranty Card, IG
    Optional
    Floor Stand (ST-43HF), 1 Pole Desktop Stand (ST-43HT)

Camera

  • Resolution
    1920 x 1080 (FHD)
    Field of View (FoV)
    88°

MIC

  • Array
    2EA
    Pickup Range
    3 m

Touch

  • Available Object Size for Touch
    Ø8 mm
    Response Time (PC Win10, Based on Whiteboard)
    35 mm ↓
  • Accuracy
    3 mm ↓
    Interface
    USB 1.1
  • Operating System Support
    Windows 10 or Higher
    Multi Touch Point
    Max. 10 Points
  • Dimension
    • [Dimension]43HT3WJ_Display Only.dwg
    • [Dimension]43HT3WJ_Display Only.pdf
  • Datasheet
    • LG OneQuick Flex_Datasheet_for Business_43HT3WJ_211117.pdf
    • LG OneQuick Flex_Datasheet_for Home_43HT3WJ_211117.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
