All-in-one Smart Series
Inquiry to Buy

All-in-One LED Display with webOS

The LAEC installed with a motorized stand in a conference room. A user is sharing her laptop screen to the LAEC screen through LG One:Quick Share. The LAEC installed with a motorized stand in a conference room. A user is sharing her laptop screen to the LAEC screen through LG One:Quick Share.
* All images in this web page are for illustrative purposes only and may differ from the actual product.
* Stand accessories differ by models, and need to be purchased separately.

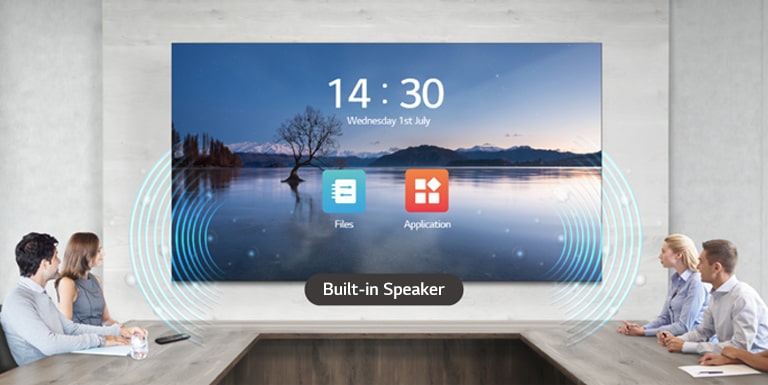

People have a meeting while watching the display and listening sound with the LAEC and its built-in speaker, installed in the meeting room. People have a meeting while watching the display and listening sound with the LAEC and its built-in speaker, installed in the meeting room.

All-in-One
LED Screen with Built-in Speaker

The LAEC series is a 136-inch large screen which is offered as an all-in-one package including an embedded controller and built-in speaker. Eliminating the prejudice that LED displays are difficult and complex to install, it doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.

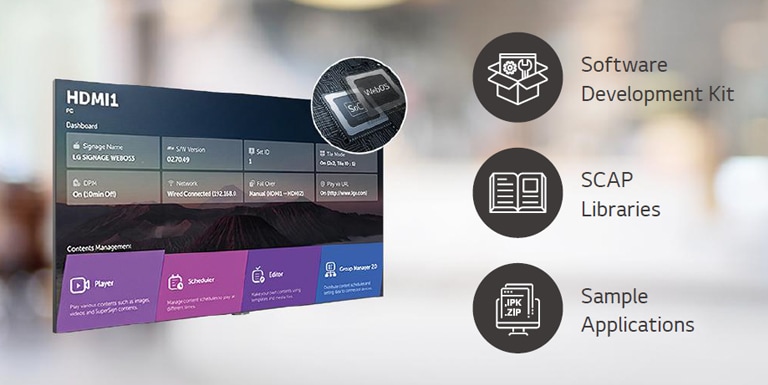

A number of tasks that can be done simultaneously are easily arranged through the web OS platform. A number of tasks that can be done simultaneously are easily arranged through the web OS platform.

High Performance with webOS

Built-in Quad Core SoC (System on Chip) can execute several tasks at once for providing smooth content playback. Also, LG webOS Smart Platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools* such as SDK (Software Development Kit), SCAP, sample applications.
* The webOS Signage Developer site (https://webossignage.developer.lge.com) provides SDK tools and documentation for creating apps on LG Digital Signage. This is only open to partners.

LG’s Wireless Screen Sharing Solution, LG One:Quick Share

LG One:Quick Share is a wireless screen sharing solution available through the LAEC series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts.

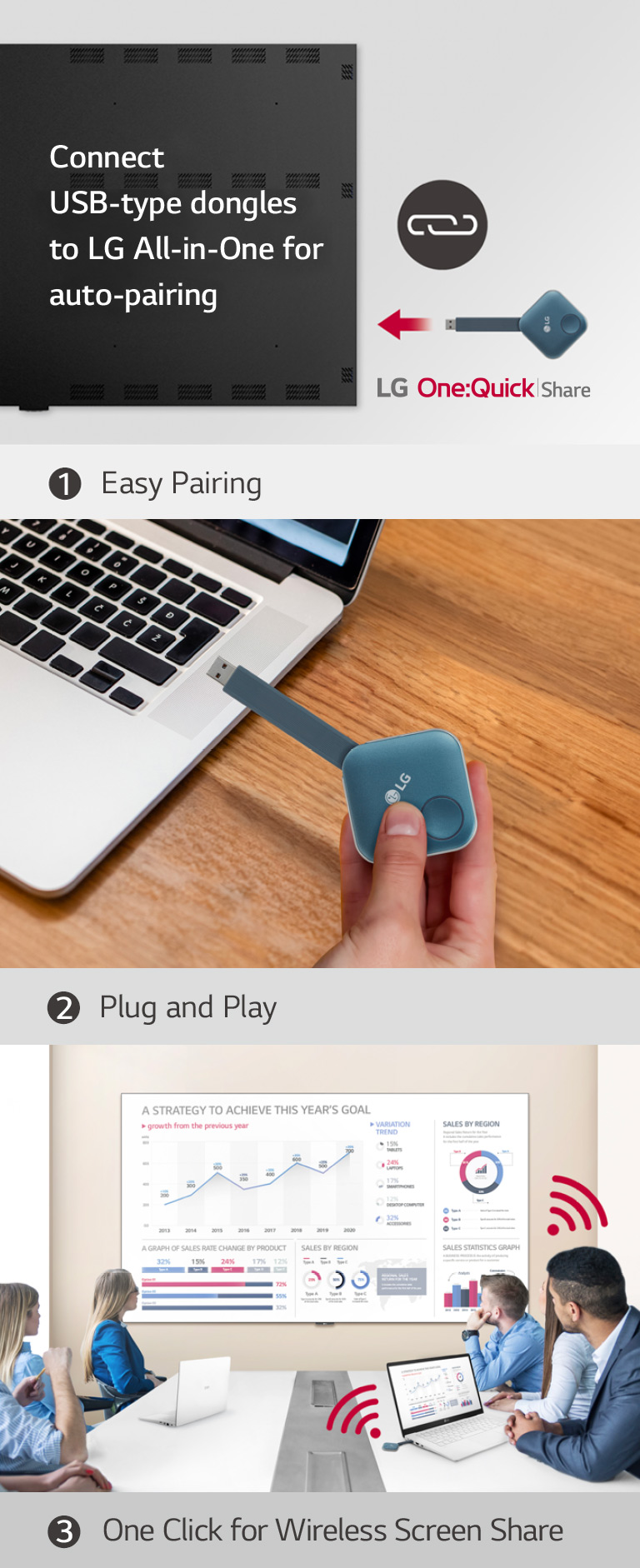

This consists of total 3 steps' images for installing One:Quick Share USB Dongle and sharing the personal screen. The first image is for pairing the USB Dongle and the LG Signage, the second describe a person is holding the USB dongle and trying to connect it to the PC, and the last image is for finally people having a meeting by connecting a USB dongle device to a laptop and sharing a screen with the LAEC on the wall. This consists of total 3 steps' images for installing One:Quick Share USB Dongle and sharing the personal screen. The first image is for pairing the USB Dongle and the LG Signage, the second describe a person is holding the USB dongle and trying to connect it to the PC, and the last image is for finally people having a meeting by connecting a USB dongle device to a laptop and sharing a screen with the LAEC on the wall.
* Users need to set up Soft AP enabled at Network Menu of the Signage.
** Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
*** LG One:Quick Share needs to be purchased separately.

Easy Installation

The installation process of the All-in-One Smart series is very simple. After securing cabinets (two for LAEC015, three for LAEC018), attach each LED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby making users handle the LED screen with ease.

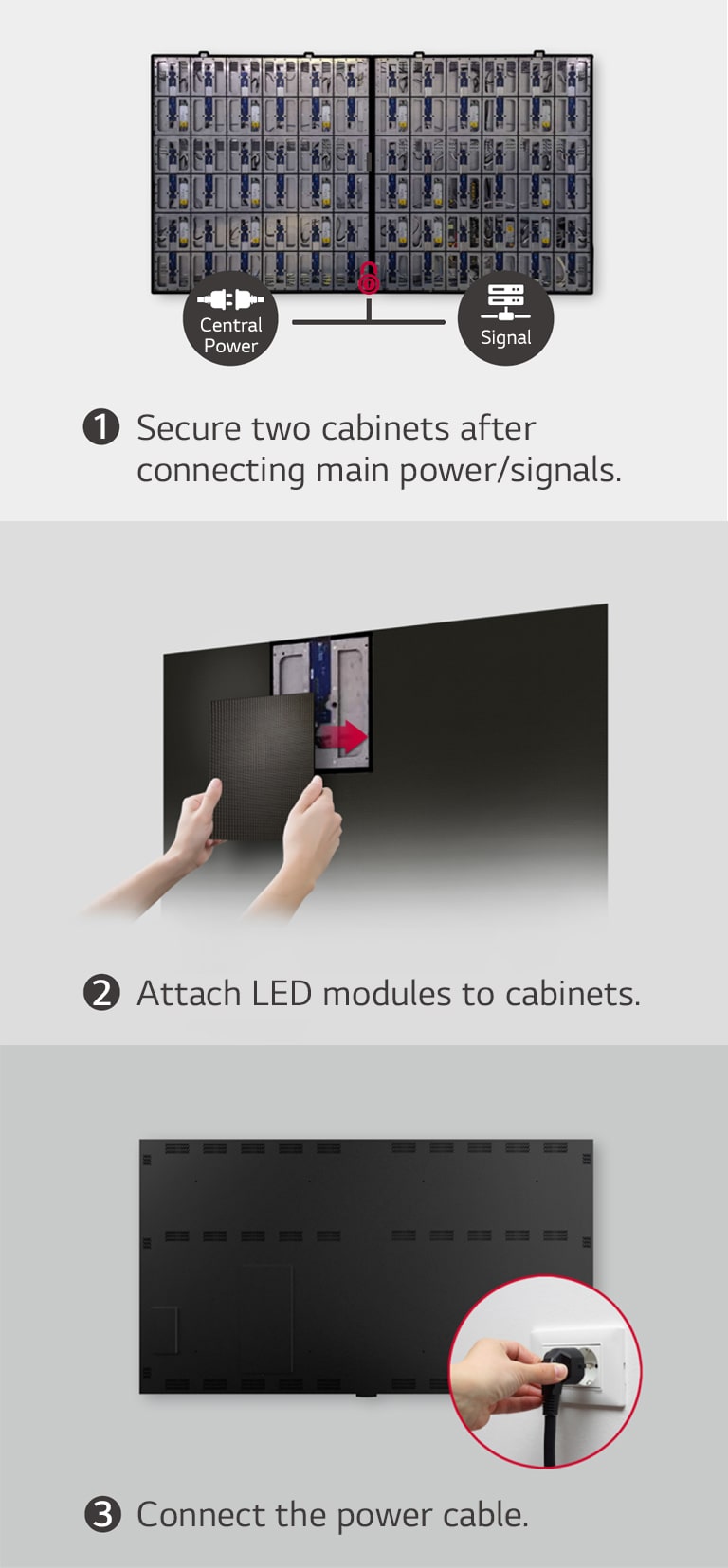

This consists of total 3 steps' images for securing two cabinets, attaching LED modules, and connecting the power cable. This consists of total 3 steps' images for securing two cabinets, attaching LED modules, and connecting the power cable.
* Fixing screws or installing wall mount / accessories is needed additionally.

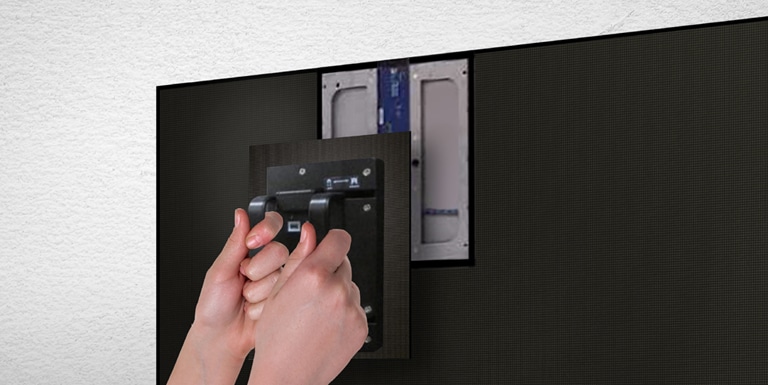

A person replaces one of the LED modules from the front by using the magnetic tool provided. A person replaces one of the LED modules from the front by using the magnetic tool provided.

Quick Maintenance

In case of failure related to the LED module or the system board, it can be serviced from the front. The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.

Versatile Installation with Dedicated Accessories

The product is offered with the necessary component including the landscape wall mount and tools for installation. The dedicated stand* is provided as an option, so that you can easily place it depending on your installation sites. Also, the LAEC series can be installed side by side in the form of 1 × N or 2 × N, up to 14 screens, suitable for its installation site and its purposes.
The LAEC installed on the wall of high-rise space with wall mounted. The LAEC’s have been installed along with the motorized stand in an event hall. The LAEC installed on the wall of high-rise space with wall mounted. The LAEC’s have been installed along with the motorized stand in an event hall.

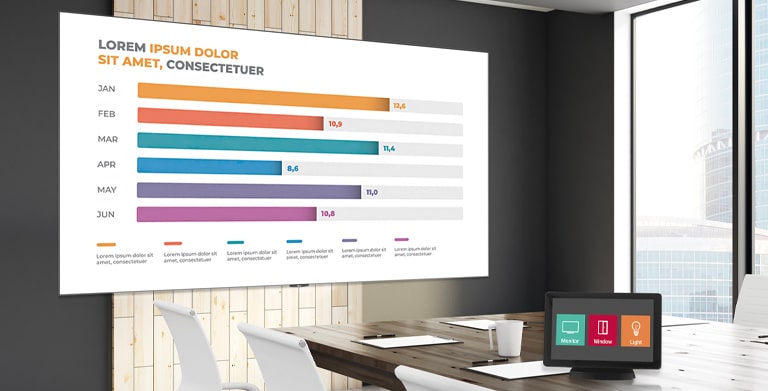

The meeting room is equipped with the signage and one of AV control system which helps users control the LAEC series. The meeting room is equipped with the signage and one of AV control system which helps users control the LAEC series.

Compatible with AV Control Systems

The LAEC series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.
* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control
*** Crestron Connected® needs to be purchased separately.

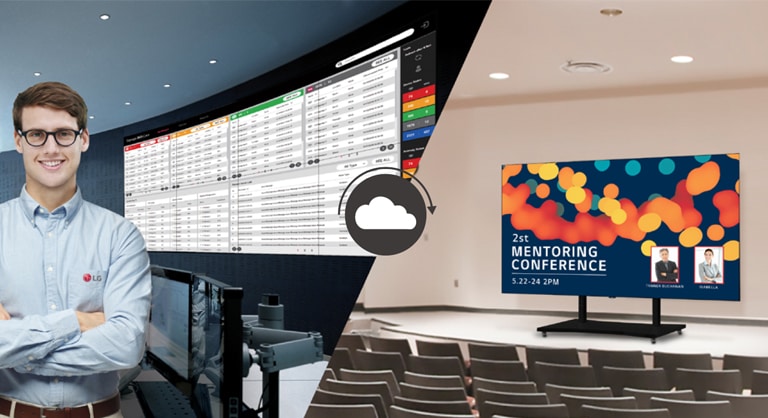

The LG employee is remotely monitoring the LAEC series installed in a different place. The LG employee is remotely monitoring the LAEC series installed in a different place.

Real-Time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
* The availability of LG ConnectedCare differs by region.
** Stand accessories differ by models, and need to be purchased separately.

Magic Remote for Easy of Use

With the LG Magic Remote, you can select and run the menu of the signage just like using a mouse and its cursor can be used as a laser pointer. In addition, through the newly added 'FREEZE' button on the remote control, users can temporarily freeze the screen while switching contents on the PC, so that users are able to have uninterrupted meetings without exposing its switching process.
The functions of the LG Magic Remote are shown in two images. The left image show the Magic Remote’s function which allow it to be used as a laser pointer on the LAEC screen. The right image is the Freeze Function, and when the Freeze button on the Magic Remote is pressed, the LAEC screen installed on the conference room wall is paused. The functions of the LG Magic Remote are shown in two images. The left image show the Magic Remote’s function which allow it to be used as a laser pointer on the LAEC screen. The right image is the Freeze Function, and when the Freeze button on the Magic Remote is pressed, the LAEC screen installed on the conference room wall is paused.
* LG Magic Remote needs to be purchased separately.
** The FREEZE function is only available when the LAEC is connected to an external input signal.

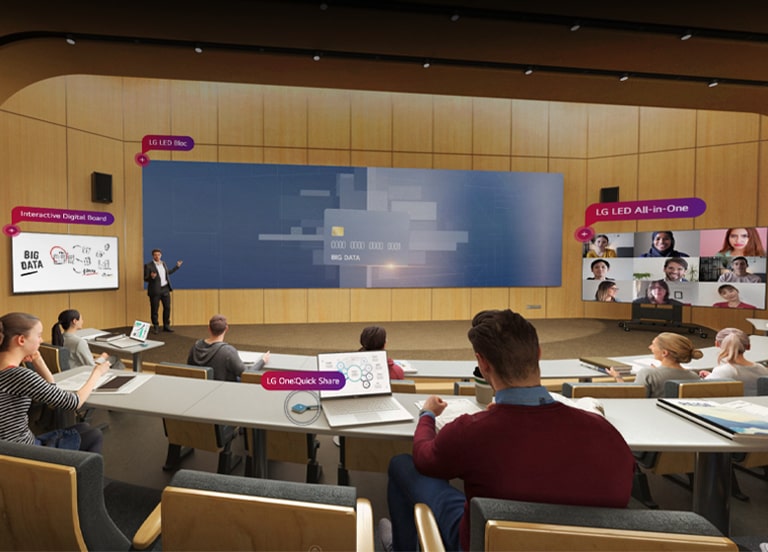

Explore more showroom at<br>LG Digital Connect1 Explore more showroom at<br>LG Digital Connect2

Explore more showroom at
LG Digital Connect

Explore
Close
Physical Parameters
  • Pixel Configuration
    Single SMD
    Pixel Pitch (mm)
    1.56
  • Screen Resolution (WxH)
    1,920 x 1,080
    Module Dimensions(WxH,mm)
    250x281.25
  • No. of Modules per Screen (WxH)
    12 x 6 (Total 72)
    Screen Dimension (W x H x D, mm)
    3,004 × 1,692 × 36.5 (Thickest 70)
  • Screen Surface Area (㎡)
    5.06
    Screen Weight (kg)
    132
  • Physical Pixel Density (pixels/m²)
    409,600
    Flatness of Unit Case (mm)
    ±0.2
  • Unit Case Material
    Aluminum
    Service Access
    Front
OPTICAL SPECIFICATIONS
  • Min. Brightness (After Calibration)
    500 nit
    Color Temperature
    3,200~9,300
  • Visual Viewing Angle (H × V)
    160° x 160°
    Brightness Uniformity
    98%
  • Color Uniformity
    ±0.015Cx,Cy
    Contrast Ratio
    3,000:1
  • Processing Depth (bit)
    16 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/screen, Max.)
    1,700
    Power Consumption (W/screen, Avg.)
    680
  • Power Consumption (W/m², Max.)
    336
    Power Consumption (BTU/h/Screen, Max.)
    5,800
  • Power Consumption (BTU/h/Screen, Avg.)
    2,321
    Power Consumption (BTU/h/㎡, Max.)
    1,146
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,960
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    0℃ to +40℃
  • Operating Humidity
    10-90% RH
    IP Rating Front
    IP30
  • IP Rating Rear
    IP20
Speaker
  • Speaker
    Built-in(9W+9W)
Certification
  • Certification
    CE, FCC, ETL, CB
Environment
  • Environment
    RoHS, REACH
Controller
  • Controller
    Embedded
Series
  • Series
    LAEC
  • Dimension
    • [Dimension] LAEC015 Cabinet_V1.0.dwg
    • [Dimension] LAEC015 Cabinet_V1.0.pdf
  • Datasheet
    • LAEC_Datasheet(low)_LG All-in-One Smart LED_230825.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
