LG 21.3'' 3MP IPS Diagnostic Monitor

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (21HQ513D)
    $
    $
    LG Members Price
Total

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (21HQ513D)
    $
    $
    LG Members Price
Total

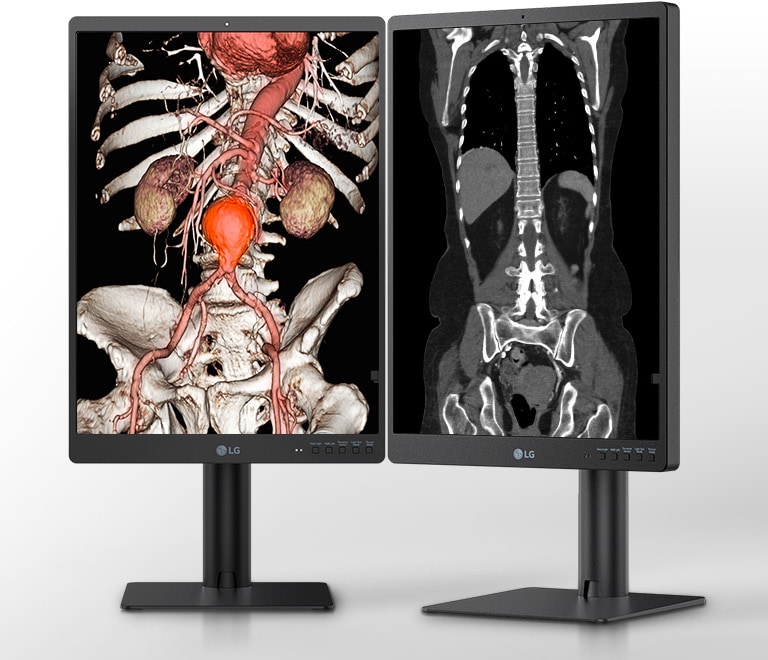

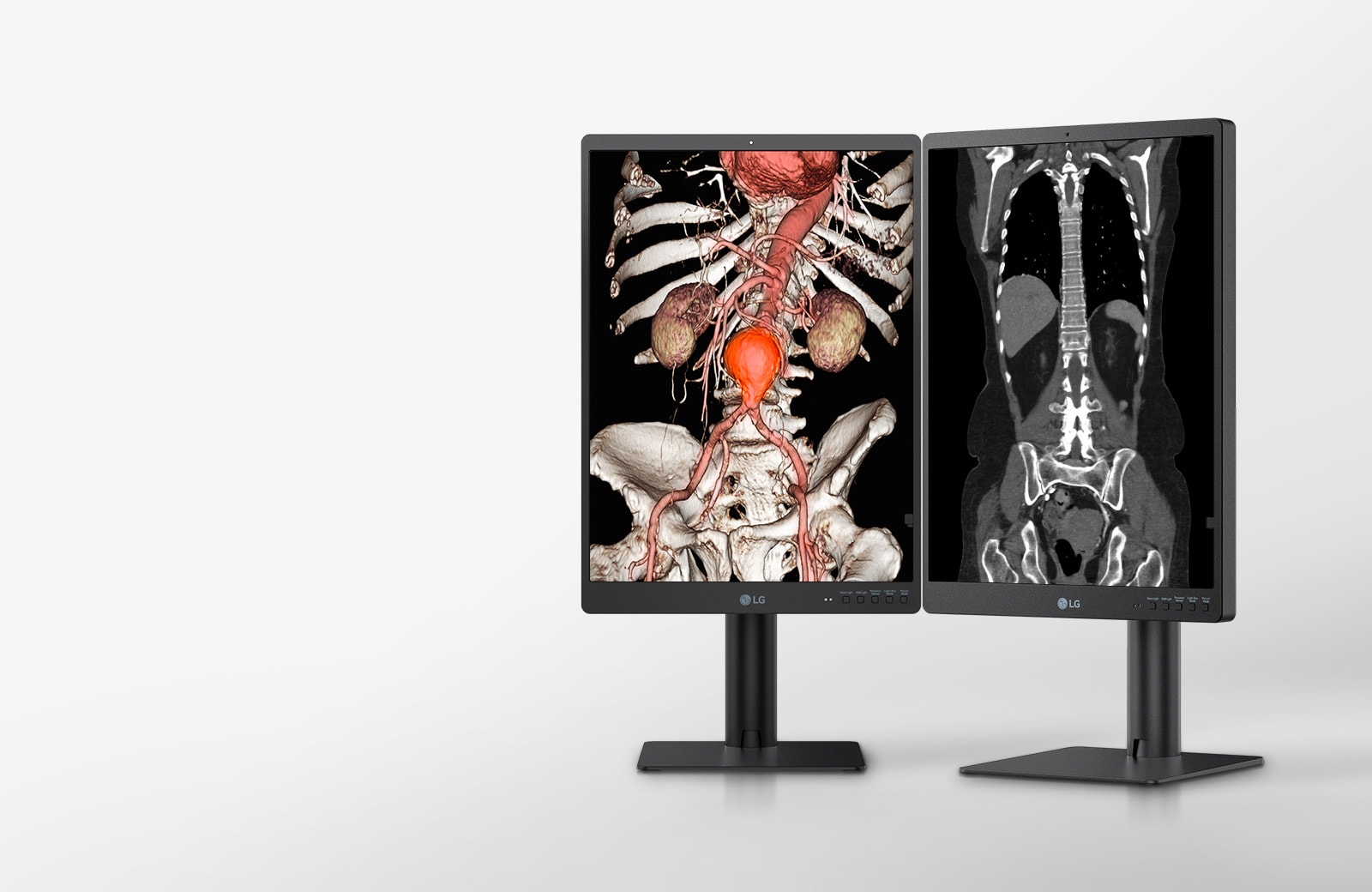

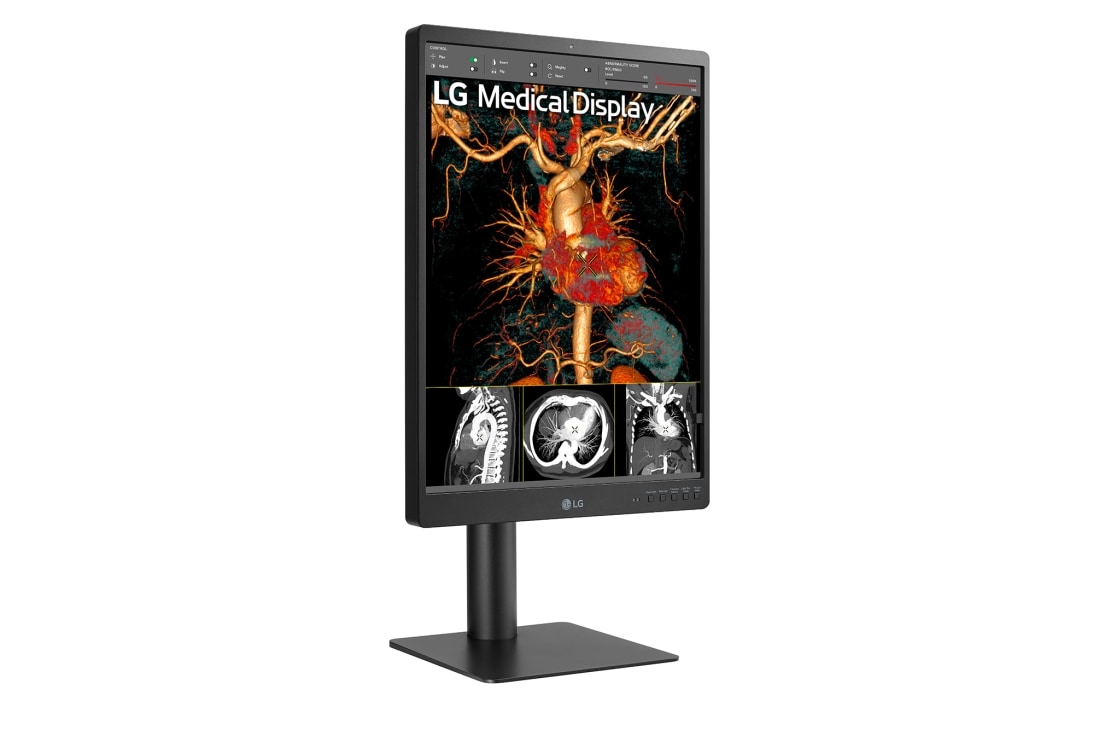

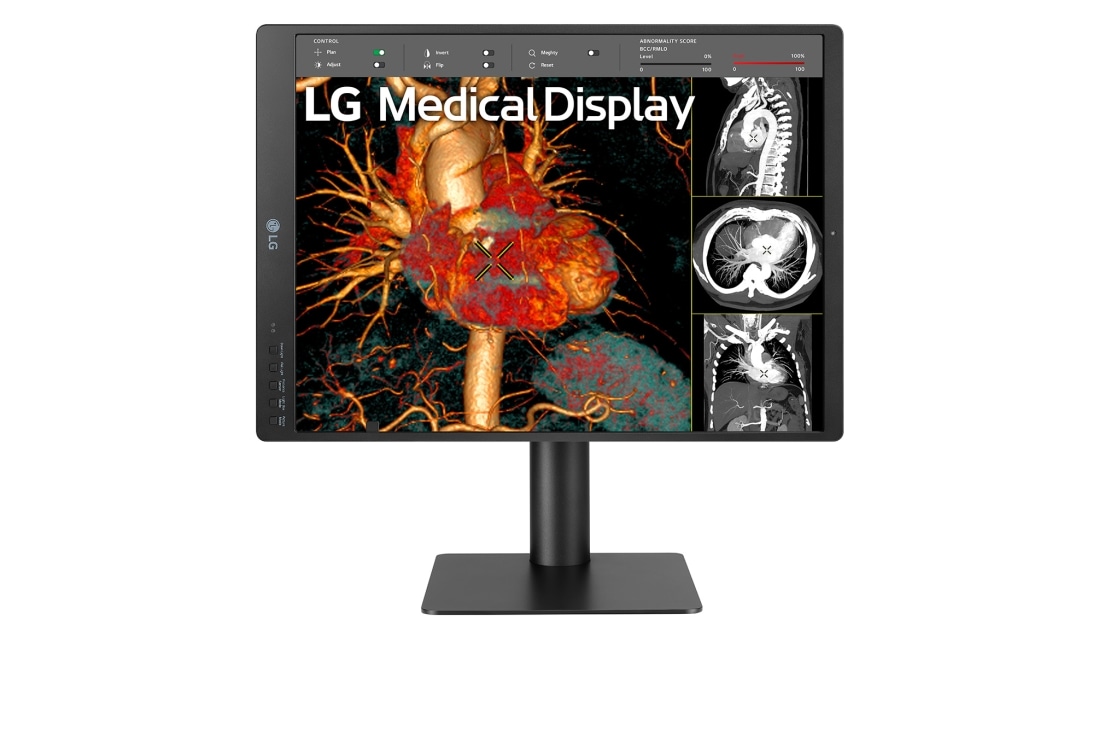

LG 21.3'' 3MP IPS Diagnostic Monitor
  • Accuracy

    21.3-inch 3MP IPS Display
    Easy Calibration with Front Sensor

  • Efficiency

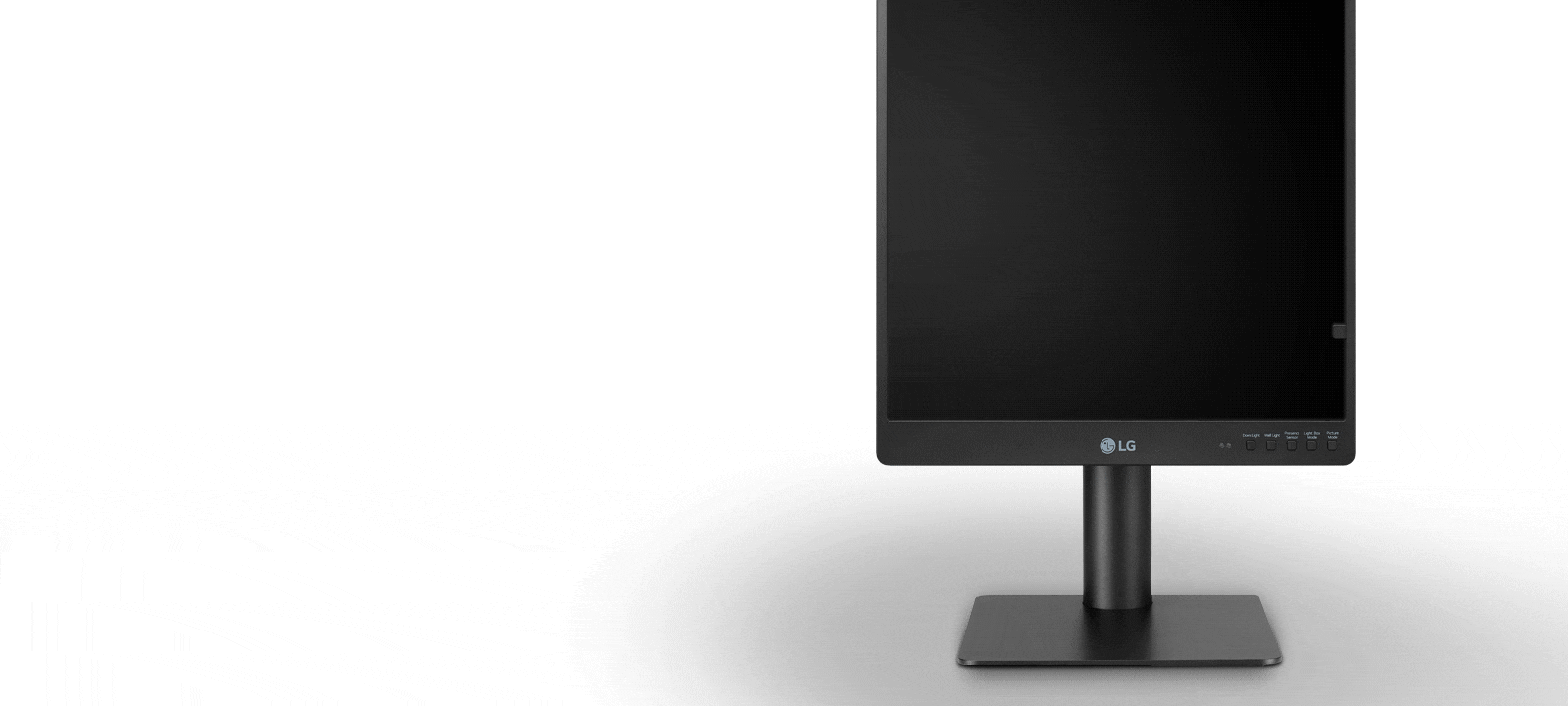

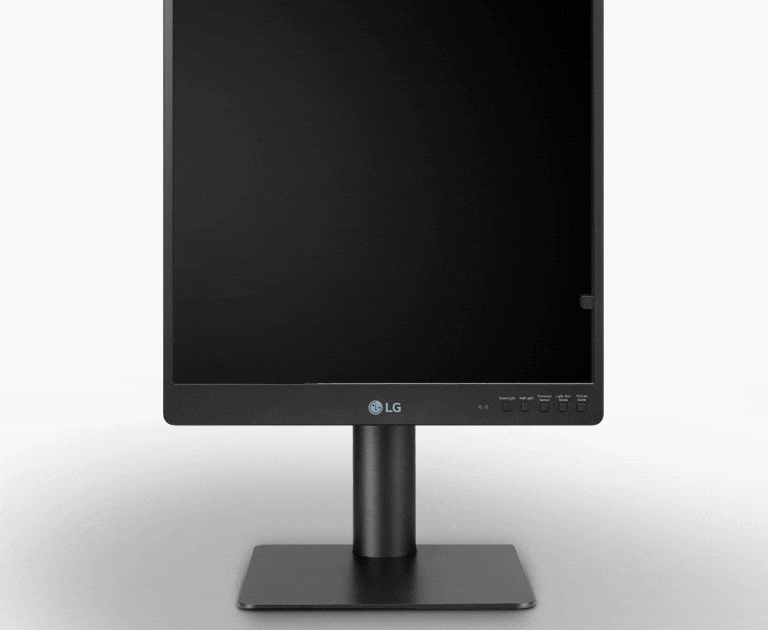

    Focus View
    5 Hot Keys & Lighting

  • Comfort

    Daisy Chain
    Ergonomic Design

Accurate Imaging

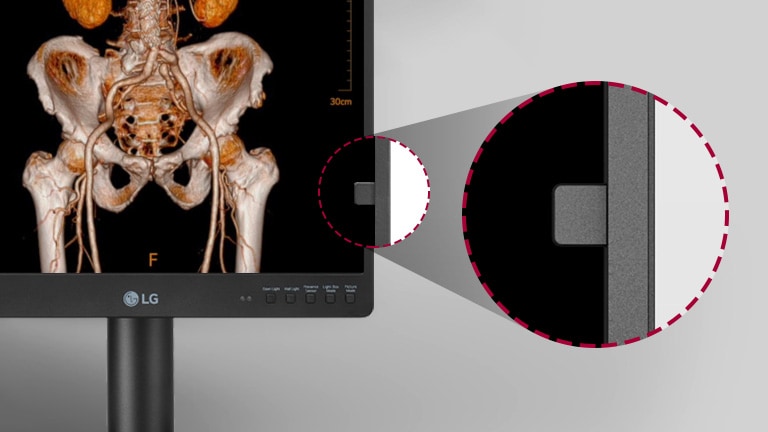

the monitor equipped with the front-sensor offering for easy-calibration.
Easy Calibration with Front Sensor

Manage Effortless Quality Control

The Integrated Front Sensor allows easy calibration ​without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values.

Streamlined and Efficient Workflow

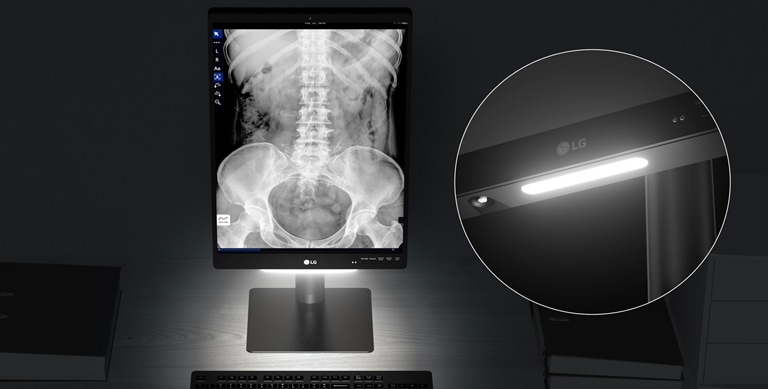

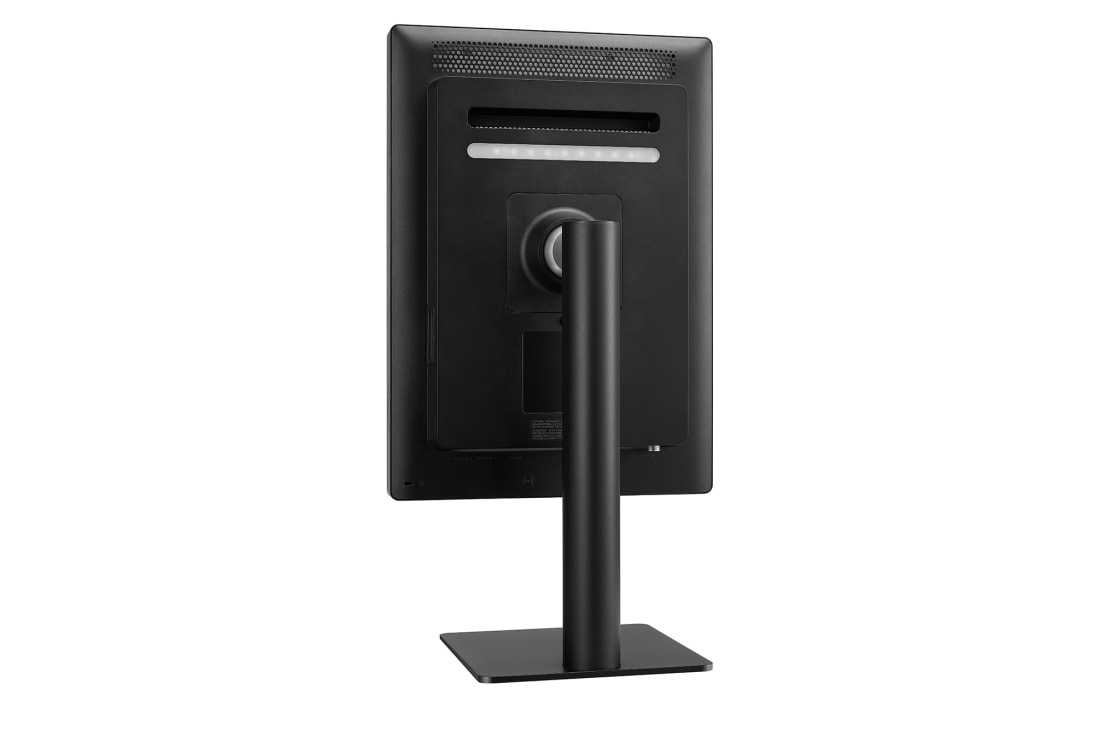

Down Lighting & Wall Lighting

Ideal Diagnostic Workspace

Down and Wall Lighting Modes reduce the contrast between the monitor brightness and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper documents in the darkroom.

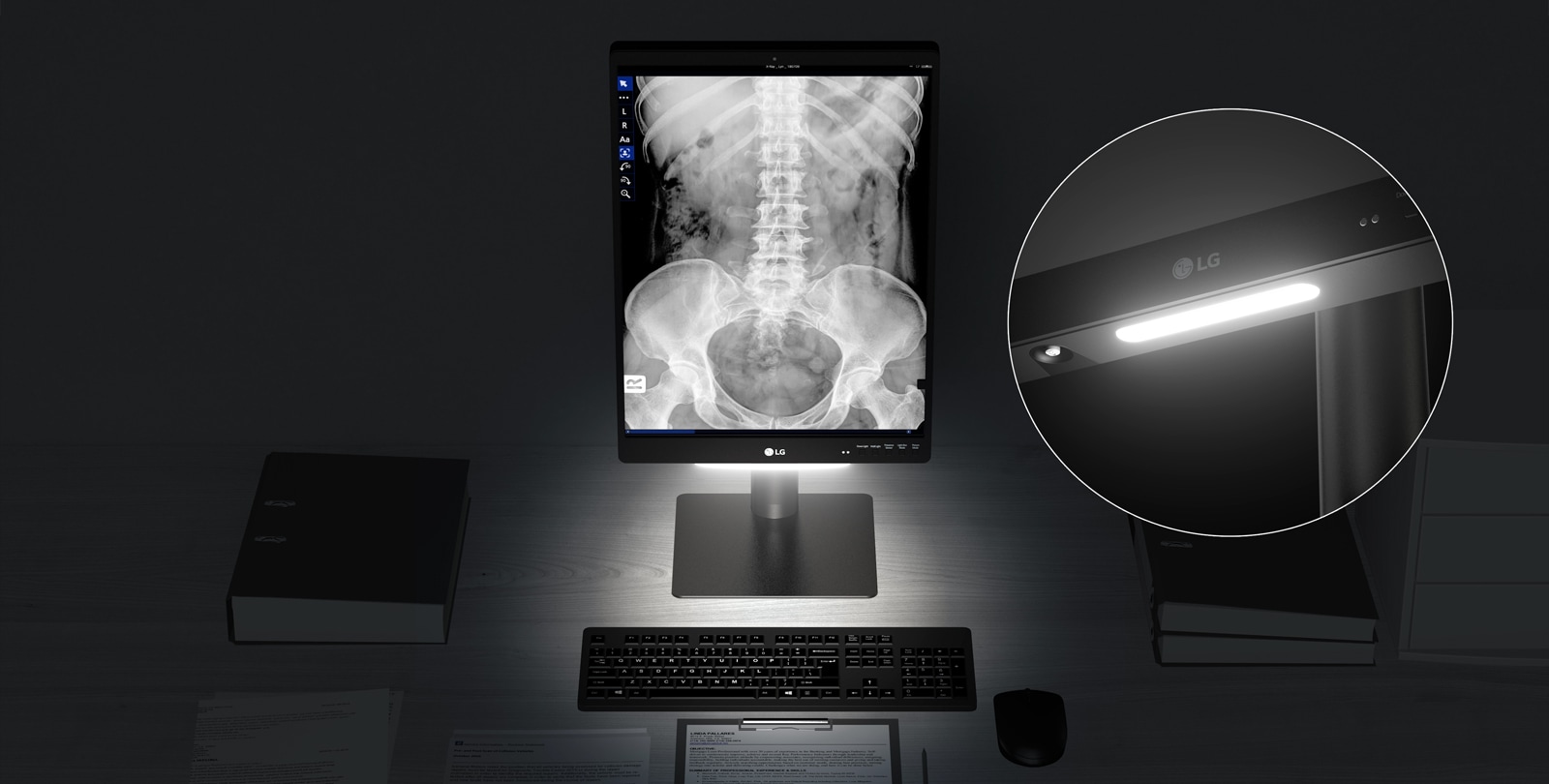

down lighting, and wall lighting offering users to view imaging results on the screen comfortably in the darkroom. down lighting, and wall lighting offering users to view imaging results on the screen comfortably in the darkroom.

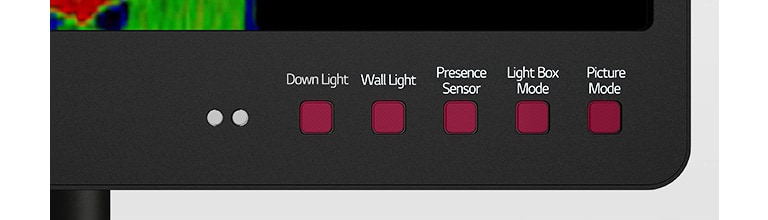

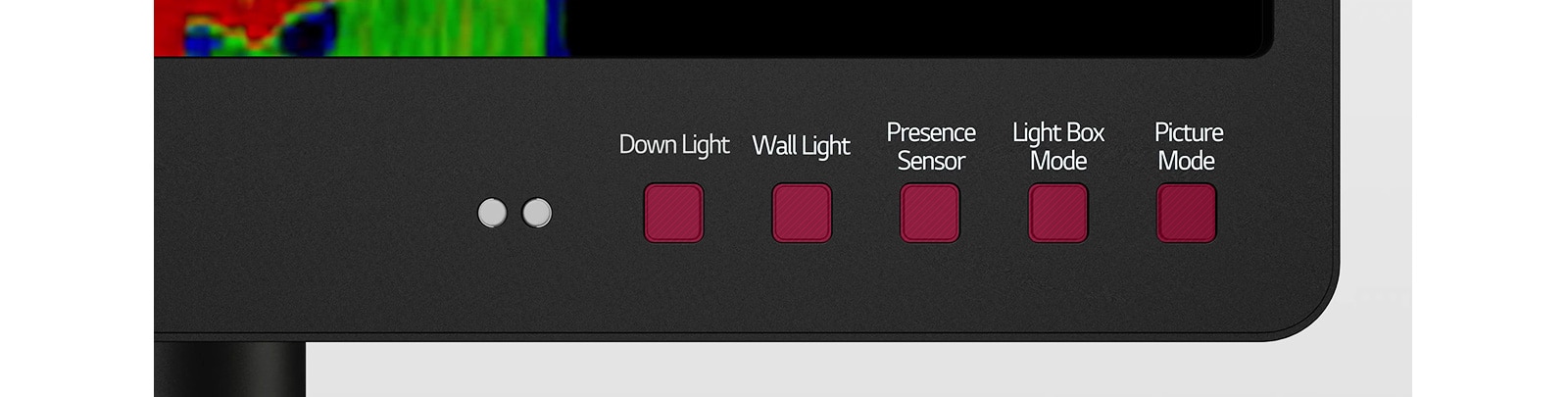

5 Hot Keys

Intuitive Control

The 21HQ513D's 5 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. The 5 Hot Keys are much faster and easier to operate while working, allowing you to change mode and lighting settings all without disrupting your workflow.
5 hot keys offering user's intuitive control consisting of down light, wall light,  presence sensor, light box mode, and picture mode. 5 hot keys offering user's intuitive control consisting of down light, wall light,  presence sensor, light box mode, and picture mode.

Ergonomic and Comfortable Workspace

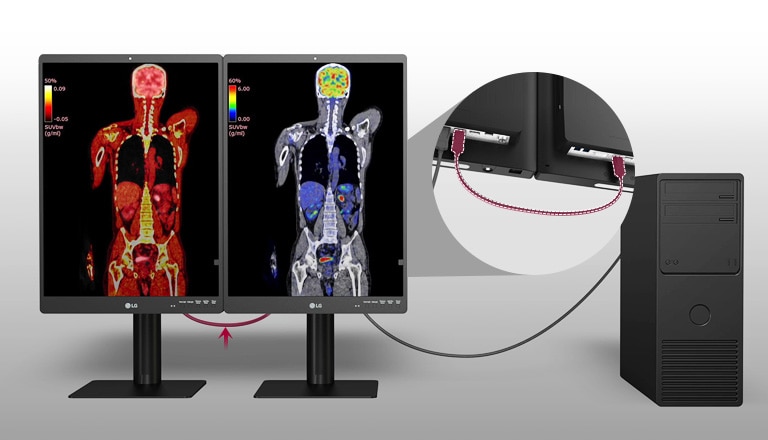

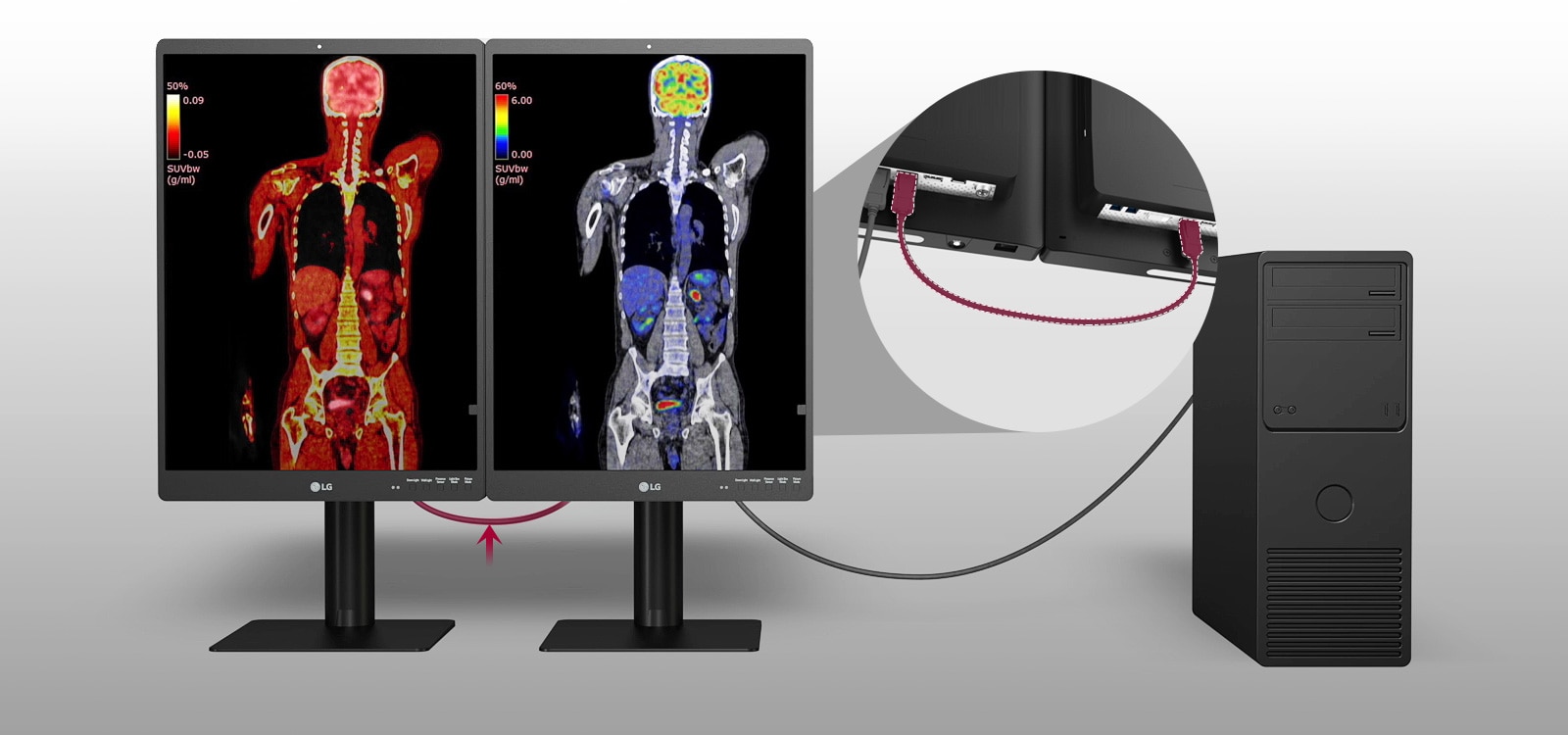

Daisy Chain

Reducing Clutter on Your Desk and Simplifying Cable Management

The 21HQ513D with 2 USB 3.0 Upstream Port and DisplayPort support Daisy Chain Setup. So you can establish a productive workstation by connecting two diagnostic Monitors and a PC.
productive workstation by connecting two diagnostic Monitors and a PC. productive workstation by connecting two diagnostic Monitors and a PC.

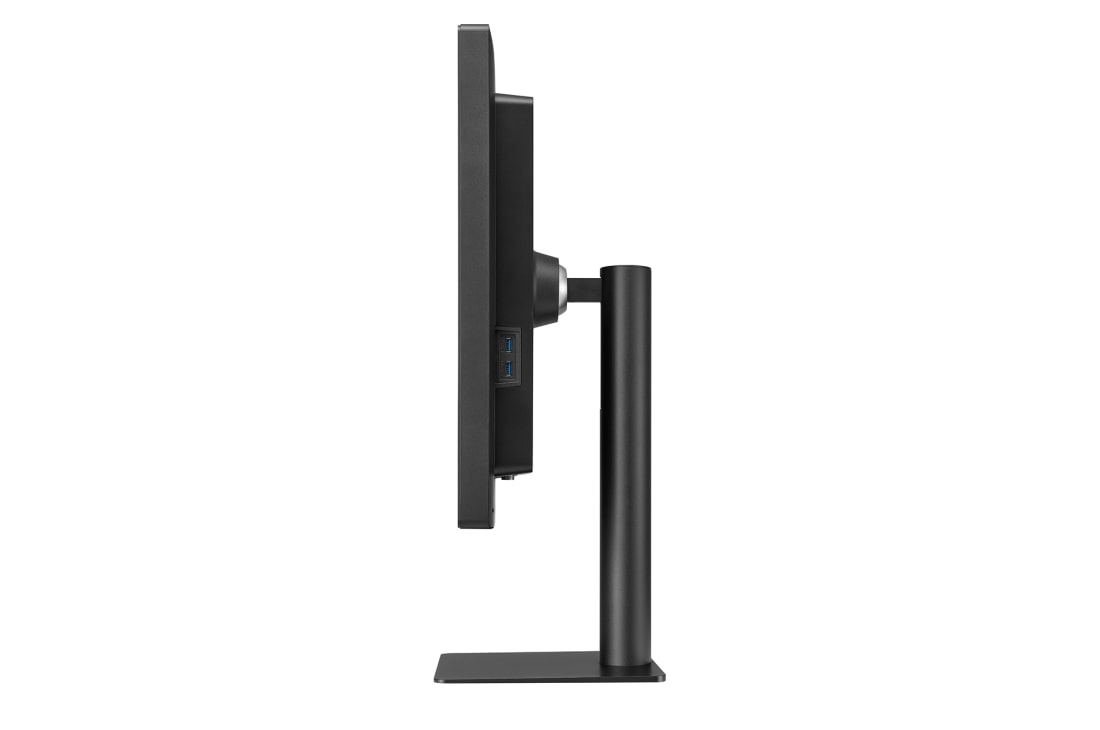

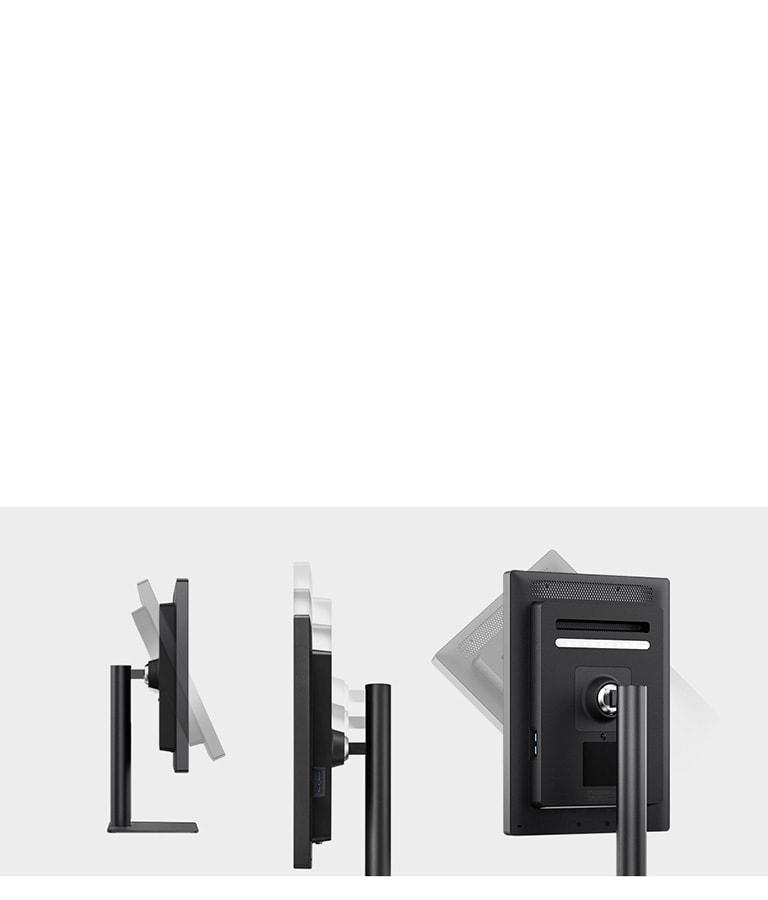

Ergonomic Design

Easy and Comfortable Workspace

The 21HQ513D is designed to be adjustable for the posture of healthcare professionals' image review. So, It helps review medical images more comfortable reducing chronic pain caused by long hours of work.

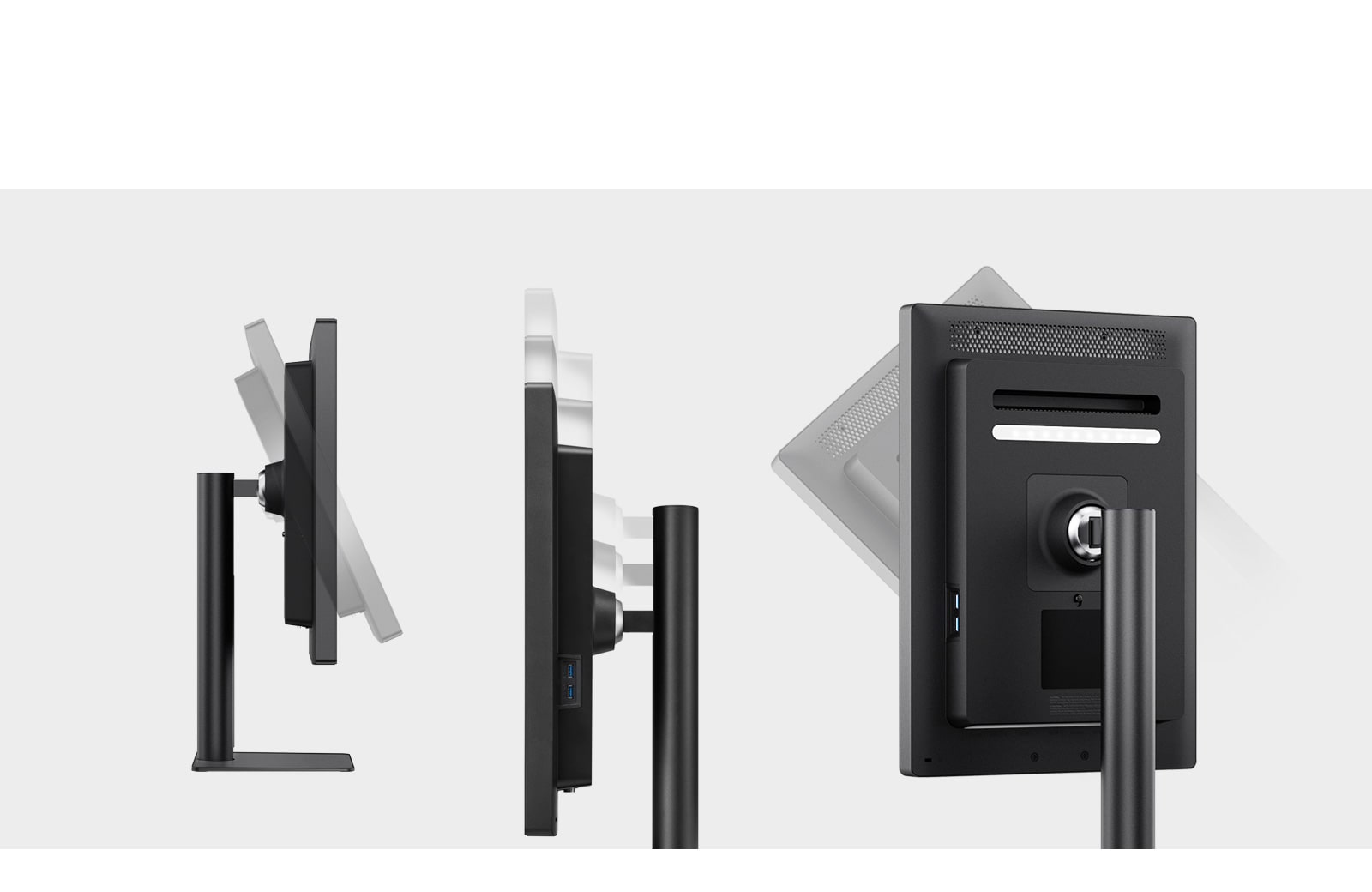

Ergonomic design with features of pivot, height, and tilt adjustment. Ergonomic design with features of pivot, height, and tilt adjustment.

pivot adjustable Pivot +90º

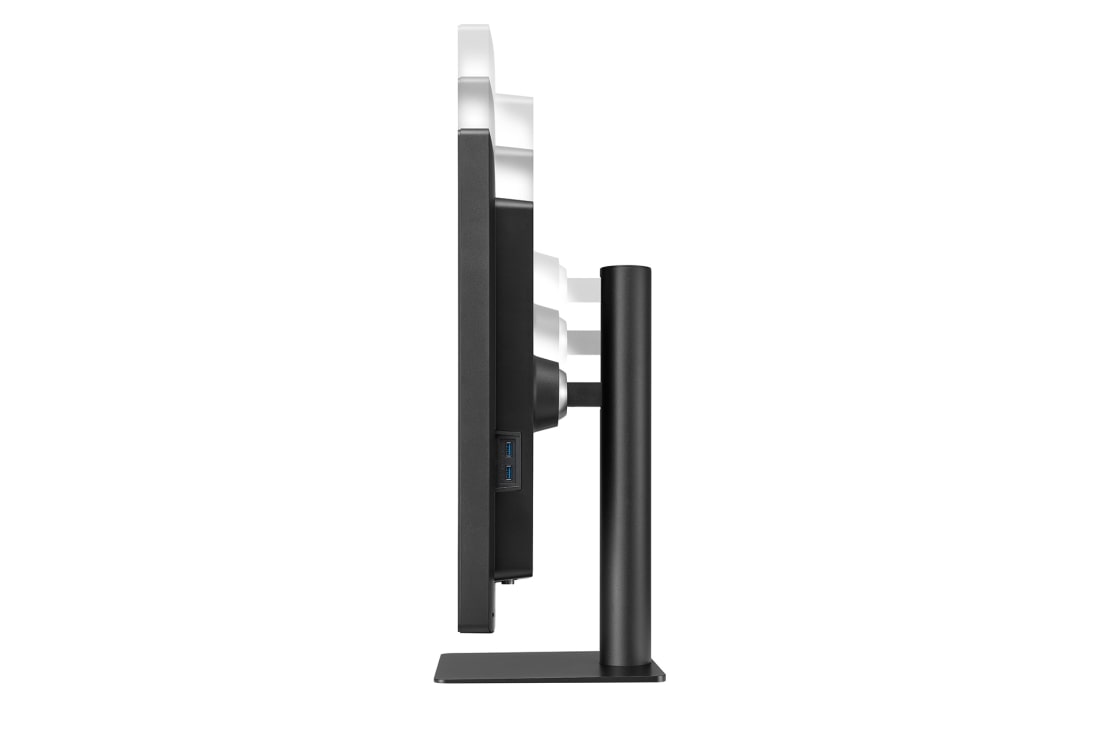

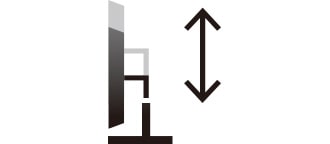

height adjustable stand within the range of 0m to 110mm Height 0~110mm

tilt adjustable stand within the range of -5 degrees to 20 degrees Tilt -5~20°

Display
  • Aspect Ratio
    3:4
    Brightness (Typ.)
    1100cd/m²
  • Color Bit
    10bit
    Color Gamut (Typ.)
    NTSC 72%
  • Contrast Ratio (Typ.)
    1800:1
    Panel Type
    IPS
  • Pixel Pitch(H x V)
    0.2115 x 0.2115 mm
    Resolution
    1536x2048
  • Response Time (GTG)
    5ms (GtG at Faster)
    Size (Diagonal, Inch)
    21.3
  • Size (H x V)
    324.86 x 433.15mm
    (12.79 x 17.05")
    Surface Treatment
    Anti-glare, 3H
  • Viewing Angle (CR≥10)
    178°(Right/Left), 178°(Up/Down)
Feature
  • Hot Key
    Yes(5keys)
    Brightness stabilization
    Yes

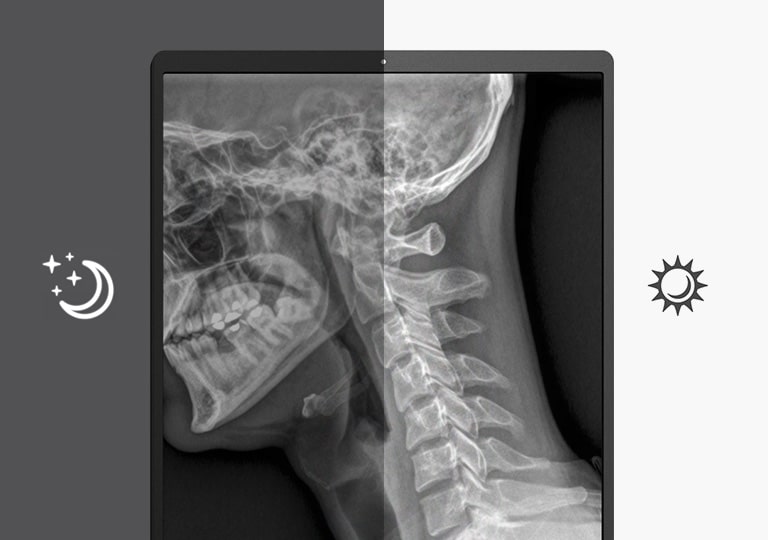

  • Auto Luminance sensor
    Yes

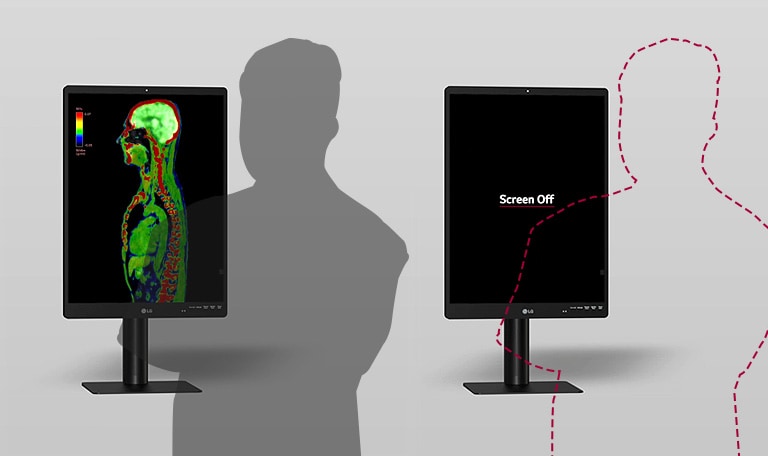

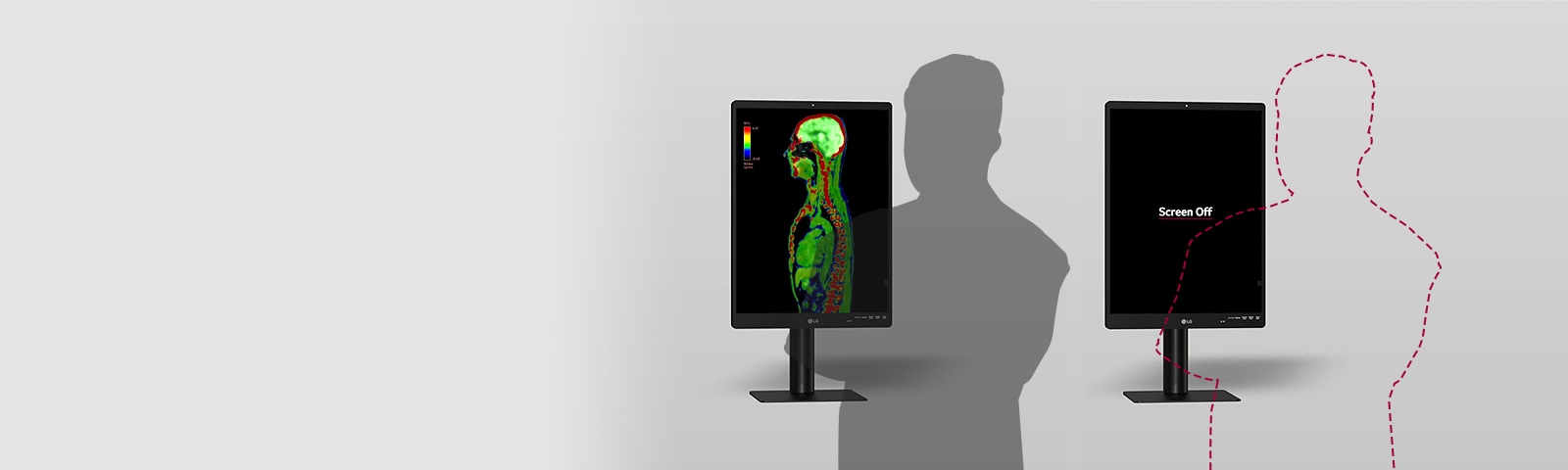

    Presence sensor
    Yes
  • Front Sensor
    Yes
    Black Stabilizer
    Yes
  • HW Calibration
    Yes
    DICOM Compliant
    Yes
  • Color Temperature
    6500K / 7500K / 9300K / Manual (5000K ~ 10000K)
    Flicker safe
    Yes

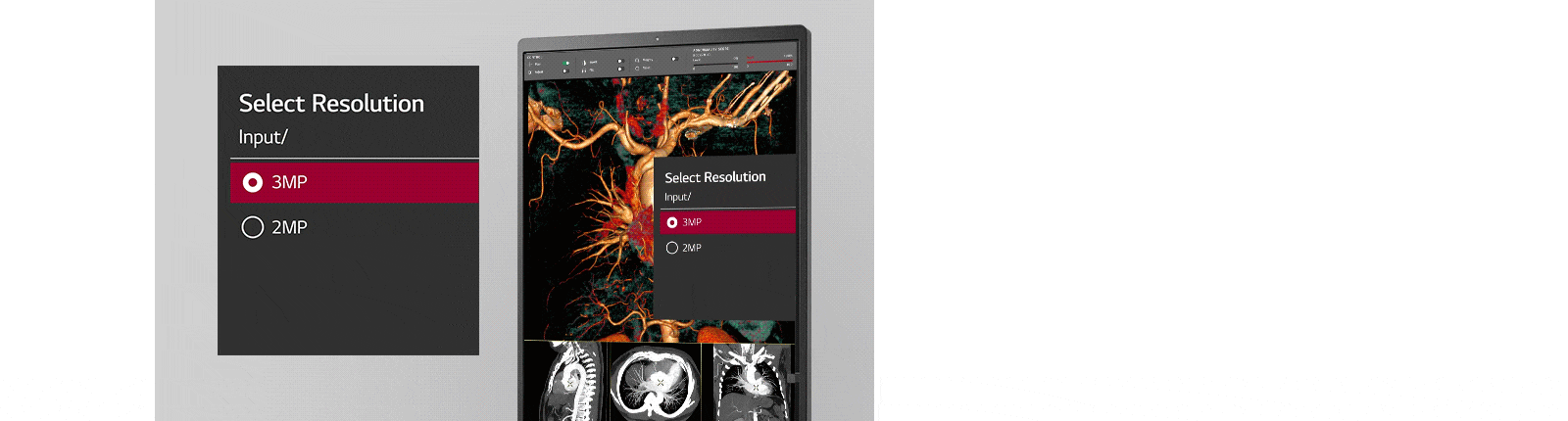

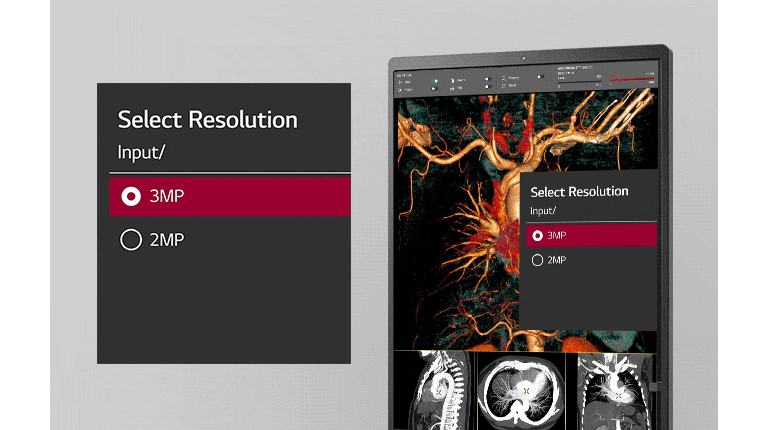

  • Multi-resolution Mode
    Yes(3MP/2MP)

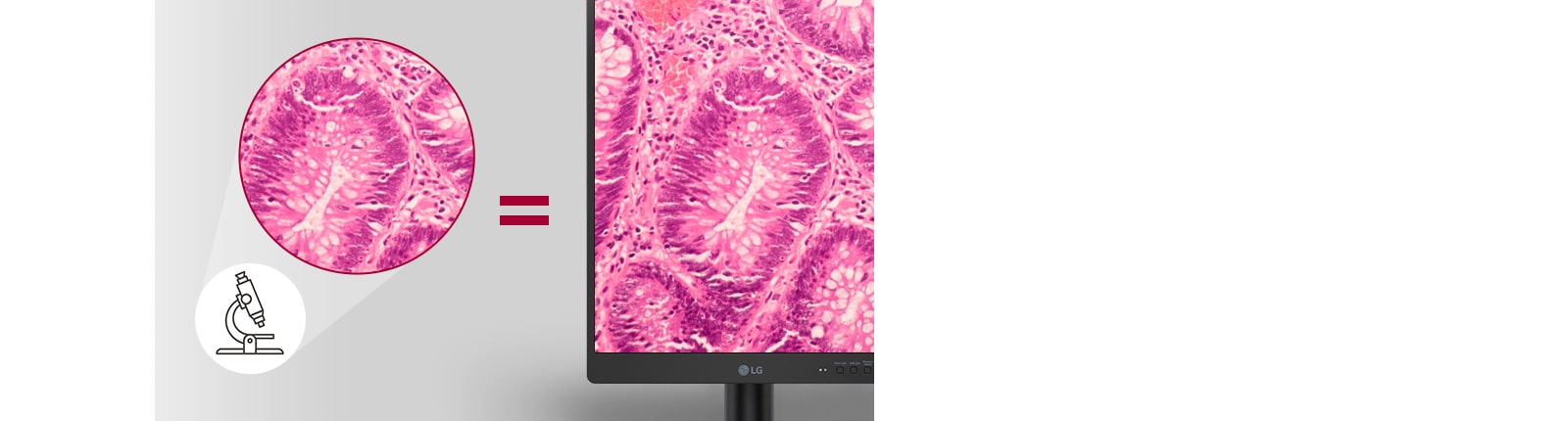

    Pathology Mode
    Yes
  • Reader Mode
    Yes(Text Mode)
    Focus View
    Yes
  • Light Box Mode
    Yes
    Smart Energy Saving
    Yes
  • Lighting
    Yes(Down/ Wall)
    Super Resolution+
    Yes
SW Application
  • Dual Controller
    Yes

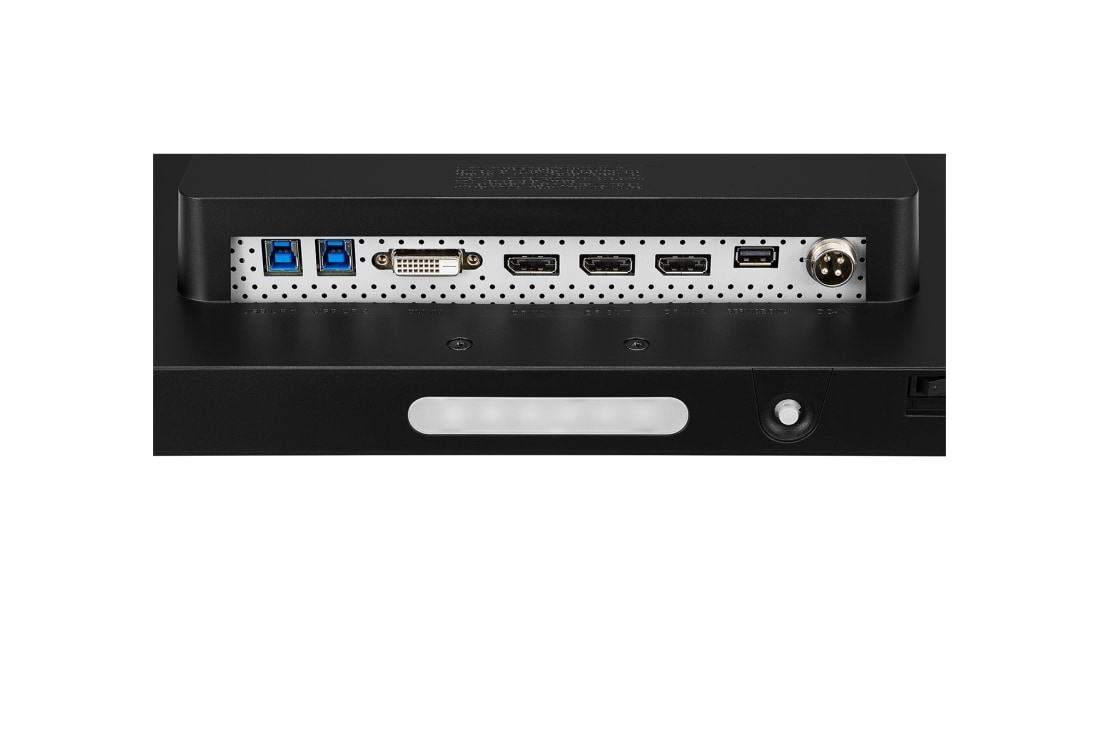

Connectivity
  • DisplayPort
    YES(In 2ea / Out 1ea)
    DVI
    YES(1ea)
  • Daisy Chain
    YES(3MP/60Hz)
    USB Downstream Port
    YES(2ea/ver3.0)
  • USB Upstream Port
    YES(2ea/ver3.0)
Power
  • AC Input
    100-240Vac, 50/60Hz
    DC Output
    19V, 6.32A
  • Power Consumption (DC Off)
    Less than 0.3W
    Power Consumption (Max.)
    120W
  • Type
    External Power(Adapter)
Mechanical
  • Borderless Design
    Normal
    Display Position Adjustments
    Tilt/Height/Pivot
  • Height Range
    110mm
    Machanical Power Switch
    Yes
  • OneClick Stand
    Yes
    Pivot
    Yes(+90º)
  • Tilt
    Yes(-5°~20˚)
    Wall Mount Size
    100 x 100 mm
Dimensions/Weight
  • Dimension in Shiping (W x H x D)
    636x551x163
    Dimension with Stand (W x H x D)
    343.1x640x234.6
  • Dimension without Stand (W x H x D)
    343.1x484x72.4
    Pallet Stuffing (20ft/40ft/40ft HC)
    396/864/936
  • Weight in Shipping
    9.5Kg
    Weight with Stand
    7.0kg
  • Weight without Stand
    5.0kg
Standard
  • IEC (IEC 60601-1 / IEC 60601-1-2)
    Yes
    EN (EN 60601-1 / EN 60601-1-2)
    Yes
  • IEC (IEC 60950-1 & IEC 62368-1 / CISPR 32, 35)
    Yes
    EN (EN 62368-1 / EN 55032, 55035)
    Yes
  • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
    Yes
    CE
    MDR
  • FDA
    510(k) (Class II)
    ISO13485
    Yes
  • RoHS
    Yes
    REACH
    Yes
  • WEEE
    Yes
    MFDS
    Yes
Accessory
  • Adapter
    YES
    Calibration Report (Paper)
    YES
  • DVI-D
    YES
    Display Port
    YES
  • Power Cord
    YES
    USB3.0 Upstream Cable
    YES

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
