LG 27'' 8MP IPS Clinical Review Monitor

27HJ712C-W

Key Features

8MP (3840x2160) IPS Display
350 nits with sRGB over 99%
DICOM Part 14 Compatible
Brightness Stabilization
Flicker Safe & Reader Mode

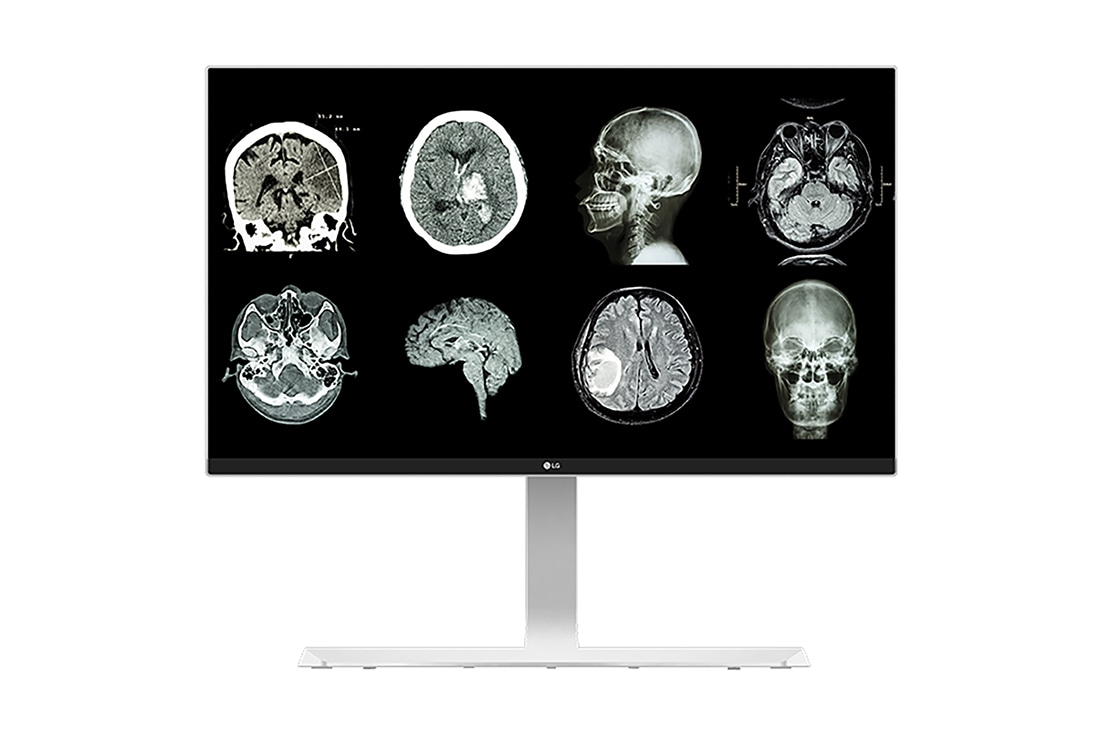

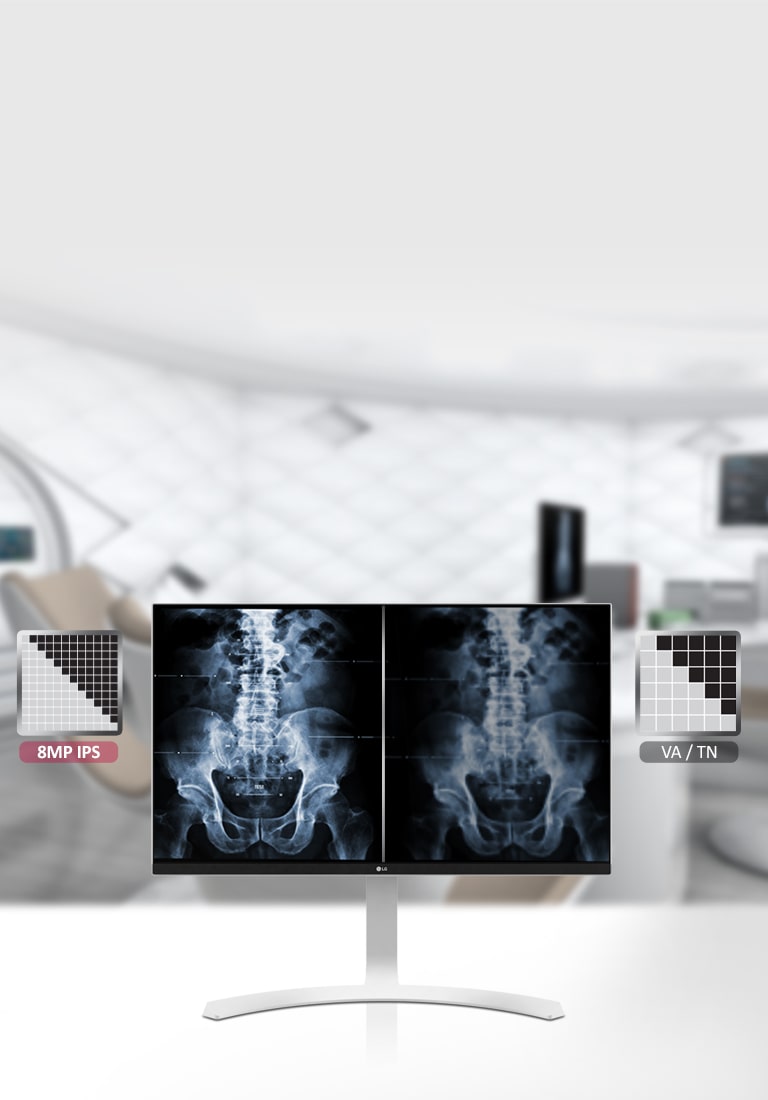

8MP IPS Display

The 27-inch 8MP display with IPS technology offers an outstanding picture quality along with perfect wide viewing angles. With its 178 wide viewing angles, images can be viewed simultaneously by several people with the highest quality and minimal color shift.

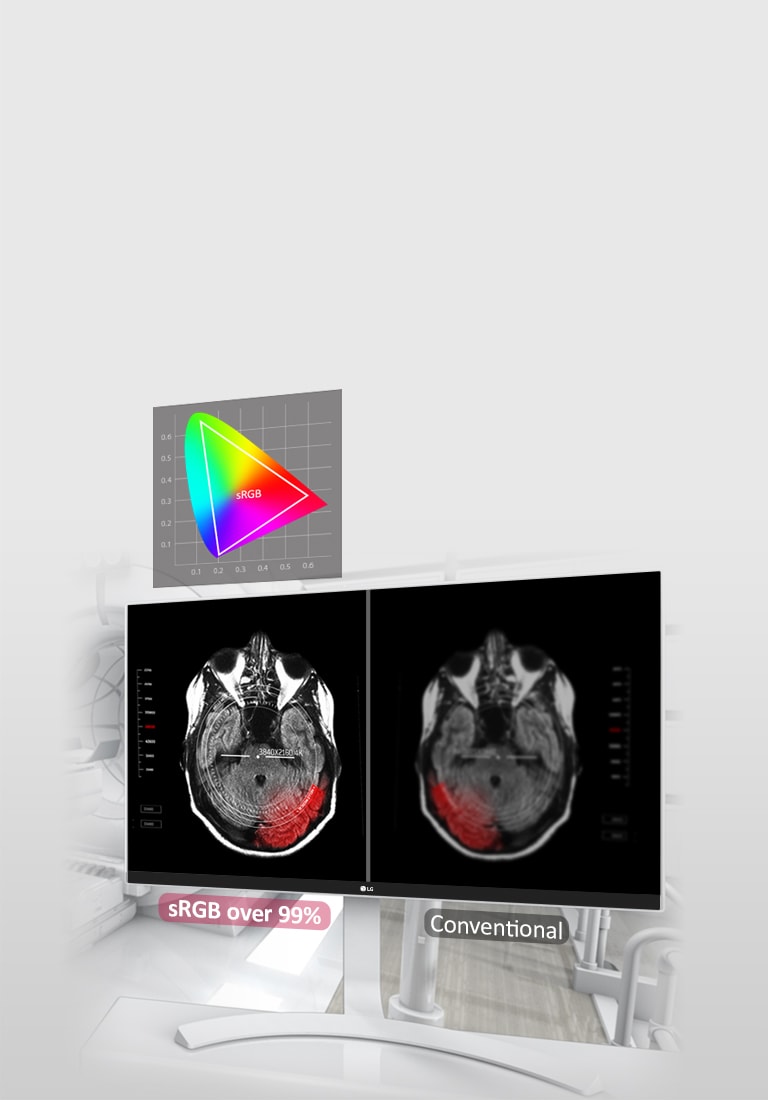

350nits with sRGB over 99%

A wide range of colors represented by sRGB over 99% of the color space guarantee vivid color expression without any color shift for more precise clinical review.

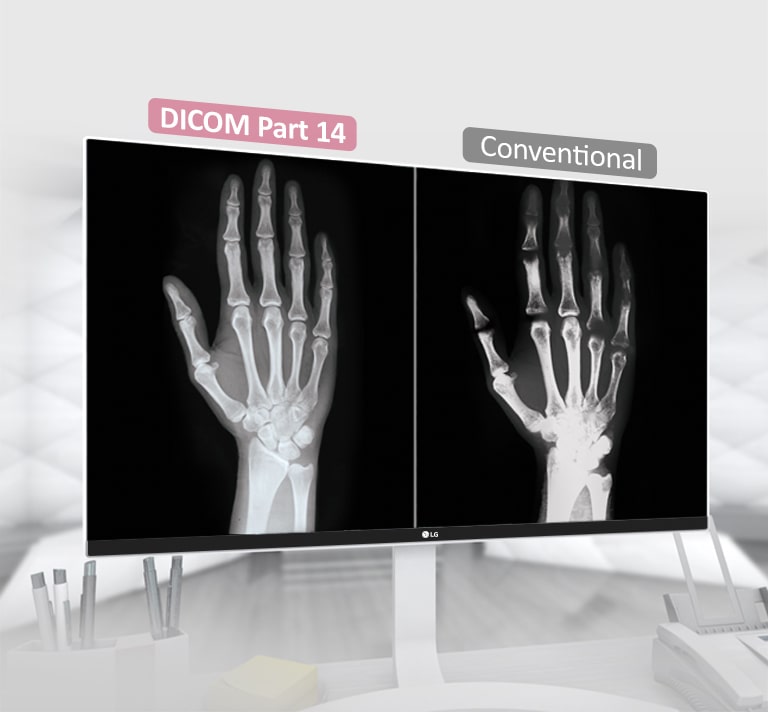

DICOM Part 14

To ensure the most accurate and consistent shading possible for medical images, LG measures and sets every grayscale tone on the production line to produce a monitor compliant with DICOM Part 14.

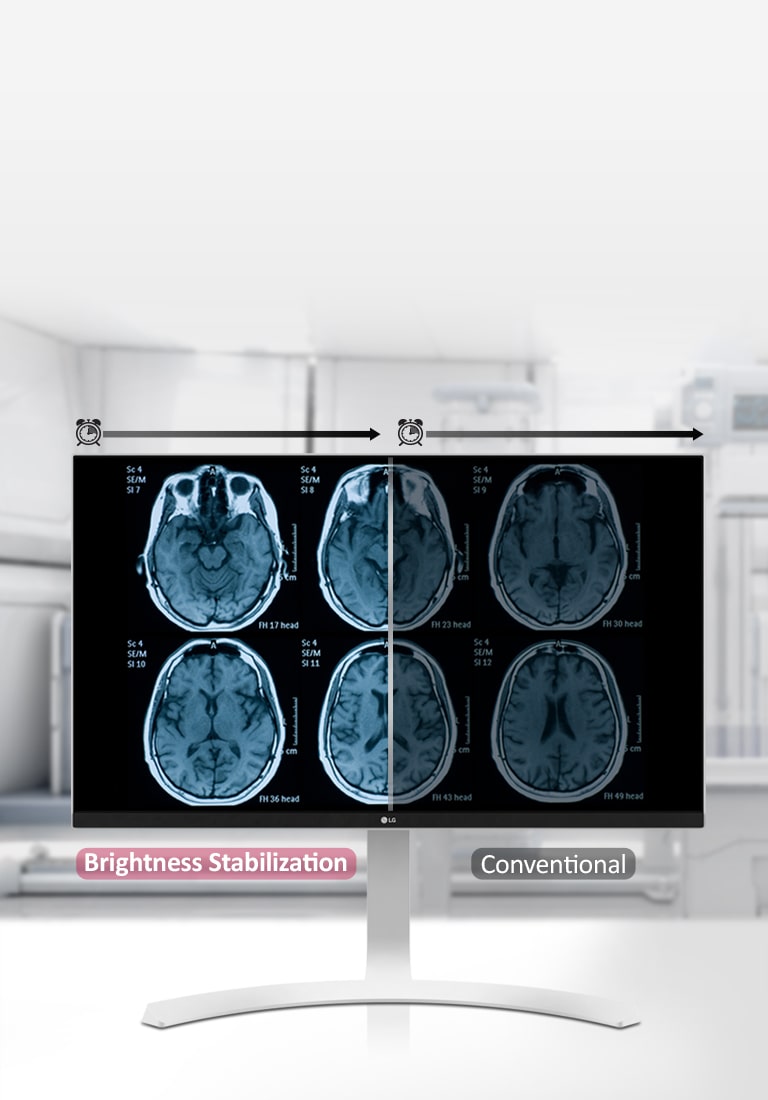

Brightness Stabilization

A sensor measured the backlight brightness stability and automatically compensates for brightness fluctuations caused by aging for a consistently stable display during the usage time.

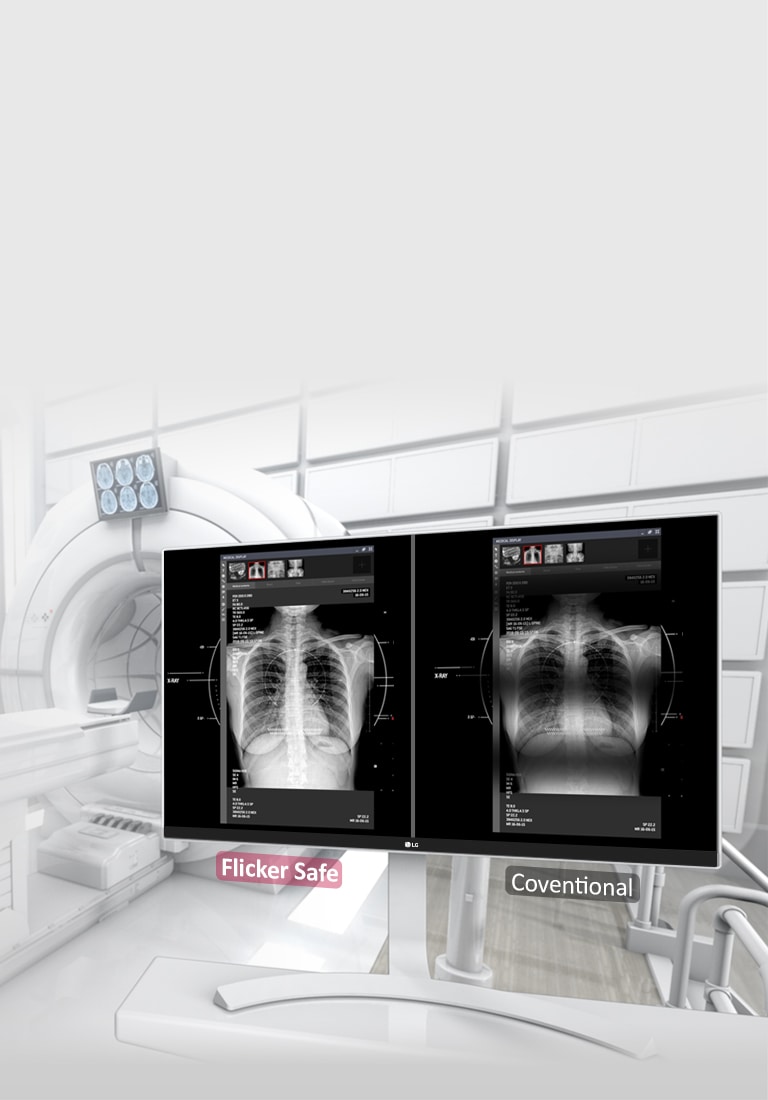

Flicker Safe

Flicker Safe protects eyes from fatigue by virtually eliminating flickering. The steady image helps doctors protect their vision and allows them to continue working as long as they want.

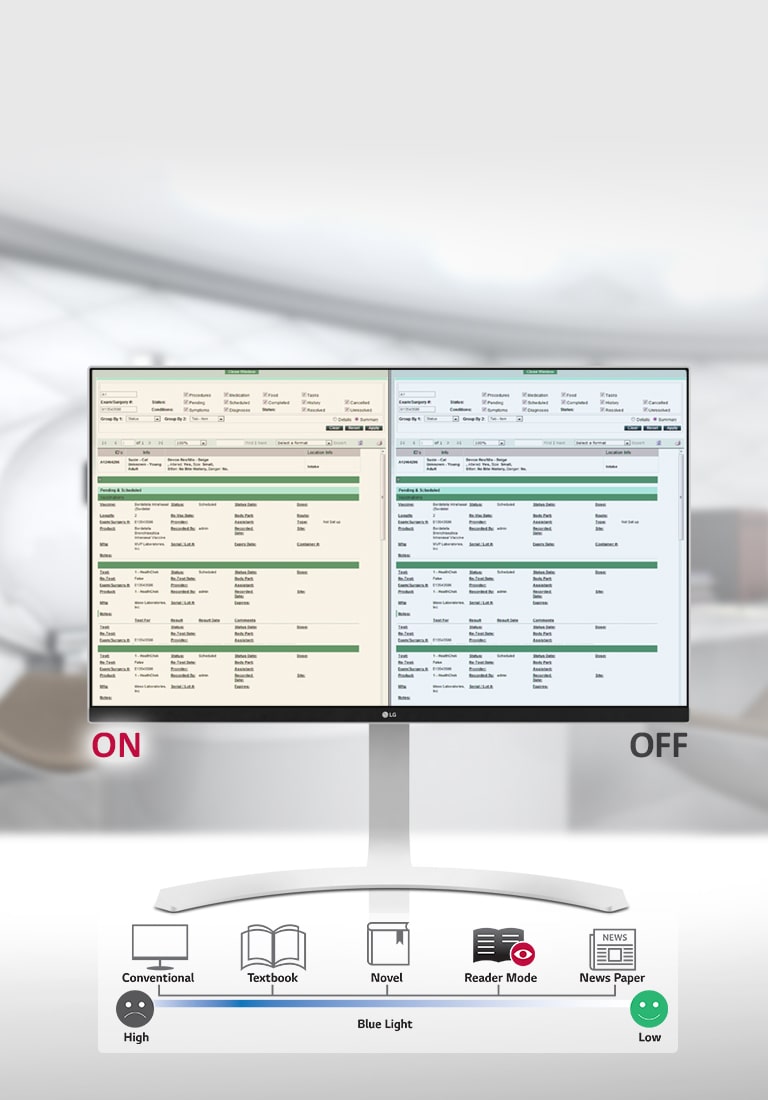

Reader Mode

Reader Mode provides optimal conditions for clinical use.

LG's Reader Mode technology reduces blue light,

protecting doctors' eyes from fatigue.

All Spec

DIMENSIONS/WEIGHTS

Weight without Stand [kg]
4.7kg(10.4lb)
Weight with Stand [kg]
6.2kg(13.7lb)
Weight in Shipping [kg]
10.1kg(22.3lb)
Dimension without Stand (W x H x D) [mm]
615 x 365.1 x 42.7 mm
Dimension with Stand (W x H x D) [mm]
615 x 222.6 x 535.2 mm
Dimension in Shiping (W x H x D) [mm]
832 x 473 x 168 mm
Pallet Stuffing (20ft/40ft/40ft HC)
360EA/744EA/868EA

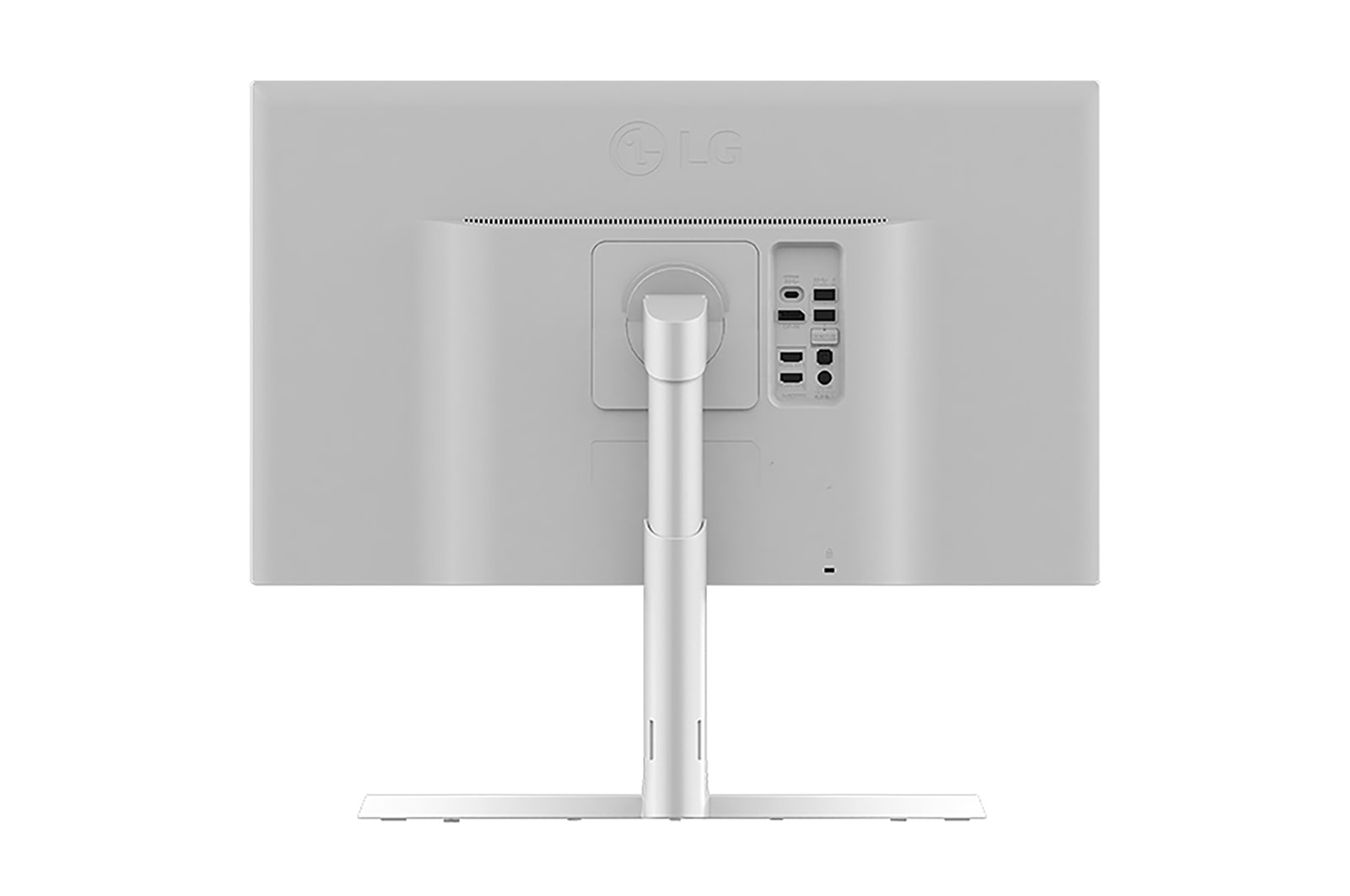

CONNECTIVITY

HDMI
Yes(2ea)
DisplayPort
Yes(1ea)
USB Upstream Port
Yes (1ea/ver3.0)
USB Downstream Port
Yes (2ea/ver3.0)
Headphone out
No
Composite (Resolution)
No
S-Video
No
Component (Resolution)
No

DISPLAY

Size [Inch]
27
Resolution
3840 x 2160
Panel Type
IPS
Aspect Ratio
16:9
Color Gamut (Typ.)
sRGB over 99%(Coverage)
Contrast Ratio (Typ.)
1000:1
Response Time
14ms (Off-setting), 5ms (Faster-setting)
Viewing Angle (CR≥10)
178° (Right/Left), 178° (Up/Down)
Brightness (Typ.) [cd/m²]
350 cd/m²
Color Bit
10bit
Surface Treatment
Anti-glare, 3H

STANDARD

KGMP
Yes
KC (for Rep. of Korea)
Yes
RoHS
Yes
REACH
Yes
WEEE
Yes
MFDS
Yes
UL (cUL)
Yes
IEC (IEC 60601 - 1 / IEC 60601 - 1 - 2)
Yes
EN (EN 60601 - 1 / EN 60601 - 1 - 2)
Yes
IEC (IEC 60950-1 / IEC 55032, 55024)
Yes
EN (EN 60950-1 / EN 55032, 55024)
Yes
CE
MDR
FDA
Registration (Class I)
ISO13485
Yes

FEATURES

HW Calibration
Yes(LG Calibration Studio)
Flicker Safe
Yes
Reader Mode
Yes
Super Resolution+
Yes
PBP
Yes (2PBP)
Smart Energy Saving
Yes
DICOM Compliant
Yes
Brightness stabilization
Yes
Color Temperature
6500K / 8500K / 9300K Manual (5000K ~ 10000K)
Original-resolution
8MP

SW APPLICATION

Dual Controller
Yes
LG Calibration Studio
Yes

POWER

Type
External Power(Adapter)
AC Input
100-240Vac, 50/60Hz
Power Consumption (DC Off)
Less than 0.3W
Power Consumption (Max.)
65W
DC Output
19V, 3.42A

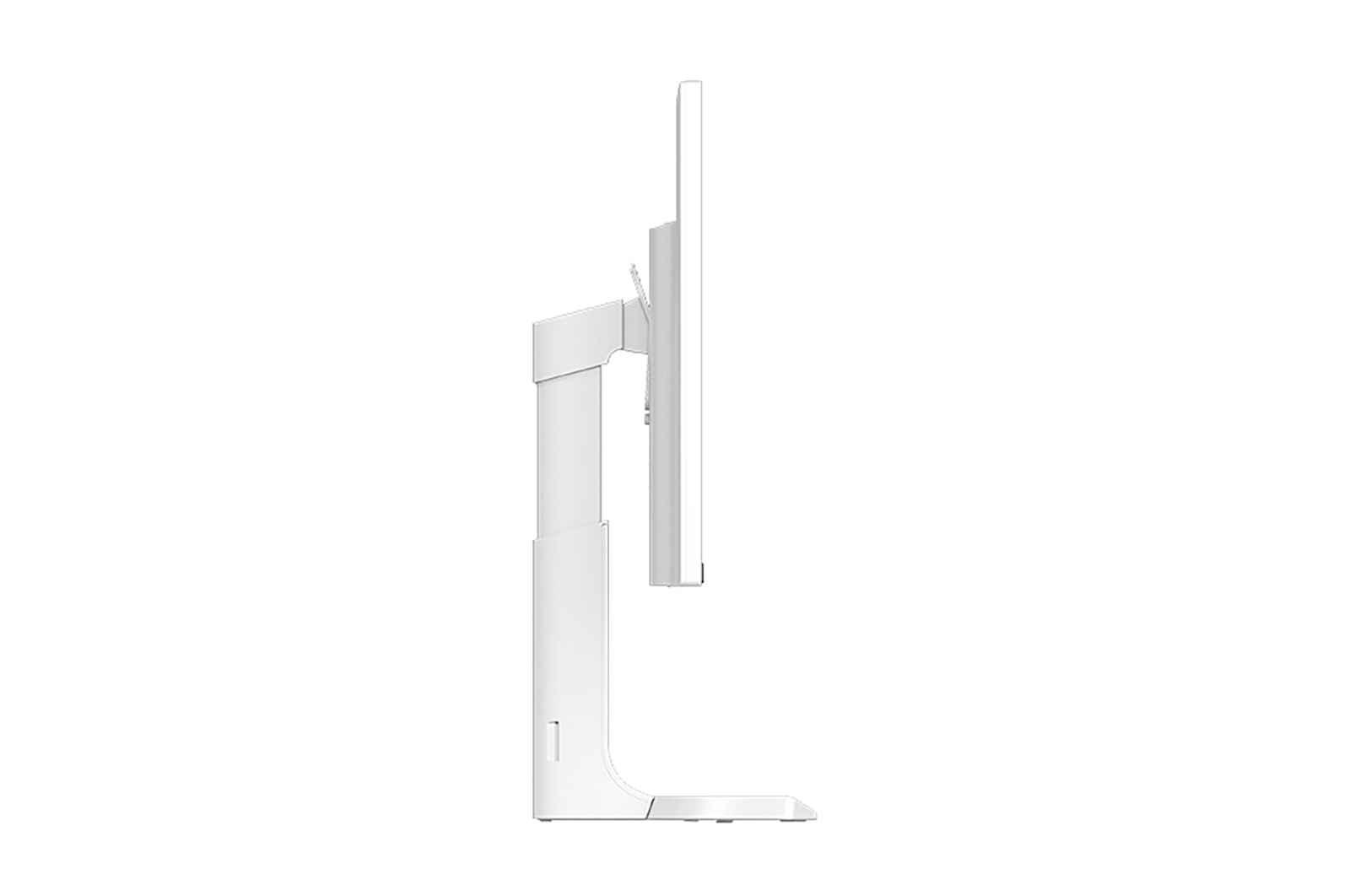

MECHANICAL

Display Position Adjustments
Tilt/Height/Pivot
Wall Mountable [mm]
100x100mm
Borderless Design
3-Side Virtually Borderless Design
OneClick Stand
Yes
Down Height
80.4mm
Height Range
110mm
Pivot
Yes(±90°)
tilt
Yes(-3°~20°)

ACCESSORY

HDMI
Yes
Display Port
Yes
Adapter
Yes
Calibration Report (Paper)
Yes
Power Cord
Yes
USB3.0 Upstream Cable
Yes

Datasheet

20190306_LG IT Clinical Review Monitor_27HJ712C_Flyer_Low.pdf

Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
