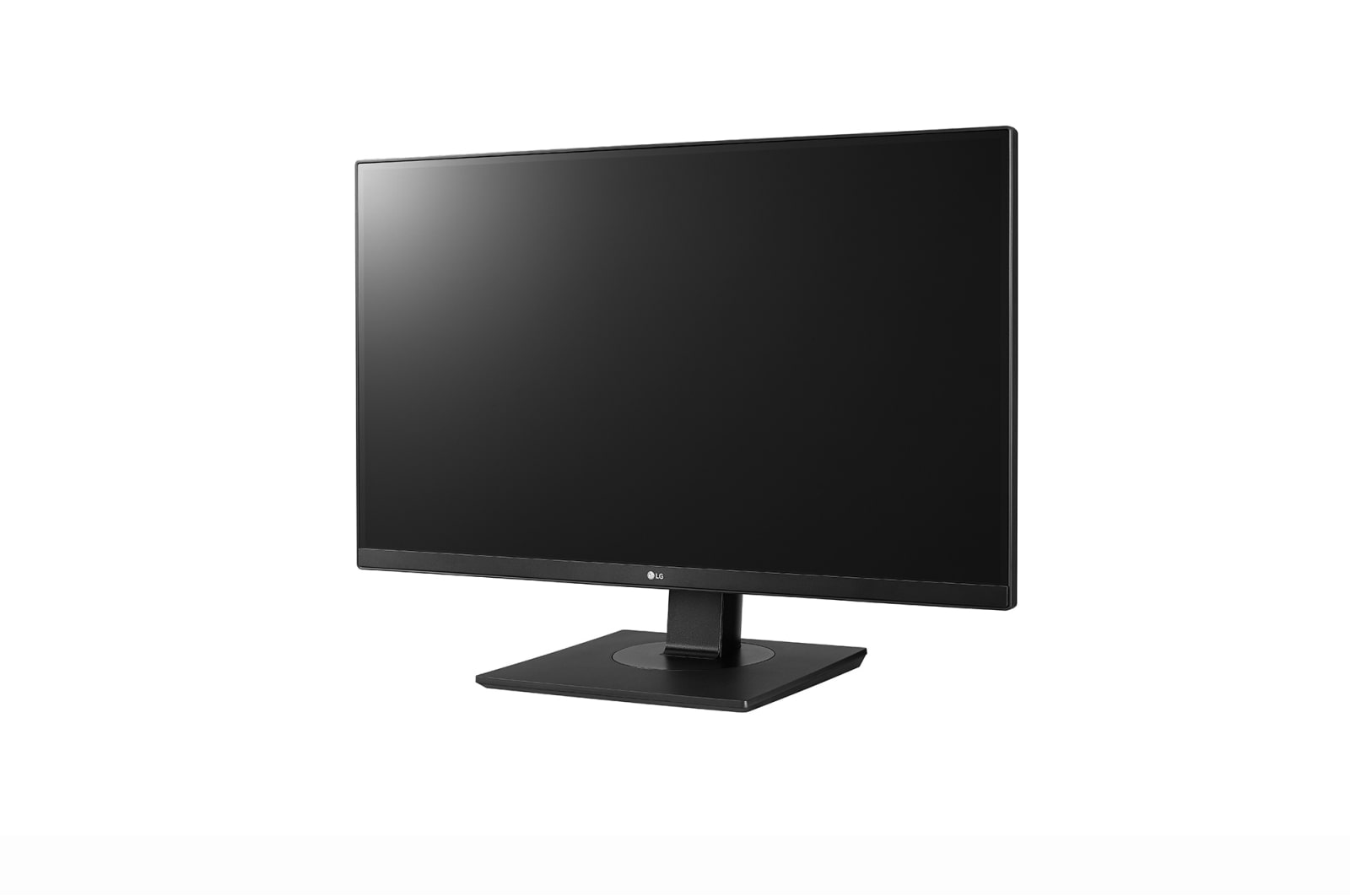

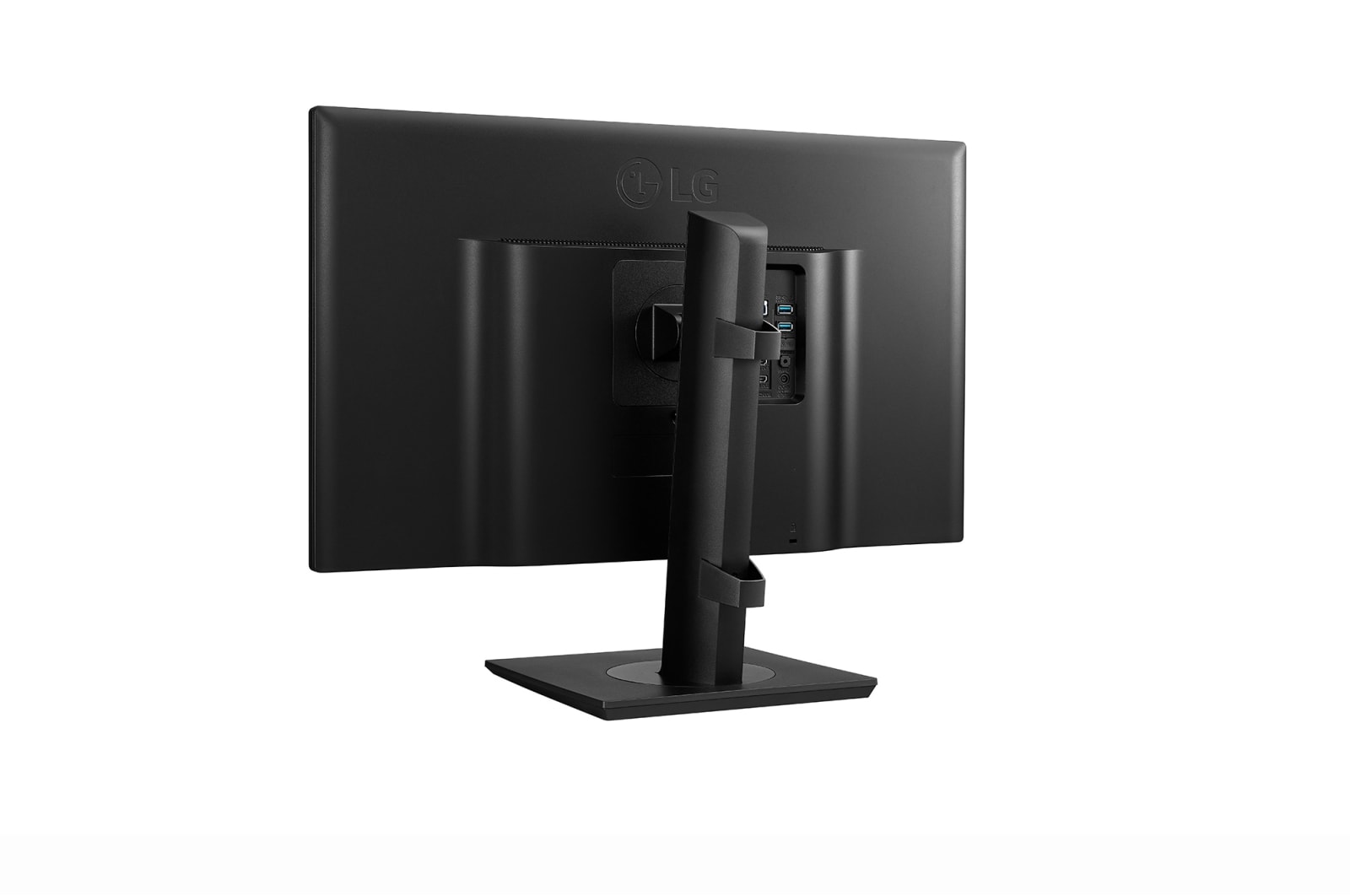

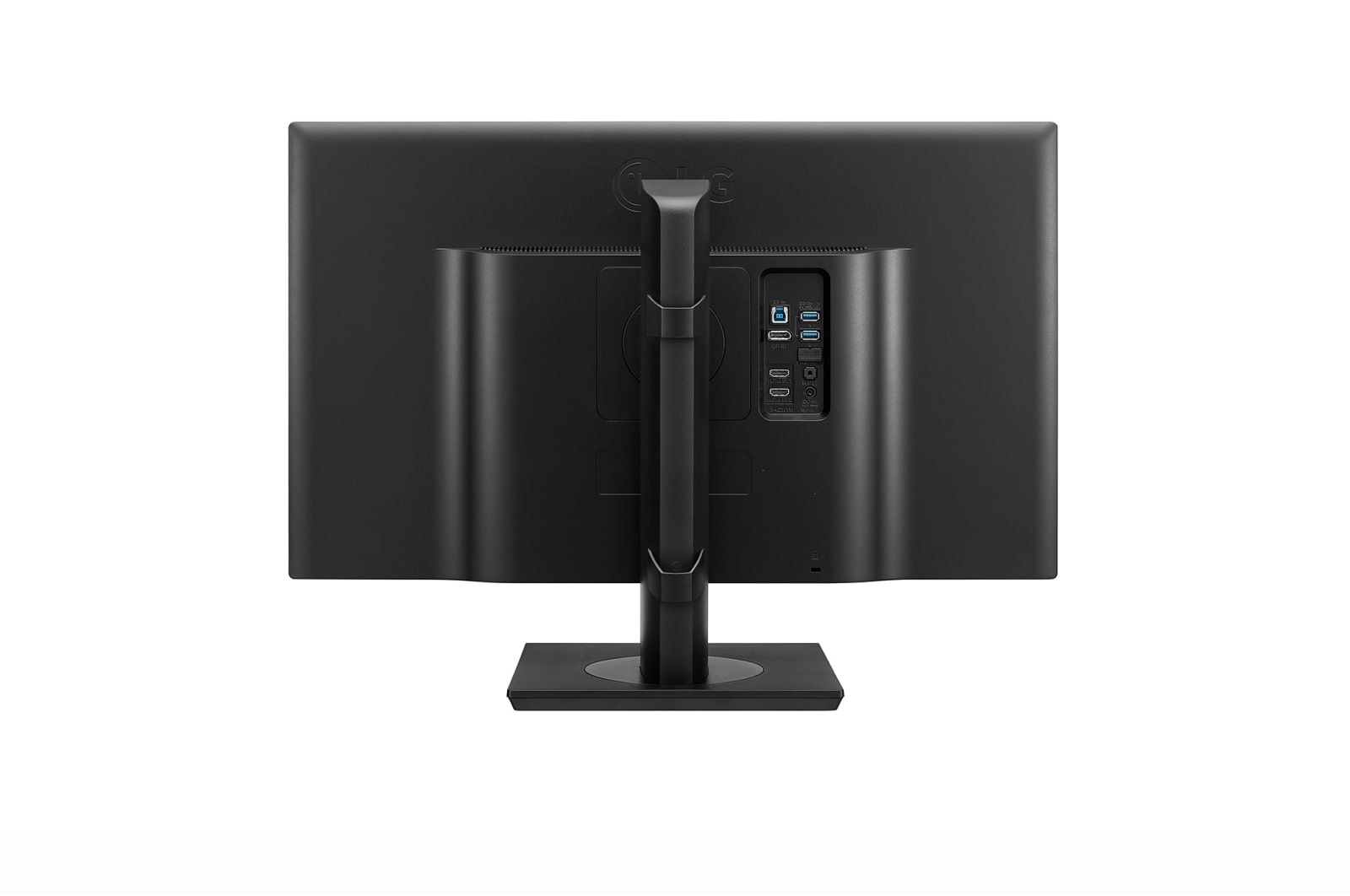

27HJ713C

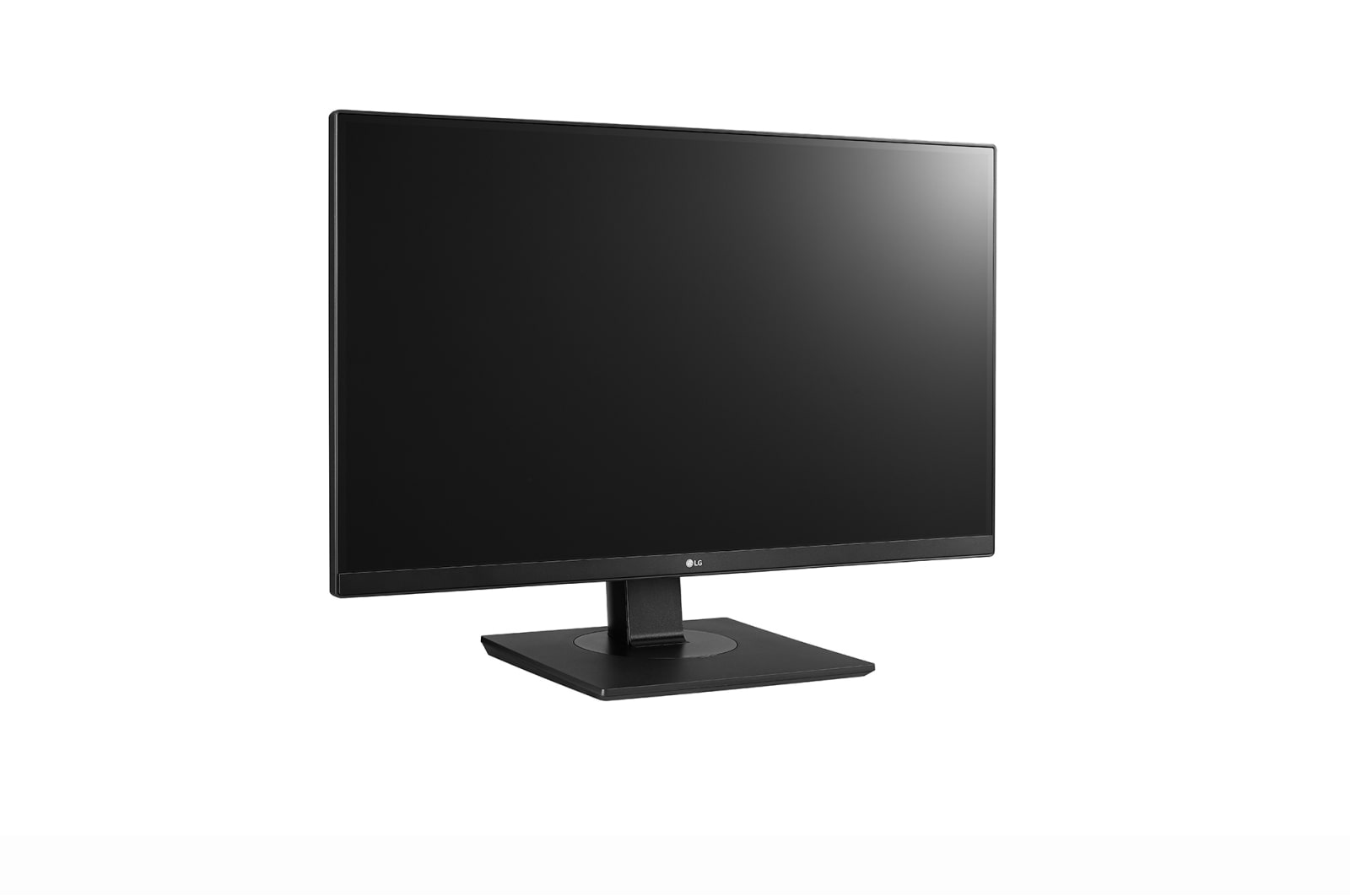

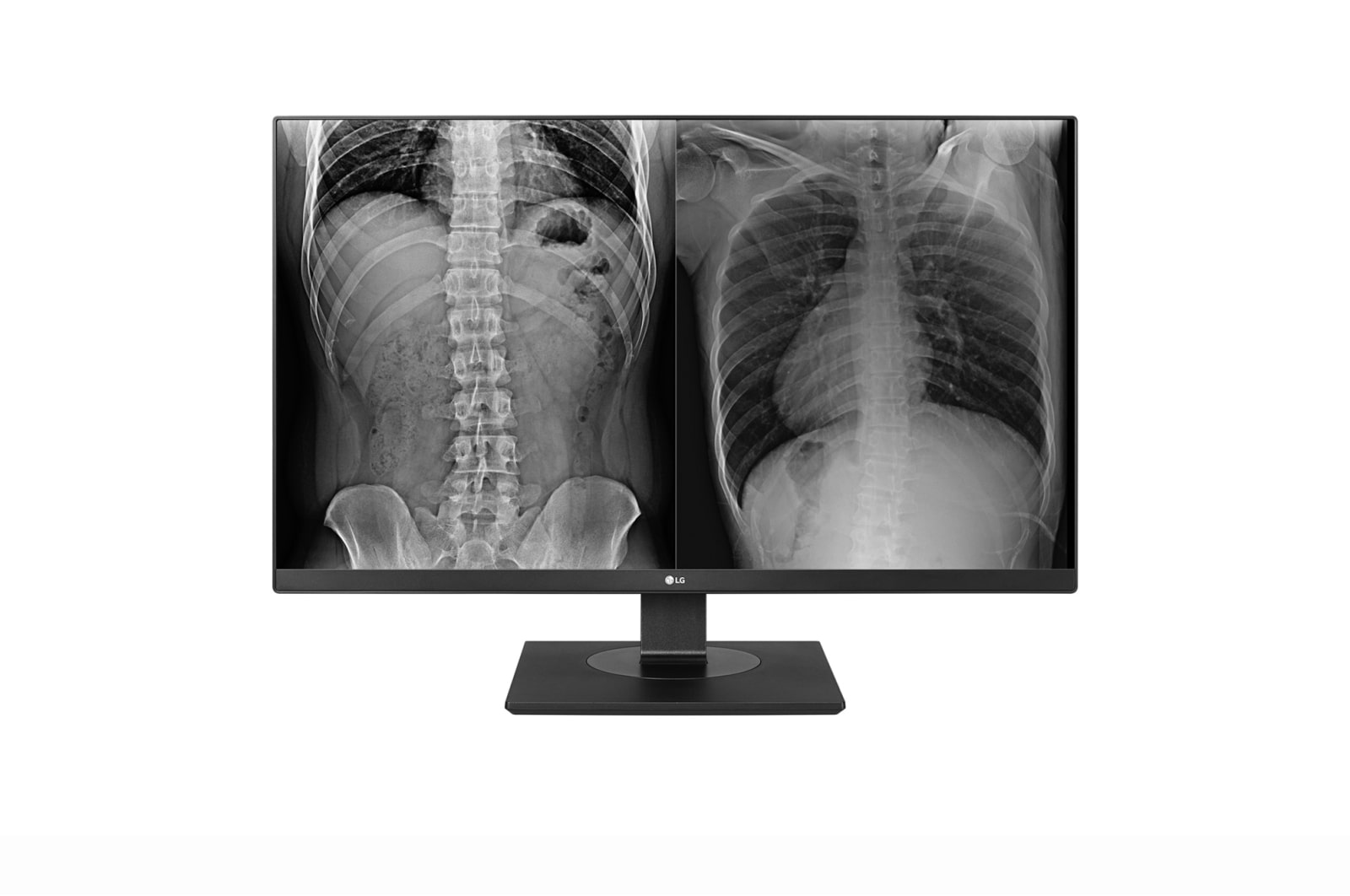

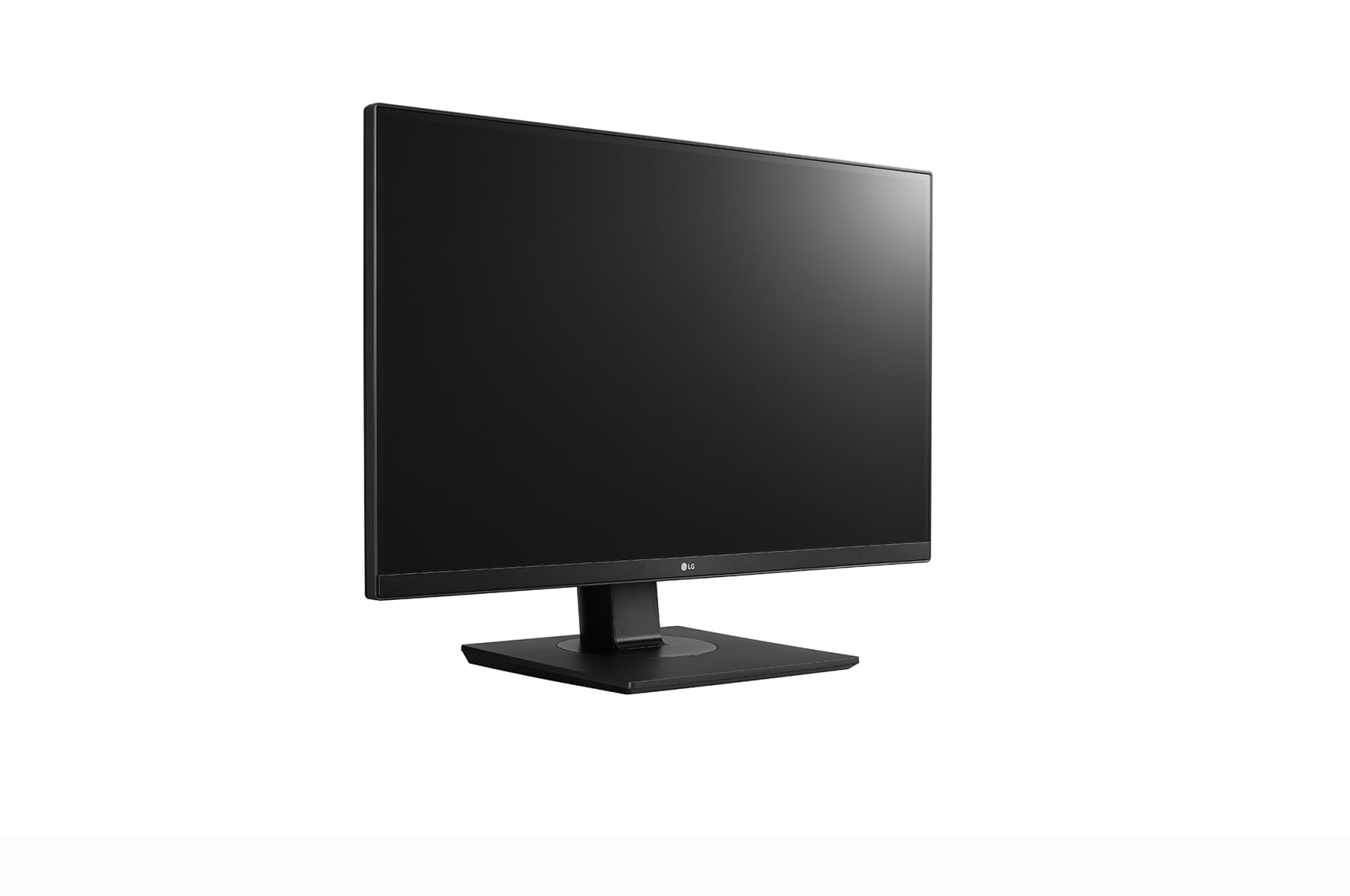

LG 27'' 8MP IPS Clinical Review Monitor
  • 27” IPS 8MP

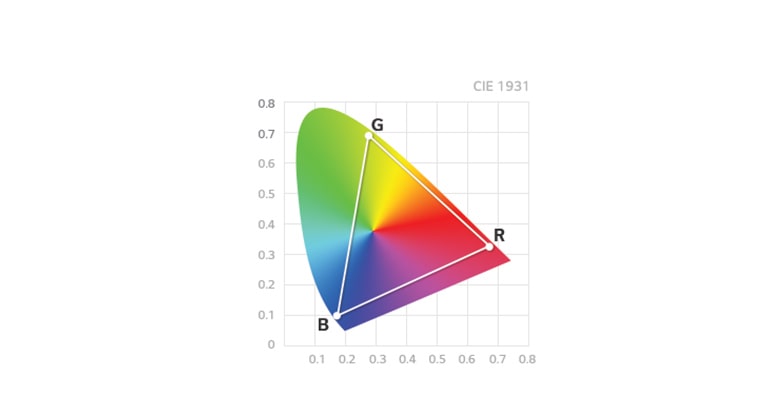

  • 350nits(Typ.) & sRGB 99%
  • DICOM Part 14
  • Brightness Stabilization

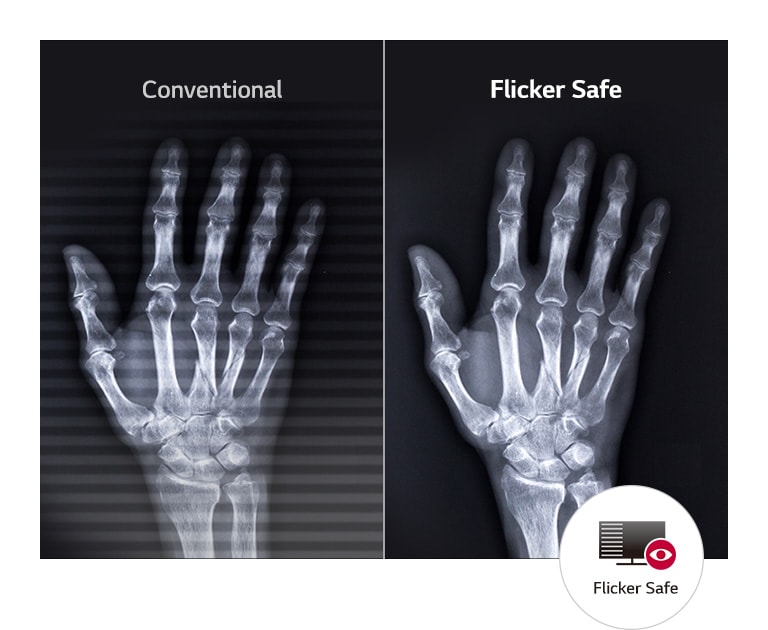

  • Flicker Safe

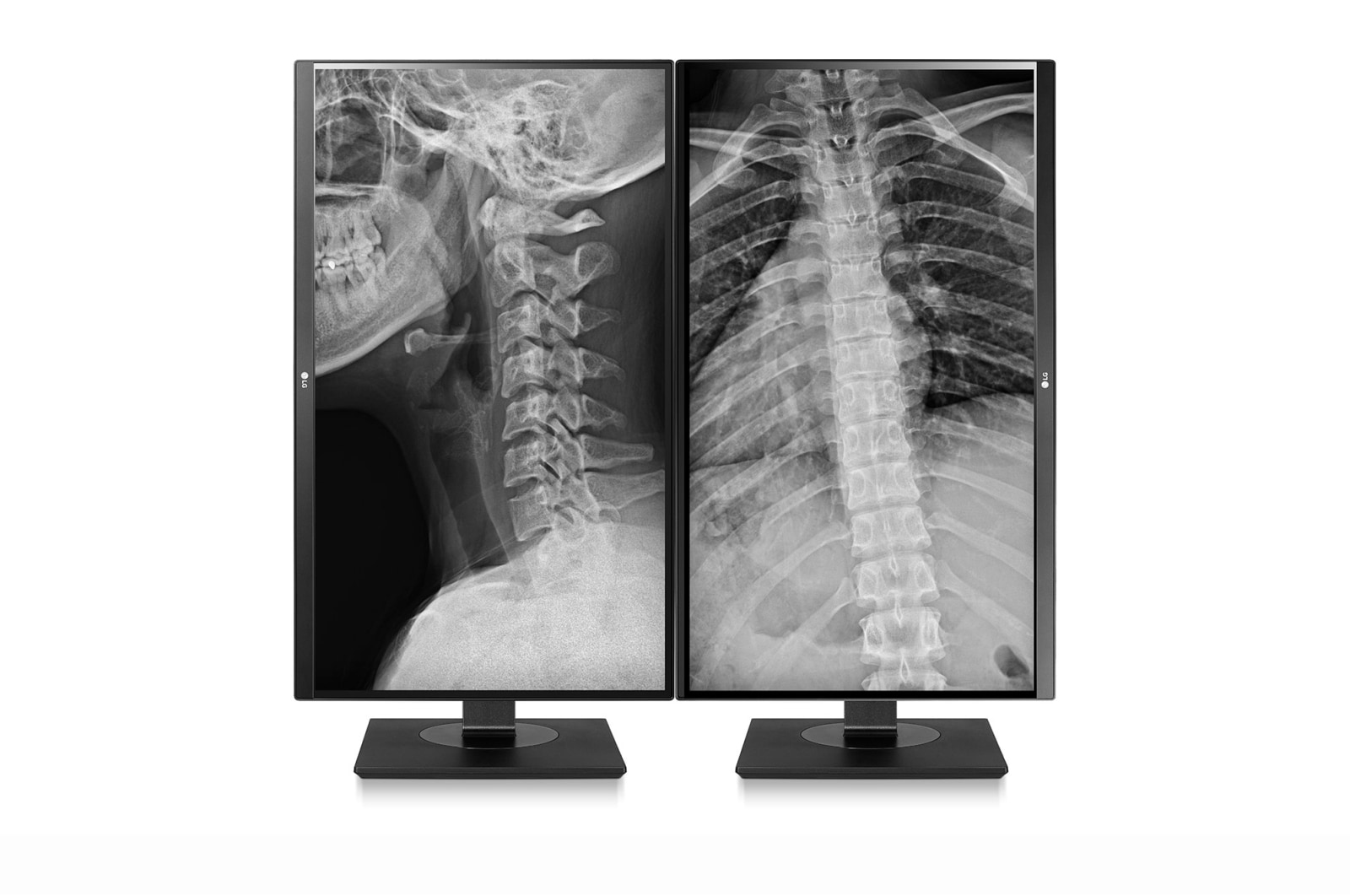

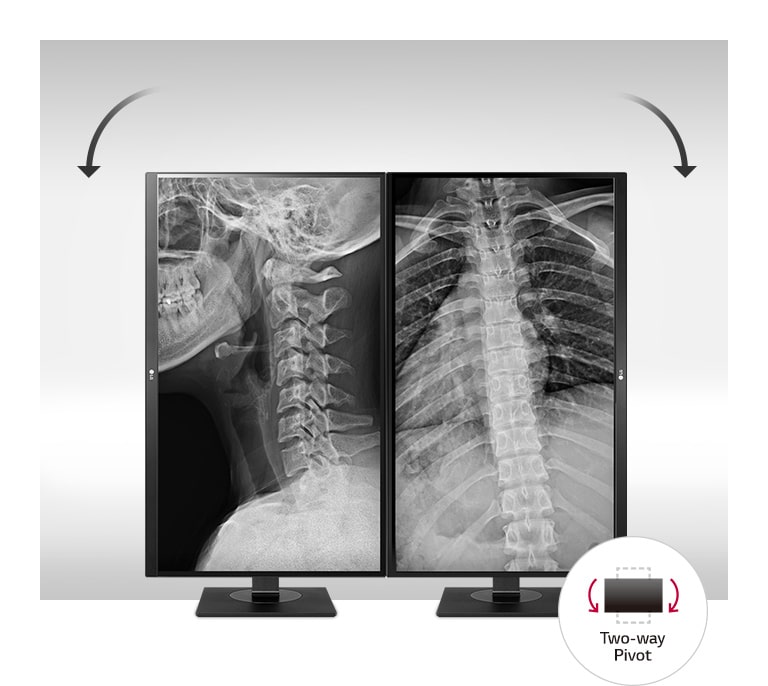

  • Two-way Pivot
LG 27'' 8MP IPS Clinical Review Monitor
MSRP $

Accurate Image Quality for Clinical Review


Medical Images with Ensured Consistency


*ACR-AAPM-SIIM Secondary Review Brightness Guideline : The secondary review brightness guideline developed collaboratively by the American College of Radiology (ACR), the American Association of Physicists in Medicine (AAPM), and the Society for Imaging Informatics in Medicine (SIIM).

Enhanced Viewing Comfort

Display

  • Aspect Ratio
    16:9
    Brightness (Typ.)
    350cd/m2
  • Color Bit
    10bit
    Color Gamut (Typ.)
    sRGB over 99%(Coverage)
  • Contrast Ratio (Typ.)
    1000:1
    Panel Type
    IPS
  • Resolution
    3840 x 2160
    Response Time (GTG)
    14ms(Off-setting), 5ms(Faster-setting)
  • Size (Inch)
    27
    Surface Treatment
    Anti-glare, 3H
  • Viewing Angle (CR≥10)
    178°(Right/Left), 178°(Up/Down)

Feature

  • Brightness stabilization
    Yes
    HW Calibration
    Yes (True color pro)
  • DICOM Compliant
    Yes
    Color Temperature
    6500K / 8500K / 9300K
    Manual (5000K ~ 10000K)
  • Flicker safe
    Yes
    PBP
    Yes (2PBP)
  • Reader Mode
    Yes
    Smart Energy Saving
    Yes
  • Super Resolution+
    Yes

SW Application

  • Dual Controller
    Yes
    True Color Pro
    Yes

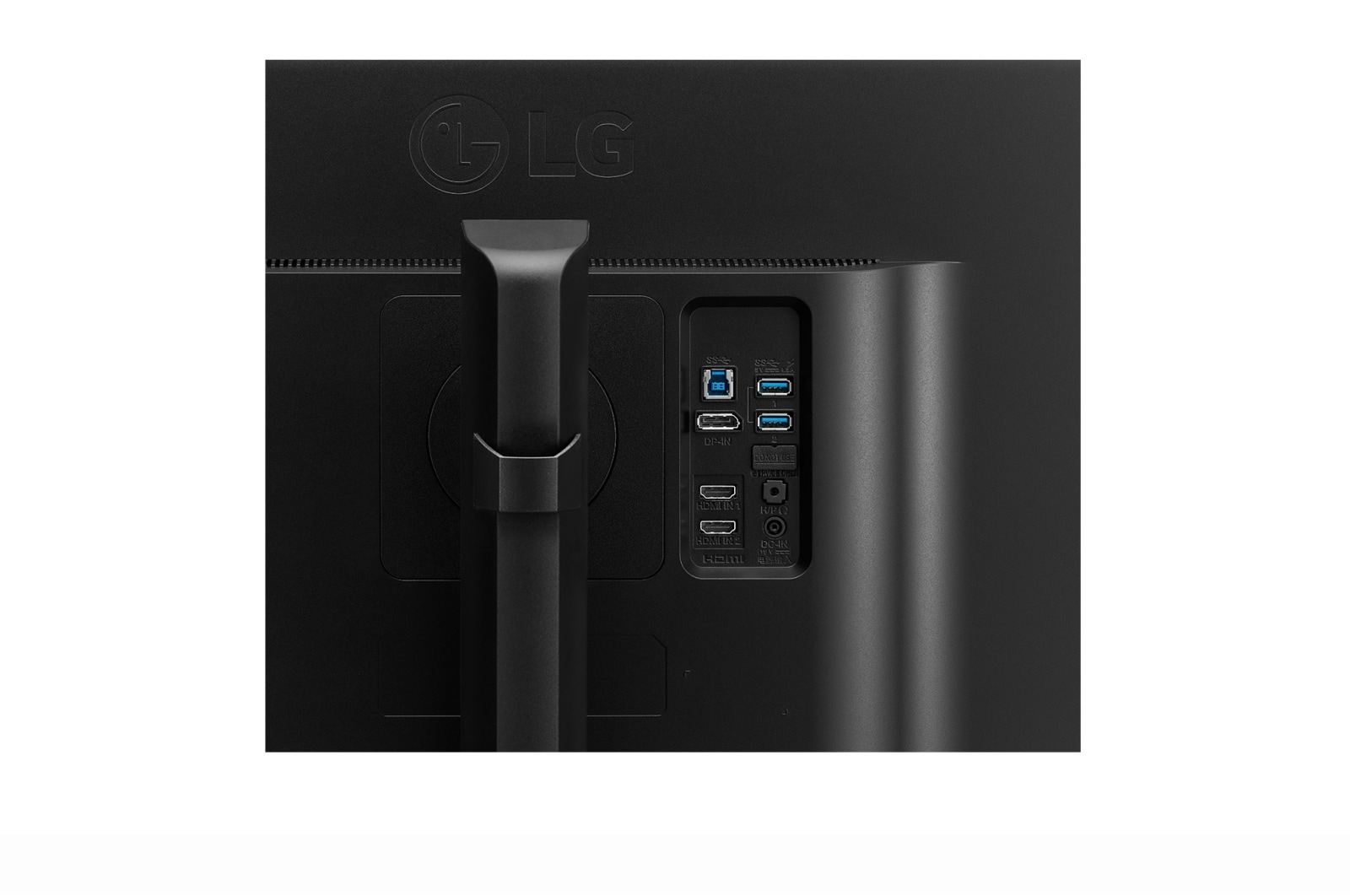

Connectivity

  • DisplayPort
    Yes(1ea)
    HDMI
    YES(2ea)
  • Composite
    Yes
    S-Video
    Yes
  • Component
    Yes
    Headphone out
    Yes
  • USB Downstream Port
    Yes (2ea/ver3.0)
    USB Upstream Port
    Yes (1ea/ver3.0)

Power

  • AC Input
    100-240Vac, 50/60Hz
    DC Output
    19V, 3.42A
  • Power Consumption (DC Off)
    Less than 0.3W
    Power Consumption (Max.)
    65W
  • Type
    External Power(Adapter)

Mechanical

  • Borderless Design
    3-Side Virtually Borderless Design

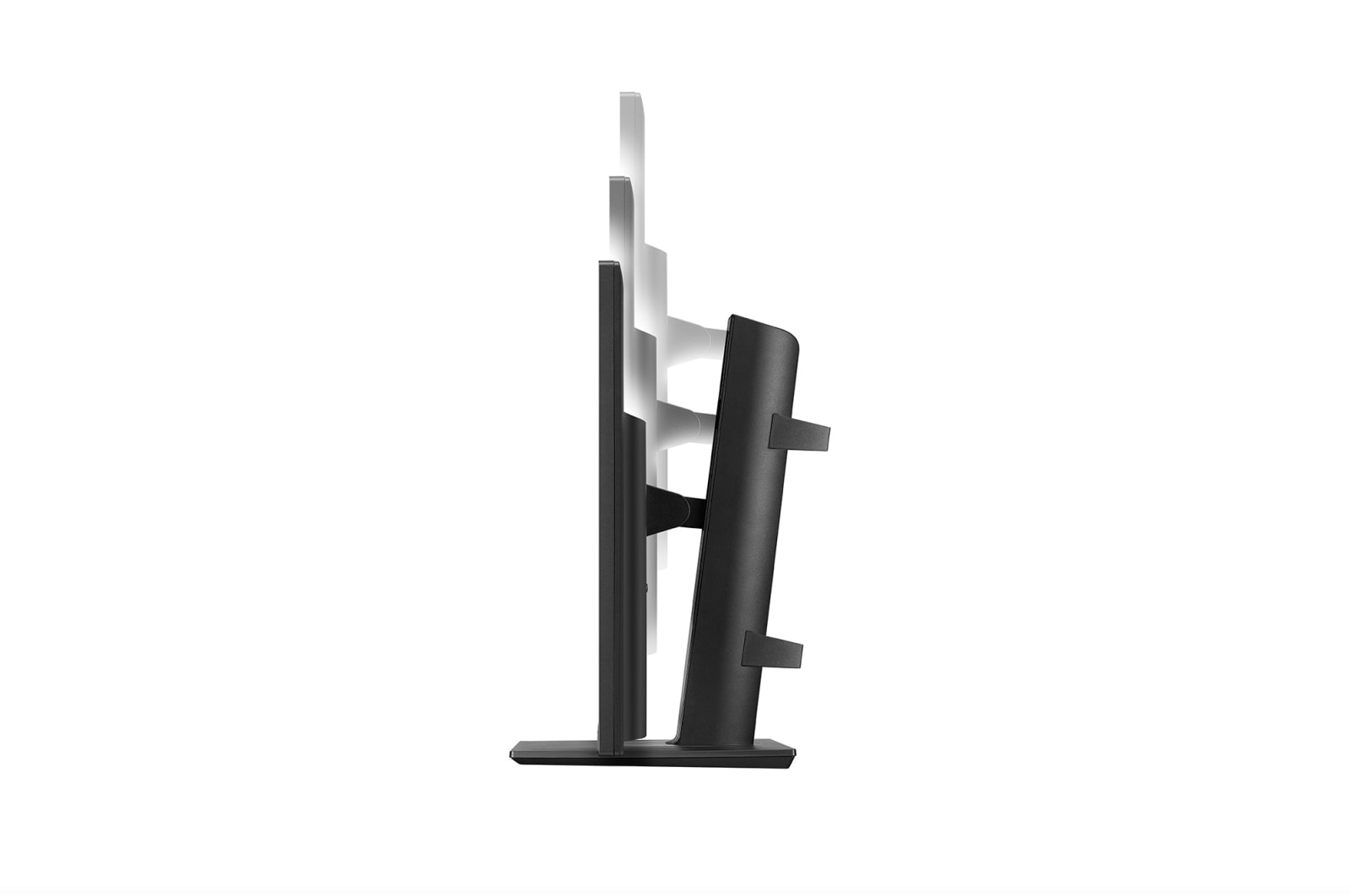

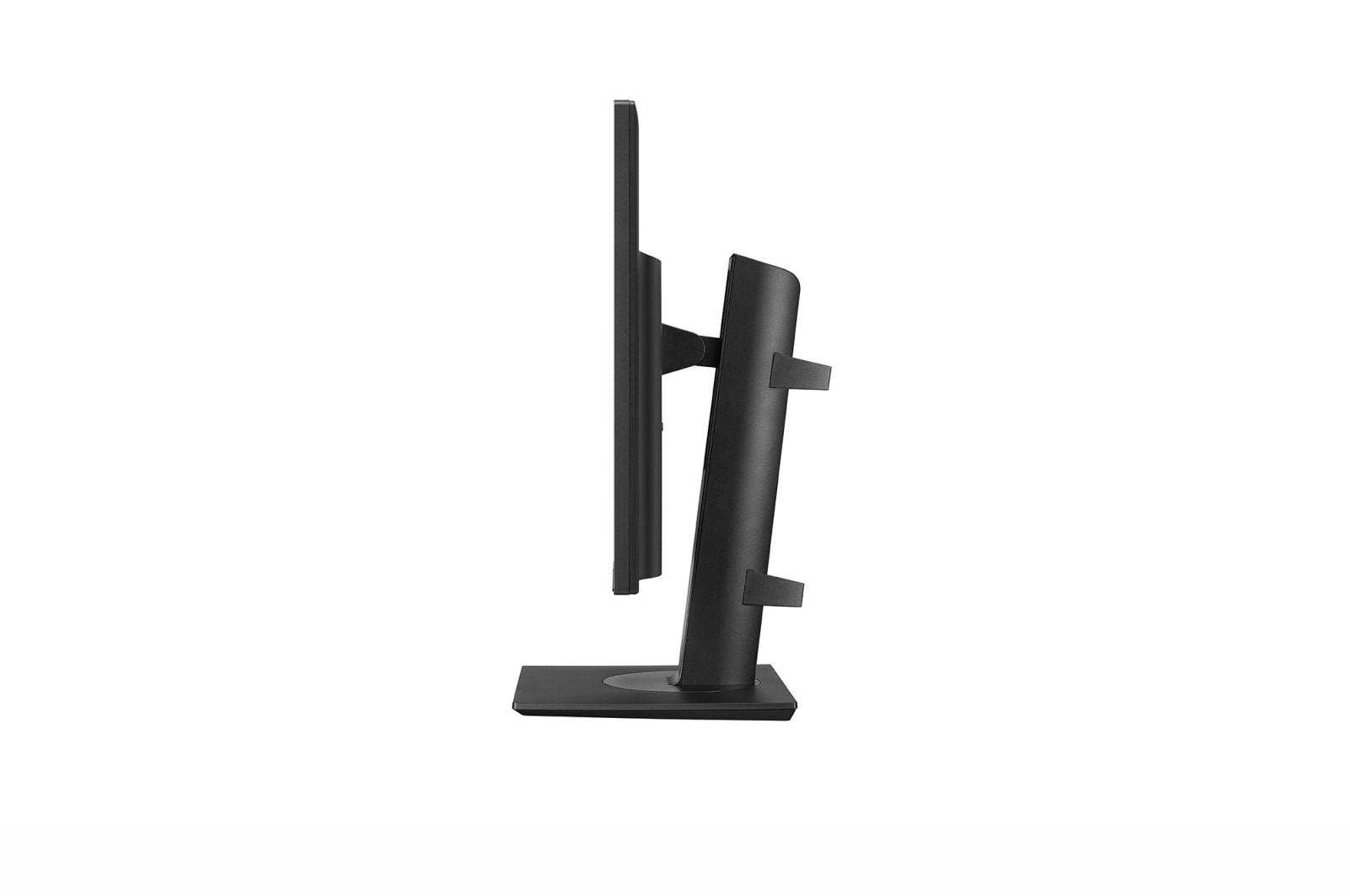

    Display Position Adjustments
    Tilt/Height/Pivot/Swivel
  • Down Height
    49mm
    Height Range
    150mm
  • OneClick Stand
    Yes

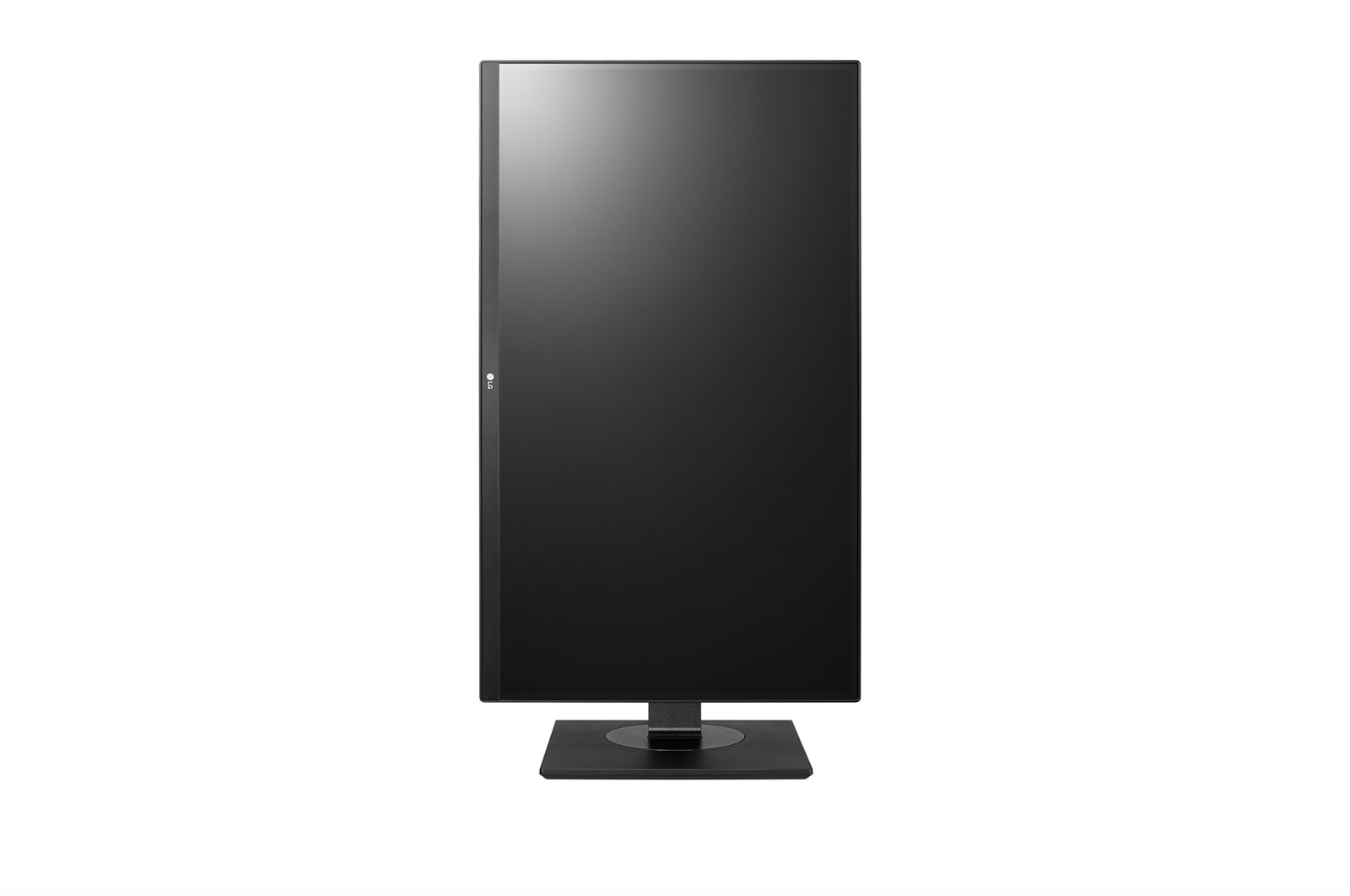

    Pivot
    Yes(±90°)
  • Swivel
    Yes(±45°)
    Tilt
    Yes(-5~25˚)
  • Wall Mount Size
    100x100mm

Dimensions/Weight

  • Dimension in Shiping (W x H x D)
    694 x 504 x 185 mm
    Dimension with Stand (W x H x D)
    615 x 546.3 x 276.1 mm
  • Dimension without Stand (W x H x D)
    615 x 365.1 x 42.70 mm
    Pallet Stuffing (20ft/40ft/40ft HC)
    352ea/704ea/832ea
  • Weight in Shipping
    10.3kg(22.7lb)
    Weight with Stand
    7.5kg(16.5lb)
  • Weight without Stand
    4.7kg(10.4lb)

Standard

  • IEC (IEC 60601-1 / IEC 60601-1-2)
    Yes
    EN (EN 60601-1 / EN 60601-1-2)
    Yes
  • IEC (IEC 60950-1 / IEC 55032, 55024)
    Yes
    EN (EN 60950-1 / EN 55032, 55024)
    Yes
  • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
    Yes
    FCC (FCC part 15 Class A)
    Yes
  • FDA
    Registration (Class I)
    ISO13485
    Yes
  • GMP
    Yes
    KGMP
    Yes
  • KC
    Yes
    RoHS
    Yes
  • REACH
    Yes
    WEEE
    Yes
  • MFDS
    Yes

Accessory

  • Adapter
    Yes
    Calibration Report (Paper)
    Yes
  • Display Port
    Yes
    HDMI
    Yes
  • Power Cord
    Yes
    USB3.0 Upstream Cable
    Yes

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
