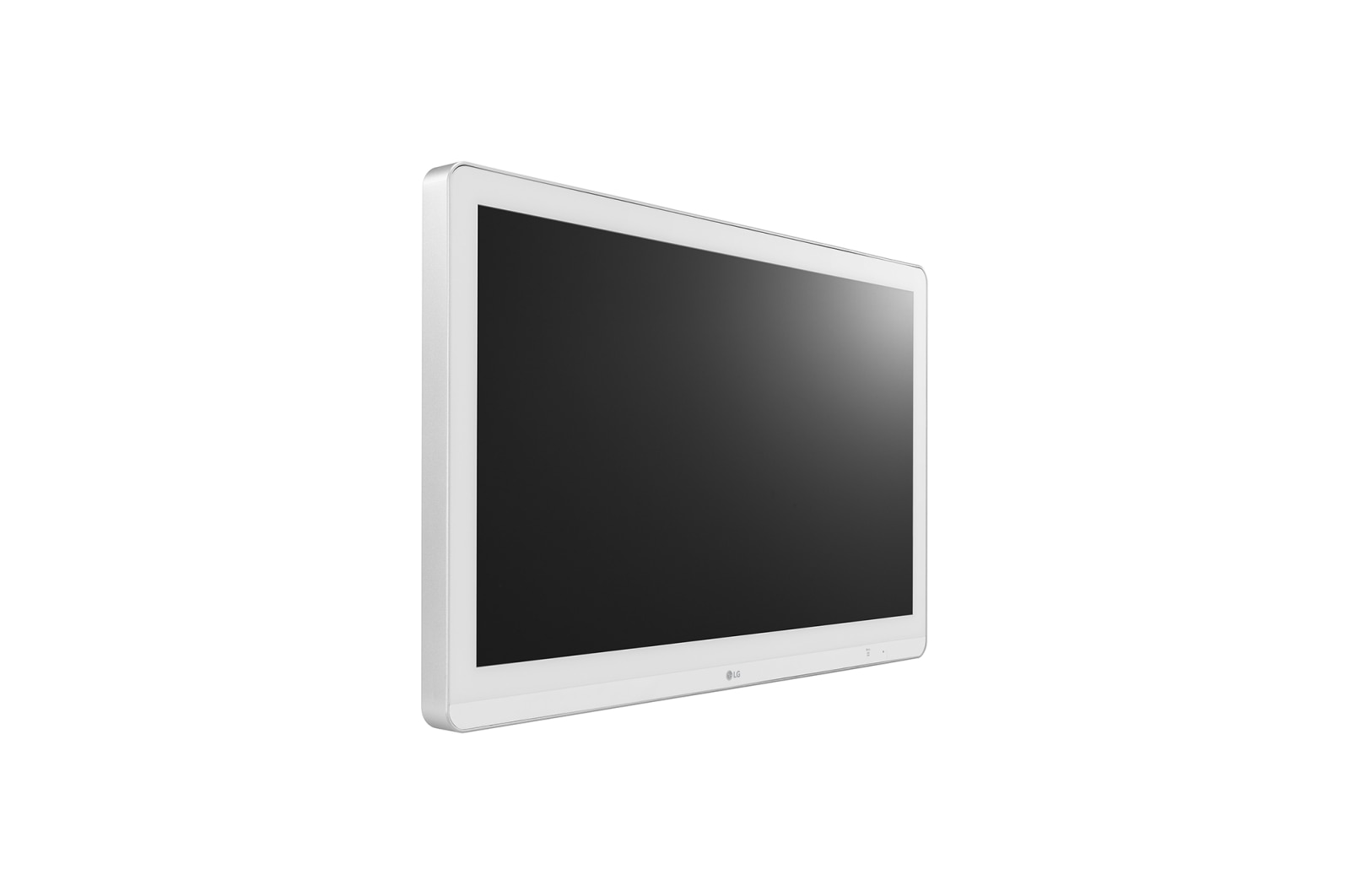

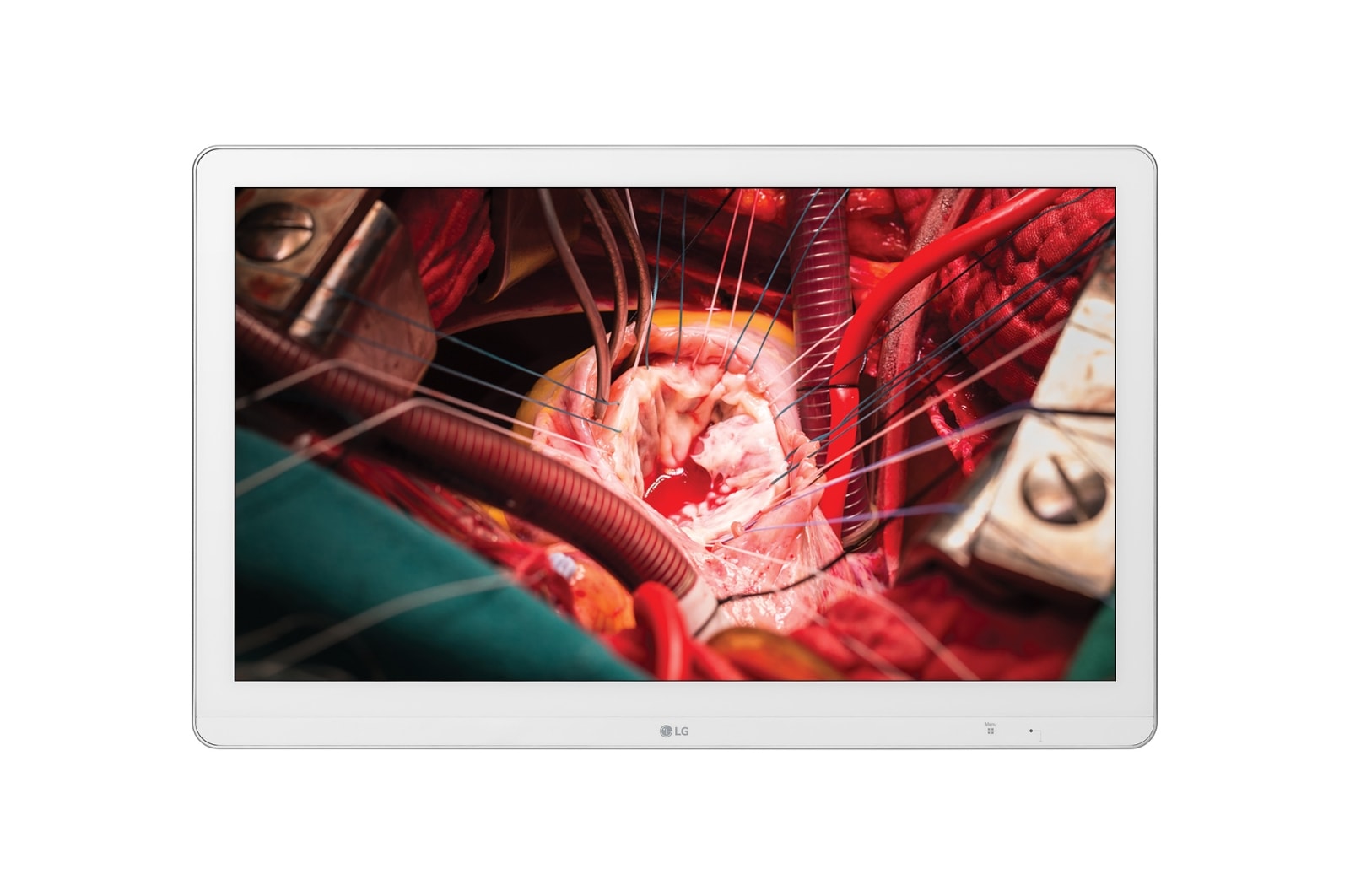

LG 27'' Full HD IPS Surgical Monitor

27HK510S

Key Features

27"FHD IPS Display (1920x1080)
sRGB 115%(Deep Red)
Brightness Stabilization
Dustproof & Waterproof
Protection Glass
Flicker Safe

A display optimized for compatibility

The detailed picture quality of the LG surgical monitor meets operating room requirements. With its 27-inch Full HD IPS Display, the LG surgical monitor improves work efficiency.

Full HD IPS

Optimal image quality

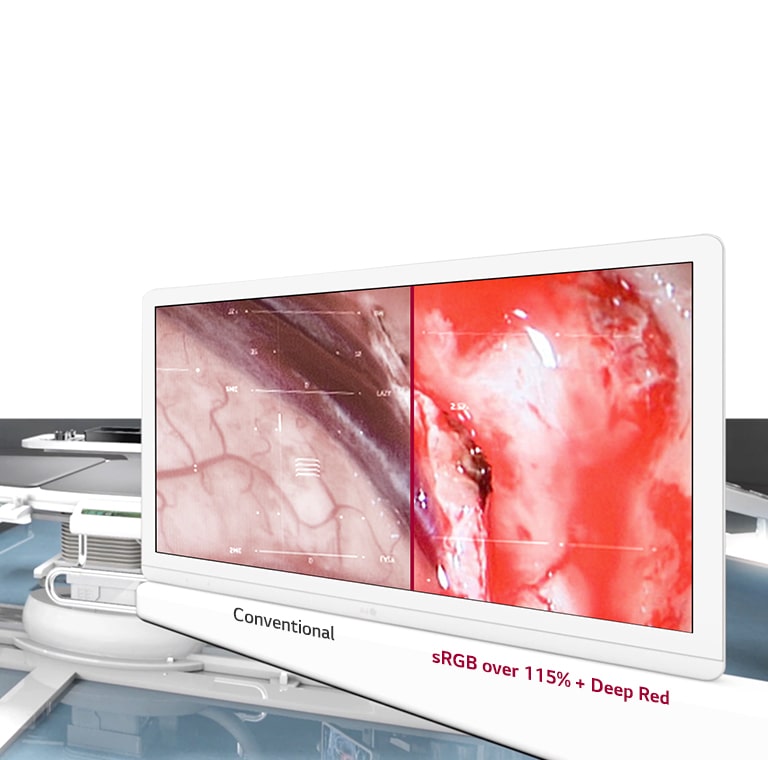

sRGB 115%(Deep Red)

The Full HD IPS display with sRGB 115% (Deep Red) is designed to fit with other Full HD surgical devices. It enables surgeons to view accurate, realistic images especially in the red color spectrum.

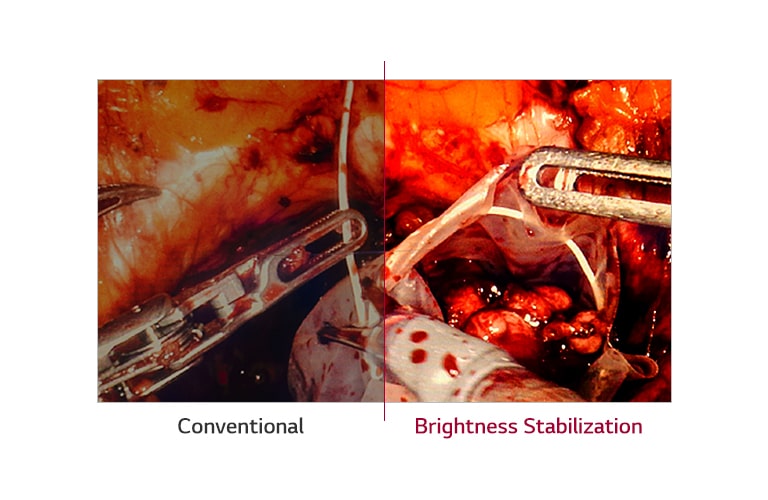

Brightness stabilization

The LG surgical monitor carefully measures and sets every grayscale tone to create a monitor compliant with DICOM Part 14. Furthermore, LG's surgical monitors offer stabilized brightness settings.

* DICOM (Digital Imaging and Communications in Medicine): Standard applied to the grayscale tone characteristics of monitors used in the medical field.

Designed for the operating room

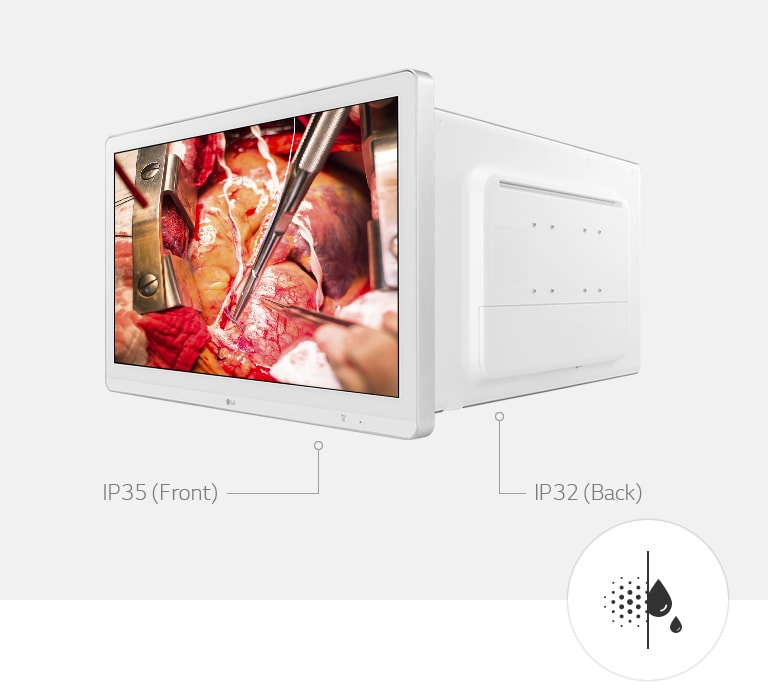

Dustproof and waterproof

To ensure protection against contact with objects such as blood or bodily fluids, LG surgical monitors are cleanable and durable, with ratings of IP35 on the front and IP32 on the back, securing them from any direction.

Protection glass

The LG surgical monitor with protection glass provides a more durable display by safeguarding the monitor from water and bodily fluids and making it easier to clean.

Flicker Safe

Reduces visual fatigue

Flicker Safe reduces the onscreen flicker level to almost zero, which helps minimize eye strain and eye fatigue. By combining Flicker Safe with the IPS technology, users can comfortably work throughout the day.

All Spec

DIMENSIONS/WEIGHTS

Weight without Stand [kg]
7.7kg
Weight in Shipping [kg]
11.3kg
Dimension without Stand (W x H x D) [mm]
656.4 x 412.9 x 62.2 mm
Dimension with Stand (W x H x D) [mm]
No Stand
Dimension in Shiping (W x H x D) [mm]
743 x 157 x 496 mm

CONNECTIVITY

D-Sub
Yes (1ea)
DVI-D
Yes(DVI-D,INx1/OUTx1)
HDMI
Yes (1ea)
USB Upstream Port
Yes(1ea/ver3.0)
USB Downstream Port
Yes(1ea/ver3.0)
3G-SDI
Yes(3G,INx1/OUTx1)
RS-232
Yes (1ea)

DISPLAY

Size [Inch]
596.74 x 335.66mm (23.49 x 13.21")
Resolution
1920x1080
Aspect Ratio
16:9
Color Gamut (Typ.)
sRGB 115%(Area), sRGB over 99%(Coverage)
Contrast Ratio (Typ.)
1000:1
Response Time
5ms (GtG at Faster)
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
Pixel Pitch [mm]
0.3114mm x 0.3114mm
Brightness (Typ.) [cd/m²]
1000cd
Color Bit
10bit
Surface Treatment
Protection Glass (1.6t, Anti-Reflection, Anti-fingerprint)

STANDARD

RoHS
Yes
REACH
Yes
WEEE
Yes
MFDS
Yes
IP(front/except for front)
IP35/IP32
Vandal-proof
IK06
UL (cUL)
Yes
CE
MDR
FDA
Registration (Class I)
ISO13485
Yes

FEATURES

Flicker Safe
Yes
Super Resolution+
Yes
Black Stabilizer
Yes
PBP
Yes (2PBP)
PIP
Yes
Smart Energy Saving
Yes
DICOM Compliant
Yes
Hot Key
Yes (2keys)
Brightness stabilization
Yes
Color Temperature
6500K / 7500K / 9300K Manual (5000K ~ 10000K)
Failover Input Switch
Yes

SW APPLICATION

LG Calibration Studio (True Color Pro)
Yes

POWER

Type
External Power(Adapter)
AC Input
100-240Vac, 50/60Hz
Power Consumption (DC Off)
Less than 0.3W
Power Consumption (Max.)
120W
DC Output
19V, 6.32A

MECHANICAL

Display Position Adjustments
No Stand

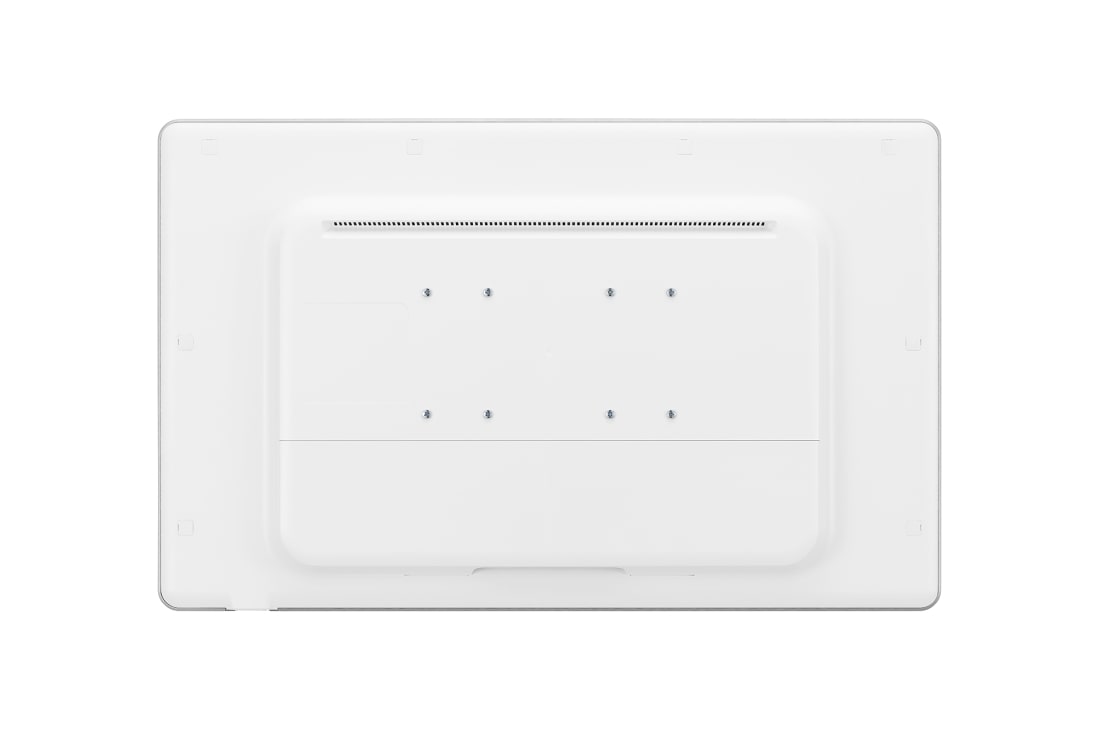

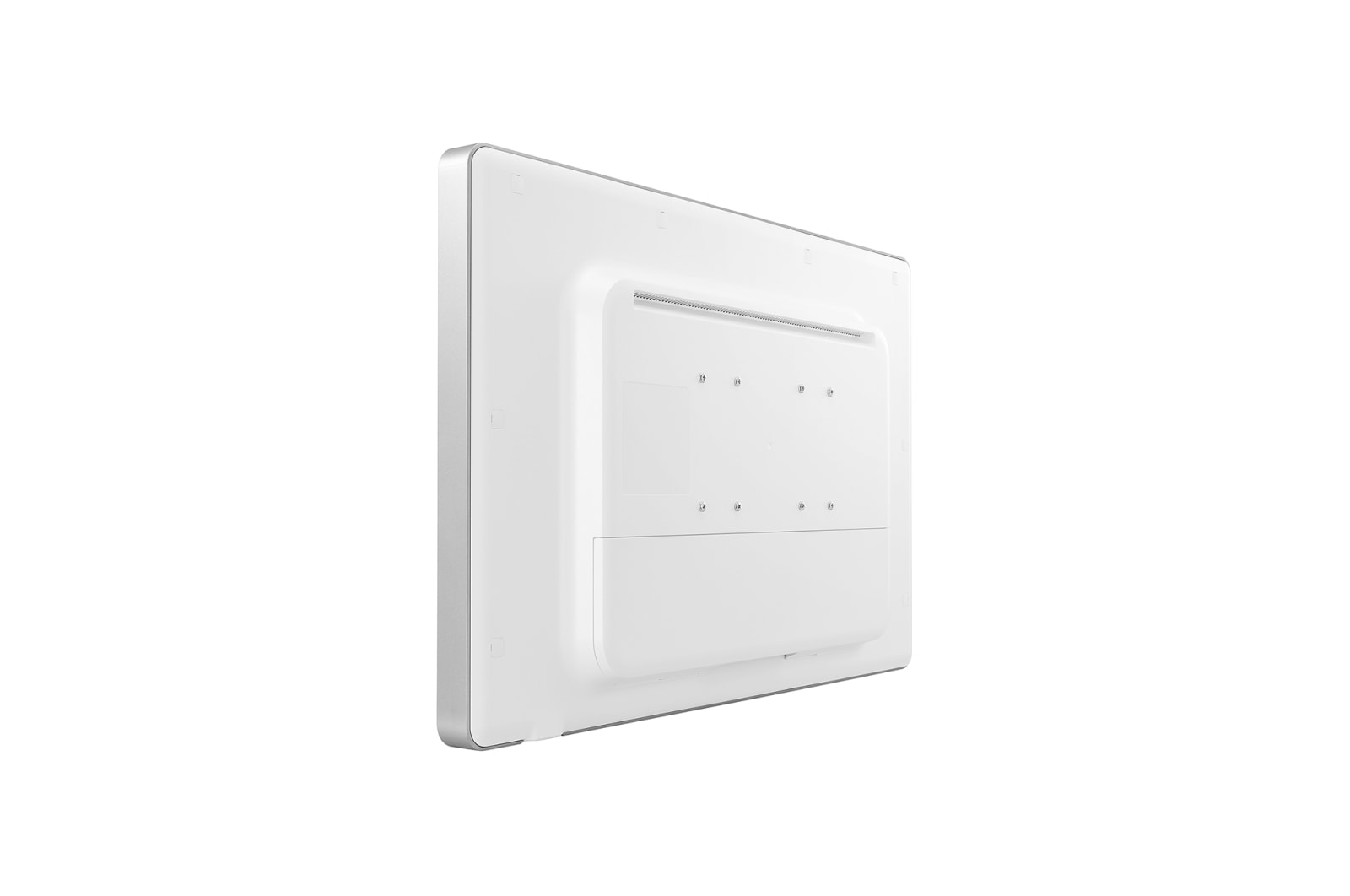

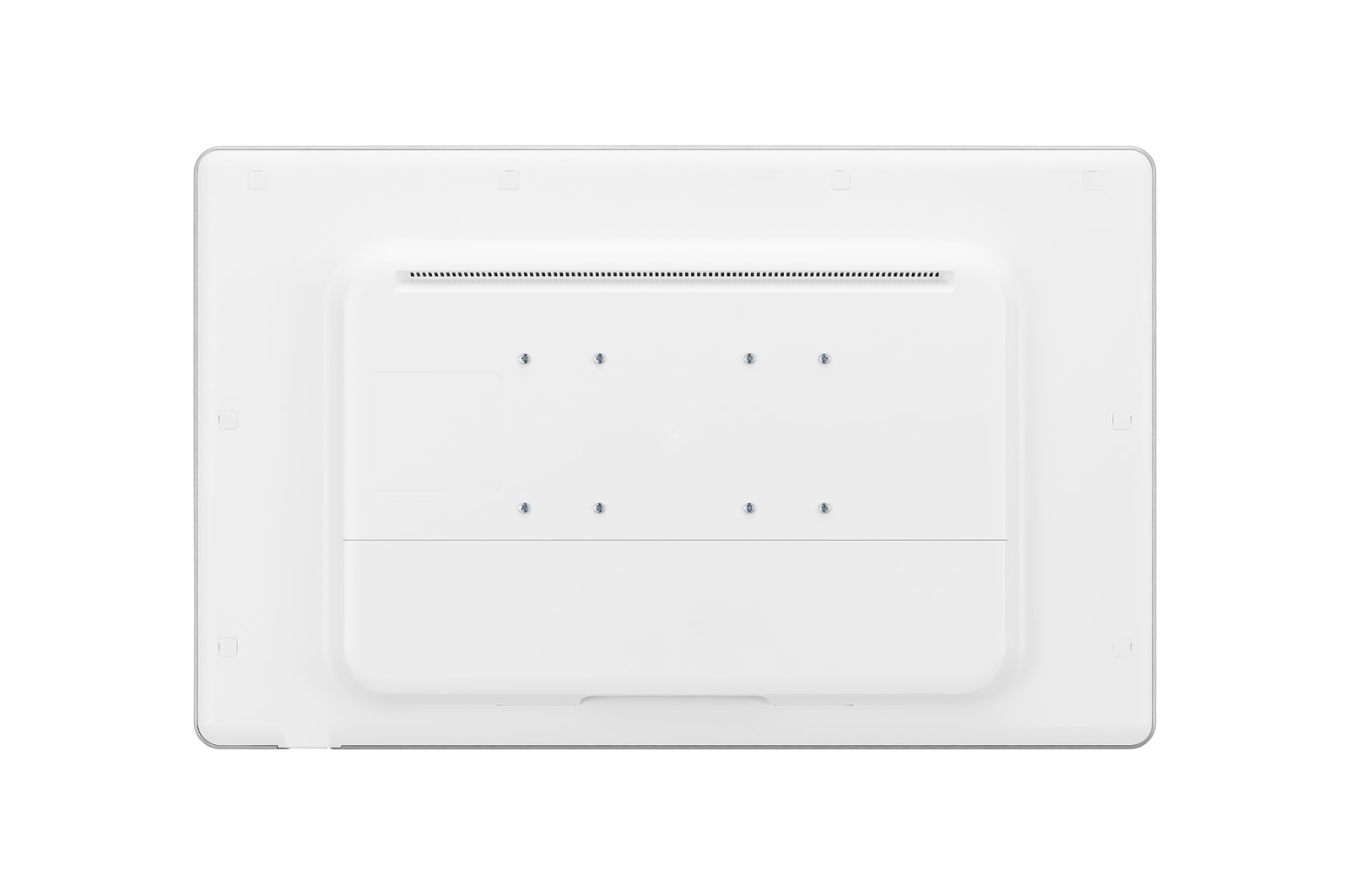

Wall Mountable [mm]
200x100mm/100x100mm
Borderless Design
Normal
Machanical Power Switch
Yes
OneClick Stand
No Stand

ACCESSORY

DVI-D
Yes
HDMI
Yes
Adapter
Yes
Calibration Report (Paper)
Yes
Power Cord
Yes

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
