31-inch 12MP Diagnostic Monitor for Mammography

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (31HN713D)
    $
    $
    LG Members Price
Total

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (31HN713D)
    $
    $
    LG Members Price
Total
31-inch 12MP Diagnostic Monitor for Mammography
  • Accuracy

    31-inch 12MP IPS Display

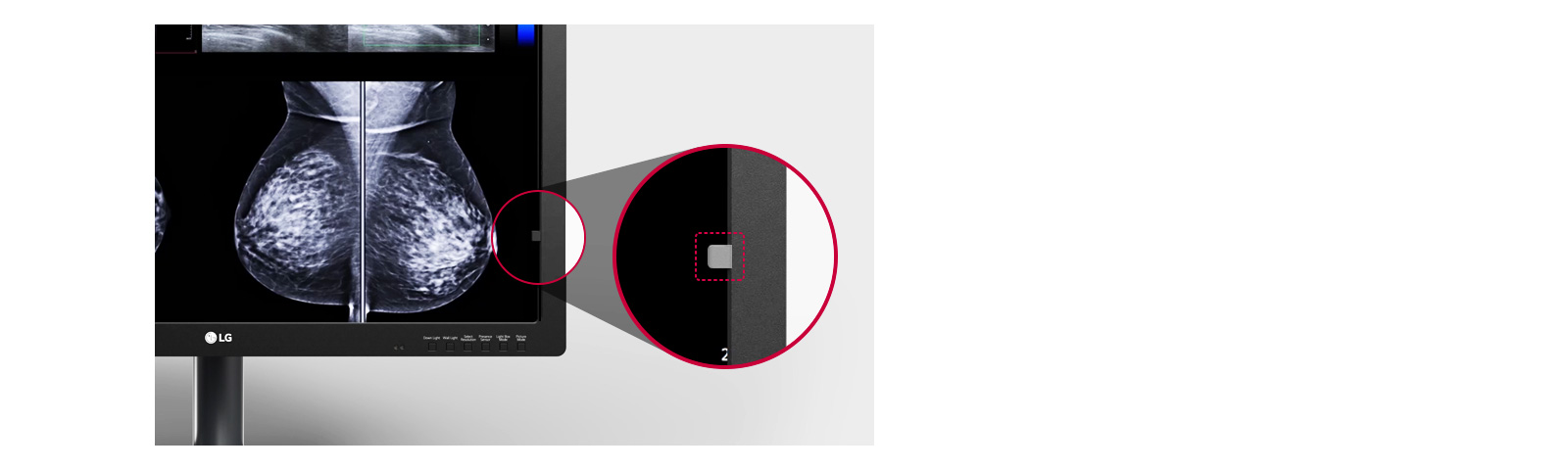

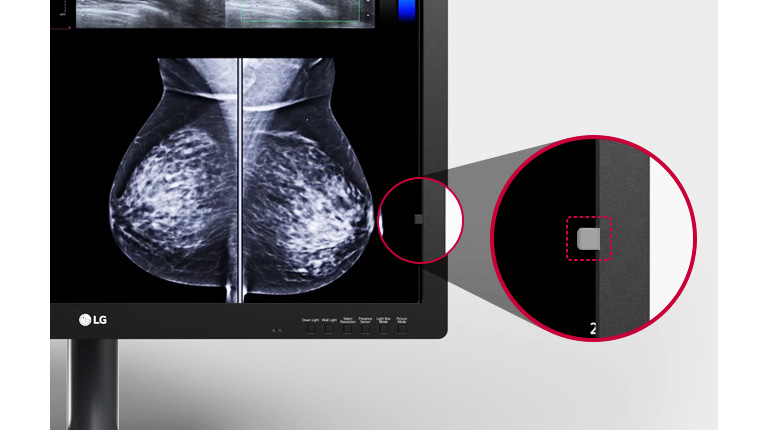

    Self-calibration with Front Sensor

  • Efficiency

    Focus View
    PBP & Dual Controller

  • Convenience

    6 Hot Key
    Ergonomic Design

Accurate Imaging

Streamlined and Efficient Workflow

More Ergonomic and Comfortable to Review

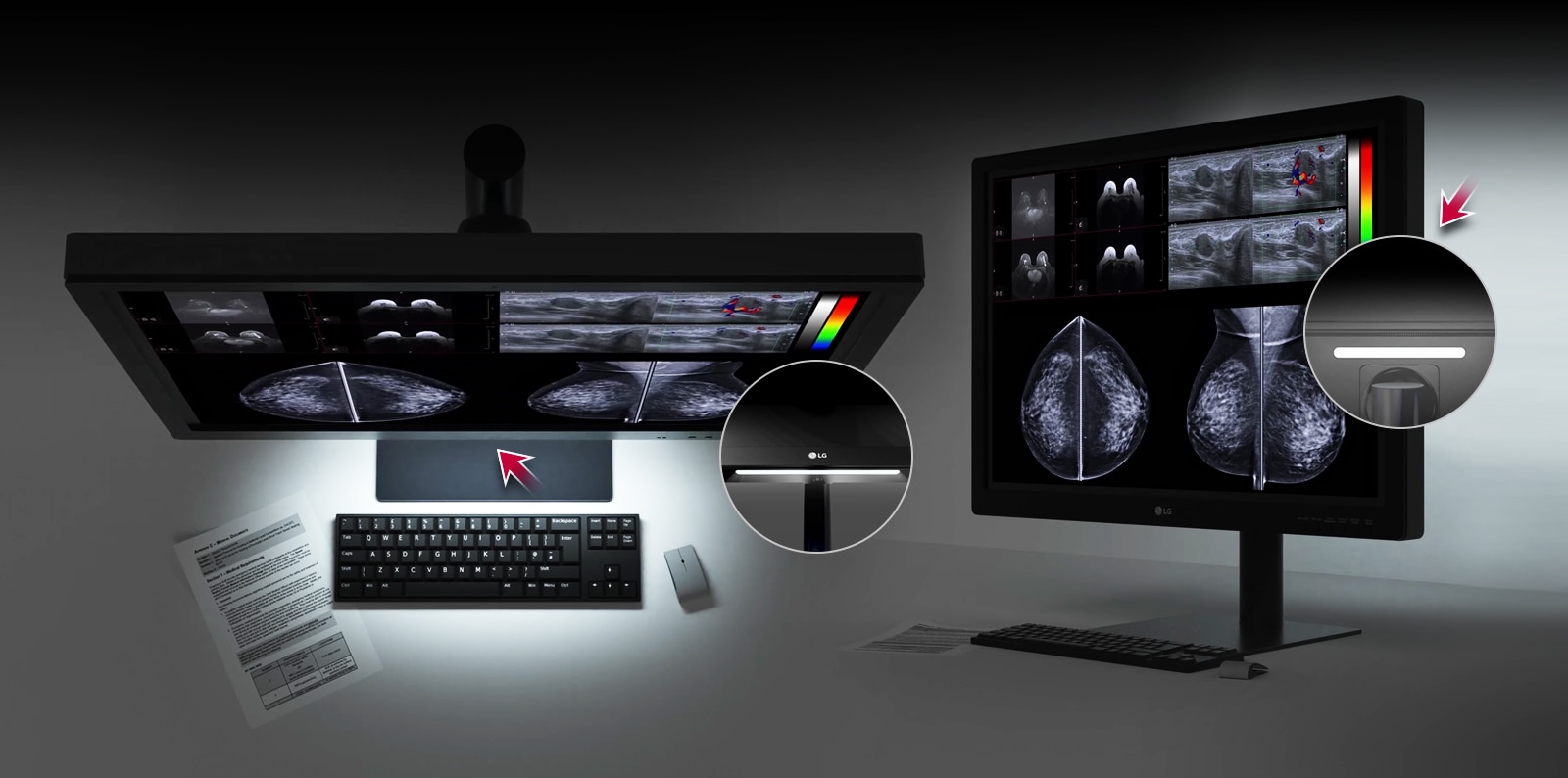

Down Lighting & Wall Lighting

Optimal Reading Condition

Down and Wall Lighting Modes reduce the contrast between the monitor brightness and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper documents in the darkroom.
down lighting, and wall lighting offering users to view imaging results on the screen comfortably in the darkroom down lighting, and wall lighting offering users to view imaging results on the screen comfortably in the darkroom

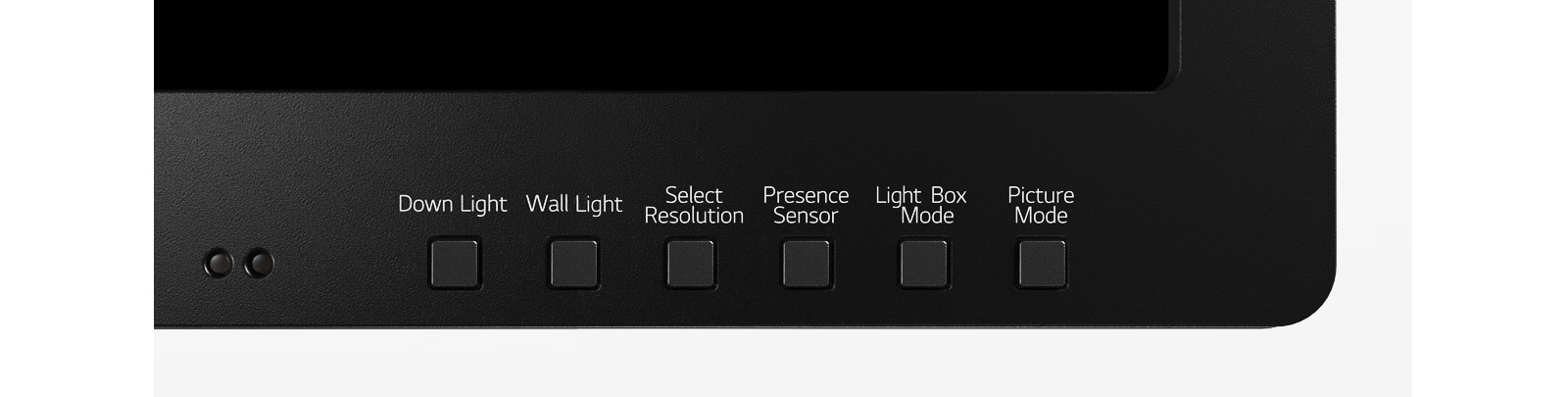

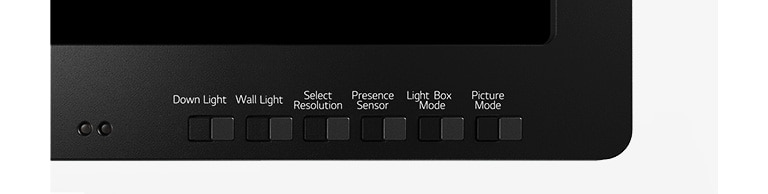

6 Hot Keys

Intuitive Control

The 31HN713D's 6 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. The 6 Hot Keys are much faster and easier to operate while working, allowing you to change mode, screen resolution, and lighting settings all without disrupting your workflow.
6 hot keys offering user's intuitive control consisting of down light, wall light, select resolution, presence sensor, light box mode, and picture mode 6 hot keys offering user's intuitive control consisting of down light, wall light, select resolution, presence sensor, light box mode, and picture mode

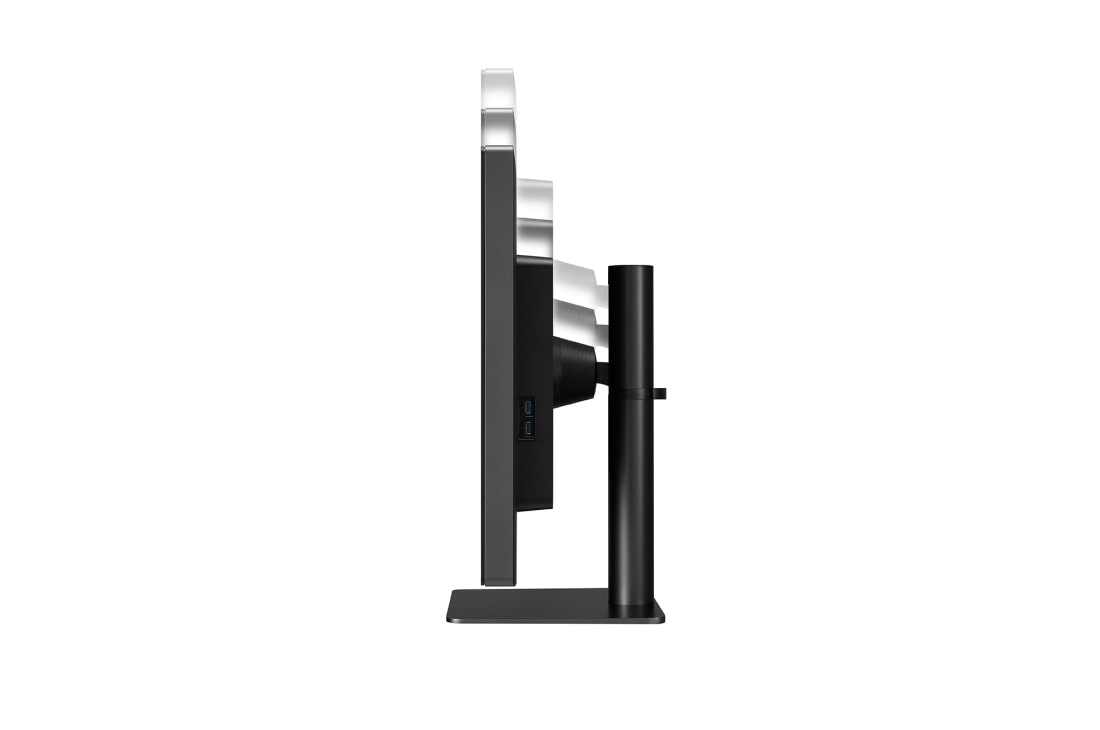

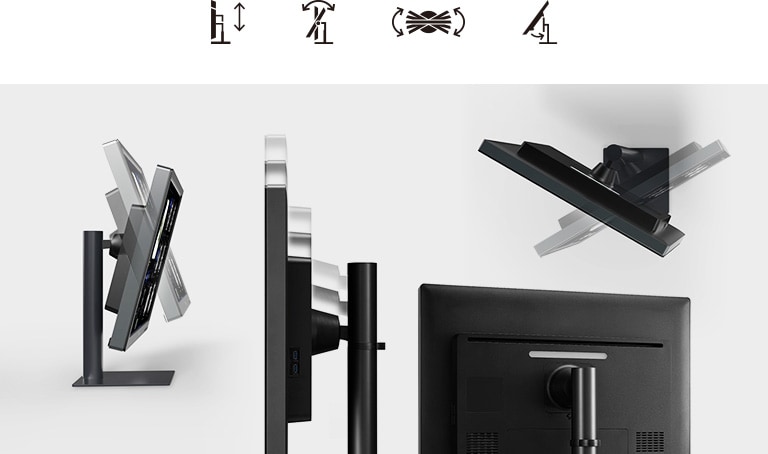

Ergonomic Design

Easy and Comfort

The One-Click Stand and ultra-lightweight body make installing the 31HN713D simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel, reducing chronic pain caused by long hours of work.
one-click stand with ultra-lightweight body making installation easy, and the stand offering adjustment of tilt, height, and swivel one-click stand with ultra-lightweight body making installation easy, and the stand offering adjustment of tilt, height, and swivel
Display
  • Aspect Ratio
    3:2
    Backlight Dimming Technology
    Global Dimming
  • Backlight Technology
    LED
    Brightness (Typ.)
    1200 cd/m²
  • Brightness (Stabilization)
    550 cd/m²
    Color Bit
    10bit
  • Color Gamut (Typ.)
    sRGB over 97%(Coverage)
    Contrast Ratio (Typ.)
    1500:1
  • Pixel Pitch(H x V)
    0.1554mm x 0.1554mm
    Resolution
    4200x2800
  • Response Time (GTG)
    14ms(Off-setting), 5ms(Faster-setting)
    Size (Diagonal, Inch)
    31
  • Size (H x V)
    652.68 x 435.12mm
    (25.70 x 17.13")
    Surface Treatment
    Anti-glare, 3H
  • Viewing Angle (CR≥10)
    178°(Right/Left), 178°(Up/Down)
Feature
  • Hot Key
    Yes(6keys)
    Brightness stabilization
    Yes

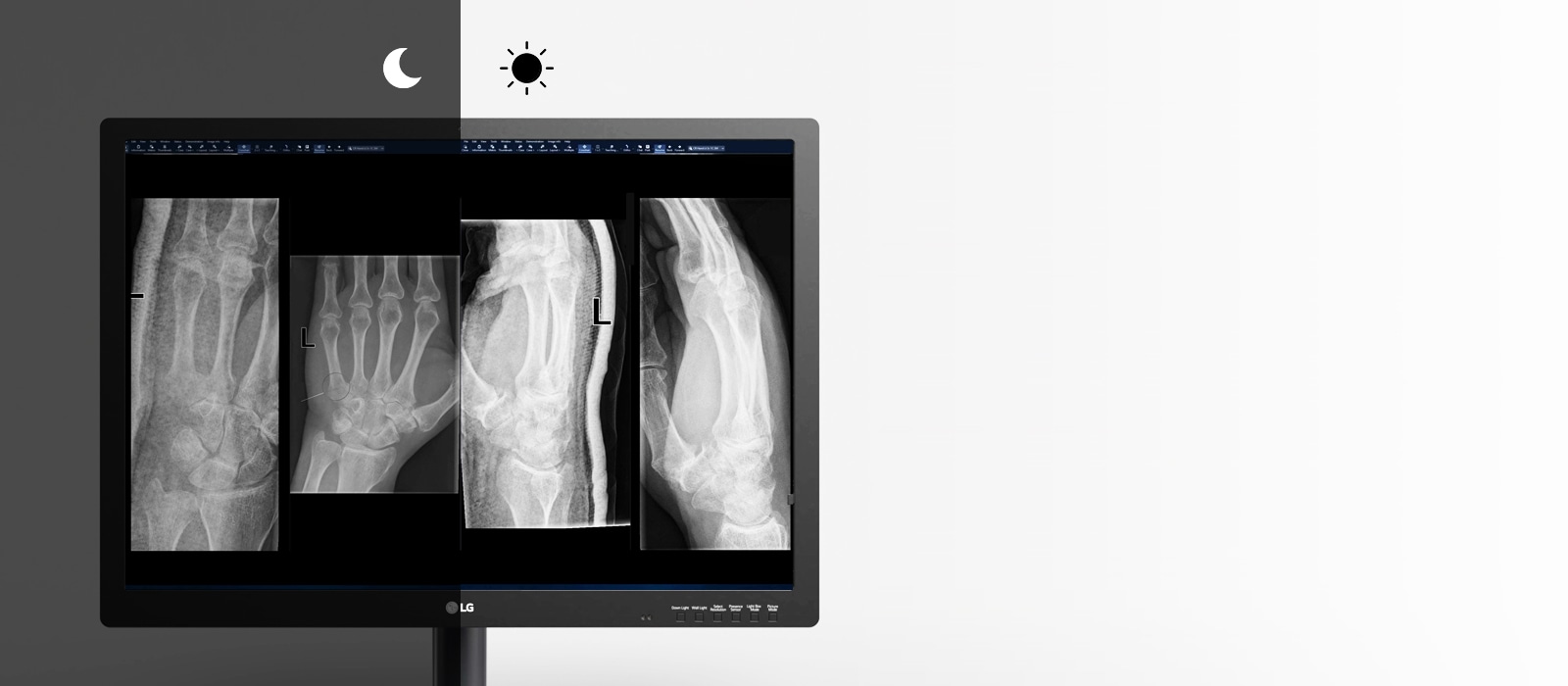

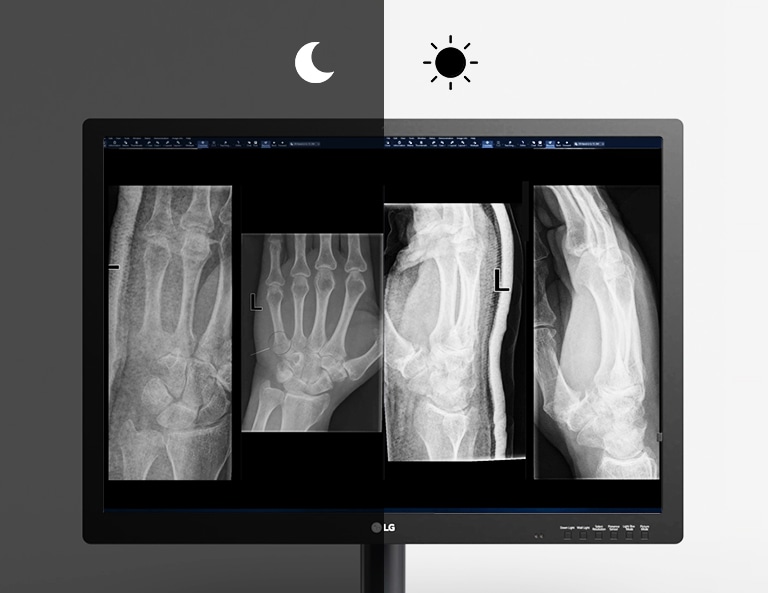

  • Auto Luminance sensor
    Yes
    Presence sensor
    Yes
  • Front Sensor
    Yes
    Black Stabilizer
    Yes
  • HW Calibration
    Yes
    DICOM Compliant
    Yes
  • Color Temperature
    6500K / 7500K / 9300K
    Manual (5000K ~ 10000K)
    Flicker safe
    Yes
  • PBP
    Yes(2PBP)

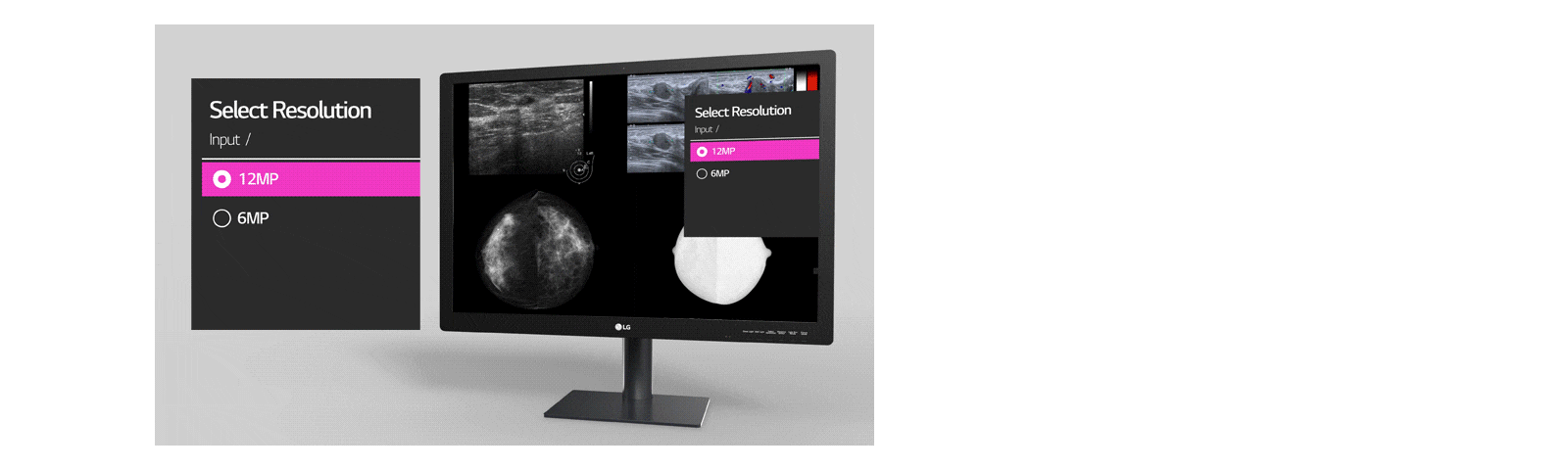

    Multi-resolution Mode
    Yes(12MP/6MP)

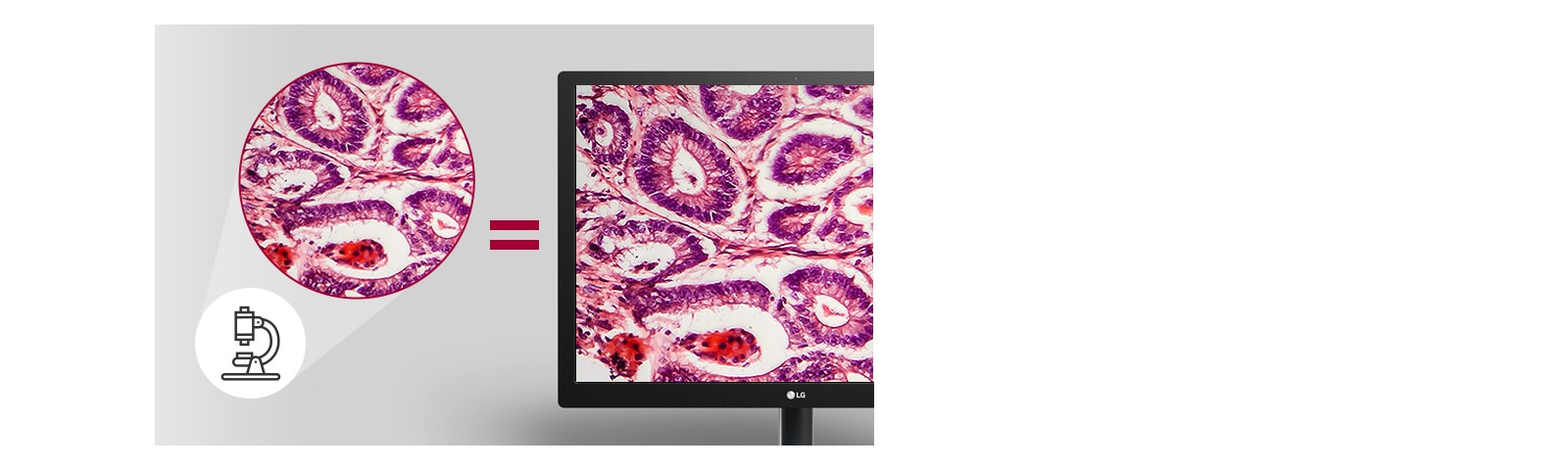

  • Pathology Mode
    Yes
    Reader Mode
    Yes(Text Mode)
  • Focus View
    Yes
    Light Box Mode
    Yes
  • Smart Energy Saving
    Yes
    Lighting
    Yes(Down/ Wall)
  • Super Resolution+
    Yes
SW Application
  • Dual Controller
    YES
Connectivity
  • DisplayPort
    YES(2ea)
    Headphone out
    Yes
  • USB Downstream Port
    Yes(3ea/ver3.0)
    USB Upstream Port
    Yes(1ea/ver3.0)
Power
  • AC Input
    100-240Vac, 50/60Hz
    DC Input (Monitor)
    24V, 7.5A
  • Power Consumption (DC Off)
    Less than 0.3W
    Power Consumption (Max.)
    180W
  • Type
    External Power(Adapter)
Mechanical
  • Borderless Design
    Normal
    Display Position Adjustments
    Tilt/Height/Swivel
  • Down Height
    90.9mm
    Height Range
    110mm
  • Machanical Power Switch
    Yes
    OneClick Stand
    YES
  • Swivel
    Yes(±15°)
    Tilt
    Yes(-5°~15˚)
  • Wall Mount Size
    100x100mm
Dimensions/Weight
  • Dimension in Shipping (W x H x D)
    999x337x644mm
    Dimension with Stand (W x H x D)
    704.7x662.6x280mm
  • Dimension without Stand (W x H x D)
    704.7x499.5x83.2mm
    Pallet Stuffing (20ft/40ft/40ft HC)
    105 / 210 / 210
  • Weight in Shipping
    21.5kg
    Weight with Stand
    14.0kg
  • Weight without Stand
    10.7kg
Standard
  • IEC (IEC 60601-1 / IEC 60601-1-2)
    Yes
    EN (EN 60601-1 / EN 60601-1-2)
    Yes
  • IEC (IEC 60950-1 & IEC 62368-1 / CISPR 32, 35)
    Yes
    EN (EN 62368-1 / EN 55032, 55035)
    Yes
  • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
    Yes
    CE
    MDR
  • FDA
    510(k) (Class II)
    ISO13485
    Yes
  • RoHS
    Yes
    REACH
    Yes
  • WEEE
    Yes
    MFDS
    Yes
Accessory
  • Adapter
    Yes
    Calibration Report (Paper)
    Yes
  • Display Port
    Yes
    Power Cord
    Yes
  • USB3.0 Upstream Cable
    Yes
