32HL512D
LG 8MP Diagnostic Monitor
  • 31.5-inch 8MP IPS Display
  • 450cd/m², DCI-P3 98% (CIE1976)

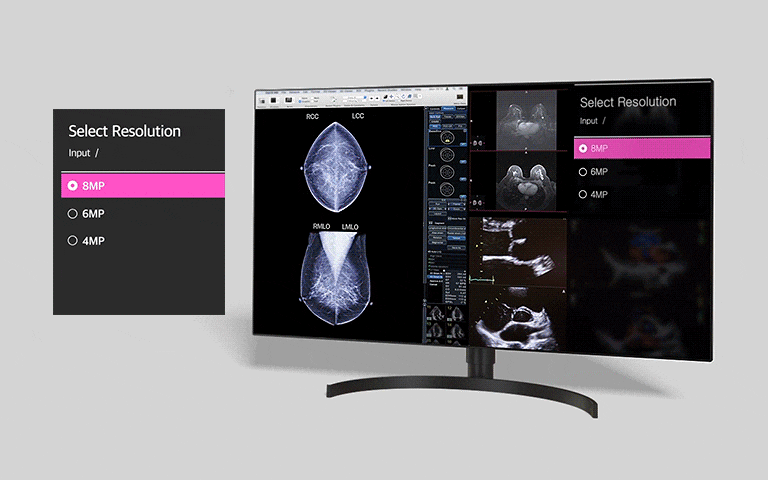

  • Multi-resolution Mode (8/6/4MP)
  • Pathology Mode
  • 4-Side Virtually Borderless Design

component-OBScountrySelectDesc

LG 8MP Diagnostic Monitor

Display 31.5"" 8MP IPS
Multi-resolution Mode (8/ 6/ 4MP)

Convenience Pathology Mode
PBP & Dual Controller

Ergonomics Tilt, Height
2-way Pivot

Optimized Image Quality for
Diagnostic Review

31.5" 8MP IPS Display

Accurate Image from Any Angle

The 31.5-inch 8MP IPS display facilitates precise diagnoses of medical images. The 178° wide viewing angle lets patients and doctors to see accurately reproduced images with minimal distortion.
31.5-inch 8MP IPS display and 178° wide viewing angle lets patients and doctors to see accurately reproduced images with minimal distortion. 31.5-inch 8MP IPS display and 178° wide viewing angle lets patients and doctors to see accurately reproduced images with minimal distortion.

icon Large Screen 31.5-inch

icon Resolution 8MP

icon IPS Wide Viewing Angle

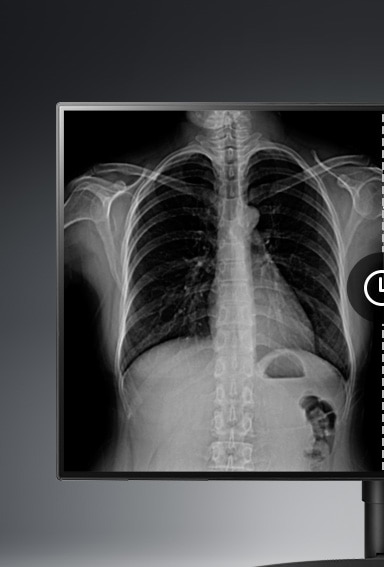

  • Conventional monitor display Conventional monitor display

    Conventional

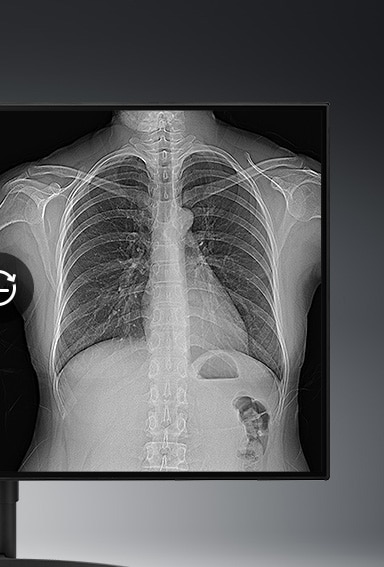

  • Brightness Stabilization monitor display Brightness Stabilization monitor display

    Brightness Stabilization

Brightness Stabilization

A sensor measures the backlight brightness stability and automatically compensates for brightness fluctuations caused by display aging for a consistently stable display throughout the usage lifespan.

To Increase Efficiency &
Convenience

PBP & Dual Controller

Multiple Signals on One Screen

PBP (Picture By Picture) with Dual controller, control multi devices connected to one screen with one keyboard or mouse, helps to increase convenience in review. You can review multiple information in parallel on one screen.
Multiple Signals on One Screen Multiple Signals on One Screen

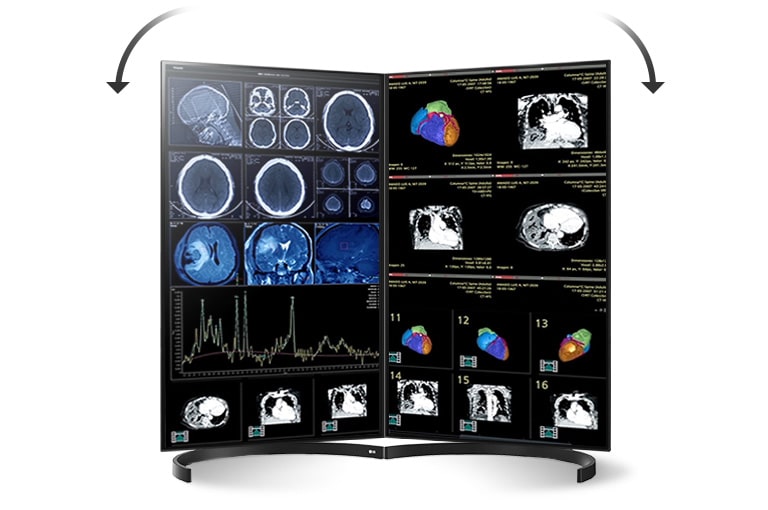

pivot adjustable stand bi-directionally Pivot Two-way

height adjustable stand within the range of 0m to 110mm Height 0~110mm

tilt adjustable stand within the range of -5 degrees to 20 degrees Tilt -5~20°

design 4-side virtually borderless Design 4-side virtually borderless design

Display

  • Aspect Ratio
    16:9
    Brightness (Typ.)
    450
  • Brightness (DICOM Cal.)
    250 / 350
    Color Gamut (Typ.)
    DCI-P3 98% (CIE1976)
  • Contrast Ratio (Typ.)
    1300:1
    Panel Type
    IPS
  • Peak Brightness (Typ.)
    450
    Pixel Pitch
    0.18159(H)x0.18159(V) mm
  • Resolution
    3840 x 2160
    Response Time (GTG)
    14ms (Off), 5ms(Faster)
  • Size (Inch)
    31.5
    Size (cm)
    80.0051
  • Surface Treatment
    Anti-Glare
    Viewing Angle (CR≥10)
    178(R/L), 178(U/D)

Feature

  • Auto Luminance sensor
    YES
    Black Stabilizer
    YES
  • Factory Calibration
    YES(Delta E<5, Gamma 1.8~2.6/DICOM curve)
    DICOM
    Yes(<=10%)
  • Color Temperature
    6500K / 8500K / 9300K Manual (5000K ~ 10000K)
    Flicker safe
    YES
  • HDR 10
    YES
    HDR Effect
    YES
  • HW Calibration
    YES(PerfectLum)
    OSD Language
    17 Language
  • PBP
    Yes (2PBP)
    Pathology
    YES
  • Picture Mode
    (SDR )Custom, Mono, Pathology, Reader, Vivid, HDR Effect, DICOM(Clinical), DICOM(Diagnostic), Calibration 1, Calibration 2, (HDR )Custom, Vivid, Standard
    Reader Mode
    YES
  • Smart Energy Saving
    YES
    Super Resolution+
    YES
  • Uniformity
    YES

SW Application

  • Dual Controller
    YES
    OnScreen Control (LG Screen Manager)
    YES
  • Qubyx
    YES

Connectivity

  • DP Version
    1.4
    DisplayPort
    YES(2ea)
  • HDMI
    YES(1ea)
    HDMI Version
    2.0
  • USB Downstream Port
    Yes(2ea/ver2.0)
    USB Upstream Port
    Yes(1ea/ver2.0)

Power

  • AC Input
    100-240Vac, 50/60Hz
    DC Output
    19V, 3.42A
  • Power Consumption (DC Off)
    Less than 0.3W
    Power Consumption (Max.)
    65W
  • Power Consumption (Sleep Mode)
    Less than 1.2W
    Type
    External Power(Adapter)

Mechanical

  • Display Position Adjustments
    Tilt/Height/Pivot
    Down Height
    85.3
  • Height Range
    0~110mm
    Pivot
    Bi-Direction
  • Tilt
    YES
    Wall Mountable
    100 x 100 mm

Dimensions/Weight

  • Dimension in Shiping (W x H x D)
    822 X 537 X 215 mm
    Dimension with Stand (W x H x D)
    718.2 X 598.0 X 231.2 mm (Up), 718.2 X 488.0 X 231.2 mm (Down)
  • Dimension without Stand (W x H x D)
    718.2 X 414.3 X 45.1 mm
    Pallet Stuffing (20ft/40ft/40ft HC)
    TBD
  • Weight in Shipping
    TBD
    Weight with Stand
    7.3 kg
  • Weight without Stand
    5.9 kg

Standard

  • IEC (IEC 60601-1 / IEC 60601-1-2)
    YES
    EN (EN 60601-1 / EN 60601-1-2)
    YES
  • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
    YES
    FCC (FCC part 15 Class A)
    YES
  • FDA
    510(k) (Class II)
    CE (MDD 93/42/EEC, 2007/47/EC)
    YES
  • ISO13485
    YES
    GMP
    YES
  • KGMP
    YES
    RoHS
    YES
  • REACH
    YES
    WEEE
    YES
  • MFDS
    YES

Accessory

  • Adapter
    YES
    Calibration Report (Paper)
    YES
  • Display Port
    YES
    HDMI
    YES
  • Power Cord
    YES

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
