32HL710S component-copyModelName
LG 31.5'' 4K IPS Surgical Monitor

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (32HL710S)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (32HL710S)
    $
    $
    LG Members Price
Total
LG 31.5" 4K IPS Surgical Monitor
Large Display for Surgical Precision1 Large Display for Surgical Precision2
4K Surgical Display

Large Display for Surgical Precision

LG 4K surgical high-resolution monitor with LG's innovative technology provides accuracy, user convenience and reliability for precise surgery.
Enhanced Accuracy with Wide View1 Enhanced Accuracy with Wide View2
31.5-inch 4K IPS

Enhanced Accuracy with Wide View

With 31.5-inch 4K IPS display, the LG surgical monitor provides visual comfort for viewing accurate images with others from any angle. So it reduces the risk of misperception and helps to produce better outcomes.

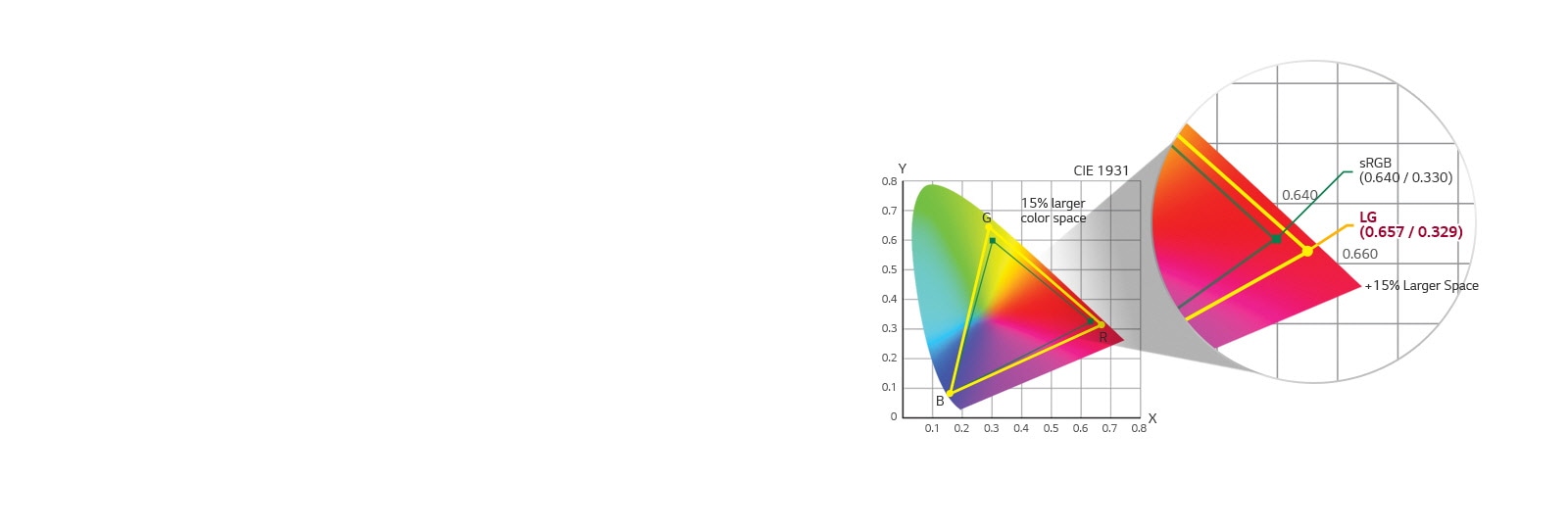

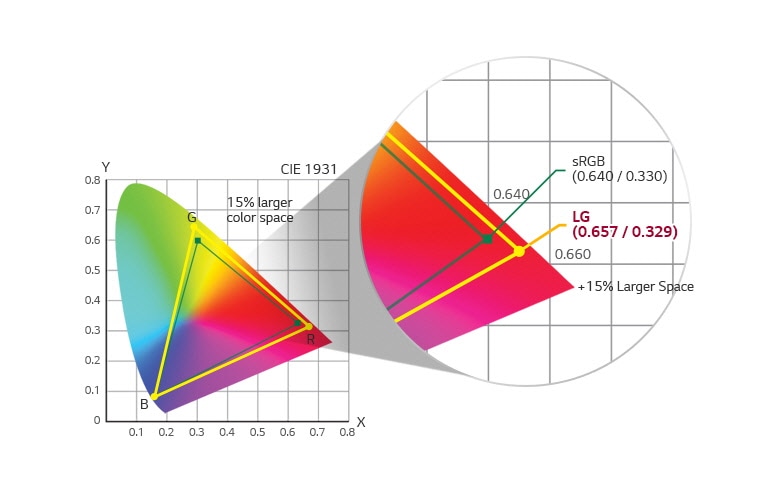

sRGB 115% (Area), Over 99% (Coverage)1 sRGB 115% (Area), Over 99% (Coverage)2

sRGB 115% (Area), Over 99% (Coverage)

The 32HL710S, supports sRGB 115% (Area) and Over 99% (Coverage) with the standard DICOM Part 14, is designed for accurate color recognition and depth perception during invasive surgery. It enables surgeons to view accurate, realistic images and allow precise surgery.
Brightness Stabilization1 Brightness Stabilization2

Brightness Stabilization

LG surgical monitor with Brightness Stabilization can maintain constant brightness. Its sensor carefully measures the backlight and local lighting conditions. Then it optimizes the correct brightness for the surgical procedure.
Support HDR101 Support HDR102

Support HDR10

LG surgical monitor is designed to fits with HDR-supported medical devices such as endoscope cameras. It can deliver images from devices vividly without crushing blacks in dark areas.
Multiple Signals on One Screen1 Multiple Signals on One Screen2
PBP, PIP & Multi-input

Multiple Signals on One Screen

The 32HL710S supports up to 4PBP, PIP and extended ports, allowing you to see multiple signals from several devices on one screen. You can set a combination screen of the endoscopic video from endoscopic camera, the vital sign imagery and the fluoroscopic imagery.

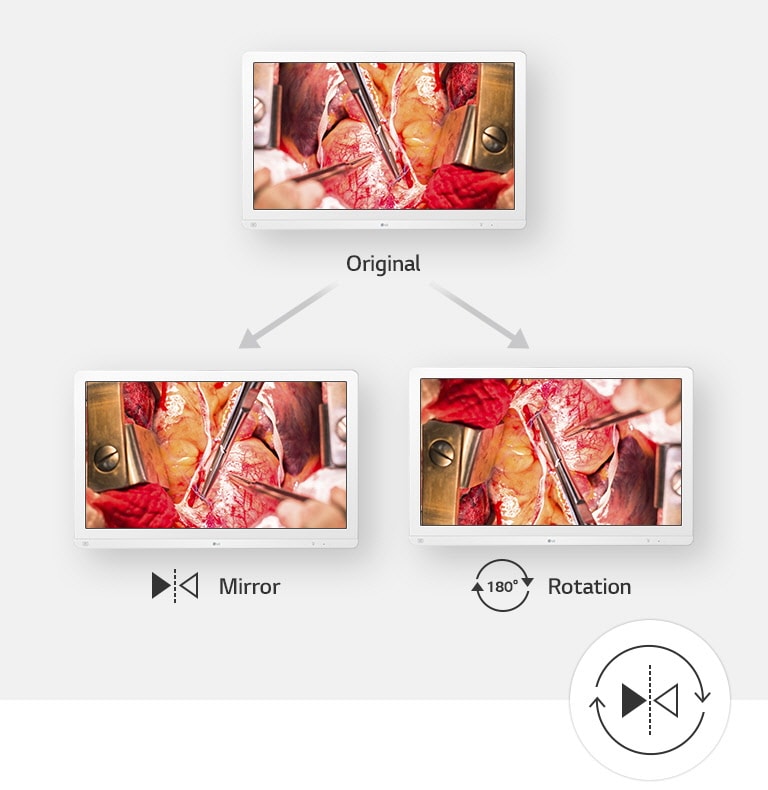

Find the Perfect Operating View1 Find the Perfect Operating View2
Mirror & Rotation

Find the Perfect Operating View

The 32HL710S with Mirror & Rotate functions, helps you to set the perfectly optimized operating view for improving your convenience in the operating room. You can select the 180 degrees rotated image or the mirror image you want to see.

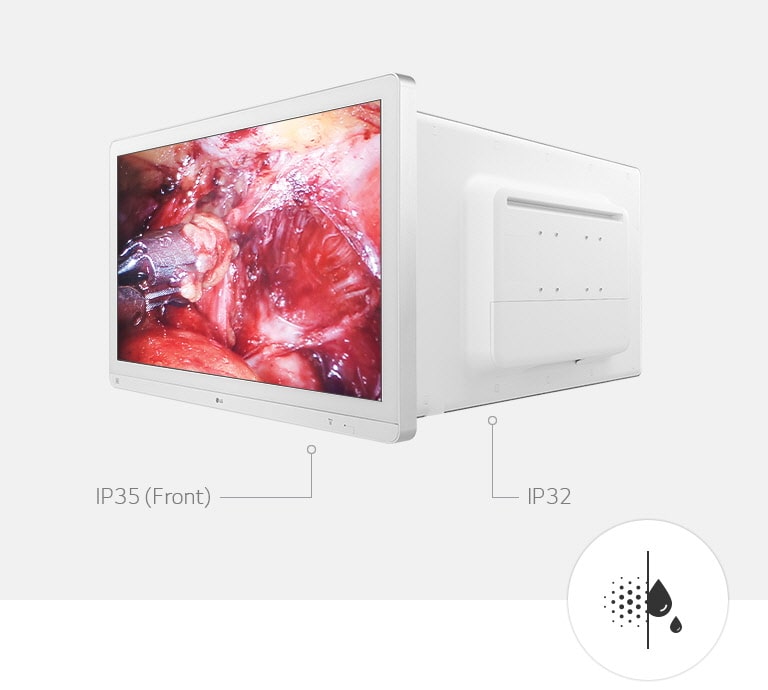

Dustproof & Water Resistant1 Dustproof & Water Resistant2

Dustproof & Water Resistant

To ensure protection against contact with objects such as blood or bodily fluids, LG surgical monitors are cleanable and durable, with ratings of IP35 on the front and IP32 on the body except for front, securing them from any direction.
Close
Display
  • Aspect Ratio
    16:9
    Backlight Dimming Technology
    Global Dimming
  • Backlight Technology
    LED
    Brightness (Typ.)
    800cd/m²
  • Brightness (Stabilization)
    500 cd/m²
    Color Bit
    10bit
  • Color Gamut (Typ.)
    sRGB 115% (Area), sRGB Over 99% (Coverage)
    Contrast Ratio (Typ.)
    1000:1
  • Pixel Pitch(H x V)
    0.18159mm x 0.18159mm
    Resolution
    3840 x 2160
  • Response Time (GTG)
    14ms(Off-setting), 5ms(Faster-setting)
    Size (Diagonal, Inch)
    31.5
  • Size (H x V)
    697.31 x 392.23 mm
    (27.45 x 15.44")
    Surface Treatment
    Protection Glass (1.6t, Anti-Reflection, Anti-fingerprint)
  • Viewing Angle (CR≥10)
    178° (Right/Left), 178° (Up/Down)
Feature
  • Hot Key
    Yes (2keys)
    Brightness stabilization
    Yes
  • Black Stabilizer
    Yes
    HW Calibration
    Yes(LG Calibration Studio)
  • DICOM Compliant
    Yes
    Color Temperature
    6500K / 7500K / 9300K
    Manual (5000K ~ 10000K)
  • Flicker safe
    Yes
    HDR10 Support
    Yes
  • HDR Effect
    Yes
    PBP
    Yes (2PBP/3PBP/4PBP)
  • PIP
    Yes
    Rotation & Mirror Mode
    Yes
  • Failover Input Switch
    Yes
    Smart Energy Saving
    Yes
  • Super Resolution+
    Yes
SW Application
  • LG Calibration Studio (True Color Pro)
    Yes
Connectivity
  • 3G-SDI
    Yes(3G,INx1/OUTx1)
    DisplayPort
    Yes(in 1ea/out 1ea)
  • DVI
    YES(1In / 1Out)
    HDMI
    Yes (1ea)
  • RS-232
    Yes (1ea)
    USB Downstream Port
    YES(1ea/ver2.0)
  • USB Upstream Port
    Yes (1ea/ver2.0)
Power
  • AC Input
    100-240Vac, 50/60Hz
    DC Output
    19V, 6.32A
  • DC Input (Monitor)
    19 - 24V, 6.32A - 5.0A
    Power Consumption (DC Off)
    Less than 0.3W
  • Power Consumption (Max.)
    120W
    Type
    External Power (Adapter)
Mechanical
  • Borderless Design
    Normal
    Display Position Adjustments
    No Stand
  • Down Height
    No Stand
    Height Range
    No Stand
  • Machanical Power Switch
    Yes
    OneClick Stand
    No Stand
  • Pivot
    No Stand
    Swivel
    No Stand
  • Tilt
    No Stand
    Wall Mount Size
    200x100mm/100x100mm
Dimensions/Weight
  • Dimension in Shipping (W x H x D)
    883x215X599mm
    Dimension with Stand (W x H x D)
    No Stand
  • Dimension without Stand (W x H x D)
    764.6 x 480.8 x 94.4 mm
    Pallet Stuffing (20ft/40ft/40ft HC)
    180 / 396 / 528
  • Weight in Shipping
    17.4kg(38.4lb)
    Weight with Stand
    No Stand
  • Weight without Stand
    12.4kg(27.3lb)
Standard
  • IEC (IEC 60601-1 / IEC 60601-1-2)
    Yes
    EN (EN 60601-1 / EN 60601-1-2)
    Yes
  • IEC (IEC 60950-1 & IEC 62368-1 / CISPR 32, 35)
    Yes
    EN (EN 62368-1 / EN 55032, 55035)
    Yes
  • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
    Yes
    CE
    MDR
  • FDA
    Registration (Class I)
    ISO13485
    Yes
  • RoHS
    Yes
    REACH
    Yes
  • WEEE
    Yes
    MFDS
    Yes
  • IP(front/except for front)
    IP35/IP32
    Vandal-proof
    IK06
Accessory
  • Adapter
    Yes
    Calibration Report (Paper)
    Yes
  • Display Port
    Yes
    HDMI
    Yes
  • Power Cord
    Yes

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
