LG 55'' 4K IPS Surgical Monitor
Contact us

LG 55'' 4K IPS Surgical Monitor

Contact us

LG 55'' 4K IPS Surgical Monitor

55MH5K
LG 55'' 4K IPS Surgical Monitor, 55MH5K
LG 55'' 4K IPS Surgical Monitor, 55MH5K
LG 55'' 4K IPS Surgical Monitor, 55MH5K
LG 55'' 4K IPS Surgical Monitor, 55MH5K
LG 55'' 4K IPS Surgical Monitor, 55MH5K
LG 55'' 4K IPS Surgical Monitor, 55MH5K
LG 55'' 4K IPS Surgical Monitor, 55MH5K
LG 55'' 4K IPS Surgical Monitor, 55MH5K
LG 55'' 4K IPS Surgical Monitor, 55MH5K
LG 55'' 4K IPS Surgical Monitor, 55MH5K
LG 55'' 4K IPS Surgical Monitor, 55MH5K
LG 55'' 4K IPS Surgical Monitor, 55MH5K
LG 55'' 4K IPS Surgical Monitor, 55MH5K
LG 55'' 4K IPS Surgical Monitor, 55MH5K
LG 55'' 4K IPS Surgical Monitor, 55MH5K
LG 55'' 4K IPS Surgical Monitor, 55MH5K
LG 55'' 4K IPS Surgical Monitor, 55MH5K
LG 55'' 4K IPS Surgical Monitor, 55MH5K
LG 55'' 4K IPS Surgical Monitor, 55MH5K
LG 55'' 4K IPS Surgical Monitor, 55MH5K

Key Features

  • 55" 4K (3840x2160) IPS
  • HDR10 Support
  • 12G-SDI Support
  • Failover Input Switch
  • Mirror & Rotation Mode
  • Up to 4PBP, PIP
More

4K Surgical Display

4K Large Display for Surgery

Experience vivid images on LG’s 55-inch 4K Display Surgical Monitor, equipped with an IPS panel that offers a wide 178° viewing angle.

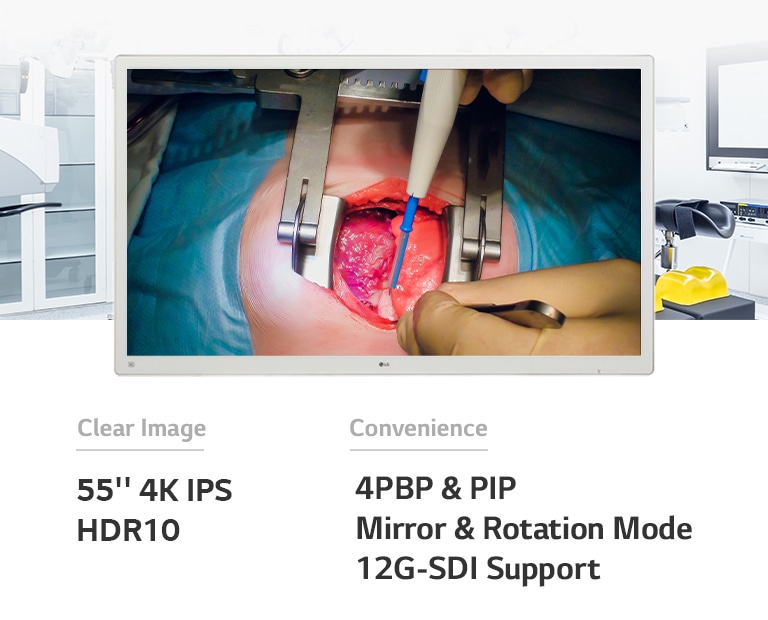

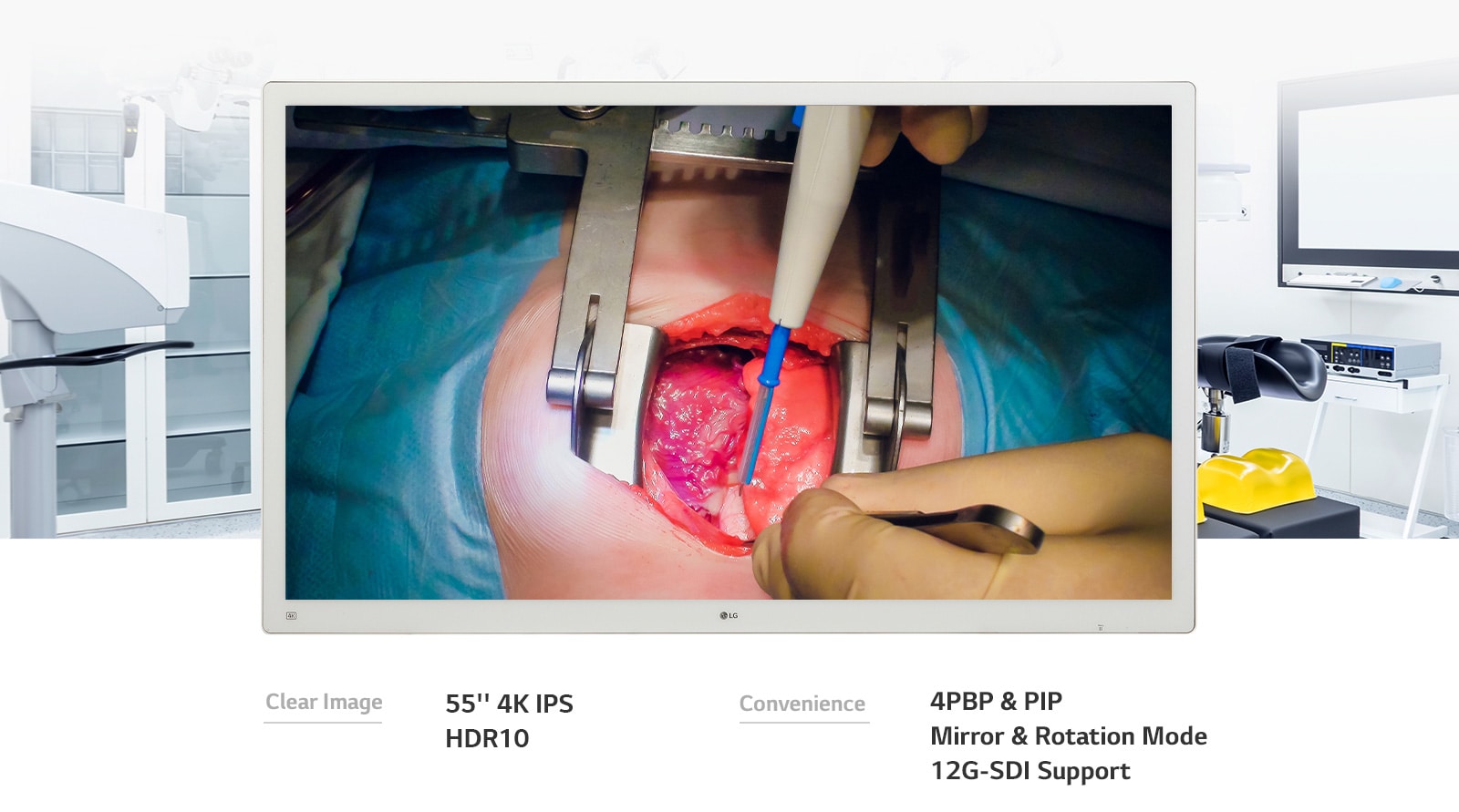

LG’s 55-inch 4K IPS Surgical Monitor 55MH5K will take your image quality and convenience to the next level.

* All images are shown for illustrative purposes only and may vary from the actual product/usage.

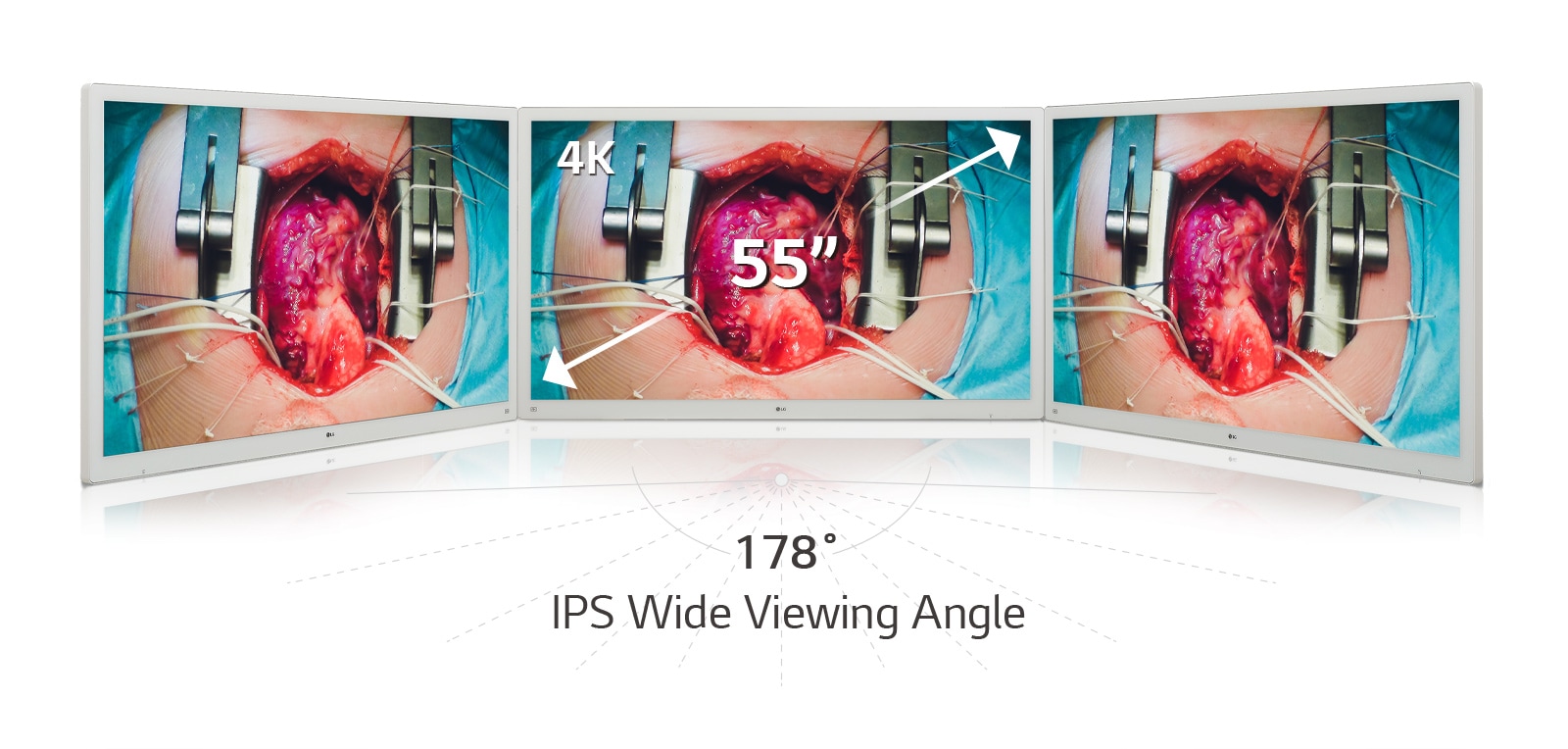

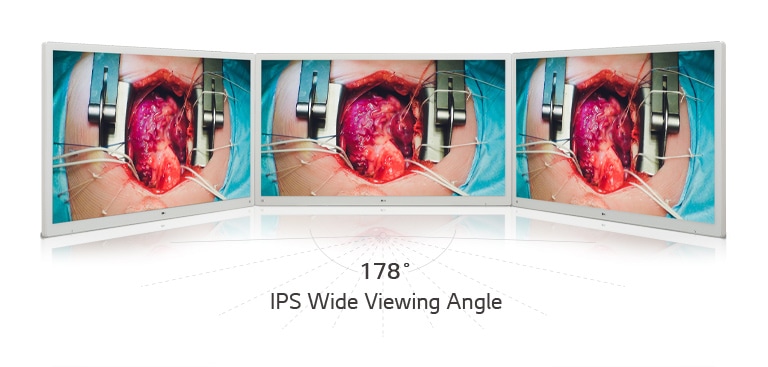

55-inch 4K IPS

IPS Display with
Wide Viewing Angle

Experience vivid images on LG’s 55-inch 4K Display Surgical Monitor, equipped with an IPS panel that offers a wide 178° viewing angle.

* All images are shown for illustrative purposes only and may vary from the actual product/usage.

HDR10

HDR10

This 4K surgical monitor features HDR10, properly displaying HDR images clearly.

* All images are shown for illustrative purposes only and may vary from the actual product/usage.

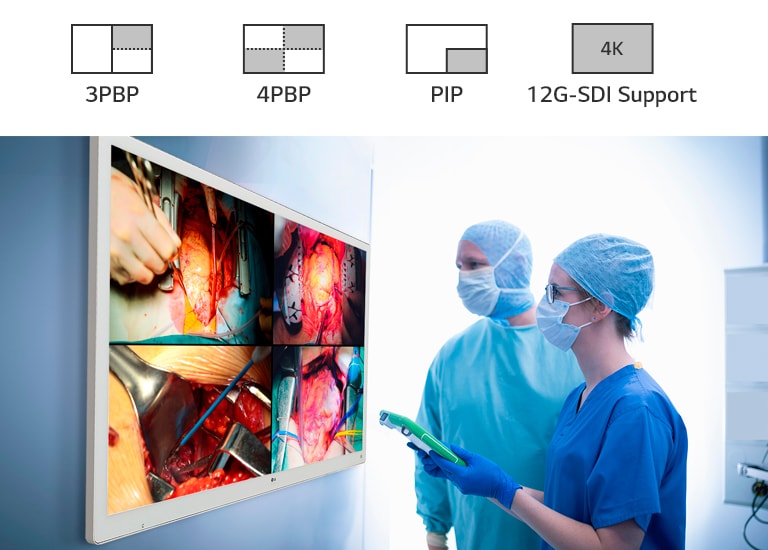

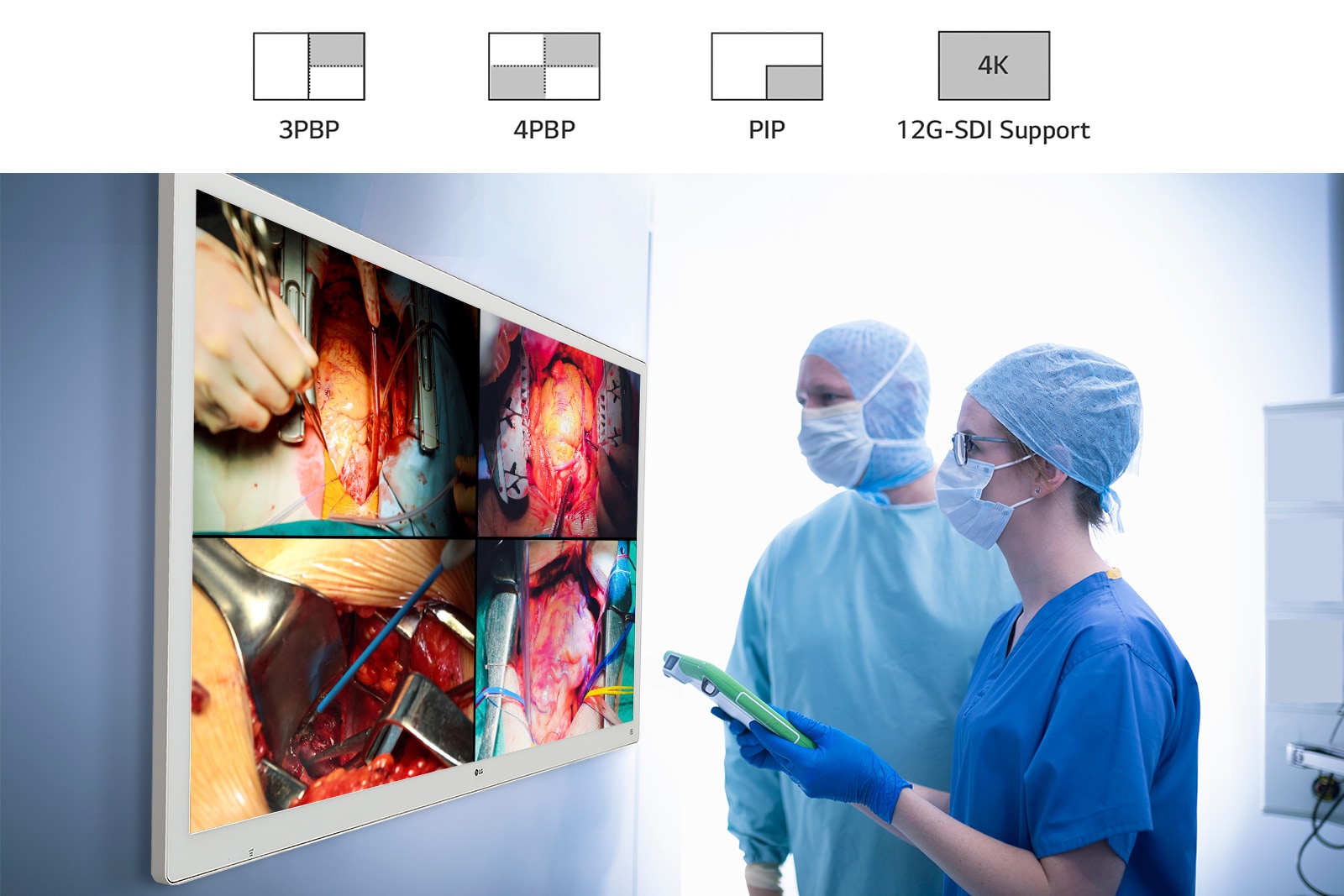

PBP, PIP & 12G-SDI Support

Multiple Signals on One Screen

55MH5K supports up to 4PBP, PIP and extended ports, allowing you to view multiple signals simultaneously on a single screen.





55MH5K supports up to 4PBP, PIP and extended ports, allowing you to view multiple signals simultaneously on a single screen.

* All images are shown for illustrative purposes only and may vary from the actual product/usage.

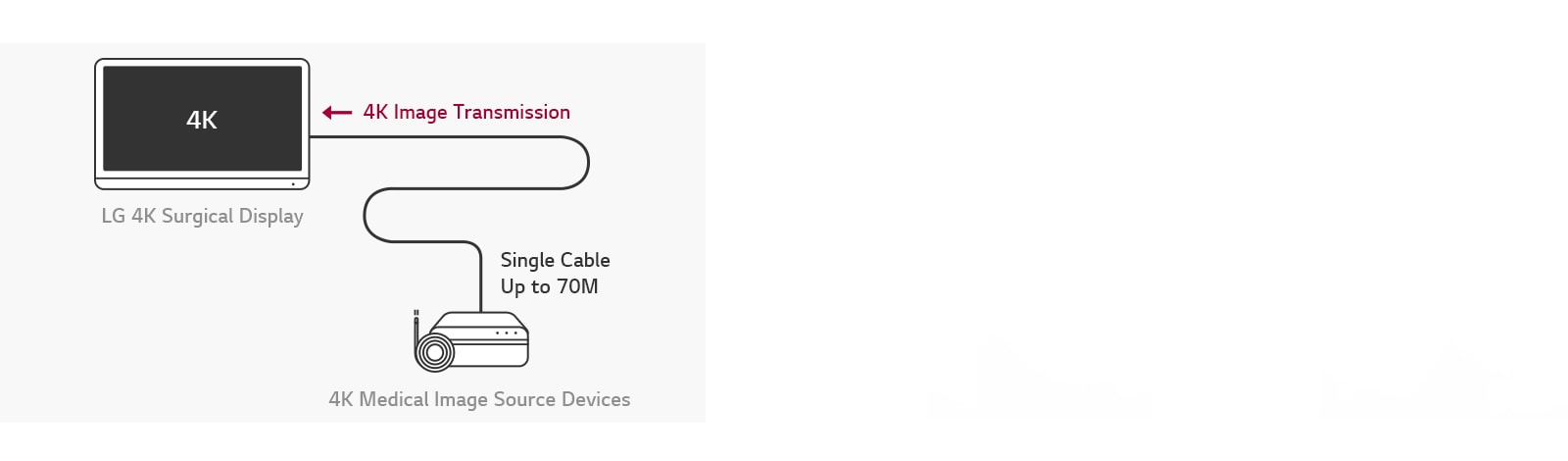

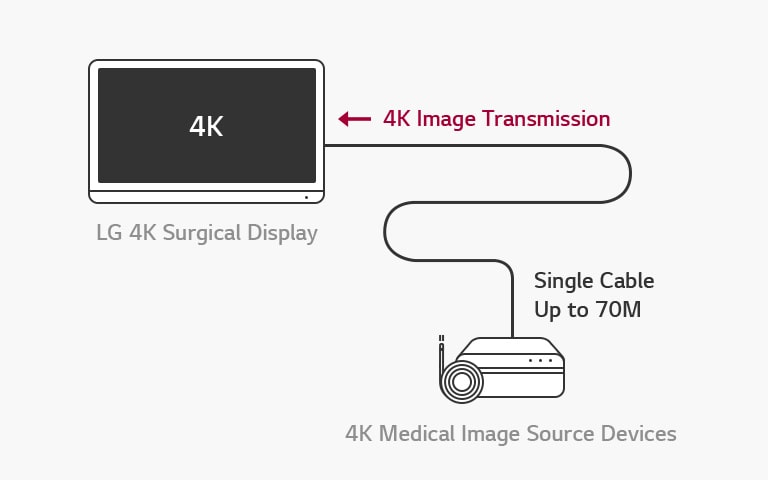

12G-SDI Support

The 55MH5K features a 55-inch 4K (3840x2160) IPS display with 12G-SDI Support, which enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery.

* 12G-SDI input transmission maximum distance may vary by manufacturers: Up to 50M using BELDEN 1694A cable / Up to 70M using CANARE UHD 5.5C cable.
* 12G-SDI is sold separately.
* All images are shown for illustrative purposes only and may vary from the actual product/usage.

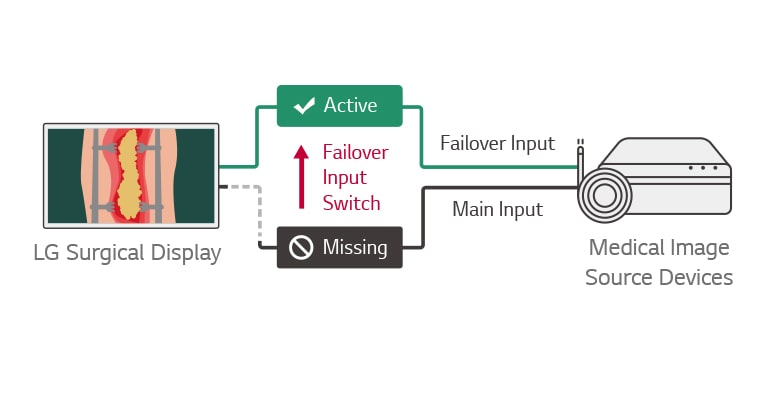

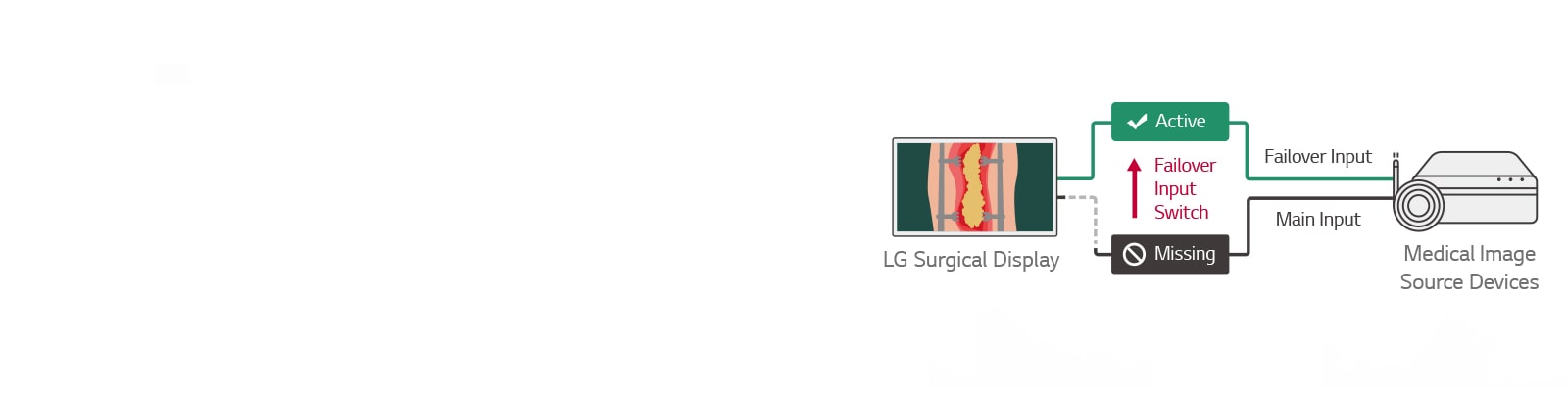

When the main source is missing, the display will automatically switch to a failover source and restore the main source once the signal is back.

Failover Input Switch

When the main source is missing, the display will automatically switch to a failover (backup) source and restore the main source once the signal is back. You can set the main input and failover input in the setting menu of monitor.

* All images are shown for illustrative purposes only and may vary from the actual product/usage.

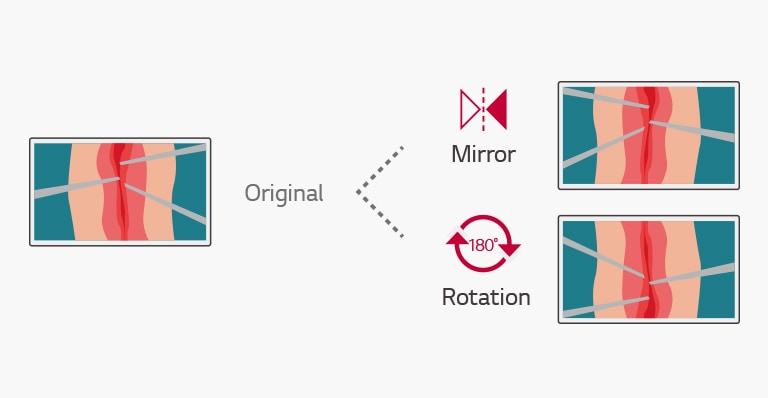

Conveniently flip and rotate the monitor to adjust to your needs. Mirror

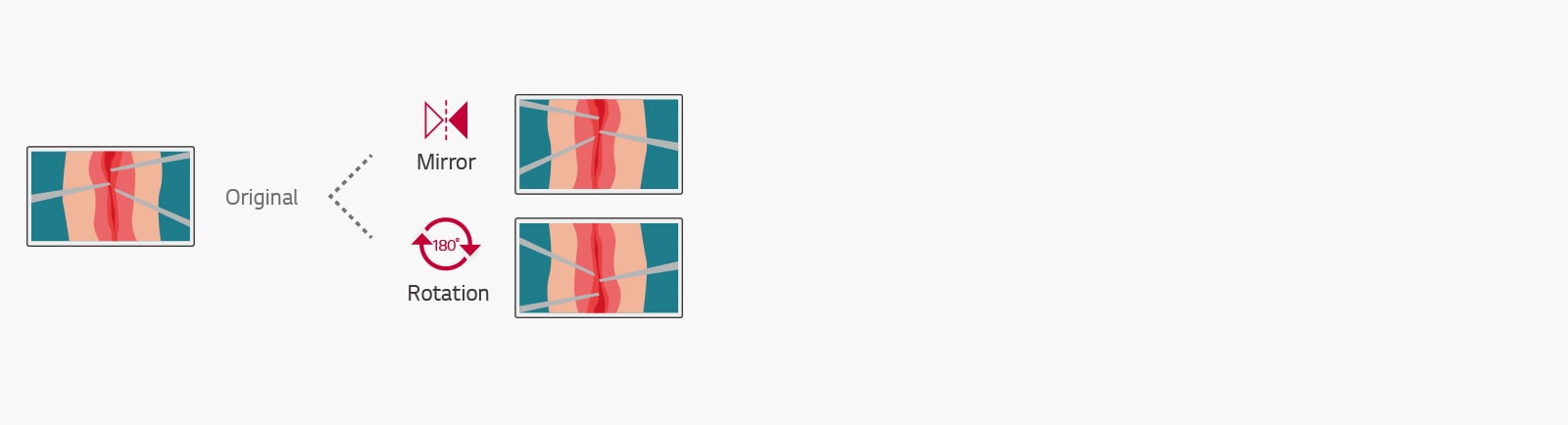

Mirror & Rotation Mode

Conveniently flip and rotate the monitor to adjust to your surgery needs. Mirror & Rotation Modes allow you to select a convenient 180° rotated/mirror image.

* All images are shown for illustrative purposes only and may vary from the actual product/usage.

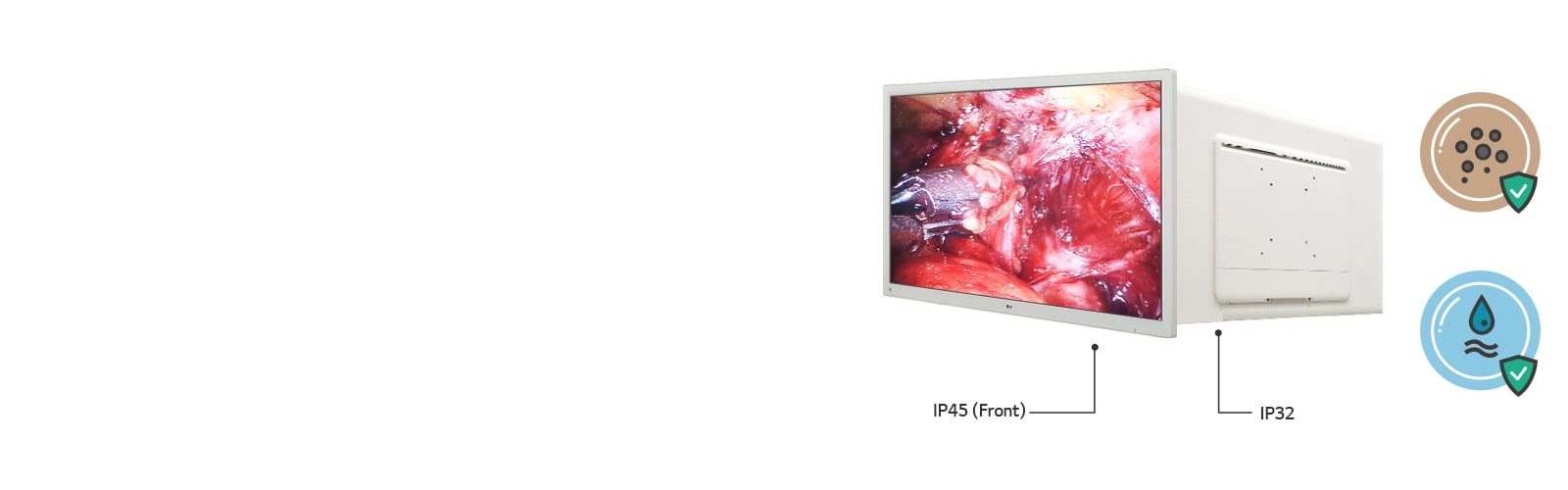

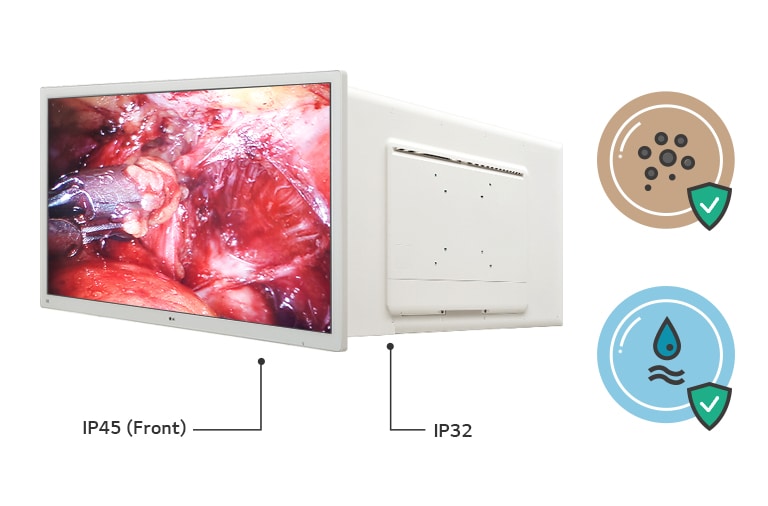

With ratings of IP 45 on the front and IP 32 on the body except for front, this surgical monitor is protected against contact with solid objects and water.

IP 45& IP 32

With ratings of IP 45* on the front and IP 32* on the body except for front, this surgical monitor is protected against contact with solid objects and water.

* IP 45: According to the Ingress Protection (IP) Rating System, an IP45 means protection against solid foreign objects Level 4 (Protection against solid objects larger than 1.0mm (such as a wire)), and protection against liquids Level 5 (Protection against low-pressure jets of water from any angle. Limited ingress permitted with no harmful effects). This product has been tested under controlled laboratory conditions and received an IP45 rating. Dry before using. Do not charge while wet. Level of protection against solids and liquids may change over time or with exposure to excessive amounts of solids and liquids.

* IP 32: According to the Ingress Protection (IP) Rating System, an IP32 means protection against solid foreign objects Level 3 (Protection against solid objects larger than 2.5mm (such as a screwdriver or cables)), and protection against liquids Level 2 (Protection against vertically falling droplets when enclosure is tilted up to 15° off vertical). This product has been tested under controlled laboratory conditions and received an IP32 rating. Dry before using. Do not charge while wet. Level of protection against solids and liquids may change over time or with exposure to excessive amounts of solids and liquids.

* All images are shown for illustrative purposes only and may vary from the actual product/usage.

Print

All Spec

PANEL

  • Screen Size (Inch)

    55

  • Back Light Type

    Edge

  • Aspect Ratio

    16:9

  • Brightness

    540cd

  • Color Gamut

    DCI-P3 86% (CIE1976)

  • Color Depth (Number of Colors)

    1.07B

CONNECTIVITY

  • HDMI In (HDCP Ver.)

    2.2

  • DP In

    2.2

  • 12G-SDI

    YES (12G INx4 / OUTx4, SFP INx1)

  • DisplayPort

    YES(In 1ea / Out 1ea)

  • DP (Max. Resolution at Hz)

    3840x2160 at 60Hz

  • DP Version

    1.2

  • DP (w/o VRR)

    56~61Hz

  • DVI-D

    YES(1In / 1Out)

  • DVI (Max Resolution at Hz)

    1920x1080 at 60Hz

  • DVI (V Frequency)

    56~61Hz

  • Equipotential Pin

    YES

  • HDMI

    YES(1ea)

  • HDMI (Max. Resolution at Hz)

    3840x2160 at 60Hz

  • HDMI Version

    2

  • HDMI (w/o VRR)

    56~61Hz

  • Location

    Bottom

  • RS-232

    YES

  • USB Downstream Port

    YES(1ea/ver3.0)

  • USB Upstream Port

    YES(1ea/ver3.0)

MECHANICAL SPECIFICATION

  • Color (Back Cover)

    White

  • Color (Middle Cabinet)

    White

  • Down Height

    No Stand

  • Height Range

    No Stand

POWER

  • Power Type

    Built-in POWER

  • AC Input

    100 - 240 V (50/60 Hz, 2.5~1.25A)

  • DC Output

    Built-in POWER (PSU output_20.5V,9A)

  • POWER Consumption (DC Off)

    Less than 0.3W

POWER CONSUMPTION

  • Max.

    180W

LANGUAGE

  • OSD

    17 LANGUAGE

ACCESSORY

  • Calibration Report (Paper)

    YES

  • Display Port

    YES

  • Display Port (Color / Length)

    Black / 1.8m

  • HDMI

    YES

  • HDMI (Color/Length)

    Black / 1.8m

  • Power Cord

    YES

  • Power Cord (Color/Length)

    White / 2.8m

DIMENSIONS/WEIGHTS

  • Dimension in Shiping (W x H x D)

    1490 x 880 x 172 mm

  • Dimension without Stand (W x H x D)

    1283.4 x 768.5 x 68.3 mm

  • Pallet Stuffing (20ft/40ft/40ft HC)

    84EA / 180EA / 180EA

  • Weight in Shipping

    42.3kg

  • Weight without Stand

    34.8kg

DISPLAY

  • Backlight Dimming Technology

    Global Dimming

  • Backlight Technology

    LED

  • Brightness (Typ.) [cd/m²]

    680cd

  • Color Bit

    10bit

  • Contrast Ratio (Min.)

    800:1

  • Contrast Ratio (Typ.)

    1100:1

  • Contrast Ratio with DFC

    Mega

  • Panel Type

    IPS

  • Peak Brightness (Min)

    540cd (Peak)

  • Peak Brightness (Typ)

    680cd (Peak)

  • Pixel Pitch [mm]

    0.315mm x 0.315mm

  • Resolution

    3840x2160

  • Response Time

    5ms (GtG at Faster)

  • Size [cm]

    138.8

  • Surface Treatment

    With Direct bonding Glass (3.1t, AR, AF)

  • Viewing Angle (CR≥10)

    178º(R/L), 178º(U/D)

FEATURES

  • Black Stabilizer

    YES

  • Brightness stabilization

    400cd (Dicom_350cd)

  • Color temperature

    6500K / 7500K / 9300K, Manual(5000K~10000K)

  • DICOM Compliant

    YES

  • Factory Calibration

    YES(Delta E<5, Gamma 1.8~2.6/DICOM curve)

  • Failover Input Switch

    YES

  • HDR 10

    YES

  • HDR Effect

    YES

  • Hot Key

    YES(2keys)

  • HW Calibration

    YES

  • PBP

    YES (2PBP/3PBP/4PBP)

  • Picture Mode

    (SDR)Custom, Vivid, HDR Effect, Mono, REC709, REC2020, DICOM, Calibration 1, Calibration 2, (HDR)Custom, Vivid, Standard

  • PIP

    YES

  • Rotation & Mirror Mode

    YES

  • Smart Energy Saving

    YES

  • Super Resolution+

    YES

  • Uniformity

    YES

  • User Preset

    YES

MECHANICAL

  • Borderless Design

    Normal

  • Machanical Power Switch

    YES

  • Wall Mountable [mm]

    200 x 200 mm & 300 x 300 mm

STANDARD

  • CE

    MDR

  • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)

    YES

  • EN (EN 60601-1 / EN 60601-1-2)

    YES

  • EN (EN 62368-1 / EN 55032, 55035)

    Yes

  • FDA

    Registration (Class I)

  • IEC (IEC 60601-1 / IEC 60601-1-2)

    YES

  • IEC (IEC 60950-1 & IEC 62368-1 / CISPR 32, 35)

    Yes

  • IP(Front/Except for front)

    IP45/IP32

  • ISO13485

    YES

  • MFDS

    YES

  • REACH

    Yes

  • RoHS

    Yes

  • Vandal-proof

    Yes

  • WEEE

    YES

SW APPLICATION

  • LG Calibration Studio (True Color Pro)

    YES

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
