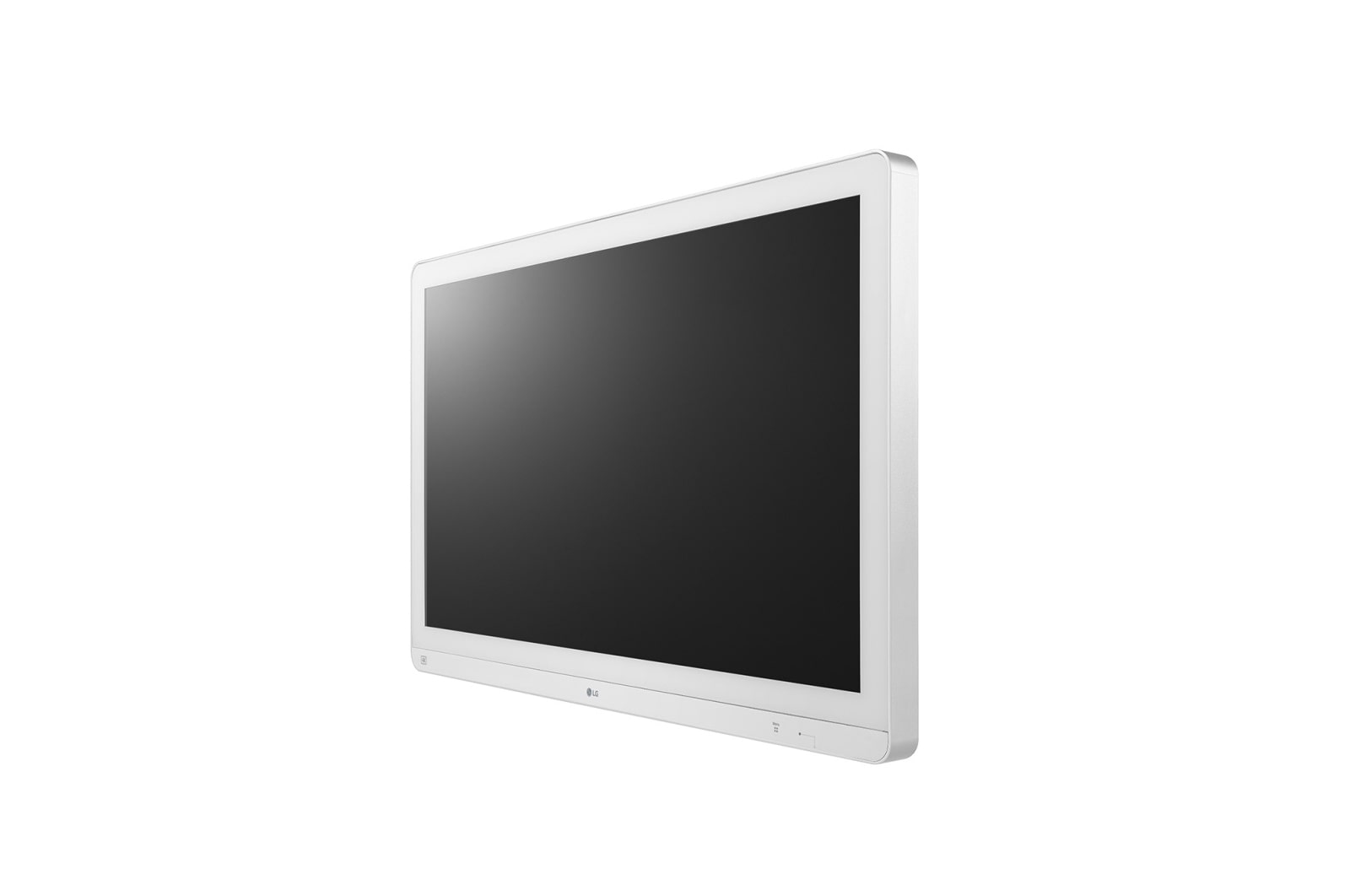

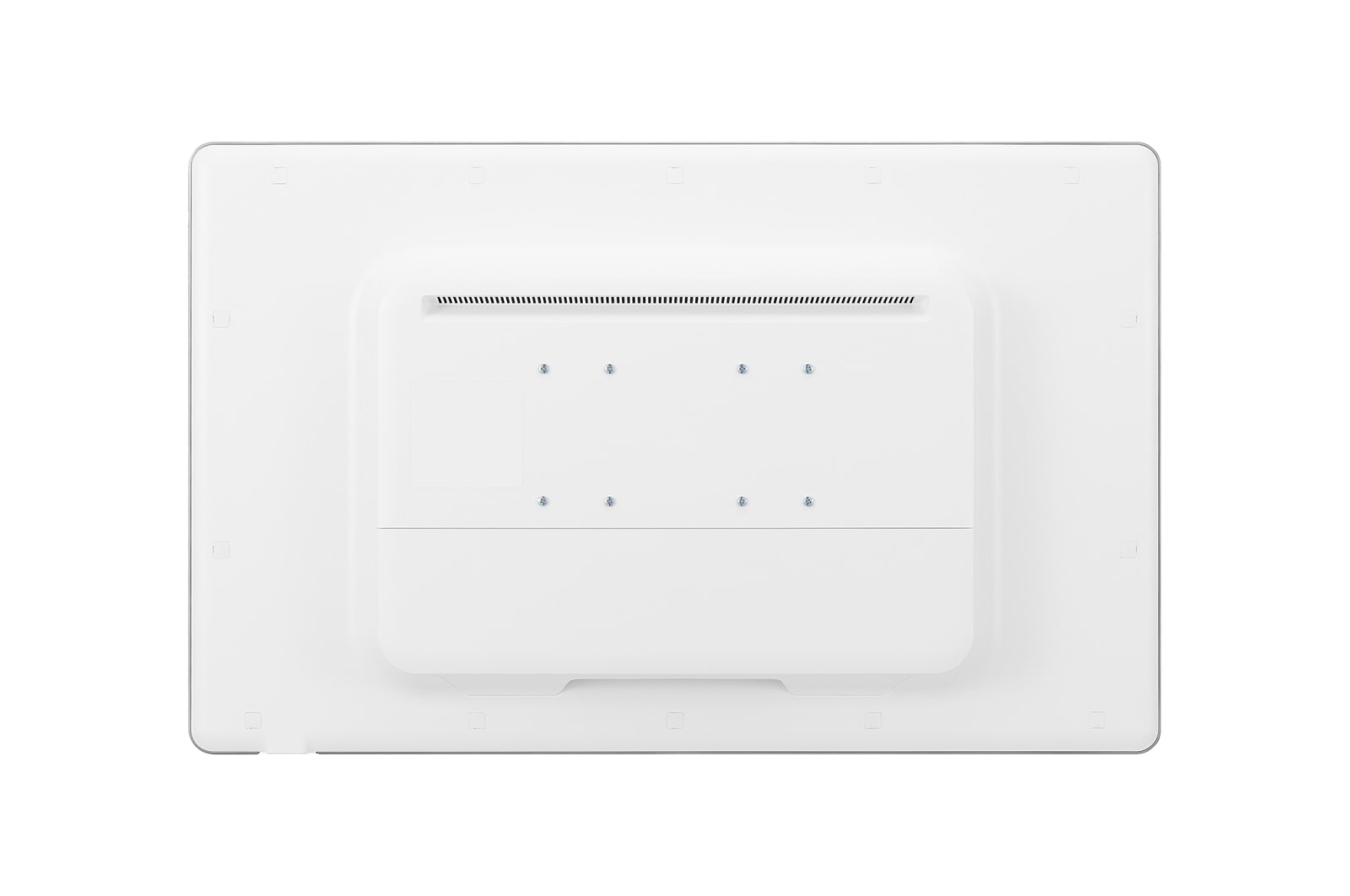

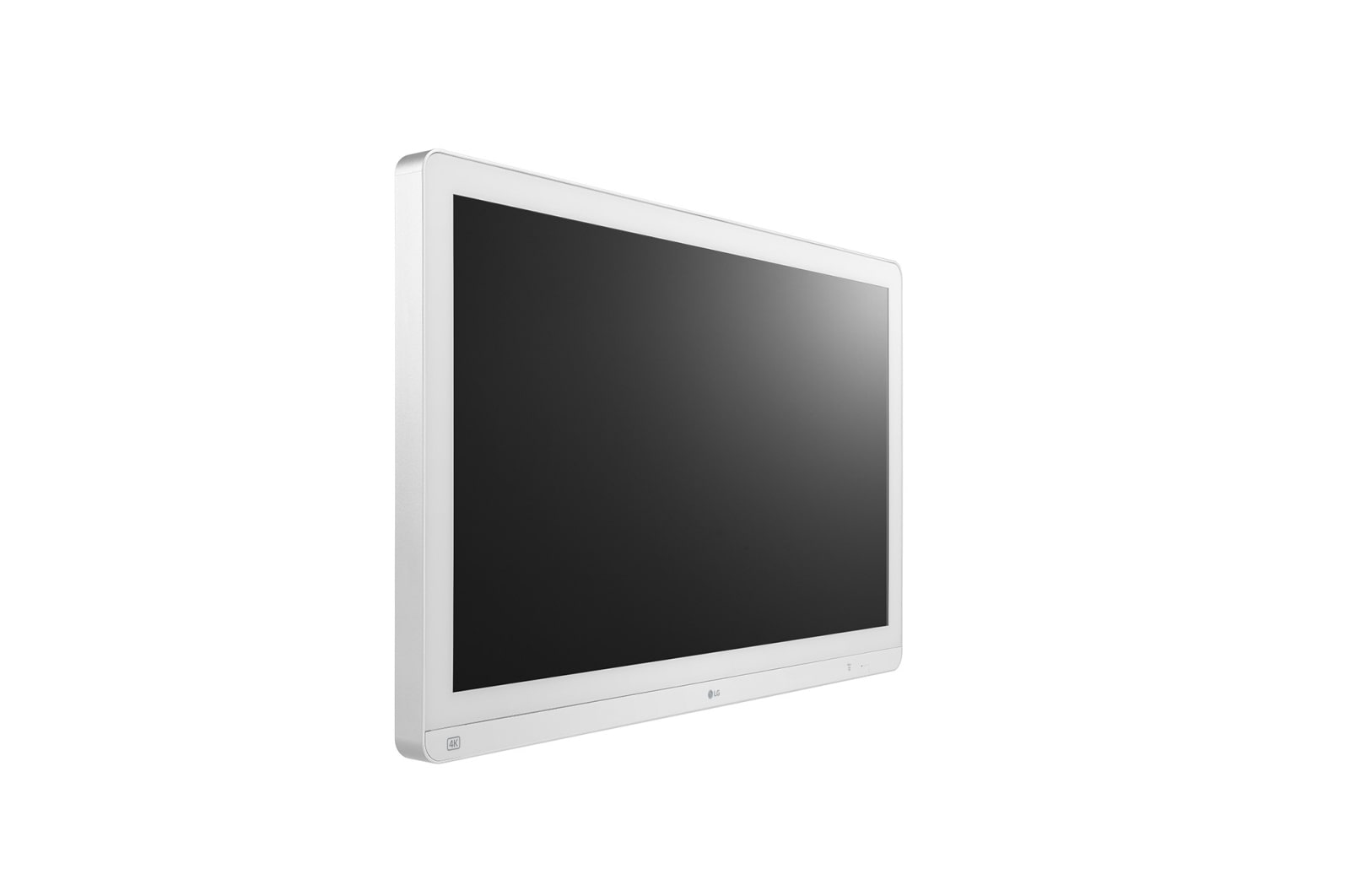

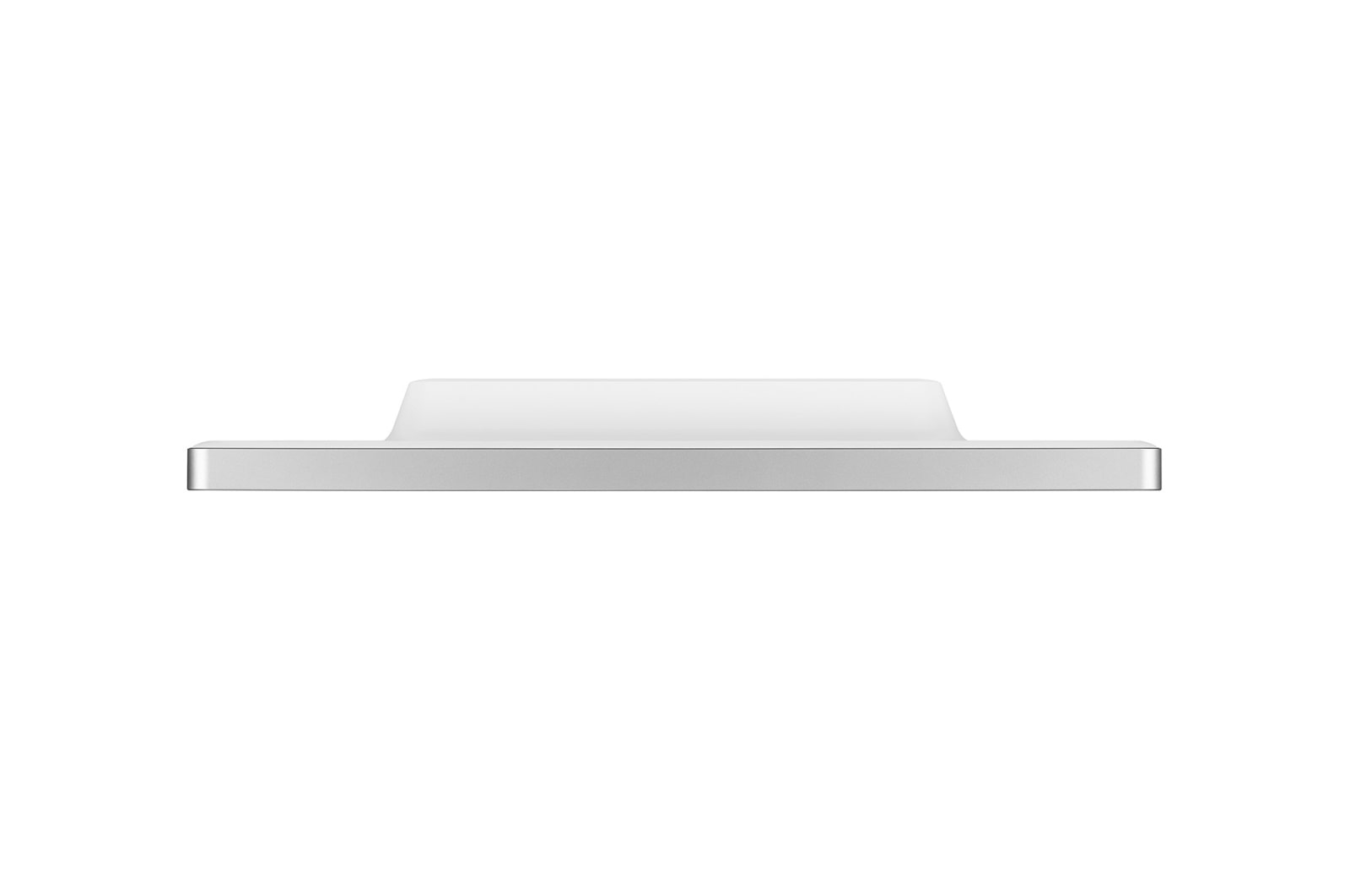

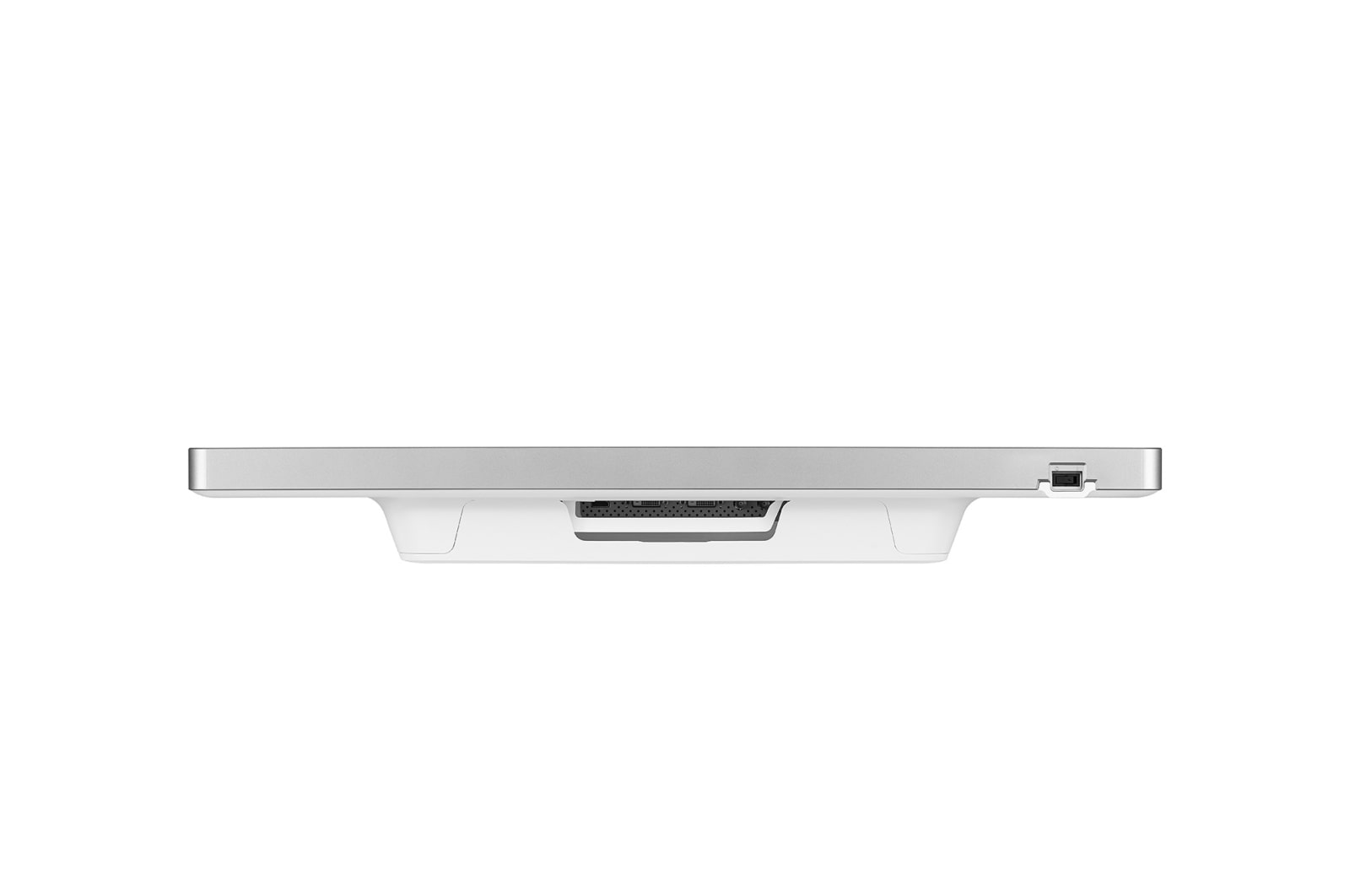

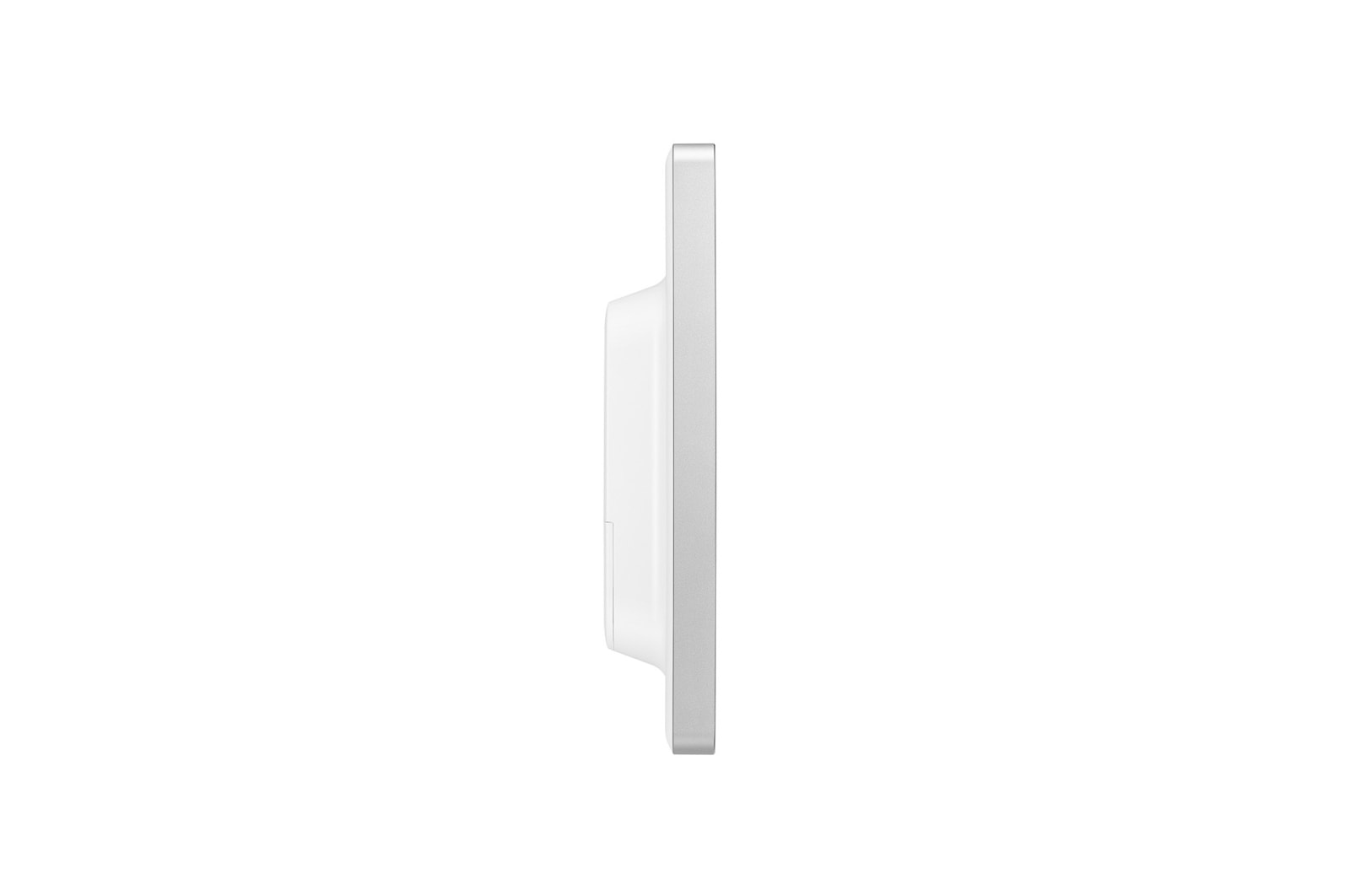

LG 31.5" 4K IPS Surgical Monitor

LG 31.5" 4K IPS Surgical Monitor

All Spec

DISPLAY

  • Size [Inch]

    31.5

  • Pixel Pitch [mm]

    0.18159mm x 0.18159mm

  • Resolution

    3840x2160

  • Aspect Ratio

    16:9

  • Backlight Technology

    LED

  • Panel Type

    IPS

  • Brightness (Typ.) [cd/m²]

    800cd/m²

  • Contrast Ratio (Typ.)

    1000:1

  • Color Bit

    10bit

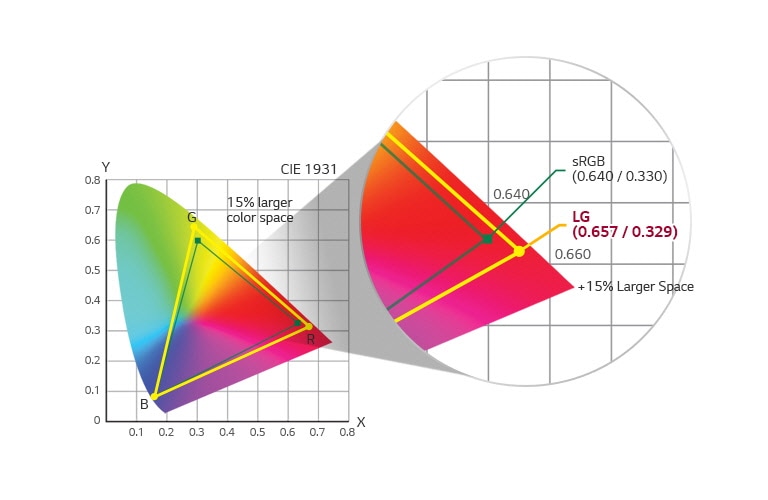

  • Color Gamut (Typ.)

    sRGB 115% (Area), sRGB Over 99% (Coverage)

  • Response Time

    14ms(Off-setting), 5ms(Faster-setting)

  • Viewing Angle (CR≥10)

    178°(Right/Left), 178°(Up/Down)

  • Surface Treatment

    Protection Glass (1.6t, Anti-Reflection, Anti-fingerprint)

FEATURES

  • HDR 10

    Yes

  • HDR Effect

    Yes

  • HW Calibration

    Yes(LG Calibration Studio)

  • Flicker Safe

    Yes

  • Super Resolution+

    Yes

  • Black Stabilizer

    Yes

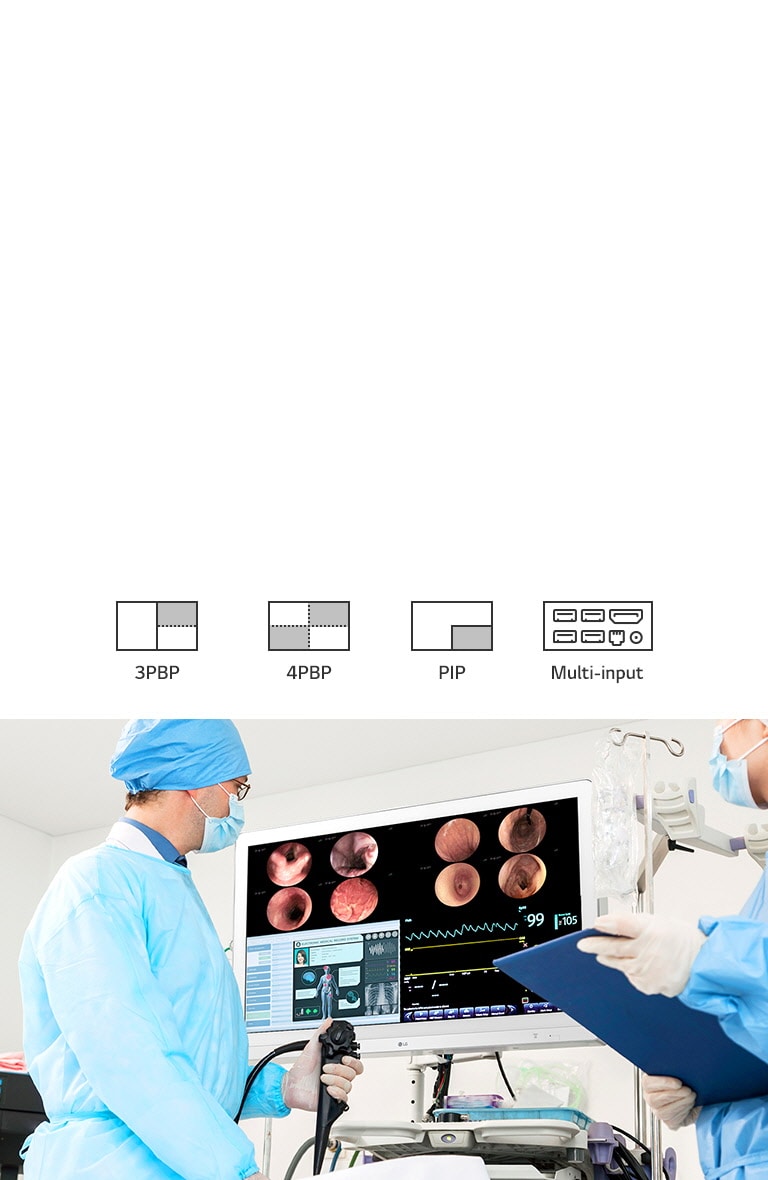

  • PBP

    Yes (2PBP/3PBP/4PBP)

  • PIP

    Yes

  • Smart Energy Saving

    Yes

  • DICOM Compliant

    Yes

  • Hot Key

    Yes (2keys)

  • Brightness stabilization

    Yes

  • Color Temperature

    6500K / 7500K / 9300K Manual (5000K ~ 10000K)

  • Rotation & Mirror Mode

    Yes

  • Failover Input Switch

    Yes

SW APPLICATION

  • LG Calibration Studio (True Color Pro)

    Yes

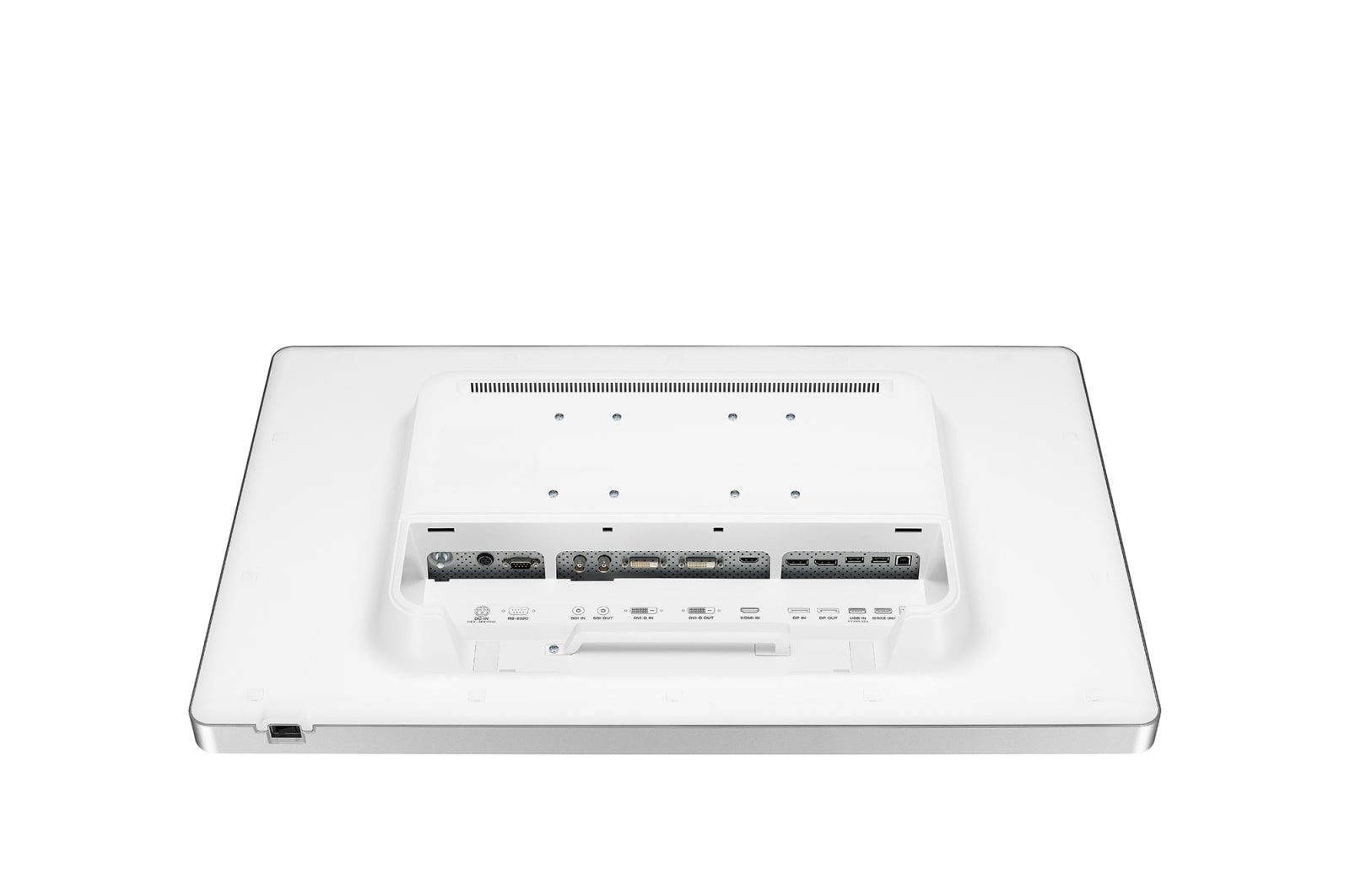

CONNECTIVITY

  • HDMI

    Yes (1ea)

  • DisplayPort

    Yes(in 1ea/out 1ea)

  • USB Upstream Port

    Yes (1ea/ver2.0)

  • USB Downstream Port

    YES(1ea/ver2.0)

  • 3G-SDI

    Yes(3G,INx1/OUTx1)

  • RS-232

    Yes (1ea)

  • DVI

    YES(1In / 1Out)

POWER

  • Type

    External Power (Adapter)

  • AC Input

    100-240Vac, 50/60Hz

  • Power Consumption (DC Off)

    Less than 0.3W

  • Power Consumption (Max.)

    120W

  • DC Output

    19V, 6.32A

  • DC Input (Monitor)

    19 - 24V, 6.32A - 5.0A

MECHANICAL

  • Display Position Adjustments

    No Stand

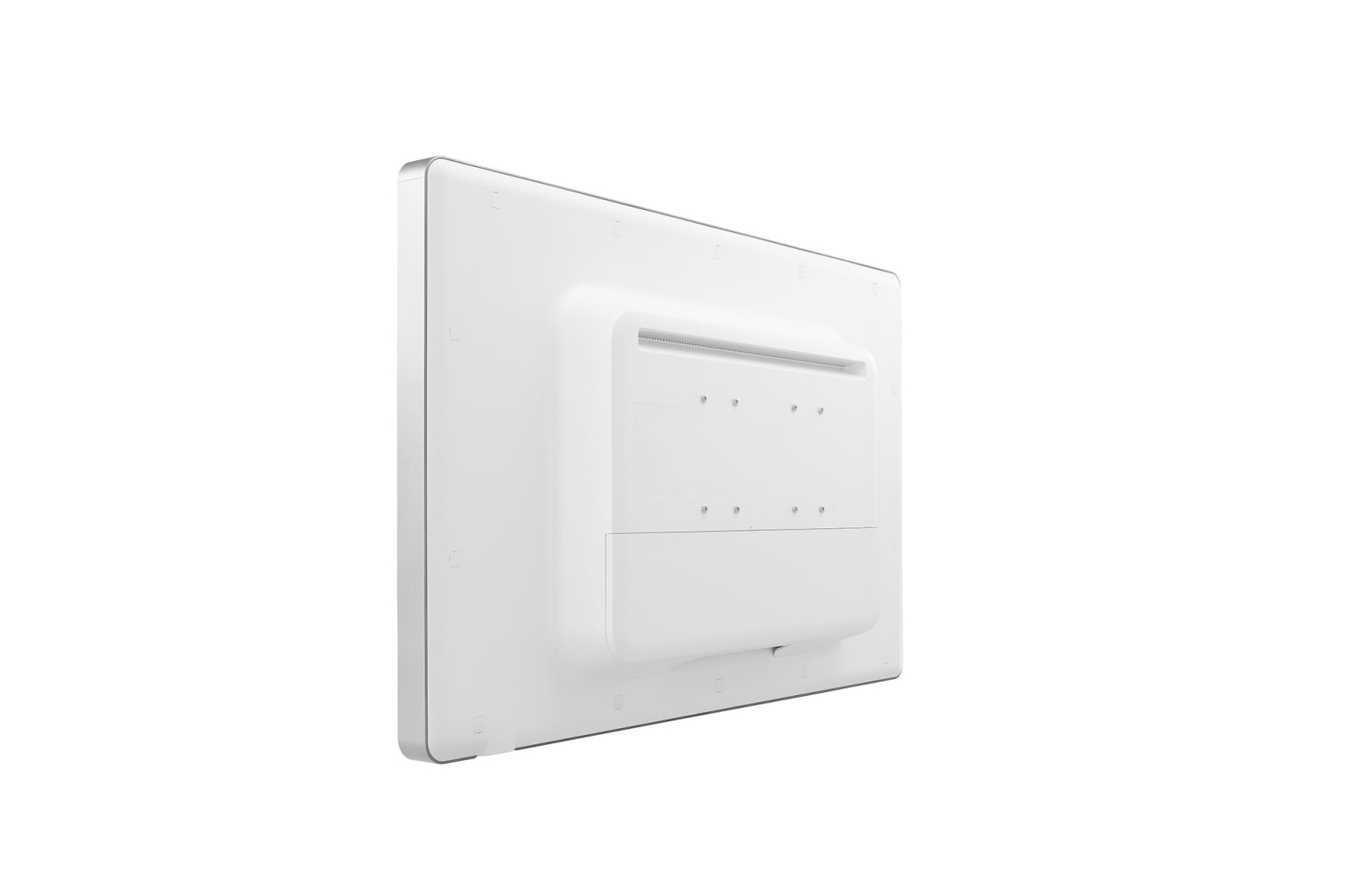

  • Wall Mountable [mm]

    200x100mm/100x100mm

  • Borderless Design

    Normal

  • Machanical Power Switch

    Yes

  • OneClick Stand

    No Stand

  • Down Height

    No Stand

  • Height Range

    No Stand

  • Pivot

    No Stand

  • Swivel

    No Stand

  • tilt

    No Stand

DIMENSIONS/WEIGHTS

  • Weight without Stand [kg]

    12.4kg(27.3lb)

  • Weight in Shipping [kg]

    17.4kg(38.4lb)

  • Dimension without Stand (W x H x D) [mm]

    764.6 x 480.8 x 94.4 mm

  • Dimension with Stand (W x H x D) [mm]

    No Stand

  • Dimension in Shiping (W x H x D) [mm]

    883x215X599mm

  • Pallet Stuffing (20ft/40ft/40ft HC)

    180 / 396 / 528

  • Weight with Stand

    No Stand

STANDARD

  • RoHS

    Yes

  • REACH

    Yes

  • WEEE

    Yes

  • MFDS

    Yes

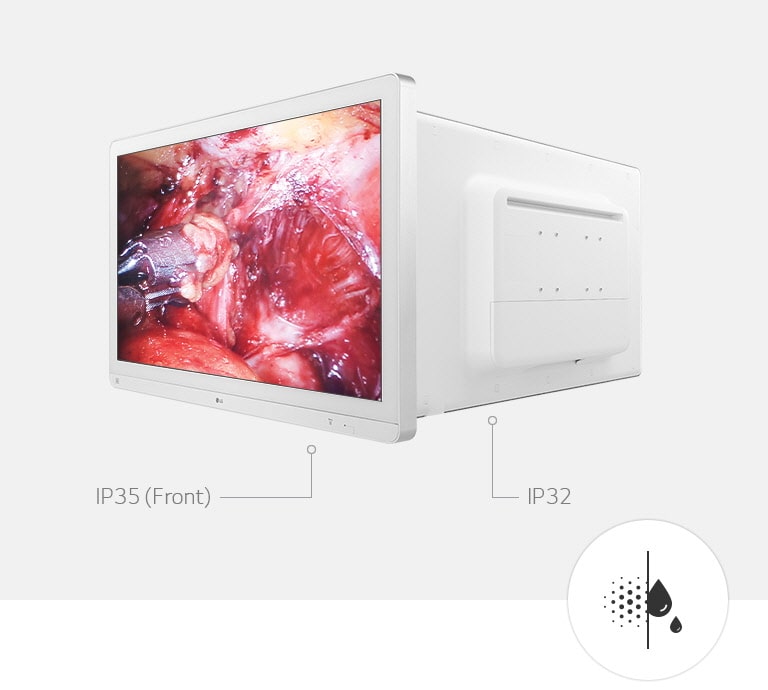

  • IP(front/except for front)

    IP35/IP32

  • Vandal-proof

    IK06

  • UL (cUL)

    Yes

  • IEC (IEC 60601 - 1 / IEC 60601 - 1 - 2)

    Yes

  • EN (EN 60601 - 1 / EN 60601 - 1 - 2)

    Yes

  • IEC (IEC 60950-1 / IEC 55032, 55024)

    Yes

  • EN (EN 60950-1 / EN 55032, 55024)

    Yes

  • CE

    MDR

  • FDA

    Registration (Class I)

  • ISO13485

    Yes

ACCESSORY

  • HDMI

    Yes

  • Display Port

    Yes

  • Adapter

    Yes

  • Calibration Report (Paper)

    Yes

  • Power Cord

    Yes
