55-inch 4K Surgical Monitor with 12G-SDI Support
Contact us

55-inch 4K Surgical Monitor with 12G-SDI Support

Contact us

55-inch 4K Surgical Monitor with 12G-SDI Support

55MH5K

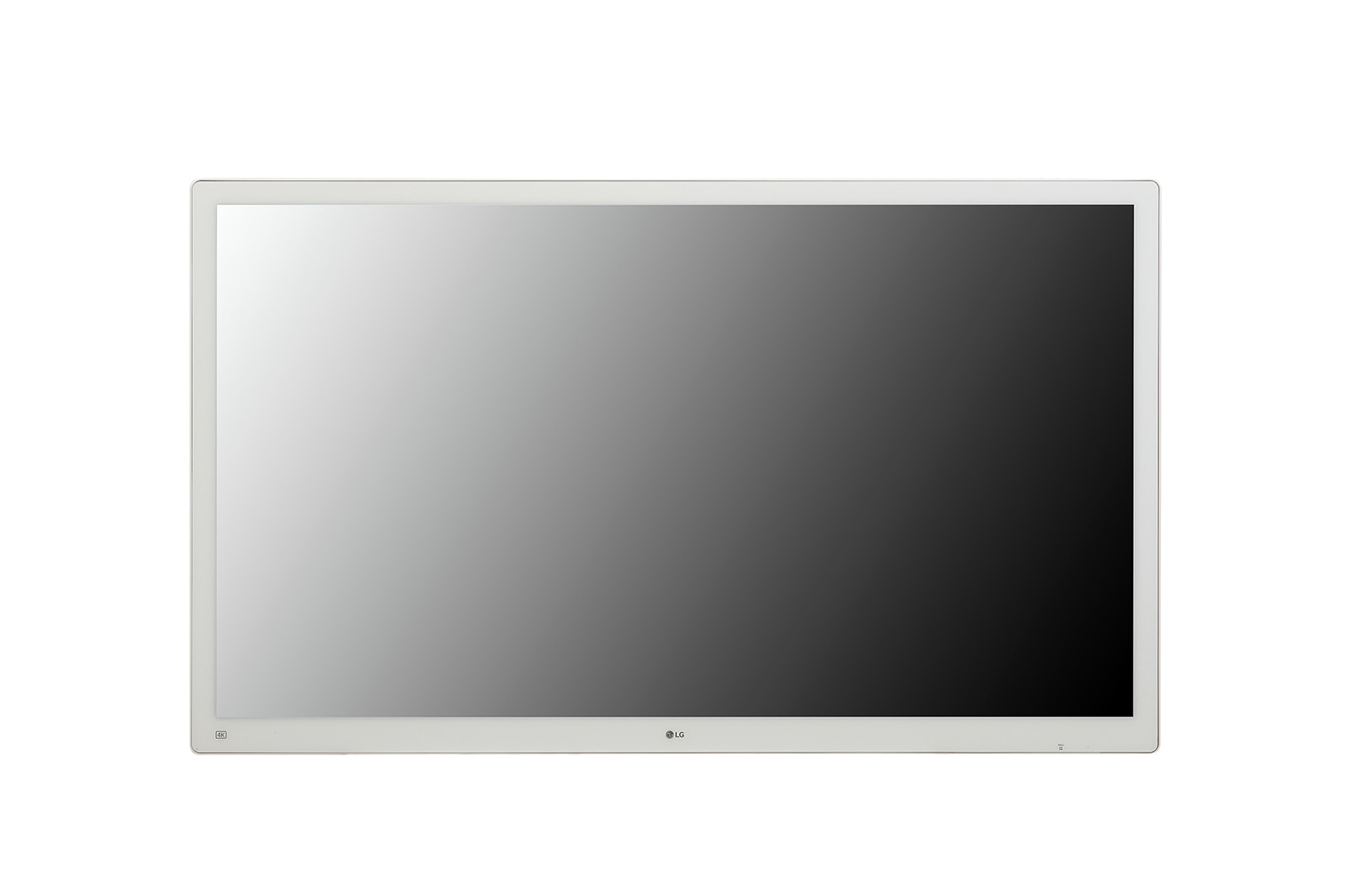

LG 55-inch 4K Surgical Monitor with 12G-SDI Support, 55MH5K
LG 55-inch 4K Surgical Monitor with 12G-SDI Support, 55MH5K
LG 55-inch 4K Surgical Monitor with 12G-SDI Support, 55MH5K
LG 55-inch 4K Surgical Monitor with 12G-SDI Support, 55MH5K
LG 55-inch 4K Surgical Monitor with 12G-SDI Support, 55MH5K
LG 55-inch 4K Surgical Monitor with 12G-SDI Support, 55MH5K
LG 55-inch 4K Surgical Monitor with 12G-SDI Support, 55MH5K
LG 55-inch 4K Surgical Monitor with 12G-SDI Support, 55MH5K
LG 55-inch 4K Surgical Monitor with 12G-SDI Support, 55MH5K
LG 55-inch 4K Surgical Monitor with 12G-SDI Support, 55MH5K
LG 55-inch 4K Surgical Monitor with 12G-SDI Support, 55MH5K
LG 55-inch 4K Surgical Monitor with 12G-SDI Support, 55MH5K
LG 55-inch 4K Surgical Monitor with 12G-SDI Support, 55MH5K
LG 55-inch 4K Surgical Monitor with 12G-SDI Support, 55MH5K
LG 55-inch 4K Surgical Monitor with 12G-SDI Support, 55MH5K
LG 55-inch 4K Surgical Monitor with 12G-SDI Support, 55MH5K
LG 55-inch 4K Surgical Monitor with 12G-SDI Support, 55MH5K
LG 55-inch 4K Surgical Monitor with 12G-SDI Support, 55MH5K
LG 55-inch 4K Surgical Monitor with 12G-SDI Support, 55MH5K
LG 55-inch 4K Surgical Monitor with 12G-SDI Support, 55MH5K

Key Features

  • 55-inch 4K (3840x2160) IPS Display
  • 680cd/m² (Typ.), DCI-P3 86%
  • HDR10, HDR Effect, 12G-SDI Support
  • Mirror & Rotation Mode, Up to 4PBP / PIP
  • Anti-Reflection, Anti-Fingerprint
  • IP45 (Front), IP32 (Except for front), IK06
More

4K Surgical Display

4K Large Display for Surgery

Experience vivid images on LG’s 55-inch 4K Display Surgical Monitor, equipped with an IPS panel that offers a wide 178° viewing angle.

LG’s 55-inch 4K IPS Surgical Monitor 55MH5K will take your image quality and convenience to the next level.

* All images are shown for illustrative purposes only and may vary from the actual product/usage.

55-inch 4K IPS

IPS Display with
Wide Viewing Angle

Experience vivid images on LG’s 55-inch 4K Display Surgical Monitor, equipped with an IPS panel that offers a wide 178° viewing angle.

* All images are shown for illustrative purposes only and may vary from the actual product/usage.

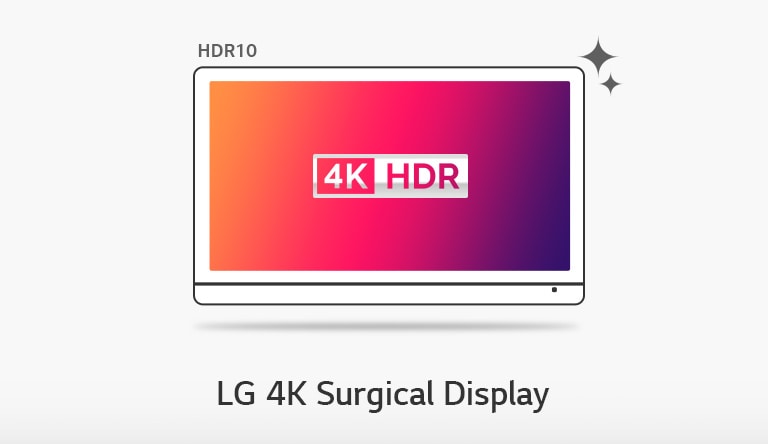

HDR10

HDR10

This 4K surgical monitor features HDR10, properly displaying HDR images clearly.

* All images are shown for illustrative purposes only and may vary from the actual product/usage.

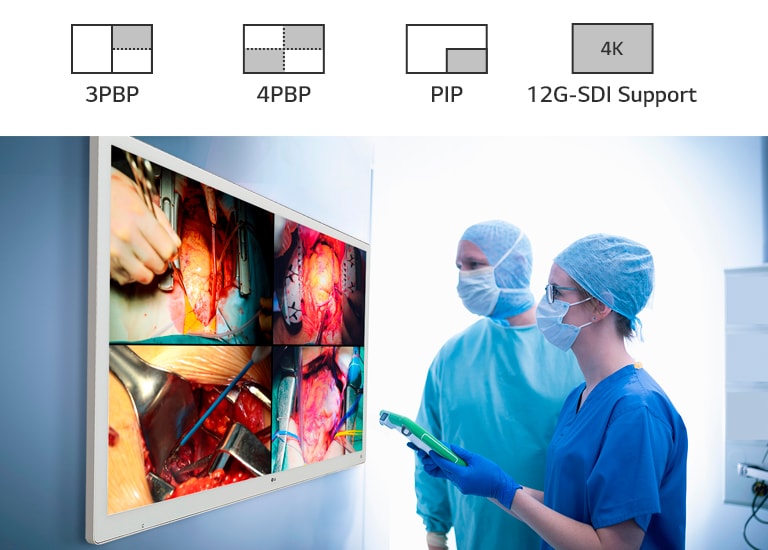

PBP, PIP & 12G-SDI Support

Multiple Signals on One Screen

55MH5K supports up to 4PBP, PIP and extended ports, allowing you to view multiple signals simultaneously on a single screen.





55MH5K supports up to 4PBP, PIP and extended ports, allowing you to view multiple signals simultaneously on a single screen.

* All images are shown for illustrative purposes only and may vary from the actual product/usage.

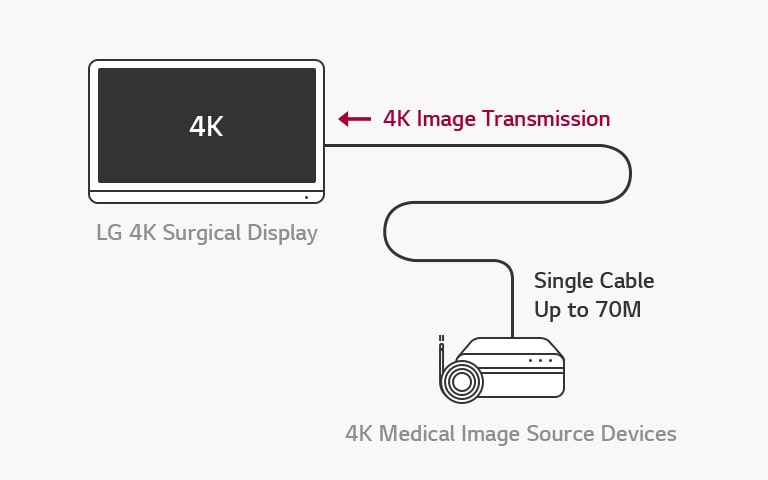

12G-SDI Support

The 55MH5K features a 55-inch 4K (3840x2160) IPS display with 12G-SDI Support, which enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery.

* 12G-SDI input transmission maximum distance may vary by manufacturers: Up to 50M using BELDEN 1694A cable / Up to 70M using CANARE UHD 5.5C cable.
* 12G-SDI is sold separately.
* All images are shown for illustrative purposes only and may vary from the actual product/usage.

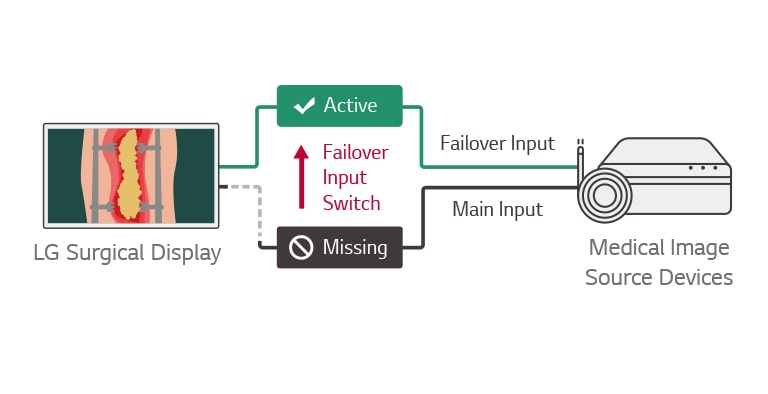

When the main source is missing, the display will automatically switch to a failover source and restore the main source once the signal is back.

Failover Input Switch

When the main source is missing, the display will automatically switch to a failover (backup) source and restore the main source once the signal is back. You can set the main input and failover input in the setting menu of monitor.

* All images are shown for illustrative purposes only and may vary from the actual product/usage.

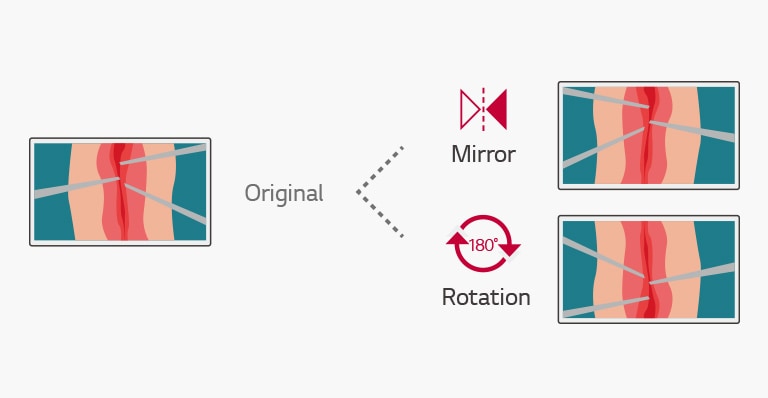

Conveniently flip and rotate the monitor to adjust to your needs. Mirror

Mirror & Rotation Mode

Conveniently flip and rotate the monitor to adjust to your surgery needs. Mirror & Rotation Modes allow you to select a convenient 180° rotated/mirror image.

* All images are shown for illustrative purposes only and may vary from the actual product/usage.

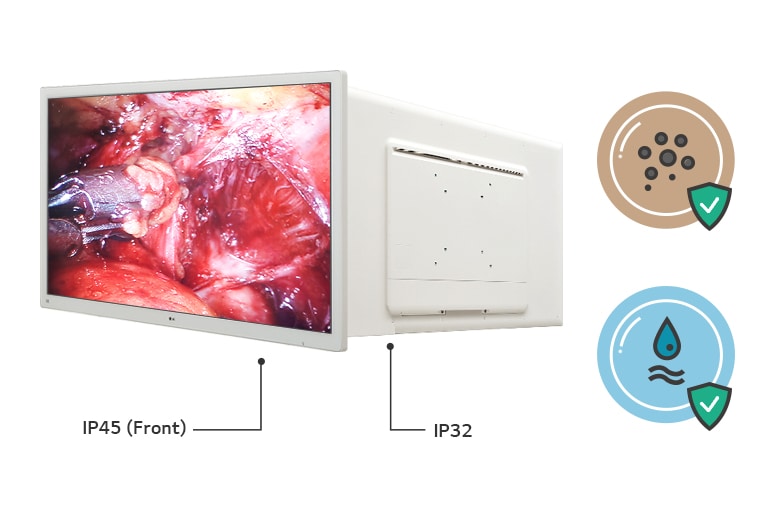

With ratings of IP 45 on the front and IP 32 on the body except for front, this surgical monitor is protected against contact with solid objects and water.

IP 45& IP 32

With ratings of IP 45* on the front and IP 32* on the body except for front, this surgical monitor is protected against contact with solid objects and water.

* IP 45: According to the Ingress Protection (IP) Rating System, an IP45 means protection against solid foreign objects Level 4 (Protection against solid objects larger than 1.0mm (such as a wire)), and protection against liquids Level 5 (Protection against low-pressure jets of water from any angle. Limited ingress permitted with no harmful effects). This product has been tested under controlled laboratory conditions and received an IP45 rating. Dry before using. Do not charge while wet. Level of protection against solids and liquids may change over time or with exposure to excessive amounts of solids and liquids.

* IP 32: According to the Ingress Protection (IP) Rating System, an IP32 means protection against solid foreign objects Level 3 (Protection against solid objects larger than 2.5mm (such as a screwdriver or cables)), and protection against liquids Level 2 (Protection against vertically falling droplets when enclosure is tilted up to 15° off vertical). This product has been tested under controlled laboratory conditions and received an IP32 rating. Dry before using. Do not charge while wet. Level of protection against solids and liquids may change over time or with exposure to excessive amounts of solids and liquids.

* All images are shown for illustrative purposes only and may vary from the actual product/usage.

Print

All Spec

DISPLAY

  • Size [Inch]

    55

  • Pixel Pitch [mm]

    0.315mm x 0.315mm

  • Resolution

    3840x2160

  • Aspect Ratio

    16:9

  • Backlight Technology

    LED

  • Panel Type

    IPS

  • Brightness (Typ.) [cd/m²]

    680cd

  • Contrast Ratio (Typ.)

    1100:1

  • Color Bit

    10bit

  • Color Gamut (Typ.)

    DCI-P3 86% (CIE1976)

  • Response Time

    5ms (GtG at Faster)

  • Viewing Angle (CR≥10)

    178°(Right/Left), 178°(Up/Down)

  • Surface Treatment

    With Direct bonding Glass (3.1t, AR, AF)

FEATURES

  • HDR 10

    YES

  • HDR Effect

    YES

  • HW Calibration

    YES

  • Super Resolution+

    YES

  • Black Stabilizer

    YES

  • PBP

    YES (2PBP/3PBP/4PBP)

  • PIP

    YES

  • Smart Energy Saving

    YES

  • DICOM Compliant

    YES

  • Hot Key

    YES(2keys)

  • Brightness stabilization

    400cd (Dicom_350cd)

  • Color Temperature

    6500K / 7500K / 9300K, Manual(5000K~10000K)

  • Rotation & Mirror Mode

    YES

  • Failover Input Switch

    YES

  • Color Calibrated in Factory

    YES(Delta E<5, Gamma 1.8~2.6/DICOM curve)

  • Others (Features)

    Uniformity: YES; User Preset: YES; Picture Mode: (SDR)Custom, Vivid, HDR Effect, Mono, REC709, REC2020, DICOM, Calibration 1, Calibration 2, (HDR)Custom, Vivid, Standard; Equipotential Pin: YES; OSD: 17 LANGUAGE; Color (Back Cover): White; Color (Middle Cabinet): White; Back Light Type: Edge; HDMI In (HDCP Ver.): 2.2; DP In: 2.2; HDMI Version: 2; HDMI (Max. Resolution at Hz): 3840x2160 at 60Hz; DP (Max. Resolution at Hz): 3840x2160 at 60Hz; HDMI/DP (w/o VRR): 56~61Hz; Peak Brightness (Min): 540 cd/m² (Peak)

  • HDR

    YES

  • PBP/PIP

    PBP YES (2PBP/3PBP/4PBP) / PIP YES

SW APPLICATION

  • LG Calibration Studio (True Color Pro)

    YES

CONNECTIVITY

  • HDMI

    YES(1ea)

  • DisplayPort

    YES(In 1ea / Out 1ea)

  • USB Upstream Port

    YES(1ea/ver3.0)

  • USB Downstream Port

    YES(1ea/ver3.0)

  • RS-232

    YES

  • DVI

    YES(1In / 1Out)

  • DVI-D

    YES(1In / 1Out)

  • DP Version

    1.2

  • DVI (Max Resolution at Hz)

    1920x1080 at 60Hz

  • 12G-SDI

    YES (12G INx4 / OUTx4, SFP INx1)

  • Input Terminals

    HDMI 1ea, DP In 1ea, DVI-D 1In, 12G-SDI INx4, SFP INx1, USB Upstream 1ea (ver3.0), RS-232, Equipotential Pin

  • Output Terminals

    DP Out 1ea, DVI-D 1Out, 12G-SDI OUTx4

  • USB

    Upstream 1ea / Downstream 1ea (ver3.0)

POWER

  • Type

    Built-in POWER

  • AC Input

    100 - 240 V (50/60 Hz, 2.5~1.25A)

  • Power Consumption (DC Off)

    Less than 0.3W

  • Power Consumption (Max.)

    180W

  • DC Output

    Built-in POWER (PSU output_20.5V,9A)

MECHANICAL

  • Wall Mountable [mm]

    200 x 200 mm & 300 x 300 mm

  • Borderless Design

    Normal

  • Machanical Power Switch

    YES

  • Down Height

    No Stand

  • Height Range

    No Stand

DIMENSIONS/WEIGHTS

  • Weight without Stand [kg]

    34.8

  • Weight in Shipping [kg]

    42.3

  • Dimension without Stand (W x H x D) [mm]

    1283.4 x 768.5 x 68.3

  • Dimension in Shiping (W x H x D) [mm]

    1490 x 880 x 172

  • Pallet Stuffing (20ft/40ft/40ft HC)

    84EA / 180EA / 180EA

  • Weight

    34.8kg

STANDARD

  • RoHS

    Yes

  • REACH

    Yes

  • WEEE

    YES

  • MFDS

    YES

  • IP(front/except for front)

    IP45/IP32

  • Vandal-proof

    Yes

  • UL (cUL)

    YES

  • IEC (IEC 60601 - 1 / IEC 60601 - 1 - 2)

    YES

  • EN (EN 60601 - 1 / EN 60601 - 1 - 2)

    YES

  • IEC (IEC 60950-1 / IEC 55032, 55024)

    Yes

  • EN (EN 60950-1 / EN 55032, 55024)

    Yes

  • CE

    MDR

  • FDA

    Registration (Class I)

  • ISO13485

    YES

ACCESSORY

  • HDMI

    YES

  • Display Port

    YES

  • Calibration Report (Paper)

    YES

  • Power Cord

    YES

  • Others (Accessory)

    Display Port (Color / Length): Black / 1.8m; Power Cord (Color/Length): White / 2.8m

  • HDMI (Color/Length)

    Black / 1.8m
