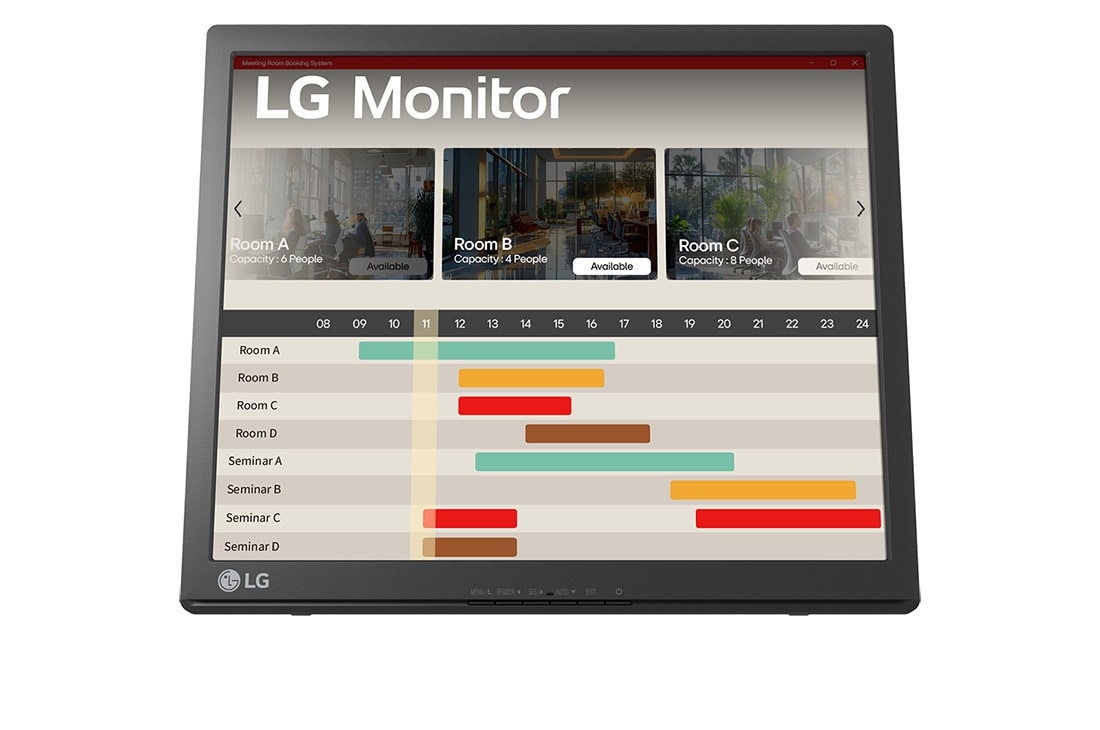

17” SXGA touch display with 5ms response time
LG SXGA (1280x1024) touchscreen monitor allows you to operate efficiently with your fingertips, enhancing work productivity and comfort. Plus, you can enjoy realistic videos with less screen stuttering, thanks to the fast 5ms response time.
17” SXGA touch display with 5ms response time Touch lightly, control easily
*The images simulated to enhance feature understanding. It may differ from actual use.
*Response Time : 5ms (On/Off, Not Support OD)
Ergonomic design
*The images simulated to enhance feature understanding. It may differ from actual use.
*Tilt range: 15 ~ 66°
Integrated power module
By providing built-in power, workstations can be designed with a streamlined and clutter-less layout. This allows for better space utilization and organization, creating a cleaner and more efficient work environment.
Integrated power module Fully use your desk
*The images simulated to enhance feature understanding. It may differ from actual use.
*The keyboard and mouse are not included in the package (sold separately).
Smart energy saving
*The images simulated to enhance feature understanding. It may differ from actual use.
*Luminance compensation algorithm: Adjusting backlight and color pixel current automatically using Scaler IC.
Size [cm]
43.18 cm
Size [Inch]
17
Resolution
1280 x 1024
Panel Type
TN
Aspect Ratio
5:4
Color Gamut (Typ.)
NTSC 72%(CIE1931)
Response Time
5ms (On/Off, t Support OD)
Display Position Adjustments
Tilt
Category
Small Size
Product name
HD
Year
Y24
Size [Inch]
17
Size [cm]
43.18 cm
PPI (Pixel Per Inch)
96.42
Resolution
1280 x 1024
Panel Type
TN
Aspect Ratio
5:4
Pixel Pitch [mm]
0.264 x 0.264
Viewing Angle (CR≥10)
170º(R/L), 160º(U/D)
Brightness (Min.) [cd/m²]
150 cd/m²
Brightness (Typ.) [cd/m²]
200 cd/m²
Color Gamut (Typ.)
NTSC 72%(CIE1931)
Color Depth (Number of Colors)
16.7M
Color Bit
8bit
Contrast Ratio (Min.)
600:1
Contrast Ratio (Typ.)
1000:1
Response Time
5ms (On/Off, t Support OD)
Surface Treatment
AntiGlare
Reader Mode
YES
Smart Energy Saving
YES
OSD Language
18 countries (English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Portuguese(brazil), Polish, Russian, Greek, Ukrainian, Chinese, Traditional Chinese, Japanese, Korean, Hindi)
Others (Features)
Single Point Touch
USB Upstream Port
1x USB2.0
D-Sub
YES(1ea)
D-Sub (Max. Resolution at Hz)
1280 x 1024 at 75Hz
D-Sub (V Frequency)
56~75Hz
Location
Vertical
Type
Builtin Power
AC Input
100~240V (50/60Hz)
DC Output
28W(19V,1.6A)
Power Consumption (On-Mode)
16W
Power Consumption (Sleep Mode)
Less than 0.3W
Power Consumption (DC Off)
Less than 0.3W
Power Consumption (On-Mode) (ErP)
12W
Borderless Design
Normal
Display Position Adjustments
Tilt
tilt
+15º(±3°)~66º(±3°)
Wall Mountable [mm]
75 x 75 mm
Color (Back Cover)
Black n Glossy
Color (Front Cabinet)
Black n Glossy
Color (Middle Cabinet)
Black n Glossy
Color (Stand Base)
Black n Glossy
Color (Stand Body)
Black n Glossy
Dimension with Stand (W x H x D) [mm]
370 x 95 x 315
Dimension without Stand (W x H x D) [mm]
370 x 62 x 315
Dimension in Shiping (W x H x D) [mm]
429×154×377
Weight with Stand [kg]
3.3
Weight in Shipping [kg]
4.5
Pallet Stuffing (20ft/40ft/40ft HC)
936/2028/2028
D-Sub
YES
D-Sub (Color/Length)
Black / 1.5m
Power Cord
YES
Power Cord (Color/Length)
Black / 1.5m
USB A to B
YES
USB A to B (Color/Length)
Black / 1.8m
Others (Standard)
Win10
CB
YES
UL (cUL)
YES
FCC-B
YES
ErP
YES
CE
YES
BIS (for India)
Depends on PDR
BSMI (for Taiwan)
Depends on PDR
CCC (for china)
Depends on PDR
KC (for Rep. of Korea)
Depends on PDR
TUV-TYPE
YES
VCCI (for Japan)
Depends on PDR
To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
