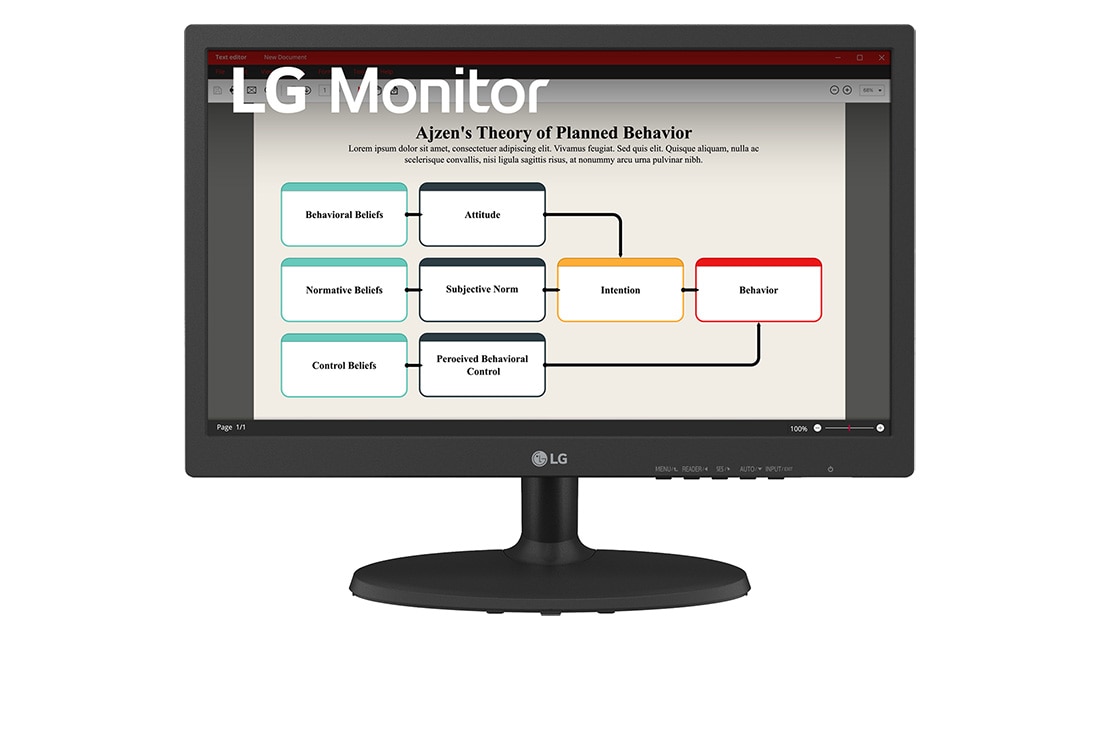

18.5” HD display
LG HD monitor provides a comfortable working environment with 18.5" HD (1366x768) resolution.
The HD monitor is on the desk, showing clear color images on its screen.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The keyboard and mouse are not included in the package.
Flicker safe and 5ms response time
Flicker Safe reduces invisible flickering, alleviating eye strain for prolonged use. Also, you can enjoy realistic videos with less screen stuttering and motion blur, thanks to the fast 5ms response time.
*The images simulated to enhance feature understanding. It may differ from actual use.
*Response time: 5ms (On/Off, Not support OD), Comparison of models with a response time of more than 5ms.
Ergonomic design
A stand with adjustable tilt enables a comfortable working environment, helping you sit comfortably for extended periods while working. Moreover, utilizing the Wall Mount feature allows for easy installation of the monitor on the wall.
*The images simulated to enhance feature understanding. It may differ from actual use.
*Tilt range: -5~ 20°
*The wall mount is not included in the package.
Integrated power module
By providing built-in power, workstations can be designed with a streamlined and clutter-less layout. This allows for better space utilization and organization, creating a cleaner and more efficient work environment.
By providing built-in power, workstations can be designed with a streamlined and clutter-less layout. This allows for better space utilization and organization, creating a cleaner and more efficient work environment.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The keyboard and mouse are not included in the package.

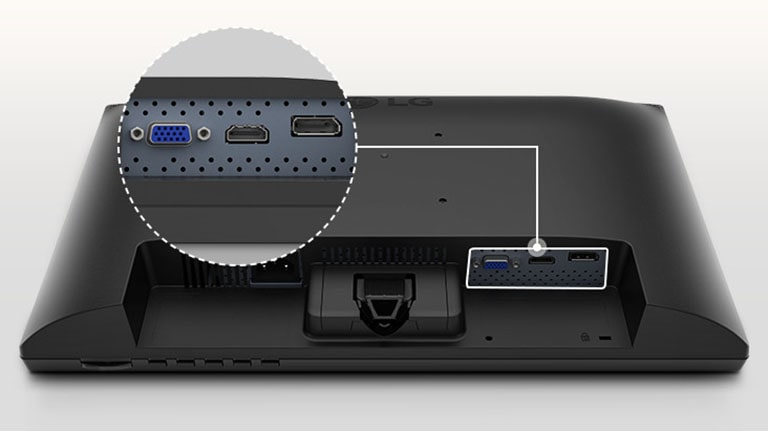

This monitor provides compatibility with various devices through D-sub, HDMI, and DisplayPort connections, enhancing both convenience and productivity.
*The images simulated to enhance feature understanding. It may differ from actual use.
Smart energy saving
Our Smart energy saving mode reduces power consumption through a luminance compensation algorithm while keeping your monitor bright. Conserve energy without compromising brightness.
*The images simulated to enhance feature understanding. It may differ from actual use.
Size [cm]
47cm
Size [Inch]
18.5
Resolution
1366 x 768
Panel Type
TN
Aspect Ratio
16:9
Color Gamut (Typ.)
NTSC 72% (CIE1931)
Refresh Rate (Max.) [Hz]
60
Response Time
5ms (On/Off, t Support OD)
Display Position Adjustments
Tilt
Category
Small Size
Product name
HD
Year
Y24
Size [Inch]
18.5
Size [cm]
47cm
PPI (Pixel Per Inch)
84.71
Resolution
1366 x 768
Panel Type
TN
Aspect Ratio
16:9
Pixel Pitch [mm]
0.3 x 0.3 mm
Viewing Angle (CR≥10)
90º(R/L), 65º(U/D)
Brightness (Min.) [cd/m²]
160 cd/m²
Brightness (Typ.) [cd/m²]
200 cd/m²
Color Gamut (Min.)
NTSC 72% (CIE1931)
Color Gamut (Typ.)
NTSC 72% (CIE1931)
Color Depth (Number of Colors)
16.7M
Color Bit
6bit
Contrast Ratio (Min.)
450:1
Contrast Ratio (Typ.)
600:1
Response Time
5ms (On/Off, t Support OD)
Refresh Rate (Max.) [Hz]
60
Surface Treatment
AntiGlare
Reader Mode
YES
Smart Energy Saving
YES
OSD Language
17 countries (English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Portuguese(brazil), Polish, Russian, Greek, Ukrainian, Chinese, Traditional Chinese, Japanese, Korean)
Picture Mode
Reader Mode
Dual Controller
YES
OnScreen Control (LG Screen Manager)
YES
HDMI
YES(1ea)
HDMI Version
Supports TMDS 3G as compliant with HDMI 1.4
HDMI (HDCP Version)
1.4
HDMI (w/o VRR)
PC: 56~75Hz, AV: 50~61Hz
DisplayPort
YES(1ea)
DP Version
1.2
DP (HDCP Version)
1.4
D-Sub
YES(1ea)
D-Sub (Max. Resolution at Hz)
1366 x 768 at 60Hz
D-Sub (V Frequency)
56~75Hz
Location
Vertical
Type
Builtin Power
AC Input
100~240V (50/60Hz)
Power Consumption (On-Mode)
14W
Power Consumption (Sleep Mode)
Less than 0.3W
Power Consumption (DC Off)
Less than 0.3W
Borderless Design
Normal
Display Position Adjustments
Tilt
tilt
5~+20°(±4)
Wall Mountable [mm]
75 x 75 mm
Base Detachable
YES
Color (Back Cover)
Matt Black
Color (Front Cabinet)
Matt Black
Color (Middle Cabinet)
Matt Black
Color (Stand Base)
Matt Black
Color (Stand Body)
Matt Black
Dimension with Stand (W x H x D) [mm]
441.4 x 168 x 348.8
Dimension without Stand (W x H x D) [mm]
441.4 x 58.4 x 278.1
Dimension in Shiping (W x H x D) [mm]
509 x 127 x 343
Weight with Stand [kg]
2.4
Weight without Stand [kg]
2.2
Weight in Shipping [kg]
3.4
Pallet Stuffing (20ft/40ft/40ft HC)
1008/2240/2660
HDMI
YES
HDMI (Color/Length)
Black / 1.8m
Power Cord
YES
Power Cord (Color/Length)
Black / 1.8m
CB
YES
UL (cUL)
YES
FCC-B
YES
CE
YES
BIS (for India)
Depends on PDR
BSMI (for Taiwan)
Depends on PDR
CCC (for china)
Depends on PDR
KC (for Rep. of Korea)
Depends on PDR
TUV-TYPE
YES
VCCI (for Japan)
Depends on PDR
