UltraFine Display OLED Pro

65EP5G

Key Features

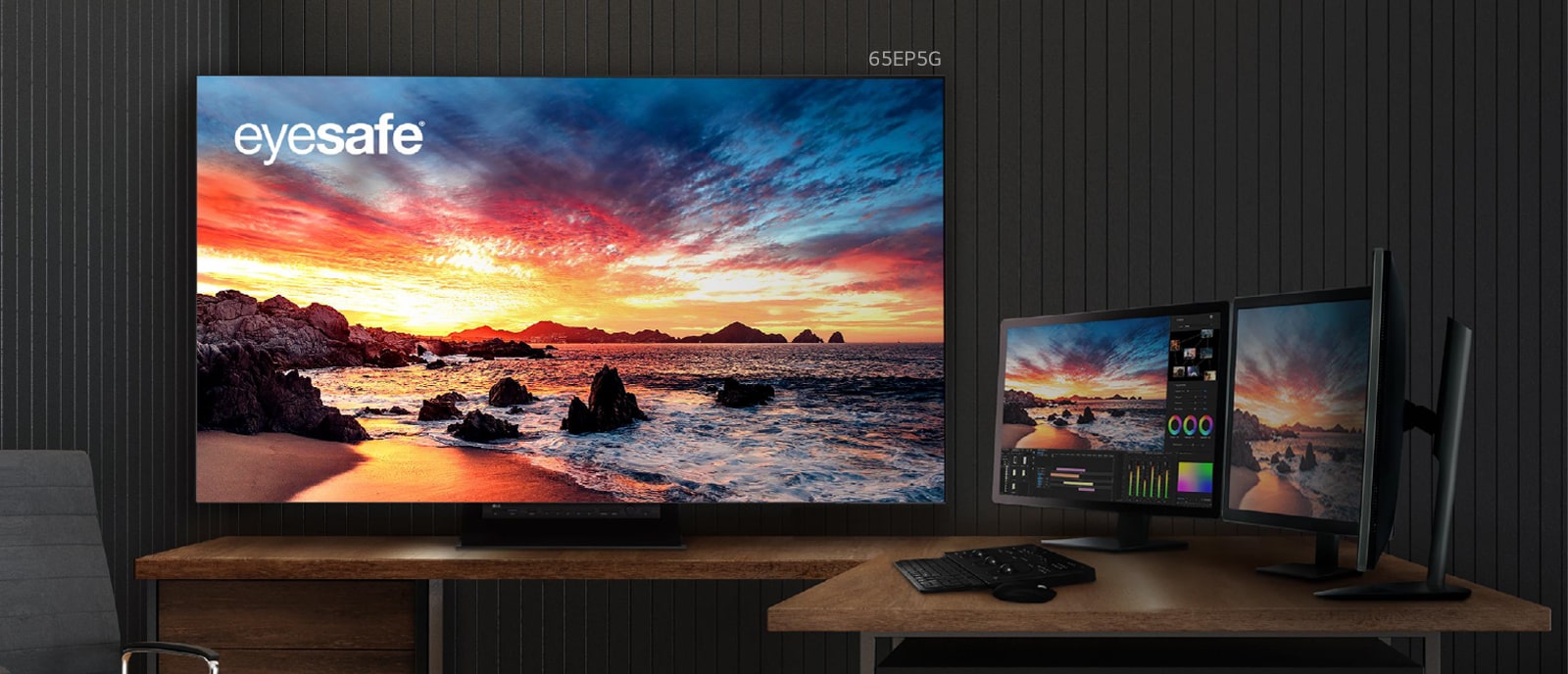

Accurate Color with a Wide OLED Screen

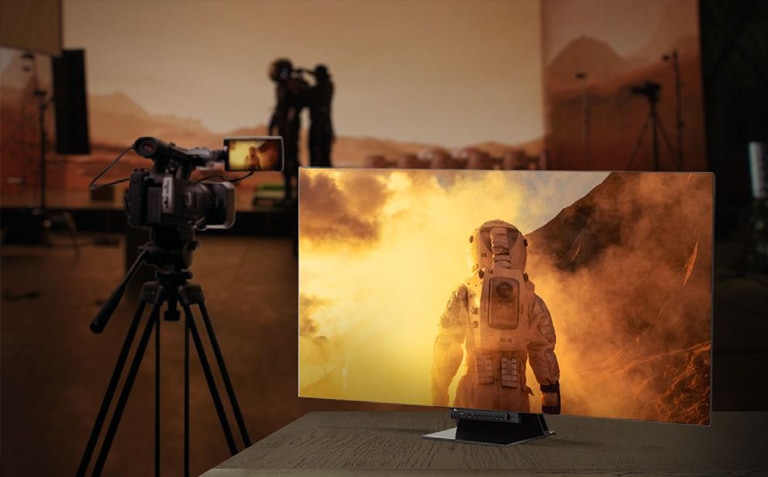

Jack Interfaces for Professional (SDI, SFP+, etc.)
Smart Calibration
Brightness(Typ.) : 1,000 / 900 / 500 / 180nit (APL 3% / 10% / 25% / 100%)

PANEL

Screen Size (Inch)
65
Panel Technology
OLED
Back Light Type
OLED
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
120Hz
Brightness
950/850/450/170nit (APL 3%/10%/25%/100%)
Contrast Ratio
1,850,000:1
Dynamic CR
NO
Color Gamut
DCI-P3 99%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colors
Response Time
0.1ms (G to G)
Surface Treatment (Haze)
Haze 0%
Life time
30,000Hrs (Typ.)
Portait / Landscape
NO / YES
Transparency
N/A
QWP (Quarter Wave Plate)
N/A

CONNECTIVITY

HDMI In
YES (2ea)
HDMI In (HDCP Ver.)
2.2/1.4
DP In
NO
DVI-D In
NO
RGB In
NO
Audio In
NO
RS232C In
YES
RJ45(LAN) In
YES (1ea)
IR In
NO
USB In
USB2.0 Type A (1ea)
HDMI Out
NO
DP Out
NO
Audio Out
YES
Touch USB
NO
External Speaker Out
NO
RS232C Out
NO
RJ45(LAN) Out
NO
IR Out
NO
Daisy Chain
NO

CONNECTIVITY (OLED PRO DEDICATED)

SDI In
YES (4ea)
SFP+ In
YES
REF(Gen-Lock) In
YES
RJ45(GPI Remote) In
YES
SDI Out
YES (4ea)
RJ45(GPI Remote) Out
YES

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
T/R/L/B : 2.0/2.0/2.0/2.0mm (Off Bezel) T/R/L/B : 8.7/8.9/8.9/11.6mm (On Bezel)
Weight (Head)
31Kg
Weight (Head+Stand)
35Kg
Packed Weight
45.5Kg
Monitor Dimensions (W x H x D)
1446.3 x 823.8 x 49mm (without Control Box) 1446.3 x 853.8 x 56.5mm (with Control Box)
Monitor Dimension with Stand (W x H x D)
1446.3 x 896.5 x 272mm
Carton Dimensions (W x H x D)
1670 x 200 x 1108mm
Handle
YES
VESA Standard Mount Interface
300 x 300 mm

FEATURE - HARDWARE

Internal Memory (eMMC)
8GB
Wi-Fi/BT (Built-in)
NO
Temperature Sensor
YES
Auto Brightness Sensor
NO
Pixel Sensor
NO
Proximity Sensor
NO
Current Sensor
NO
BLU Sensor
NO
Humidity Sensor
NO
Acceleration(Gyro) Sensor
NO
Power Indicator
YES
Local Key Operation
YES
FAN (Built-in)
NO

FEATURE - SOFTWARE

OS Ver. (webOS)
webOS 5.0
PIP
YES
PBP
YES (2PBP)
ISM Method
YES
The security update is supported for
5 years from the product launch date stated at https://lgsecurity.lge.com/bulletins/idproducts

ENVIRONMENT CONDITIONS

Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power

POWER CONSUMPTION

Typ.
300W
Max.
470W
BTU (British Thermal Unit)
1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max.)
Smart Enegy Saving(~70%)
N/A
DPM
N/A
Power off
0.5W

SOUND

Speaker (Built-in)
NO

CERTIFICATION

Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ERP / Energy Star
YES / NO
ePEAT(US only)
NO

OPS COMPATIBILITY

OPS Type compatible
N/A
OPS Power Built-in
N/A

SOFTWARE COMPATIBILITY

SuperSign CMS
NO
SuperSign Control+
NO
SuperSign WB
YES
SuperSign Cloud
NO
Promota
NO
Mobile CMS
NO
Connected Care
NO

LANGUAGE

OSD
English, Korean

ACCESSORY

Basic
Remote Controller(include battery 2ea), IG(Installation Guide), Regulation Book
Optional
NO

SPECIAL FEATURE

Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face up)
N/A
Tilt (Face down)
N/A
IP Rating
N/A
Conformal Coating (Power Board)
YES
Power Protection
N/A
Direct Sunlight
N/A

DEDICATED FEATURE - OLED PRO

Color Adjustment
OLED Light, Brightness, Contrast, Chroma, Sharpness, Tint, White Balance Control
Color Temp.
VAR Temp/9300K/6500K/5400K/3200K/D65(6504K)/C(6774K)/D-Cinema(6302K)
Over scan
Zero Scan, Over Scan, Under Scan
Aspect Ratio
Auto, Original, Full Wide, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1:1
AFD (Active Format Description)
NO
Zoom
x2~x5
HDR/SDR monitoring
YES
Peaking Filter (Camera Focus Assist)
NO
False Color
NO
Calibration SW
SuperSign WB - including Uniformity Compensation, 9p/13p/25p, EBU Grade1
3rd Party Cal. SW Compatibility
CalMAN - including Uniformity Compensation, 9p/13p/25p, EBU Grade1
Eyesafe Cetification
YES
DeltaE < 2
YES
Gamut
HDR Gamut / SDR Gamut
SDI Color Format
Auto, RGB444, YCbCr444, YCbCr422
Custom 3D LUT file Import (through USB)
NO
R/G/B Gain
-768~255
Mono/Blue Only
YES
Transfer Matrix
YES
Mastering Peak
YES
EOTF(Electro-Optical Transfer Function)
Auto/User/1.9/2.2/2.4/2.6/SDR(Calibration)/ST.2084 PQ/BT.2100 HLG/HDR(Calibration)
Marker
YES
Marker - Safety Area
YES
Marker - Center Marker
YES
Audio - Source Selection
YES
Audio - Level Meter
YES
Audio - Sound Mode
NO
Audio - Dolby Atmos
YES
GPI Control (General Purpose Interface)
YES
Video Analysis - Waveform
YES
Video Analysis - Vector Scope
YES
Video Range
NO
Profile Load / Save
YES
Function Key
YES
Time Code
YES
UMD (Under Monitor Display)
YES
VPID
YES
Internal Signal Pattern
YES
Caption
YES
Tally
YES
Genlock
YES
OLED Panel Setting (for image sticking prevention)
TPC Auto-dimming (Temporal Peak Luminance Control), Pixel Refresher, Screen Shift, Logo Luminance Adjustment, GSR Auto dimming (Global Sticky Reduction), CPC (Convex Power Control)
LG Connect
YES
Support Web API
YES
