Powerful Security
Access Anytime, Anywhere
Convenient Collaboration
Cost Savings
*Not intended for use in displaying radiological images for review, analysis, or diagnosis; not intended for diagnostic radiology.

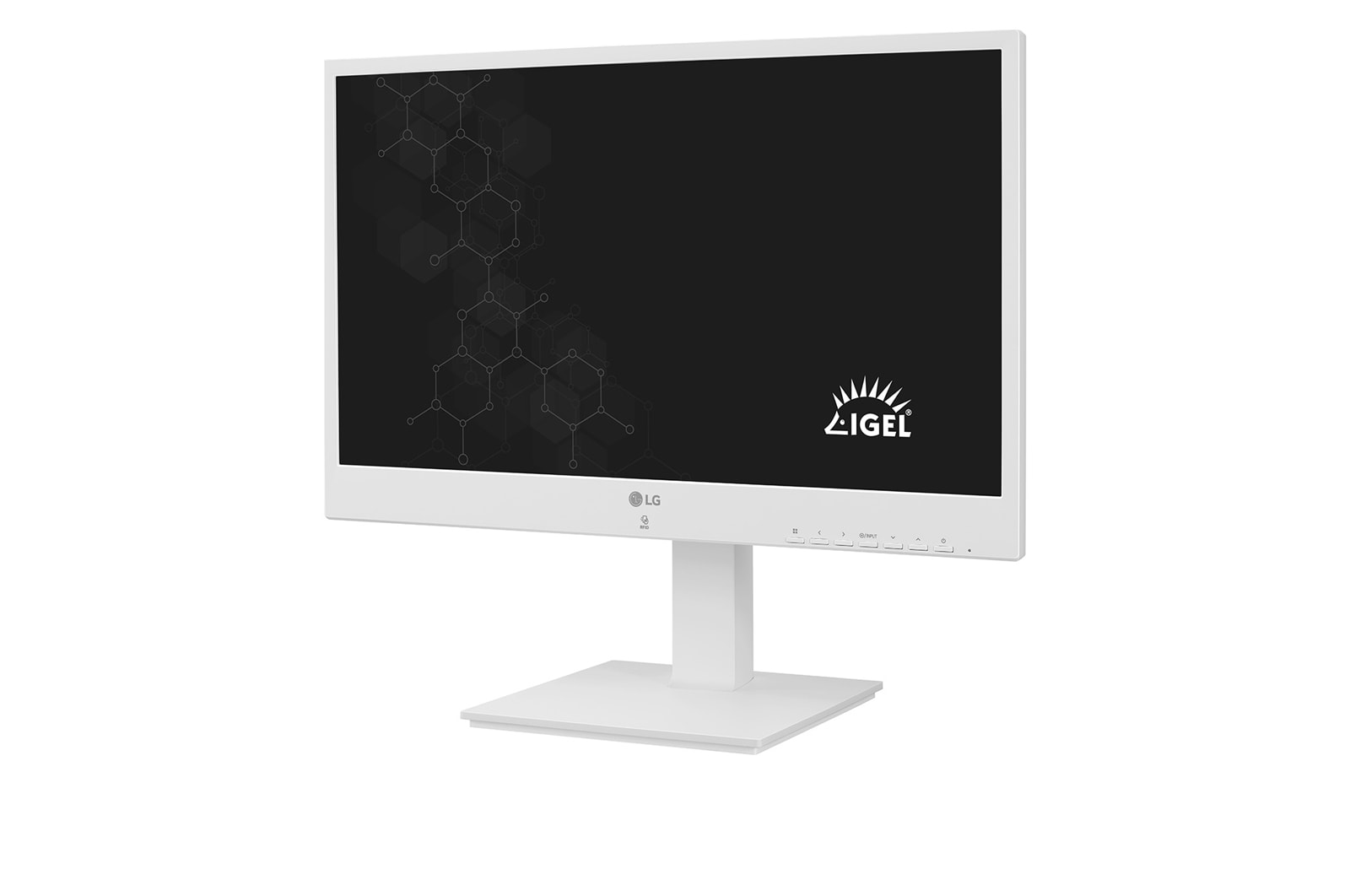

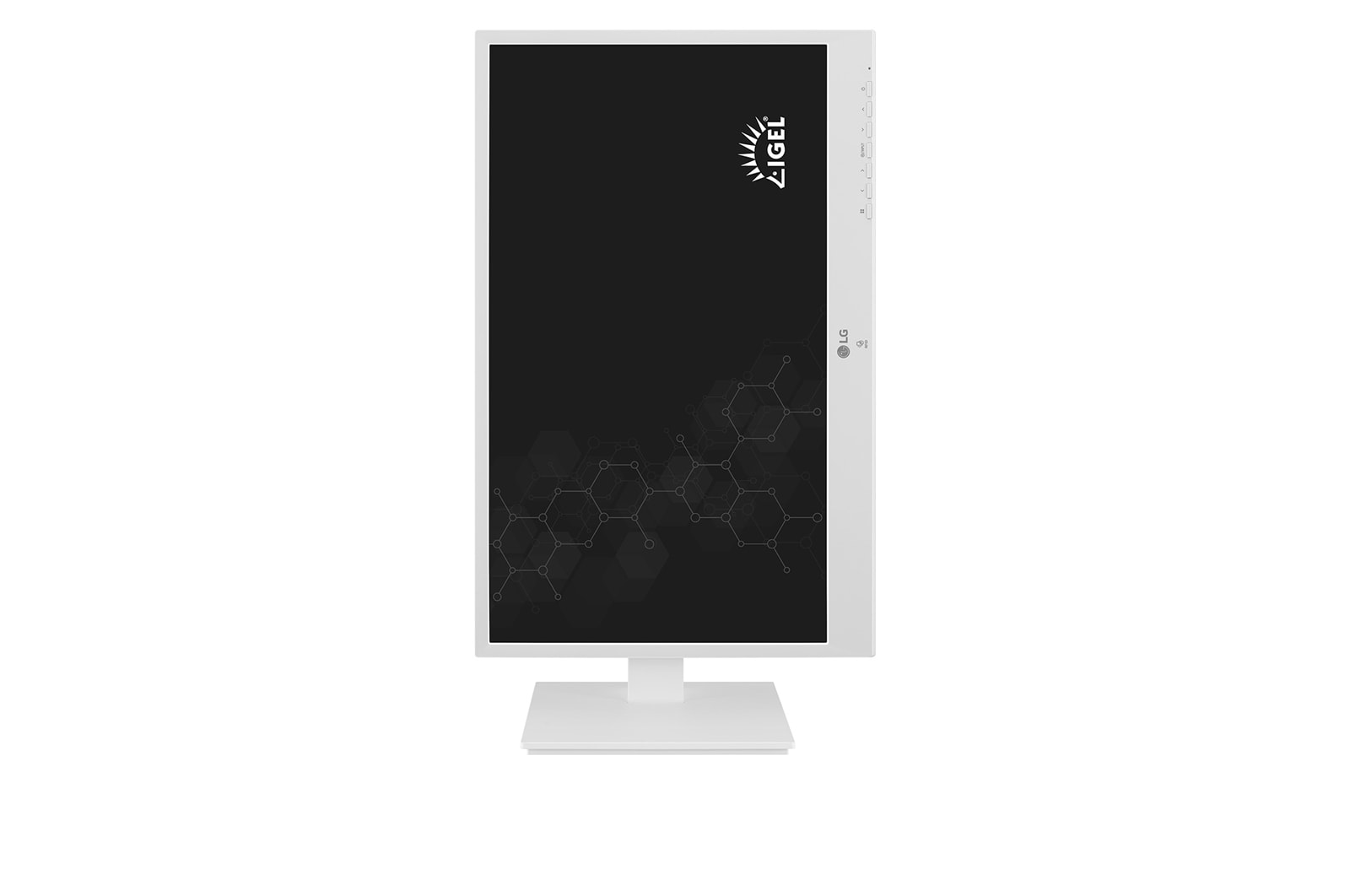

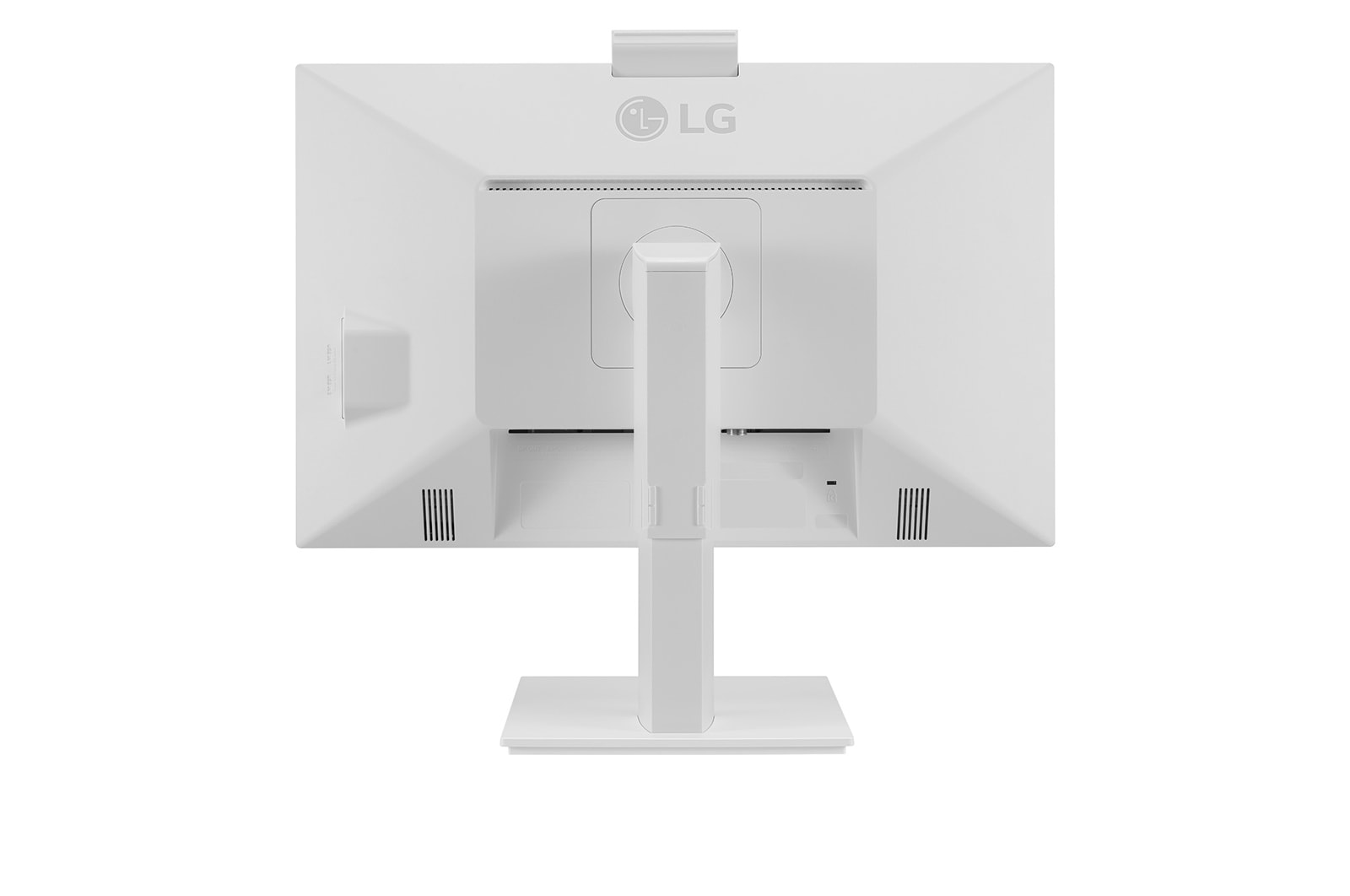

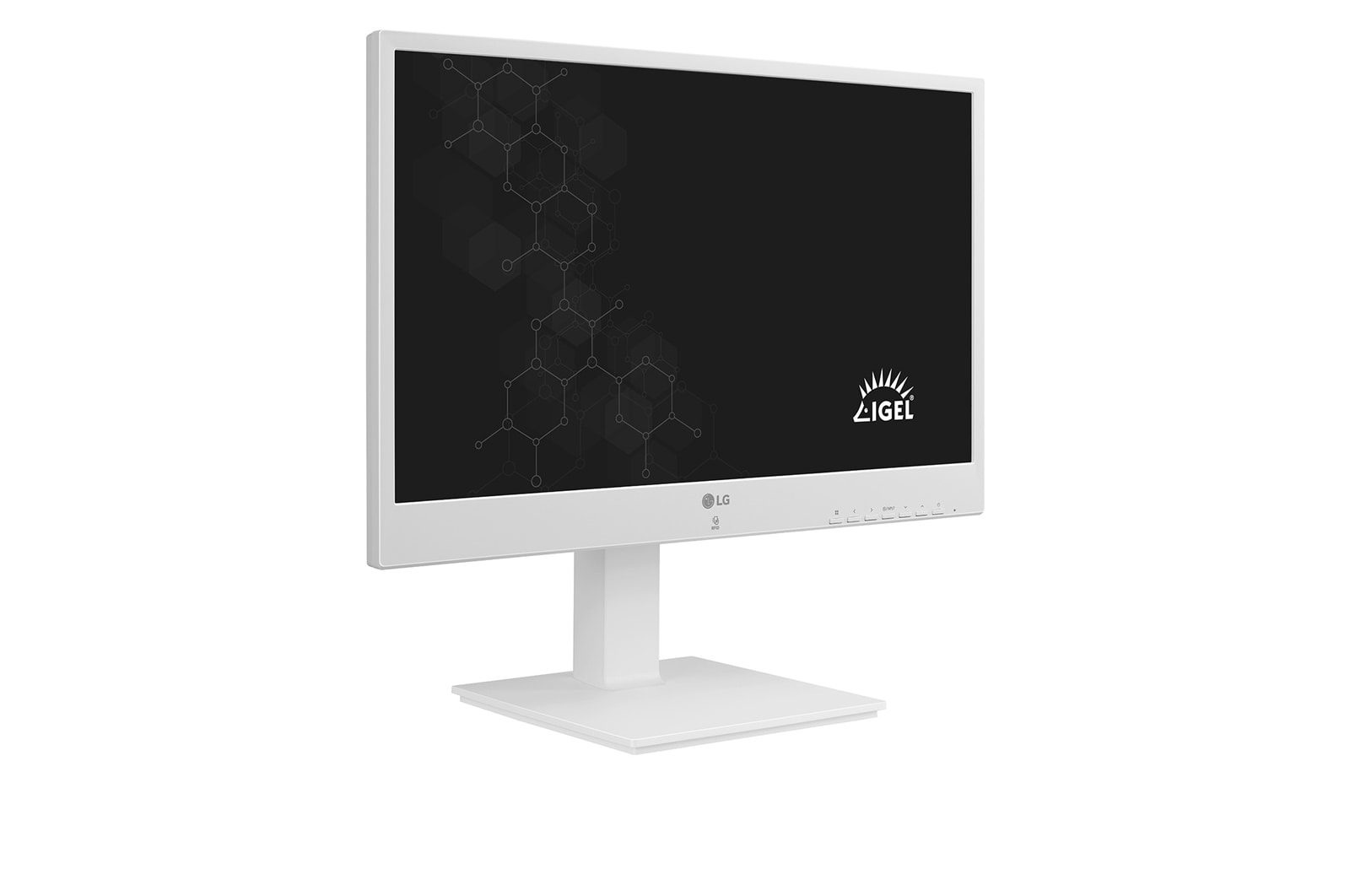

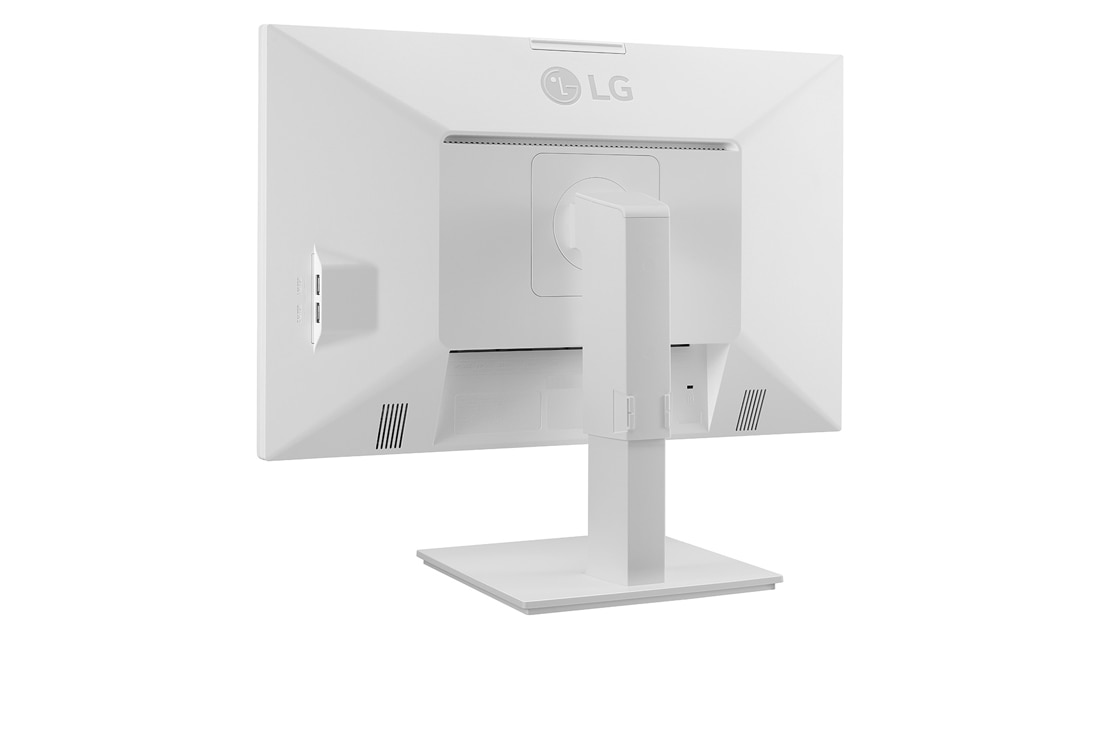

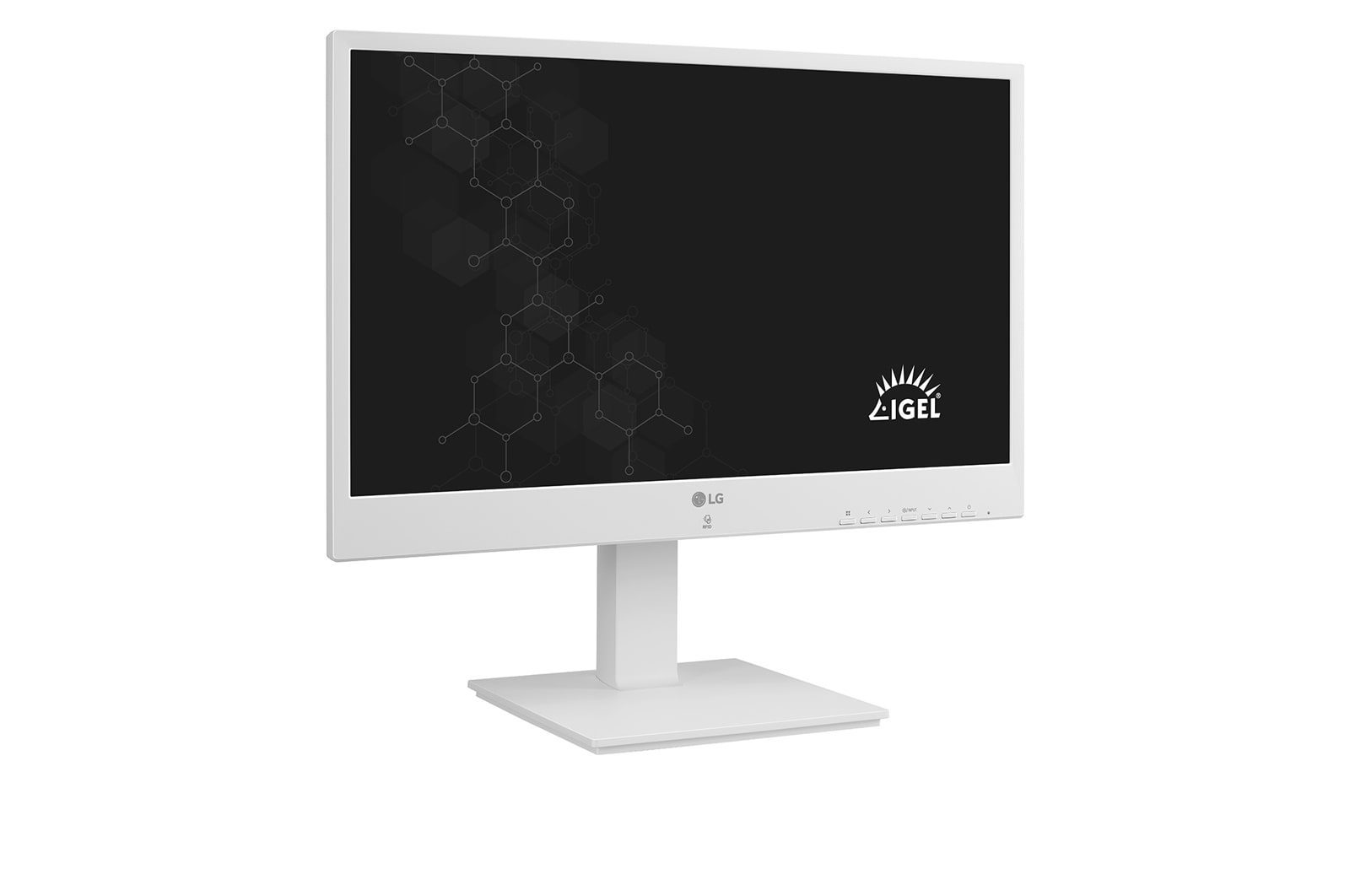

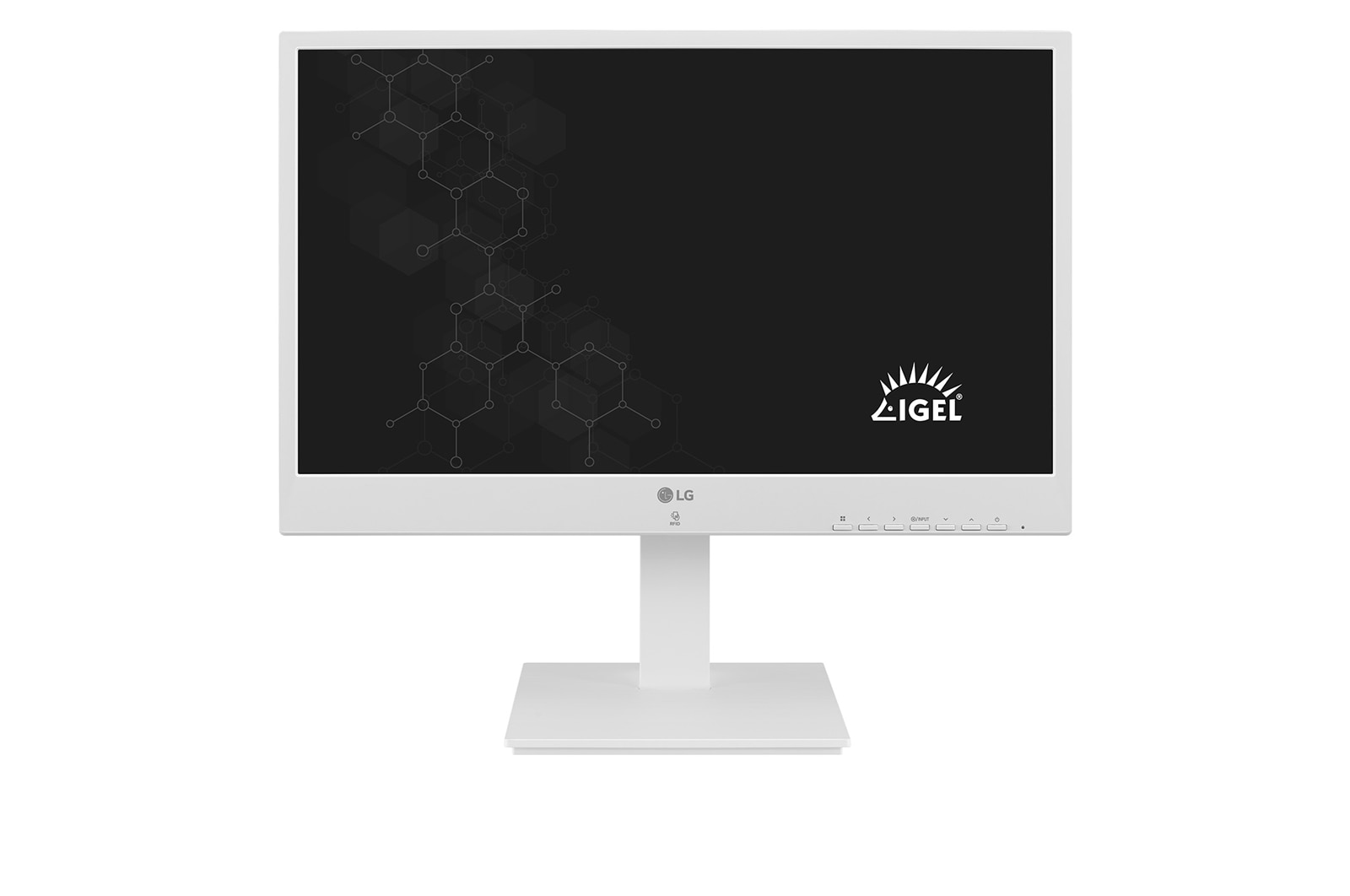

All-in-One Thin Client
LG's 24CR671IK in compliance with IEC 60601 standards for medical electrical equipment. Also, its white color body helps make dust and dirt visible so it is easy to remove substances**.

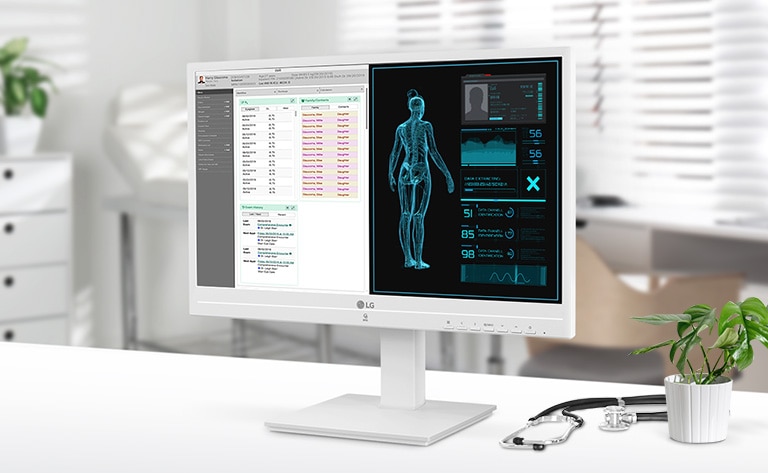

LG's 24CN670I approved by medical standards* (IEC60601, CE MDD and FDA Class I), ensures its reliability at medical environment.
*Not intended for use in displaying radiological images for review, analysis, or diagnosis; not intended for diagnostic radiology.
**Recommended cleaning products are Isopropanol 100%, Ethanol 70%, Cidex OPA, 0.9% NaCl solution. All excluding screen. See user guide for cleaning instructions for more details.

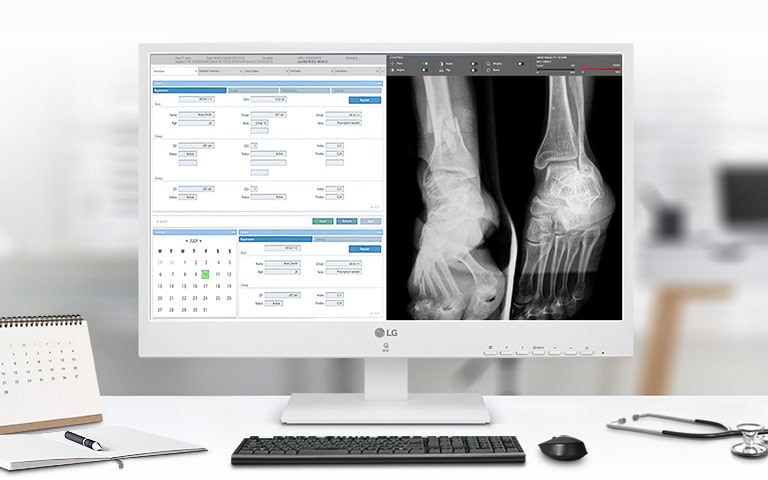

Quad-core Processor
With Quad-core Processor and a powerful system memory option, 24CR671IK helps you complete your work faster and easier than ever.
quad-core processor enabling you to get work done fast, and easily.
Intel® Pentium N6005
4GB / 8GB DDR4 & 16GB eMMC
IGEL OS Pre-installed
*Not intended for use in displaying radiological images for review, analysis, or diagnosis; not intended for diagnostic radiology.
*RAM and storage specifications as detailed above may differ by model.
*IGEL OS is pre-installed as a trial version, and the Warranty & Repair service of OS is only available to IGEL.
*Not intended for use in displaying radiological images for review, analysis, or diagnosis; not intended for diagnostic radiology.
*Not intended for use in displaying radiological images for review, analysis, or diagnosis; not intended for diagnostic radiology.
Full HD IPS Display
LG All-in-One Thin Client with IPS technology delivers visual comfort especially for sharing charts and medical information with others.
LG All-in-One Thin Client with IPS technology delivers visual comfort especially for sharing charts and medical information with others.
*Not intended for use in displaying radiological images for review, analysis, or diagnosis; not intended for diagnostic radiology.

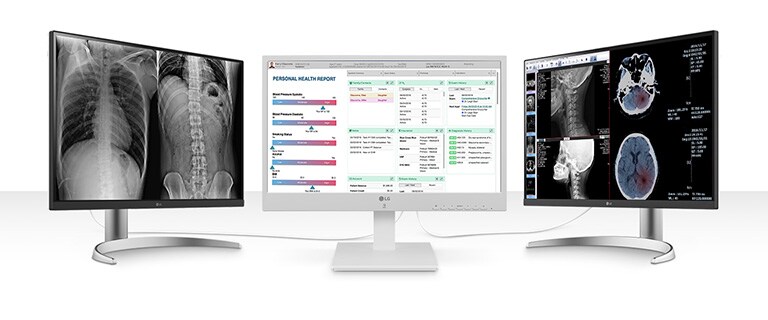

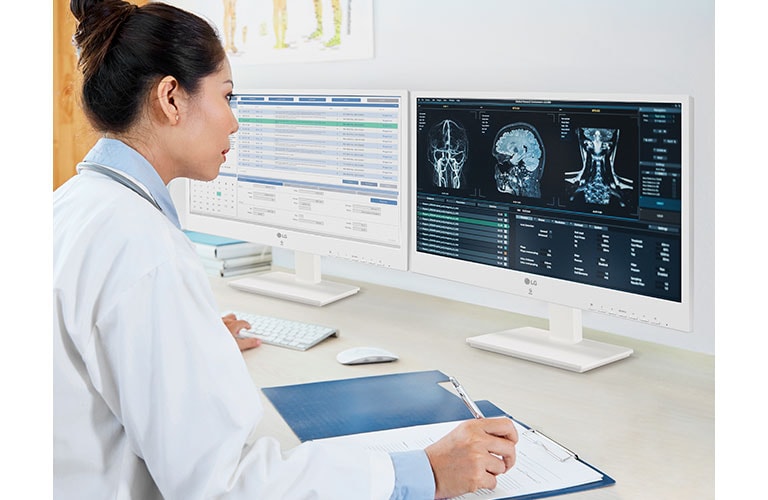

Up to 2 Display Support
LG 24CR671IK supports up to 4K UHD resolution dual displays. With flexibility for multi-monitor set-up options, you can get more done in less time.
*Not intended for use in displaying radiological images for review, analysis, or diagnosis; not intended for diagnostic radiology.
*Supporting connected displays via USB Type-C™ and DisplayPort out.
*Not intended for use in displaying radiological images for review, analysis, or diagnosis; not intended for diagnostic radiology.

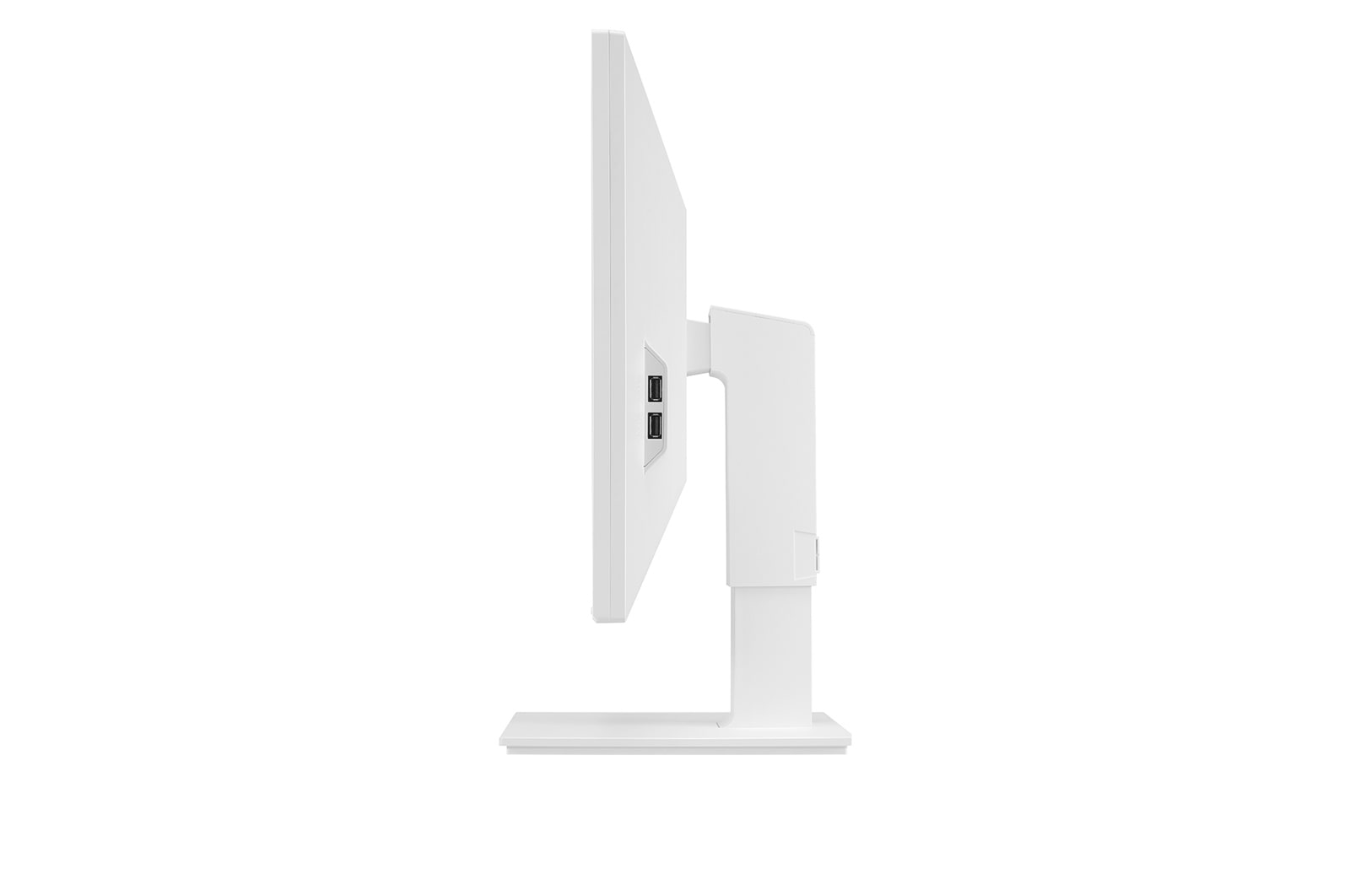

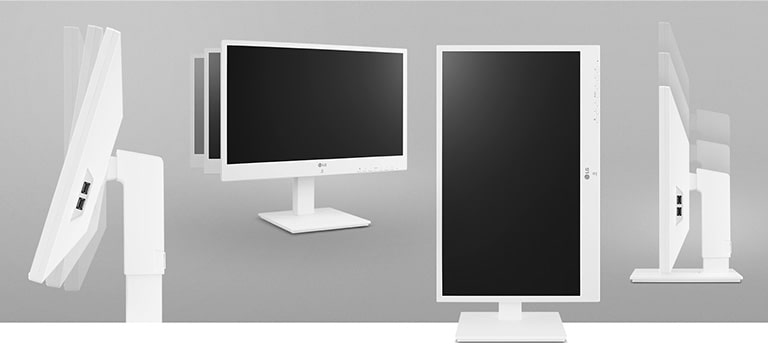

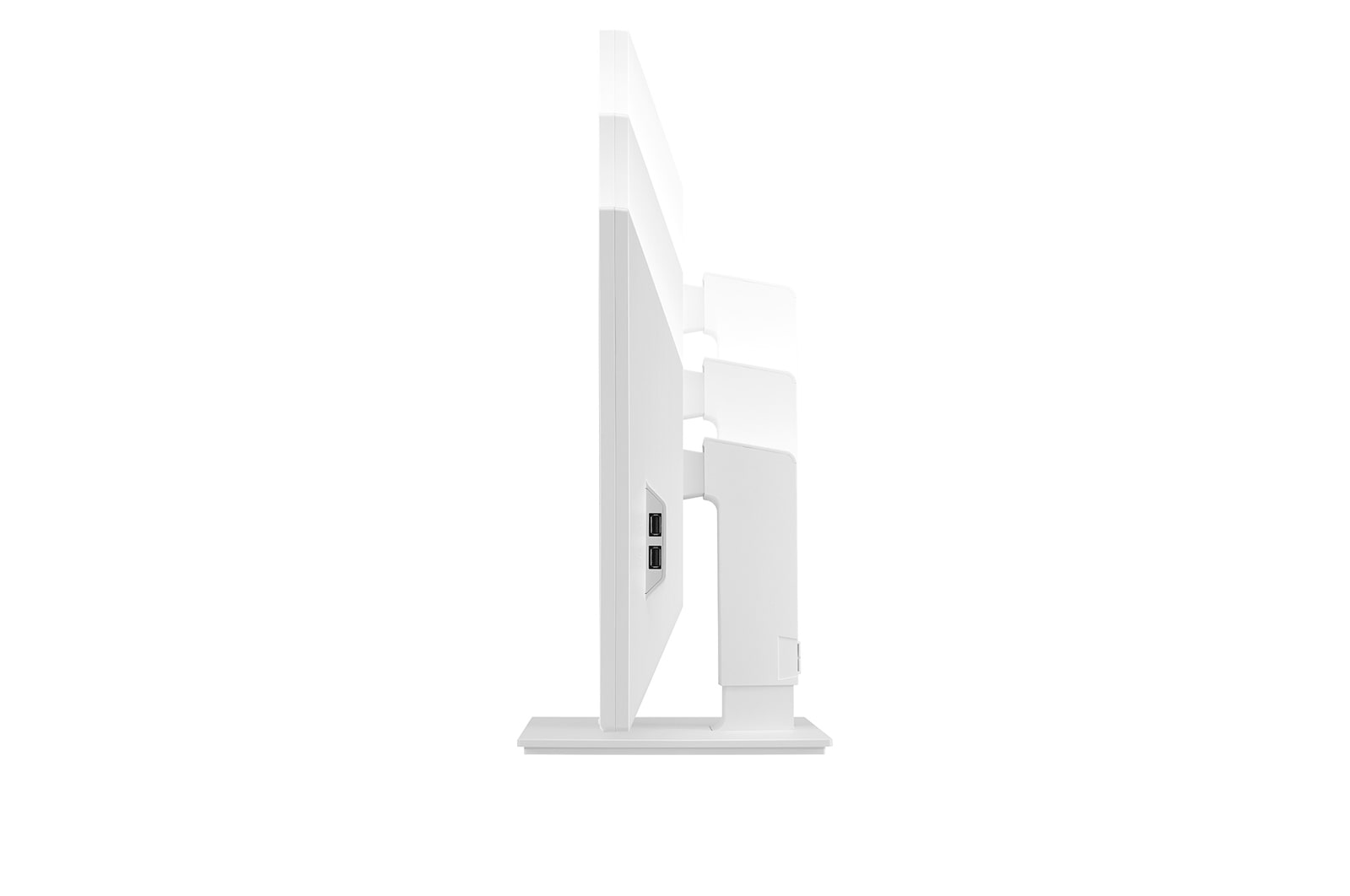

Ergonomic Design
The 24CR671IK supports tilt, swivel, pivot and height adjustment options for comfort at work. These ergonomics also make it easy to share content with others and set up the equipment for shift work, leading to user convenience.
-5° ~ 35°
0° ~ 355°

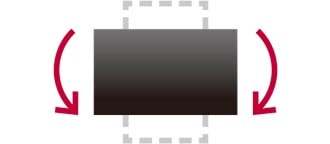

±90° (Bi-directional)
0 ~ 130mm
the monitor in the ergonomic design supporting virtually borderless design, tilt and height adjustment options and offering one click stand.

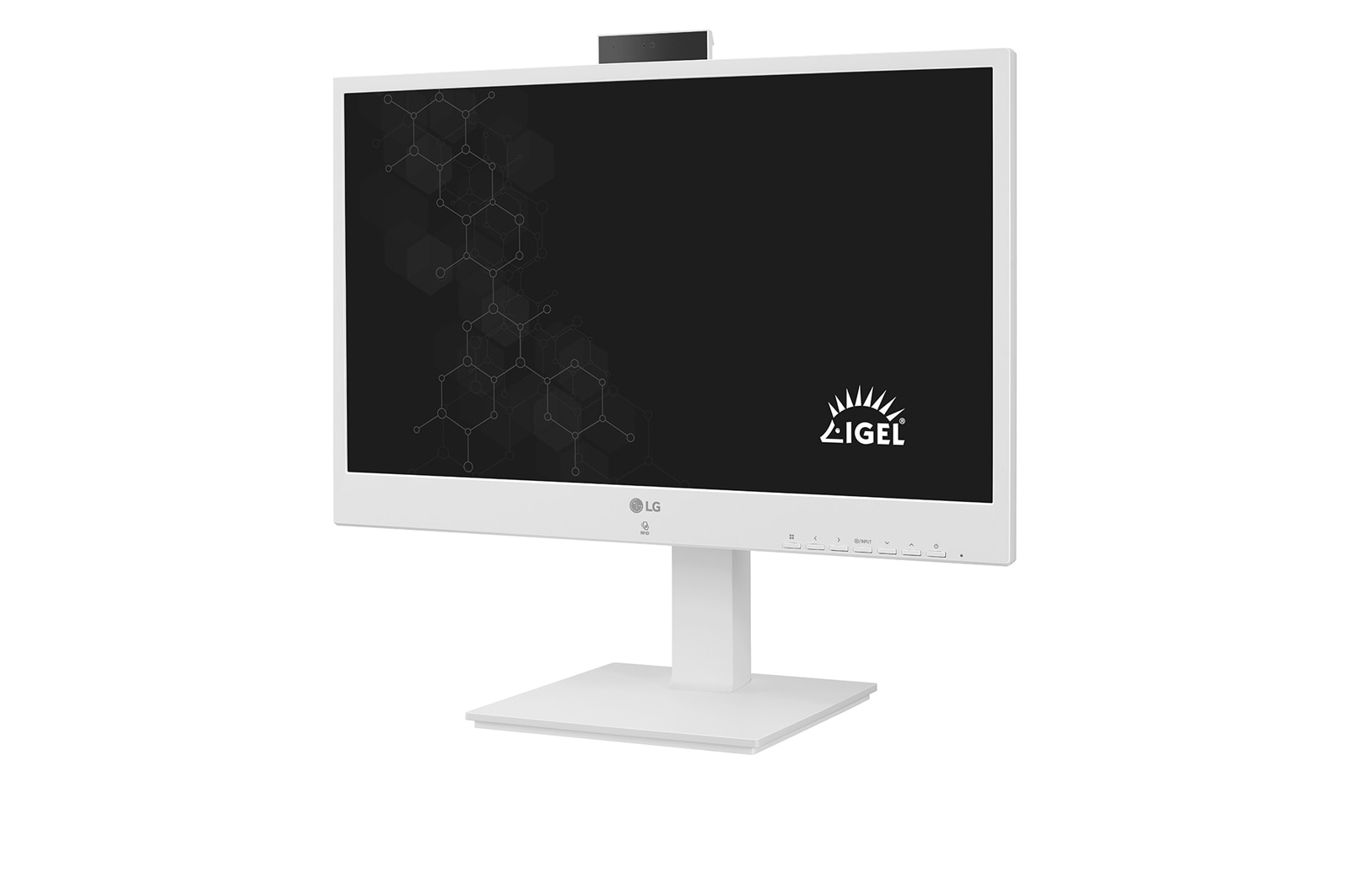

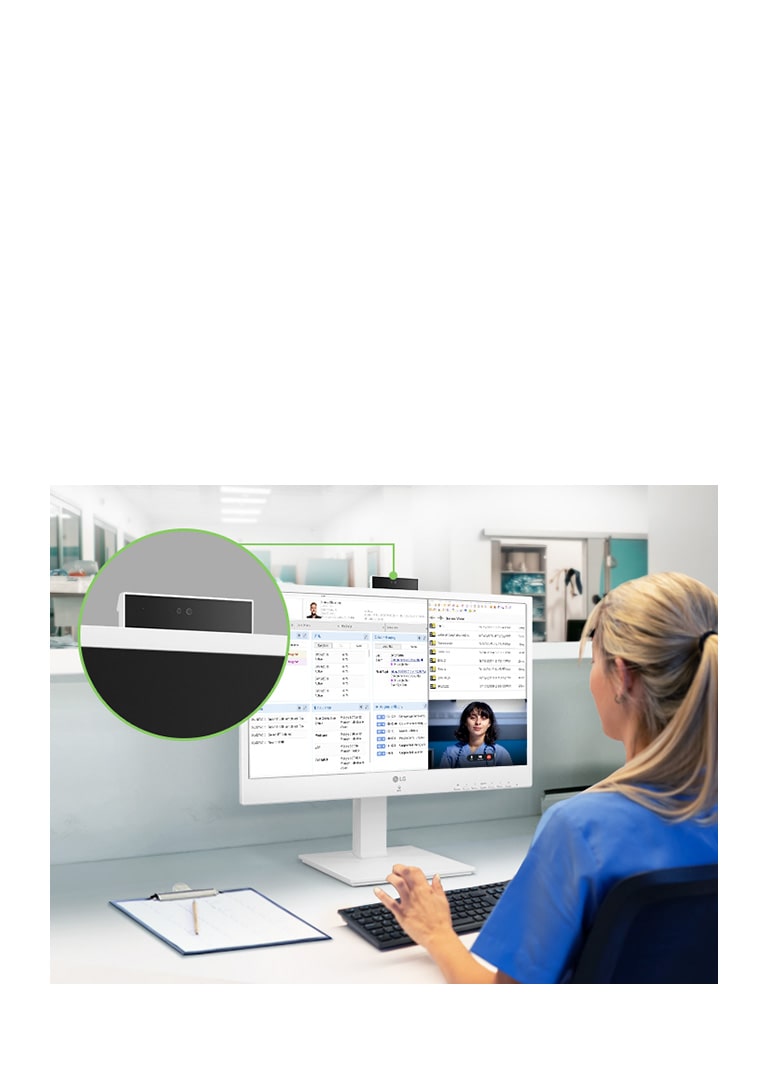

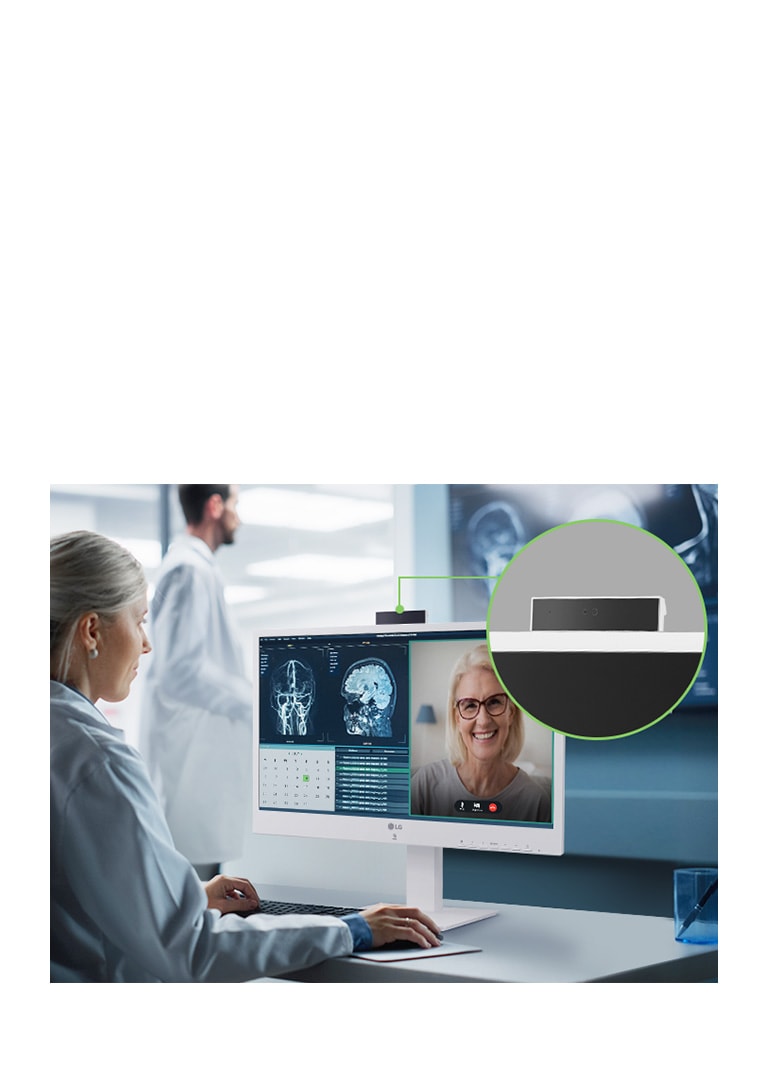

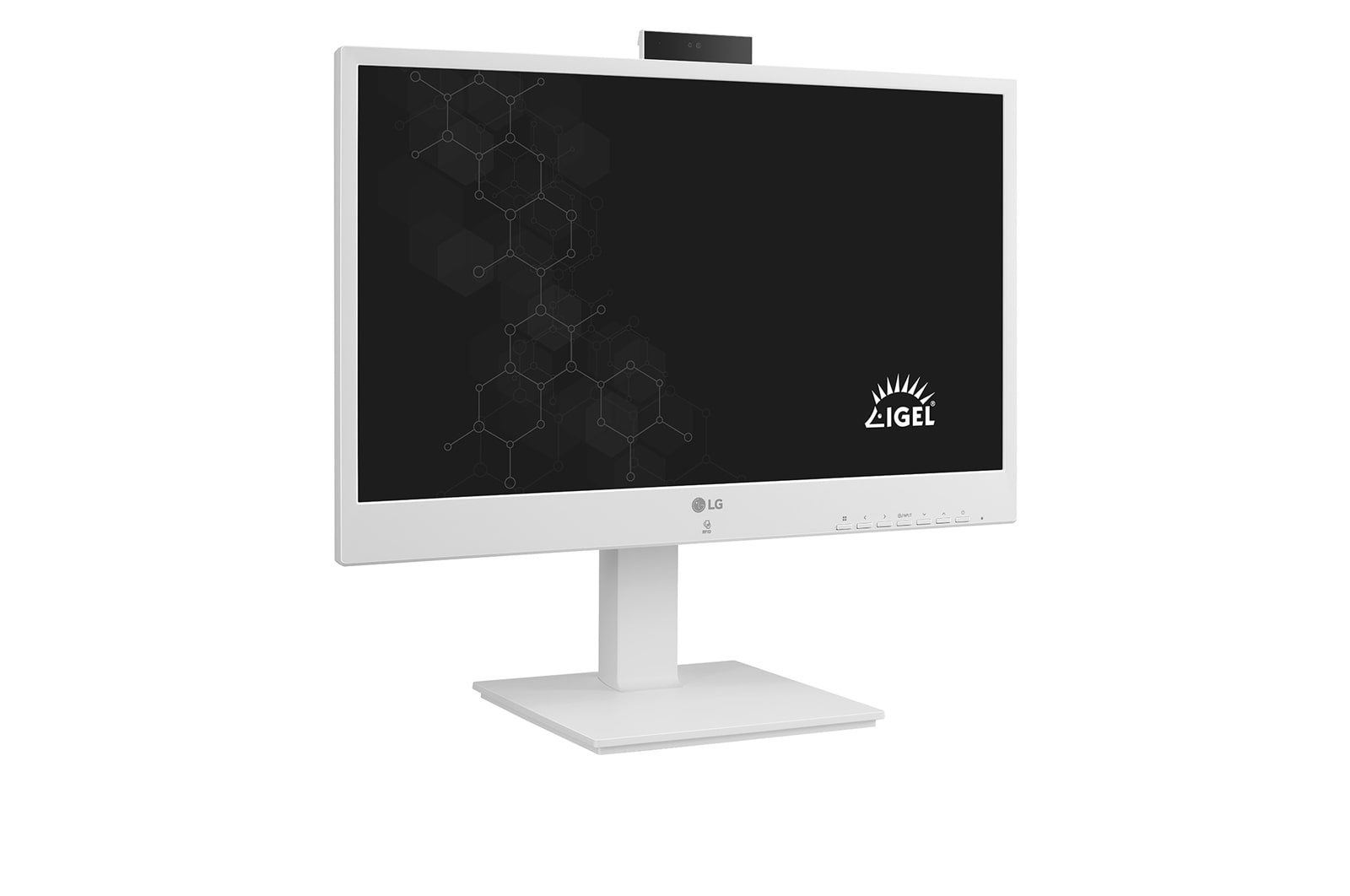

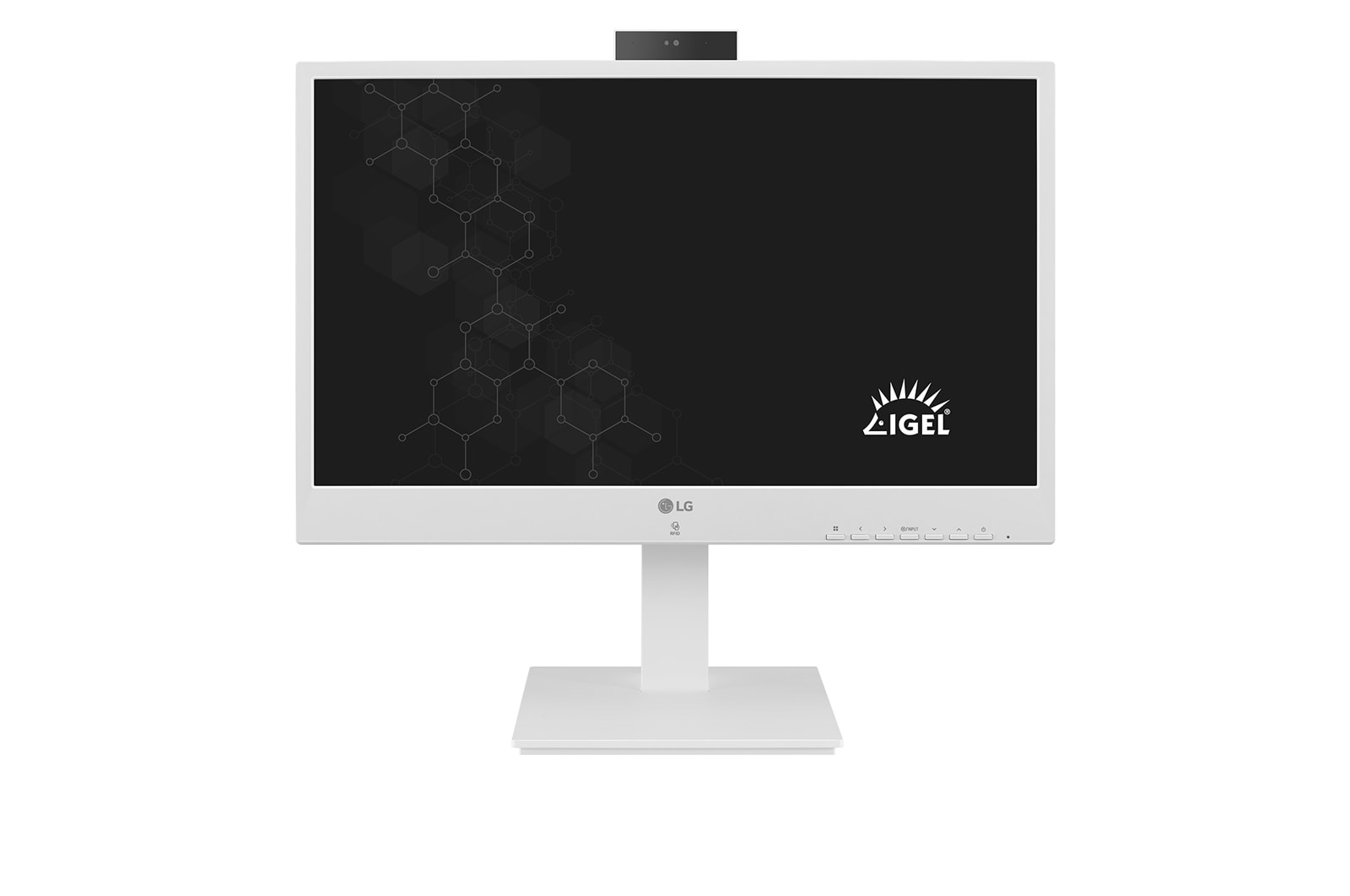

Webcam
Yes (FHD, Integrated with MIcrophone, Push-pull type, no webcam app provided)
Color Weakness
YES
Crosshair
NO
HDR 10
NO

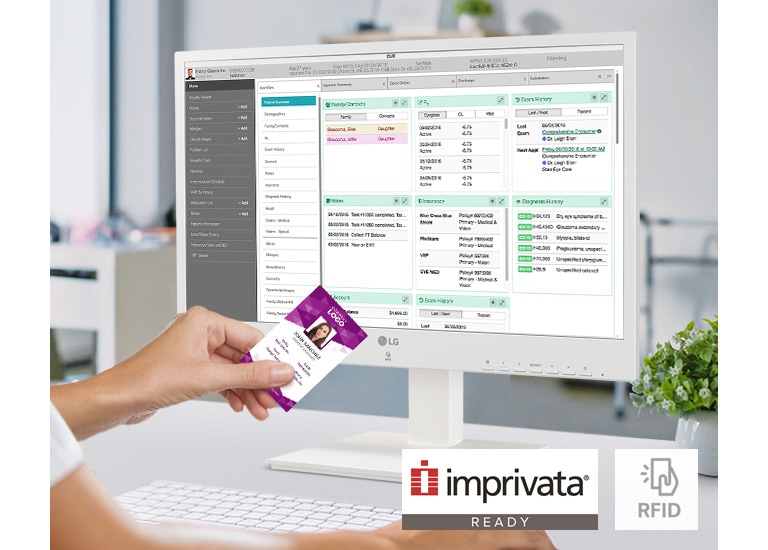

RFID
Dual-band RFID (Imprivata validated)
Dynamic Action Sync
YES
Picture Mode
Custom, Reader,Photo, Color Weakness
Flicker Safe
YES
Reader Mode
YES
Smart Energy Saving
YES
Super Resolution+
YES
1ms Motion Blur Reduction
NO
Active HDR with Dolby Vision™
NO
Auto Brightness
NO
Black Stabilizer
YES
Color Calibrated
NO
1ms MBR(Supported Frequency)
NO
AMD FreeSync™
NO
Eye Comfort Mode
NO
FreeSync (Low Frame Conpensation)
NO
Gaming Mode
NO
HW Calibration
NO
Nano IPS™ Technology
NO
NVIDIA G-Sync™
NO
PBP
NO
PIP
NO
SD Card Slot
NO
VESA DisplayHDR™
NO
Wide Color Gamut
NO
Dimension in Shiping (W x H x D)
631 x 515 x 200 mm
Dimension with Stand (W x H x D)
553.8 x 512.9 x 240 mm
Dimension without Stand (W x H x D)
553.8 x 353.3 x 63 mm
Weight without Stand
4.2 kg
Weight in Shipping
9.55 kg
Weight with Stand
6.35 kg
Pallet Stuffing (20ft/40ft/40ft HC)
360/800/960
Processor
Intel® Pentium N6005 (Quad Core 2.0GHz, up to 3.3GHz burst), Fanless
Graphics
Integrated Graphics
Operation System
IGEL OS
System Memory
4GB (4GBx1) DDR4, 2933MHz, 2 SODIMM slots
Storage
16GB eMMC
Display Support
Up to 2 displays : 3840x2160@60Hz (via DisplayPort 1.4 out), 3840x2160@60Hz (via USB Type-C)
Expansion Slot
M.2 Slots x 2 (Slot 1 : N/A, Slot 2 : WiFi + Bluetooth card) SO-DIMM x 2 (Slot 1 : 4GB DDR4, Slot 2 : N/A)
TPM (Trust Platform Module)
Hardware TPM 2.0
VDI Support
follow IGEL policy
EPEAT (USA)
NO
KC (for Rep. of Korea)
NO
Energy Star
NO
TCO
NO
TUV-TYPE
NO
EPEAT (Germany)
NO
TUV-Ergo
NO
TUV-GS
NO
UL (cUL)
YES
CE
YES
BIS (for India)
NO
BSMI (for Taiwan)
NO
CB
YES
CCC (for china)
NO
EPA
NO
ErP
Website enrollment only
FCC-B
YES
HDMI
YES
IEC60601
YES
Medical Certificatioin
YES
Others (Standard)
BT,Wifi : FCC RF, RFID : FCC RF, FDA (registration Class1), CE MDR, ISO13485
PVC-Free
NO
ROHS, REACH
YES
Thunderbolt
NO
USB-C (USB-IF)
NO
USB-C (VESA)
NO
VCCI (for Japan)
NO
VESA wall mount standard
YES
Size [Inch]
23.8
Pixel Pitch
0.2745 x 0.2745 mm
Size [cm]
60.47 cm
Resolution
1920 x 1080
Brightness (Min.)
200 cd/m²
Panel Type
IPS
Aspect Ratio
16:9
Brightness (Typ.)
250 cd/m²
Color Bit
8bit (6bit+FRC)
Surface Treatment
Anti Glare, 3H
Color Gamut (Min.)
N/A
Color Gamut (Typ.)
NTSC 72% (CIE1931)
Color Depth (Number of Colors)
16.7M
Contrast Ratio (Min.)
600:1
Contrast Ratio (Typ.)
1000:1
Response Time
5ms (GtG at Faster)
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
Curvature
N/A
Backlight Array
H1B
Backlight Dimming Technology
Global Dimming
Backlight Technology
LED
Backlight Type
Edge
Contrast Ratio with DFC
Mega
Curved
NO
Local Dimming Zone
N/A
Panel Multi
LGD Module
Peak Brightness (Min.) [cd/m²]
N/A
Peak Brightness (Typ.) [cd/m²]
N/A
Bluetooth
BT5.1
LAN (RJ-45)
1 x RJ45 : 10/100/1000 Base-T Gigabit Ethernet (Wake on LAN)
Wi-Fi
Intel Wireless-AX201 (Dual Band Wi-Fi 6 2x2, BT 5.1 Combo, Internal Antenna)
Temperature Range
Operating : 0°C ~ 40°C, Storage : -20°C ~ 60°C
Humidity Range
Operating : 0%~80%, Storage : 0%~85%
True Color Pro
NO
Dual Controller
NO
OnScreen Control (LG Screen Manager)
NO
Management Console
IGEL UMS
HDMI Version
2
HDMI (Max. Resolution at Hz)
1920X1080 75Hz
Fiber Ready
NO
RS-232
NO
USB-C (DP Version)
1.4
USB-C (DP Alternate Mode)
YES
D-Sub
NO
DVI-D
NO
HDMI
YES(1ea)
DisplayPort
YES(out 1ea)
DP Version
1.4
Thunderbolt
NO
Thunderbolt (Data Transsmission)
NO
Thunderbolt (Power Delivery)
N/A
USB-C
YES(out 1ea)
USB-C (Max. Resolution at Hz)
4096×2160@60Hz
USB-C (Data Transsmission)
YES
USB-C (Power Delivery)
N/A
Daisy Chain
NO
Audio In
NO
Mic In
NO
Headphone out
NO
DVI-I
NO

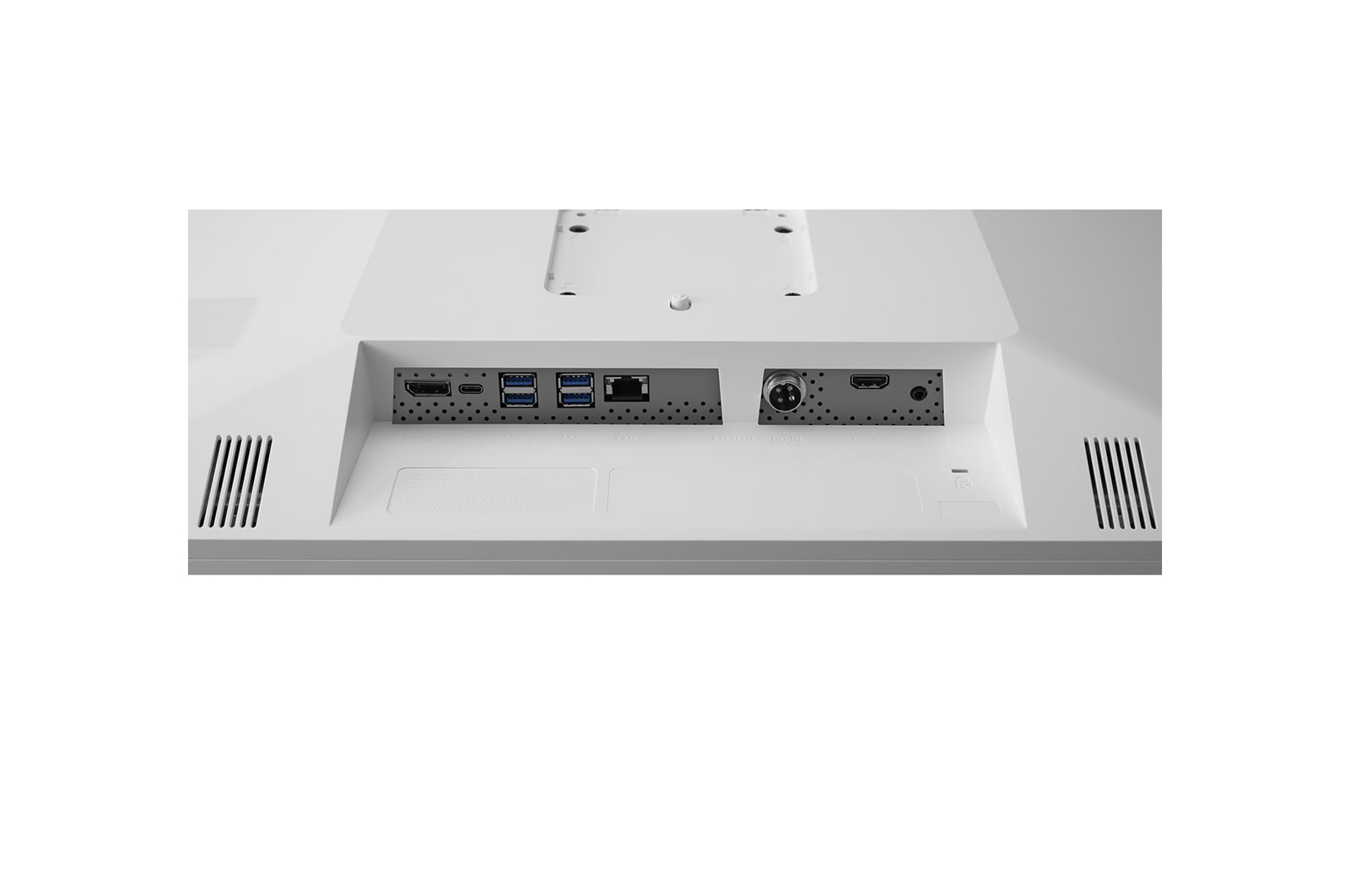

USB
2 x USB 2.0 Type-A, 4 x USB 3.2 Gen1 Type-A, 1 x USB 3.2 Gen2 Type-C with DP out
MIC & Headphone out combo
YES (1 x 3.5mm audio-mic combo jack (CTIA Type))
DP (FreeSync Supported Frequency)
NO
DP (HDCP Version)
N/A
DP (Max. Resolution at Hz)
3840x2160 @ 60Hz
HDMI (FreeSync Supported Frequency)
N/A
HDMI (HDCP Version)
1.4
HDMI (H-Frequency)
30~85KHz
HDMI (V Frequency)
56~75Hz
Location
Vertical
mDP (HDCP Version)
N/A
mDP Version
N/A
Mini DisplayPort
NO
Thunderbolt (HDCP Version)
N/A
Thunderbolt(USB-C Compatiblity)
N/A
Thunderbolt Version
N/A
USB-C (HDCP Version)
N/A
Speaker
YES
Maxx Audio
YES
Speaker_Channel
2ch
Speaker_Output (unit)
3W
Speaker_Direction
Down Firing
DC Output
19V, 6.32A
Type
External Power(Adapter)
AC Input
100-240Vac, 50/60Hz
Power Consumption (Sleep Mode)
1.2W
Power Consumption (DC Off)
0.7W
Long Idle (Display Off)
5.0W
Short Idle (Display On)
19.8W
Borderless Design
Normal
Machanical Power Switch
NO
OneClick Stand
YES
Height Range
130mm (Max. 512.9 ~ Min. 382.9 )

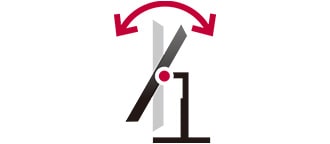

tilt
-5º ~ 35º
Down Height
72.2mm

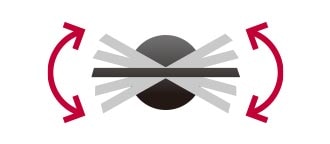

Swivel
0°~355° (±5°)
Pivot
Bi-Direction
Wall Mountable
100 x 100 mm
Display Position Adjustments
Tilt/Height/Swivel/Pivot
Assembly Step
Three-Step
Base Detachable
YES
Color (Back Cover)
White(LG1002G)
Color (Front Cabinet)
White(LG1002G)
Color (Middle Cabinet)
White(LG1002G)
Color (Stand Base)
White(LG1002G)
Color (Stand Body)
White(LG1002G)
Adapter
YES
Calibration Report (Paper)
NO
DVI-D (Color/Length)
NO
External Antenna
NO (Internal Antenna)
HDMI (Color/Length)
NO
USB Type C
NO
Power Cord
YES
PC Audio
NO
DVI-D
NO
HDMI
NO
Thunderbolt
NO
Display Port
NO
VESA Bracket
NO
Adapter (Color)
White
Display Port (Color/Length)
NO
PC Audio (Color/Length)
NO
Power Cord (Color/Length)
White / 1.5m
Thunderbolt (Color/Length)
NO
USB-C (Color/Length)
NO
Box Printing Type
Flexo
Handle
Hand Hole
Packing Material
EPS
Stacking Type
Face Down
Stand Packing Type
Detached
Key Location
Front
Key Number (Power Key Included)
7
Key Type
Tact
LED Color(On mode)
White(AIO PC )
LED Color(Power save mode)
Blinking (AIO PC )
LED Color(Standby)
OFF(AIO PC)
Country
English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese(brazil), Hindi, Tranditional Chinese
Number of Language
18
HDMI (PC)
1920x1080@75Hz
HDMI (Video)
1920x1080@60Hz
