CQ600 (Window OS) | LG Global Business

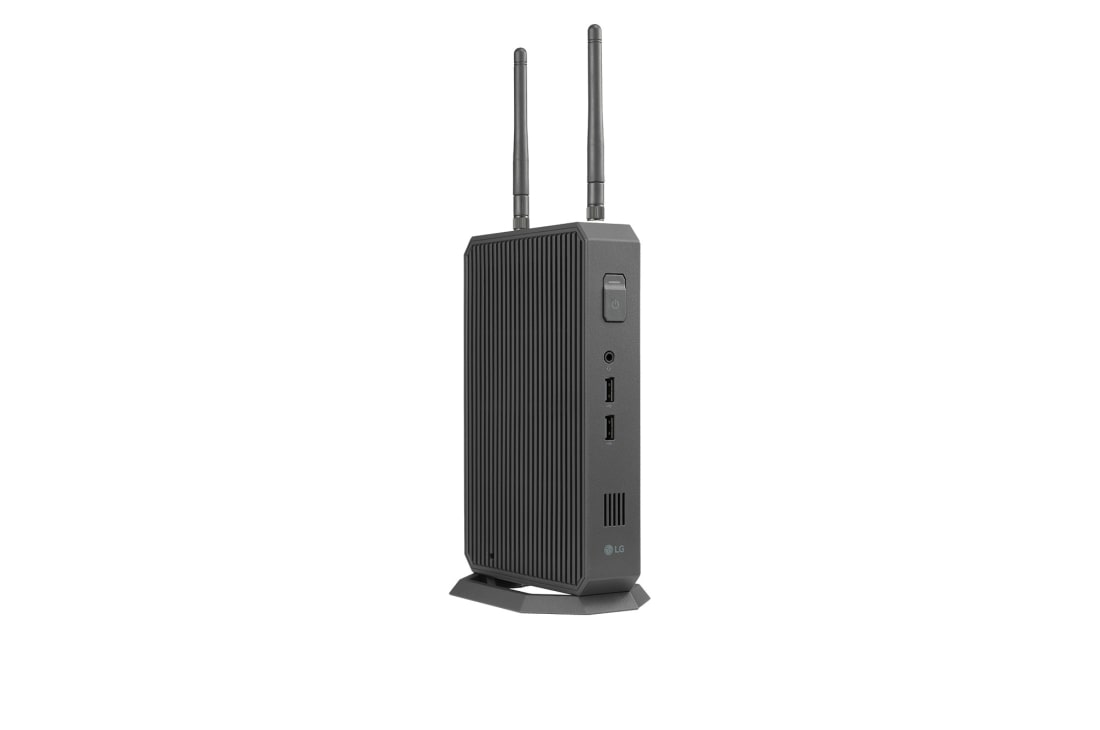

Desktop Thin Client

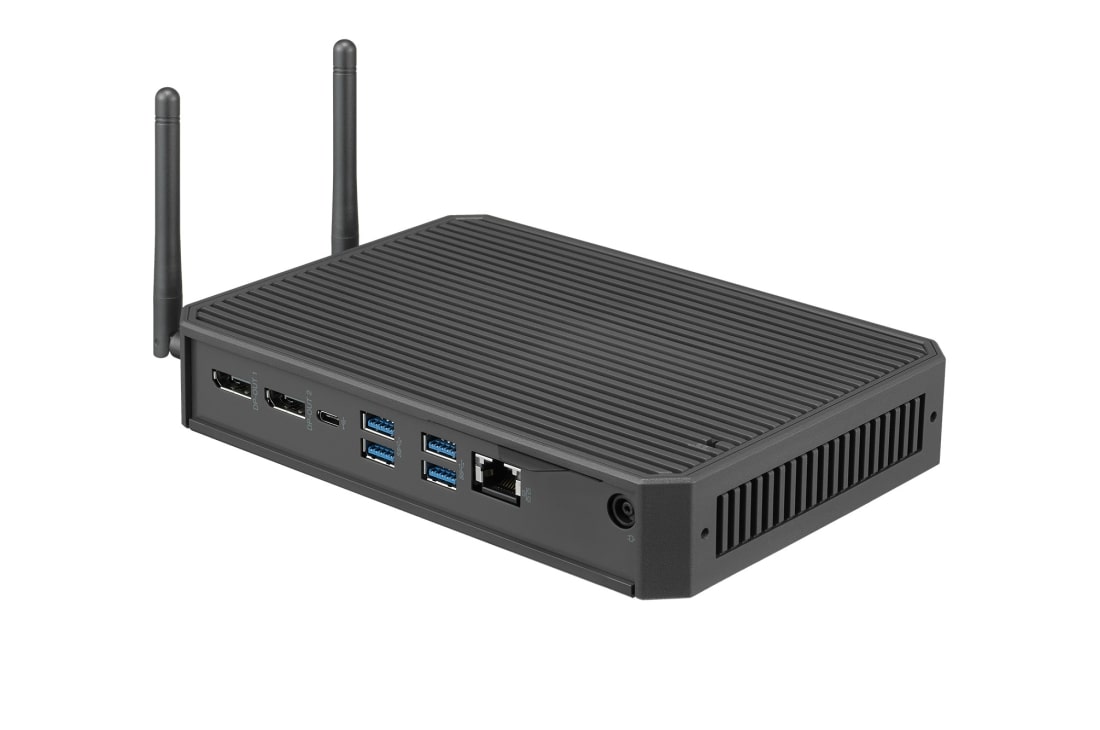

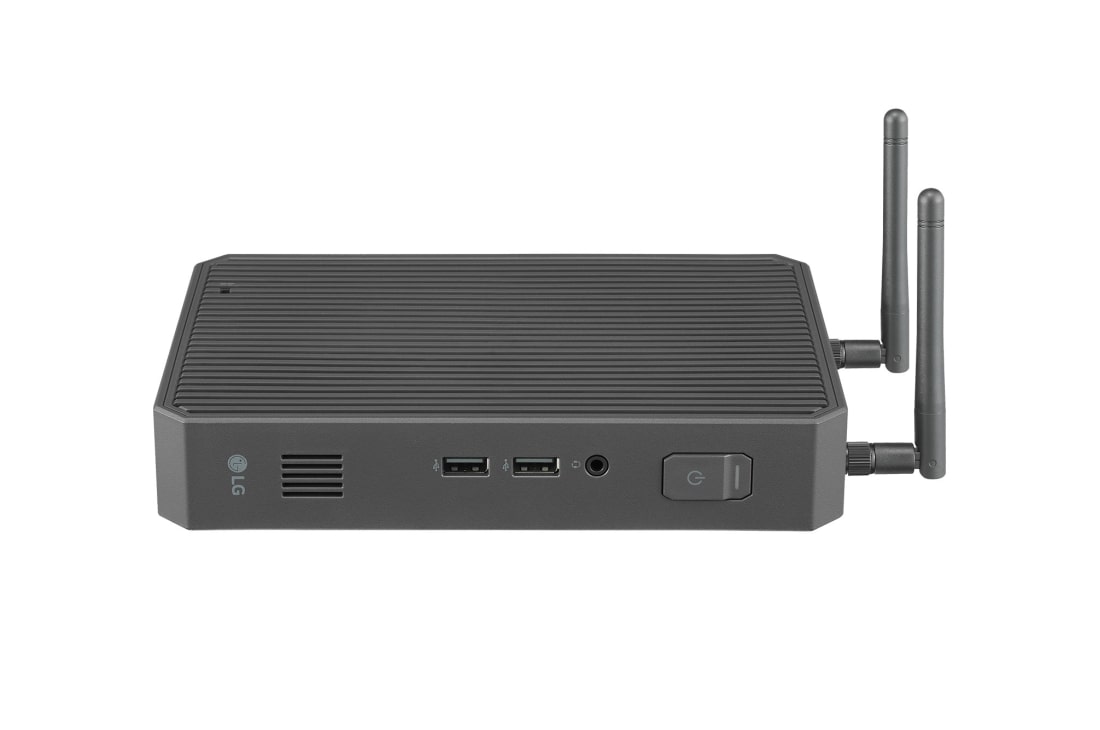

CQ600 (Window OS)

Key Features

Quad-core Processor
8GB DDR4 Memory
Up to 3 Display Support
USB Type-C™
Windows 10 IoT Enterprise
Fanless Design

Why Cloud Device

Productivity and Efficiency

LG offers various thin client form factors that add value to your work environment with powerful performance, lower costs, and compact design.

lg thin client offering powerful performance and lower costs than a conventional PC device.

Powerful Security
Access Anytime, Anywhere
Making Operations Efficiently
Convenient Collaboration
Business Continuity
Cost Savings

Quad-core Processor

Powerful Performance

With Quad-core Processor and a powerful system memory option, CQ600W supports the fast work process that boosts your productivity.

Processor

Intel® Celeron N5105

CQ600W offering 8GB DDR4 and SSD 256GB for storage.

RAM & Storage

8GB DDR4 / SSD 256GB

OS

Windows 10 IoT Enterprise

*RAM and storage specifications as detailed above may differ by model.

Up to 3 Display Support

Make Your Own Productive Workstation

LG CQ600W supports up to 4K UHD resolution triple displays. With flexibility for multi-monitor set-up options, you can get more done in less time.

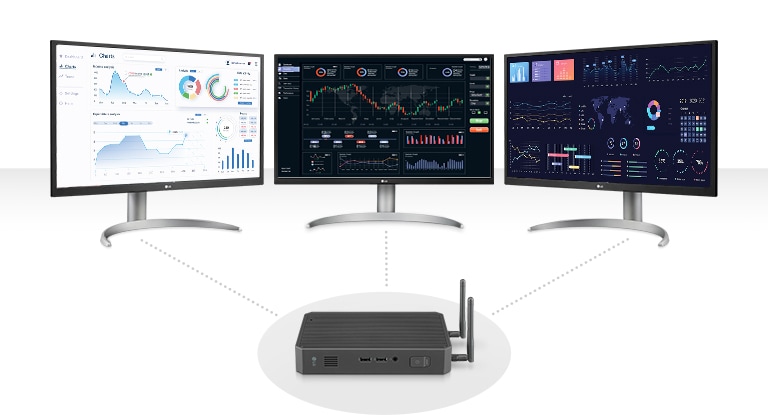

CQ600W enabling to connect up to three uhd 4k resolution displays.

*Supporting connected displays via USB Type-C™ and DisplayPort out.
*USB Type-C™, DisplayPort, and HDMI cables are not included.

Various Interface

CQ600N's multi ports can be utilized to improve connectivity and productivity.

1) DisplayPort 2) USB Type-C™ 3) USB 3.2 gen1 4) Gigabit Ethernet 5) USB 2.0 6) Headphone & Mic Combo

*Types of Inputs specified are numbered from left to right, top to bottom of the image.
*USB Type-C™, DisplayPort, and HDMI cables are not included.

USB Type-C™

High-performance Connection

CQ600W with USB Type-C™ port provides fast data transfer speeds along with high levels of power flow. With a single USB Type-C™ cable, you can simultaneously transmit data, video, and audio as well as powering CQ600W.

Display

Power Delivery

Data

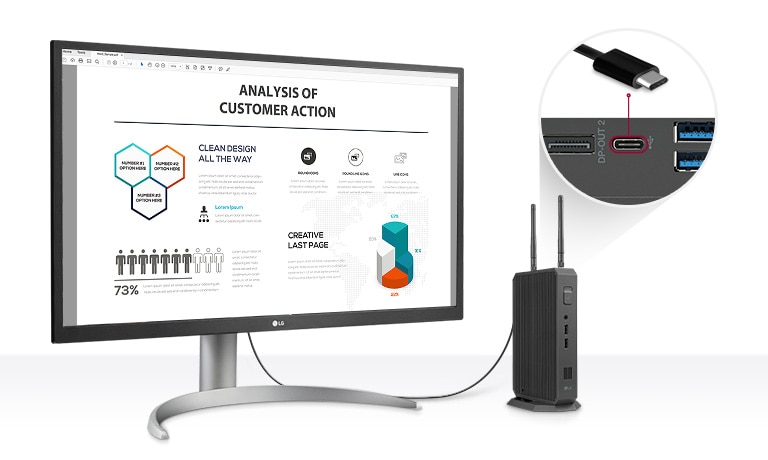

USB Type-C™ offering High-Performance Connection.

*The images simulated to enhance feature understanding. It may differ from actual use.
*USB Type-C™ cable is not included.

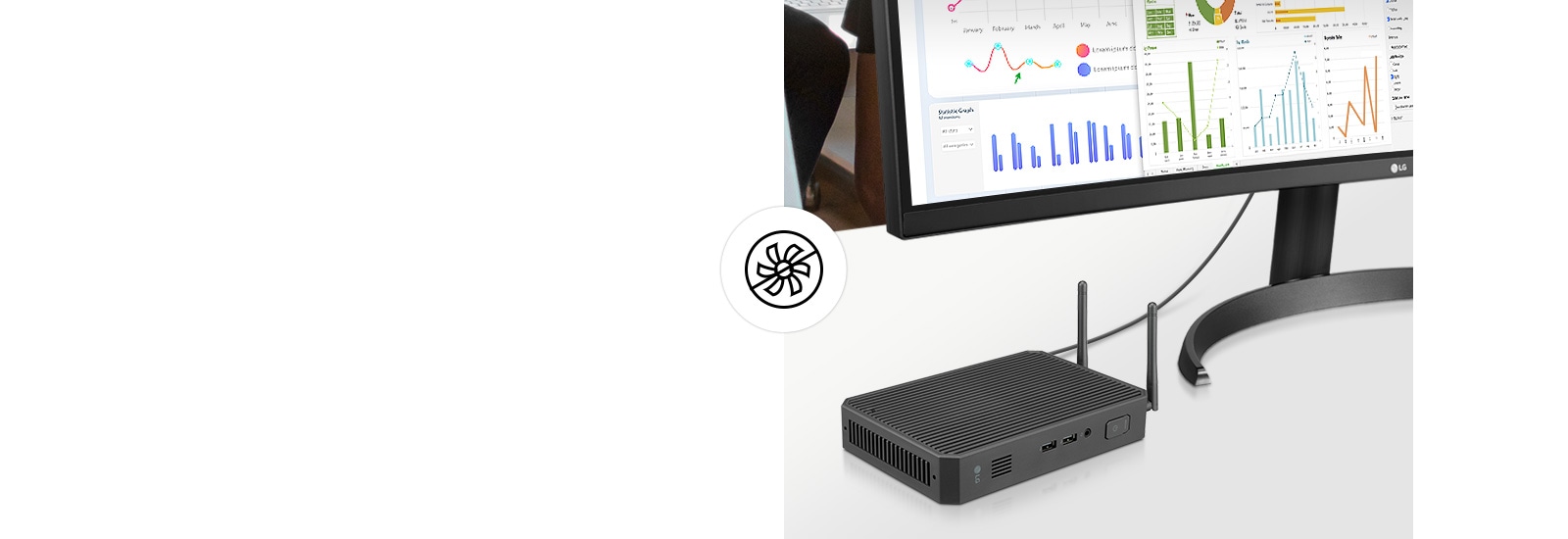

Fanless Design

Silent and Cost-efficient

The fanless design increases the CQ600W's lifespan and also reduces replacement costs. Also its low-noise performance provides a pleasant work environment.

LG Cloud Device Manager

Advanced Management for Cloud Device

It’s the optimized management software for LG thin clients. By installing on LG thin clients using Windows 10 IoT OS, the devices are managed and controlled centrally for high security, work efficiency and TCO reduction effect.

*TCO: Total Cost of Ownership

Quad-core Processor
8GB DDR4 Memory
Up to 3 Display Support
USB Type-C™
Windows 10 IoT Enterprise
Fanless Design

All Spec

DIMENSIONS/WEIGHT

Dimension in Shiping (W x H x D)
258 x 100 x 164 mm
Dimension with Stand (W x H x D)
85 x 208.1 x 144.9 mm(w/o ANTENNA), 85 x 318 x 144.9 mm(w/ ANTENNA)
Dimension without Stand (W x H x D)
38 x 199.1 x 144.9 mm(w/o ANTENNA), 38 x 309 x 144.9 mm(w/ ANTENNA)
Weight without Stand
0.91 kg
Weight in Shipping
1.9 kg
Weight with Stand
0.93 kg
Pallet Stuffing (20ft/40ft/40ft HC)
4,000/9,680/11,440

PC PART

Processor
Intel® Celeron N5105 (Quad Core 2.0GHz, up to 2.9GHz burst), Fanless
Graphics
Integrated Graphics
Operation System
IGEL OS
System Memory
4GB (4GBx1) DDR4, 2933MHz, 2 SODIMM slots
Storage
16GB eMMC
Display Support
Up to 3 displays : 3840x2160@60Hz (via 1st DisplayPort out), 3840x2160@60Hz (via 2nd DisplayPort out), 3840x2160@60Hz (via USB Type-C)
Expansion Slot
M.2 Slots x 2 (Slot 1 : N/A, Slot 2 : WiFi + Bluetooth card) SO-DIMM x 2 (Slot 1 : 4GB DDR4, Slot 2 : N/A)
TPM (Trust Platform Module)
Hardware TPM 2.0
VDI Support
follow IGEL policy

STANDARD

EPEAT (USA)
BRONZE
KC (for Rep. of Korea)
YES
Energy Star
YES
TCO
NO
TUV-TYPE
YES
EPEAT (Germany)
BRONZE
TUV-Ergo
YES
TUV-GS
YES
UL (cUL)
YES
CE
YES
BIS (for India)
NO
BSMI (for Taiwan)
NO
CB
YES
CCC (for china)
NO
EPA
YES(8.0)
ErP
YES
FCC-B
YES
PVC-Free
NO
ROHS, REACH
YES
Thunderbolt
NO
USB-C (USB-IF)
NO
USB-C (VESA)
NO
VCCI (for Japan)
NO
VESA wall mount standard
YES

DISPLAY

Panel Type
N/A
Curvature
N/A
Backlight Dimming Technology
N/A
Contrast Ratio with DFC
N/A
Curved
NO

NETWORK

Bluetooth
BT5.1
LAN (RJ-45)
1 x RJ45 : 10/100/1000 Base-T Gigabit Ethernet (Wake on LAN)
Wi-Fi
Intel Wireless-AX201 (Dual Band Wi-Fi 6 2x2, BT 5.1 Combo, Internal Antenna)

ENVIRONMENTAL

Temperature Range
Operating : 10°C ~ 40°C, Storage : -20°C ~ 60°C
Humidity Range
Operating : 20%~80%, Storage : 10%~90%

SW APPLICATION

True Color Pro
NO
Dual Controller
NO
OnScreen Control (LG Screen Manager)
NO
Management Console
IGEL UMS

CONNECTIVITY

HDMI Version
NO
Fiber Ready
NO
RS-232
NO
USB-C (DP Version)
1.4
USB-C (DP Alternate Mode)
YES
D-Sub
NO
DVI-D
NO
HDMI
NO
DisplayPort
YES(out 2ea)
DP Version
1.4
Thunderbolt
NO
Thunderbolt (Data Transsmission)
NO
Thunderbolt (Power Delivery)
N/A
USB-C
YES(out 1ea)
USB-C (Max. Resolution at Hz)
4096×2160@60Hz
USB-C (Data Transsmission)
YES
USB-C (Power Delivery)
YES (cosumer only)
Daisy Chain
NO
Audio In
NO
Mic In
NO
Headphone out
NO
DVI-I
NO
USB
2 x USB 2.0 Type-A, 4 x USB 3.2 gen1 Type-A, 1 x USB 3.2 gen2 Type-C with DP out
MIC & Headphone out combo
1 x 3.5mm audio-mic combo jack (CTIA Type)
DP (HDCP Version)
2.2
DP (Max. Resolution at Hz)
3840X2160 60Hz
HDMI (HDCP Version)
N/A
Location
Horizontal
mDP (HDCP Version)
N/A
mDP Version
N/A
Mini DisplayPort
NO
Thunderbolt (HDCP Version)
N/A
Thunderbolt(USB-C Compatiblity)
NO
Thunderbolt Version
N/A
USB-C (HDCP Version)
2.2

SOUND

Speaker
YES
Maxx Audio
NO
Speaker_Channel
1ch
Speaker_Output (unit)
1W
Speaker_Direction
Front Firing

POWER

DC Output
19V 3.42A
Type
External Power(Adapter)
AC Input
100-240Vac, 50/60Hz
Power Consumption (Energy Star)
27kwh
Power Consumption (Sleep Mode)
1.1W
Power Consumption (DC Off)
0.7W
Long Idle (Display Off)
5.0W
Short Idle (Display On)
6.2W

MECHANICAL

Machanical Power Switch
NO
OneClick Stand
NO
Height Range
NA
tilt
NO
Down Height
NA
Swivel
NO
Pivot
NO
Wall Mountable
100 x 100 mm
Display Position Adjustments
NO
Assembly Step
Two-Step
Base Detachable
YES
Color (Back Cover)
Charcol Gray (Texture)
Color (Front Cabinet)
Charcol Gray (Texture)
Color (Middle Cabinet)
NA
Color (Others)
Charcol Gray (Texture)
Color (Stand Base)
Charcol Gray (Texture)
Color (Stand Body)
NA

ACCESSORY

Adapter
YES
Calibration Report (Paper)
NO
DVI-D (Color/Length)
NO
External Antenna
YES
HDMI (Color/Length)
NO
USB Type C
NO
Power Cord
YES
PC Audio
NO
DVI-D
NO
HDMI
NO
Thunderbolt
NO
Display Port
NO
VESA Bracket
Horizontal/Vertical feet and VESA/wall mounting
Adapter (Color)
Black
Display Port (Color/Length)
NO
PC Audio (Color/Length)
NO
Power Cord (Color/Length)
Black / 1.55m
Thunderbolt (Color/Length)
NO
USB-C (Color/Length)
NO

BOX COSMETIC

Box Printing Type
Flexo
Packing Material
A-Flute
Stacking Type
Vertical

CONTROL KEY

Key Location
Front
Key Number (Power Key Included)
1
Key Type
Tact
LED Color(On mode)
White (PC Power / HDD)
LED Color(Power save mode)
Blinking (PC )
LED Color(Standby)
OFF(PC )

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
