CQ601N | LG Global Business

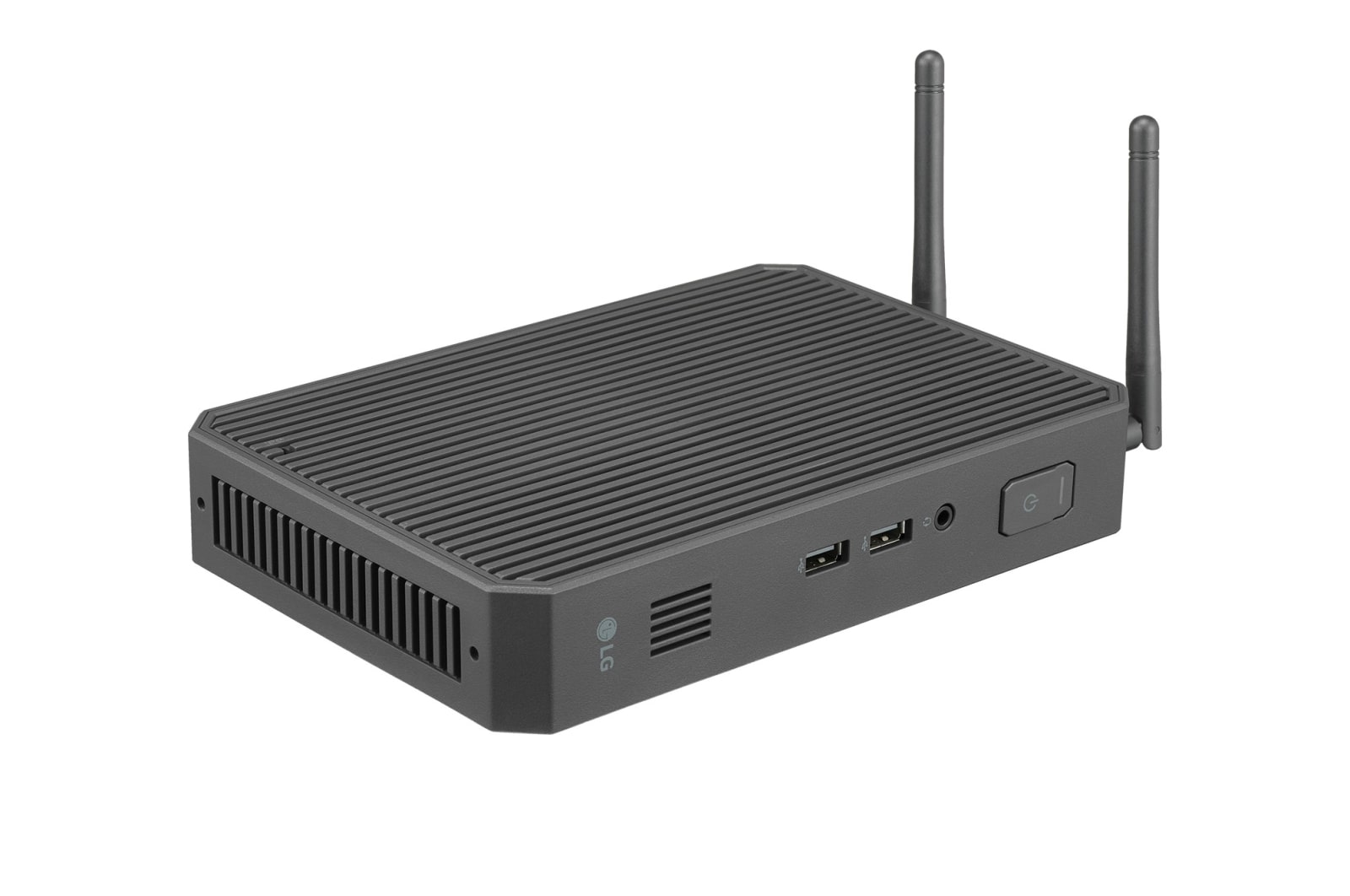

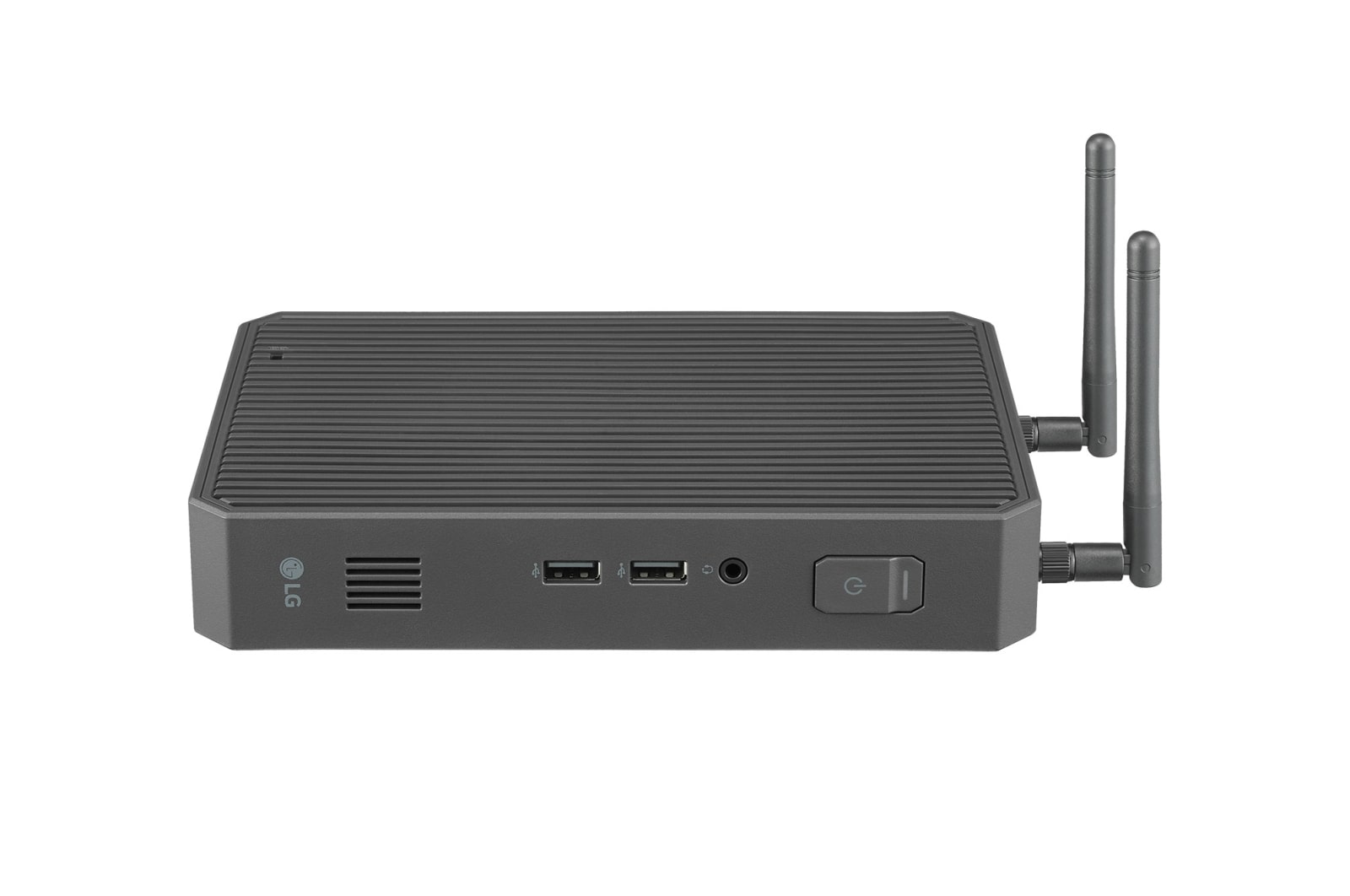

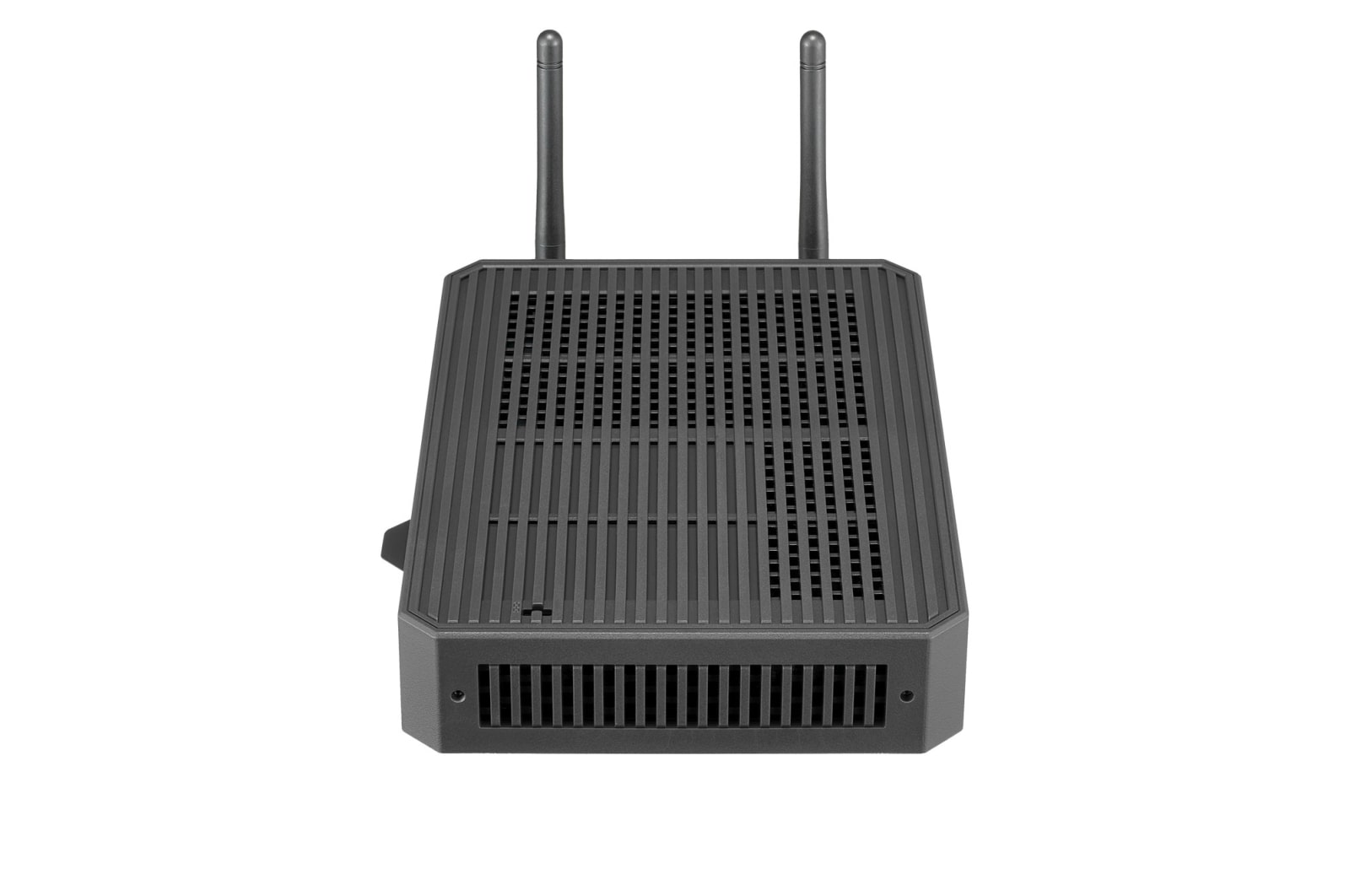

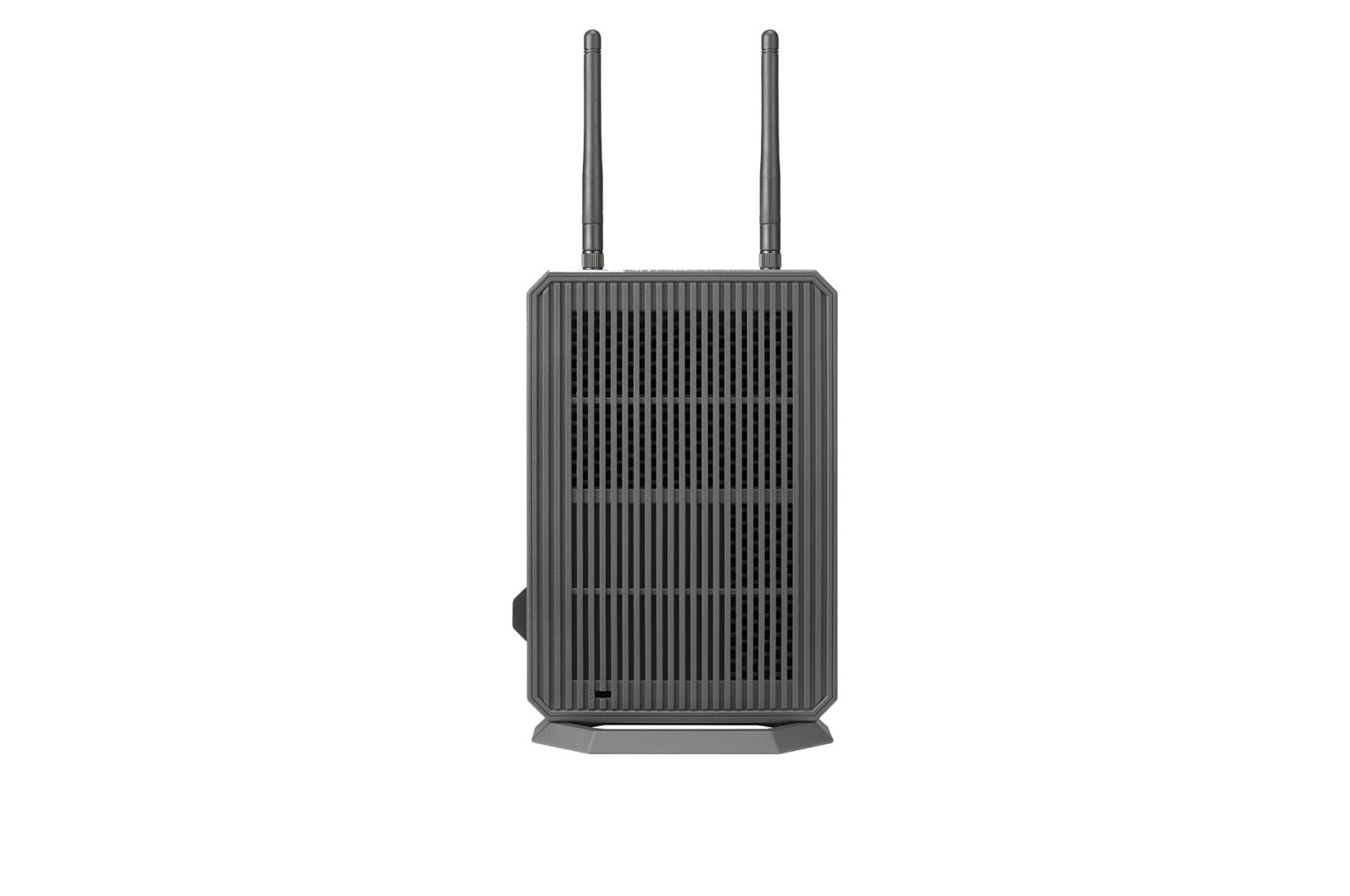

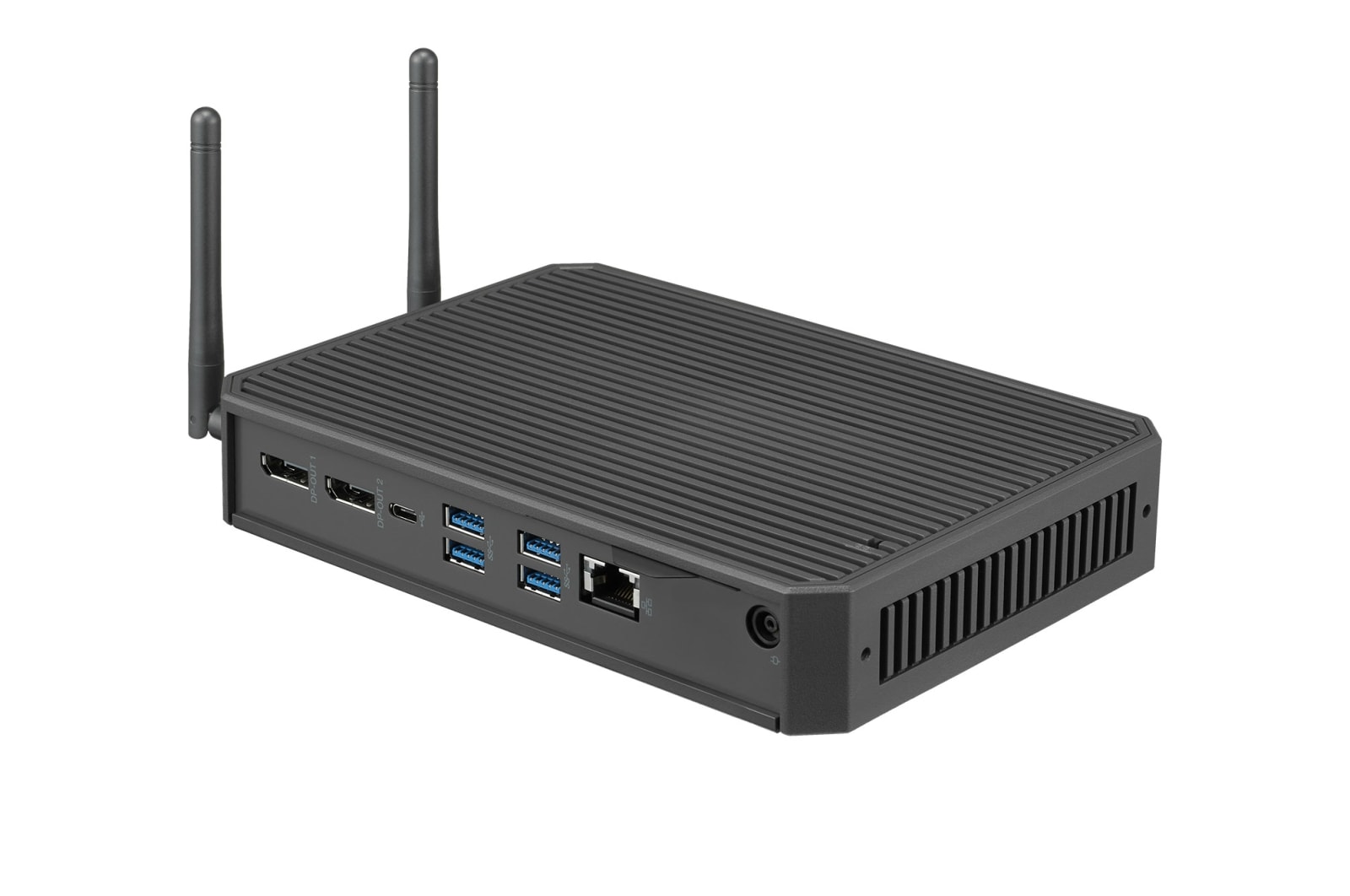

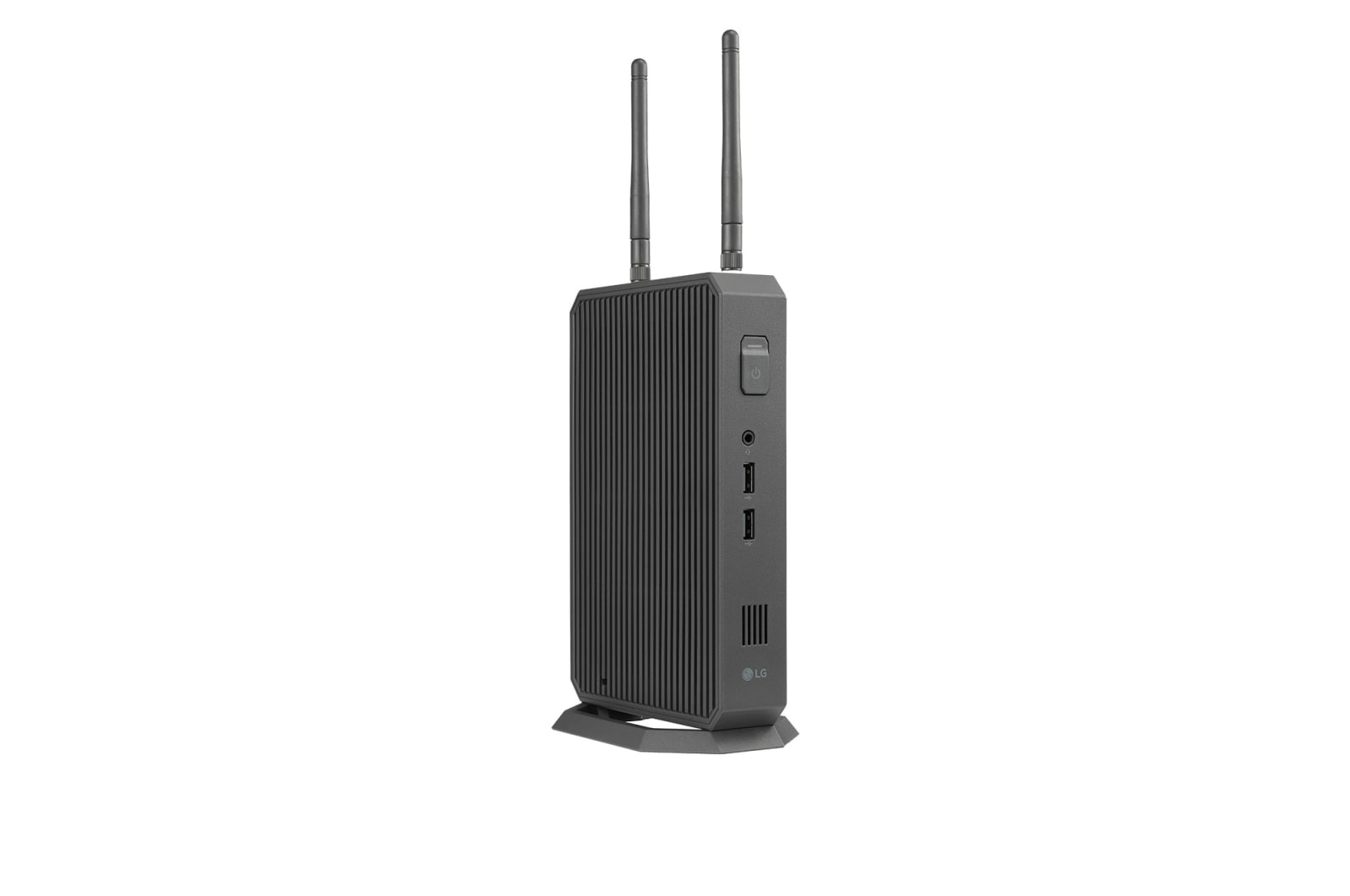

Desktop Thin Client

CQ601N

Key Features

Quad-core Processor
4GB DDR4 Memory
Up to 3 Display Support
USB Type-C™
Fanless Design

Why Cloud Device

Productivity and Efficiency

LG offers various thin client form factors that add value to your work environment with powerful performance, lower costs, and compact design.

lg thin client offering powerful performance and lower costs than a conventional PC device.

Powerful Security
Access Anytime, Anywhere
Making Operations Efficiently
Convenient Collaboration
Business Continuity
Cost Savings

Quad-core Processor

Powerful Performance

With Quad-core Processor and a powerful system memory option, CQ601N supports the fast work process that boosts your productivity.

Processor

Intel® Pentium N6005

CQ601W offering 8GB DDR4 and SSD 256GB for storage.

RAM

4GB DDR4

CQ601W offering Windows 10 IoT Enterprise for operation system.

Storage

16GB eMMC

*RAM and storage specifications as detailed above may differ by model.

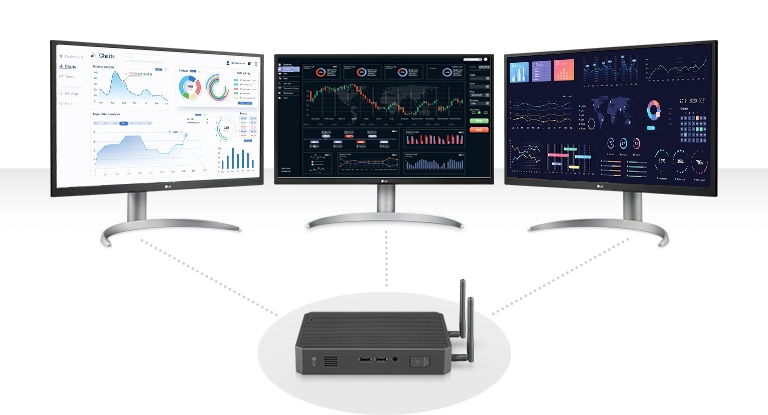

Up to 3 Display Support

Make Your Own Productive Workstation

LG CQ601N supports up to 4K UHD resolution triple displays. With flexibility for multi-monitor set-up options, you can get more done in less time.

CQ601W enabling to connect up to three uhd 4k resolution displays.

*Supporting connected displays via USB Type-C™ and DisplayPort out.

*USB Type-C™, DisplayPort, and HDMI cables are not included.

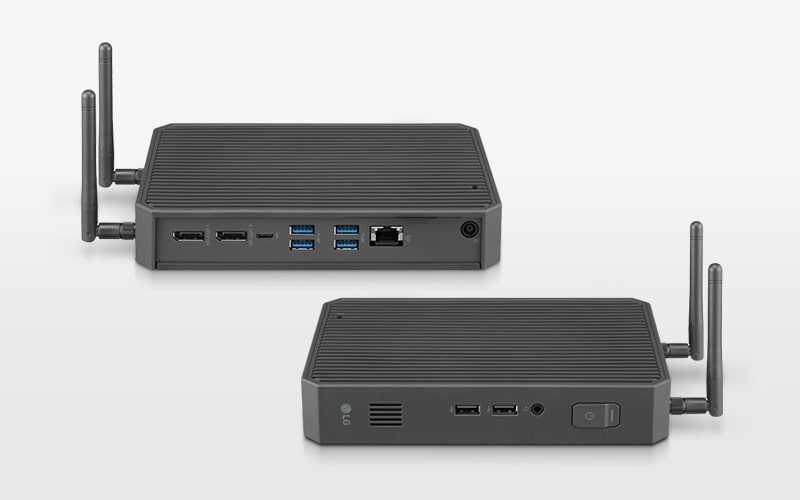

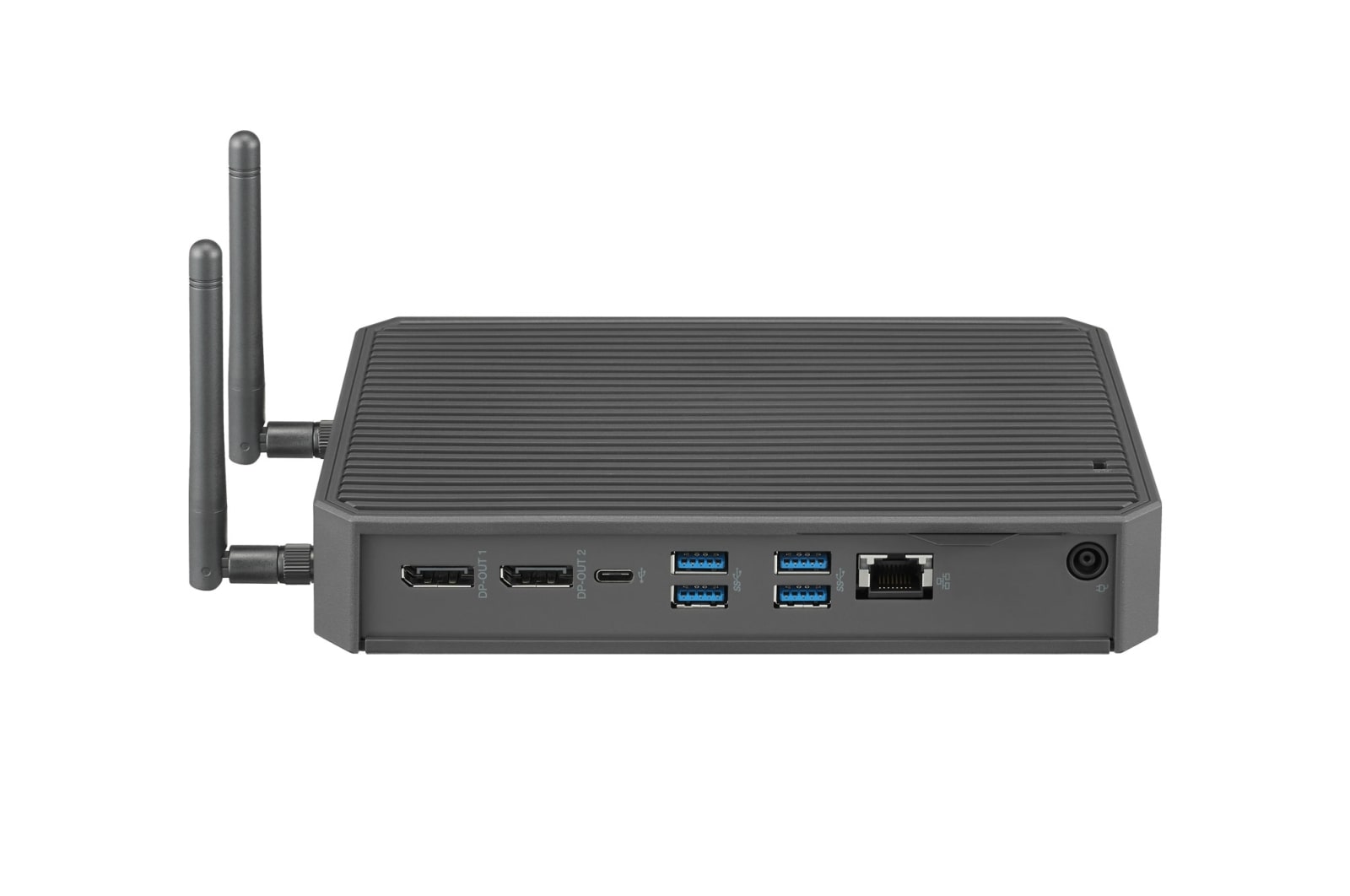

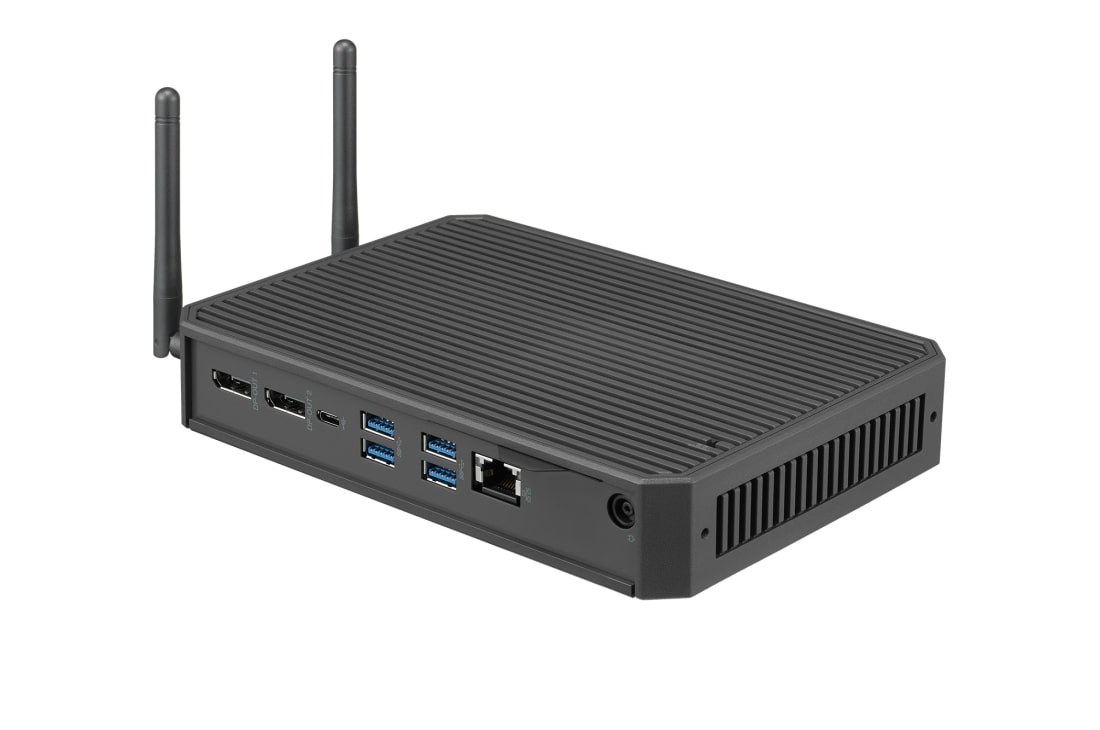

Various Interface

CQ601N's multi ports can be utilized to improve connectivity and productivity.

1) DisplayPort 2) USB Type-C™ 3) USB 3.2 gen1 4) Gigabit Ethernet 5) USB 2.0 6) Headphone & Mic Combo

*Types of Inputs specified are numbered from left to right, top to bottom of the image.
*USB Type-C™, DisplayPort, and HDMI cables are not included.

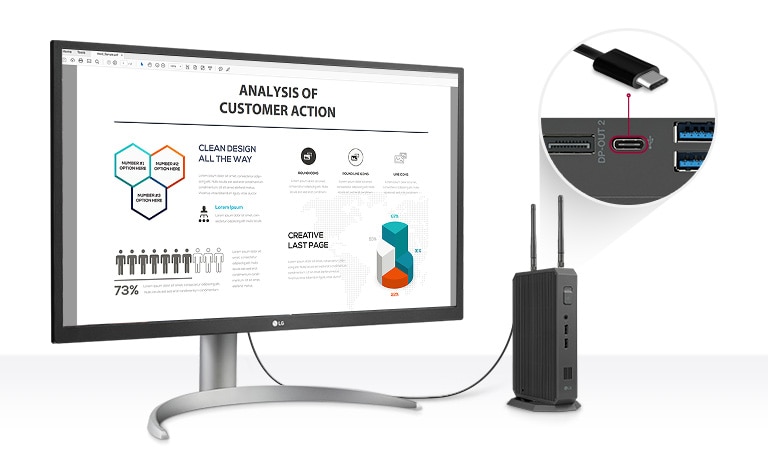

USB Type-C™

High-performance Connection

CQ601N with USB Type-C™ port provides fast data transfer speeds along with high levels of power flow. With a single USB Type-C™ cable, you can simultaneously transmit data, video, and audio as well as powering CQ601N.

Display

Power Delivery

Data

USB Type-C™ offering High-Performance Connection.

*The images simulated to enhance feature understanding. It may differ from actual use.

*USB Type-C™ cable is not included.

Fanless Design

Silent and Cost-efficient

The fanless design increases the CQ601N's lifespan and also reduces replacement costs. Also its low-noise performance provides a pleasant work environment.

All Spec

PC PART

Operation System
Non OS
Processor
Intel® Pentium N6005 (Quad Core 2.0GHz, up to 3.3GHz burst), Fanless
Graphics
Integrated Graphics
System Memory
4GB (4GBx1) DDR4, 2933MHz, 2 SODIMM slots
Storage
16GB eMMC
Display Support
Up to 3 displays : 3840x2160@60Hz (via 1st DisplayPort out), 3840x2160@60Hz (via 2nd DisplayPort out), 3840x2160@60Hz (via USB Type-C)
Expansion Slot
M.2 Slots x 2 (Slot 1 : N/A, Slot 2 : WiFi + Bluetooth card) SO-DIMM x 2 (Slot 1 : 4GB DDR4, Slot 2 : N/A)
TPM (Trust Platform Module)
Hardware TPM 2.0
VDI Support
NO

DISPLAY

Panel Type
N/A
Backlight Dimming Technology
N/A
Contrast Ratio with DFC
N/A
Curved
NO
Curvature
N/A

SW APPLICATION

Management Console
NO
Dual Controller
NO
OnScreen Control (LG Screen Manager)
NO
True Color Pro
NO

CONNECTIVITY

HDMI
NO
HDMI Version
NO
HDMI (HDCP Version)
N/A
DisplayPort
YES(out 2ea)
DP Version
1.4
DP (Max. Resolution at Hz)
3840X2160 60Hz
Mini DisplayPort
NO
mDP Version
N/A
mDP (HDCP Version)
N/A
Daisy Chain
NO
Headphone out
NO
Mic In
NO
MIC & Headphone out combo
1 x 3.5mm audio-mic combo jack (CTIA Type)
Audio In
NO
Fiber Ready
NO
RS-232
NO
Thunderbolt
NO
Thunderbolt (Data Transsmission)
NO
Thunderbolt (HDCP Version)
N/A
Thunderbolt (Power Delivery)
N/A
Thunderbolt Version
N/A
Thunderbolt(USB-C Compatiblity)
NO
USB
2 x USB 2.0 Type-A, 4 x USB 3.2 gen1 Type-A, 1 x USB 3.2 gen2 Type-C with DP out
USB-C
YES(out 1ea)
USB-C (Power Delivery)
YES (cosumer only)
USB-C (DP Version)
1.4
USB-C (Max. Resolution at Hz)
4096×2160@60Hz
D-Sub
NO
DVI-D
NO
DVI-I
NO
Location
Horizontal

SOUND

Speaker
YES
Speaker_Channel
1ch
Speaker_Output (unit)
1W
Speaker_Direction
Front Firing
Maxx Audio
NO

POWER

AC Input
100-240Vac, 50/60Hz
DC Output
19V 3.42A
Power Consumption (DC Off)
0.7W
Power Consumption (Energy Star)
27kwh
Power Consumption (Sleep Mode)
1.1W
Long Idle (Display Off)
5.0W
Short Idle (Display On)
6.2W
Type
External Power(Adapter)

MECHANICAL

Assembly Step
Two-Step
Base Detachable
YES
Color (Front Cabinet)
Charcol Gray (Texture)
Color (Middle Cabinet)
NA
Color (Back Cover)
Charcol Gray (Texture)
Color (Stand Body)
NA
Color (Stand Base)
Charcol Gray (Texture)
Color (Others)
Charcol Gray (Texture)
Display Position Adjustments
NO
tilt
NO
Swivel
NO
Pivot
NO
Height Range
NA
Down Height
NA
Machanical Power Switch
NO
OneClick Stand
NO
Wall Mountable
100 x 100 mm

DIMENSIONS/WEIGHT

Dimension in Shiping (W x H x D)
258 x 100 x 164 mm
Dimension with Stand (W x H x D)
85 x 208.1 x 144.9 mm(w/o ANTENNA), 85 x 318 x 144.9 mm(w/ ANTENNA)
Dimension without Stand (W x H x D)
38 x 199.1 x 144.9 mm(w/o ANTENNA), 38 x 309 x 144.9 mm(w/ ANTENNA)
Pallet Stuffing (20ft/40ft/40ft HC)
4,000/9,680/11,440
Weight in Shipping
1.9 kg
Weight with Stand
0.93 kg
Weight without Stand
0.91 kg

STANDARD

CB
YES
CE
YES
EPA
NO
EPEAT (Germany)
NO
EPEAT (USA)
NO
Energy Star
NO
ErP
NO
FCC-B
YES
KC (for Rep. of Korea)
YES
PVC-Free
NO
ROHS, REACH
YES
TCO
NO
TUV-Ergo
YES
TUV-GS
YES
TUV-TYPE
YES
Thunderbolt
NO
USB-C (USB-IF)
NO
USB-C (VESA)
NO
UL (cUL)
YES
VESA wall mount standard
YES
BIS (for India)
NO
BSMI (for Taiwan)
NO
CCC (for china)
NO
VCCI (for Japan)
NO

ACCESSORY

Adapter
YES
Adapter (Color)
Black
Power Cord
YES
Power Cord (Color/Length)
Black / 1.55m
External Antenna
YES
Calibration Report (Paper)
NO
DVI to VGA Gender
NO
DVI-D
NO
DVI-D (Color/Length)
NO
Display Port
NO
Display Port (Color/Length)
NO
HDMI
NO
HDMI (Color/Length)
NO
PC Audio
NO
PC Audio (Color/Length)
NO
Thunderbolt
NO
Thunderbolt (Color/Length)
NO
USB Type C
NO
USB-C (Color/Length)
NO
VESA Bracket
Horizontal/Vertical feet and VESA/wall mounting

NETWORK

LAN (RJ-45)
1 x RJ45 : 10/100/1000 Base-T Gigabit Ethernet (Wake on LAN)
Wi-Fi
Intel Wireless-AX201 (Dual Band Wi-Fi 6 2x2, BT 5.1 Combo, Internal Antenna)
Bluetooth
BT5.1

CONTROL KEY

Key Location
Front
Key Number (Power Key Included)
1
Key Type
Tact
LED Color(On mode)
White (PC Power / HDD)
LED Color(Power save mode)
Blinking (PC )
LED Color(Standby)
OFF(PC )

BOX COSMETIC

Box Printing Type
Flexo
Handle
NO
Packing Material
A-Flute
Stacking Type
Vertical
Stand Packing Type
NO

ENVIRONMENTAL

Humidity Range
Operating : 20%~80%, Storage : 10%~90%
Temperature Range
Operating : 10°C ~ 40°C, Storage : -20°C ~ 60°C
