Display Anti-Discoloration Characterstics verified
Outdoor displays are installed in the drive-thru zone of the burger place, vividly showing menus and images even in bright sunlight.
* All images in this page are for illustrative purposes only.
LG provides advanced technical solutions equipped with various sensors, offering reliable and effective operations. Even in diverse environments exposed to sunlight, the XE4P-B can enhance your content visibility while alleviating concerns about excessive operational burdens. Designed to fit existing legacy casings, it provides a convenient replacement option. Now is the time to embrace the new standard in outdoor displays.
An XE4P-B is installed in the outdoor area next to the school building, clearly displaying graduation celebration visuals. Two XE4P-B are installed in front of the ticket booth at an amusement park, clearly showing ticket purchase information even in strong sunlight. An XE4P-B installed at the racetrack clearly displays the race and relevant information.
With outstanding high brightness of 4,000 nits (Typ.), the XE4P-B delivers content clearly, captivating passersby. Thanks to IPS technology, viewers can engage with the content from wide viewing angles. Additionally, M+ Color Settings applied to the panel enhances picture color quality, showcasing content vividly for onlookers.
An XE4P-B is installed outside a burger shop, and a woman is looking at a vivid advertisement on the screen.
By focusing on the key pain points, we developed our new "Anti-Discoloration" technology designed to deter both screen yellowing and black circles. With an enhanced thermal solution, the XE4P-B can deliver long-lasting and stable display quality.
The display on the left shows yellowing and black circles, degrading its quality. In contrast, the XE4P-B on the right, which acquired UL Verification for Display Anti-Discoloration Characteristics, maintains a clear screen, safeguarding display quality.
Especially for screen yellowing resistance, we obtained the world’s first UL Verification of Anti-Discoloration characteristics for displays. The UL Verified XE4P-B can alleviate concerns about screen yellowing, the most common but tricky issue for outdoor digital signage products.

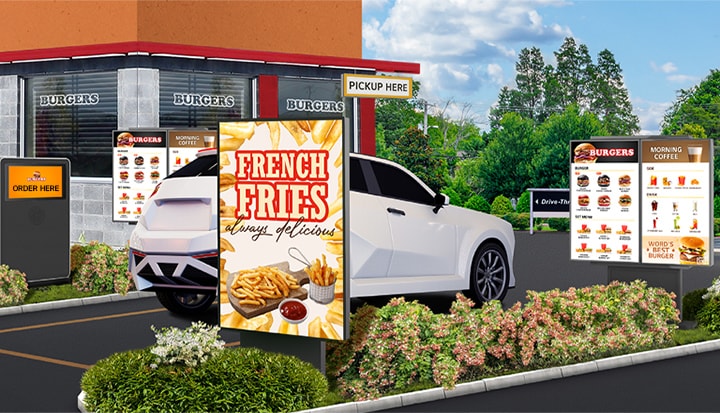

Several outdoor displays are installed at a burger place’s drive-thru, clearly and brightly showcasing the menu and food images.
* For more details, please visit https://verify.ul.com/verifications/1382.
** World's first UL Verification in the manufacturing industry
The XE4P-B is sealed with IP56 design for reliable operation. It is designed to be protected not only from water but also from dust, which is an essential feature for outdoor applications.
The XE4P-B features IK10 rated protective glass, tempered and laminated for outdoor extremes, minimizing damage from external impacts. This can reduce unnecessary LCD module replacements and can lead to cost-effective maintenance.
The XE4P-B can be used under a wide range of operating temperature from -30℃ to 50℃.
* Conducted by LG internal test, Operating temperature : -30℃~50℃ (without direct sunlight; with direct sunlight in cooling system), -30℃~40℃ (with direct sunlight)
Conformal Coating* protects the circuit board and power board against dust, iron powder, humidity, and other contaminants.
* Thin protective films/breathing membranes that filter water vapor and solid debris
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management. Also, the XE4P-B uses M+ panel that can offer high energy efficiency and cost savings by decreasing power consumption.
* The cost-saving effect may vary depending on the actual power consumption, billing methods, and policies of the respective country and site.
** M+ IPS reduced approximately 35% BLU power consumption (IEC62087, 10 min) compared to RGB IPS, tested under same brightness (@full white, 400 nits).
The XE4P-B provides preset brightness settings suited to different locations and usage environments, enabling easy and effective power consumption management according to various scenarios.
* Manual mode : Max. 95%, Min. 5%
Highlight mode : Max. 100%, Min. 20%
Basic mode : Max. 70%, Min. 10%
Nearby mode : Max. 50%, Min. 10%

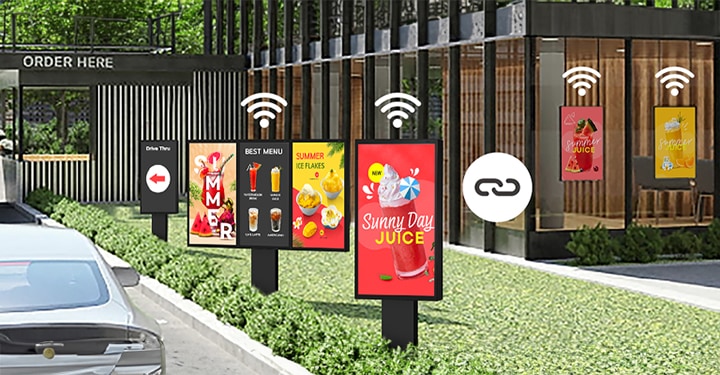

Multiple displays are installed both inside and outside a café. The outdoor multi-display setup synchronizes backlight via RS-232C commands. Built-in Wi-Fi and Bluetooth enable easy content management on the displays.
When showcasing product menus or advertising a new product, a multi-display setup can be utilized. Operators can easily synchronize backlight values across displays by adjusting the Backlight Sync in the internal settings. This user-friendly feature helps maintain consistent color representation with ease.
Built-in Wi-Fi and Bluetooth allow easy wireless transfer and distribution of content, help to prevent data hijacking, and ensure convenient and efficient device operation. Additionally, the XE4P-B is equipped with a beacon that delivers real-time information, using location data for display content.
If the sensor detects the XE4P-B experiencing an impact above a certain threshold or deviating from its original installation angle, it sends an alert to the administrator, enabling a quick response to issues like vandalism.
If the device detects an external impact surpassing a certain threshold, an alert is automatically sent to the administrator.
For easy installation, the XE4P-B is equipped with a self-leveler tool for checking horizontal and vertical levels during installation, reducing the burden of installation work.
* The availability of leveler tool feature may differ by model.
The XE4P-B, featuring LG webOS 6.1 and an upgraded SoC*, supports accurate content playback. If the media player disconnects, it can detect the signal and continue displaying the last active content. It also maintains consistent brightness across multiple displays in a 1×N installation setup, offering uniformity.
* SoC : System on Chip
LG webOS 6.1, upgraded with SoC* and web engine, is available on the XE4P-B for smooth execution of several tasks. The XE4P-B enhances user convenience with its intuitive GUI**, and it also facilitates easy app development by being compatible with programming languages such as HTML, JavaScript, and CSS.
* SoC : System on Chip
** GUI : Graphical User Interface

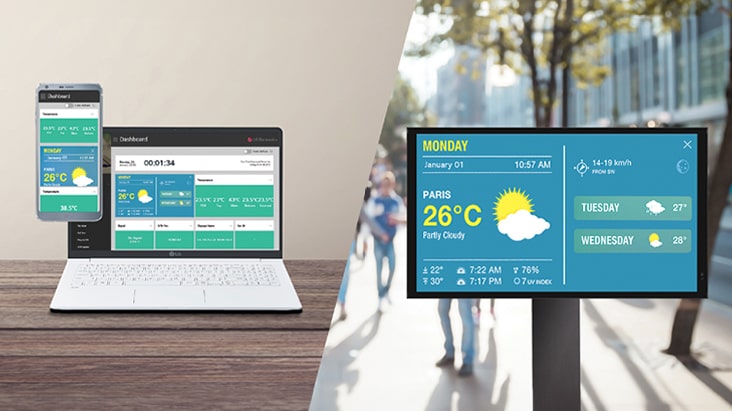

The LG Control Manager*, an embedded web monitoring program, is user-friendly and enables the user to have full access anywhere at anytime from their mobile phone or PC while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
* Enabled by wired LAN connection
With LG ConnectedCare*, users can easily monitor their energy usage on a daily, weekly, and monthly basis. The platform provides comparative data on energy consumption, enabling users to effectively track and manage their energy habits. When paired with Energy Saving mode of the display, users can also estimate their energy savings.
* LG ConnectedCare is sold separately.
Pairing the XE4P-B with LG SW solutions* would enhance its utilization.
* Sold separately
Screen Size (Inch)
55
Panel Technology
IPS / M+
Back Light Type
Direct
Aspect Ratio
16:9
Native Resolution
1920 x 1080 (FHD)
Refresh Rate
60Hz
Brightness
4,000 nit (Typ), 3,200 nit (Min)
Contrast Ratio
1,000:1
Dynamic CR
500,000:1
Color Gamut
72%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
16.7 Million colors
Response Time
Typ. 9ms (G to G BW)
Surface Treatment (Haze)
3%
Life time
50,000Hrs (Typ.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
YES / YES
QWP (Quarter Wave Plate)
YES
HDMI In
YES (2ea)
HDMI In (HDCP Ver.)
2.2
DP In
YES (HDCP 2.2)
RS232C In
YES
RJ45(LAN) In
YES (1ea)
USB In
USB2.0 Type A (2ea)
External Speaker Out
YES
RS232C Out
YES
RJ45(LAN) Out
YES
Bezel Color
Black
Bezel Width
38.4/26/26/38.4mm
Weight (Head)
38.0Kg
Packed Weight
43.5Kg
Monitor Dimensions (W x H x D)
1292.5 x 737.4 x 88.0mm
Carton Dimensions (W x H x D)
1446 x 890 x 207mm
Thickness
5mm
Degree of Protection
YES (IK10)
Tempered / Chemical strengthening
Tempered strengthening
Anti-Reflective
YES
Infrared - Resistance (IR)
YES
Shatter-Proof
YES
Internal Memory (eMMC)
16GB
Wi-Fi/BT (Built-in)
YES
Temperature Sensor
YES
Auto Brightness Sensor
YES
Pixel Sensor
YES
Current Sensor
YES
BLU Sensor
YES
Humidity Sensor
YES
Acceleration(Gyro) Sensor
YES
Power Indicator
YES
FAN (Built-in)
YES
OS Ver. (webOS)
webOS 6.0 (webOS6.1)
Local Contents Scheduling
YES
Group Manager
YES
USB Plug & Play
YES
Fail over
YES
Booting Logo Image
YES
No Signal Image
YES
RS232C Sync
YES
Local Network Sync
YES
Backlight Sync
YES
PIP
YES
PBP
YES (2PBP)
Video Tag
YES (4 Video Tag)
Play via URL
YES
Screen Rotation
YES
External Input Rotation
YES
Gapless Playback
YES
Tile Mode Setting
YES
Setting Data Cloning
YES
SNMP
YES
ISM Method
YES
Auto Set ID
YES
Status Mailing
YES
Control Manager
YES
Smart Energy Saving
YES
PM mode
YES
Wake on LAN
YES
Network Ready
YES
Beacon
YES
HDMI-CEC
YES
SI Server Setting
YES
webRTC
YES
Pro:Idiom
YES
Operation Temperature
-30°C to 50 °C
Operation Humidity
5% to 100%
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
Typ.
210W (IEC62087, 140W)
Max.
460W
BTU (British Thermal Unit)
1126 BTU/Hr(Typ.), 1365 BTU/Hr(Max)
DPM
0.5W↓
Power off
0.5W↓
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC / VCCI
ERP / Energy Star
YES / NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign Cloud
YES
Connected Care
YES
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, polski (Polska), Arab
Tilt (Face down)
15˚(TBD)
IP Rating
IP56
Conformal Coating (Power Board)
YES
Direct Sunlight
YES
Basic
Remote Controller, Manual(EIG, IG), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE, Battery, Screws
