Unrivaled Clarity. Unmatched Elegance.
A large LG MAGNIT Active Micro LED is installed on a luxurious living room wall, displaying vivid colors in great detail.
* All images are for illustrative purposes only.
* Product availability may vary by region. For detailed information, please contact your local LG sales representative
Transform your living space into a gallery of light and color with LG MAGNIT Active Micro LED. Powered by Active Matrix technology, which controls each pixel individually, it delivers exceptional clarity and stunning color fidelity. Experience cinematic quality and refined sophistication at the heart of your home.

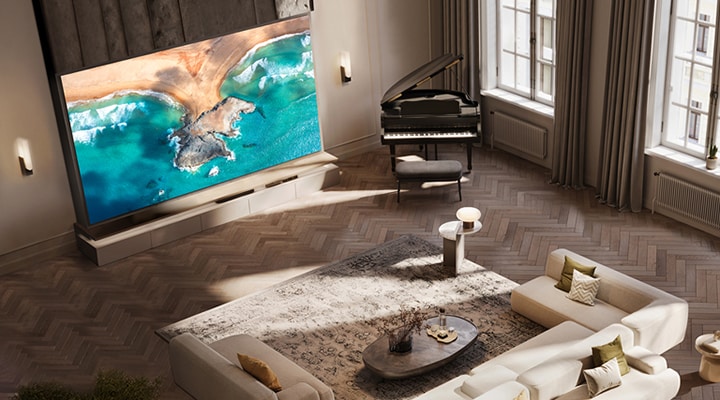

LG MAGNIT Active Micro LED is installed on an elegant and luxurious living room wall, displaying lifelike scenes.
Envision beholding starlit night skies or a radiant galaxy directly before your eyes. With LG MAGNIT Active Micro LED, prepare to be immersed in a distinguished artistic experience, where every detail captivates and mesmerizes.
The canyon landscape filled with countless shining stars and nebulae in the night sky is expressed on the LG MAGNIT Active Micro LED screen with brilliant and deeply rich colors.
Every shade tells a story. LG MAGNIT Active Micro LED is designed to deliver high color accuracy and purity, helping even the most subtle tones emerge with impressive vibrancy. From delicate gradients to vibrant hues, experience color as intended—rich, refined, and true to life.
Wavelike patterns of vibrant colors are richly and delicately expressed.
Micro-sized LED chips create expanded black areas between pixels, enabling LG MAGNIT Active Micro LED to render more defined blacks. This refined contrast reveals hidden details with remarkable depth, capturing every nuance even in the darkest scenes
The contrast between light and shadow is detailed and distinct across the red desert landscape under the dark night sky.
Active Micro LED technology controls brightness with exceptional precision to deliver smooth transitions and natural gradation across a wide range of luminance levels. Subtle tones and shadow details are delicately rendered, creating an engaging viewing experience.
Sunlight is shining through the dense trees in the dark forest, and the details in low-light areas are also well defined.

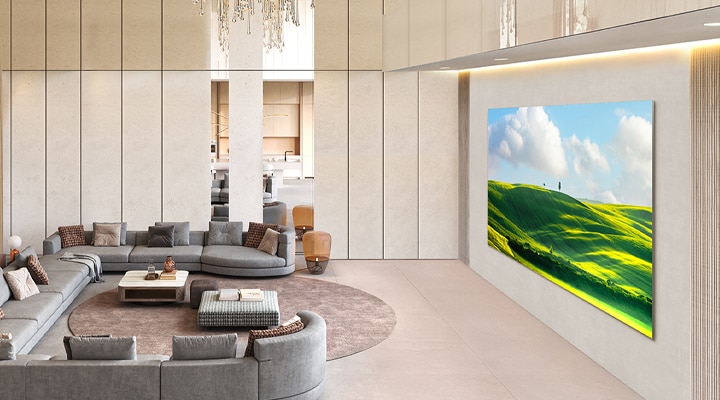

LG MAGNIT Active Micro LED is grandly installed in a high-ceiling, luxurious living room, displaying vivid natural scenery on its screen.
Experience advanced color uniformity with LG’s innovative chip transfer and surface treatment technology, inviting you to indulge in a captivating visual spectacle from a variety of viewing perspectives.
The same scene is being displayed on multiple screens set up at different angles, and each screen shows the same exact scene with accurate and consistent colors and no angle distortion.
Designed to keep pixels continuously lit, the display helps deliver a stable image with reduced flicker—supporting a relaxed and immersive viewing ex - perience, whether you’re enjoying a short clip or watching a full-length movie.
The white snowy landscape is displayed stably with reduced flickering, creating an immersive viewing experience.
LG MAGNIT Active Micro LED unites cutting-edge innovation with timeless elegance. Its expansive 136-inch display becomes the focal point of your home, blending seamlessly into refined interiors. When mounted on the wall, it integrates gracefully and creates a grand presence that elevates every corner of your living space.

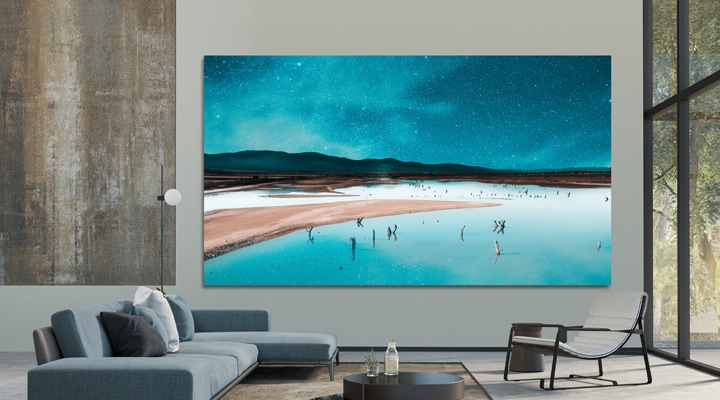

LG MAGNIT Active Micro LED is installed on the wall of a modern, open-space living room. Multiple display units are precisely aligned and combined into one large screen, delivering an immersive view of the landscape.
Advanced module processing technology brings multiple display units together into a single, unified screen. Precisely aligned surfaces are designed to minimize gaps, creating the impression of one expansive canvas for truly immersive viewing.

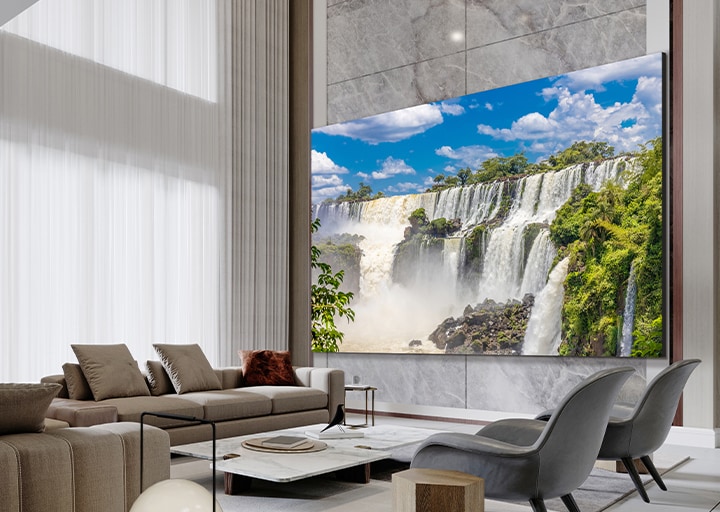

Fast Installation,Effortless Setup ,All-in-One Design for Effortless Living
By integrating four 68-inch cabinets into one unified display, the screen is designed to significantly reduce installation time—allowing the complete 136-inch setup to be ready in just 45 minutes.*
* Installation time of 45 minutes is based on internal testing conducted by experienced LG installation personnel. Actual installation time may vary depending on site conditions and installer proficiency.
LG MAGNIT Active Micro LED comes ready with an integrated controller and built-in speakers, requiring no additional external connections or complex configurations designed for effortless installation and immediate enjoyment in your home.

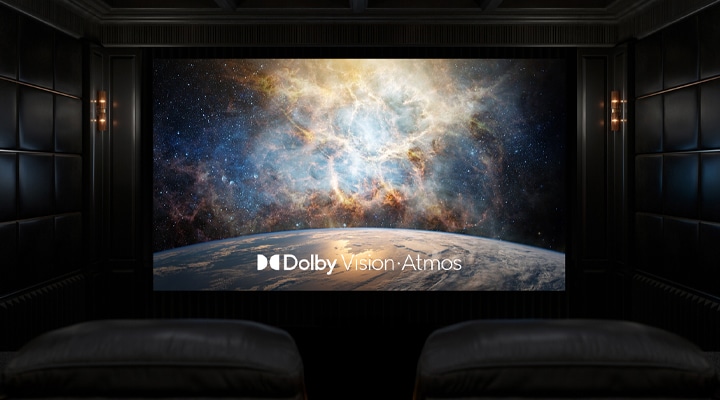

With the large LG MAGNIT Active Micro LED screen that supports Dolby Vision and Atmos, you can enjoy a theater-like viewing experience at home. It automatically adjusts the movie’s brightness and tone mapping based on the viewing environment.
LG MAGNIT Active Micro LED redefines visual excellence with groundbreaking AI processor. Utilizing extensive databases and deep learning algorithms, this system intelligently analyzes and enhances image quality, revealing even the subtlest details. Immerse yourself in a new realm of captivating visuals with LG Micro LED.

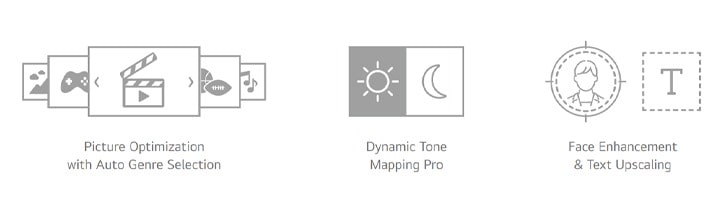

Picture Optimization with Auto Genre Selection, Dynamic Tone Mapping Pro, Face Enhancement & Text Upscaling
With webOS23 and latest SoC, unlocking a world of diverse content, from fitness and sports to entertainment and beyond, becomes easier and more intuitive. Immerse yourself in next-level entertainment with an extensive selection of options on expansive screens.
LG Channerls, Netflix, Apple TV, Prime Video, Disney Plus, Youtube, Apps
* © 2023 Disney and related entities. Disney+ subscription required. Must be 18+ to subscribe.
* Requires internet connection and paid subscription to streaming services.
* Supported apps may differ by region.

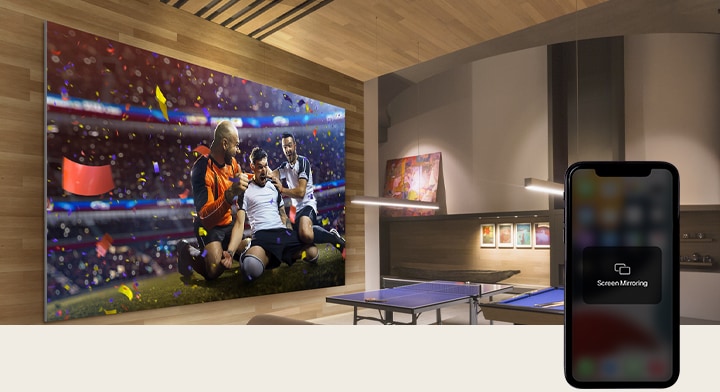

LG MAGNIT Active Micro LED supports Miracast & AirPlay 2, enabling direct streaming from your gadgets to a more expansive, engaging display. Relish the realism of 1:1 scale content, from vibrant sports displays featuring beloved athletes to meticulously captured emotions exhibited by actors.
* Depending on respective app policies, wireless sharing may not be supported.

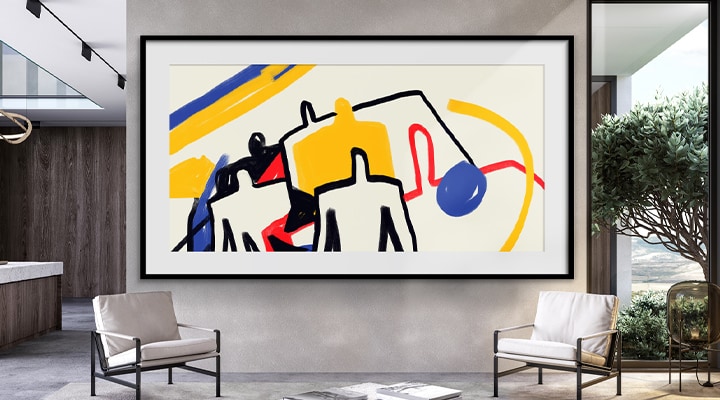

LG MAGNIT Active Micro LED transforms your space into a curated gallery with its dedicated mobile app. Display iconic masterpieces or showcase family memories—turning your living space into a canvas of personal expression.

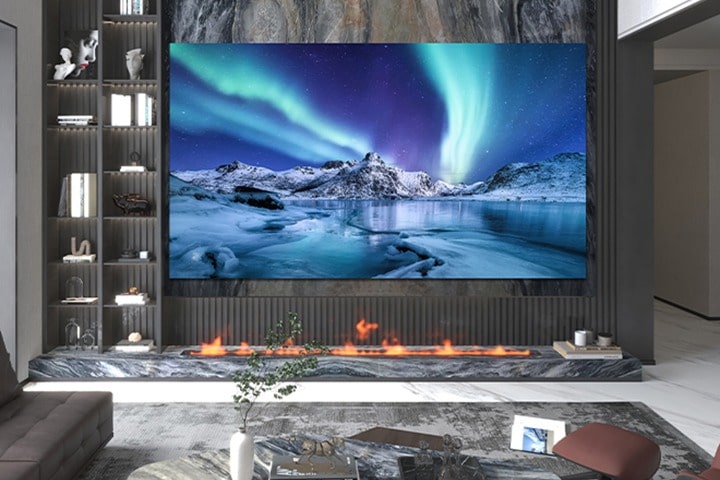

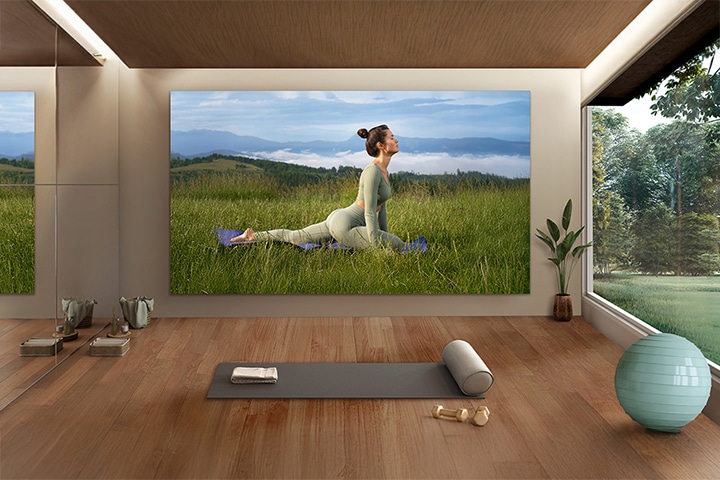

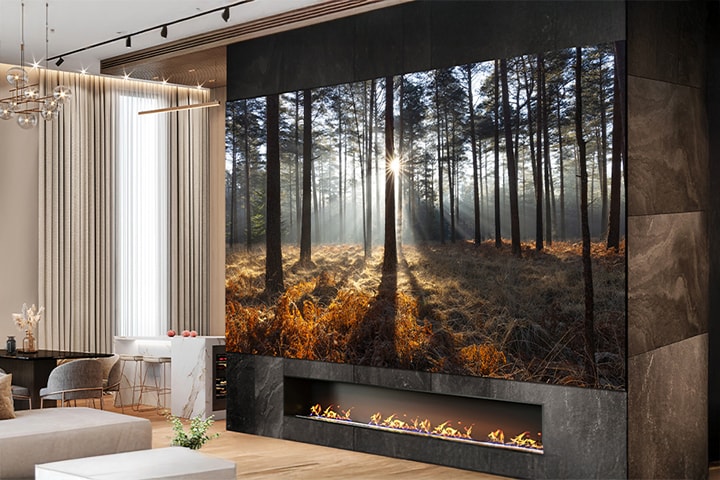

Redefine Your Space, Inspire Every Moment
Redefine Your Space, Inspire Every Moment
Redefine Your Space, Inspire Every Moment
Model name
LSAH007
Pixel Configuration
AM Micro
Pixel Pitch (mm)
P0.78
Module Dimensions(WxH,mm)
375.76 x 422.74
No. of Modules per Screen (WxH)
8 x 4
Screen Resolution (WxH)
3,840 x 2,160
Screen Dimensions (W x H x D, mm, including bezel)
3010.6 x 1695.2 x 37.5
Screen Surface Area (㎡)
5.08
Weight of the screen (kg)
175
Physical Pixel Density (pixels/㎡)
1,638,400
Flatness of Cabinet (mm)
±0.5
Cabinet material
Aluminum
Service access
Front
Brightness (After Calibration, nit)
Max. 300 / Peak 1,700
Color Temperature (K)
4,800~13,000 / Default 13,000
Visual Viewing Angle (Horizontal)
170
Visual Viewing Angle (Vertical)
170
Brightness Uniformity
0.95
Color Uniformity
±0.015Cx,Cy
Contrast Ratio
1,000,000 : 1
Processing Depth (bit)
Internal 20 (HDR10, HDR10 Pro)
Power Consumption (W/Screen, Max.)
1,800
Power Consumption (W/Screen, Avg.)
650
Power Consumption (W/㎡, Max.)
355
Heat Dissipation (BTU/h/Screen, Max.)
6,142
Heat Dissipation (BTU/h/Screen, Avg.)
2,218
Heat Dissipation (BTU/h/㎡, Max.)
1,211
Power Supply (V)
100 to 240
Frame Rate (Hz)
48 ~ 144
Refresh Rate (Hz)
-
LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
0℃ to 40℃
Operating Humidity
10 % to 80 %
IP rating Front
IP50
IP rating Rear
IP20
Certification
CE,FCC,ETL,CB, EMC Class B, BS476 Part7 Class2
Environment
RoHS, REACH
Speaker
100W(50W+50W)
I/O Port
IR Blaster, Anetenna/Cable In, RS-232C (SVC Only), Optical Digital Audio Out, LAN, HDMI (4), USB (2)
Controller
Embedded(webOS)
To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
