High-brightness IP-rated Outdoor Display

High-brightness IP-rated Outdoor Display

High-brightness IP-rated Outdoor Display

55XE3P-B

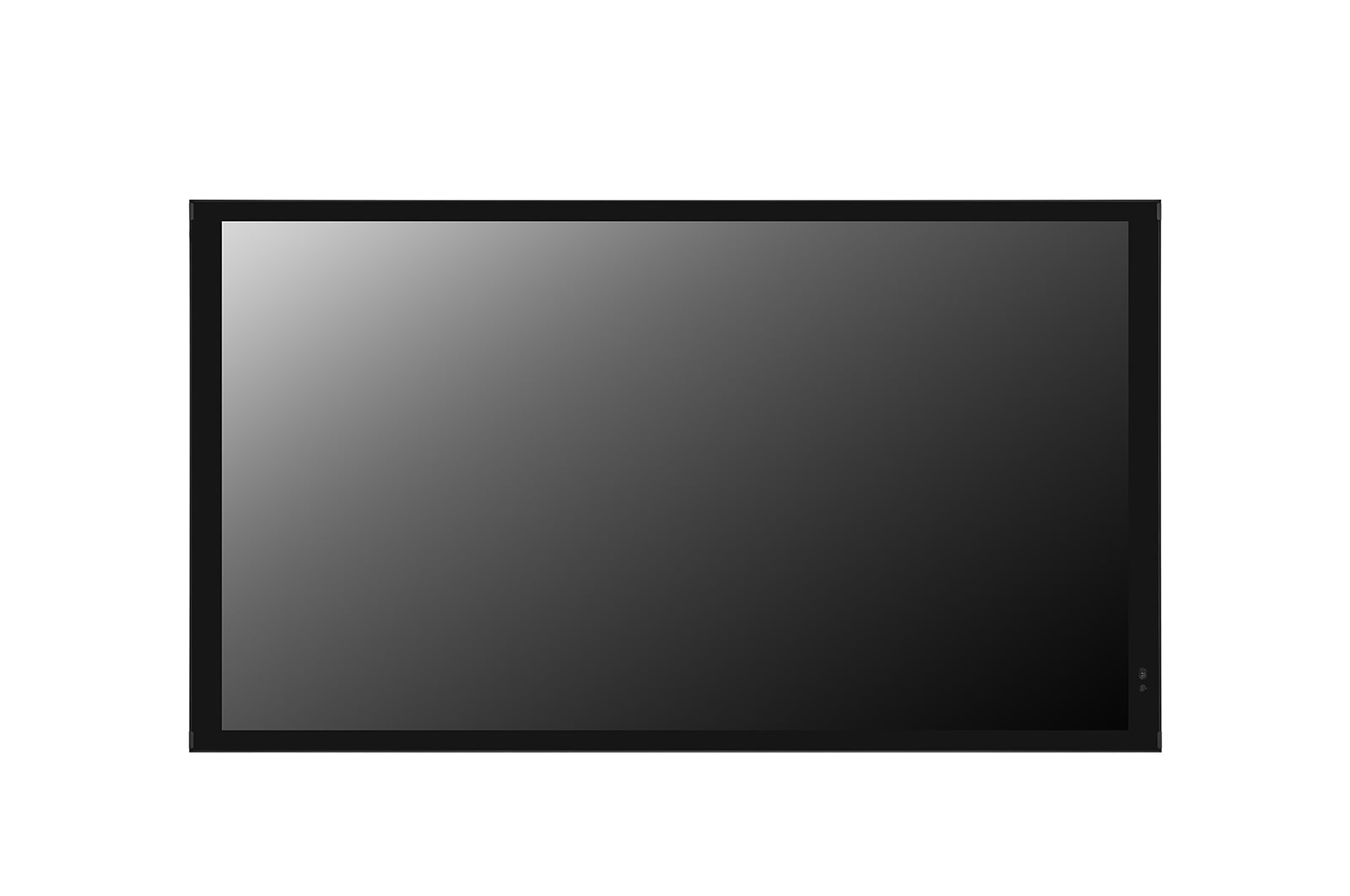

LG High-brightness IP-rated Outdoor Display, 55XE3P-B
LG High-brightness IP-rated Outdoor Display, 55XE3P-B
LG High-brightness IP-rated Outdoor Display, 55XE3P-B
LG High-brightness IP-rated Outdoor Display, 55XE3P-B
LG High-brightness IP-rated Outdoor Display, 55XE3P-B
LG High-brightness IP-rated Outdoor Display, 55XE3P-B
LG High-brightness IP-rated Outdoor Display, 55XE3P-B
LG High-brightness IP-rated Outdoor Display, 55XE3P-B
LG High-brightness IP-rated Outdoor Display, 55XE3P-B
LG High-brightness IP-rated Outdoor Display, 55XE3P-B
LG High-brightness IP-rated Outdoor Display, 55XE3P-B
LG High-brightness IP-rated Outdoor Display, 55XE3P-B
LG High-brightness IP-rated Outdoor Display, 55XE3P-B
LG High-brightness IP-rated Outdoor Display, 55XE3P-B
LG High-brightness IP-rated Outdoor Display, 55XE3P-B
LG High-brightness IP-rated Outdoor Display, 55XE3P-B

Key Features

  • UL Verified Display Anti-discoloration characteristics
  • Resolution : 1,920 × 1,080 (FHD)
  • Brightness : 3,500 nits (Typ.), 2,800 nits (Min.)
  • Portrait / Landscape
More
Print

All Spec

INFO

  • Product

    Outdoor

  • Year

    Y24

  • Month

    M10

PANEL

  • Screen Size (Inch)

    55"

  • Panel Technology

    IPS, M+

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    1920x1080 (FHD)

  • Refresh Rate

    60Hz

  • Brightness

    3,500 nit (Typ), 2,800 nit(Min)

  • Contrast Ratio

    1,000:1

  • Dynamic CR

    500,000:1

  • Color gamut

    72%

  • Viewing Angle (H x V)

    178 x 178

  • Color Depth (Number of Colors)

    8bit, 16.7Million colors

  • Response Time

    Typ. 9ms (G to G BW)

  • Surface Treatment (Haze)

    3%

  • Life time

    50,000 Hrs (Typ)

  • Operation Hours (Hours/Day)

    24/7

  • Portait / Landscape

    Yes / Yes

  • QWP (Quarter Wave Plate)

    Yes

CONNECTIVITY(JACK INTERFACE)

  • HDMI IN

    Yes(2), HDCP2.2

  • DP IN

    Yes(1), HDCP2.2

  • RS232C IN

    Yes(1) (4pin phone jack)

  • RJ45(LAN) IN

    Yes(2) (Lan (1), HDbaseT(1))

  • USB IN

    USB2.0 Type A (2)

  • External Speaker Out

    Yes(1, L/R, 10W+10W)

  • RS232C Out

    Yes(1)

  • RJ45(LAN) Out

    Yes(1)

MECHANICAL

  • Bezel Color

    Black

  • Bezel Width

    38.4/26/26/38.4mm

  • Weight (Head)

    TBD

  • Packed Weight

    TBD

  • Monitor Dimensions (W x H x D)

    1292.5 x 737.4 x 88.0mm

  • Carton Dimensions (W x H x D)

    1446 x 890 x 207mm

PROTECTION GLASS

  • Thickness

    5mm

  • Degree of Protection

    Yes (IK10)

  • Tempered / Chemical strengthening

    Tempered

  • Anti-Reflective

    Yes

  • Infrared - Resistance (IR)

    Yes

  • Shatter-Proof

    Yes

HW FEATURE

  • Internal Memory (eMMC)

    16GB

  • Wi-Fi/BT (Built-in)

    Yes

  • Temperature Sensor

    Yes

  • IR Temperature Sensor

    Yes

  • Auto Brightness sensor

    Yes

  • Pixel sensor

    Yes

  • Current Sensor

    Yes

  • BLU Sensor

    Yes

  • Humidity Sensor

    Yes

  • Acceleration(Gyro) Sensor

    Yes

  • Power Indicator

    Yes

  • FAN (Built-in)

    Yes

SW FEATURE

  • OS Ver. (webOS)

    webOS6.1

  • Local Contents Scheduling

    Yes

  • Group Manager

    Yes

  • USB Plug & Play

    Yes

  • Fail over

    Yes

  • Booting Logo Image

    Yes

  • No Signal Image

    Yes

  • RS232C Sync

    Yes

  • Local Network Sync

    Yes

  • Backlight Sync

    Yes

  • PIP

    Yes

  • PBP

    Yes(2)

  • Video Tag

    Yes(4)

  • Play via URL

    Yes

  • Screen Rotation

    Yes

  • External Input Rotation

    Yes

  • Gapless Playback

    Yes

  • Tile Mode Setting

    Yes (Max. 15x15)

  • Setting Data Cloning

    Yes

  • SNMP

    Yes

  • ISM Method

    Yes

  • Auto Set ID

    Yes

  • Status Mailing

    Yes

  • Control Manager

    Yes

  • Smart Energy Saving

    Yes

  • PM mode

    Yes

  • Wake on LAN

    Yes (LAN in / HDbaseT port)

  • Network Ready

    Yes

  • Beacon

    Yes

  • HDMI-CEC

    Yes

  • SI Server Setting

    Yes

  • webRTC

    Yes

  • Pro:Idiom

    Yes

ENVIRONMENT CONDITIONS

  • Operation Temperature

    -30°C to 50 °C

  • Operation Humidity

    5% to 100%

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ.

    160W (IEC 62087)

  • Max.

    430W

  • BTU (British Thermal Unit)

    1126 BTU/Hr(Typ.), 1365 BTU/Hr(Max)

  • Smart Enegy Saving (70%)

    180W

  • DPM

    0.5W↓

  • Power off

    0.5W↓

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC / VCCI

  • ErP / Energy Star

    Yes / No

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign Control+

    Yes

  • SuperSign Cloud

    Yes

  • Connected Care

    Yes

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, polski (Polska), Arab

ACCESSORY

  • Basic

    Remote Controller, Manual(EIG, IG), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE, Battery, Screws

SPECIAL FEATURE

  • IP Rating

    IP56

  • Conformal Coating (Power Board)

    Yes

  • Direct Sunlight

    Yes

PRODUCT DEDICATED FEATURE

  • Heat dissipation

    Heat exchange

  • Noise level

    62dB

Datasheet

extension : pdf
55-49XE3P_Datasheet(low)_LG High-brightness IP-rated Outdoor Display_240926 (4).pdf
Download

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
