22'' FHD Signage
Contact us

22'' FHD Signage

Contact us

22'' FHD Signage

22UL3Q-E

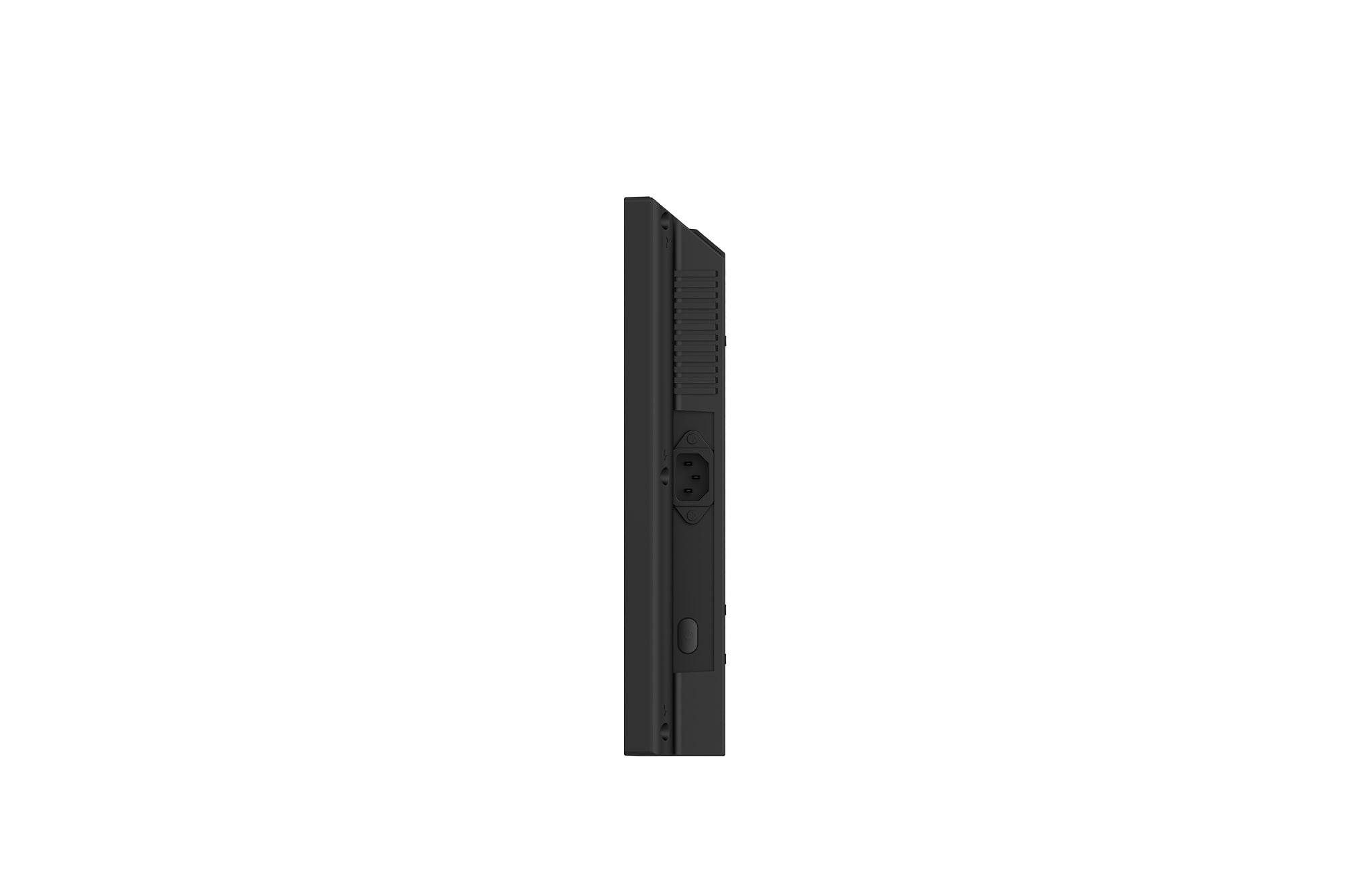

LG 22'' FHD Signage, 22UL3Q-E
LG 22'' FHD Signage, 22UL3Q-E
LG 22'' FHD Signage, 22UL3Q-E
LG 22'' FHD Signage, 22UL3Q-E
LG 22'' FHD Signage, 22UL3Q-E
LG 22'' FHD Signage, 22UL3Q-E
LG 22'' FHD Signage, 22UL3Q-E
LG 22'' FHD Signage, 22UL3Q-E
LG 22'' FHD Signage, 22UL3Q-E
LG 22'' FHD Signage, 22UL3Q-E
LG 22'' FHD Signage, 22UL3Q-E
LG 22'' FHD Signage, 22UL3Q-E
LG 22'' FHD Signage, 22UL3Q-E
LG 22'' FHD Signage, 22UL3Q-E
LG 22'' FHD Signage, 22UL3Q-E
LG 22'' FHD Signage, 22UL3Q-E

Key Features

  • Resolution : 1,920 × 1,080 (FHD)
  • Brightness : 300 nits (Typ.)
  • Face Up/Down with Tilt Support
  • High-Performance with webOS 6.1
  • Enhanced Security
  • Sustainability for ESG
More

LG webOS FHD Signage

A signage display is mounted on the wall of a meeting room, clearly showing meeting content on the screen.

* All images in this page are for illustrative purposes only.

A number of tasks that can be done simultaneously are easily arranged through the webOS platform.

High-Performance with LG webOS 6.1

LG webOS 6.1 is available on the UL3Q series for smooth execution of multiple tasks. The LG webOS smart signage platform enhances user convenience with an intuitive GUI*.



* GUI : Graphical User Interface

One UL3Q is mounted on the wall in landscape orientation, and the other in portrait orientation, with an enlarged image showing the uniform bezel thickness of the UL3Q.

Easy Installation with Uniform Bezel Design

The UL3Q series features perfectly balanced horizontal and vertical bezels, creating a visually harmonious display solution. Its specialized design simplifies installation in retail environments while delivering a truly immersive viewing experience. The sophisticated, symmetrical bezels enhance the aesthetic appeal of any space, transforming ordinary displays into elegant focal points.

One UL3Q is installed on the store ceiling with a Face Down tilt, and the other is mounted below the counter with a Face Up tilt, both displaying content.

Adaptive Viewing Experience

Experience enhanced flexibility with the UL3Q's innovative Face Up/Down tilt support. Whether mounted high or low, each display can adjusted to better meet viewers at eye level, promoting maximum engagement regardless of installation height. This versatility optimizes both spatial efficiency and visual comfort, delivering clear information from various viewing angles.



* 75”/86” are not supported.

** This display tilts up/down up to 15 degrees; do not exceed this rangeto prevent damage.

The UL3Q series can be remotely controlled and monitored through Control Manager on mobile devices and/or laptops.

Remote Monitoring and Control

This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone & PC under network-accessible environment while having access to both current and past data. It allows the user to monitor the unit, make adjustments and control the unit remotely in real time.

A UL3Q is mounted on the wall, with a close-up of the brightness sensor located on the lower front of the display.

Built-In Brightness Sensor

The UL3Q's front-mounted sensor automatically adjusts brightness to match various lighting conditions, helping to optimize viewing quality and energy efficiency without manual intervention. This adaptive feature helps maintain consistent display performance while supporting power savings, delivering improved visual experience that responds to environmental changes.

The UL3Q series provides security features to protect important data from external access or attacks.

Advanced Security Architecture

The UL3Q incorporates LG’s Enhanced Kernel Protection (EKP) technology, safeguarding critical data from unauthorized access and potential security threats. This commitment to information security is validated by the ISO/IEC 15408 Common Criteria EAL2 certification, providing businesses with the confidence that their sensitive content and operations remain protected in today’s challenging security landscape.

LG received the 2025 EcoVadis Platinum medal.

Award-Winning Sustainability

The UL3Q series embodies LG Electronics's ESG commitment: "Better Life for All." This company-wide dedication to environmental responsibility has earned the prestigious 2025 EcoVadis Platinum medal, placing us among the top 1% of global companies for sustainability excellence.

The LG employee is remotely monitoring the UL3Q series installed in another location.

LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.



* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.

Print

All Spec

PANEL

  • Screen Size (Inch)

    21.5

  • Panel Technology

    VA

  • Back Light Type

    Edge

  • Aspect Ratio

    16:9

  • Native Resolution

    1920 x 1080 (FHD)

  • Refresh Rate

    60Hz

  • Brightness

    300nit (Typ.)

  • Contrast Ratio

    4,000:1 (Typ.)

  • Dynamic CR

    1,000,000:1

  • Color Gamut

    72% NTSC

  • Viewing Angle (H x V)

    178º x 178º

  • Color Depth (Number of Colors)

    16.7 Million colors

  • Response Time

    17ms (G to G)

  • Surface Treatment (Haze)

    25%

  • Life time

    30,000Hrs (Min.)

  • Operation Hours (Hours/Day)

    16/7

  • Portait / Landscape

    YES / YES

CONNECTIVITY

  • HDMI In

    YES (2ea)

  • HDMI In (HDCP Ver.)

    2.2/1.4

  • RS232C In

    YES

  • RJ45(LAN) In

    YES (1ea)

  • USB In

    USB2.0 Type A (1ea)

  • Audio Out

    YES

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    14.9mm Even

  • Weight (Head)

    2.68 Kg

  • Packed Weight

    3.93 Kg

  • Monitor Dimensions (W x H x D)

    510.0 x 291.7 x 52.9mm

  • Monitor Dimension with Stand (W x H x D)

    3.93 Kg

  • Carton Dimensions (W x H x D)

    593 x 140 x 371mm

  • VESA Standard Mount Interface

    100 x 100 mm

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    8GB

  • Wi-Fi/BT (Built-in)

    YES

  • Temperature Sensor

    YES

  • Auto Brightness Sensor

    YES

  • Acceleration(Gyro) Sensor

    YES

  • Local Key Operation

    YES

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    webOS 6.1

  • Local Contents Scheduling

    YES

  • Group Manager

    YES

  • USB Plug & Play

    YES

  • Fail over

    YES

  • Booting Logo Image

    YES

  • No Signal Image

    YES

  • Local Network Sync

    YES

  • PIP

    YES

  • PBP

    YES (2PBP)

  • Screen Share

    YES

  • Video Tag

    YES (4 Video Tag)

  • Play via URL

    YES

  • Screen Rotation

    YES

  • External Input Rotation

    YES

  • Gapless Playback

    YES

  • Tile Mode Setting

    YES

  • Setting Data Cloning

    YES

  • SNMP

    YES

  • ISM Method

    YES

  • Status Mailing

    YES

  • Control Manager

    YES

  • Crestron Connected

    YES

  • Smart Energy Saving

    YES

  • PM mode

    YES

  • Wake on LAN

    YES

  • Network Ready

    YES

  • Beacon

    YES

  • HDMI-CEC

    YES

  • SI Server Setting

    YES

  • webRTC

    YES

  • Pro:Idiom

    YES

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

POWER CONSUMPTION

  • Typ.

    25W

  • Max.

    36W

  • BTU (British Thermal Unit)

    85.30 BTU/Hr(Typ.), 122.84 BTU/Hr(Max.)

  • Smart Energy Saving (70%)

    18W

  • DPM

    0.5W

  • Power off

    0.5W

SOUND

  • Speaker (Built-in)

    YES (1W x 2)

CERTIFICATION

  • Safety

    CB / UL

  • EMC

    FCC Class "B" / CE / KC

  • ePEAT(US only)

    YES

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

  • SuperSign Cloud

    YES

  • Mobile CMS

    YES

  • Connected Care

    YES

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, Regulation Book, Easy setup guide, Warranty Card, Phone to D-Sub9 Gender

SPECIAL FEATURE

  • Tilt (Face up)

    15 degree

  • Tilt (Face down)

    15 degree

  • Conformal Coating (Power Board)

    YES

Datasheet

extension : pdf
UL3Q_Datasheet(low)_LG UHD Signage_260811.pdf
