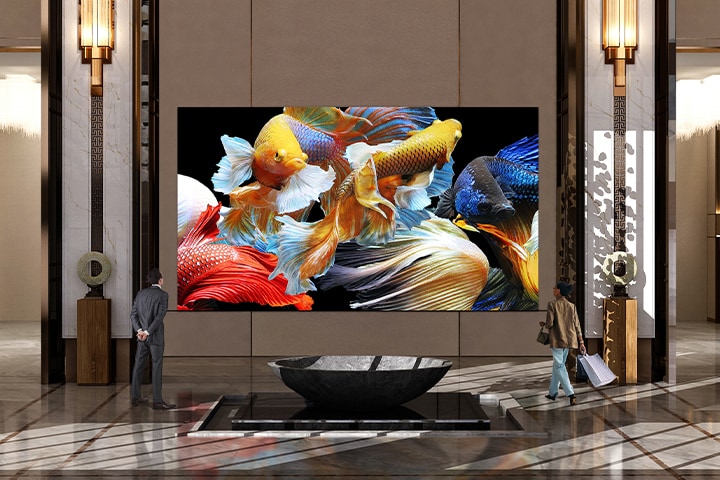

In a spacious lobby, a massive LG MAGNIT shows a vivid underwater scene with colorful fish swimming across the screen.
* All images in this web page are for illustrative purposes only.
LG MAGNIT’s revolutionary chip transfer technology, full black coating, and advanced surface treatment work in harmony to deliver exceptional black levels, vivid colors, and deep contrast. This synergy creates an immersive visual experience where even the subtlest shadow details emerge from the darkness, revealing the full depth of every scene.
A black sphere blends with wave-like vibrant colors, showcasing vivid tones and deep contrast.
* Based on LG's conventional LED Signage
Through meticulous LED chip selection and the narrow wavelength of these chips, LG MAGNIT delivers uniform and pure color expression across the entire screen. The gamut transfer technology also contributes to great color fidelity, making it ideal for environments that demand precise and lifelike visuals.
The flower and the graphic elements spreading around it are vividly depicted in a variety of colors.
LG MAGNIT offers outstanding color consistency, delivering rich and accurate hues from virtually any angle. Whether viewed head-on or from the side, the display maintains uniform color performance. This reliability means that viewers across a large space can enjoy consistent image quality.
The same scene is being displayed on multiple screens set up at different angles, and each screen shows the same exact scene with accurate and consistent colors and no angle distortion.
The deep black levels of LG MAGNIT contribute to an outstanding contrast ratio, a key factor in remarkable picture quality. The clear distinction between light and dark areas enhances every detail, making content more impactful.
The sun shining above the horizon is partly hidden by clouds, casting rays of light across the dark sky, while its reflection on the water delicately contrasts with the surrounding darkness.
With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact. The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.
The brilliant and colorful traditional Korean patterns are more vivid and delicate on the HDR On screen than on the HDR Off screen.
LG MAGNIT utilizes FLAT (Front Line Aligned Tiling) technology ensures precise alignment of LED module seams during production, minimizing front surface gaps and reducing black level variations between modules, even before the product leaves the factory.

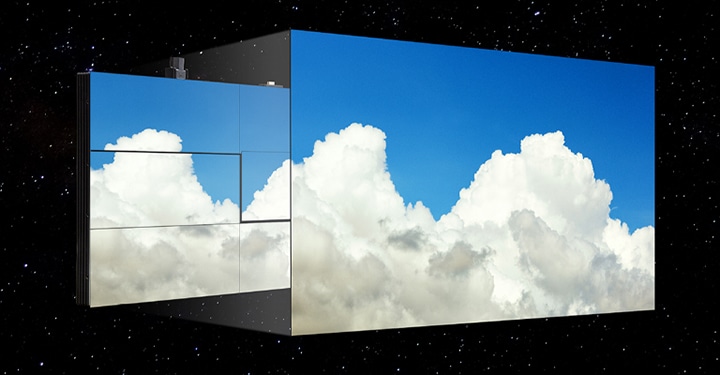

The LG MAGNIT screen, with minimal gaps between modules, shows the blue sky and puffy clouds without color deviation.
LG MAGNIT features a signal transmission design that eliminates the need for signal and power cables between cabinets. Only minimal cabling is required to connect the screen to its system controller and power source, resulting in a cleaner and more efficient installation.
LG MAGNIT’s signal transmission design allows cabinet connections without extra cabling, simplifying the rear structure of the screen.
In conventional LED displays, screen level adjustment is typically limited to the rear due to structural constraints. LG MAGNIT, however, enables adjustment from both the front and rear, offering greater installation flexibility and precision.
An installer is using a special tool to perform level adjustment from the front of the screen, with the difference before and after adjustment shown side by side.
As the Driver IC used in the LG MAGNIT has been improved, the errors that previously appeared as lines due to pixel defects have been enhanced to display as dots. This can deliver an improved viewing experience for customers and a better service experience for administrators.
A conventional LED display shows pixel defects appearing as lines, while the LMPB shows the same pixel defects improved as dots, with the two compared side by side.
Previously, the distance between LG MAGNIT and the controller was limited to just 100 meters, which often posed challenges in expansive environments like auditoriums and control rooms. Now, thanks to SFP+ compatibility on the controller, LG MAGNIT and the controller can be placed up to 10 kilometers apart, offering greater flexibility with fewer/ reduced installation constraints.

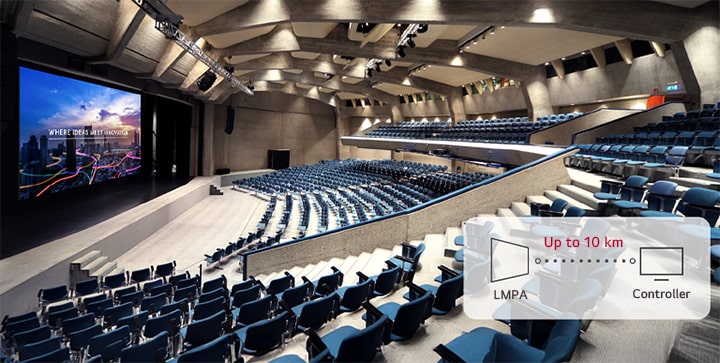

An LMPB is installed in a large auditorium, and its controller, with a maximum separation distance of 10 km, can be placed separately from the display.
As the ProAV industry increasingly adopts ST 2110 for IP-based signal transmission, LG MAGNIT meets these evolving demands by supporting ST 2110 input through its CEAB controller. This allows seamless integration into high-performance broadcast and live event workflows built on network-based video systems.
In a broadcast studio, an LG MAGNIT is connected to a CEAB controller supporting ST 2110, streaming live news.
LED displays with a low refresh rate may have a distracting flickering effect when captured on camera. LG MAGNIT reduces this with an enhanced driver IC, achieving a visually high refresh rate without compromising picture quality.
A conventional LED display shows flickering when captured by a camera, while an LMPB shows reduced flicker and clearer image quality, with the two compared side by side.
Model name
LMPA009BANA
Pixel Configuration
Micro
Pixel Pitch (mm)
P0.93
Module Resolution (WxH)
320x120
Module Dimensions(WxH,mm)
300x112.5
Weight per Module (kg)
0.19
No. of Modules per Cabinet (WxH)
2x3
Cabinet Resolution (WxH)
640x360
Cabinet Dimensions (W x H x D, mm)
600x337.5x39.8
Cabinet Surface Area (㎡)
0.2
Weight per Cabinet (kg/unit)
5.6
Weight per Square Meter (kg/㎡)
27.7
Physical Pixel Density (pixels/㎡)
1,137,778
Flatness of Cabinet (mm)
±0.5
Cabinet material
Mold / PC+ABS-GF20%
Service access
Front
Brightness (After Calibration, nit)
Typ. 600 / Peak 1,500
Color Temperature (K)
3,200~9,300 / Default 7,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
160
Brightness Uniformity
0.95
Color Uniformity
±0.02Cx,Cy
Contrast Ratio
40,000:1 @10lux
Processing Depth (bit)
20 (HDR10, HDR10 Pro)
Power Consumption (W/Cabinet, Max.)
63
Power Consumption (W/Cabinet, Avg.)
37
Power Consumption (W/㎡, Max.)
311
Heat Dissipation (BTU/h/Cabinet, Max.)
215
Heat Dissipation (BTU/h/Cabinet, Avg.)
126
Heat Dissipation (BTU/h/㎡, Max.)
1,061
Power Supply (V)
100 to 240
Frame Rate (Hz)
48 / 50 / 60
Refresh Rate (Hz)
7,680 (V)
LED Lifetime (Half brightness)
150,000
Operating Temperature(℃)
0℃ to +40℃
Operating Humidity
10~80%RH
IP rating Front
IP50
IP rating Rear
IP20
Certification
Safety 62368-1, EMC Class B, BS476 Part7 Class1
Environment
RoHs
Controller
CEAA / CEAB / SBAA
90 degree corner cut
X
To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
