Outdoor LED
Pixel Configuration
Single SMD
Pixel Pitch(mm)
P1.88
Module Resolution (WxH)
72 X 128
Module Dimensions(WxH,mm)
135 X 240
Weight per Module (kg)
0.32
No. of Modules per Cabinet (WxH)
8x8
Set Dimensions (W x H x D, mm)
1202.8 x 2003 x 163.9
Cabinet Dimensions (W x H x D, mm)
1080*1920*47
Cabinet Resolution (WxH)
576x1024
Cabinet Surface Area (m²)
2.0736
Weight per set(kg/unit)
109
Weight per Cabinet (kg/unit)
60
Physical Pixel Density (pixels/m²)
284,444
Flatness of Cabinet (mm)
±1.0
Cabinet Material
Aluminum
Service Access
Front (Cabinet only)
Max Brightness (After Calibration, nit)
3,500
Color Temperature (K)
3,000 ~ 10,000
Visual Viewing Angle (Horizontal)
170
Visual Viewing Angle (Vertical)
170
Brightness Uniformity
0.95
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
8,000:1
Processing Depth (bit)
14
Power Consumption (W/h, Max.)
1750(Typ: 1420 @ 220V)
Power Consumption (W/h, Avg : IEC62087 standard video)
430
Power Consumption (W/m², Max.)
800
Heat Dissipation (BTU/h/Cabinet, Max.)
5630
Heat Dissipation (BTU/h/Cabinet, Avg.)
1467
Heat Dissipation (BTU/h/m², Max.)
2730
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3840
LED Lifetime (Half brightness)
100,000

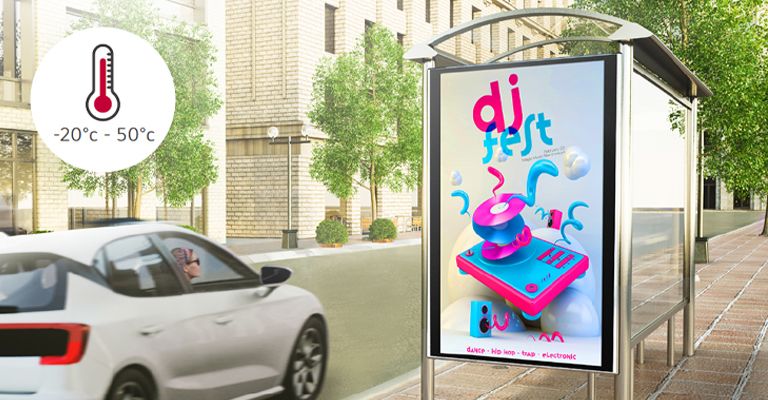

Operating Temperature(℃)
-20℃ to +50℃
Operating Humidity
10~80%RH
IP Rating Front
IP54
IP Rating Rear
IP20
Certification
CE, FCC, cTUVus, CB Class A
Environment
RoHS, REACH
Controller
Including
