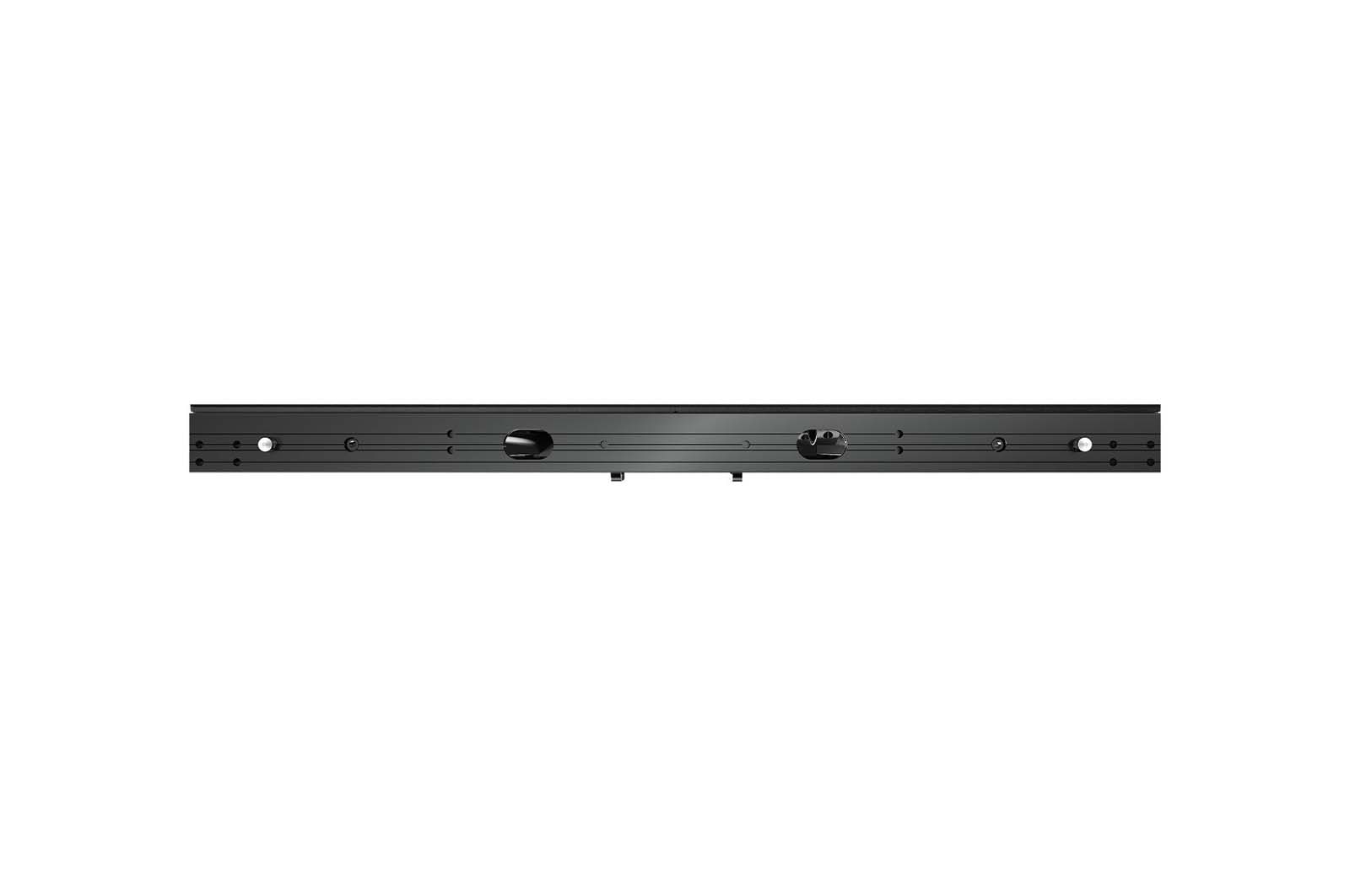

GSPA100-GA | LG Global Business

Outdoor LED

GSPA100-GA

Key Features

Pixel Pitch : 10 mm
Brightness : 10,000 / 8,000 nit
IP Rating : IP66 (Front / Rear)

Outdoor Signage with Long-Range Visibility

The LED screen is prominently displayed across two sides of the building's exterior. Even though it is installed wrapping around the corner, the content appears seamless without interruption. Despite the bright sunlight and the high-mounted position, its visibility and clarity remain excellent.

* All images in this page are for illustrative purposes only.

A large GSPA screen is installed on the exterior wall of the building entrance.

Long-Range Visibility

Ideal for long-distance visibility, our GSPA6.6/10.0 models are perfect for large billboards and mid-to-high building facades. Capture attention from a distance with crisp, clear text and vibrant visuals.

The GSPA series, with its enhanced power consumption, offers higher energy efficiency.

Enhanced Energy Efficiency

Compared to LG’s traditional model, power consumption has decreased by more than 21%*, based on the same brightness. This means that operating costs are significantly reduced.

* Power consumption improvement is compared to the LG GSEG100-GS model.

The use of two cabinet sizes and an L-shaped installation enables the LED screen to be seamlessly mounted on the building's cornered wall.

Flexible Installation

The GSPA series offers two sizes of cabinets, allowing for a screen size configuration that perfectly meets customer demands. Both side-cut cabinets can also be used as described. The GSPA series integrates seamlessly into the space and delivers smooth content to customers.

The GSPA series can be installed by selecting either 6,000 or 8,000 or 10,000 nits brightness for the surrounding environment.

High Brightness for Outdoor

Optionally, users can choose among several models, such as P10 / 10,000 nit, P10 / 8,000 nit, P6.6 / 8,000 nit, and P6.6 / 6,000 nit. It can also be optimized for screen time, region, regulations, and power consumption, depending on different environmental conditions. The P10 operates at temperatures up to 60°C and can be reliably installed at altitudes of up to 5,000 meters.

* Brightness options are set before shipment from the factory, and cannot be changed after installation.

Compatibility with LG Software Solutions

When connected with LG's CVGA system controller, the GSPA series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.

The LG employee is remotely monitoring the GSPA series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables the GSPA series to be compatible with LG software solutions.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* LG Software solutions needs to be purchased separately.

All Spec

90 DEGREE CORNER CUT

90 degree corner cut
X

PHYSICAL PARAMETERS

Pixel Configuration
Single SMD
Module Resolution (WxH)
48 x 32
Module Dimensions(WxH,mm)
480 x 320
Weight per Module (kg)
1.65
No. of Modules per Cabinet (WxH)
2 x 3
Cabinet Resolution (WxH)
96 x 96
Cabinet Dimensions (W x H x D, mm)
960 x 960 x 68
Cabinet Surface Area (㎡)
0.92
Weight per Cabinet (kg/unit)
20.5
Weight per Square Meter (kg/㎡)
22.5
Physical Pixel Density (pixels/㎡)
10,000
Flatness of Cabinet (mm)
±0.5
Cabinet material
Profile Aluminum
Service access
Front & Rear

OPERATION SPECIFICATIONS

IP rating Front
IP65
LED Lifetime (Half brightness)
100,000
Operating Temperature(℃)
-30℃ to +60℃
Operating Humidity
10~90%RH
IP rating Rear
IP65

OPTICAL SPECIFICATIONS

Max Brightness (After Calibration, nit)
Max. 10000
Color Temperature (K)
3,200 ~ 9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Brightness Uniformity
0.97
Color Uniformity
±0.003Cx,Cy
Contrast Ratio
15,000 : 1
Processing Depth (bit)
16 (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

Power Consumption (W/Cabinet, Max.)
580
Power Consumption (W/Cabinet, Avg.)
193
Power Consumption (W/㎡, Max.)
630
Heat Dissipation (BTU/h/Cabinet, Max.)
1583
Heat Dissipation (BTU/h/Cabinet, Avg.)
526
Heat Dissipation (BTU/h/㎡, Max.)
1720
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840

STANDARD

Certification
CE, CB, FCC, ETL, KC, EMC Class A, EN13501-1 Class B & BS476 Part7 Class1

ENVIRONMENT

Environment
RoHS, REACH

CONTROLLER

Controller
CVGA / LCQT

INFORMATION

Model name
GSPA100-GA

Datasheet

GSPA_Datasheet(low)_LG Outdoor LED_250310.pdf
