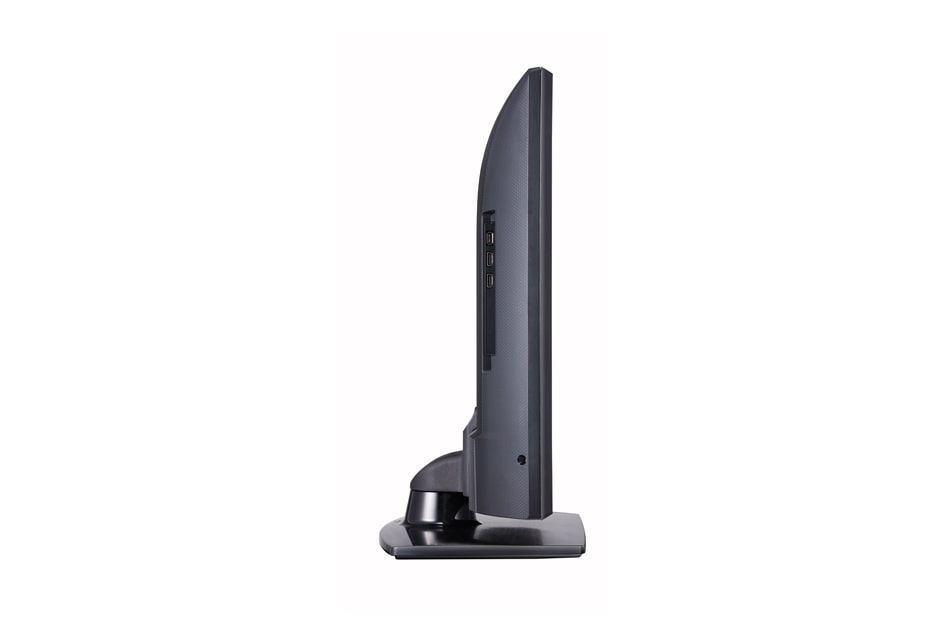

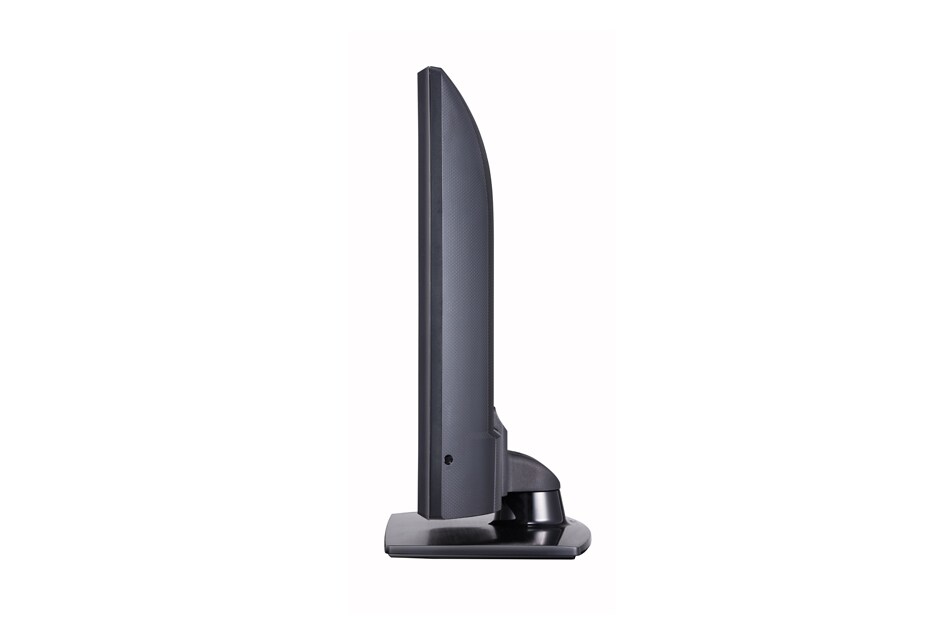

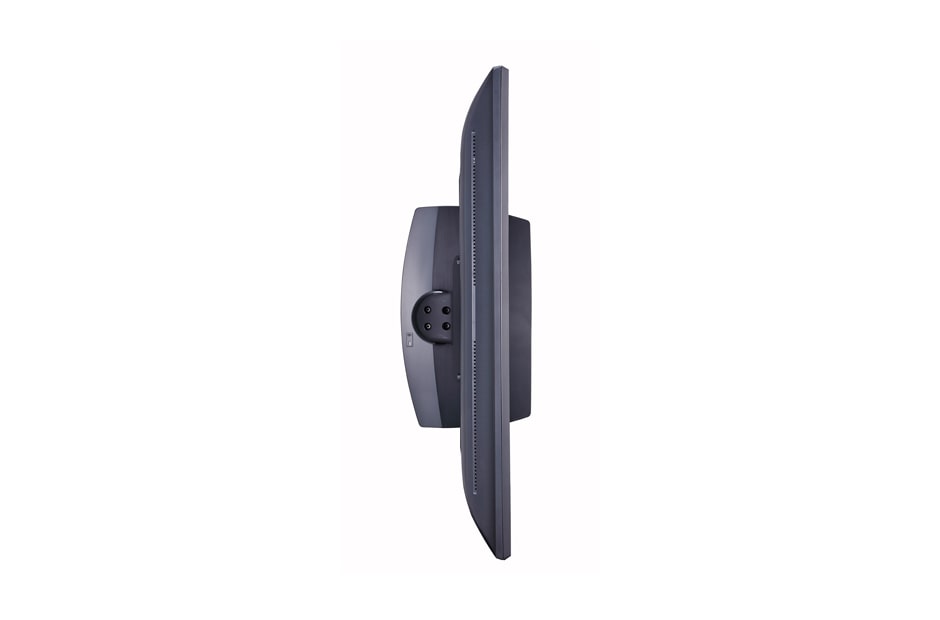

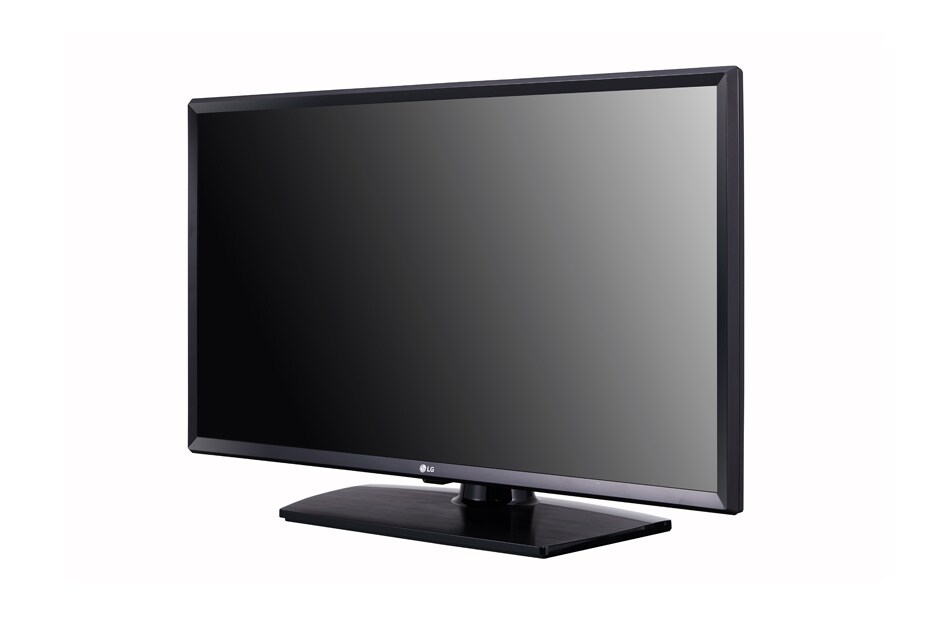

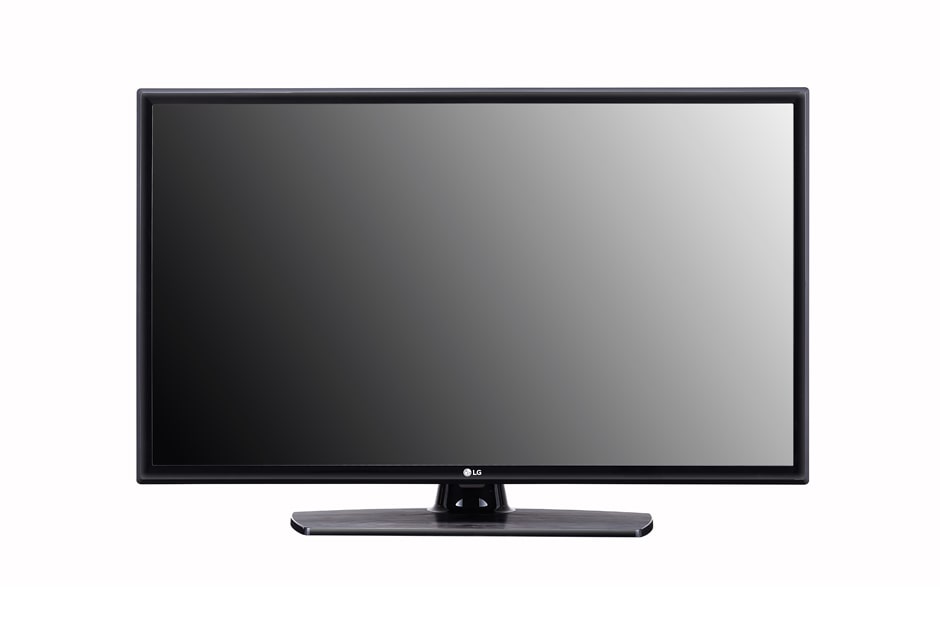

32LV341H (EU)
LV341H Series

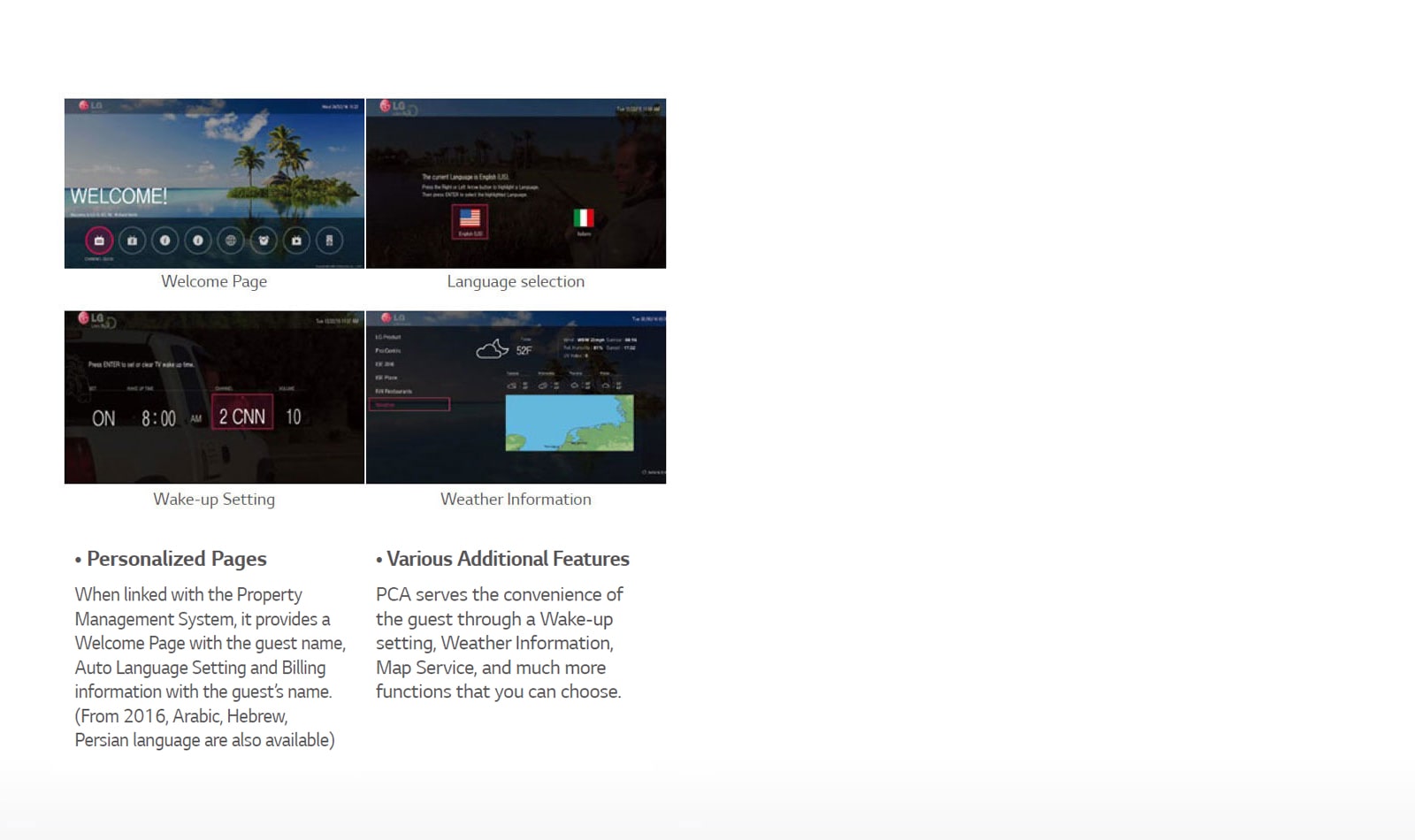

  • Pro:Centric Application

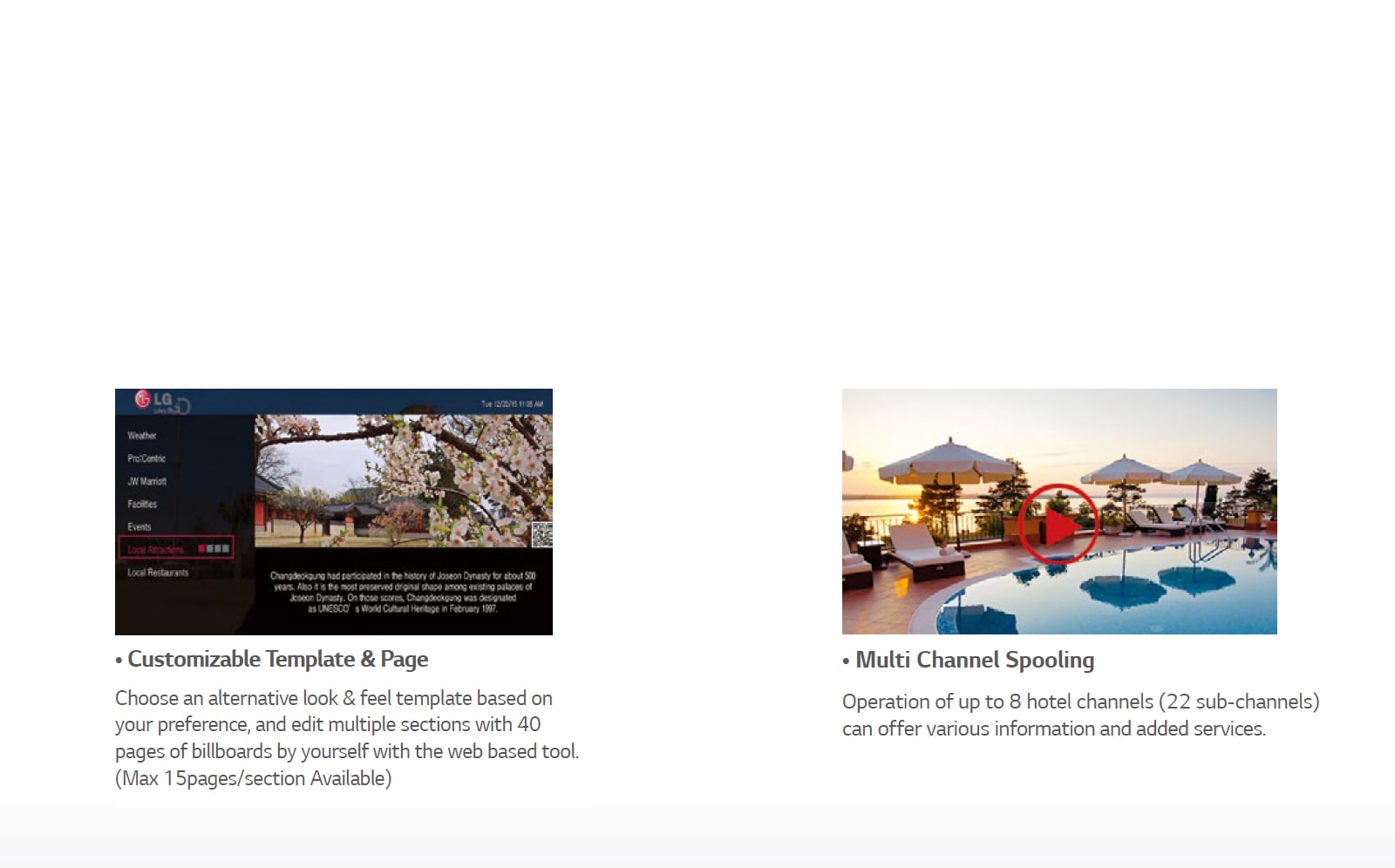

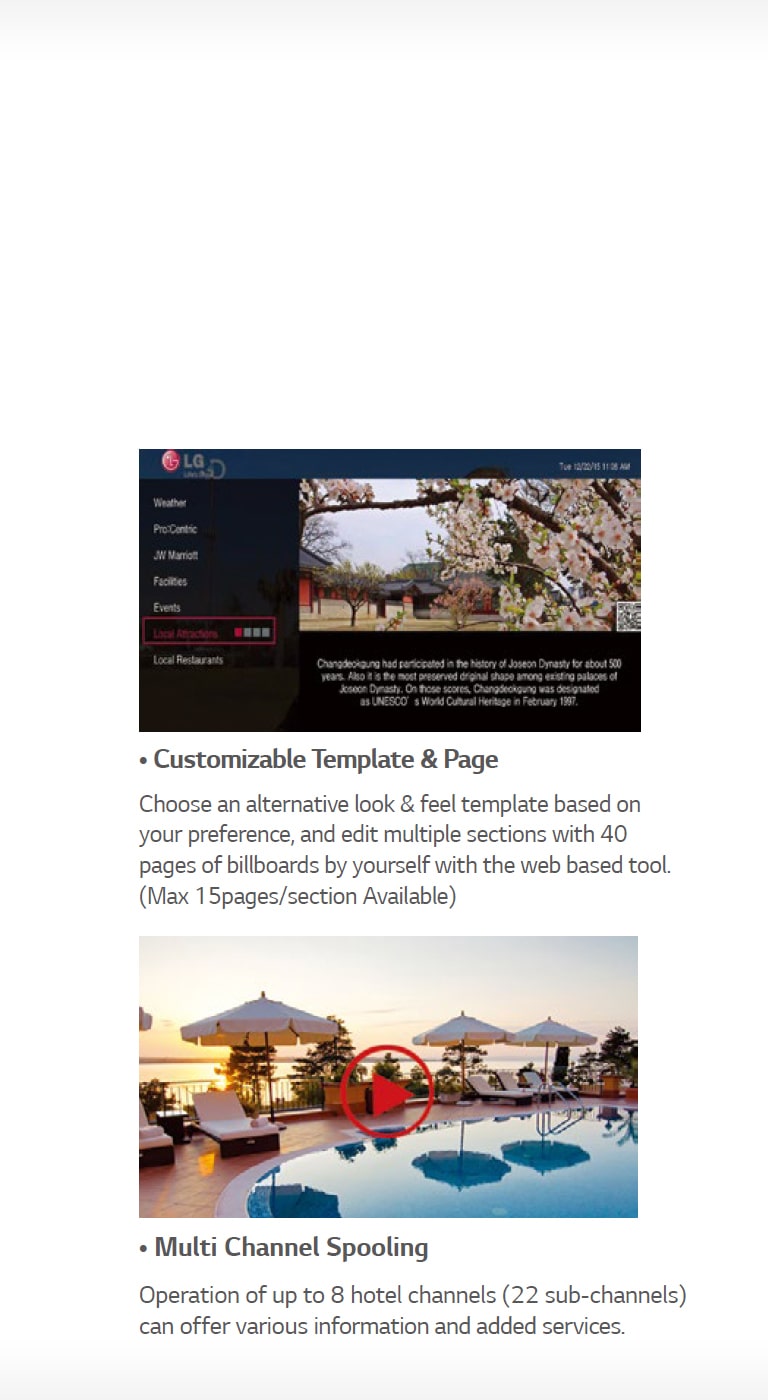

  • Embedded Customizable Templates
  • Multiple Channel Spooling

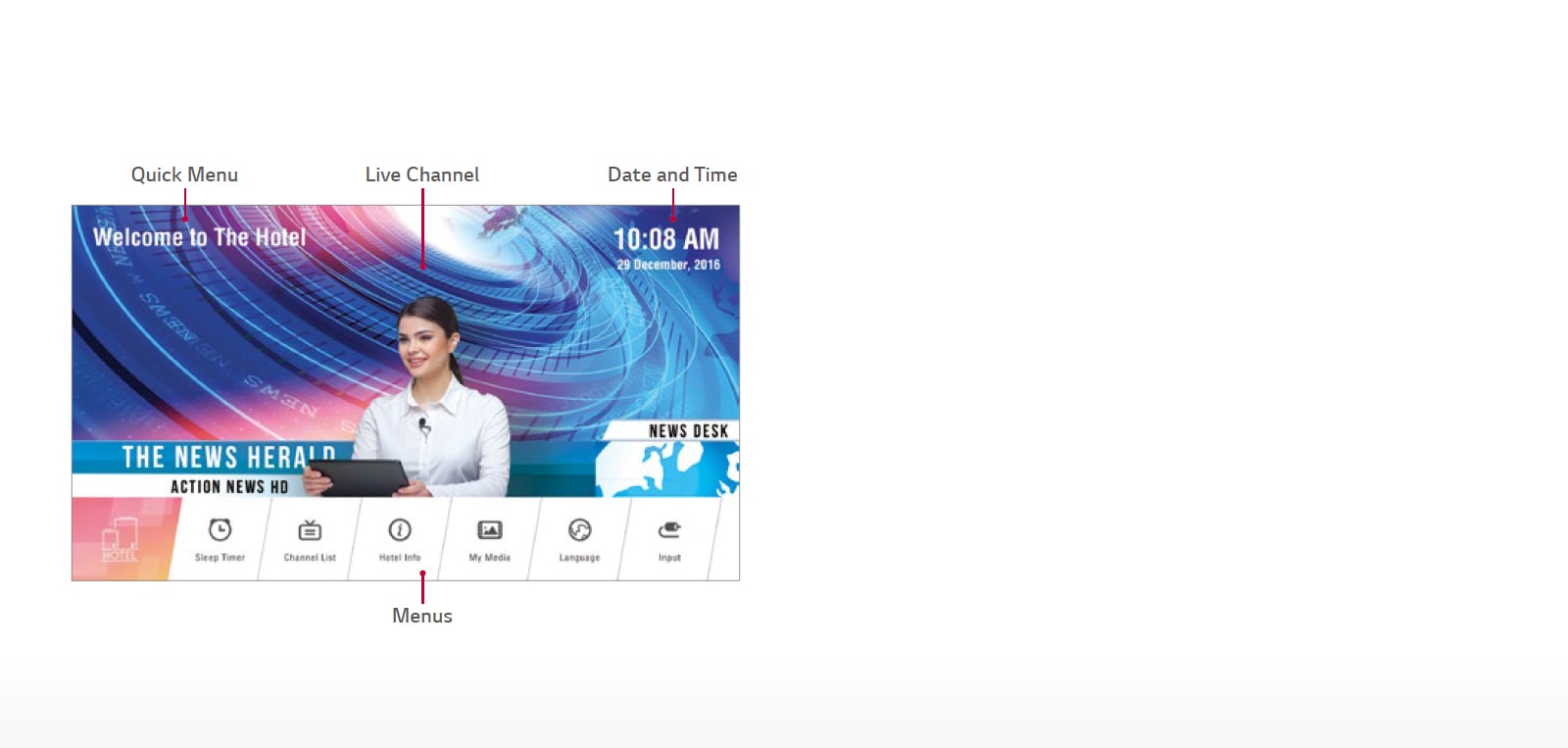

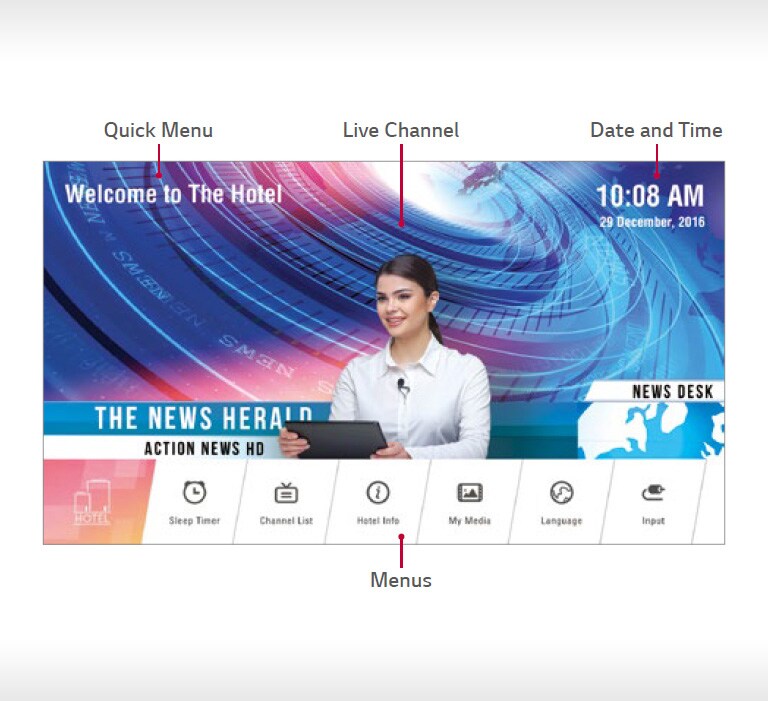

  • NEWQuick Menu
  • EzManager for quick and simple TV settings
  • Commercial Swivel Stand

component-OBScountrySelectDesc

LV341H Series

Display

  • Type
    Direct LED
    Resolution
    1,920 x 1,080 (FHD)

Broadcasting System

  • Analog
    PAL / SECAM
    Digital
    DVB-T2/C/S2

Video

  • Picture Engine
    XD Engine
    Real Cinema 24p (3:3 Pull down)
  • Aspect Ratio
    • 6 modes (16:9, Original, 4:3, Vertical Zoom, All-Direction Zoom, Full wide)

Audio

  • Audio Output / Speaker System
    5W + 5W / 2.0 ch
    Sound Mode
    • 6 modes (Standard, Cinema, Clear Voice, Sports, Music, Game)

Solution

  • Type
    Pro:Centric V, Quick Menu (TV Embedded Home UI)
    Data Streaming (IP &RF)
    • (RF Only)
  • RF
    • (1 Tuner)
    HCAP (SDK)
    GEM / Flash

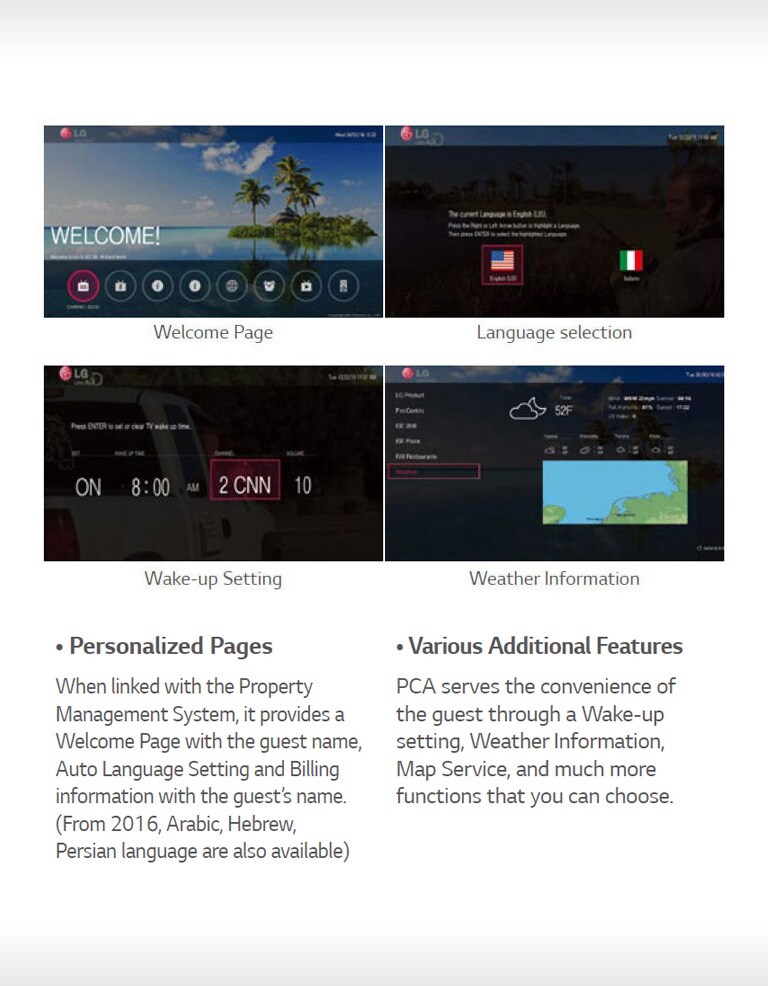

  • Pro:Centric Application
    PCA 3.7

FEATURES

  • Installation
    Ez Manager, USB Cloning
    Management
    Wake on RF, Self Diagnostics, IR Out, Multi IR Code, HTNG/HDMI-CEC
  • Hospitality
    Hotel Mode, Lock Mode, Welcome Screen/Video, Insert Image, One Channel Map, External Speaker Out, RJP Compatibility, USB Auto Playback, Time Scheduler

Interface

  • Side
    Headphone Out, HDMI In, USB , CI Slot
    Rear
    RF(2), AV In, Component In (RCA5), Digital Optical Audio Out, HDMI Input, RS-232C, RGB In, PC Audio Input, External Speaker Out, RJ45 (SNMP)

Dimension(Unit: mm)

  • Vesa
    200 X 200
    W x H x D / Weight (with stand)
    739 x 495 x 241 / 6.1kg
  • W x H x D / weight (packing)
    905 x 530 x 162 / 7.4kg

General

  • Region
    Europe
