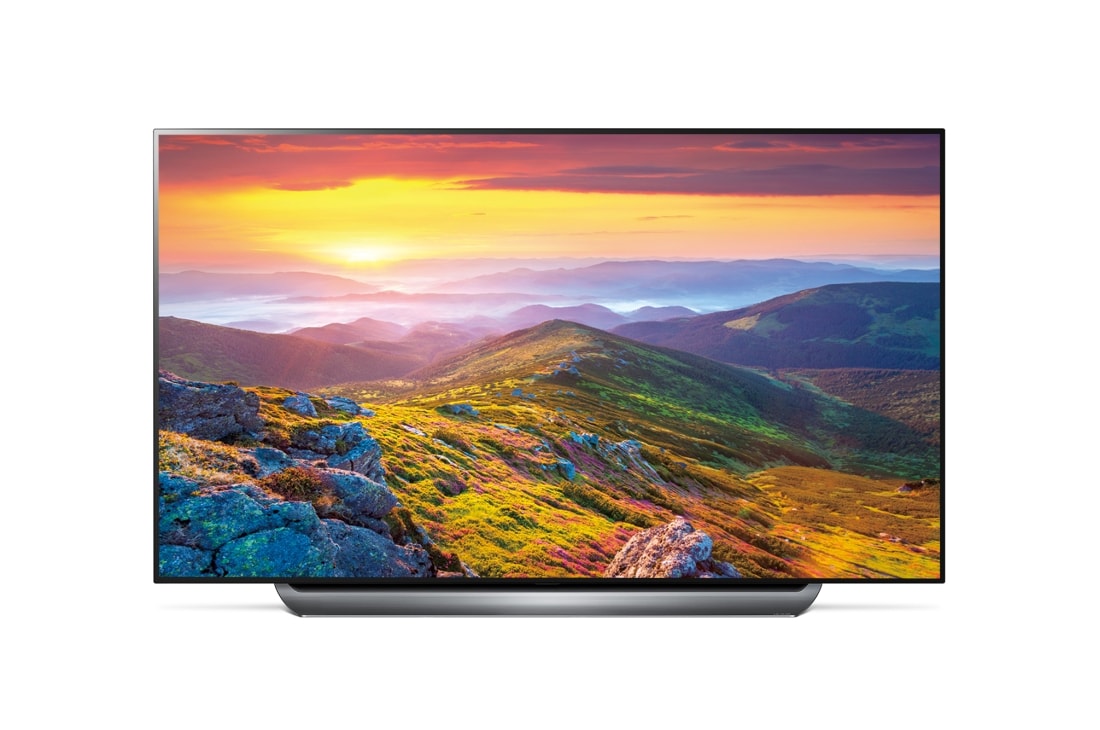

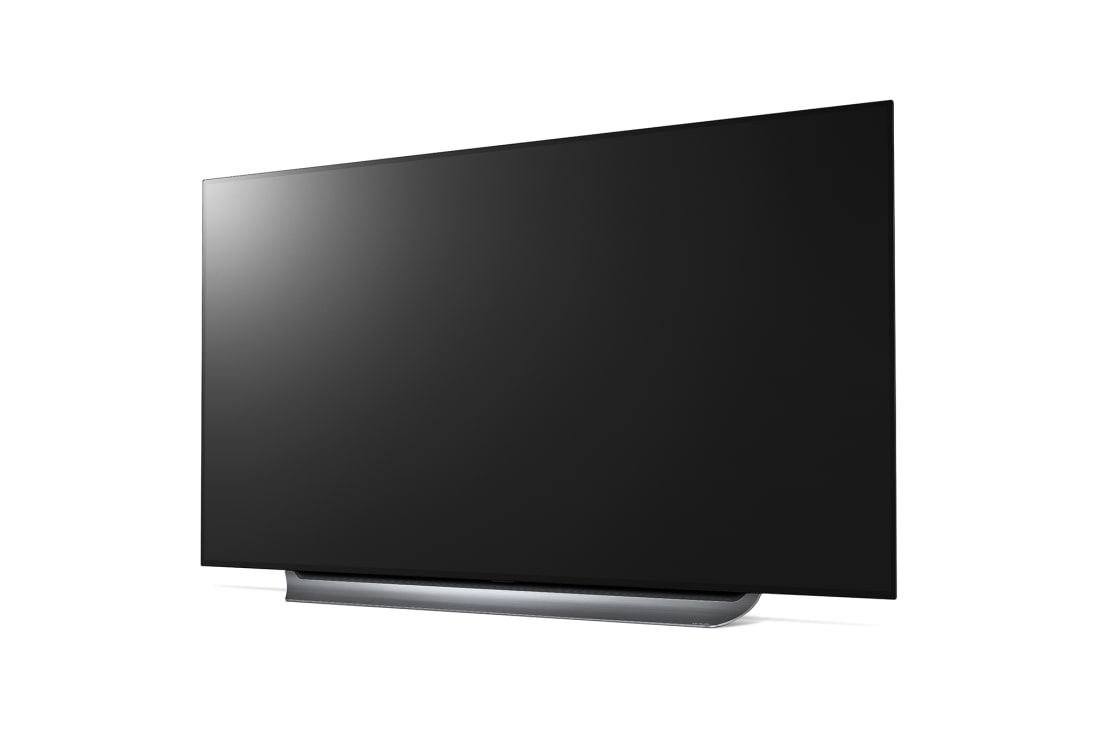

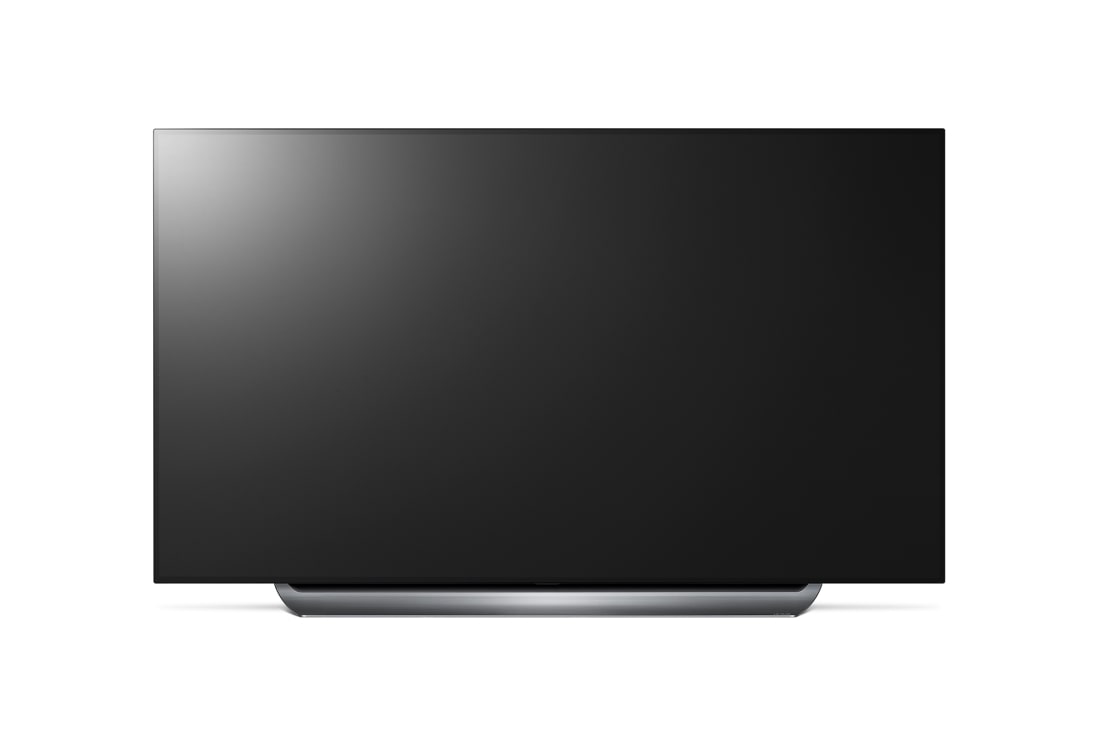

77EU960H (NA)
77'' OLED Hotel TV

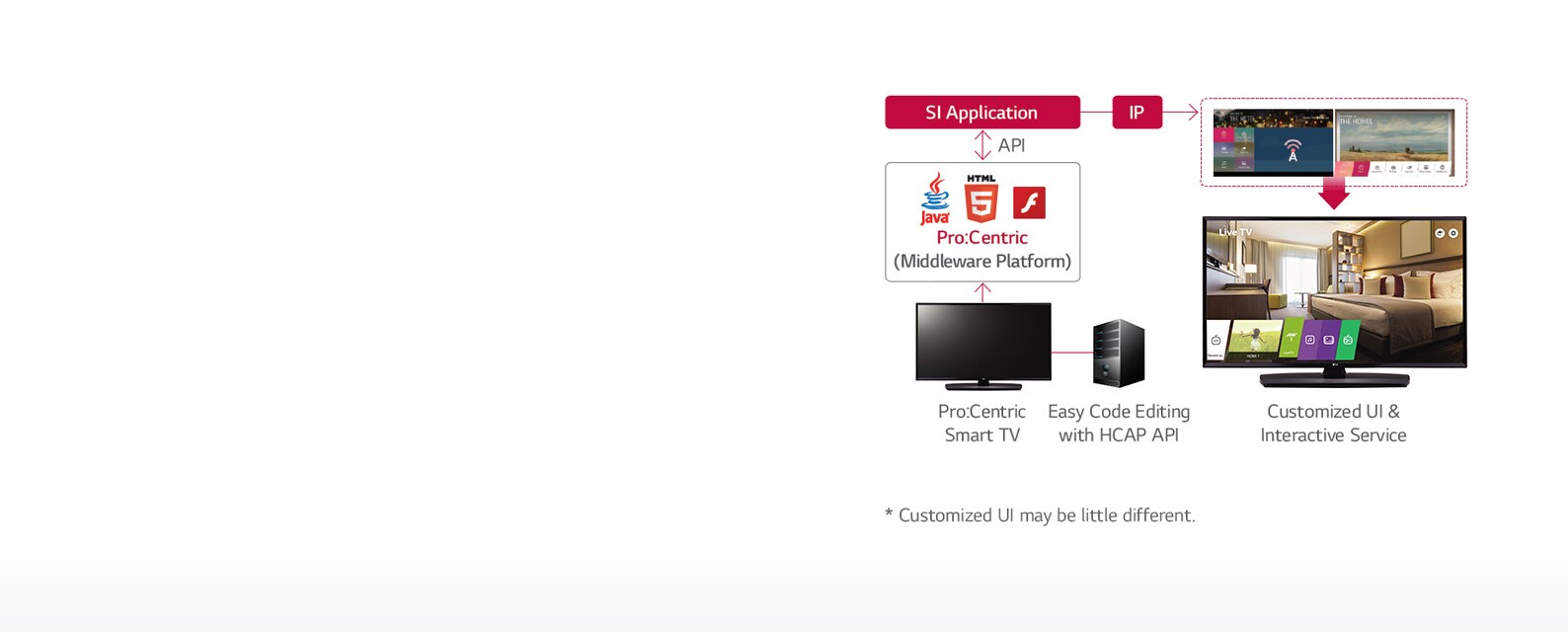

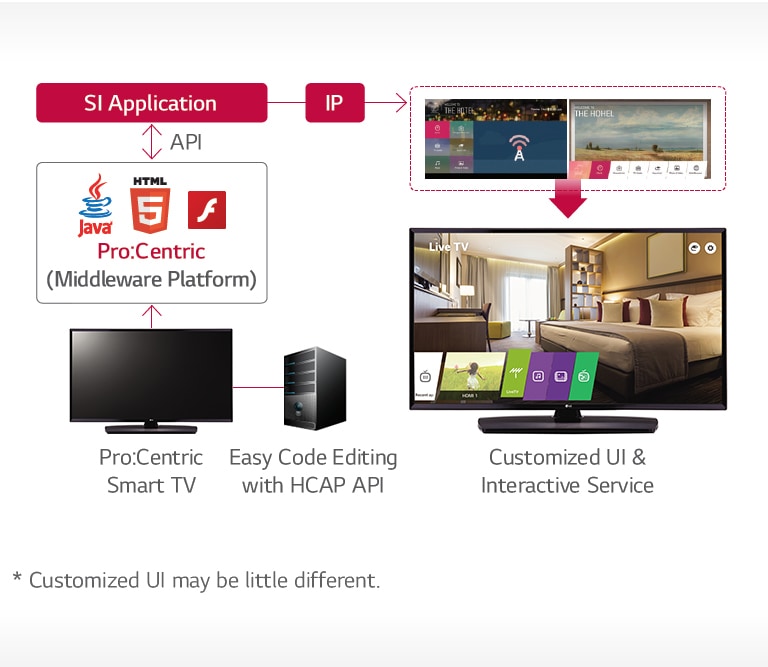

  • Pro:Centric Hotel Management Solution
  • Perfect Black, Intense Color
  • 4K Cinema HDR (Dolby Vision™, HDR 10)
  • Cinematic Sound (Dolby Atmos®)

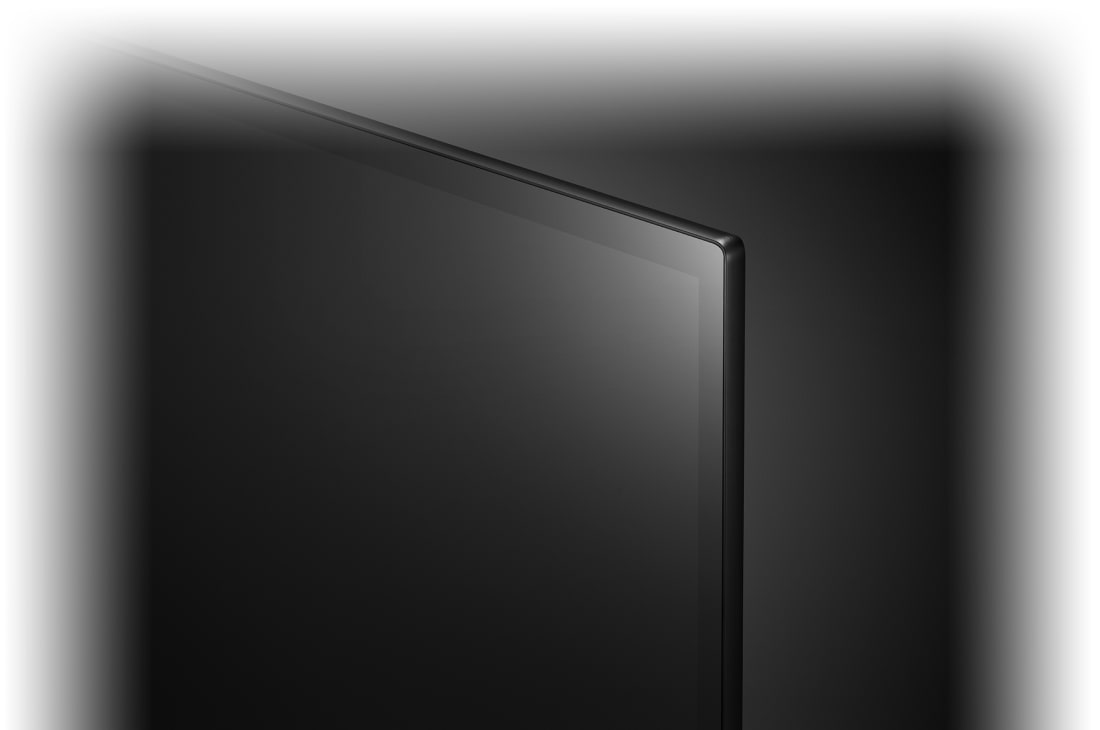

  • Picture-on-Glass, the Artistic Esthetics

component-OBScountrySelectDesc

77" OLED Hotel TV

Panel

  • Screen Size
    77"
    Backlight Type
    OLED
  • Resolution
    3,840 x 2,160 (4K UHD)
    Brightness (cd/m²)
    500

Broadcasting System

  • Analog
    • (NTSC)
    Digital
    • (ATSC)

Video

  • XD Engine
    Aspect Ratio
    5 Modes (16:9 / Original / 4:3 / Vertical Zoom / All-Direction Zoom)
  • HDR 10 / HDR Dolby Vision
    • / •

Audio

  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • Sound Mode
    6 Modes (Standard / Cinema / Clear Voice Ⅲ / Sports / Music / Game)
    Clear Voice
    • (Clear VoiceⅢ)

Hospitality Solution

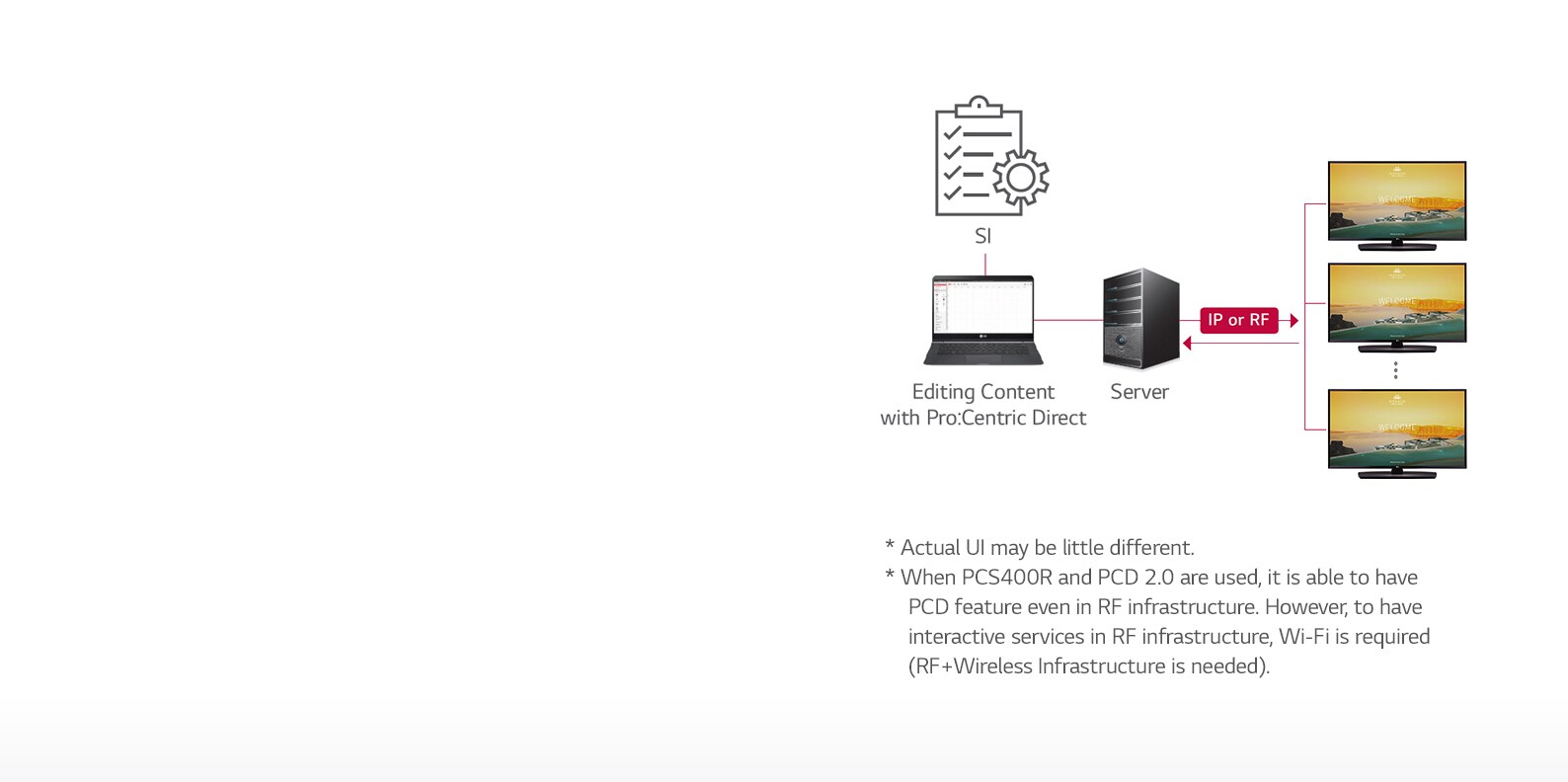

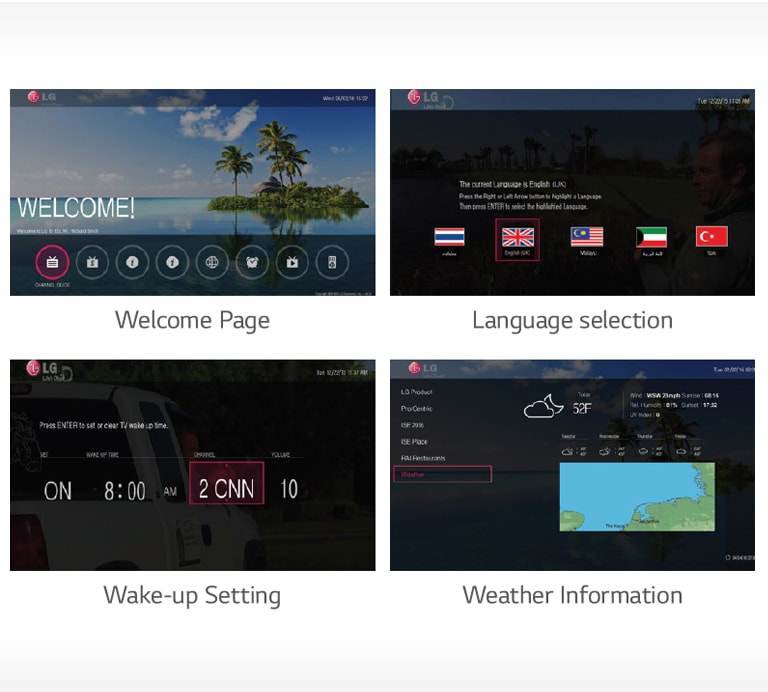

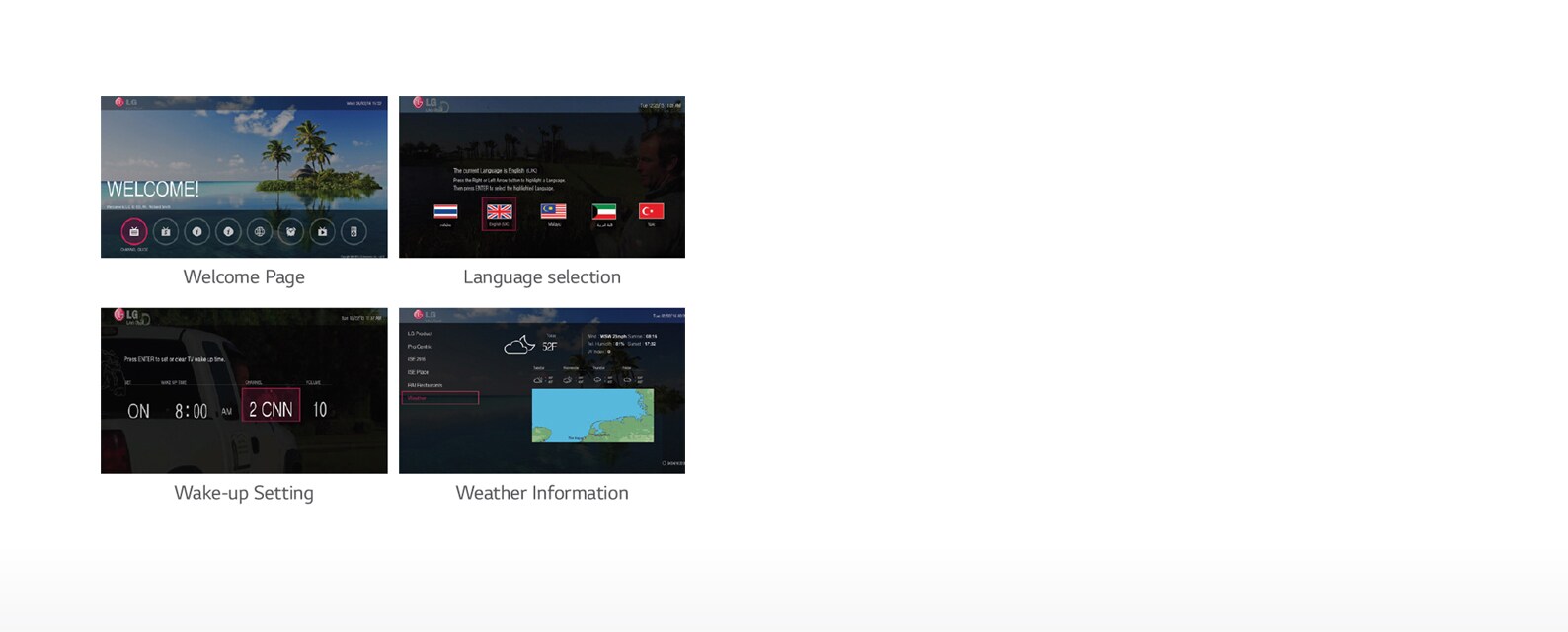

  • Pro:Centric Smart

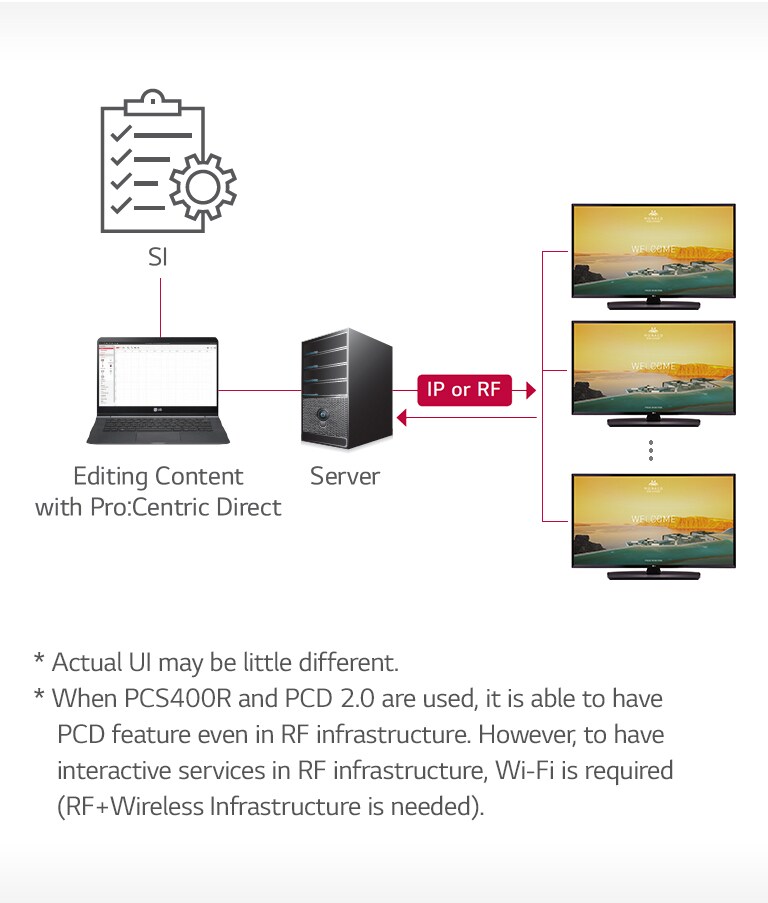

    Pro:Centric (Smart, V, Direct)
    Data Streaming (IP & RF)
  • RF (1/2Tuner)
    • (1 Tuner)
    HCAP (GEM/FLASH/HTML)
    ※ Service Carousel (TLL/XML)
    GEM / Flash / HTML5
  • Pro:Centric Application (version)
    PCA3.7.5
    DRM
    Pro:Idiom (S/W Type)

Feature

  • Hospitality
    Hotel Mode / PDM / Installer Menu, Welcome Screen, Insert Image, One Channel Map, External Speaker Out, Instant ON, V-Lan Tag, RJP Interface, RJP Compatibility, Clock (World Clock / Alarm), 360 Viewer

Jack Interface

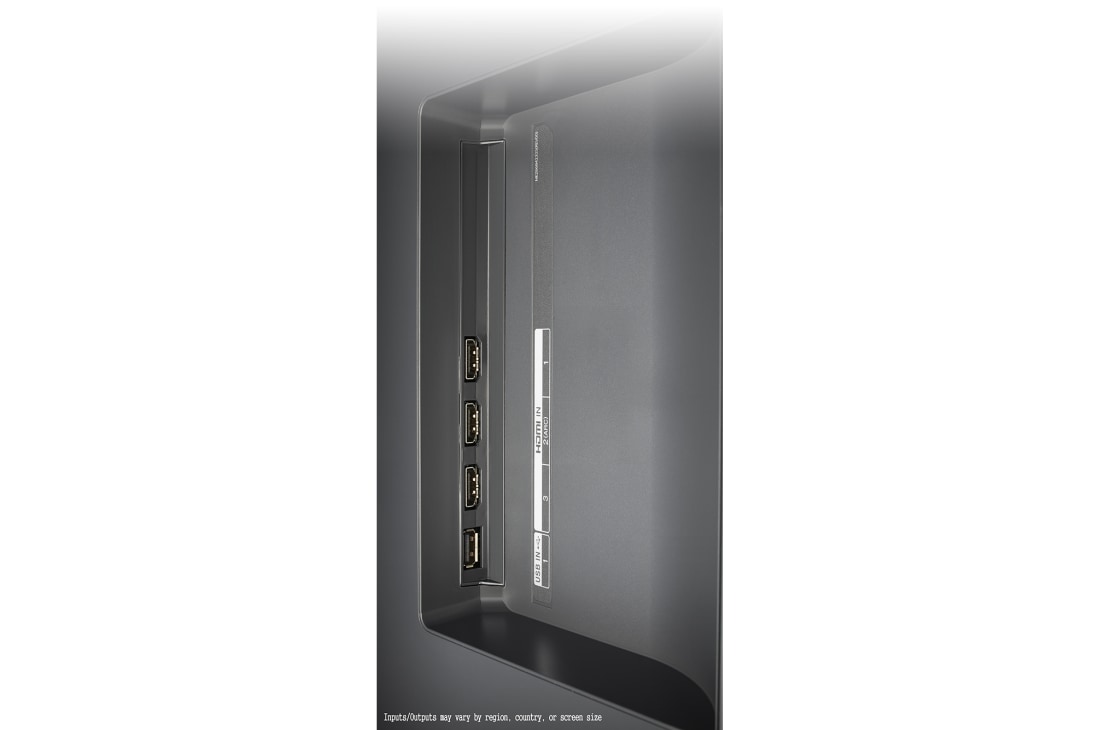

  • Set Side
    HDMI In 2.0 (3), USB 2.0

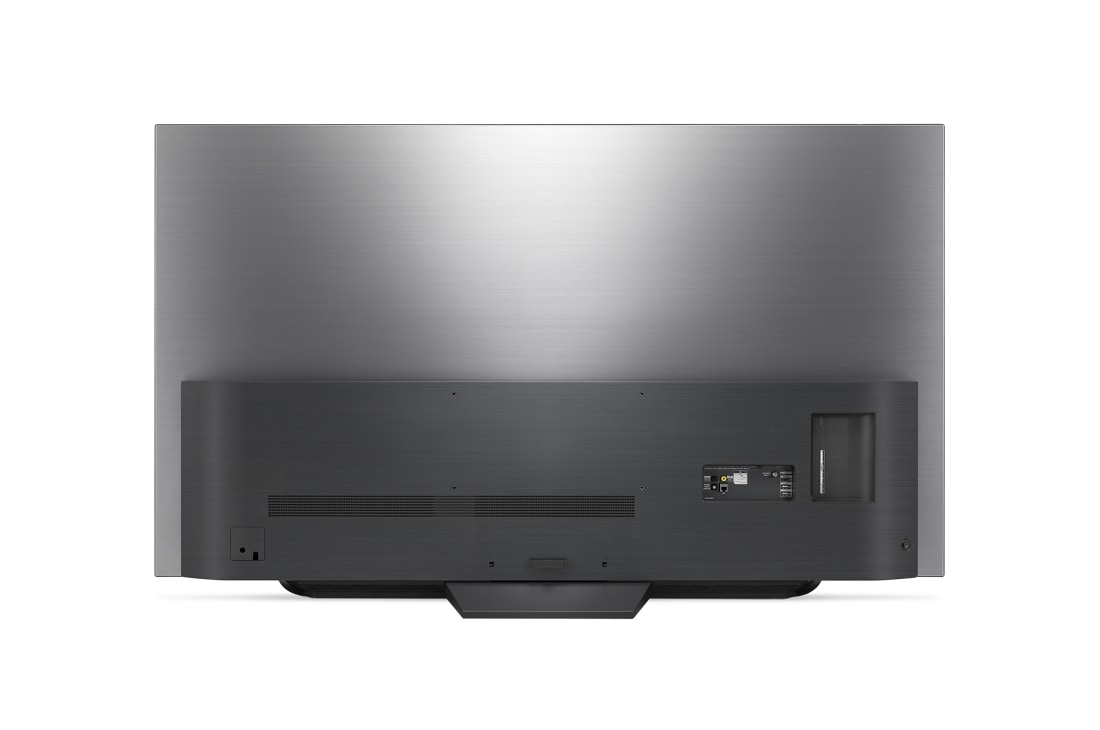

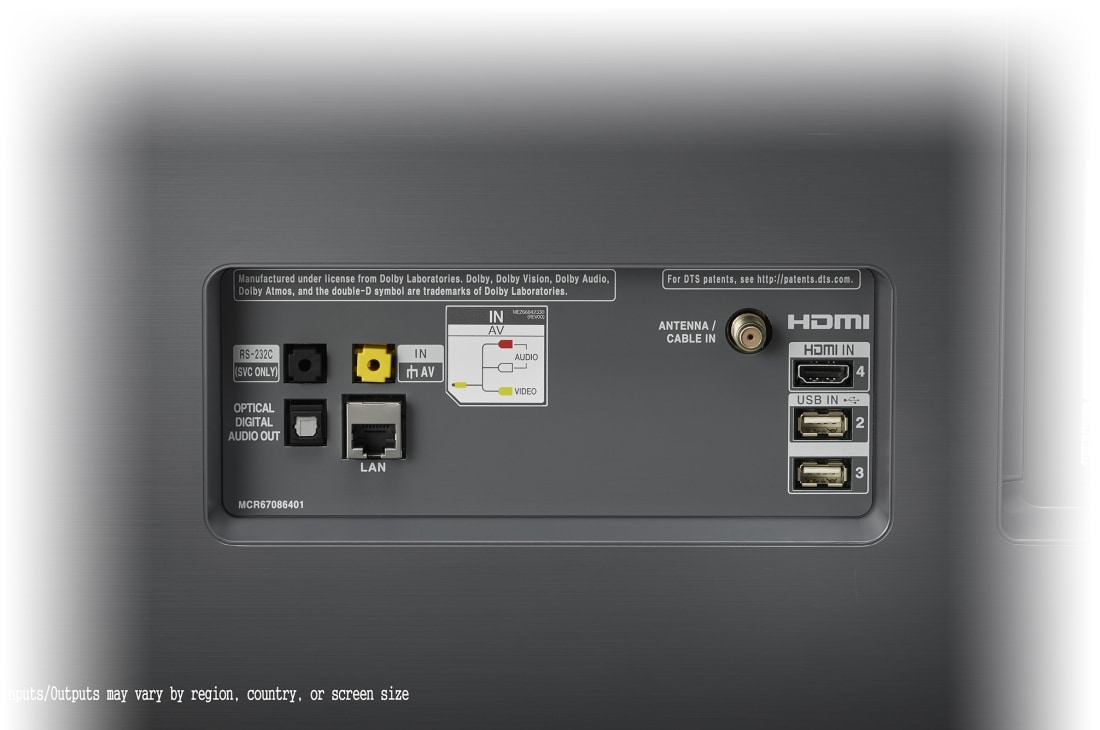

    Set Rear
    RF In, AV In, Digital Audio Out (Optical), USB 2.0, RS-232C (Control), RJ45 (2), External Speaker Out, MPI Port, Debug (Phone Jack Type)

Dimension(Unit: mm)

  • VESA Compatible
    400 x 200 mm

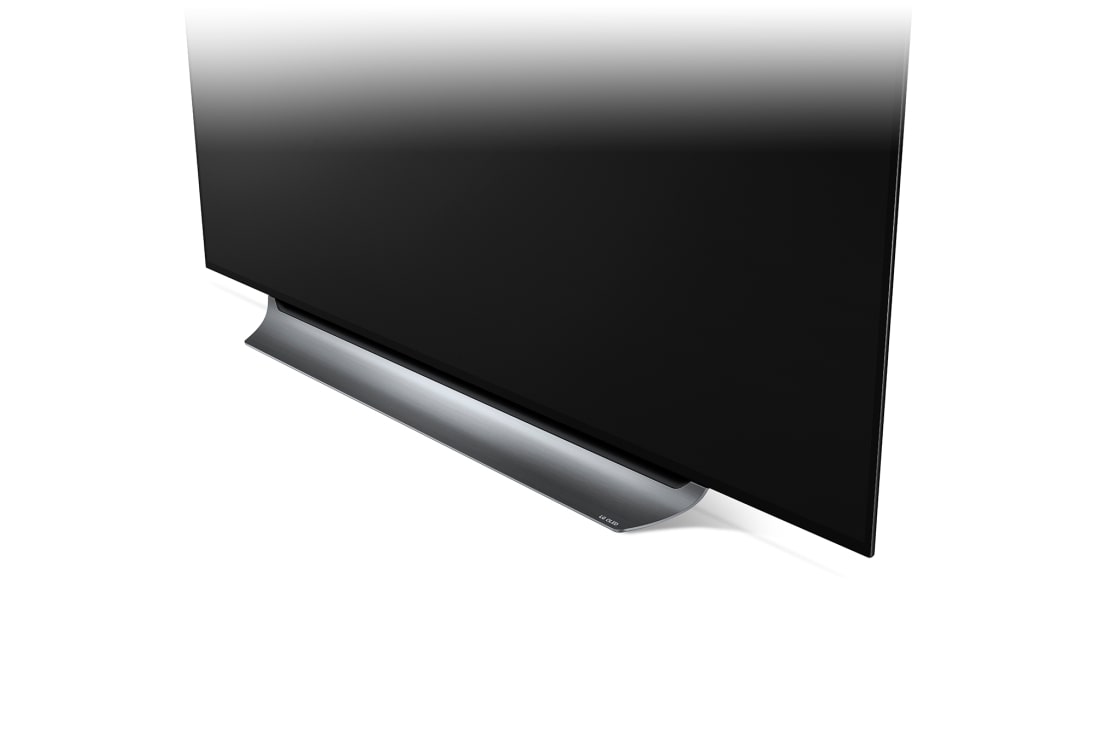

    W x H x D / Weight (with stand)
    1,722 x 1,052 x 253 mm / 36.5kg
  • W x H x D / Weight (without stand)
    1,722 x 991 x 56 mm / 29.9kg
    W x H x D / weight (packing)
    1,895 x 1,130 x 285 mm / 49.5kg

Power(Unit : Watts)

  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Max
    714 W
  • Typical
    665 W
    Energy saving (Min / Med / Max)
    -
  • Stand-by
    TBD

General

  • Region
    North America
  • Dimension
    • [Dimension] 77EU960H (NA).pdf
  • Datasheet
    • EU960H_NA_low.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
