LG Smart Cam Pro
Inquiry to Buy
LG Smart Cam Pro 1 LG Smart Cam Pro 2
The Award-winning Product Design

LG Smart Cam Pro

LG Smart Cam Pro has won the Red Dot and iF Design Award consecutively, receiving worldwide recognition for its sophisticated design as well as performance.

Smart Camera Solution for Effective Visual Communication

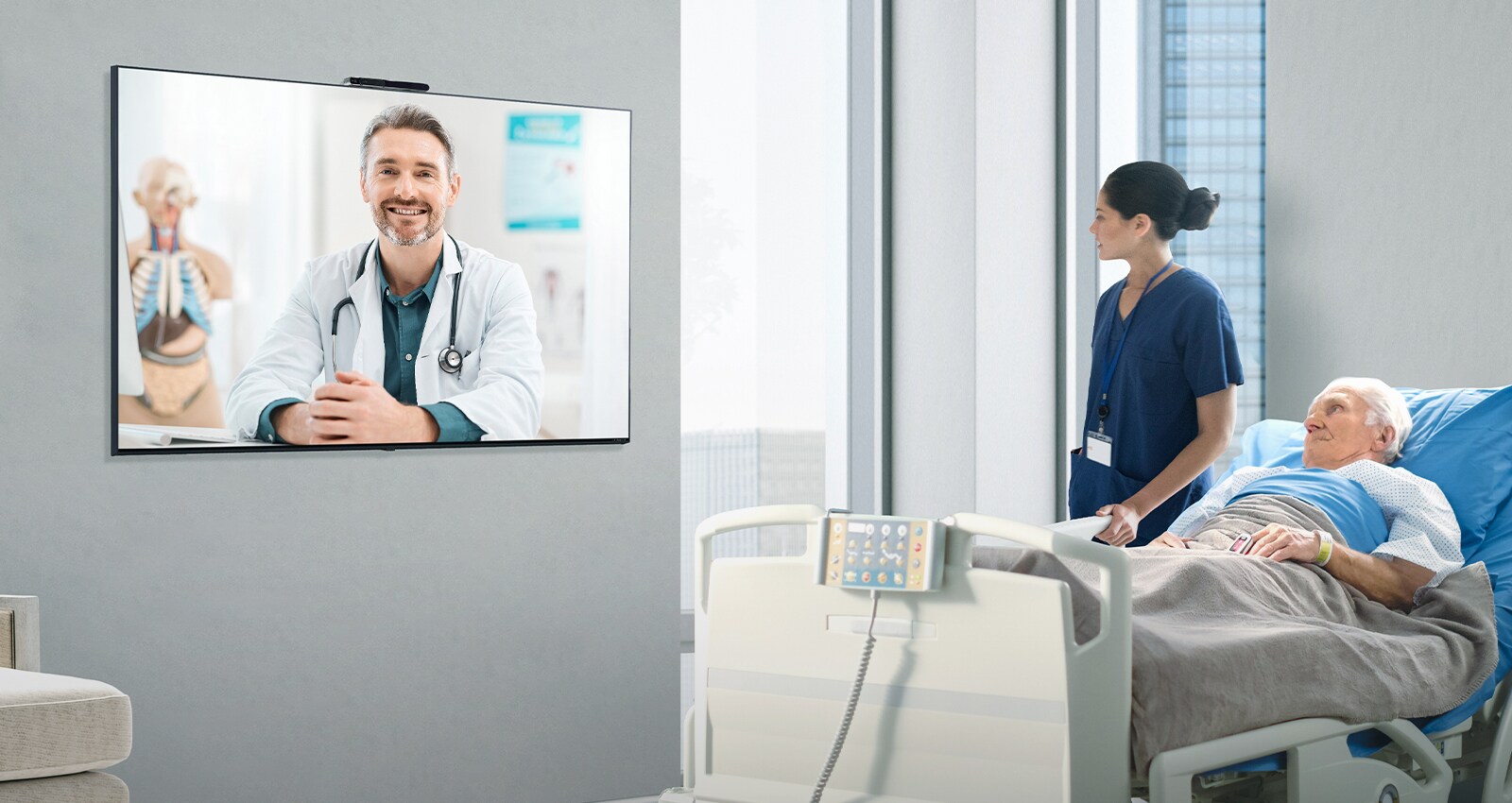

A patient is lying in the hospital room, and using the Smart Cam Pro on the wall, the doctor is teleconsulting by seeing the patient remotely. A patient is lying in the hospital room, and using the Smart Cam Pro on the wall, the doctor is teleconsulting by seeing the patient remotely.
* All images in this page are for illustrative purposes only.
* A separate SI solution is required.
Professional Performance, Sophisticated Design Professional Performance, Sophisticated Design

Professional Performance,
Sophisticated Design

The doctor is consulting with a patient remotely but can check the patient's condition in detail using 4x digital zoom. The doctor is consulting with a patient remotely but can check the patient's condition in detail using 4x digital zoom.

12MP Main Camera

The 12MP (Mega Pixel) camera enables the LG Smart Cam Pro to deliver detailed images and videos clearly. Users can achieve a close focus on faraway subjects through the 4x digital zoom.

* The main camera does not work during the night vision camera operation.
Even in a dark hospital room at night, it is clearly photographed through a 12MP night vision camera. Even in a dark hospital room at night, it is clearly photographed through a 12MP night vision camera.

12MP Night Vision Camera

A 12MP night vision camera can be used in low light conditions for taking photos and videos even in the middle of the night. Like the main camera, it supports excellent video transmission with a 4x digital zoom.

* Conditions for switching to the night vision camera depend on customer environment.
* The night vision camera does not work during the main camera operation.
The LG Smart Cam Pro's HDR effect makes a face bright even when there’s a backlight. The LG Smart Cam Pro's HDR effect makes a face bright even when there’s a backlight.

Excellent Picture Delivery with an HDR Effect

LG Smart Cam Pro uses an HDR effect to bring out more details in backlit environments by brightening ultra-low-light areas.
Four microphones are arrayed on the top of the LG Smart Cam Pro. Four microphones are arrayed on the top of the LG Smart Cam Pro.

Powerful 4 Mic Array

The 4 Mic Array of LG Smart Cam Pro recognizes sound from different directions and focuses on the main speaker. This enables echo canceling and noise reduction for effective communication.

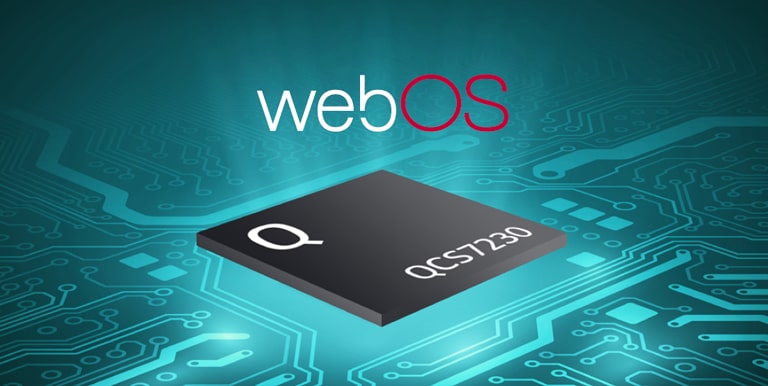

The LG Smart Cam Pro operates with Qualcomm IoT processor and LG webOS. The LG Smart Cam Pro operates with Qualcomm IoT processor and LG webOS.

Good Scalability

Powered by Qualcomm IoT processor and LG webOS, the high performance camera is easy to operate, and a variety of app types can be easily deployed.

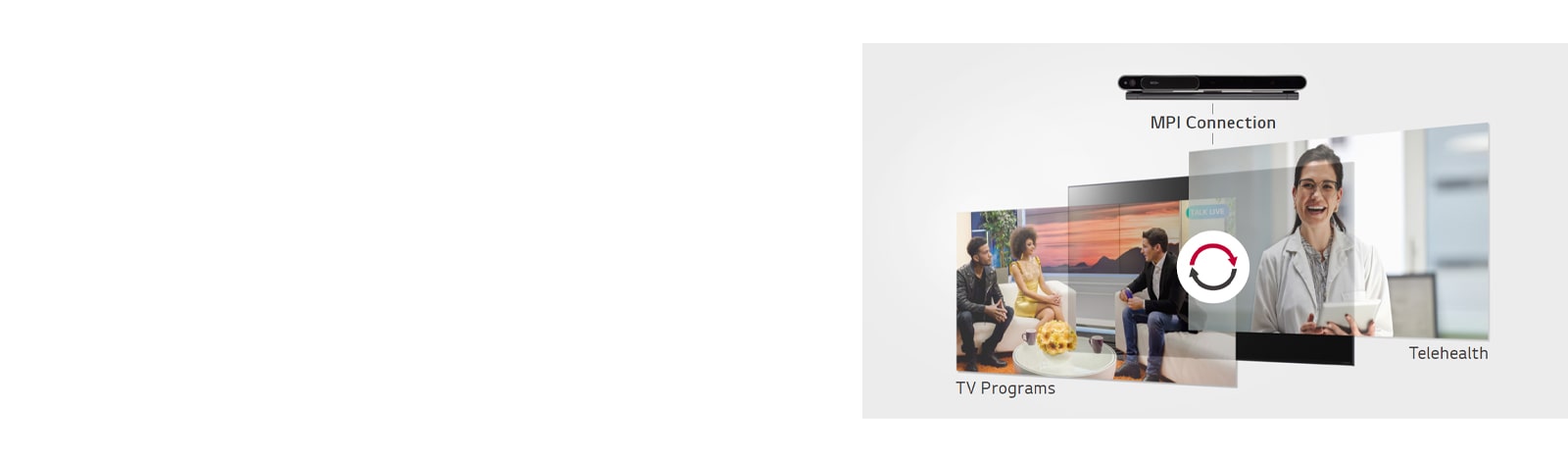

Through the MPI port connection, the LG Smart Cam Pro can automatically switch between TV broadcasting and telemedicine. Through the MPI port connection, the LG Smart Cam Pro can automatically switch between TV broadcasting and telemedicine.

Connection with LG Commercial TVs

Through the MPI port on LG Smart Cam Pro, the manager can control the power or switch the signal of a connected LG commercial TV.

* HDMI 1, 2 Signal Switching
Close
Model
  • FDA Registration (Y/N)
    N/A
    Software
    webOS
  • Fleet Monitoring (Y/N)
    Yes
    Dimensions
    167(L) x 13.5(H) x 44.3(D) (mm)
  • Storage
    64GB
    Hours of use per day
    8 hours
Inputs/Outputs
  • Inputs
    HDMI 1.4b
    USB3.1 (Type C)
    Outputs
    HDMI 1.4b
  • User Input
    Remote control (In box)
    Control
    MPI (RJ12)
    RS-232C (Phone Jack)
Display Support
  • Video output
    HDMI Out (to client-provided display)
    TV Control Method
    MPI, RS-232C TV Control
  • TV Control Functions
    Power on/off, Input control, and Volume control
    TV Control – Supported TVs List
    LG Commercial TV (with MPI)
  • TV Control Cable
    MPI
Audio Codec
  • Audio Codec
    Opus/G.711 PCMA/G.711 PCMU 40~80Kbps
    Audio Algorithms
    Echo Cancellation / Noise Reduction
  • Audio Input
    Built-In 4 Mics, USB Mic (only Aver camera, Zabra710)
    Video Codec Type
    H.264 up to HP level 5.1 : 2160p@30fps
  • Compression Algorithms
    H.264
Network
  • Network Interfaces
    WiFi 802.11ac 2.4Ghz / 5GHz.
    Ethernet 10/100 Base-T full-duplex (RJ-45)
    Transmission Rates, Kbps
    WiFi 802.11 a/b/g/n/ac 2.4Ghz / 5GHz. 2x2 MU-MIMO up to 867Mbps
  • LAN Options
    10 / 100
    Cabling Provided
    1 Ethernet Cable (2m)
Internal Camera1
  • Type
    RGB Camera
    Pixel Resolution
    12MP
  • Lens
    120FOV
    Zoom
    4x Digital Zoom
  • Pan/Tilt
    N/A
    Automatic Iris
    Fixed Iris
  • Night Vision (IR)
    No
    Output Signals
    MIPI
Internal Camera2
  • Type
    Night Vision Camera
    Pixel Resolution
    12MP
  • Lens
    120FOV
    Zoom
    4x Digital Zoom
  • Pan/Tilt
    N/A
    Automatic Iris
    Fixed Iris
  • Night Vision (IR)
    Yes (IRPF, IR LED 850nm 4ea)
    Output Signals
    MIPI
Power
  • Power
    DC Adapter (12V, 2.5A) UL62368-1
Safety
  • Compliance with FCC
    Yes
    Medical Device Directive
    N/A
Purchase Information
  • Warranty
    2 year (Basic)
  • Data Sheets
    • AN-VC22PR_Datasheet(low)_LG Smart Cam Pro_230426.pdf
  • Dimension
    • LG Smart Cam Pro (AN-VC22PR) 2D Drawing.dwg
    • LG Smart Cam Pro (AN-VC22PR) 2D Drawing.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
