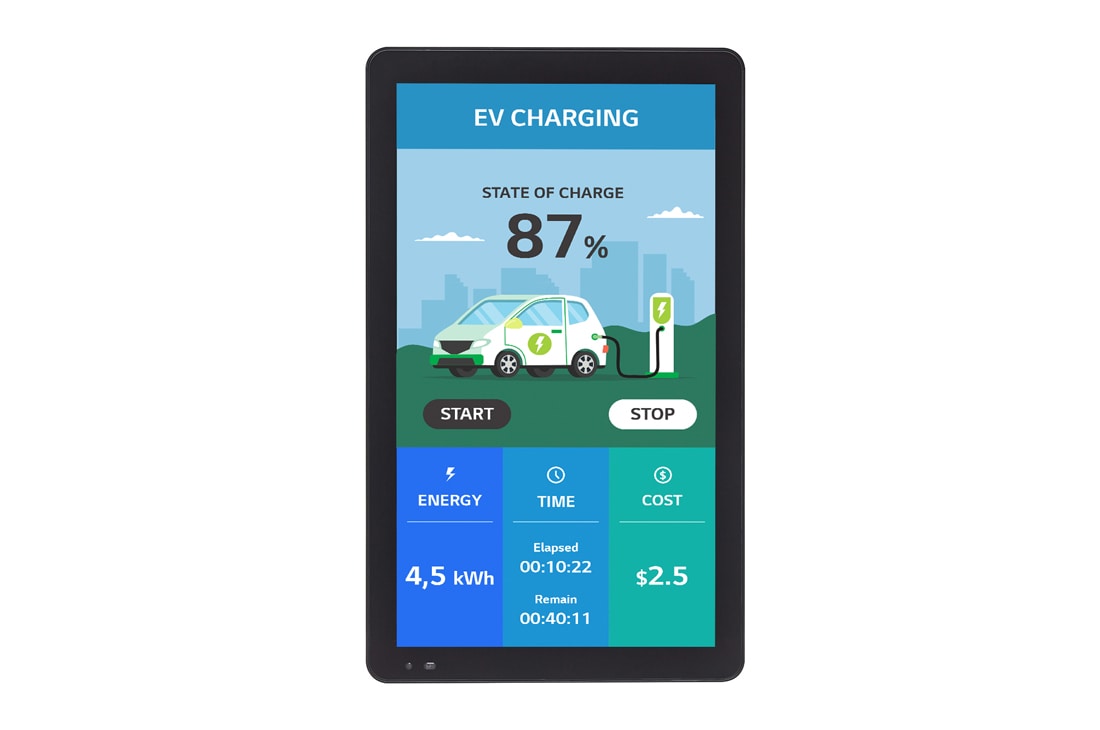

LG 1,300nits FHD Outdoor Touch Open-frame Display , Front view with infill image (Portrait), 22XF1TJ-B, thumbnail 2

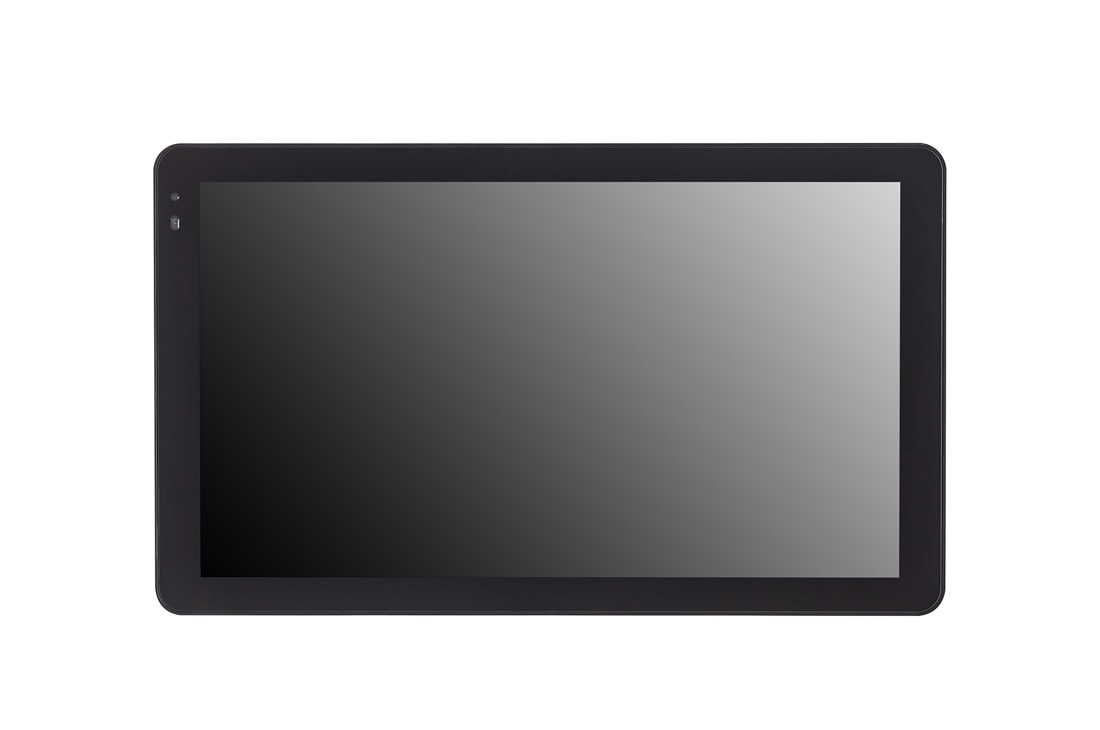

LG 1,300nits FHD Outdoor Touch Open-frame Display , Front view (Landscape), 22XF1TJ-B, thumbnail 3

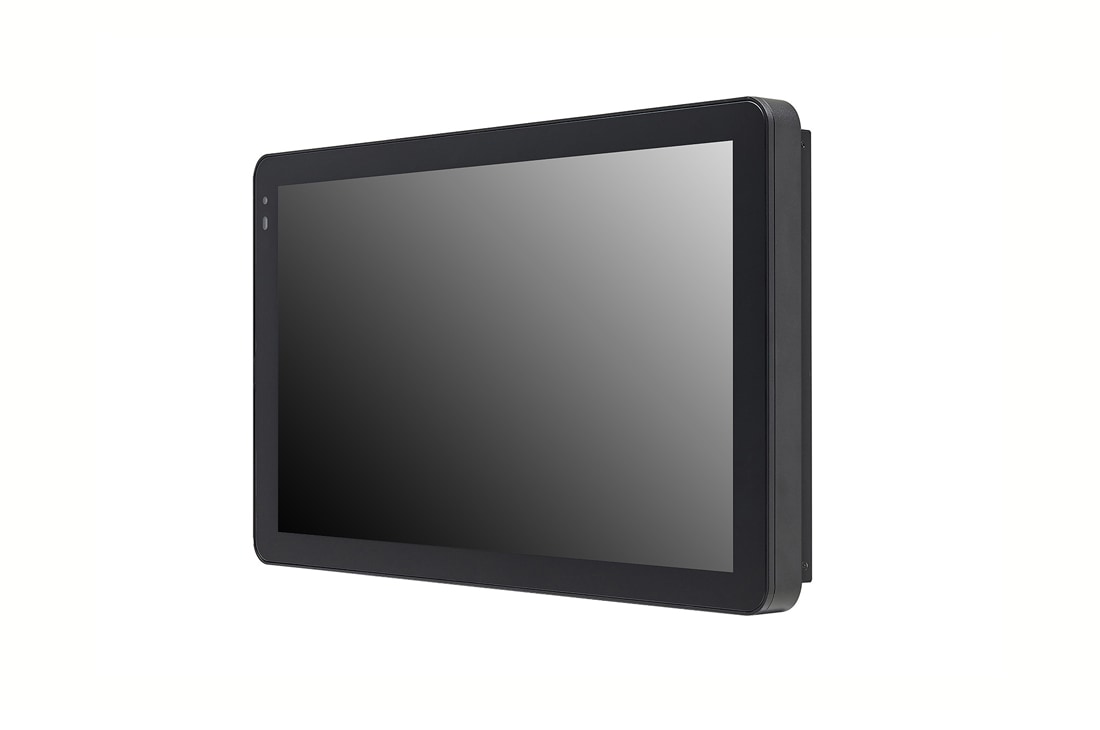

LG 1,300nits FHD Outdoor Touch Open-frame Display , -45 degree side view (Landscape), 22XF1TJ-B, thumbnail 4

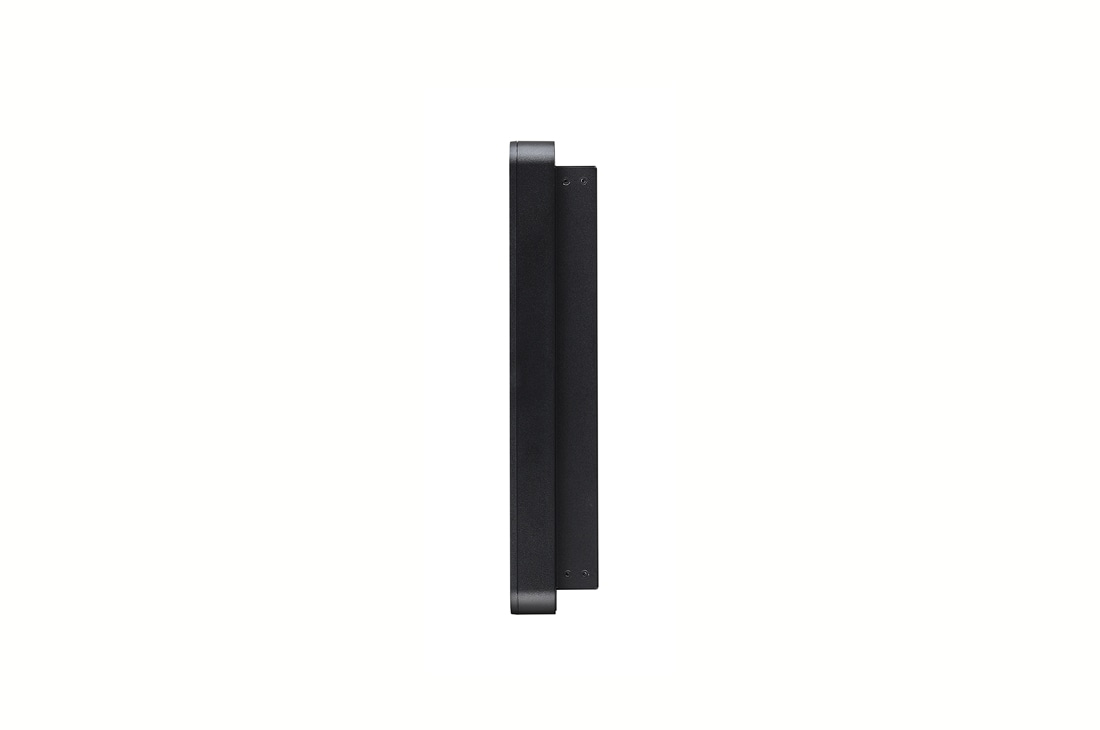

LG 1,300nits FHD Outdoor Touch Open-frame Display , -90 degree side view (Landscape), 22XF1TJ-B, thumbnail 5

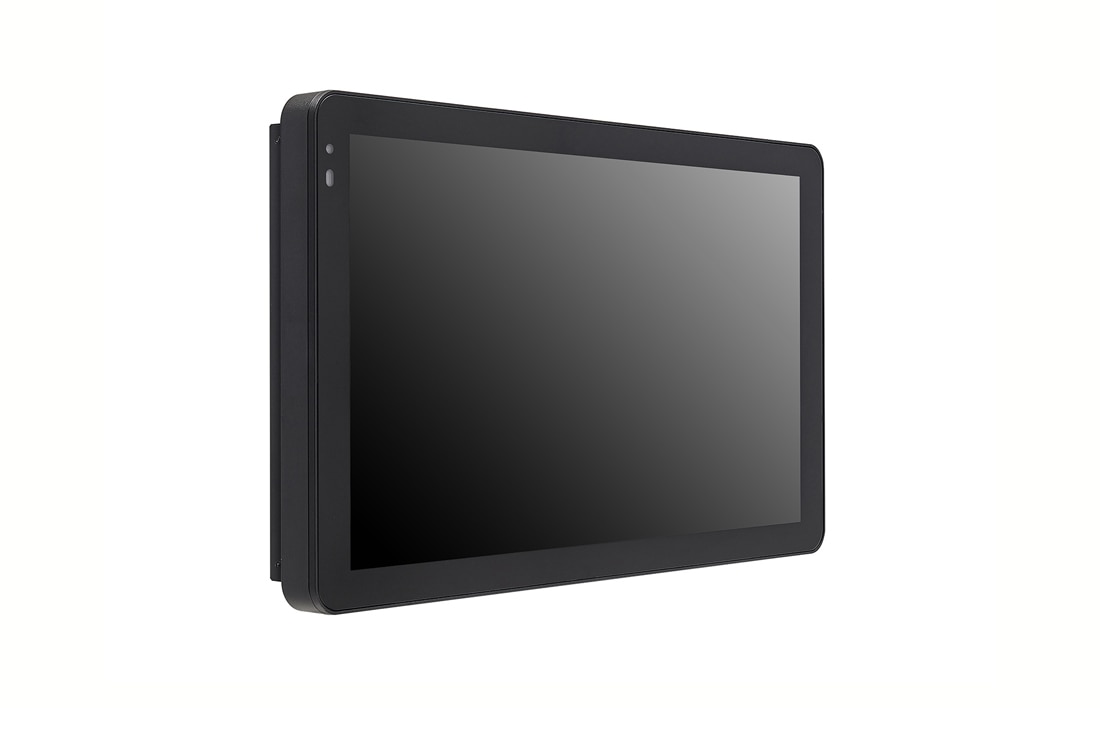

LG 1,300nits FHD Outdoor Touch Open-frame Display , +45 degree side view (Landscape), 22XF1TJ-B, thumbnail 6

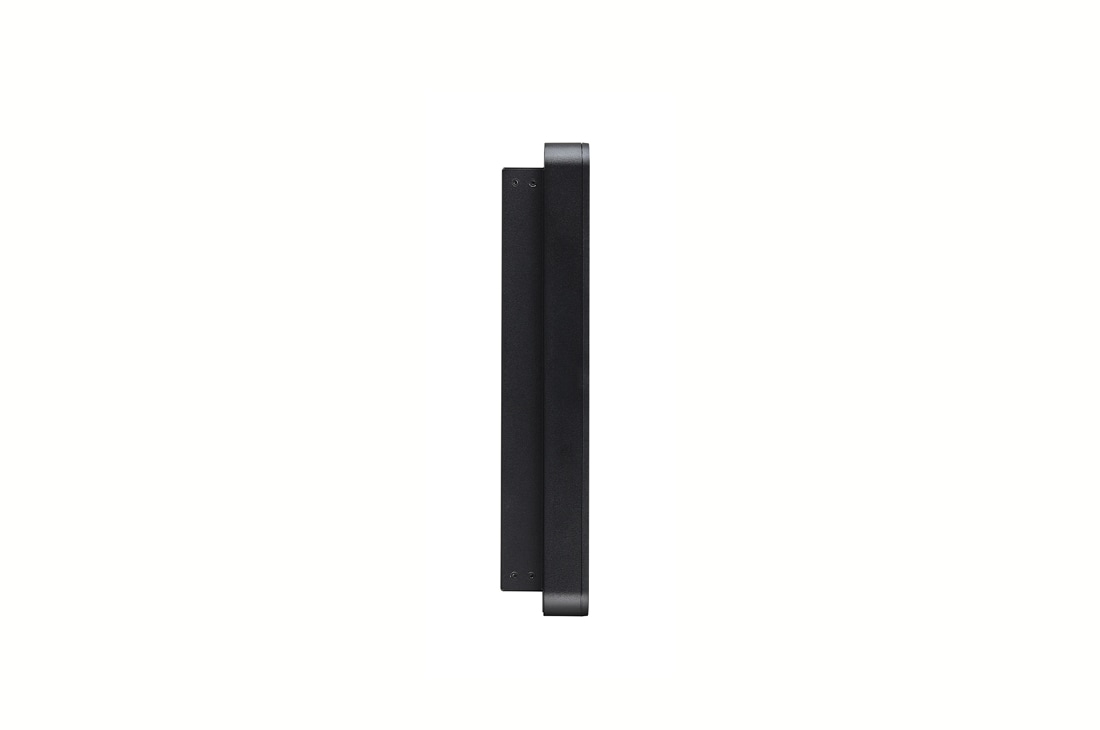

LG 1,300nits FHD Outdoor Touch Open-frame Display , +90 degree side view (Landscape), 22XF1TJ-B, thumbnail 7

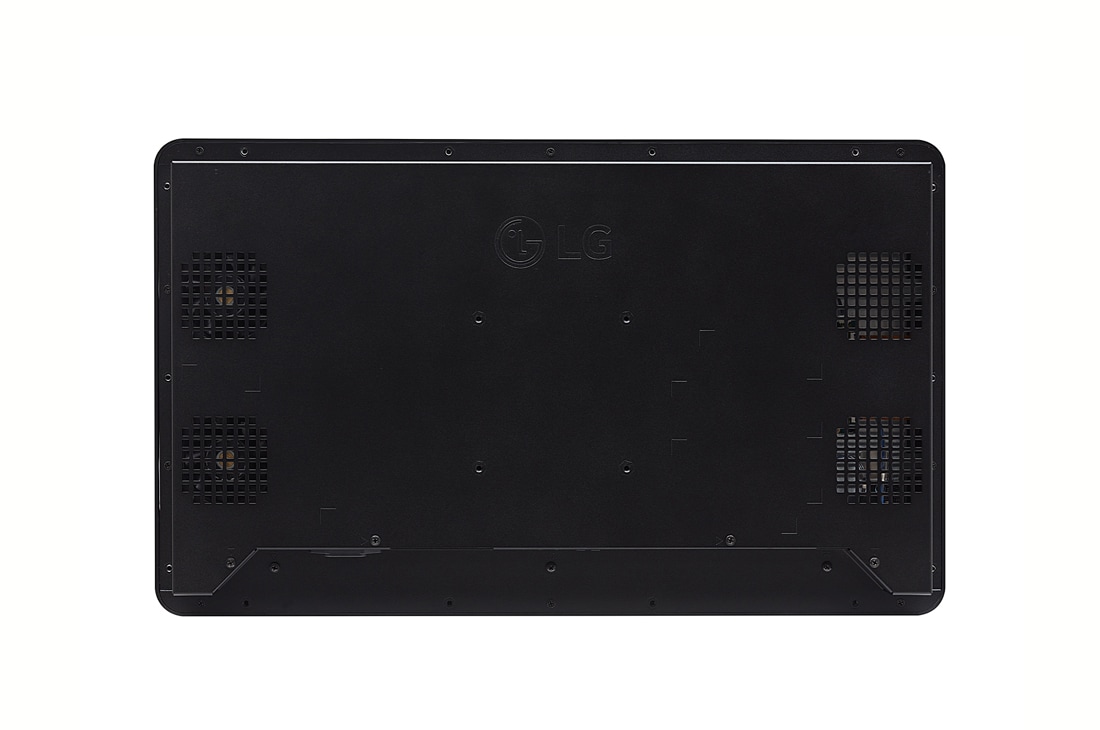

LG 1,300nits FHD Outdoor Touch Open-frame Display , Rear view, 22XF1TJ-B, thumbnail 8

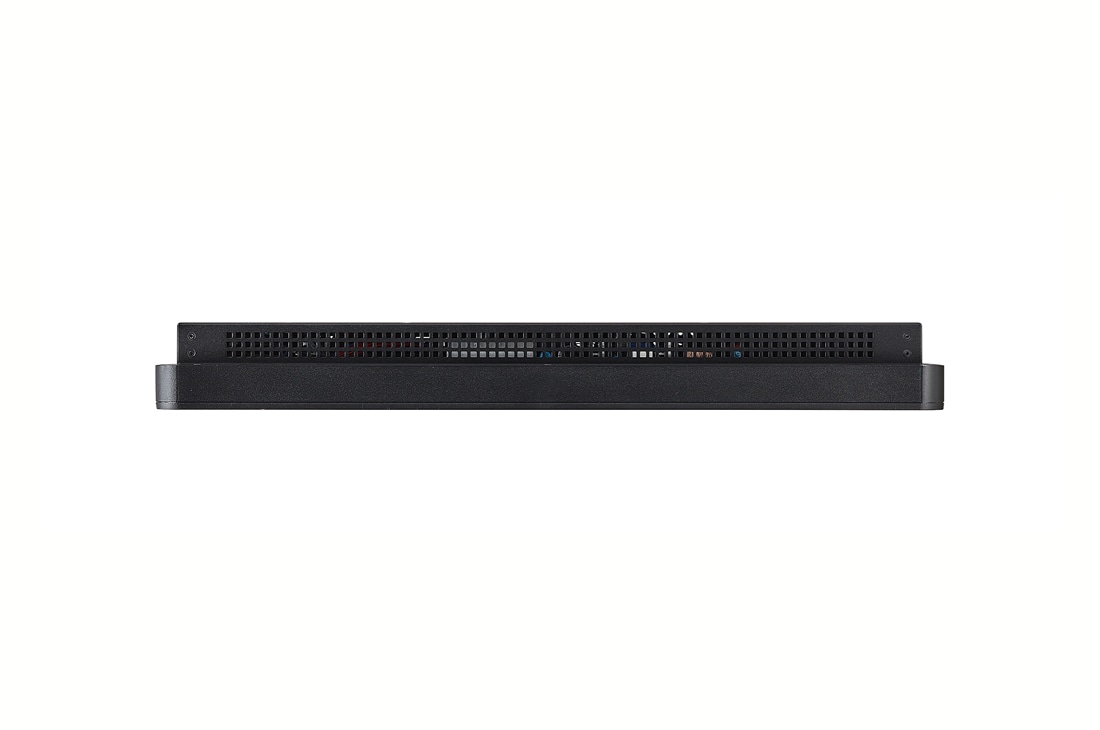

LG 1,300nits FHD Outdoor Touch Open-frame Display , Top view, 22XF1TJ-B, thumbnail 9

LG 1,300nits FHD Outdoor Touch Open-frame Display , Bottom view, 22XF1TJ-B, thumbnail 10

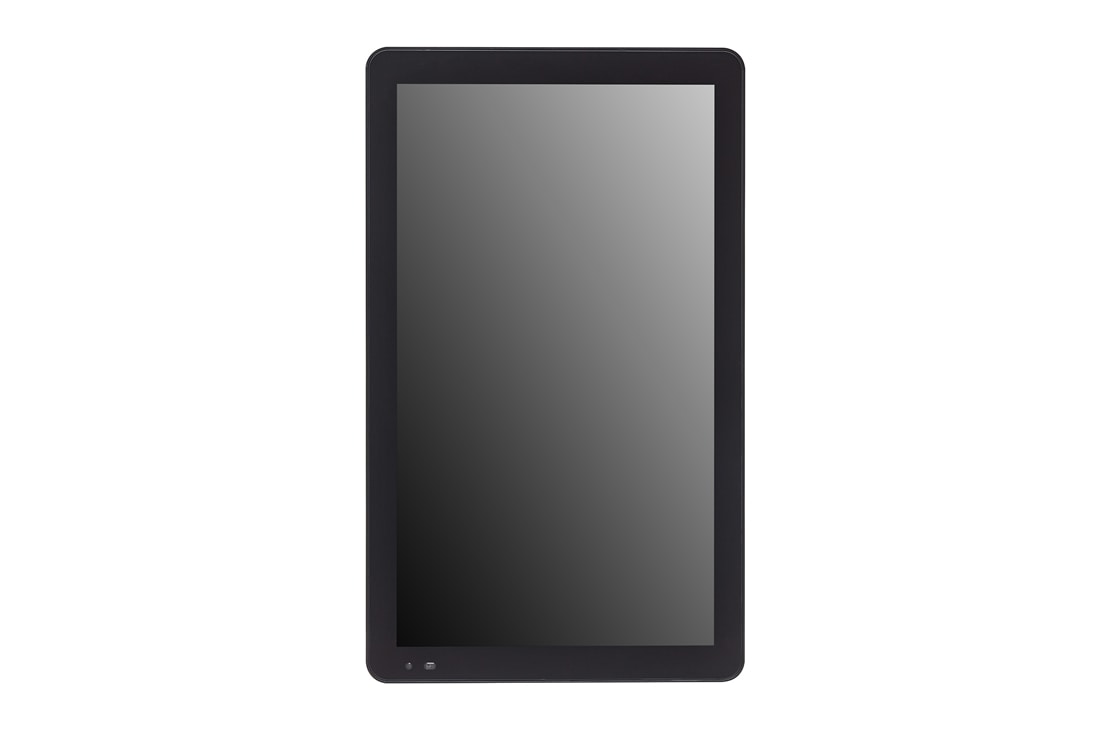

LG 1,300nits FHD Outdoor Touch Open-frame Display , Front view (Portrait), 22XF1TJ-B, thumbnail 11

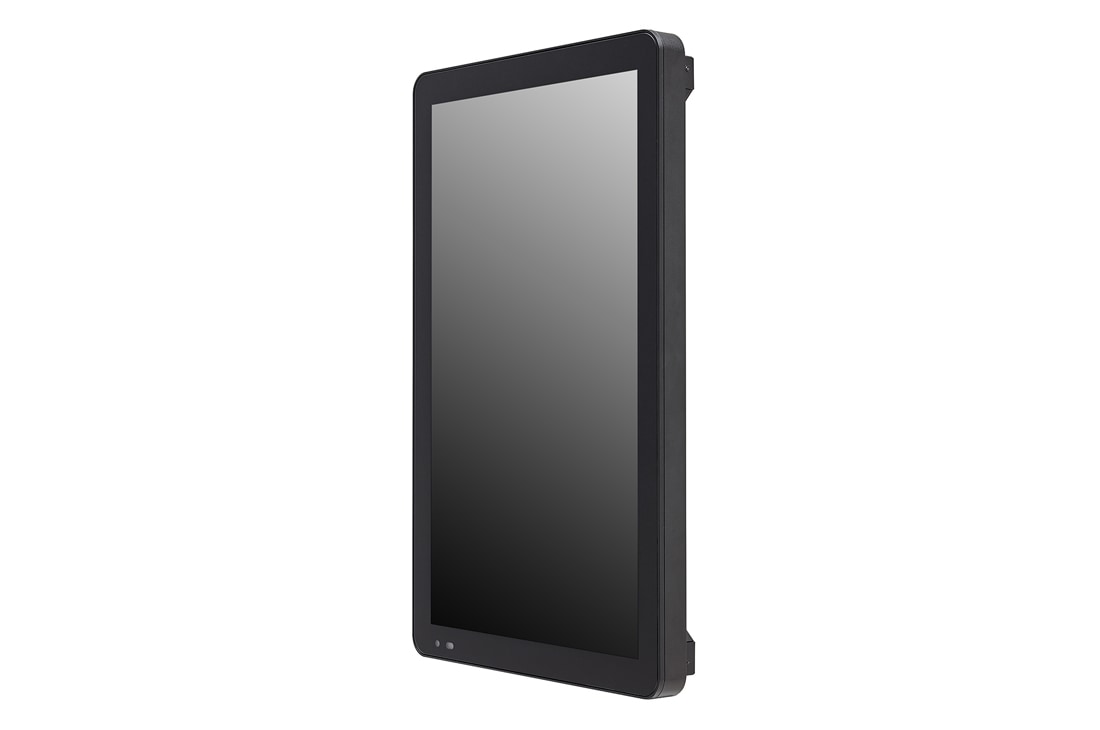

LG 1,300nits FHD Outdoor Touch Open-frame Display , -45 degree side view (Portrait), 22XF1TJ-B, thumbnail 12

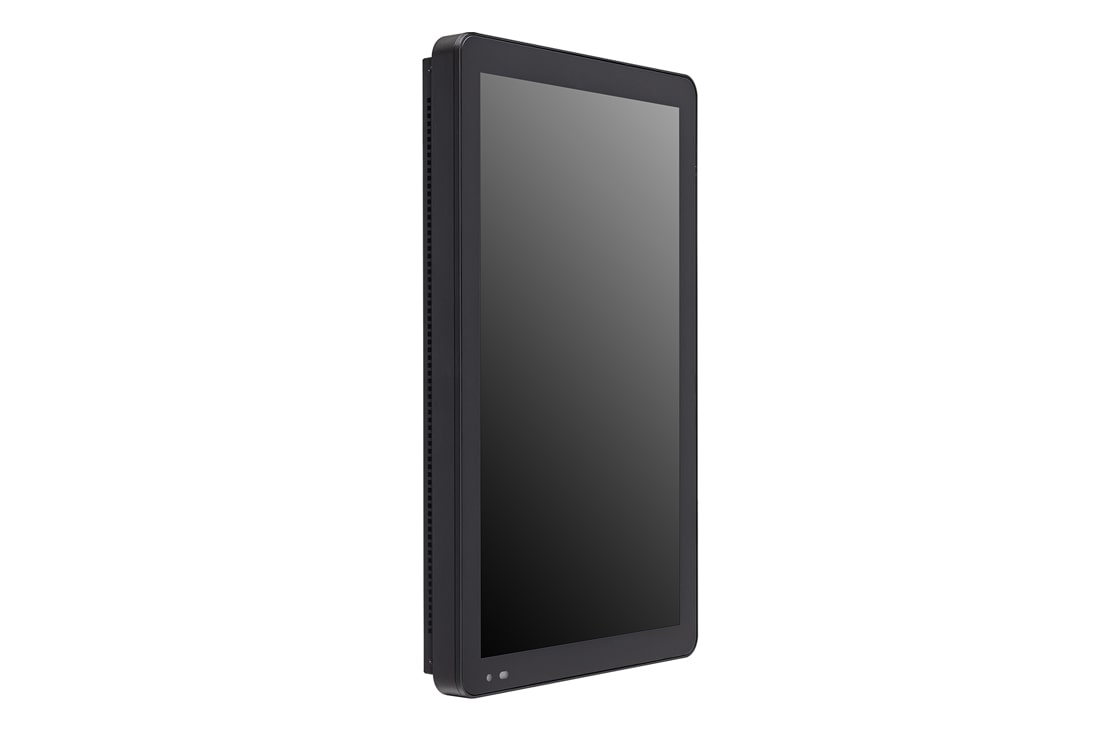

LG 1,300nits FHD Outdoor Touch Open-frame Display , +45 degree side view (Portrait), 22XF1TJ-B, thumbnail 13

Discontinued

22XF1TJ-B component-copyModelName

1,300nits FHD Outdoor Touch Open-frame Display

Key Features

Brightness : 1,300 nits (Typ. w/Glass)
IP65 Rated Dust & Waterproof
21.5" of Versatile Display Size
Wide Operating Temperature Range
webOS Smart Platform
Built-in Touch Display

Choose your Size

21.5"

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness : 1,300 nits (Typ. w/Glass)
IP65 Rated Dust & Waterproof
21.5" of Versatile Display Size
Wide Operating Temperature Range
webOS Smart Platform
Built-in Touch Display

Choose your Size

21.5"

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

1,300nits FHD Outdoor Touch Open-frame Display

Versatile Touch Display Fit for Your Business

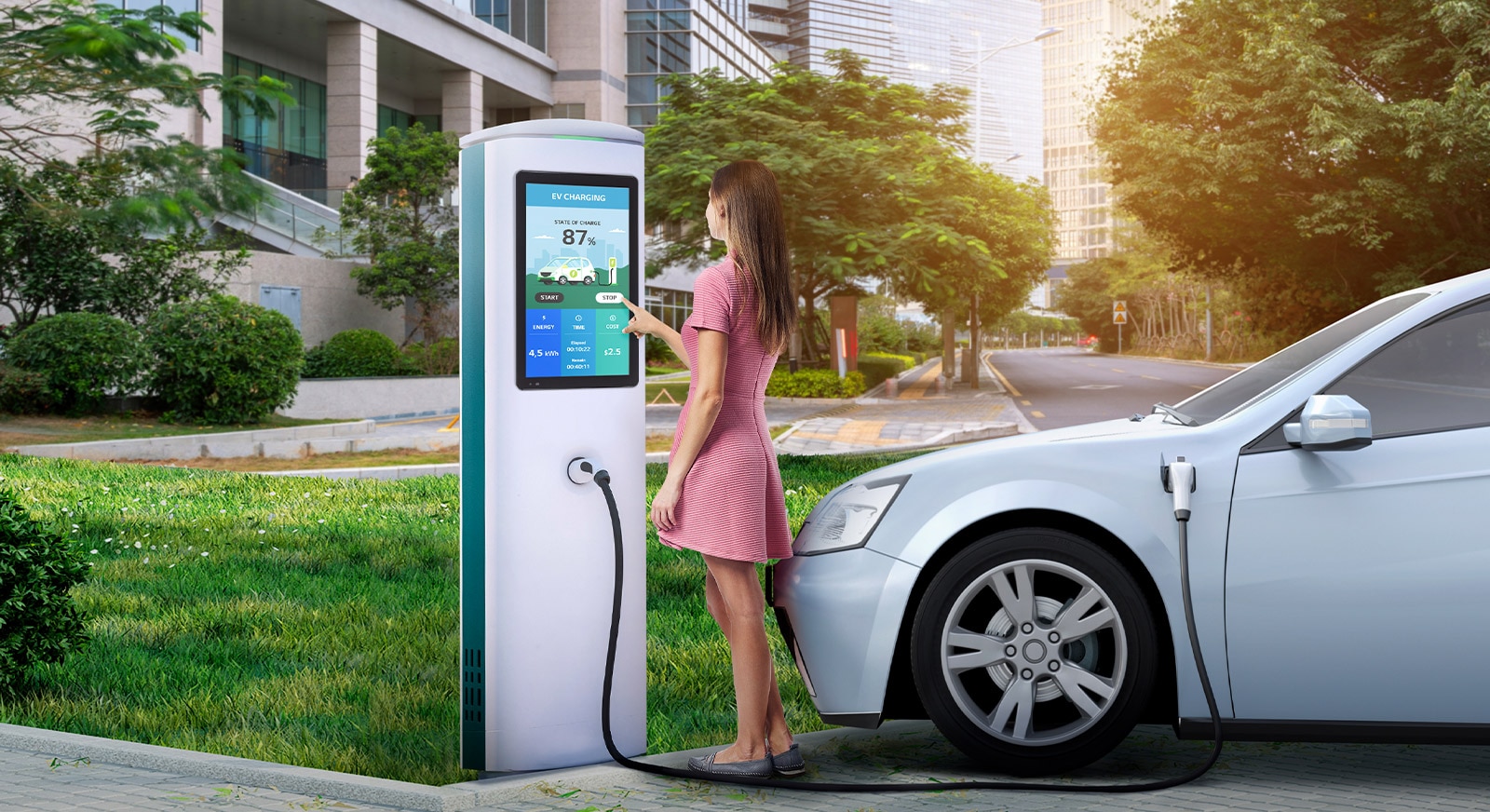

A woman is charging a car by touching the touchscreen installed on an electric car charger.

* All images in this web page are for illustrative purposes only.

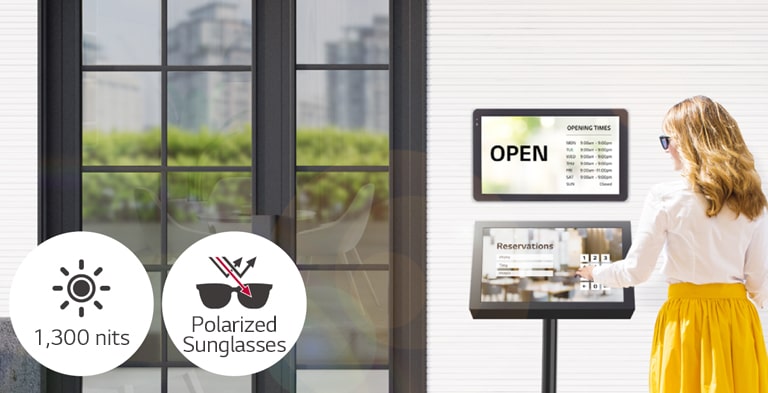

A 22XF1TJ is installed on the wall at the entrance of the building with another 22XF1TJ stand below for reservation purposes. The lady with sunglasses is using the touchscreen to make a reservation. The screen remains visible even when under direct sunlight.

High Visibility Under Bright Environments

With a brightness of 1,300 nits, 22XF1TJ boasts high visibility in bright environments. In addition, its clear visibility can deliver a variety of information even to those wearing polarized sunglasses.

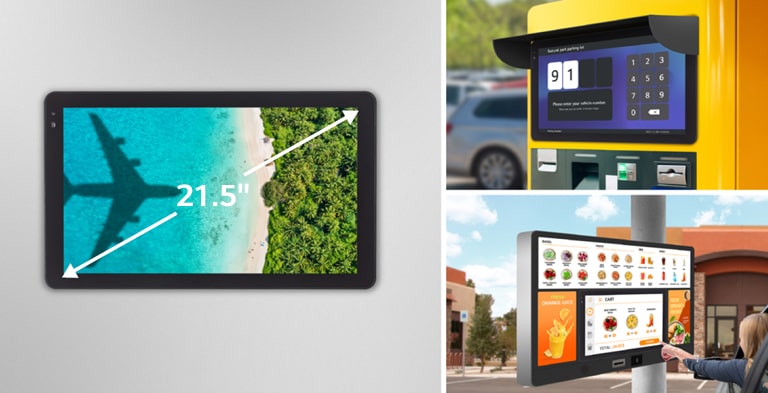

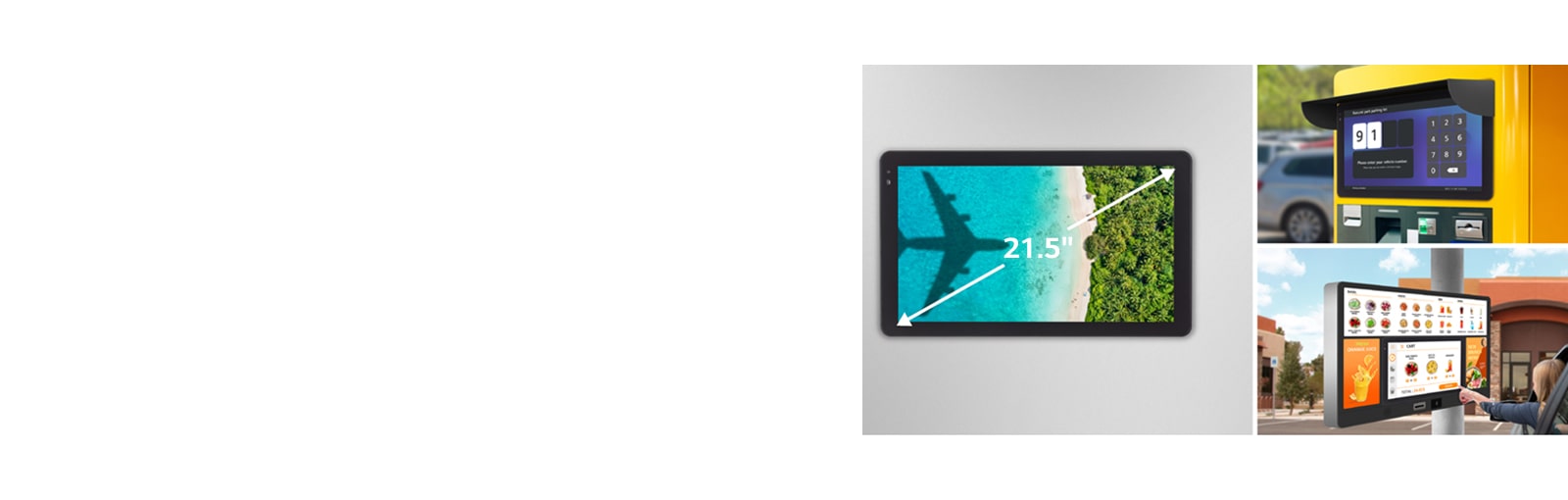

The left one shows a 22XF1TJ installed on the wall showing its 21.5" in size. On the right, there are various screen types: A wall-mount type, hanging type, kiosk type.

21.5 inches of Versatile Screen Size

The small and light size of 21.5 inches allows for flexible use in various spaces. In particular, you can install the display in various way allowing for high utilization for small-medium businesses (SMB) to large businesses.

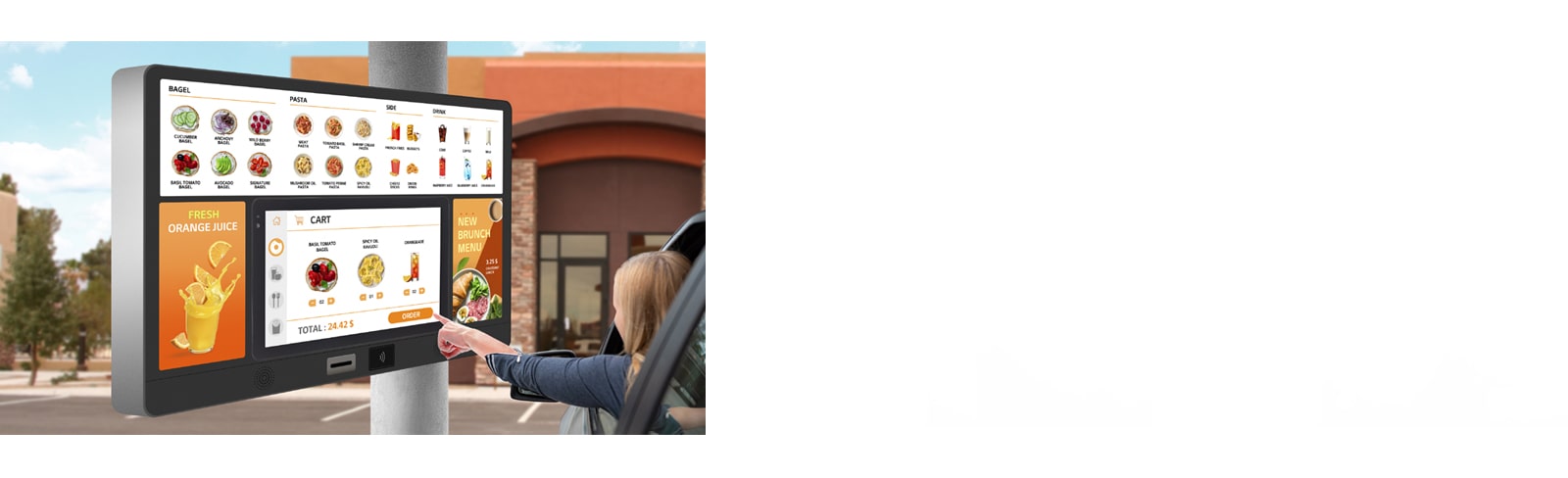

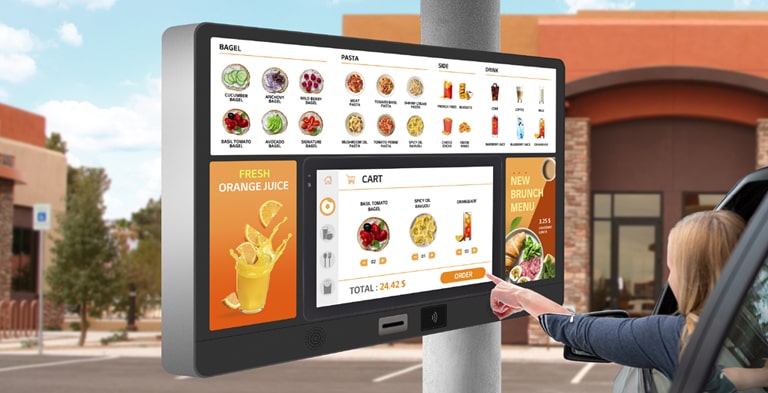

22XF1TJ is installed as a touch kiosk for drive-in ordering. A woman is touching a kiosk to select a food from the menu.

Built-in Touch Display

The 22XF1TJ has a P-cap Touch function, and the display accurately detects touch points even on the corners or edges of the display. The user is able to get the information they need by simply touching the screen.

The 22XF1TJ screen can adjust its brightness automatically according to the ambient light.

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

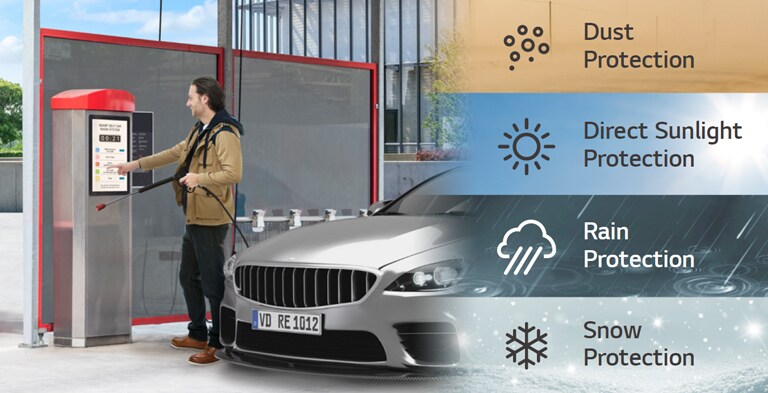

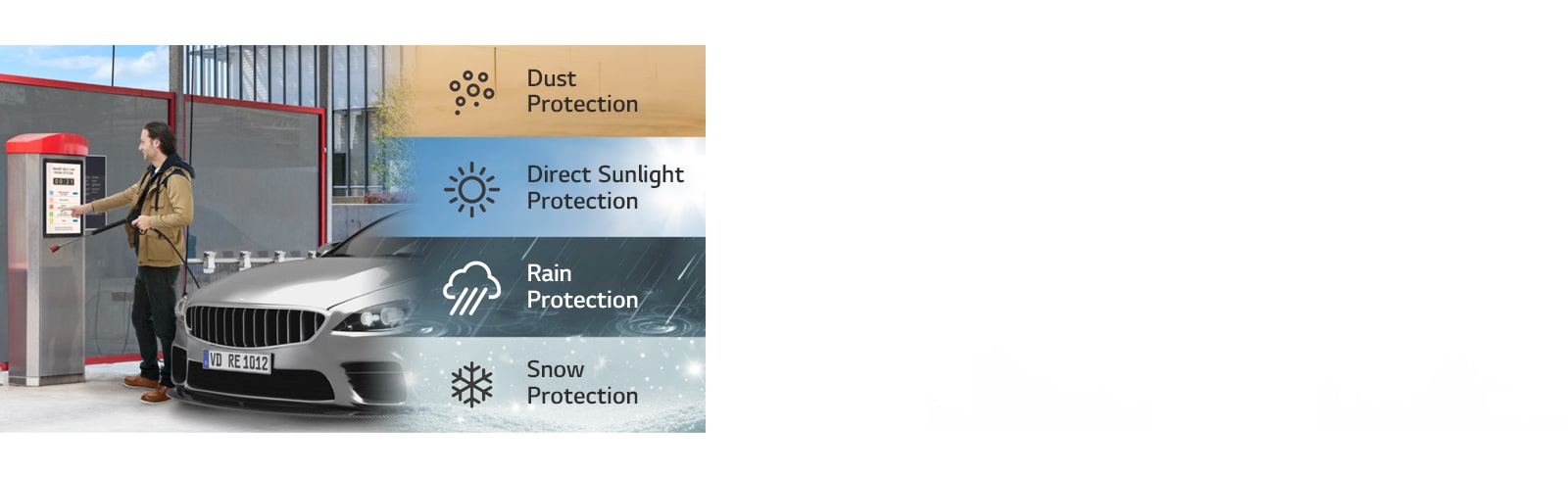

The 22XF1TJ is used as an touch kiosk display in a self-service car wash. The 22XF1TJ is protected against dust, direct sunlight, rain, and snow.

Secured Protection with IP65 Design

The front part of the display is sealed with IP65 design for reliable operation. It’s designed to be not only waterproof but also waterproof against the damaging effects of the sun, rain, snow, dust and wind, which is an essential feature for outdoor application.

* IP Code or Ingress Protection Code classifies the degree of protection provided by
mechanical casings and electrical enclosures against intrusion, dust, accidental contact, and water.
** IP65 means the product is protected from total dust ingress and resists highpressure, heavy sprays of water.
*** 22XF1TJ is certified as IP65 by CTK in November 2021.

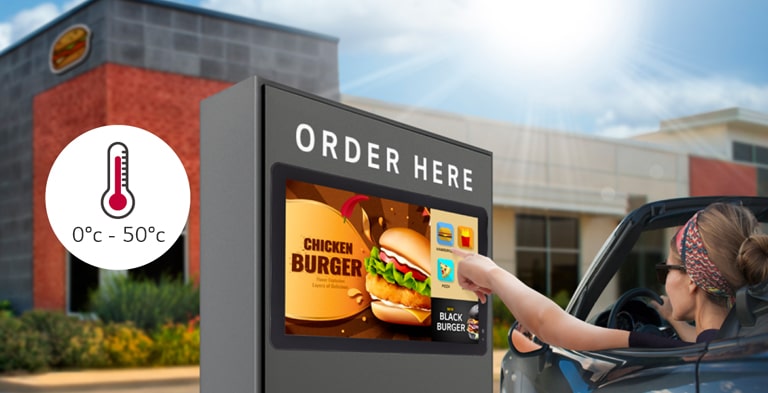

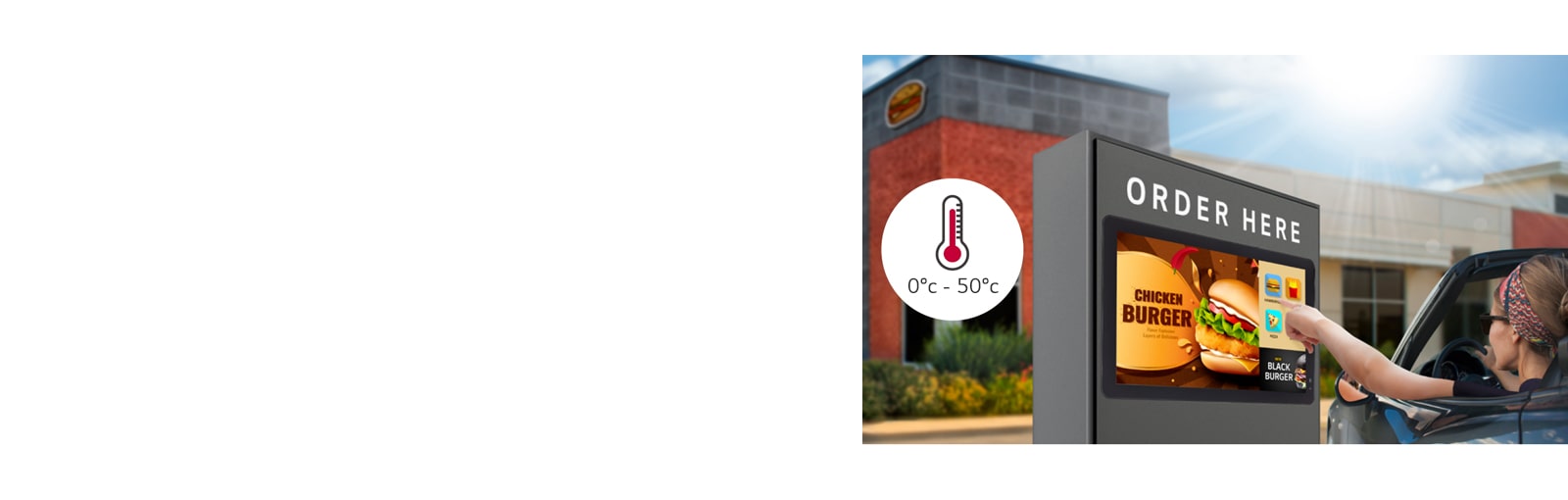

The 22XF1TJ is used as a drive-thru ordering touch kiosk. The display is working well in an environment of 0~50°C.

Wide Operating Temperature Range

22XF1TJ can be used under a wide range of operating temperatures from 0°C to 50°C* which results in fewer constraints for outdoor installation.

* 22XF1TJ is LG-internally tested under humidity of 30% (55°C ) and 99% (40°C).

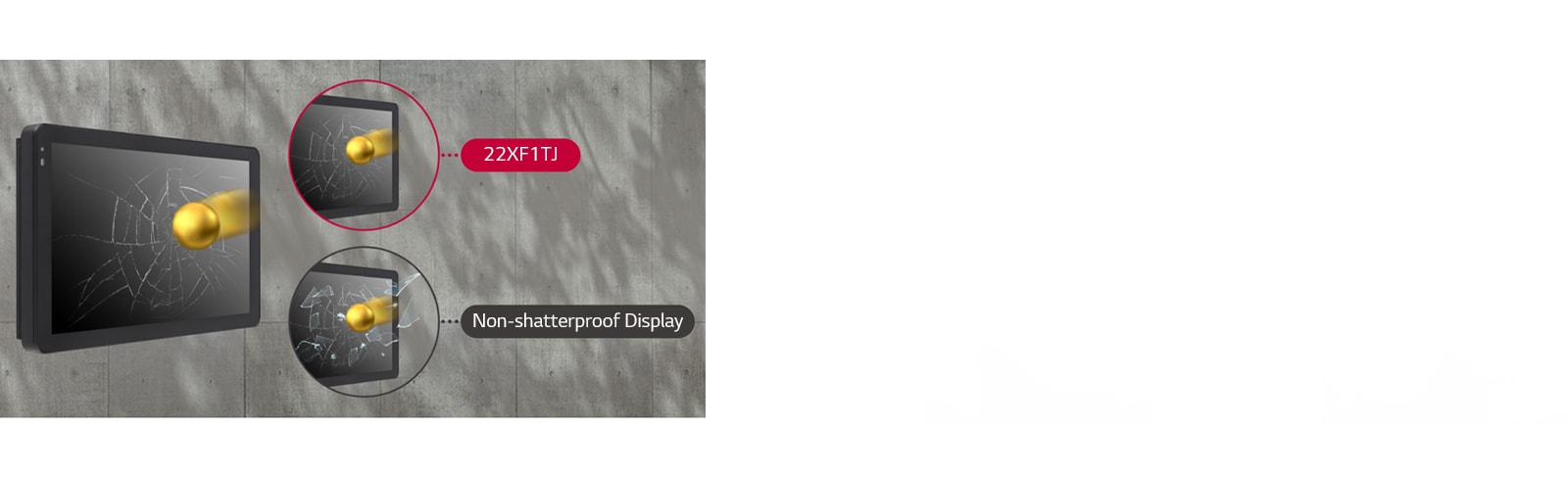

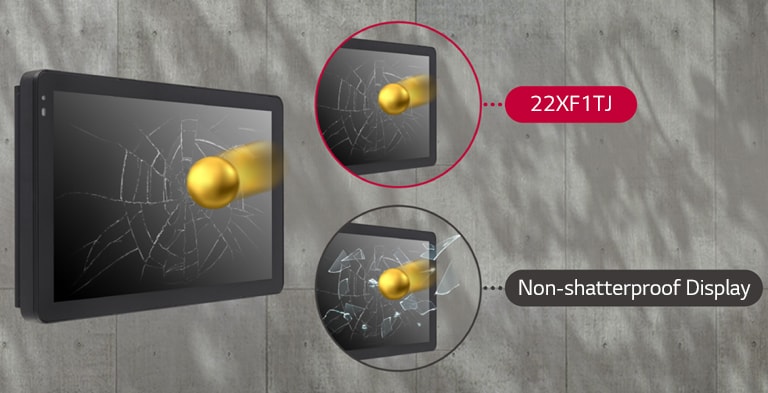

When an external impact is applied to the display, the glass screen of non-shatterproof displays breaks and shatters, but the screen of 22XF1TJ only cracks and doesn't shatter.

Shatterproof Design with Boosted Safety

The 22XF1TJ applies a shatterproof film to the back of the front glass, preventing the risk of scattering debris even if the glass is damaged by a forceful impact.

Conformal Coating

Conformal Coating* improves reliability of the circuit board, power board by protecting it against humidity.

* Conformal Coating : Thin protective films/breathing membranes that filter water vapor and solid debris

Antibacterial Coating for
More Hygienic Touch Usage

The 22XF1TJ, equipped with a touch screen covered by Antimicrobial Coating glass, prevents microbial growth and allows users to confidently touch the screen. This coating is also effective in preventing contamination which can be caused by bacteria transmitted through touching the screen, reducing stains and screen discoloration.

A user is touching the 22XF1TJ screen with an antibacterial coating.

* Antimicrobial coating glass is on surface of screen only and the effect may vary depending on kind of bacteria or conditions of use.
** The antimicrobial coating glass is treated with the antibiotic substance AEM 5700.
*** The antibiotic substance AEM 5700 has the antibacterial effectiveness of more than 99% against Escherichia coli and Staphylococcus aureus. (The test (Test method : ISO 22196:2011) is conducted on a glass surface covered with AEM 5700.)
**** The antibiotic substance AEM 5700 has the antibacterial effectiveness of more than 99% against SARS-CoV-2. (The test (Test method : ISO 18184:2019) is conducted on fabric covered with AEM 5700.)
***** The antibiotic substance AEM 5700 is certified by U.S. Environment Protection Agency (EPA) and the Biocidal Products Regulation (BPR, Regulation (EU)).

Web Monitoring
(Control Manager)

This is a web-based monitoring solution, which provides a ease of control for the user. It enables users to have full access anywhere, anytime from their mobile phone & PC as long as they’re connected to a network while having access to both current and past data. It allows users to monitor the unit, make any adjustments and control it remotely in real-time.

User can monitor and control their displays through mobile phone and laptop.

Real-time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

The LG employee is remotely monitoring the 22XF1TJ series installed in a different place by using cloud-based LG monitoring solution.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.

Panel

Screen Size

21.5"

Panel Technology

IPS
Back Light Type

Edge

Aspect Ratio

16:9
Native Resolution

1920x1080 (FHD)

Refresh Rate

60Hz
Brightness

1300nit (Typ, w/ Glass)

Contrast Ratio

1000:1 (Typ)
Dynamic CR

800,000:1

Color gamut

NTSC 72%
Viewing Angle(H x V)

178x178

Color Depth

8bit, 16.7Million colors
Response Time

25ms (G to G)

Surface Treatment(Haze)

Anti glare, 3H(Haze 25%)
Life time

70,000 Hrs (Typ)

Operation Hours (Hours/Day)

24/7
Portrait / Landscape

Yes / Yes

QWP(Quarter Wave Plate)

Yes (Apply on glass)

Connectivity(Jack Interface)

Input

HDMI (1, HDCP1.4), RS232C IN, RJ45(LAN), USB2.0 Type A (1)

Output

Touch USB, Externel Speaker Out (1, L/R, 10W+10W), RS232C OUT

Mechanical Specification

Bezel Color

Black

Bezel Width

30.5mm(R/L), 25.5mm(T/B)
Weight(Head)

8.1 Kg

Packed Weight

10.2 kg
Monitor Dimension(W x H x D)

541.7 x 322.8 x 60 mm

Carton Dimensions(W x H x D) (Box outer size)

644 x 406 x 207 mm
VESA™ Standard Mount Interface

100x100

Protection Glass

Depth 3mm, Tempered / Chemical strengthening (Thermal-strengthening), Shatter-Proof

Key Feature

HW

Internal Memory 16GB, Temperature Sensor, Auto Brightness sensor, Humidity Sensor, Acceleration(Gyro) Sensor, Power Indicator, FAN

SW

webOS ver. (webOS4.1), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (Local Network Sync), Video Tag (4, Max One HDMI input), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Status Mailing, Control Manager, Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom

Environment Conditions

Operation Temperature

0℃ to 50℃ (w/o Direct Sunlight, Direct Sunlight in Cooling System),
0℃ to 40℃ (Direct Sunlight)

Operation Humidity

10 % to 80 %

Power

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ.

85W (Full White)
37W (IEC 62087)

Max.

115W
BTU (British Thermal Unit)

290(Typ), 393(Max)

DPM

0.5W↓
Power off

0.5W↓

Certification

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC / VCCI
ErP / Energy Star

Yes / No

Software Compatibility

SuperSign CMS

Yes

SuperSign Control / Control+

Yes / Yes
Signage 365 Care

Yes

Language

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Turkish

Accessory

Basic

Remote Controller(including battery 2ea),
Power Cord, Manual (EIG, IG), RS-232C Gender

Special Feature

IP Rating

IP65 (Front Only)

Direct Sunlight

Yes
