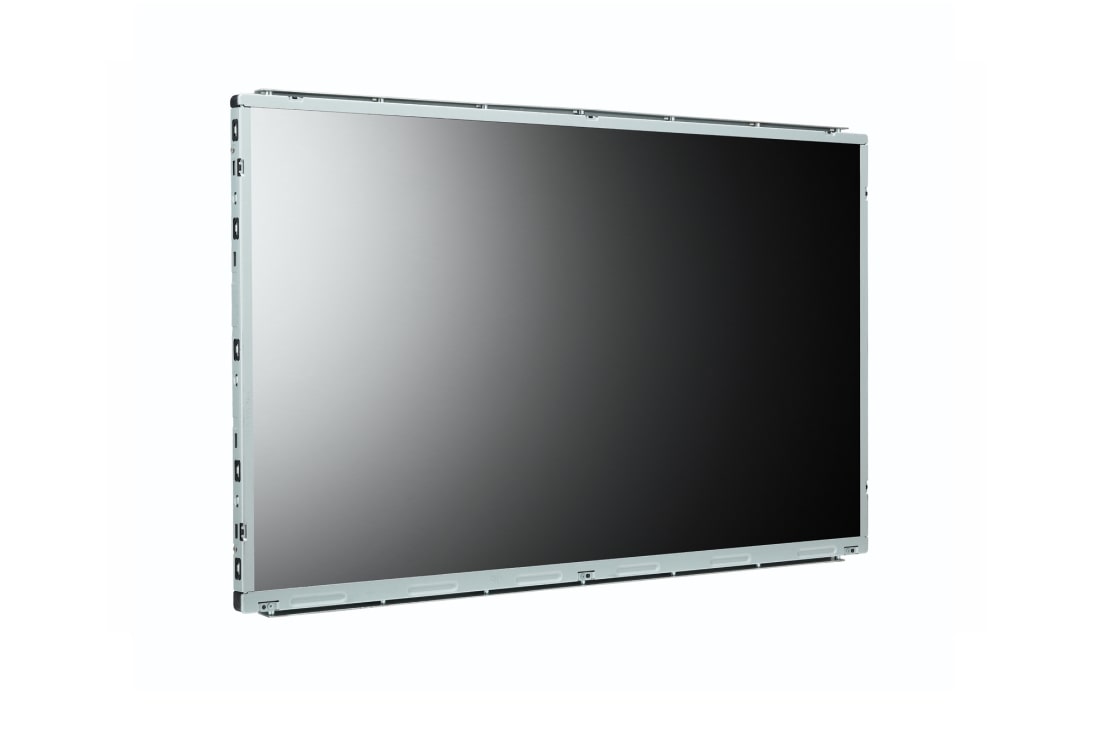

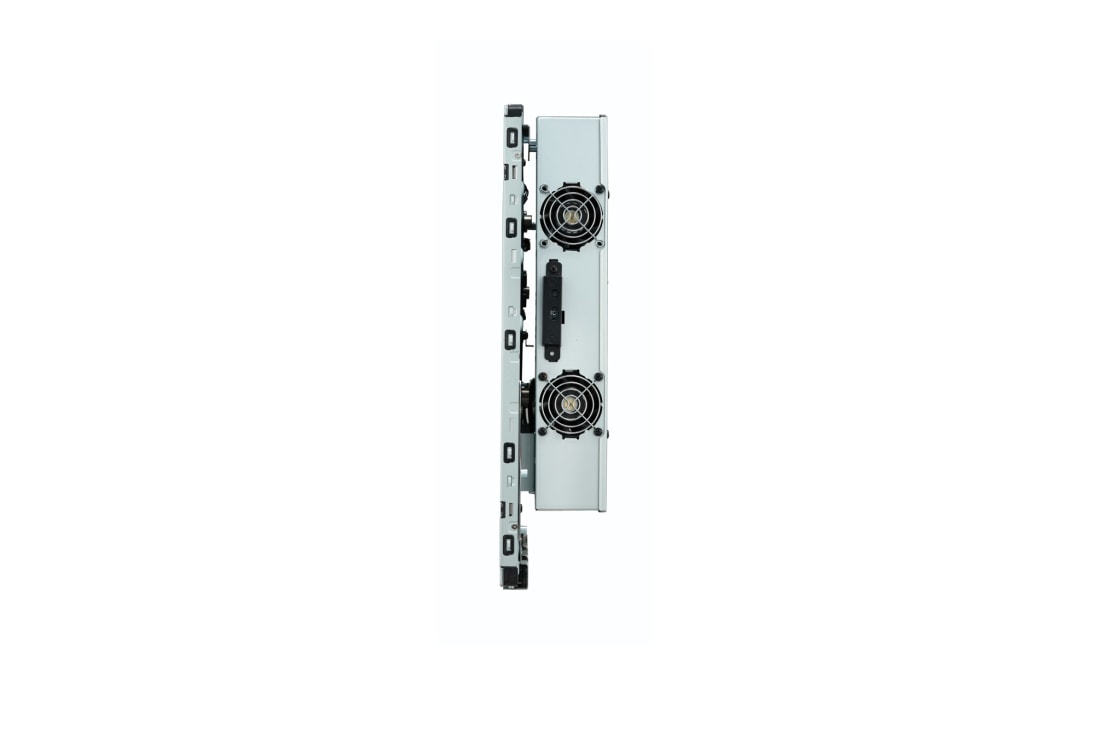

32XF1E component-copyModelName

Open Frame

Discontinued

32XF1E component-copyModelName

Open Frame

Key Features

Brightness : 1,500 cd/㎡ (Typ.)
Life Time : 50,000 hours
Bezel : 10.9 mm (L/R), 16.1 mm (T), 23.2 mm (B)
Depth : 95 mm
Interface: HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR

Inquiry to Buy

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness : 1,500 cd/㎡ (Typ.)
Life Time : 50,000 hours
Bezel : 10.9 mm (L/R), 16.1 mm (T), 23.2 mm (B)
Depth : 95 mm
Interface: HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Open Frame

Outstanding Visibility

High Brightness

With a great brightness of 1,500 cd/m², XF series clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility.

Outstanding Visibility

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

Product Reliability

High Operating Temperature

Its high reliability under high operating temperatures reduces additional costs for air conditioning system.

Product Reliability

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on every major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.

Easy Maintenance

webOS Smart Platform

Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.

Panel

Screen Size

32" (31.55" measured diagonal)

Resolution

1,920 x 1,080 (FHD)
Brightness (Typ., cd/m²)

1500

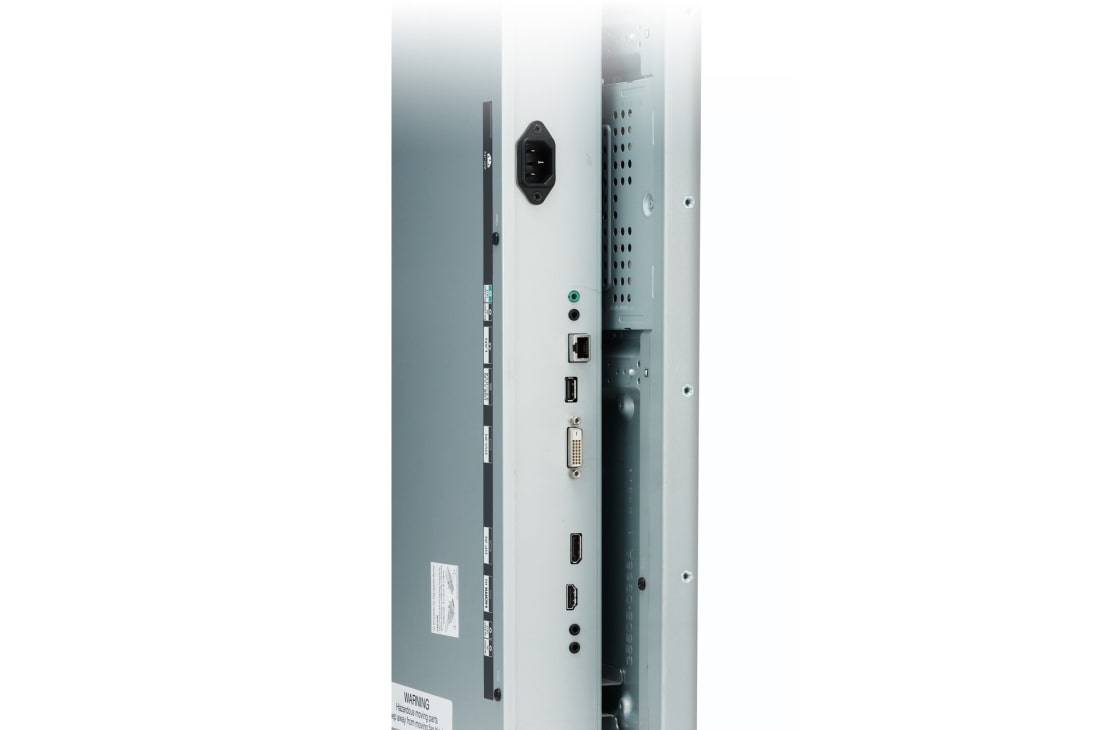

Connectivity

Input

HDMI (1), DP, DVI-D, Audio, USB

Output

Audio
External Control

RS232C in/out, RJ45 in, IR in

Physical Specification

Bezel Width

10.9 mm (L/R), 16.1 mm (T), 23.2 mm (B)

Monitor Dimension (W x H x D)

727.4 x 439.5 x 95 mm
Weight (Head)

12.3 kg

Carton Dimensions (W x H x D)

810 x 545 x 207 mm
Packed Weight

13.5 kg

Environment Conditions

Operation Temperature

0℃ to 50℃

Operation Humidity

10 % to 80 %

Power

Power Type

Built-In Power

Power Supply

100-240V~, 50/60Hz

Power Consumption

Typ./Max

145 W / 175 W

Smart Energy Saving

75 W

Standard(Certification)

Safety

IEC 60950-1 / EN 60950-1 / UL 60950-1

EMC

FCC Class "A" / CE / KC

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control+
(Software compatibility may change over time.)

Accessory

Basic

Remote Controller (2 Batteries Included), Power Cord, IR Extension Kit, HDMI Cable, Manual (ESG&EIG)

Optional

Wi-Fi Dongle (AN-WF500)
* Stand is not available

Dimension
- [Dimension2]32XF1E.dwg
- [Dimension2]32XF1E.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
