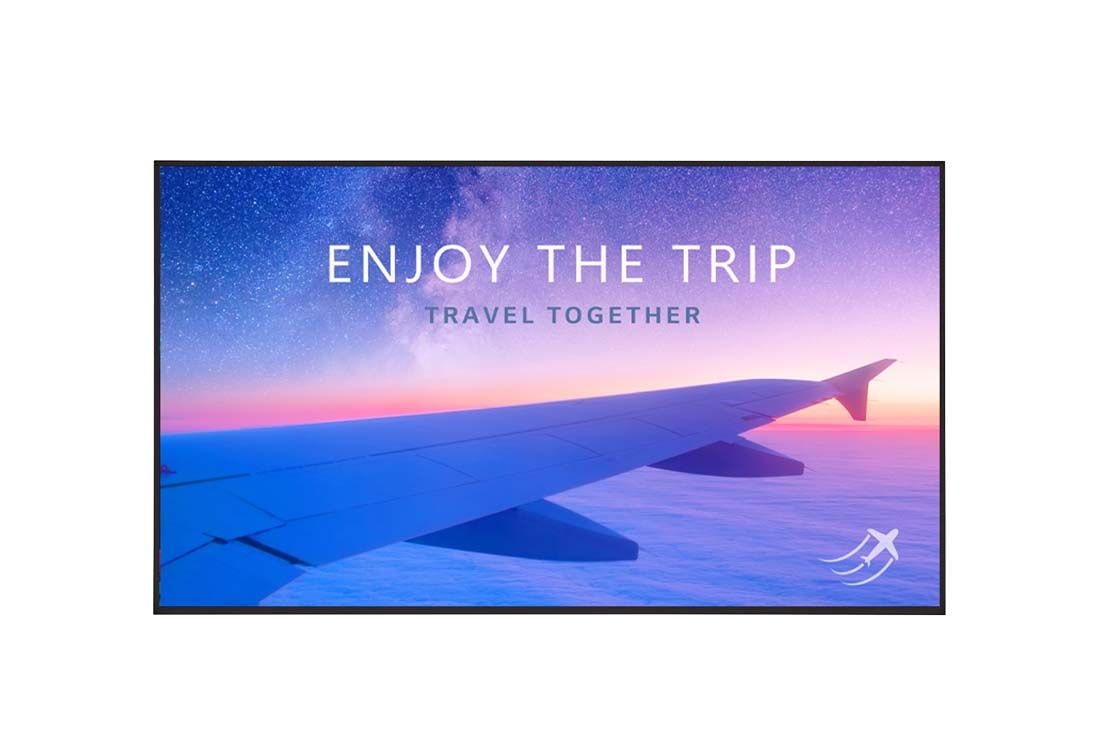

UHD Signage Display

Key Features

Choose your Size

component-OBScountrySelectDesc

UHD Signage Display
Info
  • Product
    Standard (UHD)
    Year
    Y23
  • Month
    M09(TBD)
Panel
  • Screen Size (Inch)
    43"
    Panel Technology
    IPS
  • Back Light Type
    Edge
    Aspect Ratio
    16 : 9
  • Native Resolution
    3840 x 2160 (UHD)
    Refresh Rate
    60Hz
  • Brightness
    700nit (Typ.)
    Contrast Ratio
    1,000:1
  • Dynamic CR
    1,000,000:1
    Color gamut
    BT709 95%
  • Viewing Angle(H x V)
    178 X 178
    Color Depth (Number of Colors)
    8bits + FRC, 1.07Billion colors
  • Response Time
    8ms (G to G)
    Surface Treatment (Haze)
    0.25
  • Life time
    50,000Hrs (Min.)
    Operation Hours (Hours/Day)
    24/7
  • Portait / Landscape
    Yes / Yes
Connectivity
(Jack Interface)
  • HDMI IN
    Yes(2), 3840x2160@60Hz, HDCP 2.2/1.4
    DP IN
    Yes(1), 3840x2160@60Hz, HDCP2.2/1.3
  • RS232C IN
    Yes (1), 4pin Phone-jack
    RJ45(LAN) IN
    Yes (1)
  • IR IN
    Yes (1)
    USB IN
    USB2.0 Type A(1), USB2.0 Type C ((1), without PD funtion)
  • DP Out
    Yes(1), 3840x2160@60Hz, Input : HDMI1/2/DP/USB-C
    Audio Out
    Yes (1)
  • RS232C Out
    Yes (1), 4pin Phone-jack
    IR Out
    No (Support IR daisy chain via RS232C IN/OUT)
  • Daisy Chain
    Yes(Input HDMI, DP, USB C / Output DP)
Mechanical
  • Bezel Color
    Black
    Bezel Width
    T/R/L: 8.9mm, B: 12.9mm
  • Weight (Head)
    11.1 kg
    Packed Weight
    12.8 kg
  • Monitor Dimensions (W x H x D)
    963.0 x 556.2 x 29.7mm (without IR)
    Carton Dimensions (W x H x D)
    1055.0 x 660.0 x 142.0mm
  • VESATM Standard Mount Interface
    200 x 200
HW Feature
  • Internal Memory (eMMC)
    16GB
    Wi-Fi/BT (Built-in)
    Yes
  • Temperature Sensor
    Yes
    Auto Brightness sensor
    Yes(IR)
  • Acceleration(Gyro) Sensor
    Yes
    Local Key Operation
    Yes
SW Feature
  • OS Ver. (webOS)
    Yes
    Local Contents Scheduling
    Yes
  • Group Manager
    Yes
    USB Plug & Play
    Yes
  • Fail over
    Yes
    Booting Logo Image
    Yes
  • No Signal Image
    Yes
    RS232C Sync
    Yes
  • Local Network Sync
    Yes
    PIP
    Yes
  • PBP
    Yes (4)
    Screen Share
    Yes
  • Video Tag
    Yes (4)
    Play via URL
    Yes
  • Screen Rotation
    Yes
    External Input Rotation
    Yes
  • Gapless Playback
    Yes
    Tile Mode Setting
    Yes (Max. 15x15)
  • Setting Data Cloning
    Yes
    SNMP
    Yes
  • ISM Method
    Yes
    Auto Set ID
    Yes
  • Status Mailing
    Yes
    Control Manager
    Yes
  • Cisco Certification
    (TBD)
    Crestron Connected
    Yes
  • Smart Energy Saving
    Yes
    PM mode
    Yes
  • Wake on LAN
    Yes
    Network Ready
    Yes
  • Beacon
    Yes
    HDMI-CEC
    Yes
  • SI Server Setting
    Yes
    webRTC
    Yes
  • Pro:Idiom
    Yes
Environment Conditions
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ.
    80W
    Max.
    120 W
  • IEC62087 (Typ)
    78W
    BTU (British Thermal Unit)
    0 BTU/Hr(Typ.), 0 BTU/Hr(Max)
  • Smart Enegy Saving (70%)
    56
    DPM
    0.5W
  • Power off
    0.5W
Sound
  • Speaker (Built-in)
    Yes (10W X 2)
Certification
  • Safety
    CB / NRTL
    EMC
    FCC Class "B" / CE / KC
  • ErP / Energy Star
    Yes (NewErP) / Yes
    ePEAT(US only)
    Yes
  • BS476 Part7
    Class 1 (case top / back cover)
    EN13501-1
    Class A1 (case top) / Class A2 (back cover)
Software Compatibility
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes / Yes
  • SuperSign WB
    Yes
    SuperSign Cloud
    Yes
  • Mobile CMS
    Yes
    Connected Care
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish→Türkiye, Arabic
Accessory
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, USB-C Cable, Cable Holder(2EA), AC Cord Holder (1EA)
    Optional
    Slim Wall Mount (WB21LMA/B), Wall Mount (LSW240A/B) Wall Mount Adapter (AM-B220S)
Special Feature
  • Tilt (Face Down)
    Yes(Max 30˚ degree, 40℃ temperature)
    IP Rating
    IP5X
  • Conformal Coating (Power Board)
    Yes
