Discontinued

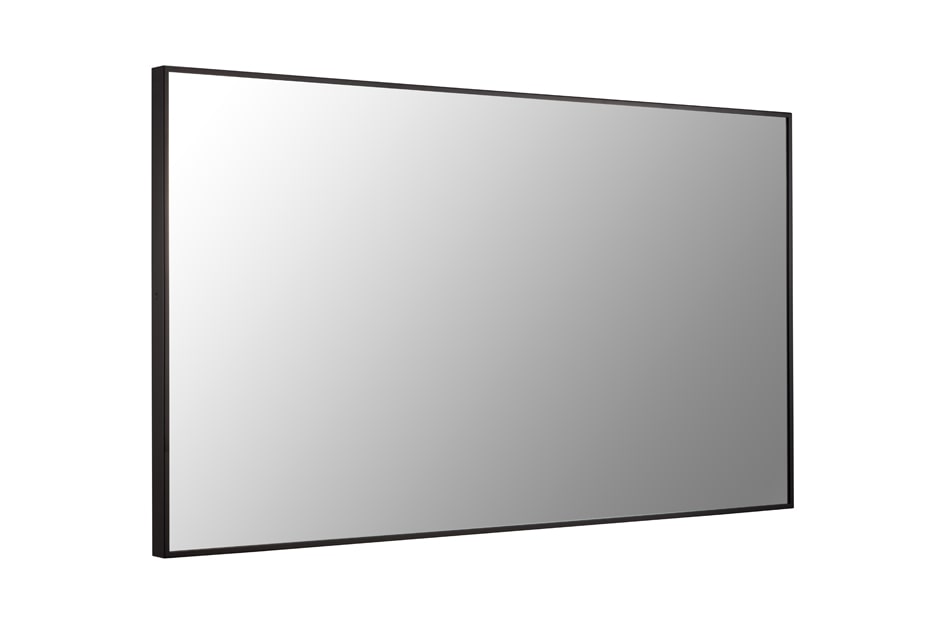

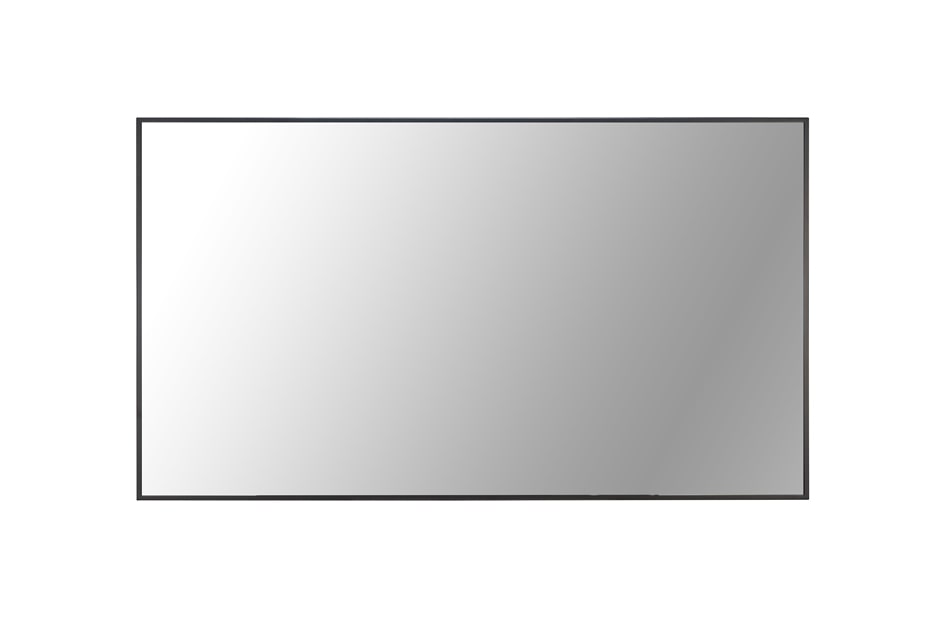

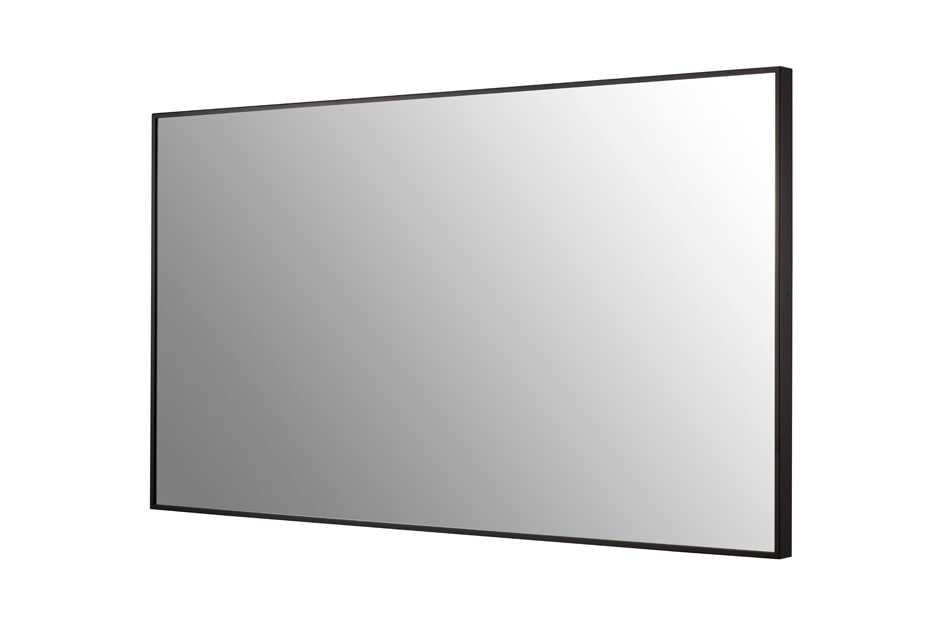

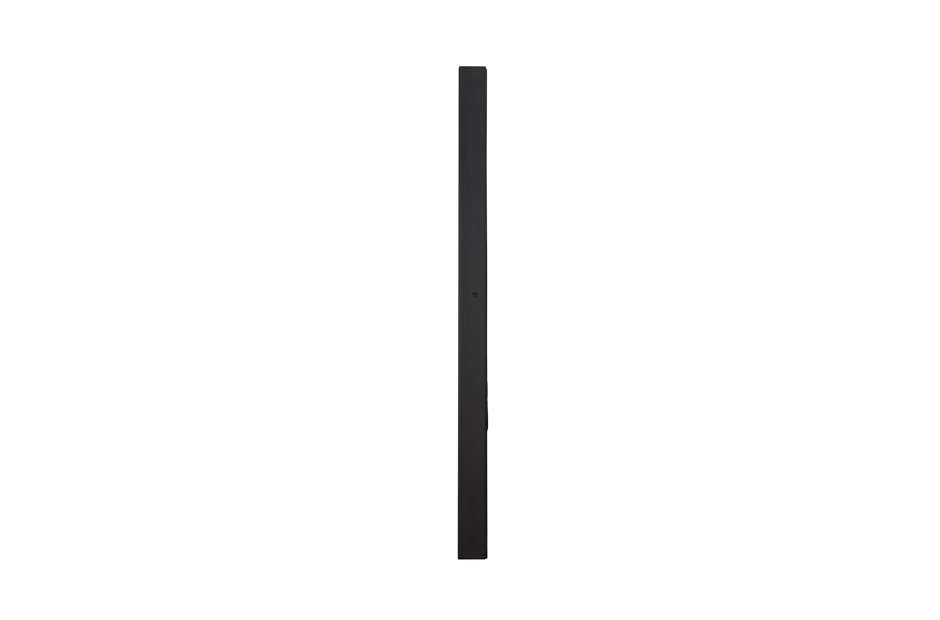

Mirror signage MS75A-7BB

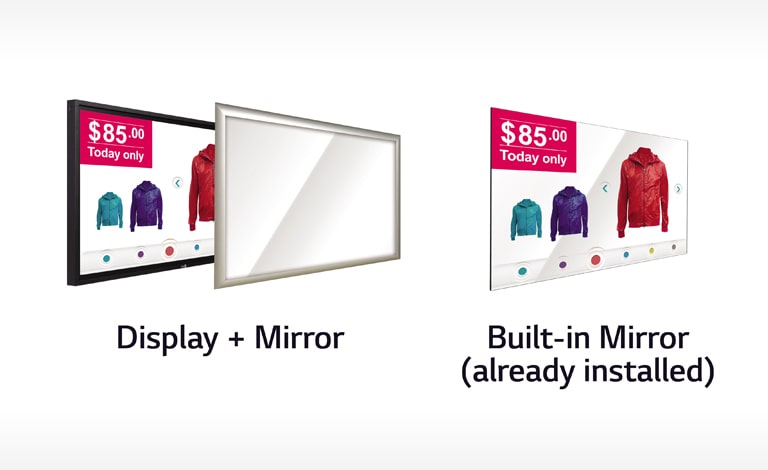

  • Built-in Mirror
  • Brightness(Typ.): 600 cd/m²
  • Bezel: 8.4 mm (Even bezel)

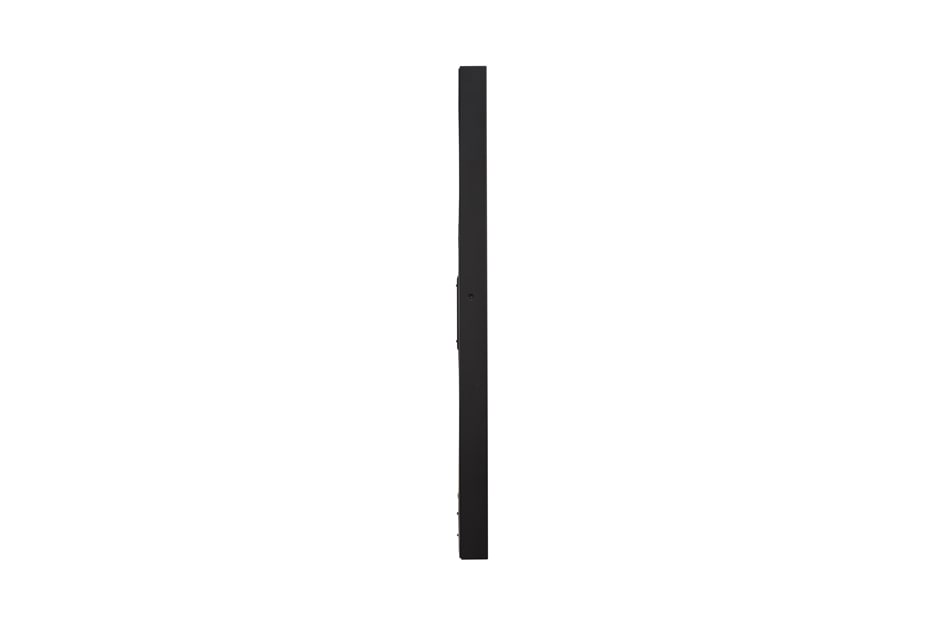

  • Depth: 37.3 mm
  • Interface : HDMI, HDMI/OPS, DP, DVI, RS232C, RJ45, USB

component-OBScountrySelectDesc

Mirror signage MS75A-7BB
Panel
  • Screen Size
    49"
    Resolution
    1,920 x 1,080 (FHD)
Connectivity
  • Input
    HDMI, HDMI/OPS, DP, DVI, Audio, USB
    Output
    DP, External Speaker
  • External Control
    RS232C in/out, RJ45 in, IR&Light sensor, Pixel sensor
Physical Specification
  • Bezel Width
    8.4 mm (Even Bezel)
    Monitor Dimension (W x H x D)
    1,095.0 x 625.2 x 37.3 mm
  • Weight (Head)
    22.0 kg
    VESA™ Standard Mount Interface
    400 x 400 mm
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
Power Consumption
  • Typ./Max
    125 W / 175 W
    Smart Energy Saving
    95 W
Standard(Certification)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC

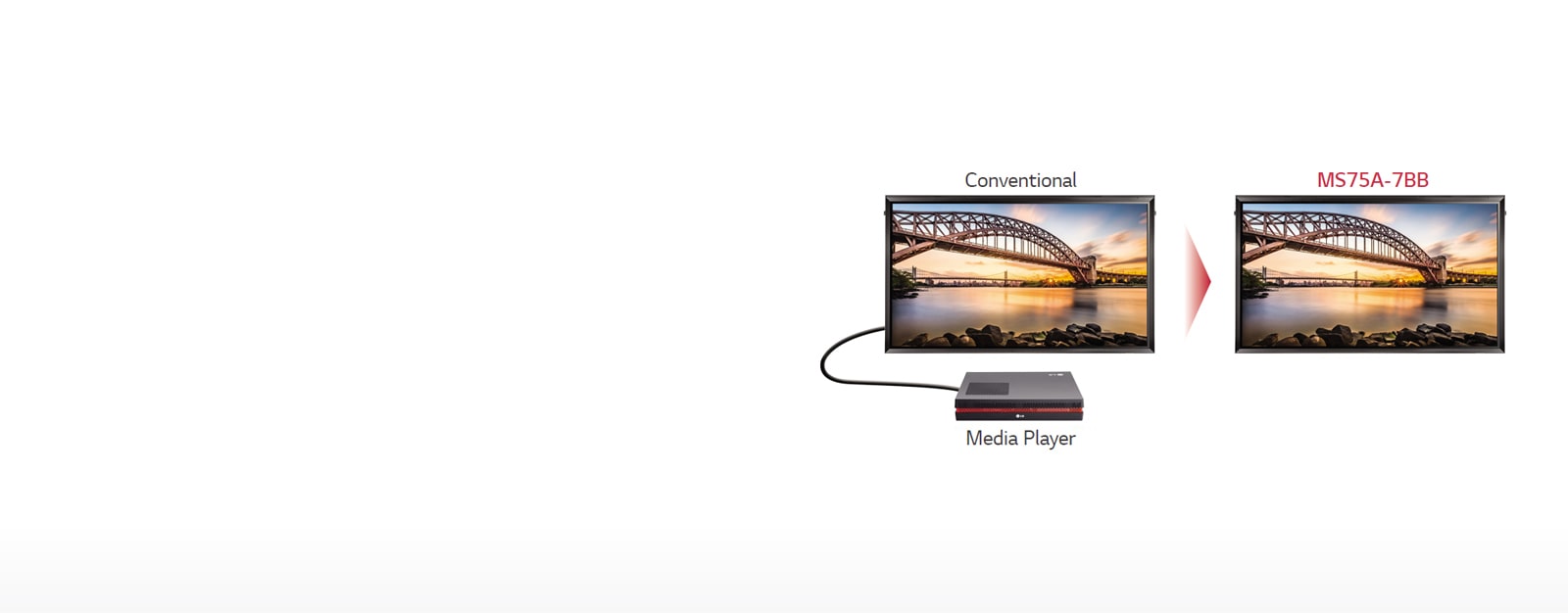

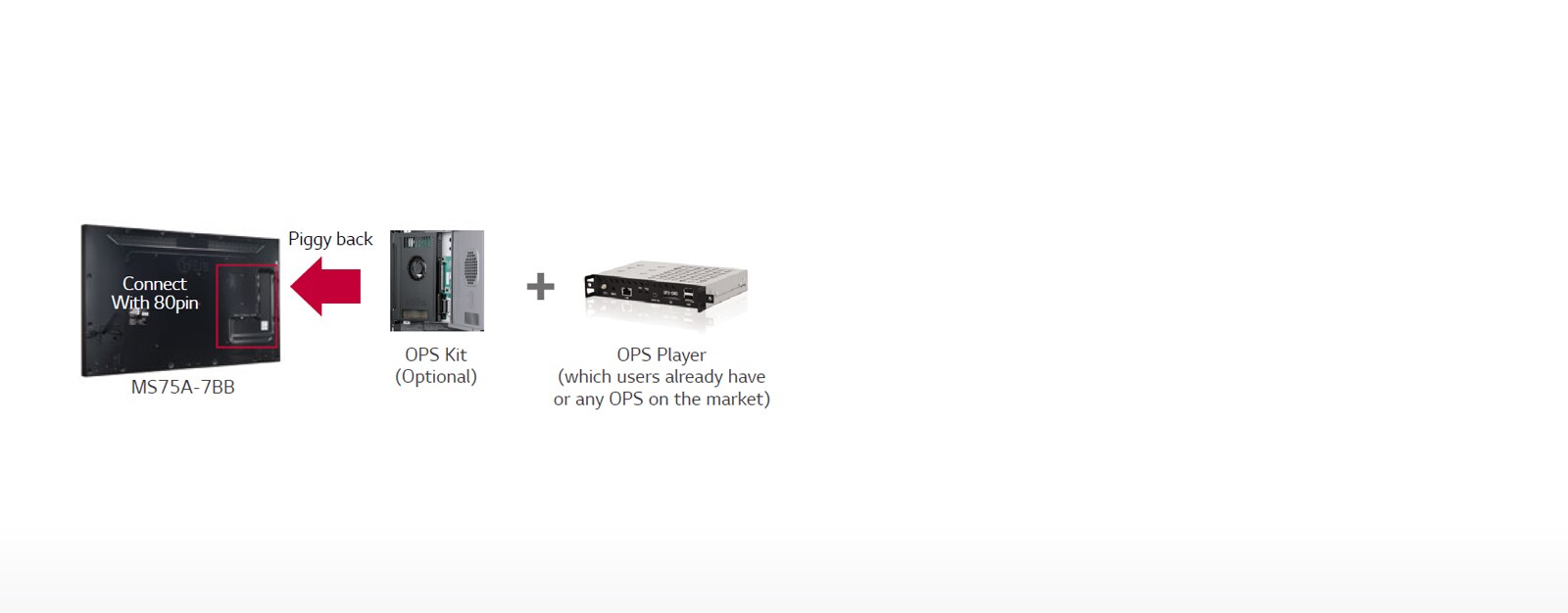

Media Player Compatibility

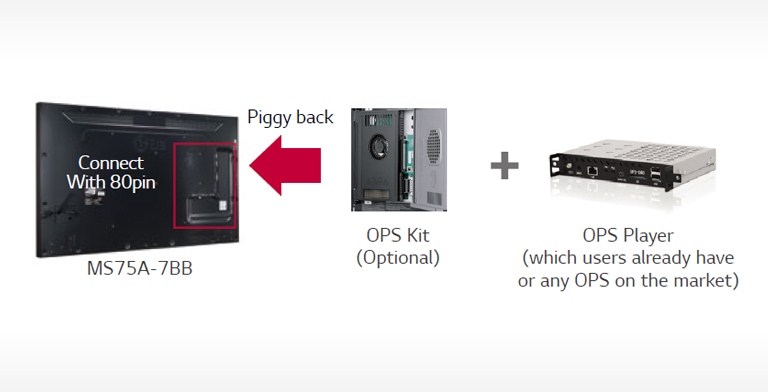

  • OPS type compatible
    No

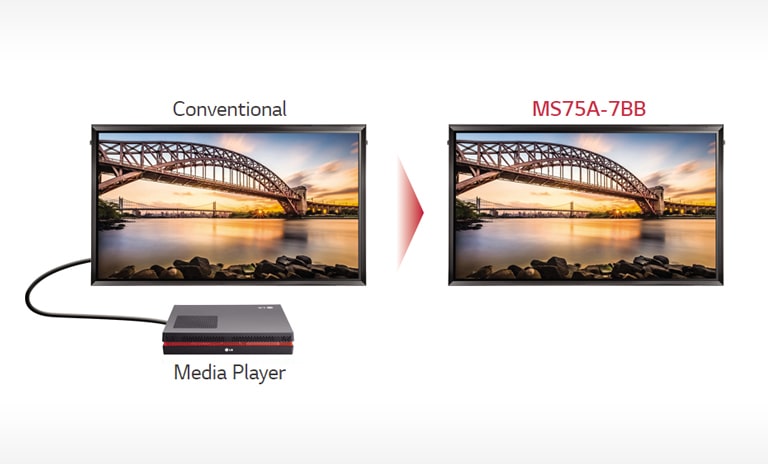

    External Media player Attatchable
    Yes (MP500/MP700), KT-OPSA

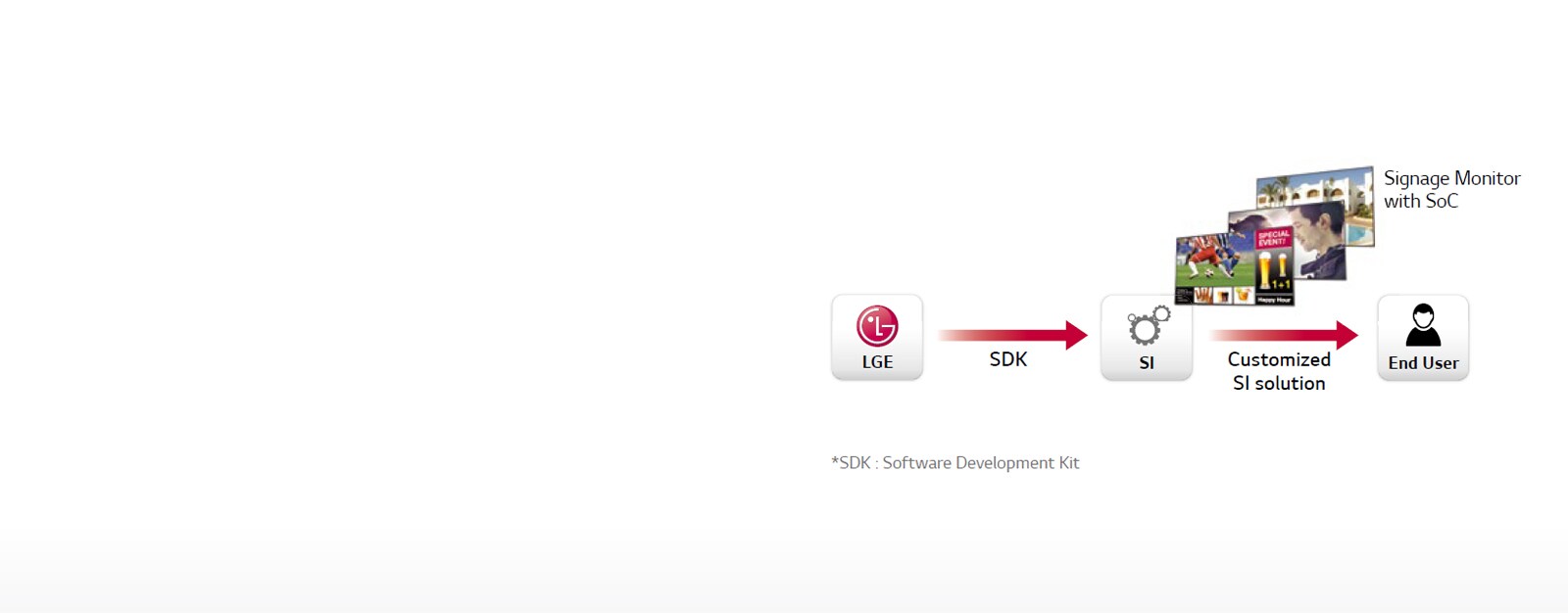

Software Compatibility
  • Content Management Software
    SuperSign W
    Control and Monitoring Software
    SuperSign C
Accessory
  • Basic
    Remote Controller (include battery 2ea), Power Cord, IR/Light Sensor Receiver, CD (Owner's Manual), HDMI Cable
    Optional

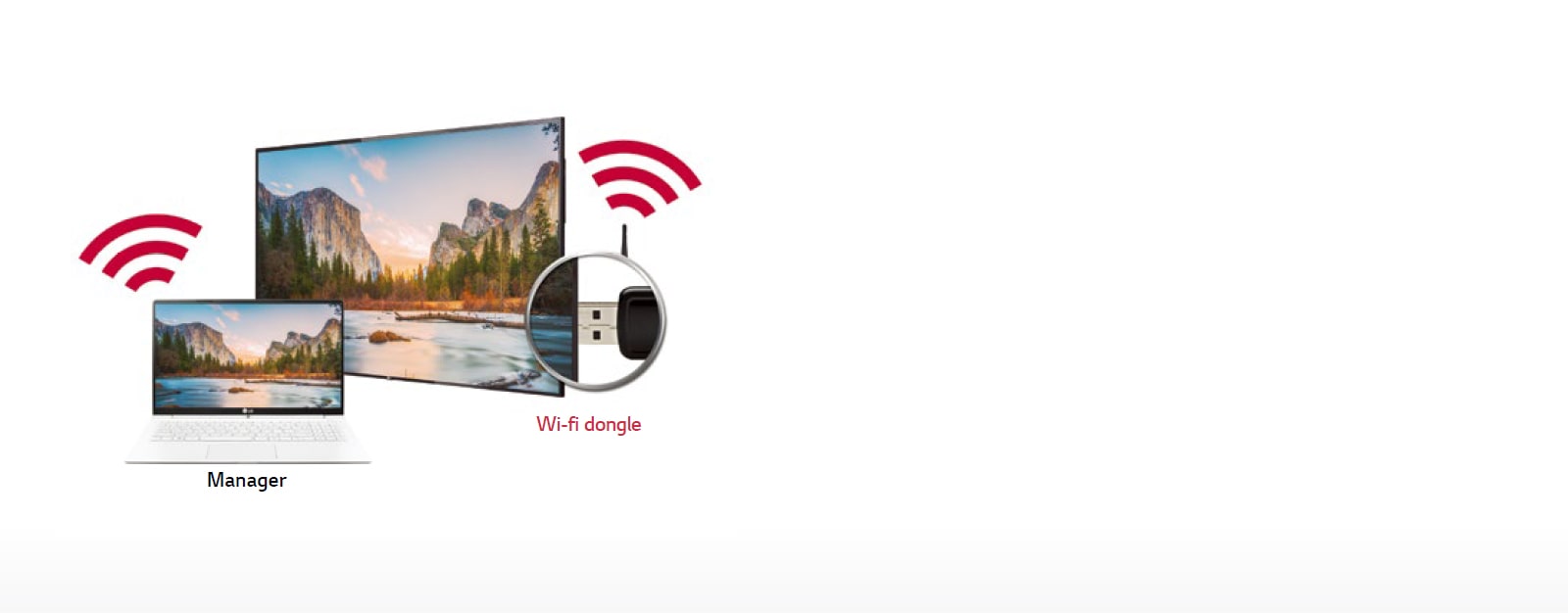

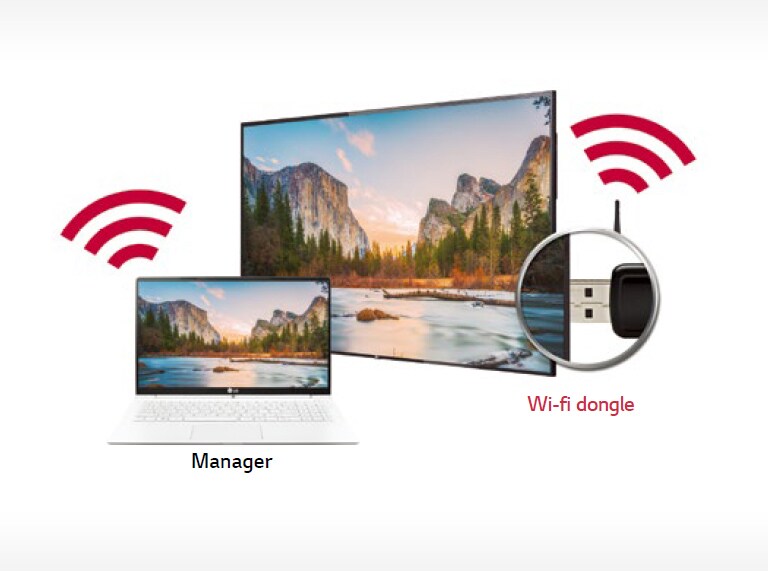

    SP-2100, ST-200T, LSW440S, AN-WF500 (Wi-Fi USB dongle), KT-OPSA (OPS Kits), KT-SP0
  • Dimension
    • 49MS75A.dwg
    • 49MS75A.pdf
  • Datasheet
    • MS75A_7BB Leaflet_170510.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
