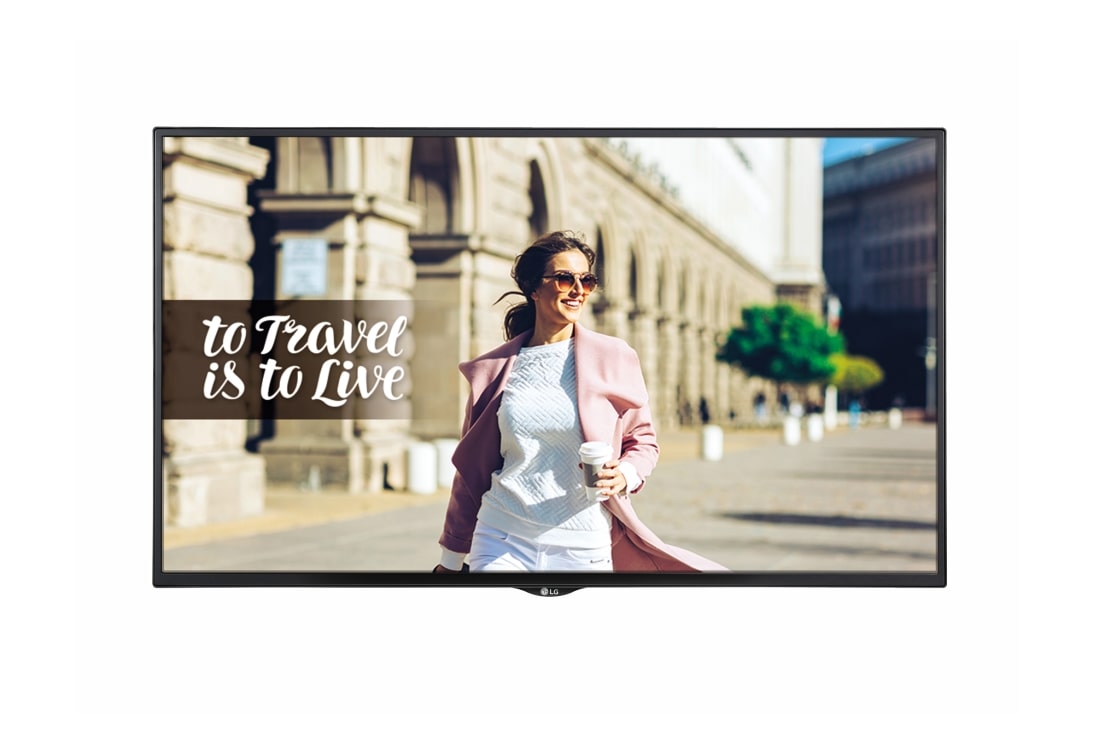

49SH7PE-H
SH7PE-H Series
  • Brightness(Typ.) : 665 cd/m²
  • Bezel : 11.9 mm (T/L/R), 18.0 mm (B)
  • Depth : 54 mm
  • Interface : HDMI(2), DVI-D, RGB, USB, RJ45, RS232C, IR
  • Built-in Speaker(10W+10W)
  • Haze 28%, OPS Power Built-in, EMC Class "B"

component-OBScountrySelectDesc

SH7PE-H Series

Panel

  • Screen Size
    49"
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Max., cd/m²)
    700
    Brightness (Typ., cd/m²)
    665
  • Surface Treatment (Typ.)
    Haze 28%

Connectivity

  • Input
    HDMI (2), DVI-D, RGB, Audio, USB
    Output
    Audio (Off/Fixed/Variable)
  • External Control
    RS232C in/out, RJ45 in, IR in

Mechanical Specification

  • Bezel Width
    11.9 mm (T/R/L), 18 mm (B)
    Monitor Dimension (W × H × D)
    1,102.2 x 638.5 x 54 mm
  • Weight (Head)
    14.3 kg
    Monitor Dimension with Optional Stand Dimensions (W x H x D)
    1,102.2 x 696.8 x 219.6 mm
  • Weight (Head+Stand)
    17.6 kg
    Carton Dimensions (W × H × D)
    1,197 x 760 x 166 mm
  • Packed Weight
    17.4 kg
    VESA™ Standard Mount Interface
    300 x 300 mm

Environment Conditions

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

Power

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

Power Consumption

  • Typ. / Max.
    90 W / 130 W
    Smart Energy Saving
    63 W

Standard(Certification)

  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class "B" / CE / KC
  • ErP / Energy Star
    Yes (EU Only) / Yes (Energy Star 8.0)

Media Player Compatibility

  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes (MP500/MP700)

Software Compatibility

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+ / SuperSign Control

Accessory

  • Basic
    Remote Controller, Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver
    Optional
    Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), Wi-Fi Dongle (AN-WF500), Touch Overlay (KT-T49E), OPS Kit (KT-OPSD)

General

  • Region
    Global
  • Dimension
    • [Dimension]_49SH7PE.dwg
    • [Dimension]_49SH7PE.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
