Discontinued

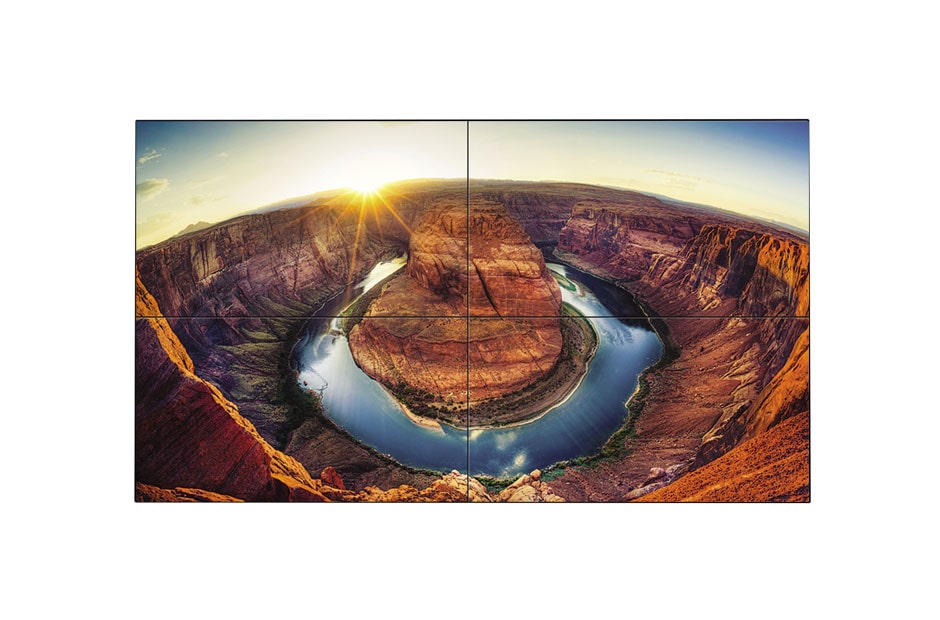

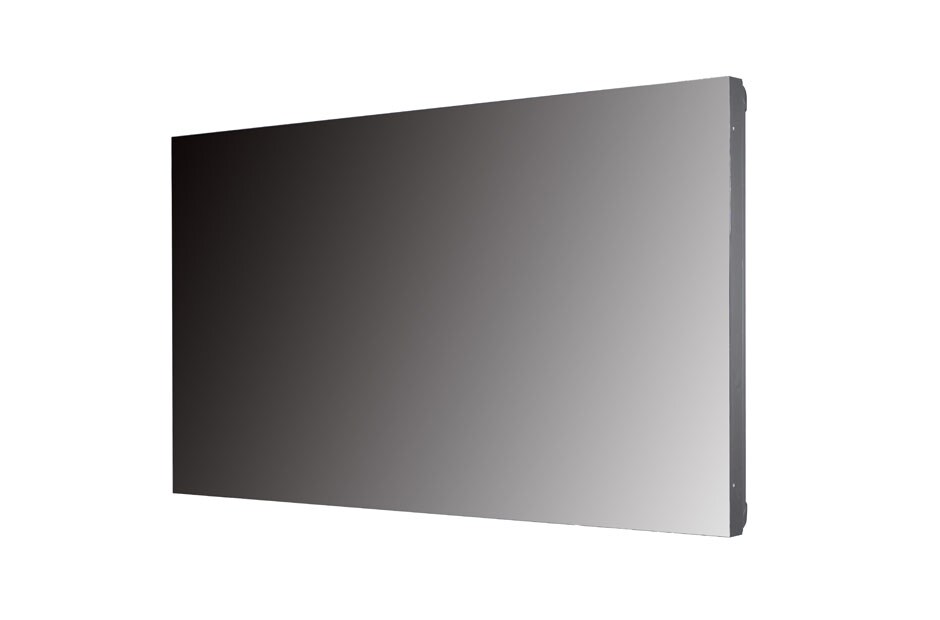

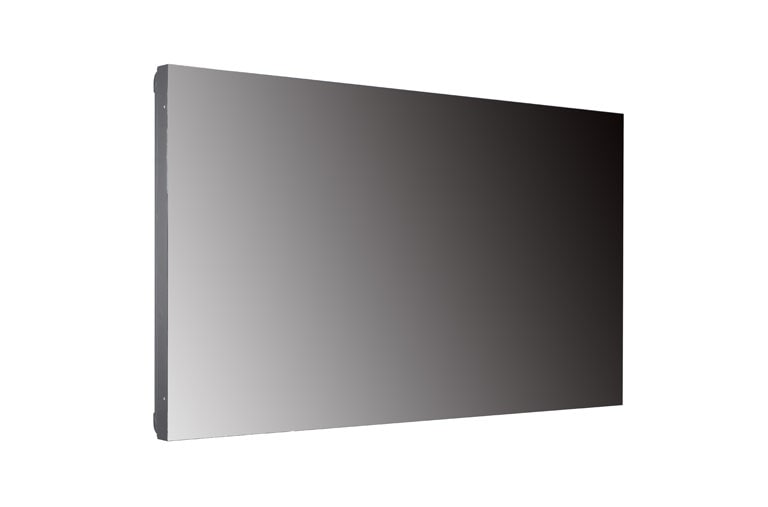

49VH7C
Artistic Immersion, Overwhelming Attractiveness
  • Brightness(Typ.): 700 cd/m²
  • Surface Treatment : Hard coating (2 H), Anti-glare low reflection treatment of the front polarizer(Haze 3 % (Typ))

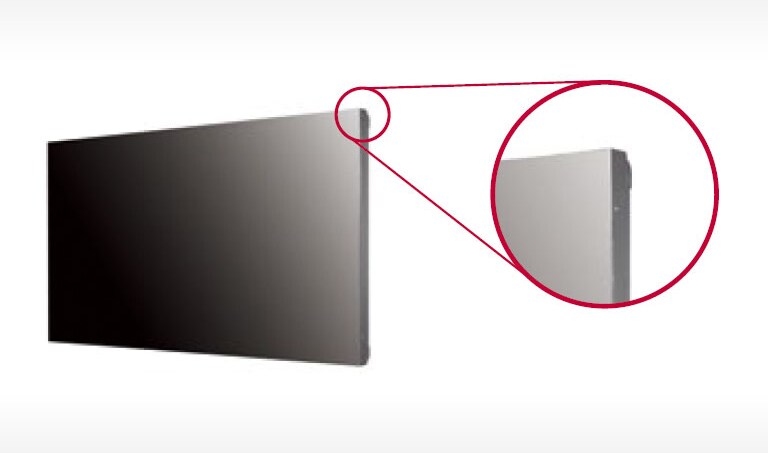

  • Bezel : 0.9 mm (T/B/L/R even bezel)
  • Depth : 86.2 mm

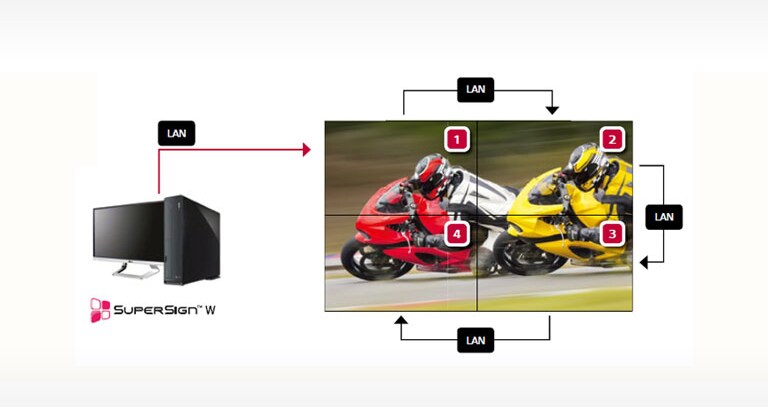

  • Interface : HDMI / DVI / RGB / IR, Daisy-chain (DP, RS232C, RJ45)

component-OBScountrySelectDesc

Artistic Immersion, Overwhelming Attractiveness

Panel

  • Screen Size
    49"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Typ., Module, cd/m²)
    700

Connectivity

  • Input
    HDMI, DP, DVI-D, OPS, Audio, USB 2.0, USB 3.0, RGB
    Output
    DP, Audio
  • External Control
    RS232C, RJ45, IR Receiver

Physical Specification

  • Bezel Width
    0.9mm (Top/Bottom/Left/Right even bezel) / 1.8mm *B to B : Panel Bezel + Panel Bezel
    Monitor Dimension (W x H x D)
    1,075.6 x 605.8 x 86.2 mm
  • Weight (Head)
    17.5 kg
    VESA™ Standard Mount Interface
    600 x 400mm

Environment Conditions

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

Power

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

Standard(Certification)

  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    Yes (EU Only) / Yes (Energy Star 7.0)

Media Player Compatibility

  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes (MP500/MP700)

Software Compatibility

  • SuperSign-w lite
    Yes
    SuperSign-c
    Yes

Accessory

  • Basic

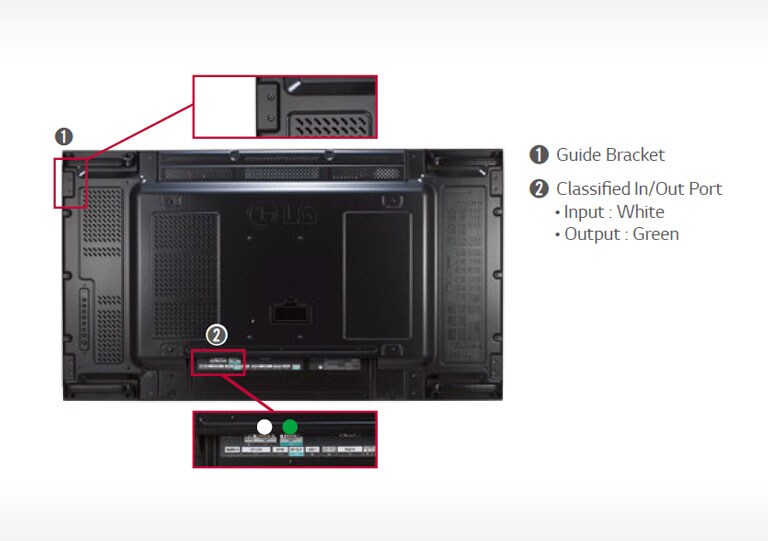

    Remote controller, Power cable, DP cable, Manual, IR receiver, RS-232C cable, LAN cable, Guide bracket, Screws
    Optional
    Wall mount (Landscape: WM-L640V, Portrait: WM-P640V), OPS kit (KT-OPSA), HDBaseT (EB-B100)
  • Dimension
    • 49VM5C_49VH7C_2D.dwg
    • 49VM5C_49VH7C_2D.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
