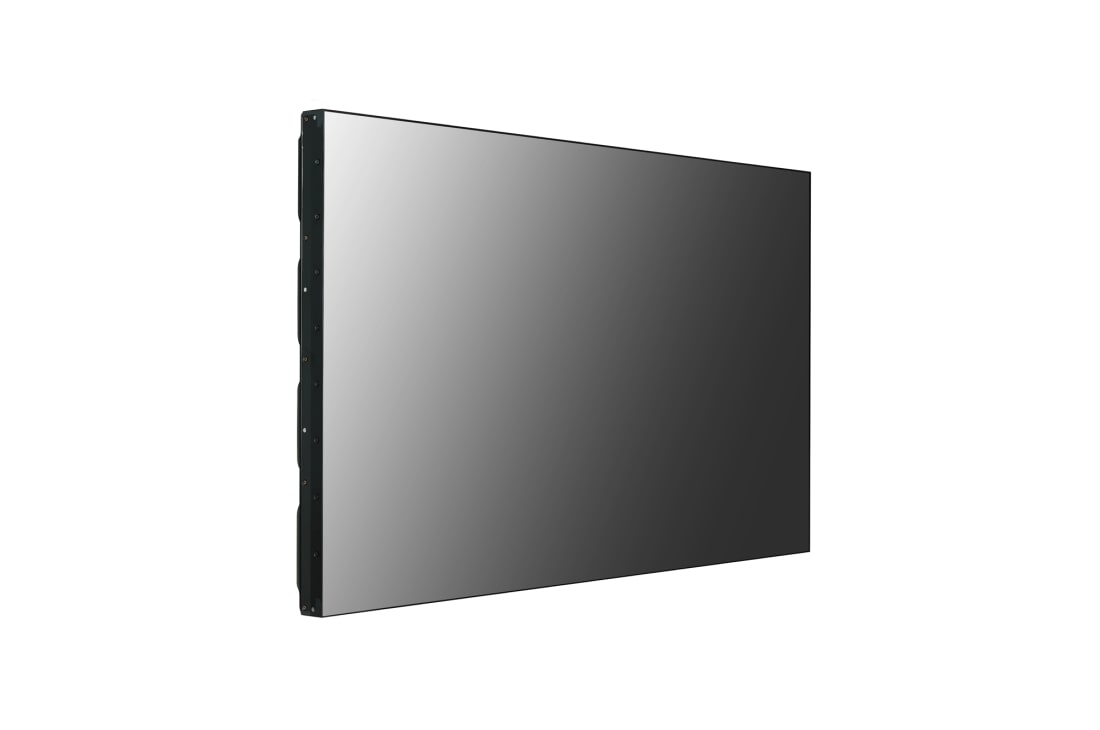

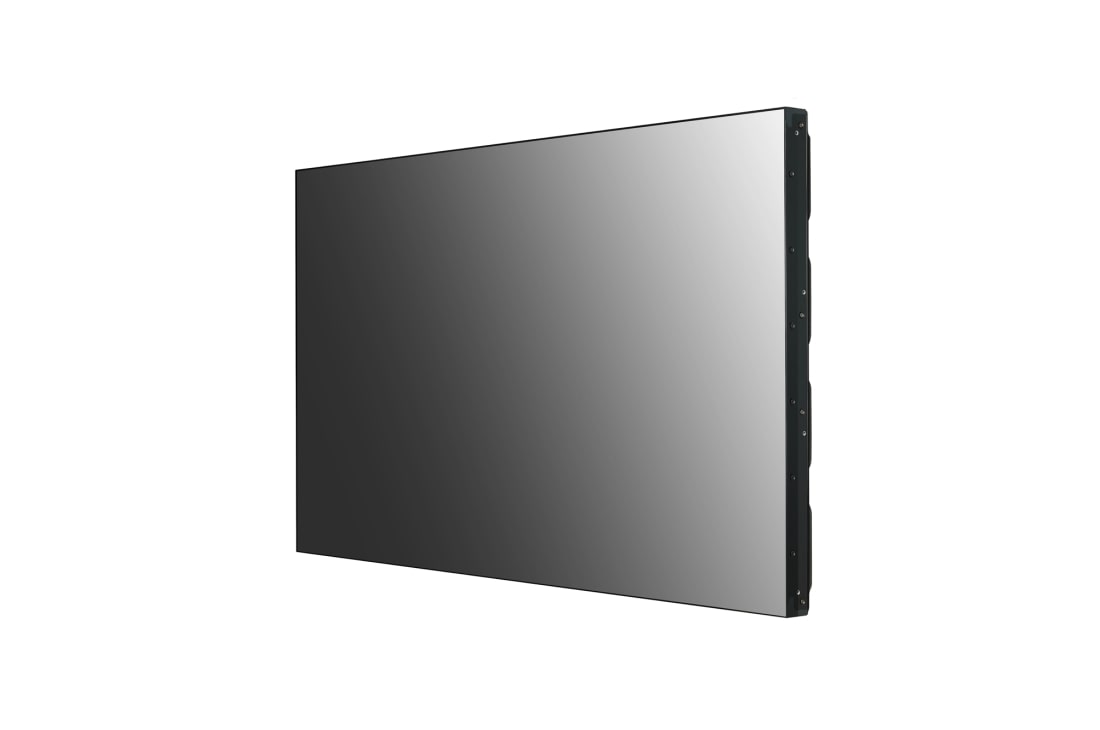

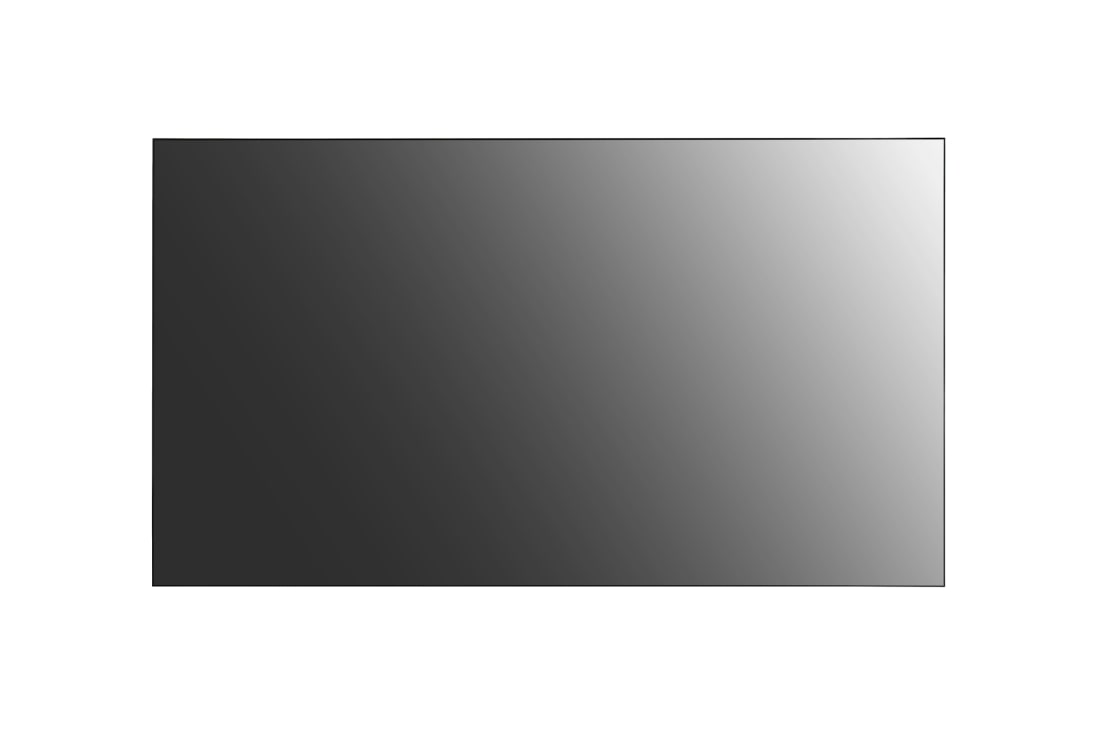

49VL5F-A
49VL5F Series
  • Brightness(Typ.) : 450 cd/m²
  • Bezel : 2.25 mm (T/L), 1.25 mm (B/R)

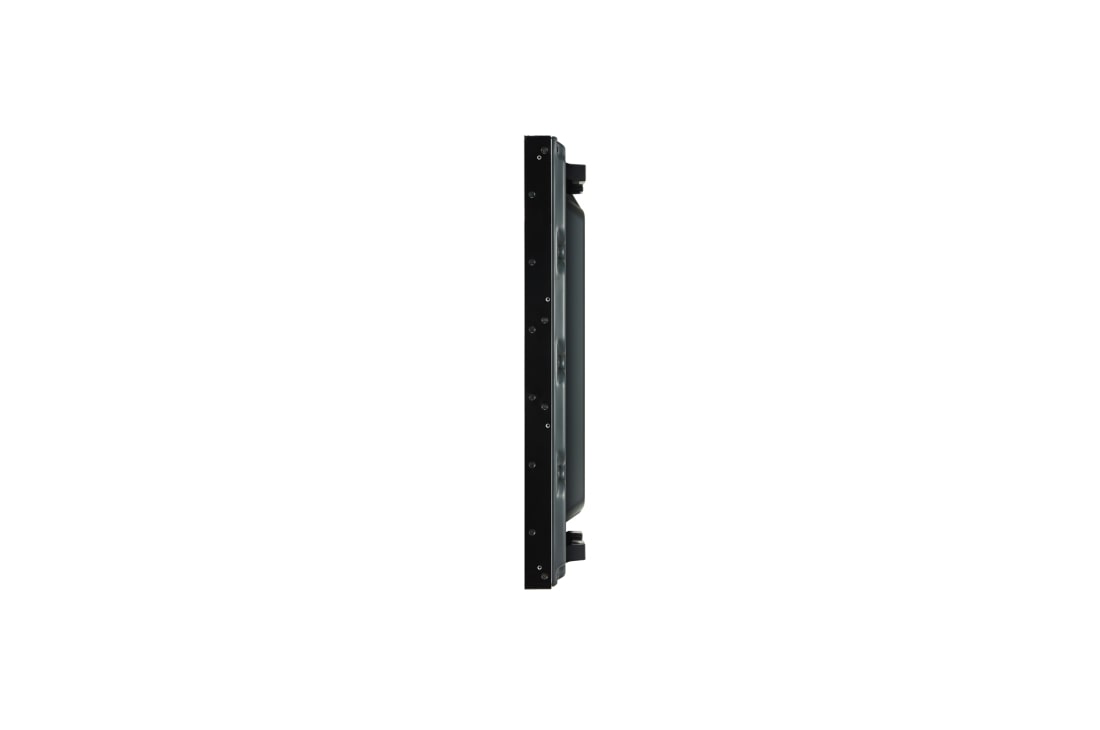

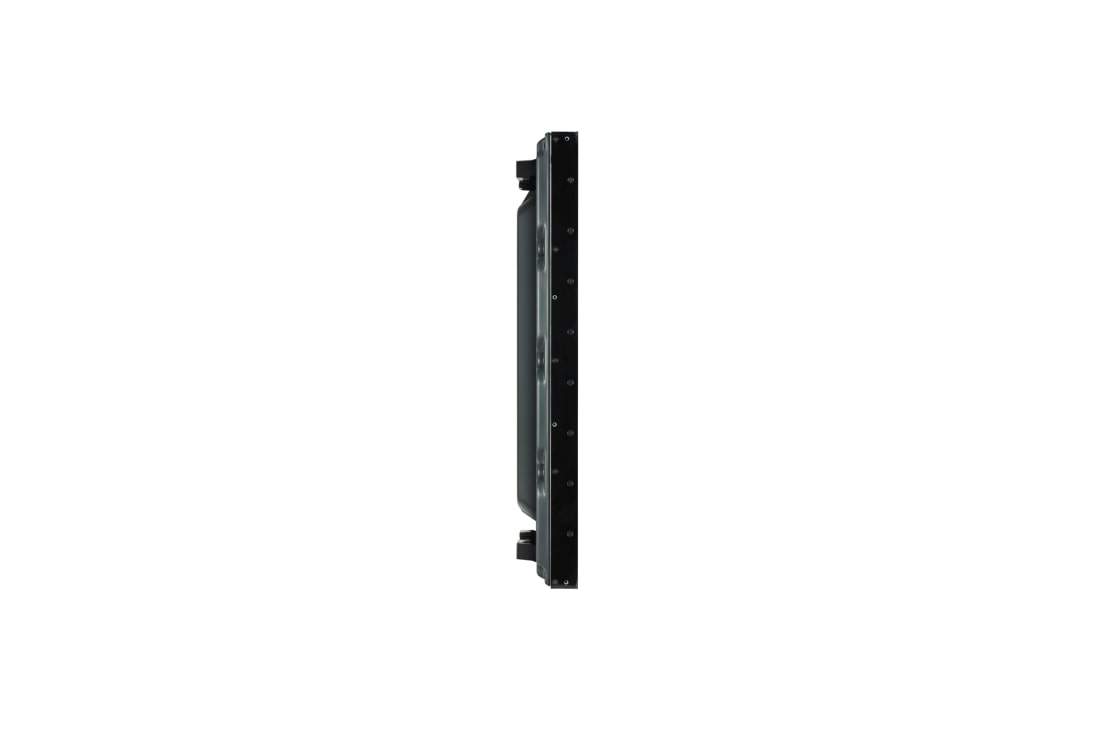

  • Depth : 89.7 mm
  • Interface : HDMI/DP/DVI-D/USB/ RS232C/ RJ45/ Audio/ IR
49VL5F Series
MSRP $
ENERGY STAR® Certified

ENERGY STAR® Certified

Panel

  • Screen Size
    49"
    Panel Technology
    IPS
  • Aspect Ratio
    16:9
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Typ.,cd/m²)
    450
    Contrast Ratio
    1,300:1
  • Dynamic CR
    500,000 : 1 (The luminosity ratio of Full Black/Full White color on video input condition.)
    Viewing Angle (H x V)
    178 x 178
  • Response Time
    8 ms (G to G)
    Surface Treatment (Haze)
    3%
  • Life Time (Typ.)
    60,000 Hrs
    Operation Hours
    24 Hrs
  • Orientation
    Landscape & Portrait

Connectivity

  • Input
    HDMI, DP, DVI-D, RGB, Audio, USB 2.0
    Output
    DP, Audio
  • External Control
    RS232C In/out, RJ45 (LAN) In, IR In

Mechanical Specification

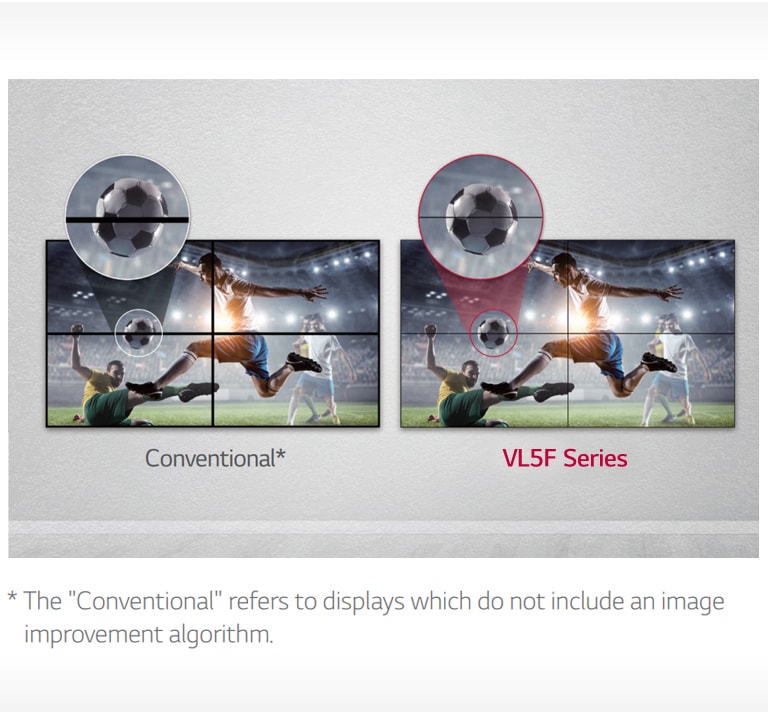

  • Bezel Width
    2.25 mm (T/L), 1.25 mm (B/R)
    Monitor Dimension (W × H × D)
    1,077.6 x 607.8 x 89.7 mm
  • Weight (Head)
    17.8 kg
    Carton Dimensions (W × H × D)
    1,214 x 778 x 263 mm
  • Packed Weight
    22.8 kg

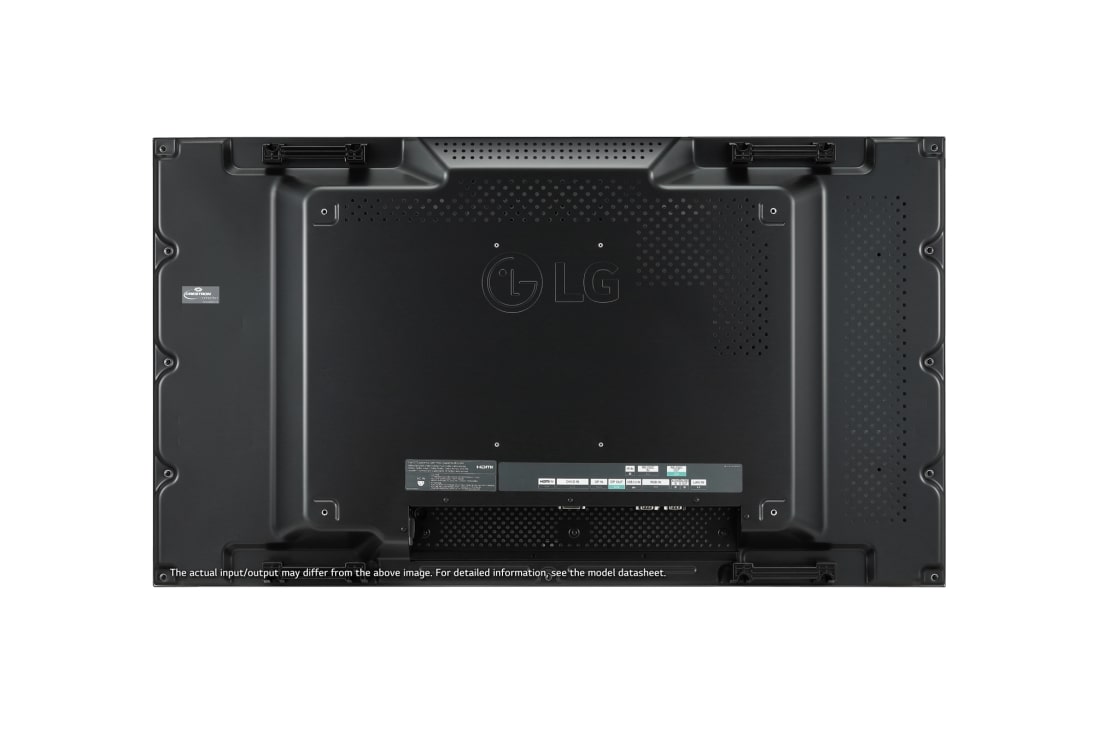

    VESA™ Standard Mount Interface
    600 x 400 mm

Environment Conditions

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

Power

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

Power Consumption

  • Typ.
    90 W
    Max.
    110 W
  • Smart Energy Saving
    55 W

Certification

  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC

Media Player Compatibility

  • OPS type compatible
    No

Software Compatibility

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+

Accessory

  • Basic
    Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
    Optional
    Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V)
