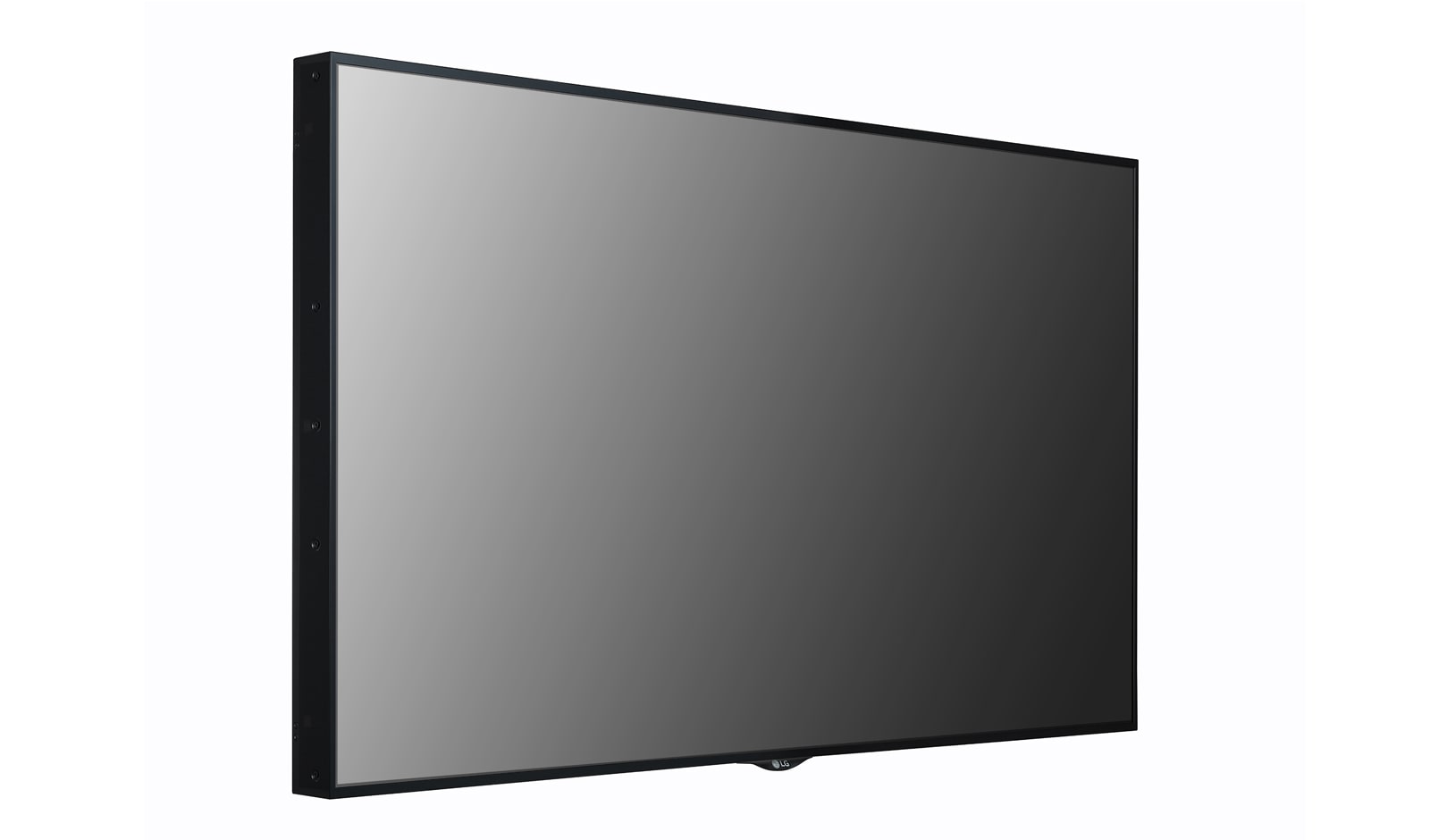

49XS2E
Window Facing Display
  • Brightness: 2,500cd/m² (Typ)
  • Life Time: 50,000 Hours
  • Bezel Width: 9 mm (T/B), 6.5 mm (L/R)

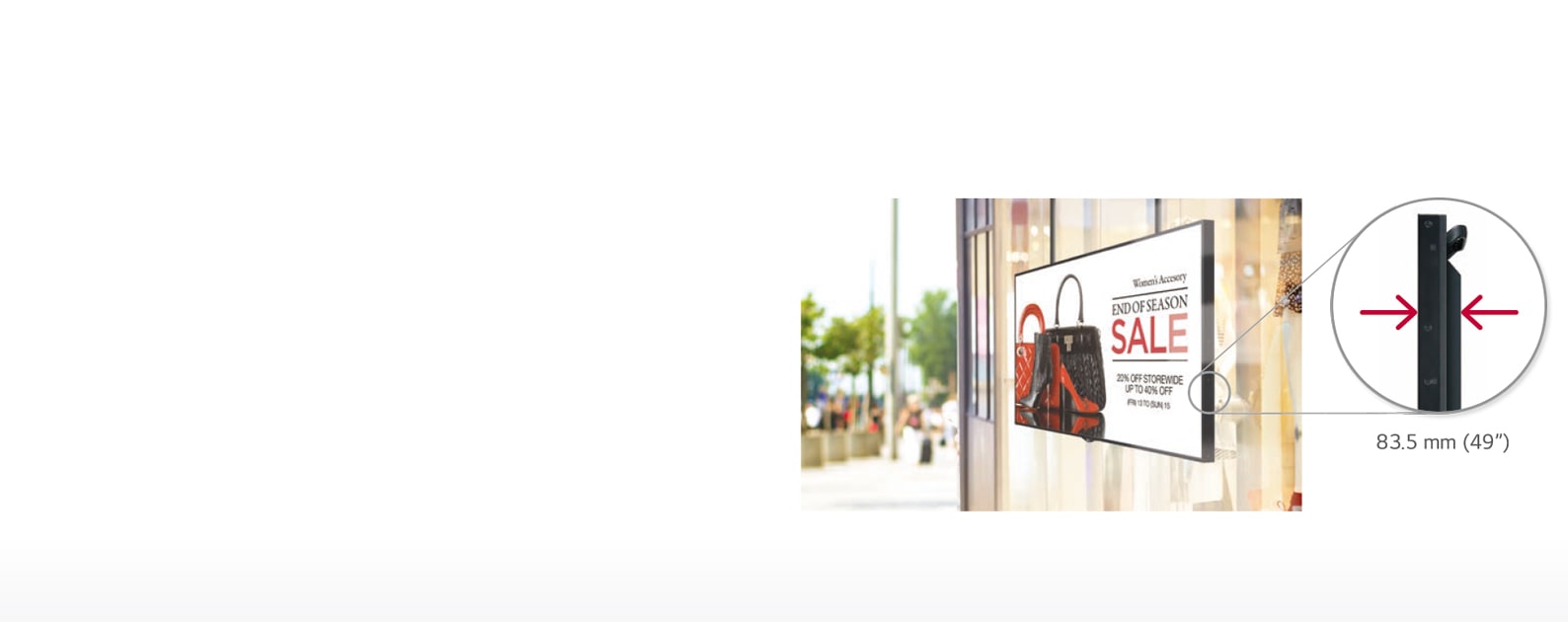

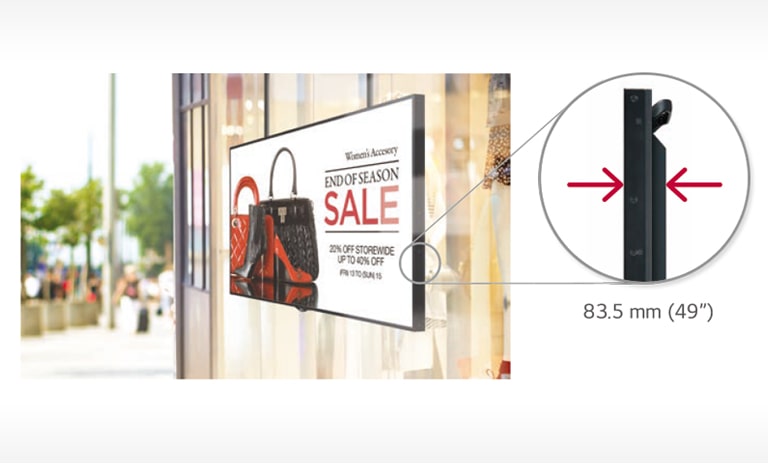

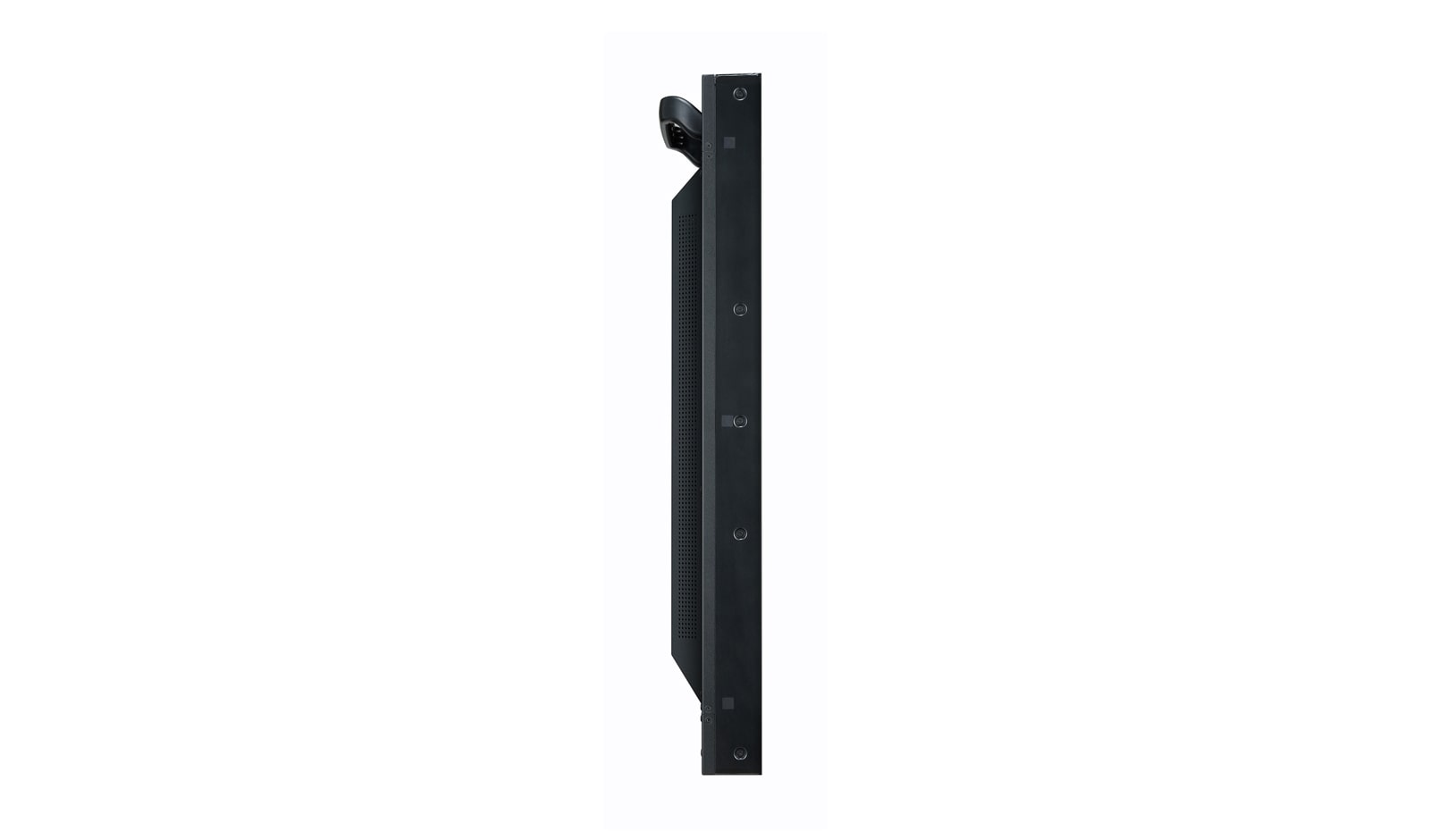

  • Depth: 83.5 mm
  • Interface: HDMI(2) / DP / DVI-D / RJ45 / IR / RS232C / USB / External Speaker Out(L/R)

component-OBScountrySelectDesc

Window Facing Display

Panel

  • Screen Size
    49" (48.50" Measured Diagonal)
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Typ., cd/m²)
    2500

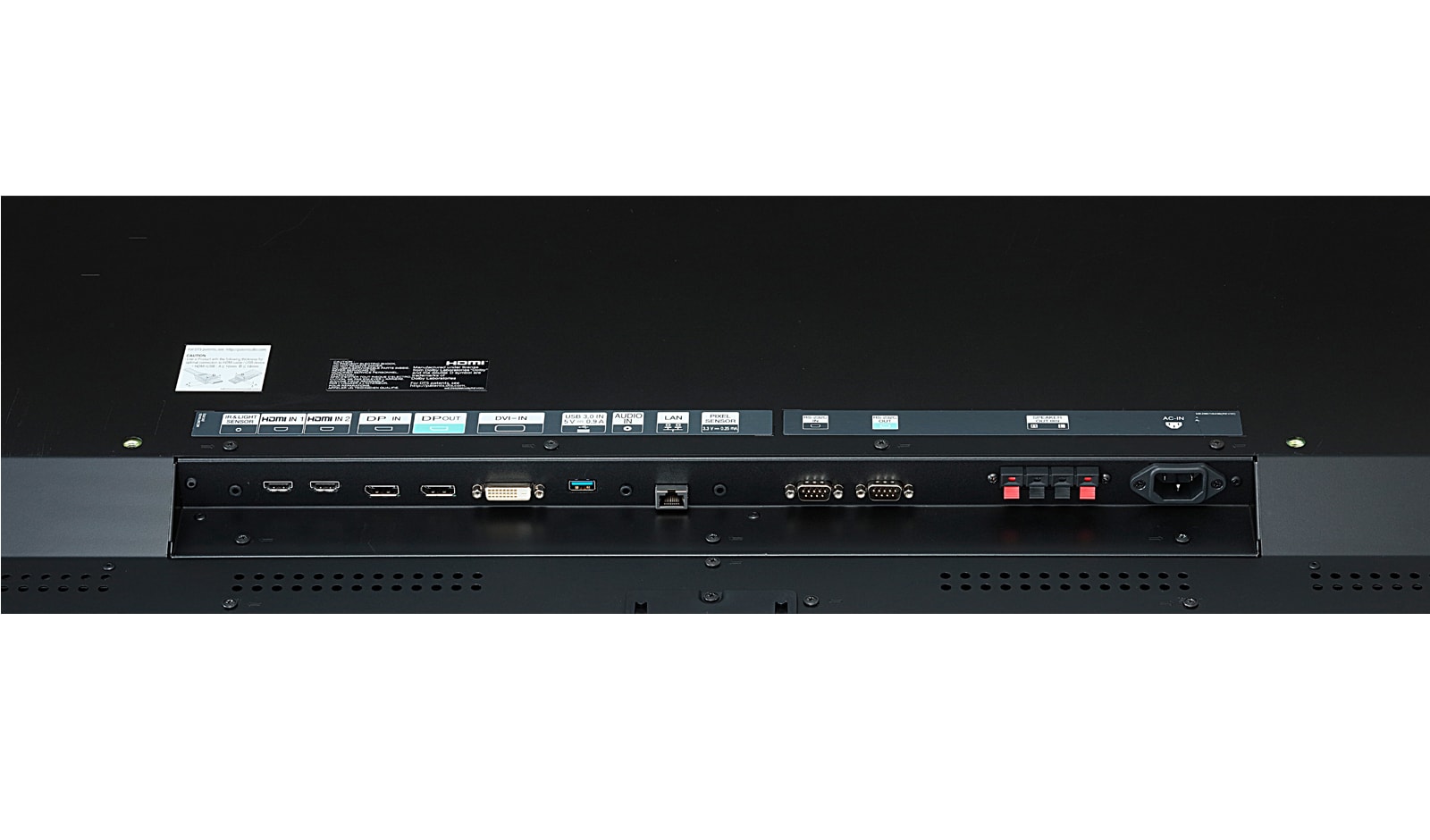

Connectivity

  • Input
    HDMI(2), DP, DVI-D, Audio, USB
    Output
    DP, External Speaker (L/R)
  • External Control
    RS232C In/Out, RJ45 In, IR Receiver In

Physical Specification

  • Bezel Width
    9 mm (T/B), 6.5 mm (L/R)
    Monitor Dimension (W x H x D)
    1,092.8 x 626.4 x 83.5 mm
  • Weight (Head)
    20.2 kg
    Carton Dimensions (W x H x D)
    1,181 x 212 x 725 mm
  • Packed Weight
    24.7 kg

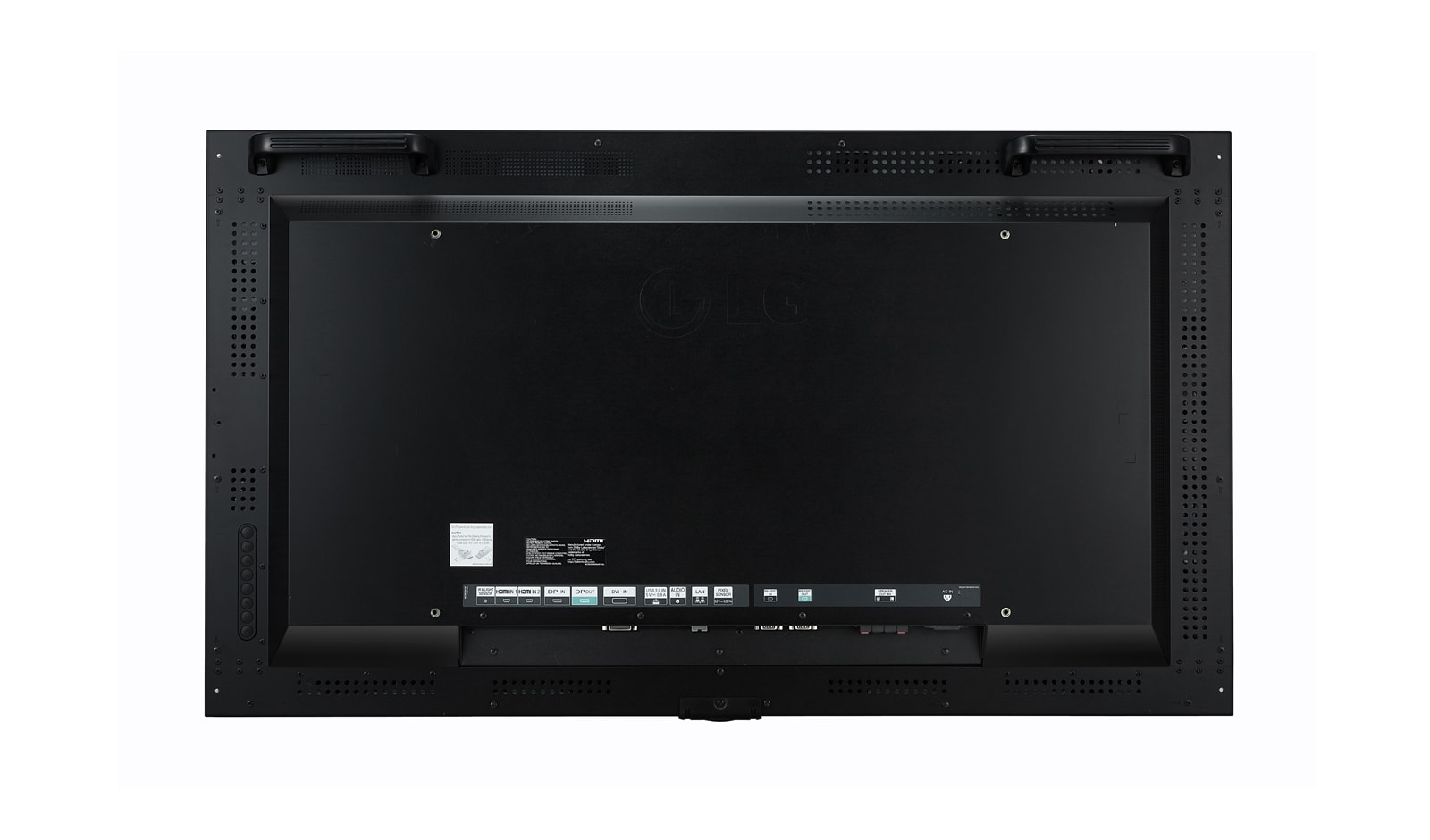

    VESA™ Standard Mount Interface
    600mm x 400mm

Power

  • Power Type
    Built-In Power
    Power Supply
    100-240V~, 50/60Hz

Power Consumption

  • Typ./Max
    200 W / 240 W
    Smart Energy Saving
    100 W

Standard(Certification)

  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC / VCCI
  • ErP / Energy Star
    Yes (EU Only) / No

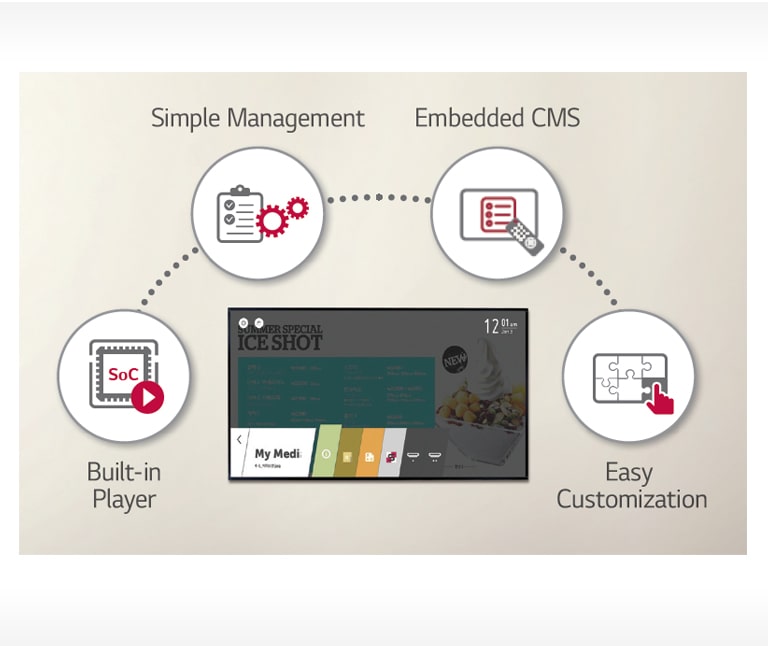

Software Compatibility

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+
    (Software compatibility may change over time.)

Accessory

  • Basic
    Remote Controller, Power Cord, HDMI Cable, Manual (ESG/EIG), IR Receiver (w/ Ambient Light Sensor)
    Optional
    Landscape Wall Mount (WM-L640V), Portrait Wall Mount (WM-P640V), Wi-Fi Dongle (AN-WF500)
  • Dimension
    • [Dimension]49XS2E.dwg
    • [Dimension]49XS2E.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
