Discontinued

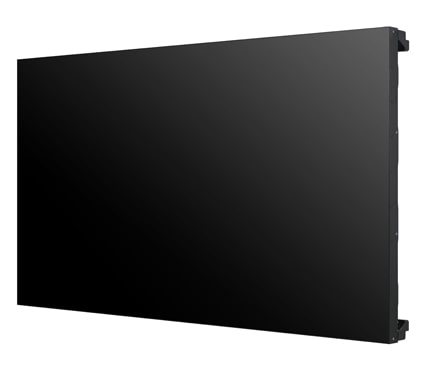

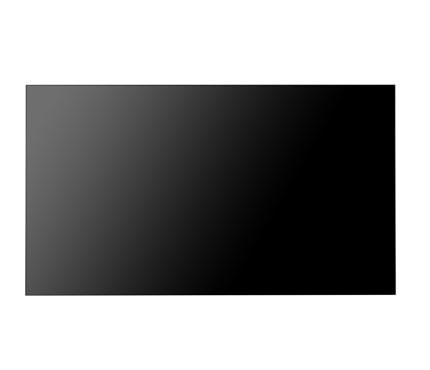

55LV35A
LV35A Series
55"

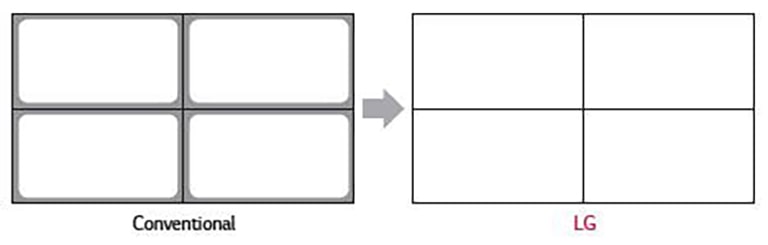

  • Super Narrow Bezel

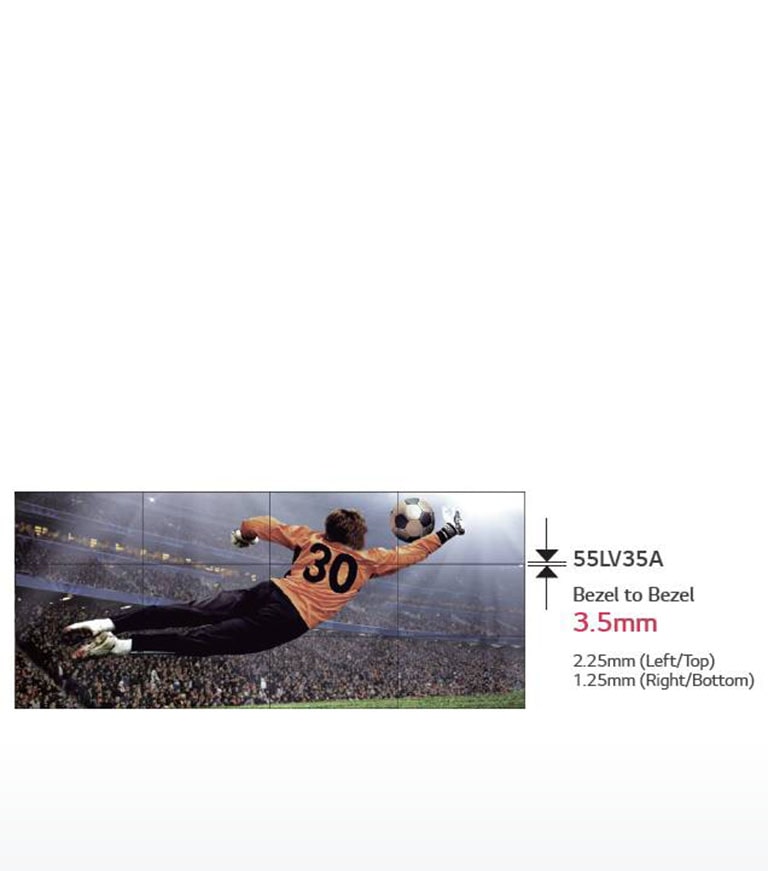

  • 3.5mm
  • Lighter & Thinner Cabinet
  • Weight 23kg, Depth 88.5mm
  • Higher Brightness Uniformity 80%
  • 24/7 Operation
LV35A Series

Panel

  • Screen Size
    55" Class (54.6" measured diagonal)
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Module, Typ., cd/m²)
    500

Connectivity - Intput

  • HDMI
    Yes (1)
    DP
    No
  • DVI-D
    Yes (1)
    Analog (RGB)
    Yes (1), Shared component/AV
  • Audio
    No
    External Control (RS232C IN)
    Yes (1)
  • External Control (RJ45)
    Yes (1)
    External Control (IR receiver)
    Yes (1)
  • External Control (Pixel Sensor)
    No
    USB
    Yes (1)

Connectivity - Output

  • DVI-D
    Yes (1)
    Audio
    No
  • Externel Speaker Out
    No
    External Control (RS232C OUT)
    Yes (1)

Physical Specification

  • Bezel Width
    2.25mm (L/T) / 1.25mm (R/B)
    Monitor Dimension (W x H x D)
    1,213.4mm X 684.2mm X 88.5mm
  • Weight (Head)
    23.0kg
    VESA™ Standard Mount Interface
    600mm x 400mm

Standard(Certification)

  • ErP / Energy Star
    Yes (EU Only) / Yes (Energy Star 7.0)

Media Player Compatibility

  • External Media player Attatchable
    Yes

Software Compatibility

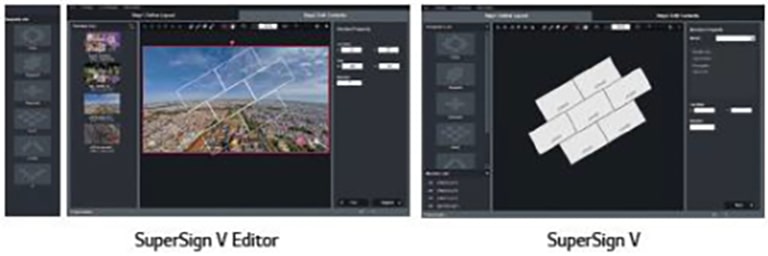

  • SuperSign-w lite
    Yes

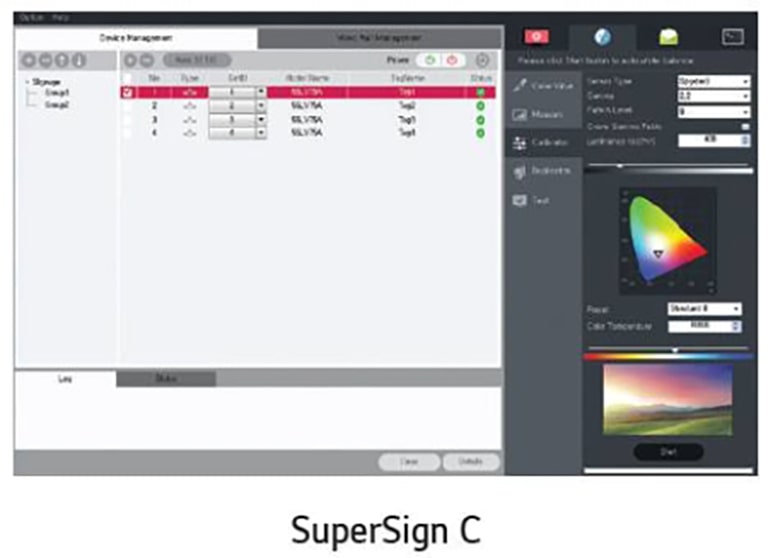

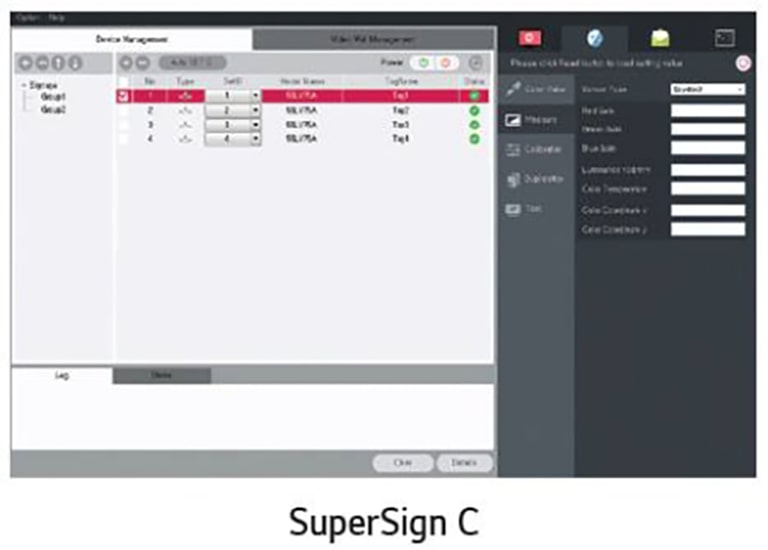

    SuperSign-c
    Yes

Accessory

  • Basic
    Remote Controller, Power cable, DVI Cable, Manual, IR Receiver, RS-232C Cable, Guide Bracket, Screw
    Optional
    WM-L640V (Landscape), WM-P640V (Portrait)

General

  • Region
    Global

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
