55SVH7F-A component-copyModelName

55'' 700 nits FHD 0.44mm Even Bezel Video Wall

LG 55'' 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A

LG 55'' 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A, thumbnail 0

LG 55'' 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A, thumbnail 1

LG 55'' 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A, thumbnail 2

LG 55'' 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A, thumbnail 3

LG 55'' 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A, thumbnail 4

LG 55'' 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A, thumbnail 5

LG 55'' 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A, thumbnail 6

LG 55'' 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A, thumbnail 7

LG 55'' 700 nits FHD 0.44mm Even Bezel Video Wall, 55SVH7F-A, thumbnail 8

/

Discontinued

55SVH7F-A component-copyModelName

55'' 700 nits FHD 0.44mm Even Bezel Video Wall

Key Features

Brightness(Typ.) : 700 cd/m²
Bezel : 0.44 mm (Even)
Depth : 86.5 mm
Interface : HDMI(2)/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
Smart Calibration

Choose your Size

55"

Inquiry to Buy

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 700 cd/m²
Bezel : 0.44 mm (Even)
Depth : 86.5 mm
Interface : HDMI(2)/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
Smart Calibration

Choose your Size

55"

component-OBScountrySelectDesc

component-copyModel-toastMsg

55" 700 nits FHD 0.44mm Even Bezel Video Wall

0.44mm EVEN BEZEL VIDEO WALL1

0.44mm EVEN BEZEL VIDEO WALL2

0.44mm EVEN BEZEL VIDEO WALL

Making use of LG's pioneering display technology, the 0.44mm Even Bezel Video Wall unlocks great opportunities in various markets, even in places that previously had avoided video walls due to the visible bezels.

Groundbreaking 0.44mm Even Bezel1

Groundbreaking 0.44mm Even Bezel2

Groundbreaking 0.44mm Even Bezel

The unprecedented razor-thin bezel – 0.44 mm EVEN BEZEL and 0.88 mm BEZEL TO BEZEL – which has been verified by Nemko*, makes content look like the actual original image by depicting a subject perfectly true to form, without any distortions.

Higher Viewing Angle1

Higher Viewing Angle2

VIVID AND DYNAMIC PICTURE QUALITY

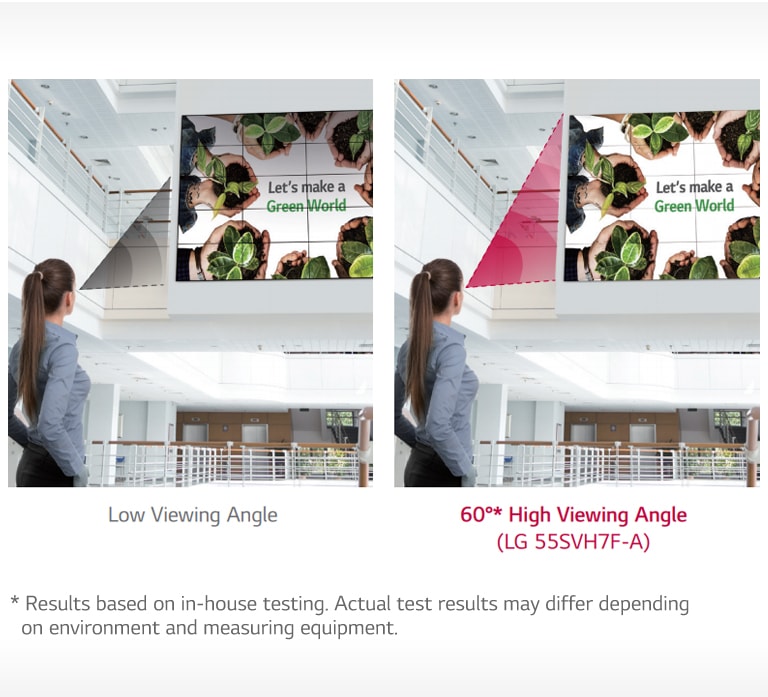

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the 55SVH7F-A is superior to that of conventional video walls, allowing it to display vivid colors throughout the screen with no distortion.

Wider Viewing Angle1

Wider Viewing Angle2

VIVID AND DYNAMIC PICTURE QUALITY

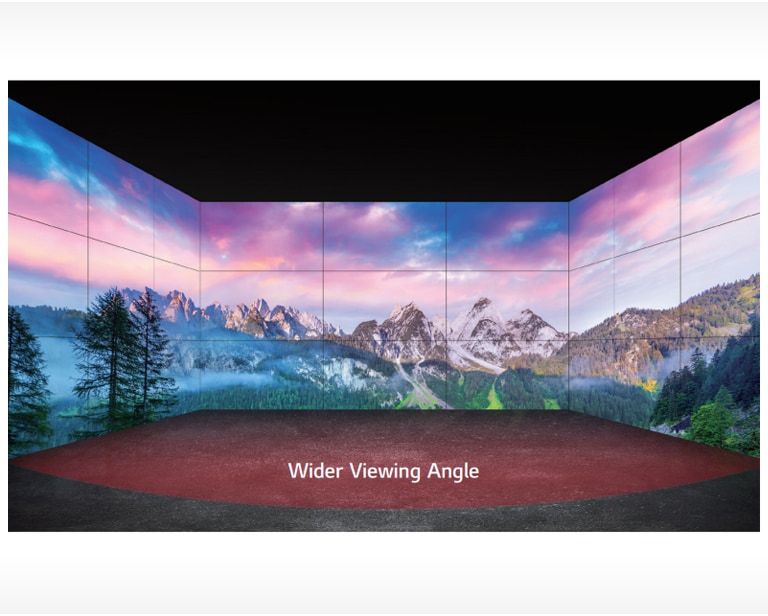

Wider Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the 55SVH7F-A captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

Uniform Color Expression1

Uniform Color Expression2

VIVID AND DYNAMIC PICTURE QUALITY

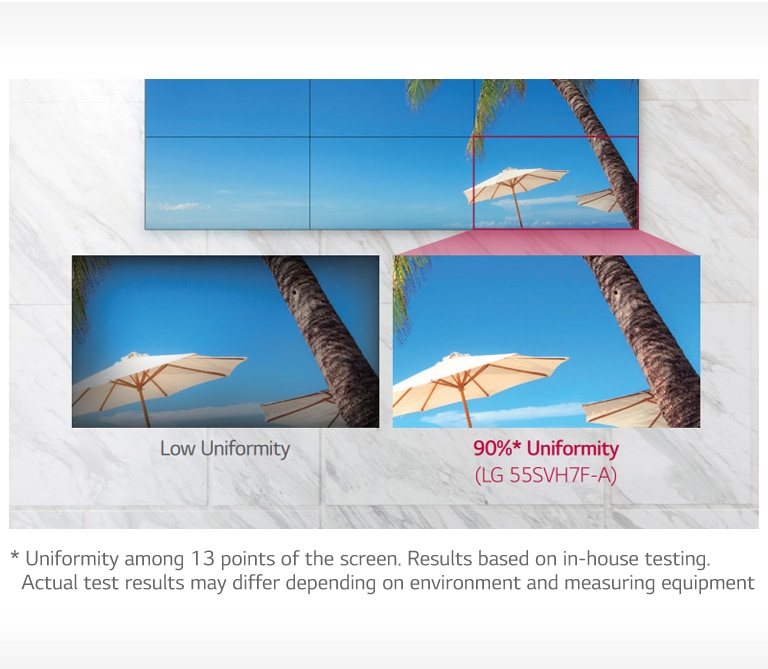

Uniform Color Expression

Poor uniformity around bezel boundaries can give the corners a darker appearance, which doesn't look good on a large screen. However, the 55SVH7F-A has enhanced uniformity, even within the four corners of the display, to deliver vivid and consistent color throughout the screen.

Image Gap Reduction1

Image Gap Reduction2

VIVID AND DYNAMIC PICTURE QUALITY

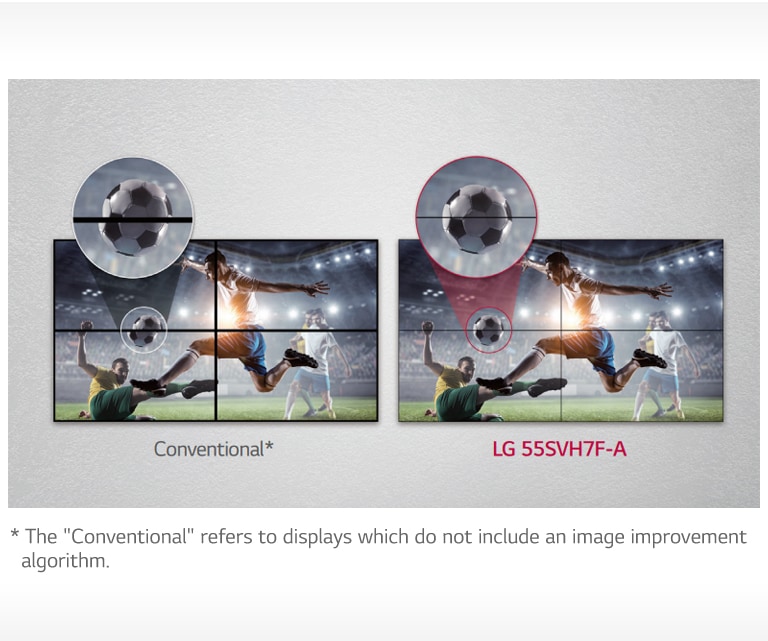

Image Gap Reduction

The 55SVH7F-A includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

VIVID AND DYNAMIC PICTURE QUALITY

Smart Calibration

Smart Calibration is a solution that enables the reduction of time and costs compared to existing sensor calibration methods. It analyzes not only the color property differences within each individual display but also the differences between connected displays. With just few simple clicks of a remote control, this calibration process can be done in a matter of minutes. In addition, calibration can be set to automatically occur at regular intervals to always deliver optimum image quality.

Smart Calibration1

Smart Calibration2

* Depending on the user, the difference in color can be felt after smart calibration. In this case, it is recommended to adjust the color manually.

High Performance and Great Scalability1

High Performance and Great Scalability2

POWERFUL SMART SIGNAGE PLATFORM

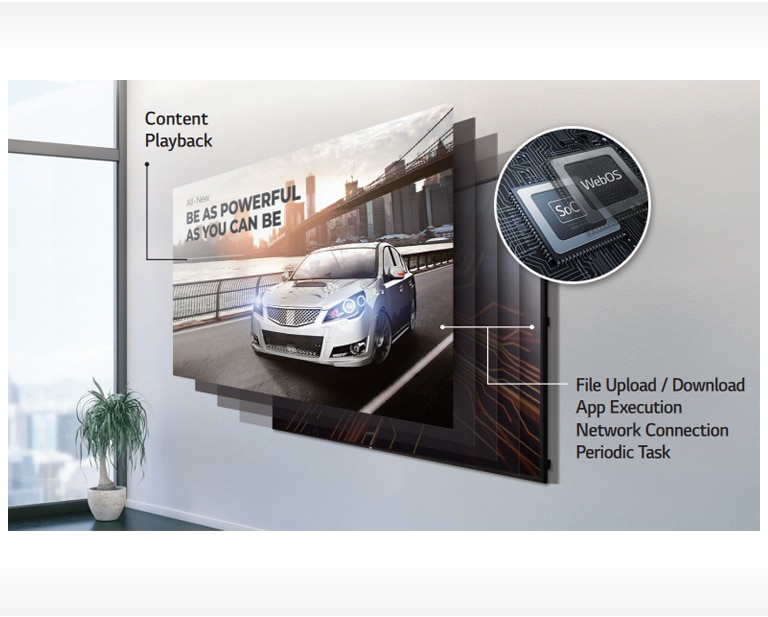

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the 55SVH7F-A can execute several tasks at once while providing smooth content playback without the need for a media player.

Flexible Content Creation1

Flexible Content Creation2

POWERFUL SMART SIGNAGE PLATFORM

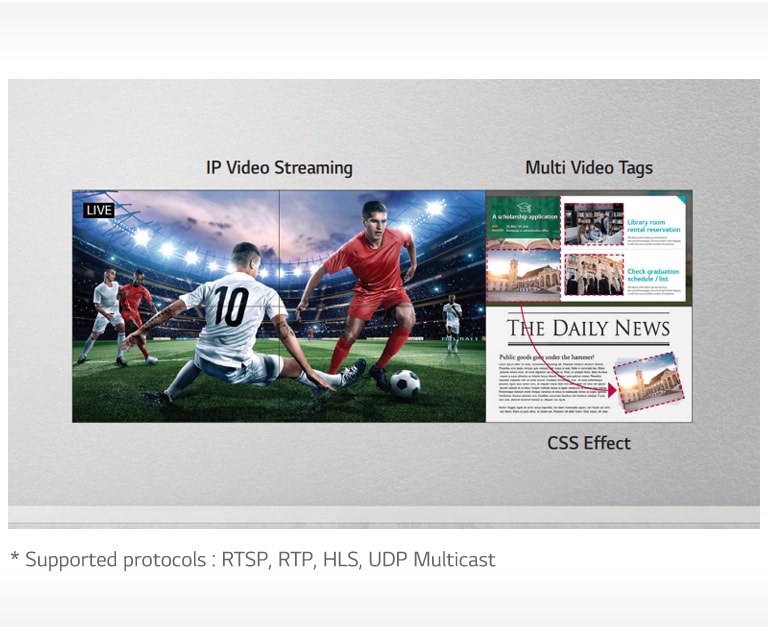

Flexible Content Creation

Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS(Cascading Style Sheets) transition effects. Real-time streaming* is also available, providing the flexibility to organize and diversify content free from capacity limits.

Intuitive Menu Structure 1

Intuitive Menu Structure 2

USER-FRIENDLY SMART SIGNAGE UX

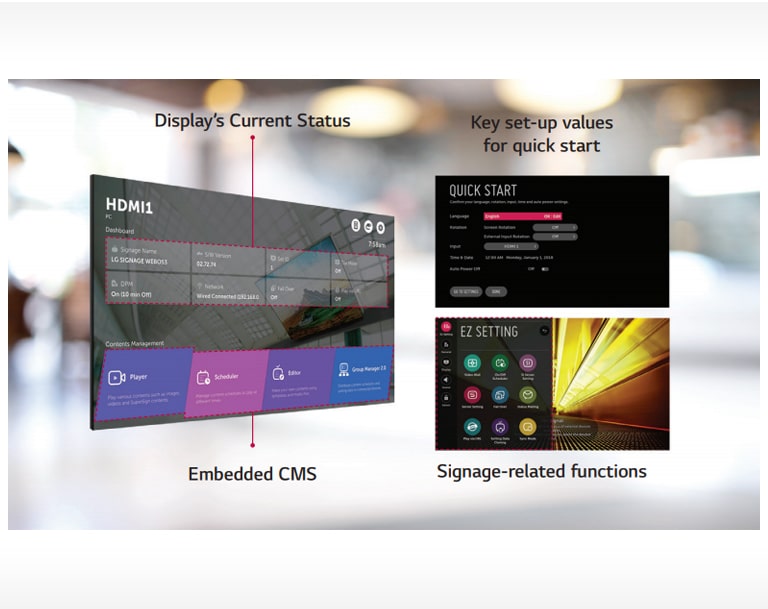

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

Dedicated GUI for Portrait Orientation1

Dedicated GUI for Portrait Orientation2

USER-FRIENDLY SMART SIGNAGE UX

Dedicated GUI for Portrait Orientation

The conventional GUI(Graphic User Interfac ) was designed based on landscape-oriented consumer TV usage, so OSD(On Screen Display) wasn't well-suited for screens in portrait mode. The OSD of the 55SVH7F-A, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable business environment.

Easy Color Adjustment1

Easy Color Adjustment2

USER CONVENIENCE

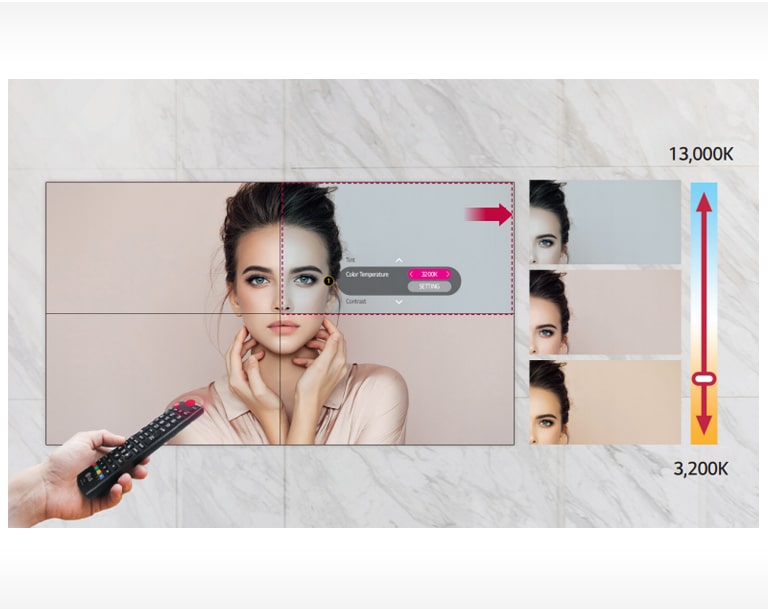

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

Simple White Balance Adjustment1

Simple White Balance Adjustment2

USER CONVENIENCE

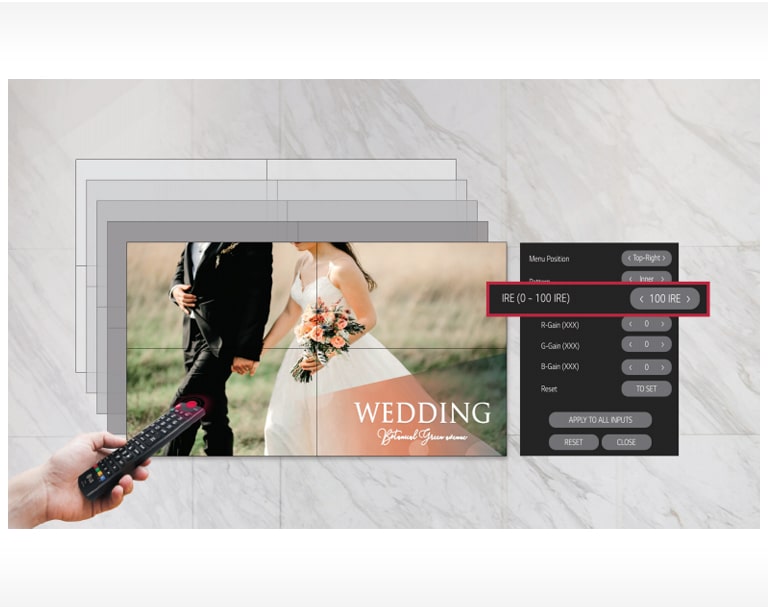

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in full-white mode, but the 55SVH7F-A allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

Daisy Chain Capability1

Daisy Chain Capability2

USER CONVENIENCE

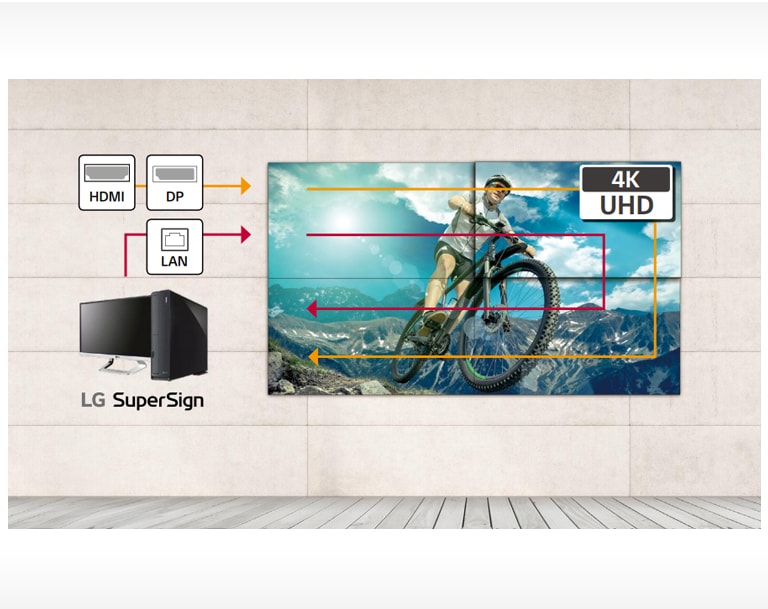

Daisy Chain Capability

A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST or Matrox graphics card.

Real-Time Care Service1

Real-Time Care Service2

USER CONVENIENCE

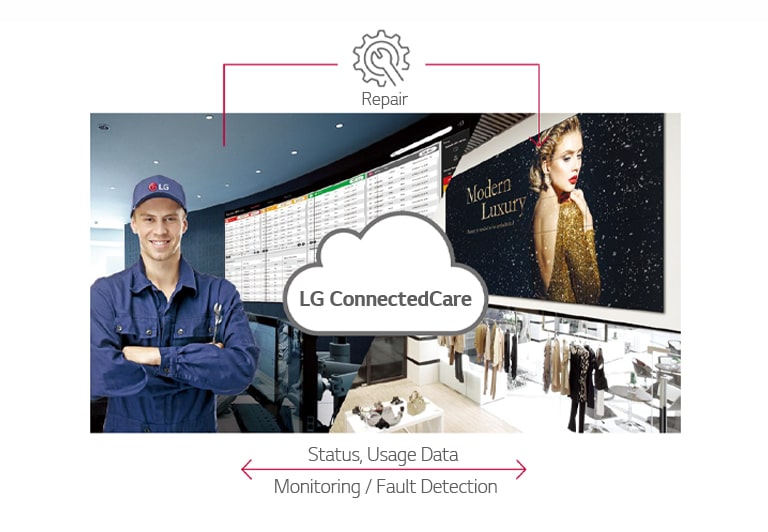

Real-Time Care Service

The maintenance gets easier and faster with an optional service LG ConnectedCare*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.

* The availability of “LG ConnectedCare” service can differ by region, so please contact the LG sales representative in your region for further details.

ENERGY STAR® Certified

ENERGY STAR® Certified

Explore more showroom at<br>LG Digital Connect1

Explore more showroom at<br>LG Digital Connect2

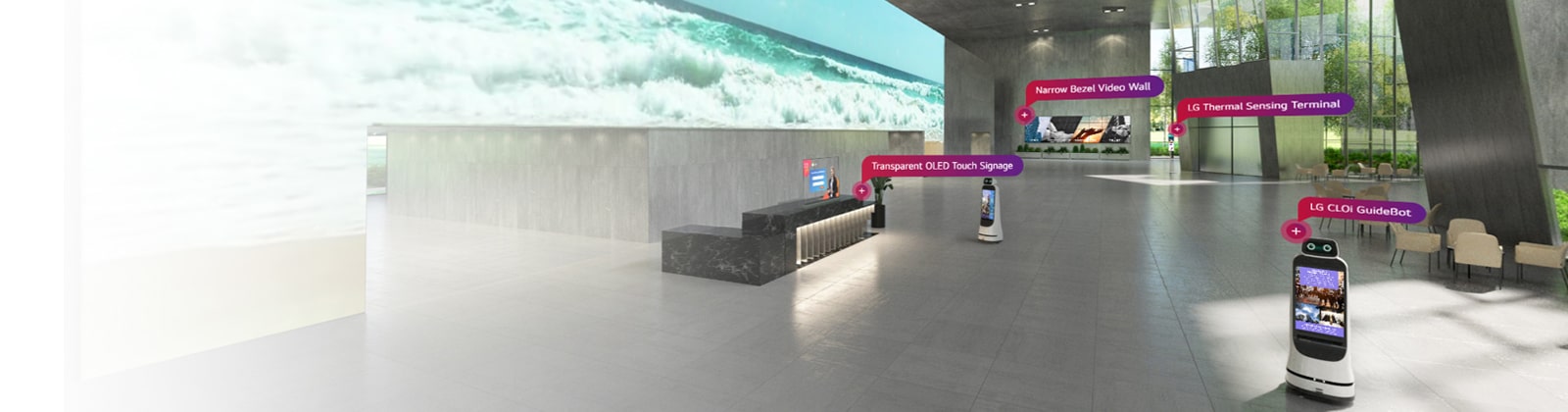

Explore more showroom at
LG Digital Connect

Explore

Print

Close

Panel

Screen Size

55"

Panel Technology

IPS RGB
Aspect Ratio

16:9

Native Resolution

1,920 x 1,080 (FHD)
Brightness(Typ.,cd/m²)

700

Contrast Ratio

1,200:1
Dynamic CR

500,000 : 1 (The luminosity ratio of Full Black/Full White color on video input condition.)

Viewing Angle (H x V)

178 x 178
Response Time

8 ms (G to G)

Surface Treatment

Haze 3%
Life Time (Typ.)

60,000 Hrs

Operation Hours

24 Hrs
Orientation

Landscape & Portrait

Connectivity

Input

HDMI (2), DP, DVI-D, Audio, USB

Output

DP, Audio
External Control

RS232C In/out, RJ45 (LAN) In/out, IR In

Mechanical Specification

Bezel Color

Black

Bezel Width

0.44 mm (Even)
Monitor Dimensions (W × H × D)

1,210.51 x 681.22 x 86.5 mm

Weight (Head)

16.8 kg
Carton Dimensions (W × H × D)

1,353 x 855 x 263 mm

Packed Weight

23.6 kg
Handle

Yes

VESA™ Standard Mount Interface

600 x 400 mm

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ.

210 W

Max.

250 W

Certification

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC
ErP / Energy Star

Yes (EU Only) / Yes (Energy Star 8.0)

Media Player Compatibility

OPS type compatible

Yes (Piggyback)

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control / Control+

Accessory

Basic

Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual

Optional

Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V), OPS Kit (KT-OPSF)

Dimension
- [Dimension]55SVH7F-A.dwg
- [Dimension]55SVH7F-A.pdf
Datasheet
- 55SVH7F-A_Datasheet(low)_LG Video Wall_220321.pdf
